group (e.g., pyrazolopyridine 3 PDE4B pIC50 = 7.1).16 Unfortunately,
SO2Me
SO2Me
the quinoline 32 with the tetrahydropyran in the 4-position was
inactive (Table 1). It was discovered that an aromatic substituent
was essential for potency in this position in this quinoline series.
Removal of the 4-substituent resulted in an inactive compound 33.
A large number of compounds were synthesised investigating a
wide range of substituents, a selection of which is detailed in Table
1. Some of the key SAR findings for PDE4B enzyme potency were:
(ii) - (vi)
NH
N
MeO
MeO2S
(i)
HN
NH2
CO2Et
CONH2
CO2Et
5
18
19

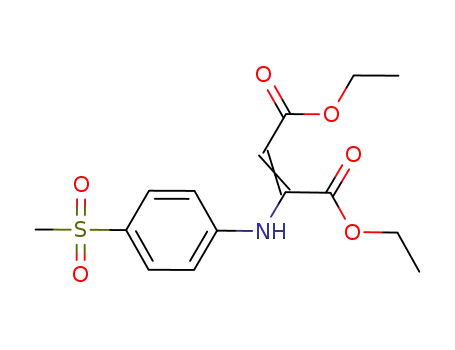

Scheme 5. Synthesis of 2-substituted quinolines. Reagents and conditions: (i)
diethyl 2-butynedioate, 80 °C; (ii) Ph2O, 250 °C; (iii) SOCl2, DMF (cat); (iv) 3-
methoxyaniline, MeCN, 80 °C; (v) NaOH, EtOH; (vi) TBTU, iPr2NEt, DMF, 0.880
ammonia.
ꢀ Meta substitution on the aromatic ring was preferred by the
PDE4B-binding site.
ꢀ Large and bulky substituents in the ortho and para positions
reduced PDE4B potency (data not shown).
ꢀ Ortho substitution with small substituents was tolerated (34, 35,
and 4) especially if constrained in a ring to the meta position
(36).
ꢀ Heterocyclic phenyl ring replacements and basic substituents
reduced the logP (37 clogP = 1.6 and 38 clogP = 1.4) which
was potentially advantageous for oral exposure, but they were
less potent at PDE4B.
hydroxide in ethanol to give acid 14. Acid 14 was treated with
TBTU in DMF followed by an amine to give amide 15. Acid 14
was transformed into the 1,3,4-oxadiazole 16 by treatment with
an acyl hydrazide followed by cyclo-dehydration with Burgess’ re-
agent.12 To form 1,2,4-oxadiazole 17, ester 13 was reacted with N-
hydroxyethanimidamide.
The synthesis of the compound with the primary carboxamide
group moved to the 2-position of the quinoline is shown in Scheme
5. 4-(Methylsulphonyl)-aniline 5 was condensed with diethyl 2-
butynedioate at 80 °C,13 followed by similar chemistry to that
which was used to prepare the 3-substituted analogues.
Variation of the 8-substituent was not possible at a late stage of
the synthesis so modifications were made as shown in Scheme 6.
Quinolines containing the 8-methyl and 8-methoxy substituents
were synthesised by displacement of an aromatic fluoride 20 and
21 with sodium methane sulphinate at 75 °C in DMA,14 followed
by reduction of the nitro group to give amines 22 and 23. The syn-
thesis then proceeded as described in Scheme 1. Condensation of
aryl iodides 24–27 with diethylethoxymethylene malonate and
cyclisation in diphenyl ether at 250 °C followed by ester hydrolysis,
chlorination with thionyl chloride and reaction with ammonia
gave intermediates 28–31. Amine displacement in refluxing aceto-
nitrile followed by palladium-catalysed coupling with the tribu-
tyl(methylthio)stannane in refluxing toluene under palladium
catalysis.15 Oxidation with OxoneÒ afforded the target compounds.
Initially we investigated finding a replacement for the poten-
tially metabolically vulnerable hydroxy substituent on the pendant
aromatic ring in quinoline 2. As shown in Figure 2 the group at C-4
in the quinoline binds into the same part of the active site of the
PDE4B enzyme as the cyclic substituents that gave potent com-
pounds in the pyrazolopyridine series, such as the tetrahydopyran
ꢀ Acidic substituents on the phenyl ring were not well tolerated
(39).
The replacement of the metabolically vulnerable hydroxy group
in quinoline 2 by a methoxy group 4 resulted in an increase in po-
tency and an improved rat PK profile giving 10% oral bioavailabil-
ity. Further improvements in the PK profile were observed by
replacing the methoxy group with a nitrile 35 or constraining the
methoxy group into a ring as in the dihydrobenzofuran 36. The
addition of fluorine (40 and 41) onto the aryl ring resulted in im-
proved bioavailability.
Modifications to the 4-amino linker group were very detrimen-
tal to PDE4B potency (Table 2).
This data indicates the potential importance of an intramolecu-
lar hydrogen bond between the NH and the carbonyl group of the
3-carboxamide. This hydrogen bond is not possible with any of the
other linkers that were tried, possibly contributing to their lack of
PDE4B binding potency.
Next the hydrogen bond donor/acceptor properties of the pri-
mary carboxamide were modified, small substituents placed on
the nitrogen (11, 12a, 14a and 15) and the primary carboxamide
replaced with simple aromatic heterocycles (16 and 11). Some of
the compounds described in Table 3 have a phenyl sulphone group
in the 6-position of the quinoline (e.g., 4a, 12a and 14a). This group
was under investigation as an inhaled target early in the pro-
gramme. The phenyl sulphone gave a higher PDE4B enzyme po-
tency compared to the methyl sulphone, but was detrimental for
solubility and oral PK.19 The chemistry to make the compounds
with the phenyl sulphone is analogous to the chemistry to make
compounds with the methyl sulphone. All of these modifications
reduced the potency at PDE4B significantly (Table 3). These data
showed that the 3-primary carboxamide was essential for the high
binding affinity of the quinolines in the PDE4B enzyme. This was
rationalised when the crystal structure of 4 bound to the catalytic
domain of PDE4B was determined (Fig. 3).
The primary carboxamide sits in a small binding pocket with
one of the NH’s hydrogen bonding to asparagine-395 in PDE4B
and the other NH binding to glutamine-443 via a water molecule
(Fig. 3). The carbonyl group participates in two hydrogen bonds,
one to the NH of the 4-amino group and a second to an extensive
water network. The intra-molecular hydrogen bond is believed to
lock the quinoline into the preferred conformation to bind into
the active site of the PDE4B enzyme.
HNR4
F
MeO2S
MeO2S
CONH2
(ii)
(iiii)
(i)
NO2
NH2
R8
N
R8
R8
(ix), (x)
CONH2
R8=Me (20)
OMe (21)
R8=Me (22)
OMe (23)
43-48
Cl
N
I
I
(iv) - (viii)
NH2
R8
R8
R8=Et(24), F(25)
R8=Et(28), F(29)
Cl(26), CF3(27)
Cl(30), CF3(31)
Scheme 6. Synthesis of variants at the quinoline 8-position. Reagents and
conditions: (i) MeSO2Na, DMA, 75 °C; (ii) Pd/C, H2, AcOH; (iii) see conditions in
Scheme 1; (iv) Diethylethoxymethylenemalonate, 80 °C; (v) Ph2O, 250 °C; (vi)
NaOH, EtOH; (vii) SOCl2, DMF (cat); (viii) NH4OH; (ix) amine, MeCN, 80 °C; (x)
MeSSnBu3, Pd(PPh3)4, toluene, reflux, then Oxone, DMF.
The crystal structure of quinoline 4 bound in the active site of
the PDE4B enzyme showed the presence of a small lipophilic bind-
ing pocket beneath the 8-position of the quinoline (Fig. 4). Subse-
