Synthesis of Covalently-Linked Phthalocyanine–
Phthalocyanine and Porphyrin–Phthalocyanine Dimers
Alexey Lyubimtsev,A,B Zafar Iqbal,A and Michael HanackA,C
AInstitut für Organische Chemie, Universität Tübingen, Auf der Morgenstelle 18,
72076 Tübingen, Germany.
BIvanovo State University of Chemistry and Technology, Organic Chemistry Department,
F. Engels Str. 7, 153460 Ivanovo, Russia.
CCorresponding author. Email: hanack@uni-tuebingen.de
The synthesis of the dimeric homonuclear phthalocyanines (Pc) 4a, 4b, 5a and 5b and the dimeric heteronuclear Pc 4c
and 5c is reported. The reactions are carried out by coupling the monomeric Pc 1a and 1b each containing a phenolic
OH group in one of its substituents with the bromoalkyl-substituted Pc 2a,b or 3a,b respectively. From the spectral
data of 4a–c and 5a–c, it can be concluded that in dichloromethane and toluene as solvents, these binuclear Pc are
equilibrating between cofacial and open conformations with the open form predominating. Changing the solvent polarity,
e.g. by adding methanol, the equilibrium is shifted towards a cofacial conformation. Treatment of the Pc 2a,b and 3a,b
with 5-(4ꢀ-oxyphenyl)-10,15,20-triphenylporphin (6) in a basic solution gives the porphyrins (P)-Pc dimers 7a,b and 8a,b
respectively. In dichloromethane, the open conformation is preferred for the P-Pc dimers.
Manuscript received: 28 December 2007.
Final version: 12 March 2008.
Introduction
β-pyrrolic position of the P allow a close proximity of the two
macrocycles.[6]
Multinuclear phthalocyanines (Pc) and porphyrins (P) have
attracted much attention recently because of their potential appli-
cationsascatalysts, semiconductors, andespeciallyasnon-linear
optical materials.[1]
Dimeric Pc structures that are covalently linked by a spacer
and in which the spacer length is systematically varied through a
chain of one to five atoms were studied for the effect of the link-
age length on the interaction between the two terminal Pc. After
reaching a sufficient length of the spacer, a cofacial intramolec-
ular association referred to as ‘clamshell behaviour’is observed,
with a dynamic equilibrium existing between open and closed
arrangements.[2]
One method to synthesize dimeric Pc is a statistical con-
densation of bisphthalonitriles or bisdiiminoisoindolines already
containing the spacer with other substituted phthalonitriles or
diiminoisoindoline.[3,7] Using bisbenzaldehydes, bisporphyrins
with different spacers were synthesized.[5] However, by using
this method, only mononuclear bisphthalocyanines and bis-
porphyrins can be prepared.
Heteronuclear bisporphyrins and bisphthalocyanines can
by synthesized by a step-by-step method. First, substituted
phthalonitrile containing P or phthalocyanin is synthesized.[6a–d]
The subsequent statistical condensation with another phthalo-
nitrile gives dimeric mononuclear or heteronuclear Pc and P-Pc
dimers. P-Pc dimers can be synthesized also from benzaldehyde
containing the Pc-fragment by condensation with pyrrole and
other benzaldehydes.[6e] However, in both cases, the last step
results in low yields of the final products.
Covalently spacer-linked dimeric Pc have previously been
reported by Lever,[3] Torres[4a–c] and our group.[4d] The spac-
ers in these dimeric Pc can be bis-alkoxy groups (e.g.
–OCH2C(CH3)-(R)–CH2O–),[3a–c] catechols with oxygen as
bridging atoms,[3d] methylene chains of different lengths (e.g.
–(CH2)n– with n = 2, 4),[3d] alkynyl chains of varying lengths
(e.g. –(C≡C)m– with m = 1, 2),[4a,c] double alkynyl chains with
m = 2[4b] or mixed alkyl-aryl spacers.[4d]
P or Pc containing a functional group such as OH, NH, or
halogens can also be used directly for dimerization by applying a
bifunctional spacer or by coupling two units.[4,6f,g] In our earlier
work,[4d] we synthesized dimeric homo- and heteronuclear Pc,
starting from unsymmetrical Pc 1a,b, each containing a phenolic
OH group in one of its substituents.
Similar dimeric systems have also been prepared with P taken
as macrocycles instead.[5] Like the dimeric Pc, these P-based
systems are covalently linked with alkyl or aryl groups through
a meso carbon in a pillared cofacial configuration.
We report here the synthesis of Pc-Pc 4, 5 and P-Pc 7, 8 dimers
linked through mixed alkyl-aryl spacers.
The combination of porphyrins with phthalocyanines (P-Pc)
has been especially investigated as light harvesting systems
because of their wider absorption spectrum with respect to
the single macrocycles. As the Pc Q-band is very close to the
fluorescence wavelength of P, an efficient energy transfer from
the P to the Pc occurs after excitation in quite a few P-Pc
dimers. P-Pc dimers that are connected via the meso- or the
Results and Discussion
The synthesis of Pc-Pc 4, 5 and P-Pc 7, 8 dimers is shown in
Scheme 1.The preparation of the starting Pc 1 has been described
by us earlier.[4d] Pc 3a and 3b were also prepared by us in
© CSIRO 2008
10.1071/CH07449
0004-9425/08/040273

RESEARCH FRONT
274
A. Lyubimtsev, Z. Iqbal, and M. Hanack
R
R
R
R
N
N
N
N
N
N
N
R
R
R
R
M
N
1
N
N
N
N
R
R
R
R
(i)
N
M
4
2
6
8
3
N
N
N
2a M ꢀ H2, n ꢀ 3
2b M ꢀ Ni, n ꢀ 3
3a M ꢀ H2, n ꢀ 6
3b M ꢀ Ni, n ꢀ 6
O
7
1a M ꢀ H2
1b M ꢀ Ni
5
O
O
(CH2)n
HO
Br
OH
Pb
N
HN
R
6
NH
R
(ii)
(iii)
N
Pb
Pb
R
R
R
R
N
R
N
N
N
N
N
M
2
N
N
R
N
N
3
2
M
N
N
N
3
N
N
1
4
O
N
R
4
O
R
8
R
8
7
5
R
5
6
6
O
7
4a M ꢀ M1 ꢀ H2, n ꢀ 3
4b M ꢀ M1 ꢀ Ni, n ꢀ 3
4c M ꢀ H2, M1 ꢀ Ni, n ꢀ 3
5a M ꢀ M1 ꢀ H2, n ꢀ 6
5b M ꢀ M1 ꢀ Ni, n ꢀ 6
5c M ꢀ H2, M1 ꢀ Ni, n ꢀ 6
7a M ꢀ H2, n ꢀ 3
7b M ꢀ Ni, n ꢀ 3
8a M ꢀ H2, n ꢀ 6
8b M ꢀ Ni, n ꢀ 6
O
(CH2)n
(CH2)n
7
O
O
6
4
3؅
5
2؅
8
Ph
N
HN
O
R
NH
N
1
R
3
Ph
Ph
N
N
2
N
β
δ
ϕ
11
O
Pc
N
M1
N
N
Br (O-Por)
9
α
γ
ε
N
R ꢀ
O
10
N
β
R
O
R
Br (O-Por)
Pc
α
ϕ
R
R

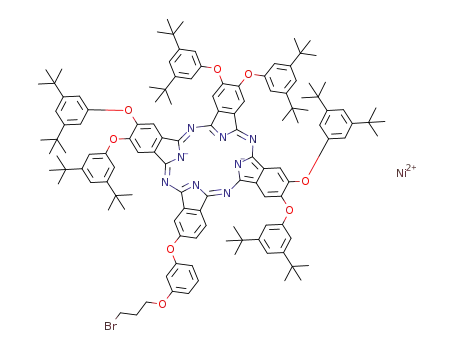

Scheme 1. (i) Br(CH2)nBr (n = 3 or 6), DMF/THF, K2CO3, 75◦C, 3 h; (ii) 1a or 1b, DMF/THF, K2CO3, 75◦C, 6 h; (iii) DMF/THF,
K2CO3, 75◦C, 6 h.
the same publication. Treatment of 1a and 1b with excess 1,3-
dibromopropane in the presence of potassium carbonate, either
in DMF or in a DMF/THF mixture (1:1), resulted mainly in the
formation of the corresponding bromopropyl derivatives 2a and
2b.As seen byTLC, 1a,b were completely alkylated after a reac-
tion time of 3 h; no starting material was present any more. The
dimeric compounds 4a,b and 5a,b were also formed in small
quantities under the synthesis conditions. They were separated
by column chromatography as the first fraction.
monomeric Pc 1–3 show the typical electronic spectra for metal-
free Pc (1a, 2a, 3a) and metal-containing (1b, 2b, 3b). The
tendency of aggregation in organic solvents (dichloromethane
(DCM), toluene and mixture with methanol) in concentration in
the regions 10−5–10−7 mol L−1 is relatively low.
The 1H NMR spectra of Pc 2a,b and 3a,b exhibit no signals of
hydroxyl protons.Two triplets at ∼4.0 and 3.4 ppm correspond to
four alkyl protons Hα and Hϕ of the bromohexyl or bromopropyl
fragments, and triplets near 2.3 ppm in the spectra of 2a and 2b
correspond to two protons Hβ of the bromopropyl fragment,
whereas the signals of the eight protons Hβ, Hγ, Hδ, and Hε
