Three-Dimensional Metal Azide Coordination Polymers with Amino Carboxylate
Coligands: Synthesis, Structure, and Magnetic Properties
Zi-Lu Chen,† Chun-Fang Jiang,† Wei-Hong Yan,† Fu-Pei Liang,*,† and Stuart R. Batten‡
†School of Chemistry and Chemical Engineering, Guangxi Normal University, Guilin 541004,
China and ‡School of Chemistry, Monash University, Victoria 3800, Australia
Received October 22, 2008
The reaction of M(II) ions with azido ligands in the presence of different amino carboxylic acids gave four three-
dimensional metal-azido coordination polymers, [Mn(3,5-daba)(N3)]n (1), [Cd(3,5-daba)(N3)]n (2; 3,5-daba = 3,

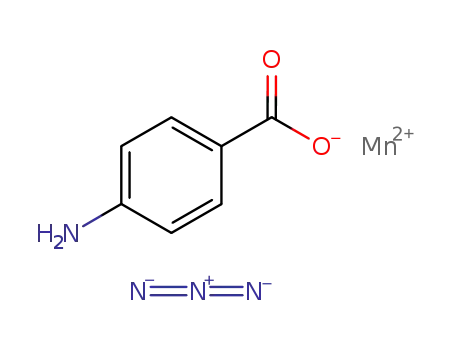

5-diaminobenzoate), [Mn(4-aba)(N3)]n (3; 4-aba = 4-aminobenzoate), and [Cu2(gly)2(N3)2]n (4; gly = glycinate), which
::
display different topological structures. Polymers 1 and 2 present 4,6-connected 3D networks with different Schlafli
::
symbols. However, 3 and 4 feature an unprecedented trinodal 3,6-connected network with the Schlafli symbol (42.6)
(4.62)(43.66.86) and an unusual 4-connected 3D net with the Lonsdaleite (hexagonal diamond) topology, respectively.
Magnetic susceptibility measurements revealed dominant antiferromagnetic couplings for 1 and 3 and an overall
dominant ferromagnetic coupling for 4, which presents metamagnetic behavior with a magnetic phase transition at a
critical temperature of 6 K and a transition field of ca. 6030 Oe. The results demonstrate that the EE azido and syn-anti
carboxylato bridges in our cases induce an antiferomagnetic interaction, and the anti-anti carboxylato bridge in
4 mediates a ferromagnetic interaction. The magnetic interaction through the EO azido bridge in 3 and 4 has
a dependence on the value of the M-N-M bond angle.
Introduction
via the azido bridge are found to be affected by the linking
modes of the azido ligand. In general, the exchange is
ferromagnetic for the EO mode and antiferromagnetic for
the EE mode.3-5 Other interesting magnetic phenomena
The syntheses and properties of metal-azido complexes
have attracted great research interest for many years due to
their fascinating structural diversities, their importance in
understanding magneto-structural correlations, and their
promising potential applications in functional materials.1 A
variety of metal-azido complexes with discrete or one-, two-,
and three-dimensional structures have been reported, in
which the azido ligand exhibits various coordination modes
ranging from μ-1,1 (end-on, EO) and μ-1,3 (end-to-end, EE)
to μ-1,1,1, μ-1,1,3, μ-1,1,1,1, μ-1,1,3,3, and μ-1,1,1,3,3,3,
depending on the steric and electronic demands of the
coligands.2 The magnetic coupling interactions mediated
(2) (a) Boudalis, A. K.; Donnadieu, B.; Nastopoulos, V.; Clemente-Juan,
J. M.; Mari, A.; Sanakis, Y.; Tuchagues, J.-P.; Perlepes, S. P. Angew.
Chem., Int. Ed. 2004, 43, 2266–2270. (b) Halcrow, M. A.; Huffman, J. C.;
Christou, G. Angew. Chem., Int. Ed. 1995, 34, 889–891. (c) Meyer, F.;
Demeshko, S.; Leibeling, G.; Kersting, B.; Kaifer, E.; Pritzkow, H.
Chem.;Eur. J. 2005, 11, 1518–1526. (d) Mialane, P.; Dolbecq, A.; Marrot,
ꢀ
ꢁ
J.; Riviere, E.; Secheresse, F. Chem.;Eur. J. 2005, 11, 1771–1778. (e)
Munno, G. D.; Poerio, T.; Viau, G.; Julve, M.; Lloret, F. Angew. Chem.,
Int. Ed. 1997, 36, 1459–1461. (f) Papaefstathiou, G. S.; Perlepes, S. P.;
Escuer, A.; Vicente, R.; Font-Bardia, M.; Solans, X. Angew. Chem., Int. Ed.
2001, 40, 884–886. (g) Ribas, J.; Monfort, M.; Ghosh, B. K.; Cortes, R.;
Solans, X.; Font-Bardia, M. Inorg. Chem. 1996, 35, 864–868. (h) Tuczek,
F.; Bensch, W. Inorg. Chem. 1995, 34, 1482–1486. (i) Wemple, M. W.;
Adams, D. M.; Hagen, K. S.; Folting, K.; Hendrickson, D. N.; Christou, G.
J. Chem. Soc., Chem. Commun. 1995, 1591–1593. (j) Abu-Youssef, M. A.
*To whom correspondence should be addressed. E-mail: fliangoffice@
yahoo.com. Tel.: +86(0)773/5845973. Fax: +86(0)773/5832294.
(1) (a) Bonnet, M. L.; Aronica, C.; Chastanet, G.; Pilet, G.; Luneau, D.;
Mathoniere, C.; Clerac, R.; Robert, V. Inorg. Chem. 2008, 47, 1127–1133. (b)
Escuer, A.; Mautner, F. A.; Goher, M. A. S.; Abu-Youssef, M. A. M.;
Vicente, R. Chem. Commun. 2005, 605–607. (c) Escuer, A.; Vicente, R.;
Goher, M. A. S.; Mautner, F. A. Inorg. Chem. 1996, 35, 6386–6391. (d) Gao,
E. Q.; Yue, Y. F.; Bai, S. Q.; He, Z.; Yan, C. H. J. Am. Chem. Soc. 2004, 126,
1419–1429. (e) Hong, C. S.; Do, Y. Angew. Chem., Int. Ed. 1999, 38, 193–195.
(f) Liu, C.-M.; Gao, S.; Zhang, D.-Q.; Huang, Y.-H.; Xiong, R.-G.; Liu, Z.-
L.; Jiang, F.-C.; Zhu, D.-B. Angew. Chem., Int. Ed. 2004, 43, 990–994. (g)
Murugesu, M.; Habrych, M.; Wernsdorfer, W.; Abboud, K. A.; Christou, G.
J. Am. Chem. Soc. 2004, 126, 4766–4767. (h) Stamatatos, T. C.; Abboud, K.
A.; Wernsdorfer, W.; Christou, G. Angew. Chem., Int. Ed. 2007, 46, 884–888.
(i) Wang, X. Y.; Wang, L.; Wang, Z. M.; Su, G.; Gao, S. Chem. Mater. 2005,
17, 6369–6380. (j) Yang, C. I.; Wernsdorfer, W.; Lee, G. H.; Tsai, H. L. J.
Am. Chem. Soc. 2007, 129, 456–457.
::
::
M.; Langer, V.; Luneau, D.; Shams, E.; Goher, M. A. S.; Ohrstrom, L.
Eur. J. Inorg. Chem. 2008, 112–118. (k) Gao, E.-Q.; Wang, Z.-M.; Yan, C.-
H. Chem. Commun. 2003, 1748–1749.
ꢁ
(3) (a) Ribas, J.; Escuer, A.; Monfort, M.; Vicente, R.; Cortes, R.;
Lezama, L.; Rojo, T. Coord. Chem. Rev. 1999, 193-195, 1027–1068. (b)
Ribas, J.; Monfort, M.; Vicente, R.; Cortes, R.; Lezama, L.; Rojo, T.;
Goher, M. A. S. Magnetism: Molecules to Materials II: Molecule-Based
Materials; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany,
2002.
(4) Ruiz, E.; Cano, J.; Alvarez, S.; Alemany, P. J. Am. Chem. Soc. 1998,
120, 11122–11129.
(5) Tandon, S. S.; Thompson, L. K.; Manuel, M. E.; Bridson, J. N. Inorg.
Chem. 1994, 33, 5555–5570.
pubs.acs.org/IC
Published on Web 4/21/2009
© 2009 American Chemical Society

Article
Inorg. Chem., Vol. 48, No. 11, 2009
4675
have also been observed in systems with mixed azide bridging
modes.6
simultaneous bridges in metal-azido systems is attractive
since the carboxylates are well-established ligands in the
field of molecular magnetism because of their versatile
bridging modes,15 and such systems featuring mixed azido
and carboxylate bridges are good materials for studying the
mechanism of magnetic exchange interaction mediated by
different superexchange pathways.16 Amino carboxylic acid
ligands feature multiple coordination sites that combine the
characteristics of amine and carboxylic groups and are able
to exhibit different coordination modes depending on the
natureof thereaction system. Therefore, new supramolecular
frameworks might be expected for metal-azido complexes
with amino carboxylic acid coligands. However, as far as
we know, only two diamagnetic Zn(II) and Cd(II) azido
complexes with 4-aminobenzoic acid as a bridging coligand
have been reported,17 while high-dimensional paramagnetic
coordination polymers with both amino carboxylate and
azido bridges have not been reported. Some attempts were
made via the reaction of manganese with amino carboxylic
acid in the presence of NaN3; however, these just led to
the formation of amino carboxylate complexes without azido
ligands present in the final product.18 Herein, we wish to
report the syntheses and structures of four three-dimensional
metal-azido coordination polymers with different amino
carboxylic acids as second bridging ligands, [Mn (3,5-
daba)(N3)]n (1), [Cd(3,5-daba)(N3)]n (2; 3,5-daba = 3,5-
diaminobenzoate), [Mn(4-aba)(N3)]n (3; 4-aba = 4-amino-
benzoate), and [Cu2(gly)2(N3)2]n (4; gly = glycinate), and the
magnetic properties of 1, 3, and 4. Polymer 4 is the first
example of a coordination polymer with a flexible amino acid
as a second bridging ligand in metal-azido complexes, and
3 displays an interesting 3,6-connected topology that has not
been reported previously.
In the field of metal-azido chemistry, the construction
of high-dimensional networks of azido-bridged complexes is
of particular interest because of their novel topology and
potential enhancement of bulk magnetic properties.7 The
common strategies for this purpose reported in the literature
include the further extension of metal-azido assemblies
by introducing a second bridging ligand8 or the use of more
azido ligands by adding a countercation, such as Cs+ or
N(CH3)4+,9 or by employing chelating diamine ligands, such
as ethylenediamine and its derivatives,10 to alter the network
topology. When secondary bridging ligands are used in
constructing high-dimensional metal-azido systems, neutral
organic ligands have been the most popular, while the
use of bridging anionic ligands is relatively rare. Incorpora-
tion of bridging anionic ligands into metal-azido systems is
still a challenge due to the competition of the negative
charged ligand with azide in the self-assembly process.11,12
Recently, several high-dimensional complexes containing
mixed azide and carboxylate bridges have been successfully
synthesized.13,14 The utilization of carboxylate ligands as
