3160
K. Kurihara et al. / Tetrahedron Letters 50 (2009) 3158–3160

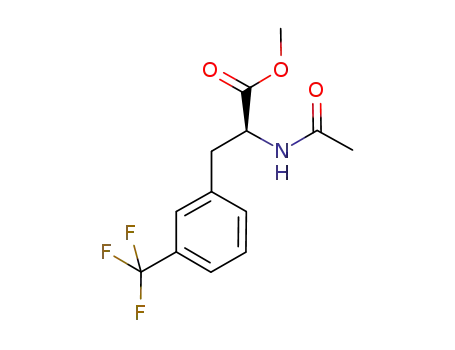

methyl or ethyl 2Àacetamidocinnamates possessing a substituent
at the para, meta, or ortho carbon, hydrogenation of these sub-
strates was carried out in a mixed solvent of toluene and CH2Cl2
or in CH2Cl2 (runs 12À28). The conversions and selectivities were
almost perfect for most substrates, but 4-methoxy, 4-fluoro,
4-acetyl, and 3,4-methylenedioxy cinnamate resulted in selectivi-
ties less than 95% ee (runs 15, 21, 24, 27, and 28) and ethyl 2-ace-
tamidocinnamates showed higher selectivities than those of
methyl analogs (runs 15/16 and 17/18).
the Global COE Program (No. B01, Catalysis as the Basis for Innova-
tion in Materials Science) from the Ministry of Education, Culture,
Sports, Science, and Technology, Japan.
References and notes
1. Comprehensive Organometallic Chemistry III; Zhang, X., Chi, Y., Tang, W.,
Crabtree, R. H., Mingos, S. M. P., Eds.; Elsevier: Oxford, 2007; Vol. 10, pp 1–70.
2. (a) Komarov, I. V.; Börner, A. Angew. Chem., Int. Ed. 2001, 40, 1197–1200; (b)
Jerphagnon, T.; Renaud, J.-L.; Bruneau, C. Tetrahedron: Asymmetry 2004, 15,
2101–2111.
3. For reviews see: (a) Minnaard, A. J.; Feringa, B. L.; Lefort, L.; de Vries, J. G. Acc.
Chem. Res. 2007, 40, 1267–1277; (b) Ederhardt, L.; Armspach, D.; Harrowfield,
J.; Matt, D. Chem. Soc. Rev. 2008, 839–864.
The results of hydrogenation of
a-aryl enamides are shown in
Table 2. The effects of solvents on enantioselectivities and reaction
rates were analogous to those shown in Table 1, but the reaction
4. (c) van den Berg, M.; Minnaard, A. J.; Schudde, E. P.; van Esch, J.; de Vries, A. H. M.;
de Vries, J. G.; Feringa, B. L. J. Am. Chem. Soc. 2000, 122, 11539–11540; (d) Jia, X.;
Guo, R.; Li, X.; Yao, X.; Chan, A. S. C. Tetrahedron Lett. 2002, 43, 5541–5544; (e) van
den Berg, M.; Haak, R. M.; Minnaard, A. J.; de Vries, A. H. M.; de Vries, J. G.; Feringa,
B. L. Adv. Synth. Catal. 2002, 344, 1003–1007; (f) Peña, D.; Minnaard, A. J.; de Vries,
J. G.; Feringa, B. L. J. Am. Chem. Soc. 2002, 124, 14552–14553; (g) Jia, X.; Li, X.; Xu,
L.; Shi, Q.; Yao, X.; Chan, A. S. C. J. Org. Chem. 2003, 68, 4539–4541; (h) Gergely, I.;
Hegedüs, C.; Gulyás, H.; Szöllösy, Á.; Monsees, A.; Riermeier, T.; Bakos, J.
Tetrahedron: Asymmetry 2003, 14, 1087–1090; (i)Li, X.; Jia, X.; Lu, G.;Au-Yeung, T.
T.-L.; Lam, K.-H.; Lo, T. W. H.; Chan, A. S. C. Tetrahedron: Asymmetry 2003, 14,
2687–2691; (j) Hu, A.-G.; Fu, Y.; Xie, J.-H.; Zhou, H.; Wang, L.-X.; Zhou, Q.-L.
Angew. Chem., Int. Ed. 2002, 41, 2348–2350; (k) Fu, Y.; Xie, J.-H.; Hu, A.-G.; Zhou,
H.; Wang, L.-X.; Zhou, Q.-L. Chem. Commun. 2002, 480–481; (l) Wu, S.; Zhang, W.;
Zhang, Z.; Zhang, X. Org. Lett. 2004, 6, 3565–3567.
5. (a) Reetz, M. T.; Mehler, G. Angew. Chem., Int. Ed. 2000, 39, 3889–3890;; (b)
Reetz, M. T.; Mehler, G.; Meiswinkel, A.; Sell, T. Tetrahedron Lett. 2002, 43,
7941–7943; (c) Ostermeier, M.; Brunner, B.; Korff, C.; Helmchen, G. Eur. J. Org.
Chem. 2003, 3453–3459; (d) Hua, Z.; Vassar, V. C.; Ojima, I. Org. Lett. 2003, 5,
3831–3834; (e) Hannen, P.; Militzer, H.-C.; Vogl, E. M.; Rampf, F. A. Chem.
Commun. 2003, 2210–2211; (f) Huang, H.; Zheng, Z.; Luo, H.; Bai, C.; Hu, X.;
Chen, H. Org. Lett. 2003, 5, 4137–4139.
6. (a) Claver, C.; Fernandez, E.; Gillon, A.; Heslop, K.; Hyett, D. J.; Martrell, A.;
Orpen, A. G.; Pringle, P. G. Chem. Commun. 2000, 961–962; (b) Reetz, M. T.; Sell,
T. Tetrahedron Lett. 2002, 41, 6333–6336; (c) Xu, Y.; Alcock, N. W.; Clarkson, G.
J.; Docherty, G.; Woodward, G.; Wills, M. Org. Lett. 2004, 6, 4105–4107; (d) Fu,
Y.; Guo, X.-X.; Zhu, S.-F.; Hu, A.-G.; Xie, J.-H.; Zhou, Q.-L. J. Org. Chem. 2004, 69,
4648–4655.
7. Nishibayashi, Y.; Uemura, S.. In Comprehensive Organometallic Chemistry III;
Crabtree, R. H., Mingos, S. M. P., Eds.; Elsevier: Oxford, 2007; Vol. 11, pp 75–122.
8. Chan, A. S. C.; Kwong, F. Y.; Lu, G.. In Comprehensive Organometallic Chemistry
III; Crabtree, R. H., Mingos, S. M. P., Eds.; Elsevier: Oxford, 2007; Vol. 10, pp
369–401.
was significantly slower than that of
a-dehydroamino esters. The
reaction was completed in CH2Cl2 with 1 mol % catalyst loading
(run 2), but slow reaction in toluene showed the best enantioselec-
tivity (95% ee, run 1), and the use of such a catalyst prepared in situ
resulted in yields and selectivities comparable to those of a rho-
dium/Me-BIPAM complex (2b) (run 6). The conversion in toluene
was quantitative when 2 mol % of catalyst was used (run 5), but
increase of hydrogen pressure to 0.6 MPa in the presence of a rho-
dium(I)/Me-BIPAM complex (2b) finally achieved practical conver-
sion and selectivity (run 7) without increasing the catalyst loading
(run 5). Thus, hydrogenation of other derivatives of a-aryl enamide
was conducted under 0.6 MPa hydrogen in the presence of 2b
(1 mol %) (runs 8–16). Although the reaction was highly sensitive
to steric hindrance of ortho-substituents on the aromatic ring (runs
10 and 15), analogs possessing a para and a meta-substituent were
hydrogenated under these conditions in high yields. Aliphatic ena-
mide, such as 2-acetamide-3,3-dimethyl-1-butene, similarly gave
low conversion (15%).
Hydrogenation of (E)-b-acylamino methyl crotonate (7) and
that of dimethyl itaconate (9) are shown in Eqs. 2 and 3. Hydroge-
nation of 7 under the optimal conditions shown in Tables 1 and 2
suffered from low conversions and low enantioselectivities (8À57%
yields and 35À87% ee). The reaction finally achieved 90% ee with
94% conversion when [Rh(cod)2]SbF6 (1 mol %) and Me-BIPAM in
acetone were used at 50 °C under 0.8 MPa of hydrogen (Eq. 2).
On the other hand, hydrogenation of dimethyl itaconate (9) took
place smoothly at room temperature to yield the corresponding
chiral diester with 97% ee (Eq. 3). Under 0.3 MPa hydrogen, the
reaction was also completed quantitatively at 25 °C with
0.2 mol % loading of 2a.
9. (a) Iguchi, Y.; Itooka, R.; Miyaura, N. Synlett 2003, 1040–1042; (b) Boiteau, J.-G.;
Imbos, R.; Minnerd, A. J.; Feringa, B. L. Org. Lett. 2003, 5, 681–684; (c) Duursma,
A.; Hoen, R.; Schuppan, J.; Minnerd, A. J.; Feringa, B. L. Org. Lett. 2003, 5, 3111–
3113; (d) Boiteau, J.-G.; Minnerd, A. J.; Feringa, B. L. J. Org. Chem. 2003, 68,
9481–9484; (e) Duursma, A.; Boiteau, J.-G.; Lefort, L.; Boorgers, J. A. F.; de Vries,
A. H. M.; de Vries, J. G.; Minnerd, A. J.; Feringa, B. L. J. Org. Chem. 2004, 69, 8045–
8052; (f) Martina, S. L. X.; Minnerd, A. J.; Hesssen, B.; Feringa, B. L. Tetrahedron
Lett. 2005, 46, 7159–7163.
10. (a) Feringa, B. L. Acc. Chem. Res. 2000, 35, 346–353; (b) Jagt, R. B. C.; Toullec, P.
Y.; Schudde, E. P.; de Vries, J. G.; Feringa, B. L.; Minnaard, A. J. J. Comb. Chem.
2007, 9, 407–414.
11. (a) Mandoli, A.; Arnold, L. A.; de Vries, A. H. M.; Salvadori, P.; Feringa, B. L.
Tetrahedron: Asymmetry 2001, 12, 1929–1937; (b) Jagt, R. B. C.; Toullec, P. Y.; de
Vries, J. G.; Feringa, B. L.; Minnaard, A. J. Org. Biomol. Chem. 2006, 4, 773–775;
(c) Eberhardt, L.; Armspach, D.; Matt, D.; Oswald, B.; Toupet, L. Org. Biomol.
Chem. 2007, 5, 3340–3346.
H2 (0.8 MPa)
MeOOC
MeOOC
(2)
[Rh(cod)2]SbF6 (1 mol%)
NHAc
NHAc
(R)-Me-BIPAM (1.1 mol%)
7
8 (94%, 90%ee (S))
acetone, 50 °C, 20 h
12. (a) Matsunaga, S.; Das, J.; Roles, J.; Vogl, E. M.; Yamamoto, N.; Iida, T.;
Yamaguchi, K.; Shibasaki, M. J. Am. Chem. Soc. 2000, 122, 2252–2260; (b)
Kumagai, N.; Matsunaga, S.; Kinoshita, T.; Harada, S.; Okada, S.; Sakamoto, S.;
Yamaguchi, K.; Shibasaki, M. J. Am. Chem. Soc. 2003, 125, 2169–2178.
13. Majima, K.; Takita, R.; Okada, A.; Ohshima, T.; Shibasaki, M. J. Am. Chem. Soc.
2003, 125, 15837–15845.
COOMe
COOMe
H2 (0.3 MPa)
COOMe
COOMe
(3)
[Rh((R)-Me-bipam)(cod)]PF6
(0.2 mol%)
9
10 (>99%, 97%ee (S))
CH2Cl2, 25 °C, 20 h
14. (a) Yamamoto, Y.; Kurihara, K.; Sugishita, N. N.; Oshita, K.; Piao, D.; Miyaura, N.
Chem. Lett. 2005, 34, 1224–1225; (b) Kurihara, K.; Yamamoto, Y.; Sugishita, N.;
Oshita, K.; Piao, D.; Miyaura, N. J. Organomet. Chem. 2007, 692, 428–435.
15. Kurihara, K.; Yamamoto, Y.; Miyaura, N. Adv. Synth. Catal., in press.
16. To a solution of Me-BIPAM (0.05 mmol) in CD2Cl2 was added [Rh(nbd)2]BF4
(0.05 mmol) under argon atomosphere. The solvent was evaporated in vacuo to
give solids of [Rh(nbd)(Me-BIPAM)]BF4. 31P NMR (CD2Cl2) 142.4 (d,
JRhÀP = 248.9 Hz); HRMS (FAB) calcd for C53H46O5P2Rh+ (M+ÀBF4) 955.1932,
found 955.1938.
17. General procedure for hydrogenation: A stainless-steel autoclave charged with
rhodium catalyst and Me-BIPAM was flushed with nitrogen. Solvent was then
added. After being stirred for 1 h at room temperature, alkene was added. The
hydrogenation was performed under hydrogen for 20 h. The hydrogen pressure
was passed carefully in a hood, and the reaction mixture was evaporated. The
conversion and enantiomeric excesses were measured by 1H NMR and HPLC
without purification.
In conclusion, we demonstrated high performance of Me-BIPAM
for enantioselective hydrogenation of -dehydroamino ester,
enamides, and itaconate, the results of which are comparable to
representative C2 symmetric chiral auxiliaries reported for hydro-
genation of alkenes.1 Further application of Me-BIPAM to other
enantioselective transformations is in progress in our group.
a
Acknowledgments
This work was supported by a Grant-in-Aid for Scientific Re-
search in Priority Areas (No. 18064001, Synergy of Elements) and
