Thioether-Functionalized N-Heterocyclic Carbenes: Mono- and Bis-(S,CNHC
Palladium Complexes, Catalytic C-C Coupling, and Characterization of a
Unique Ag4I4(S,CNHC)2 Planar Cluster†
)
Christophe Fliedel and Pierre Braunstein*
ꢀ
Laboratoire de Chimie de Coordination, Institut de Chimie (UMR 7177 CNRS), Universite de Strasbourg,
4 Rue Blaise Pascal, F-67081 Strasbourg Cedex, France
Received May 21, 2010

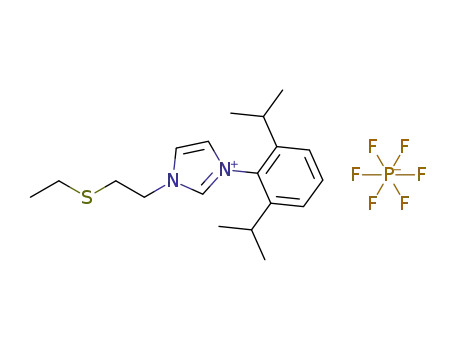

We report a one-step synthesis for new N-aryl-N0-thioether imidazolium salts that are precursors to
(S,CNHC) ligands in N-heterocyclic carbene (NHC) complexes. The crystal structure of the N-(2,6-
diisopropylphenyl)-N0-ethyl-(ethyl)-sulfide imidazolium hexafluorophosphate 8 HPF6 was determined
by X-ray diffraction and revealed H-bonding interactions between the PF6 anion and, in particular, the
3
imidazolium 2-H proton. The corresponding Ag(I) NHC complexes 1 AgX-8 AgX were synthesized and
3
3
fully characterized. An unprecedented planar, centrosymmetric cluster, [Ag4(μ3-I)2(μ2-I)2(μ2-S,CNHC)2]
[5 (AgI)2]2, was obtained in which two functional carbene ligands bridge two edges of a silver rectangle.
3
With the N-alkyl-N0-thioether ligands, [PdCl2(S,CNHC)2] complexes were prepared by two different
routes: the usual transmetalation reaction involving the Ag(I) NHC reagent or a stepwise sequence
involving deprotonation of the imidazolium function in zwitterionic intermediates where the thioether
function is bound to the Pd(II) center. The crystal structures of two representative complexes, 10 and 12,
with an ethyl- or a phenyl-thioether function, respectively, coordinated to the Pd(II) center, have
been determined by X-ray diffraction and confirmed their mononuclear structure. In the neutral complexes
trans-[PdCl2(CNHC)2] (17-20) the thioether group is not coordinated to the metal center, as also
confirmed by the crystal structure determination by X-ray diffraction of the bis-NHC Pd(II) dichloro
complex 18, which also established the trans-anti arrangement of the ligands. The first examples of bis-
chelated dicationic palladium(II) complexes with thioether-functionalized NHCs, [Pd(S,CNHC)2][BF4]2
(21-24), are reported, which were selectively obtained with a cis arrangement of the ligands. The Pd(II)
complexes 9-24 were evaluated in Suzuki-Miyaura cross-coupling reactions under various conditions,
and a higher catalytic activity was observed for the complexes in which the sulfur atom is coordinated to
the metal center.
Introduction
carbene,2 the synthesis of various silver-NHC complexes,3
and the report of their use as carbene transfer reagents.4
Metal-NHC complexes have already found many applica-
tions in homogeneous catalysis.5 NHCs are often used as
phosphine alternatives owing to their better stability toward
oxidation and the formation of more stable metal com-
plexes.6 For cross-coupling reactions, strong σ-donor ligands
are necessary and the NHCs are the only class of ligands able to
challenge the long-used tertiary phosphines.7 Although the
association of NHCs with palladium(II) precursors has been
extensively studied in catalysis8 and NHC-Pd complexes com-
pared to phosphine-Pd catalysts,9 the use of well-defined NHC-
Pd(II) complexes as precatalysts for cross-coupling reactions
remains underdeveloped.10
N-Heterocyclic carbenes (NHCs) have attracted increas-
ing attention in organometallic chemistry since the pioneer-
ing work of Lappert,1 the report of the first stable free
† Part of the Dietmar Seyferth Festschrift. Dedicated to Prof. Dietmar
Seyferth for his outstanding career dedicated to all aspects of organometallic
chemistry: research, teaching, and publishing.
*Corresponding author. E-mail: braunstein@unistra.fr. Fax: þ33
368 851 322. Tel: þ33 368 851 308.
