Selective Incorporation of Nitrile-Based Infrared Probes into Proteins via
Cysteine Alkylation†
Hyunil Jo,§, Robert M. Culik,§, Ivan V. Korendovych,§ William F. DeGrado,*,§,‡ and Feng Gai*,‡
§
‡Department of Chemistry and Department of Biochemistry and Biophysics, University of Pennsylvania, Philadelphia,
Pennsylvania 19104, United States. These authors contributed equally to this work.
Received October 23, 2010; Revised Manuscript Received November 12, 2010
ABSTRACT: The nitrile stretching vibration is increasingly
used as a sensitive infrared probe of local protein environ-
ments. However, site-specific incorporation of a nitrile
moiety into proteins is difficult. Here we show that various
aromatic nitriles can be easily incorporated into peptides
and proteins via either thiol alkylation or arylation reaction.
tives shows an approximately 3 cm-1 shift to a higher energy as
compared to that of the aryl derivatives). Because any interac-
tions that decrease or increase the electron density of the CtN
bond will result in an increase or decrease, respectively, in the
CtN stretching vibrational frequency of nitriles (33), these
results can be understood qualitatively in the context of the effect
of an activating substituent on the cyanobenzyl ring (i.e., sulfur
vs methylene and para vs ortho position with respect to the nitrile
group). Furthermore, in comparison with those obtained in
water, the CtN stretching bands of these probes in tetrahydro-
furan (THF) show a 7-8 cm-1 shift toward a lower frequency
and also a concomitant decrease in the bandwidth by a factor of
approximately 2 (Table 1), demonstrating the potential utility of
these aromatic nitriles as local environmental probes.
Moreover, it is interesting to note that in aqueous solution the
CtN stretching bandwidths of 2 and 4 are noticeably larger than
those of 1 and 3. This finding is consistent with the study of
Waegele et al. (34), which showed that the CtN stretching vibra-
tion of an aromatic nitrile can be influenced by direct interactions
between the nitrile group and solvent molecules and also indi-
rectly by the solvation status of the aromatic ring. In other words,
the larger bandwidth of 2 and 4 arises most likely from their
asymmetric molecular shape (with respect to the nitrile group),
which leads to a more heterogeneous solvation of the respective
aromatic ring and hence a broader vibrational transition.
Considering the fact that the synthesis of 1 and 2 involves
conditions much milder [e.g., the reaction solution contains only
a small amount of organic solvent, and similar conditions have
been used in chemical modification of proteins (35)] than those
used in the synthesis of 3 and 4 and that the extinction coefficient
of the CtN stretching vibration of 1 and 3 is about one order
of magnitude larger than that of 2 and 4 (Figure S1 of the
Supporting Information), only probe 1 is used in the subsequent
proof-of-principle tests involving peptides and proteins.
First, the method of cysteine alkylation is applied to two
cysteine mutants of mastoparan-X (MpX), W3C and A8C. These
mutants are chosen because upon association with calmodulin
(CaM) the side chains of Trp3 and Ala8 of MpX are known to
situate inside the peptide-protein binding groove and, as a result,
become less solvent-exposed (36). It is found that both peptides
are efficiently labeled by p-cyanobenzyl bromide with >80%
yield (determined by LC-MS) under the conditions specified in
Scheme 1 (the corresponding nitrile-containing peptides are
hereafter termed W3C-CN and A8C-CN). The FTIR spectra
of W3C-CN (Figure 1) and A8C-CN (Figure S2 of the Support-
ing Information) also support the site-specific incorporation of
probe 1 into these peptides, as their CtN stretching bands in
The CtN (nitrile) stretching vibration has recently emerged
as a valuable infrared (IR) probe of the conformation and local
environment of biological molecules (1-26) because of its sen-
sitivity to various factors (13, 14, 17), such as local electric field
and hydrogen bonding interactions (27). For example, it has been
used to probe insertion of a peptide into membranes (6), protein-
ligand interactions (25), and the dehydration status of an anti-
microbial peptide encapsulated in reverse micelles (8). For chem-
ically synthesizable peptides, site-specific incorporation of a nitrile
group can be readily achieved via the use of nitrile-derivatized
non-natural amino acids, such as cyanoalanine (AlaCN) and
p-cyanophenylalanine (PheCN). For proteins that cannot be
chemically synthesized, however, selective incorporation of a
nitrile moiety is rather difficult. Currently, only the chemical
method developed by Boxer and co-workers is available, which
directly converts a cysteine thiol into a thiocyanate (7). Addi-
tionally, it has been shown that PheCN can be incorporated into
proteins by using an orthogonal tRNA-synthetase pair (28, 29),
but the techniques involved are time-intensive and available to
only a handful of laboratories worldwide. Thus, it would be quite
helpful to develop an alternative and easier method for selective
incorporation of different nitrile moieties into proteins. Here, we
show that cysteine alkylation and arylation reactions under mild
conditions can be used for such a purpose.
We tested the feasibility of the proposed method on four
cyanobenzyl derivatives (Scheme 1), based on the consideration
that the oscillator strength and stark tuning rate of aromatic
nitriles are normally larger than those of alkyl nitriles (3, 4).
As shown (Scheme 1), these model probes can be quite easily
attached to the cysteine side chain via either thiol alkylation or
arylation (30-32). Similar to that of PheCN (3), the CtN
stretching frequency of these nitrile derivatives in water is found
to be in the range of 2233-2241 cm-1 (Table 1 and Figure S1 of
the Supporting Information), with the exact value depending
on the molecular structure (e.g., the band of the benzylic deriva-
†We thank the National Institutes of Health (GM-065978 and
GM008275) and the National Science Foundation (DMR05-20020)
for funding.
*To whom correspondence should be addressed. Telephone: (215)
573-6256. Fax: (215) 573-2112. E-mail: wdegrado@mail.med.upenn.
edu (W.F.D.) or gai@sas.upenn.edu (F.G.).
r
pubs.acs.org/Biochemistry
Published on Web 11/15/2010
2010 American Chemical Society

Rapid Report
Biochemistry, Vol. 49, No. 49, 2010 10355

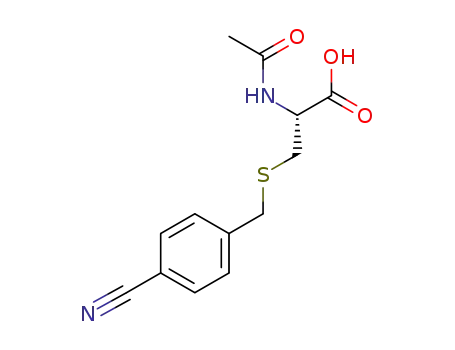

Scheme 1
Table 1: Band Positions (ν), Full Widths at Half-Maximum (Δν), and
Estimated Molar Extinction Coefficients (ε) of the CtN Stretching Vibra-
tion of Various Probes in H2O and THF
F
IGURE 2: CtNstretchingbandofthenitrile-labeledhumancalmod-
ulin-like protein [in 50 mM HEPES buffer (pH 7.4)] in the absence
(O) and presence (4) of Ca2þ (30 mM). The protein concentrations
were approximately 1-2 mM (blue) and 200 μM (red), respectively.
The solid lines are respective fits of these data to a Lorentzian
function, and the thin dashed line indicates the peak position of the
nitrile band of probe 1 in water.
1
2
3
4
ν (cm-1, H2O)
Δν (cm-1, H2O)
ν (cm-1, THF)
Δν (cm-1, THF)
2236.6
11.8
2240.3
14.4
2233.7
11.2
2237.9
16.4
2228.5
7.4
2232.3
7.8
2226.8
6.1
2229.6
7.1
the reaction product confirms the successful incorporation of
probe 1 into the protein of interest, and the corresponding yield
was estimated to be >50%. More importantly, the far-UV CD
spectrum of the nitrile-labeled CALM3 is almost identical to that
of the parent protein (Figure S3 of the Supporting Information),
indicating that the labeling reaction does not change the struc-
tural integrity of the protein in question. The latter notion is
further corroborated by the dependence of the bandwidth of the
CtN stretching vibration on Ca2þ. As indicated (Figure 2), upon
addition of Ca2þ, the bandwidth of the IR transition is decreased
from ∼19 to ∼11 cm-1, a phenomenon expected to occur as Ca2þ
is known to rigidify the calcium-binding domain (37, 38) where
the labeled cysteine is located. In addition, the peak position of
this nitrile band (ν =2236.0 cm-1) does not change upon addi-
tion of Ca2þ, which is consistent with the fact that the labeled
cysteine residue is exposed to solvent in CaM structures deter-
mined in the absence and presence of Ca2þ (38).
ε (M-1 cm-1
)
210 ( 60
22 ( 10
240 ( 60
24 ( 10
In conclusion, we have demonstrated a post-translational
method allowing site-specific incorporation of nitrile-based IR
probes into peptides and proteins via cysteine alkylation or aryla-
tion. Because this method involves relatively routine and mild
reaction conditions, we expect that it will find wide application in
biophysical studies of proteins.
F
IGURE 1: CtN stretching bands of W3C-CN obtained in the pre-
sence (O) and absence (4) of CaM [50 mM HEPES buffer (pH 7.4)
and 30 mM CaCl2]. In the former case, the concentrations of W3C-
CN and CaM were estimated to be 1-2 mM. Lines are respective
fits of these data to a Lorentzian function with the following param-
eters: for W3C-CN, ν =2236.5 cm-1 and Δν =10.7 cm-1, and for
SUPPORTING INFORMATION AVAILABLE
Materials, methods, and FTIR spectra. This material is
available free of charge via the Internet at http://pubs.acs.org.
the W3C-CN-CaM complex, ν = 2231.2 cm-1 and Δν = 11.7 cm-1
.
aqueous solution are centered at ∼2236.5 cm-1 but shift to lower
wavenumbers upon binding to CaM, as expected. In addition, the
nitrile bandwidth of the free peptide is found to be slightly
narrower than that of the peptide-CaM complex, likely because
both bound and unbound peptides exist in the complex solution.
A similar finding was also observed in a previous study (3).
Second, we tested the applicability of the cysteine alkylation
reaction to proteins by applying it to human calmodulin-like
protein CALM3, which contains a unique cysteine residue (Sup-
porting Information). As shown (Figure 2), the IR spectrum of
REFERENCES
1. Yoshikawa, S., Okeeffe, D. H., and Caughey, W. S. (1985) Investiga-
tions of cyanide as an infrared probe of hemeprotein ligand-binding
sites. J. Biol. Chem. 260, 3518–3528.
2. Reddy, K. S., Yonetani, T., Tsuneshige, A., Chance, B., Kushkuley, B.,
Stavrov, S. S., and Vanderkooi, J. M. (1996) Infrared spectroscopy of the
cyanide complex of iron(II) myoglobin and comparison with complexes
of microperoxidase and hemoglobin. Biochemistry 35, 5562–5570.
3. Getahun, Z., Huang, C. Y., Wang, T., De Leon, B., DeGrado, W. F.,
and Gai, F. (2003) Using nitrile-derivatized amino acids as infrared
probes of local environment. J. Am. Chem. Soc. 125, 405–411.

10356 Biochemistry, Vol. 49, No. 49, 2010
Jo et al.
4. Suydam, I. T., and Boxer, S. G. (2003) Vibrational Stark effects
calibrate the sensitivity of vibrational probes for electric fields in
proteins. Biochemistry 42, 12050–12055.
5. Huang, C. Y., Wang, T., and Gai, F. (2003) Temperature dependence
of the CN stretching vibration of a nitrile-derivatized phenylalanine in
water. Chem. Phys. Lett. 371, 731–738.
6. Tucker, M. J., Getahun, Z., Nanda, V., DeGrado, W. F., and Gai, F.
(2004) A new method for determining the local environment and
orientation of individual side chains of membrane-binding peptides.
J. Am. Chem. Soc. 126, 5078–5079.
7. Fafarman, A. T., Webb, L. J., Chuang, J. I., and Boxer, S. G. (2006)
Site-specific conversion of cysteine thiols into thiocyanate creates
an IR probe for electric fields in proteins. J. Am. Chem. Soc. 128,
13356–13357.
22. Marek, P., Mukherjee, S., Zanni, M. T., and Raleigh, D. P. (2010)
Residue-specific, real-time characterization of lag-phase species and
fibril growth during amyloid formation: A combined fluorescence and
IR study of p-cyanophenylalanine analogs of islet amyloid polypep-
tide. J. Mol. Biol. 400, 878–888.
23. McMahon, H. A., Alfieri, K. N., Clark, C. A. A., and Londergan,
C. H. (2010) Cyanylated cysteine: A covalently attached vibrational
probe of protein-lipid contacts. J. Phys. Chem. Lett. 1, 850–855.
24. Inouye, H., Gleason, K. A., Zhang, D., Decatur, S. M., and Kirschner,
D. A. (2010) Differential effects of Phe19 and Phe20 on fibril formation
by amyloidogenic peptide Aβ16-22 (Ac-KLVFFAE-NH2). Proteins:
Struct., Funct., Bioinf. 78, 2306–2321.
25. Webb, L. J., and Boxer, S. G. (2008) Electrostatic fields near the active
site of human aldose reducatase: 1. New inhibitors and vibrational
Stark effect measurements. Biochemistry 47, 1588–1598.
26. Stafford, A. J., Ensign, D. L., and Webb, L. J. (2010) Vibrational
Stark effect spectroscopy at the interface of Ras and Rap1A bound to
the Ras binding domain of Ra1GDS reveals an electrostatic mechan-
ism for protein-protein interaction. J. Phys. Chem. B 114, 15331–
15344.
27. Fafarman, A. T., Sigala, P. A., Herschlag, D., and Boxer, S. G. (2010)
Decomposition of vibrational shifts of nitriles into electrostatic and
hydrogen-bonding effects. J. Am. Chem. Soc. 132, 12811–12813.
28. Schultz, K. C., Supekova, L., Ryu, Y. H., Xie, J. M., Perera, R., and
Schultz, P. G. (2006) A genetically encoded infrared probe. J. Am.
Chem. Soc. 128, 13984–13985.
29. Miyake-Stoner, S. J., Miller, A. M., Hammill, J. T., Peeler, J. C., Hess,
K. R., Mehl, R. A., and Brewer, S. H. (2010) Probing protein folding
using site-specifically encoded unnatural amino acids as FRET
donors with tryptophan. Biochemistry 48, 5953–5962.
8. Mukherjee, S., Chowdhury, P., DeGrado, W. F., and Gai, F. (2007)
Site-specific hydration status of an amphipathic peptide in AOT
reverse micelles. Langmuir 23, 11174–11179.
9. Maienschein-Cline, M. G., and Londergan, C. H. (2007) The CN
stretching band of aliphatic thiocyanate is sensitive to solvent dy-
namics and specific solvation. J. Phys. Chem. A 111, 10020–10025.
10. Watson, M. D., Gai, X. S., Gillies, A. T., Brewer, S. H., and Fenlon,
E. E. (2008) A vibrational probe for local nucleic acid environments:
5-Cyano-20-deoxyuridine. J. Phys. Chem. B 112, 13188–13192.
11. Fang, C., Bauman, J. D., Das, K., Remorino, A., Arnold, E., and
Hochstrasser, R. M. (2008) Two-dimensional infrared spectra reveal
relaxation of the nonnucleoside inhibitor TMC278 complexed with HIV-
1 reverse transcriptase. Proc. Natl. Acad. Sci. U.S.A. 105, 1472–1477.
12. Lindquist, B. A., Haws, R. T., and Corcelli, S. A. (2008) Optimized
quantum mechanics/molecular mechanics strategies for nitrile vibra-
tional probes: Acetonitrile and para-tolunitrile in water and tetrahy-
drofuran. J. Phys. Chem. B 112, 13991–14001.
30. Kondoh, A., Yorimitsu, H., and Oshima, K. (2006) Nucleophilic
aromatic substitution reaction of nitroarenes with alkyl- or arylthio
groups in dimethyl sulfoxide by means of cesium carbonate. Tetra-
hedron 62, 2357–2360.
13. Oh, K. I., Choi, J. H., Lee, J. H., Han, J. B., Lee, H., and Cho, M.
(2008) Nitrile and thiocyanate IR probes: Molecular dynamics simu-
lation studies. J. Chem. Phys. 128, 154504.
14. Lindquist, B. A., Furse, K. E., and Corcelli, S. A. (2009) Nitrile groups
as vibrational probes of biomolecular structure and dynamics: An
overview. Phys. Chem. Chem. Phys. 11, 8119–8132.
15. Taskent-Sezgin, H., Chung, J., Patsalo, V., Miyake-Stoner, S. J.,
Miller, A. M., Brewer, S. H., Mehl, R. A., Green, D. F., Raleigh,
D. P., and Carrico, I. (2009) Interpretation of p-cyanophenylalanine
fluorescence in proteins in terms of solvent exposure and contribution
of side-chain quenchers: A combined fluorescence, IR and molecular
dynamics study. Biochemistry 48, 9040–9046.
16. Liu, J., Strzalka, J., Tronin, A., Johansson, J. S., and Blasie, J. K.
(2009) Mechanism of interaction between the general anesthetic
halothane and a model ion channel protein, II: Fluorescence and
vibrational spectroscopy using a cyanophenylalanine probe. Biophys.
J. 96, 4176–4187.
17. Boxer, S. G. (2009) Stark realities. J. Phys. Chem. B 113, 2972–2983.
18. Ghosh, A., Remorino, A., Tucker, M. J., and Hochstrasser, R. M.
(2009) 2D IR photon echo spectroscopy reveals hydrogen bond
dynamics of aromatic nitriles. Chem. Phys. Lett. 469, 325–330.
19. Waegele, M. M., Tucker, M. J., and Gai, F. (2009) 5-Cyanotrypto-
phan as an infrared probe of local hydration status of proteins. Chem.
Phys. Lett. 478, 249–253.
31. Sano, K., Ikegami, Y., and Uesugi, T. (2001) Initial intraorgan
formation of mercapturic acid. Biol. Pharm. Bull. 24, 1324–1328.
32. Timmerman, P., Barderas, R., Desmet, J., Altschuh, D., Shochat, S.,
Hollestelle, M. J., Hoppener, J. W. M., Monasterio, A., Casal, J. I.,
and Meloen, R. H. (2009) A combinatorial approach for the design of
complementarity-determining region-derived peptidomimetics with
in vitro anti-tumoral activity. J. Biol. Chem. 284, 34126–34134.
33. Andrews, S. S., and Boxer, S. G. (2000) Vibrational Stark effects of
nitriles. I. Methods and experimental results. J. Phys. Chem. A 104,
11853–11863.
34. Waegele, M. M., and Gai, F. (2010) Computational modeling of the
nitrile stretching vibration of 5-cyanoindole in water. J. Phys. Chem.
Lett. 1, 781–786.
35. Smith, M. E. B., Schumacher, F. F., Ryan, C. P., Tedaldi, L. M.,
Papaioannou, D., Waksman, G., Caddick, S., and Baker, J. R. (2010)
Protein modification, bioconjugation, and disulfide bridging using
bromomaleimides. J. Am. Chem. Soc. 132, 1960–1965.
36. Ikura, M., Clore, G. M., Gronenborn, A. M., Zhu, G., Klee, C. B.,
and Bax, A. (1992) Solution structure of a calmodulin-target peptide
complex by multidimensional NMR. Science 256, 632–638.
37. Urbauer, J. L., Short, J. H., Dow, L. K., and Wand, A. J. (1995)
Structural analysis of a novel interaction by calmodulin: High-affinity
binding of a peptide in the absence of calcium. Biochemistry 34, 8099–
8109.
20. Aschaffenburg, D. J., and Moog, R. S. (2009) Probing hydrogen
bonding environments: Solvatochromatic effects on the CN vibration
of benzonitrile. J. Phys. Chem. B 113, 12736–12743.
21. Ha, J. H., Lee, K. K., Park, K. H., Choi, J. H., Jeon, S. J., and Cho, M.
(2009) Integrated and dispersed photon echo studies of nitrile stretching
vibration of 4-cyanophenol in methanol. J. Chem. Phys. 130, 204509.
38. Zhang, M., Tanaka, T., and Ikura, M. (1995) Calcium-induced
conformational transition revealed by the solution structure of apo
calmodulin. Nat. Struct. Biol. 2, 758–767.
