Chemistry of Nitrosyliron Complexes Supported by a β-Diketiminate Ligand
ꢀ
Zachary J. Tonzetich, Florent Heroguel, Loi H. Do, and Stephen J. Lippard*
Department of Chemistry, Massachusetts Institute of Technology, Cambridge, Massachusetts 02139,
United States
Received November 17, 2010
Several nitrosyl complexes of Fe and Co have been prepared using the sterically hindered Ar-nacnac ligand (Ar-
nacnac = anion of [(2,6-diisopropylphenyl)NC(Me)]2CH). The dinitrosyliron complexes [Fe(NO)2(Ar-nacnac)] (1)
and (Bu4N)[Fe(NO)2(Ar-nacnac)] (2) react with [FeIII(TPP)Cl] (TPP = tetraphenylporphine dianion) to generate
[FeII(NO)(TPP)] and the corresponding mononitrosyliron complexes. The factors governing NO transfer with
dinitrosyliron complexes (DNICs) 1 and 2 are evaluated, together with the chemistry of the related mononitrosyliron

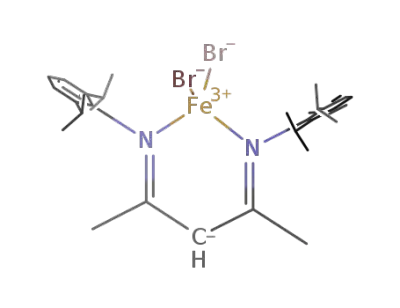

complex, [Fe(NO)Br(Ar-nacnac)] (4). The synthesis and properties of the related cobalt dinitrosyl [Co(NO)2-
(Ar-nacnac)] (3) is also discussed for comparison to DNICs 1 and 2. The solid-state structures of several of these
compounds as determined by X-ray crystallography are reported.
Introduction
little work has been devoted to understanding the mechanism
of NO transfer from DNICs.15-18 In a biological context, the
transfer of NO can be tedious to study since the nature of a
DNIC can be difficult to ascertain. Broadly defined, DNICs
are any member of a class of compounds containing the
{Fe(NO)2} unit,19 although the moniker DNIC is typically
reserved for thiolate-bound, mononuclear complexes of the
type [Fe(NO)2(SR)2]-.20,21 Biologically, the -SR anion typi-
cally derives from cysteinate residues in proteins or mobile
units such as glutathione, although examples of biological
DNICs with nonthiolate ligands are also known.22,23
The potential for dinitrosyliron complexes (DNICs) to
serve as storage and transfer units for nitric oxide (NO) in
vivo has stimulated interest in biomimetic chemistry that
reveals the principles underlying such reactivity.1 Much of
this interest stems from the demonstration that DNICs can
participate in a host of physiological processes normally
mediated by NO gas.2-8 DNICs also hold promise as
therapeutic delivery agents of NO.9-14 The release of free
NO by iron nitrosyls has been examined in detail, yet very
Formation of DNICs in vivo occurs through interaction
of NO with chelatable pools of ferrous iron24 or by attack of
NO on protein-based iron centers such as iron-sulfur
clusters.25-31 Mononuclear DNICs that result are denoted
{Fe(NO)2}9 in the Enemark-Feltham notation32 and dis-
play a characteristic gavg = 2.03 EPR signal arising from an
*To whom correspondence should be addressed. E-mail: lippard@
mit.edu.
(1) Vanin, A. F. Nitric Oxide 2009, 21, 1–13.
(2) Alencar, J. L.; Chalupsky, K.; Sarr, M.; Schini-Kerth, V.; Vanin,
A. F.; Stoclet, J.-C.; Muller, B. Biochem. Pharmacol. 2003, 66, 2365–2374.
(3) Vanin, A. F. Biochemistry (Moscow) 1998, 63, 782–793.
(4) Vanin, A. F.; Stukan, R. A.; Manukhina, E. B. Biochim. Biophys.
Acta, Protein Struct. Mol. Enzymol. 1996, 1295, 5–12.
€
(5) Boese, M.; Mordvintcev, P. I.; Vanin, A. F.; Busse, R.; Mulsch, A.
(15) Lu, T.-T.; Chen, C.-H.; Liaw, W.-F. Chem.;Eur. J. 2010, 16, 8088–
8095.
J. Biol. Chem. 1995, 270, 29244–29249.
(6) Chen, Y.-J.; Ku, W.-C.; Feng, L.-T.; Tsai, M.-L.; Hsieh, C.-H.; Hsu,
W.-H.; Liaw, W.-F.; Hung, C.-H.; Chen, Y.-J. J. Am. Chem. Soc. 2008, 130,
10929–10938.
(7) Mokh, V. P.; Poltorakov, A. P.; Serezhenkov, V. A.; Vanin, A. F.
Nitric Oxide 2010, 22, 266–274.
(8) Bosworth, C. A.; Toledo, J. C., Jr.; Zmijewski, J. W.; Li, Q.;
Lancaster, J. R., Jr. Proc. Natl. Acad. Sci. U.S.A. 2009, 106, 4671–4676.
(9) Chang, H.-H.; Huang, H.-J.; Ho, Y.-L.; Wen, Y.-D.; Huang, W.-N.;
Chiou, S.-J. Dalton Trans. 2009, 6396–6402.
(10) Wecksler, S. R.; Hutchinson, J.; Ford, P. C. Inorg. Chem. 2006, 45,
1192–1200.
(16) Chiang, C.-Y.; Darensbourg, M. J. Biol. Inorg. Chem. 2006, 11, 359–
370.
(17) Ueno, T.; Suzuki, Y.; Fujii, S.; Vanin, A. F.; Yoshimura, T. Biochem.
Pharmacol. 2002, 63, 485–493.
(18) Hsieh, C.-H.; Darensbourg, M. Y. J. Am. Chem. Soc. 2010, 132,
14118–14125.
(19) Butler, A. R.; Glidewell, C.; Li, M.-H. Adv. Inorg. Chem. 1988, 32,
335–393.
(20) Butler, A. R.; Megson, I. L. Chem. Rev. 2002, 102, 1155–1165.
(21) Chiang, C. Y.; Miller, M. L.; Reibenspies, J. H.; Darensbourg, M. Y.
J. Am. Chem. Soc. 2004, 126, 10867–10874.
(22) Cesareo, E.; Parker, L. J.; Pedersen, J. Z.; Nuccetelli, M.; Mazzetti,
A. P.; Pastore, A.; Federici, G.; Caccuri, A. M.; Ricci, G.; Adams, J. J.;
Parker, M. W.; Lo Bello, M. J. Biol. Chem. 2005, 280, 42172–42180.
(23) Lee, M.; Arosio, P.; Cozzi, A.; Chasteen, N. D. Biochemistry 1994,
33, 3679–3687.
(24) Toledo, J. C., Jr.; Bosworth, C. A.; Hennon, S. W.; Mahtani, H. A.;
Bergonia, H. A.; Lancaster, J. R., Jr. J. Biol. Chem. 2008, 283, 28926–28933.
(11) Wen, Y.-D.; Ho, Y.-L.; Shiau, R.-J.; Yeh, J.-K.; Wu, J.-Y.; Wang,
W.-L.; Chiou, S.-J. J. Organomet. Chem. 2010, 695, 352–359.
(12) Sanina, N. A.; Roudneva, T. N.; Shilov, G. V.; Morgunov, R.;
Ovanesyan, N. S.; Aldoshin, S. M. Dalton Trans. 2009, 1703–1706.
(13) Ostrowski, A. D.; Ford, P. C. Dalton Trans 2009, 10660–10669.
(14) Dillinger, S. A. T.; Schmalle, H. W.; Fox, T.; Berke, H. Dalton Trans.
2007, 3562–3571.
r
pubs.acs.org/IC
Published on Web 01/18/2011
2011 American Chemical Society

Article
Inorganic Chemistry, Vol. 50, No. 4, 2011 1571
Scheme 1. Different Scenarios for Transfer of NO between Donor
(LnM) and Acceptor (A)
Chart 1. Chemical Structures of Compounds 1 and 2
1
S = /2 ground state.33 The precise electronic structure of
{Fe(NO)2}9 DNICs remains a point of contention, and
descriptions ranging from {HS-Fe(I)}-{2(NO )}2, to {HS-
3
been isolated and characterized.42 With thiolate (RS-) li-
gands, however, chemical reduction of the {Fe(NO)2}9
DNIC leads to dissociation of disulfide (RSSR) and dimer-
ization to form a valence-delocalized {Fe(NO)2}9-{Fe-
(NO)2}10 species.43,44
Recently, we reported the synthesis of a pair of homo-
logous DNIC redox partners, {Fe(NO)2}9/10, containing a
sterically hindered β-diketiminate ligand (Chart 1, com-
pounds 1 and 2).45 The identical ligand sets in these DNICs
permit an evaluation of the effect that iron redox state plays
on their structures and reactivity. One very interesting obser-
vation from this study is that the isomer shifts (δ) in the
Fe(III)}-{3(NO-)}2, to {Fe(-I)}-{1(NOþ)}2, where HS de-
notes “high-spin”, have been proffered.34-39 A more detailed
knowledge of DNIC electronic structure is important for
understanding both the nature of the metal-nitrosyl bond
and the mechanism of NO transfer. Such information would
also facilitate comparison with the chemistry of nitrosothiols,
which are generally agreed to play an important role in NO-
mediated processes.40,41
Implicit to a discussion of NO-transfer reactivity is the
question of NO redox state. Three different scenarios are
possible for transfer of the nitrosyl group from donor to
acceptor, formally involving NOþ, NO•, and NO- and
resulting in oxidative nitrosylation (nitrosation), nitrosyla-
tion, or reductive nitrosylation of the acceptor moiety, respec-
tively (Scheme 1). With nitrosothiols, reductive nitrosylation
is unlikely because the reaction would require formation of
RSþ. With metal nitrosyls, however, transfer of each redox
form of NO must be considered. An added layer of complex-
ity to the chemistry of DNICs is their ability to participate in
redox chemistry prior to NO transfer. DNICs containing the
{Fe(NO)2}9 unit display an electrochemically reversible one-
electron reduction to the diamagnetic {Fe(NO)2}10 state.
With π-acidic ligands such as carbonyls, phosphines, and
certain nitrogen-based ligands, such reduced species have
€
Mossbauer spectra of the two DNICs are nearly identical,
δ 0.19(2) and 0.23(2) mm/s for 1 and 2, respectively, which is
unexpected for a metal-centered reduction.34 This result
clearly reveals the intricate nature of the electronic structure
of {Fe(NO)2} units and indicates that redox reactions of
DNICs are more complex than anticipated from simple
metal-based processes.
In the present work, we have used these well-defined
DNICs to investigate the mechanism of NO transfer. The
β-diketiminate ligand, Ar-nacnac (Ar = 2,6-diisopropyl-
phenyl),46,47 is critical to this study because it helps stabilize
both the DNIC starting materials and the products of NO
transfer. Moreover, the nitrogen-rich coordination environ-
ment afforded by the Ar-nancac ligand is a reasonable approx-
imation of the histidine residue nitrogen-donor atoms.48,49
