Rapid, efficient and eco-friendly procedure for the synthesis
of quinoxalines under solvent-free conditions using sulfated polyborate
as a recyclable catalyst
KRISHNA S INDALKAR, CHETAN K KHATRI and GANESH U CHATURBHUJ∗
Department of Pharmaceutical Sciences and Technology, Institute of Chemical Technology, Mumbai,
Maharashtra 400 019, India
Email: gu.chaturbhuj@gmail.com
MS received 17 December 2016; revised 17 January 2017; accepted 17 January 2017
Abstract. An efficient and inexpensive sulfated polyborate catalyst was applied for the rapid synthesis of
quinoxaline derivatives from various substituted o-phenylenediamines and 1,2-diketones/α-hydroxy ketones
using sulfated polyborate is described. The catalyst has the advantage of Lewis as well as Bronsted acidity and
recyclability without significant loss in catalytic activity. The key advantages of the present method are high
yields, short reaction times, solvent-free condition, easy workup, and ability to tolerate a variety of functional
groups, which give economical as well as ecological rewards.
Keywords. Sulfated polyborate; o-phenylenediamines; 1,2-diketone; α-hydroxy ketones; quinoxaline.
heating,21 catalytic and reagent systems. Many catalysts
and reagents have also been reported such as sulfamic
acid,22 CuSO4.5H2O,23 amidosulfonic acid,24 polyani-
line sulfate,25 p-TSA,26 ionic liquid (Hbim)BF4,27 Mn
octahedral molecular sieves,28 Ga(OTf)3,29 Montmoril-
lonite K-10,30 Keggin-type heteropolyacids (H4SiW12
O40),31 Amberlyte-15,32 SnCl2,33 SnCl2/SiO2,34 Zr(DS)4,35
ZrO2 mixed metal oxide,36 iodine,37 silica bonded S-
sulfonic acid,38 silica supported SbCl3,39 Zn[(L)pro-
line,40 etc. Recently, many new improved methods were
also reported using silica gel,41 alumina,42 Sm(OTf)2,43
KHSO4,44 silica sulfuric acid in PEG,45 glycerol,46
CeCl3-7H2O in glycerin,47 triethylamine/O2,48 FeCl3/
morpholine,49 Ga(ClO4)3,50 p-TSA/H2O,51 graphite,52
sulfated TiO2,53 and PEG-400.54
Furthermore, many of these methods have some syn-
thetic advantages individually, but still suffer from one
or more limitations, such as the use of toxic organic
solvents, long reaction times, requiring anhydrous con-
ditions, use of expensive or corrosive reagents, strong
acids, strong oxidants, and toxic or expensive cata-
lysts, harsh reaction conditions, tedious workup and
most importantly unsatisfactory yields. Thus, develop-
ment of a safe, environmentally benign, mild, efficient,
and high yielding rapid reaction procedure using cost
effective and recyclable catalyst for the preparation of
quinoxalines is desirable.
1. Introduction
The importance of quinoxaline and its derivatives has
been reported in the literature.1 Quinoxaline deriva-
tives are valuable for their wide spectrum of biological
activities viz antiviral,2 anticancer,2 antibacterial,3 anti-
depressant,4 antiamoebic,5 anticonvulsant,6 antima-
larial,7 anti-inflammatory-antioxidant,8 antiprotozoal
activity,9 and activity as kinase inhibitors.10 They are
basic scaffolds for various insecticides, herbicides,
and fungicides.3 In addition, several antibiotics such
as actinomycin, echinomycin, levomycin and triostins
bear quinoxaline nucleus.11 Quinoxaline moiety is also
part of bioactive natural products like Izumiphenazine-
C.12 Other applications of quinoxaline as fluorescent
dyes,13 electroluminescent materials,14 organic semi-
conductors,15 cavitands,16 DNA cleaving agents1 have
been reported. Because of such a widespread applica-
tions of quinoxaline compounds in medicinal as well
as industrial fields, it remains an attractive target for an
organic chemist to develop new synthetic methods for
the preparation of quinoxaline derivatives.
The most common methods for the synthesis of
quinoxaline is condensation of aromatic 1,2-diamines
with 1,2-dicarbonyl compounds in refluxing ethanol or
acetic acid for 2–12 h with 34–85% yields.17 Over the
years, various improved methods have been developed
using grinding,18 microwave,19 sonication,20 ball mill
A literature search revealed that boric acid cat-
alyzes many important organic transformations at a
temperature above 100◦C.55 57 Boric acid dehydrates
∗For correspondence

Krishna S Indalkar et al.
Scheme 1. Schematic representation of sulfated polyborate catalyzed quinoxaline synthesis.
above 100◦C and converts to its polymeric forms,
were accomplished by thin layer chromatography (TLC) on
Merck silica gel G F254 plates.
which presumably are the active species catalyzing
the reaction.58,59 Dehydrative polymerization liberates
water molecules which may hamper the progress of the
reactions. This inspired us to develop a polymeric boric
acid catalyst with mild Bronsted acidity. To accomplish
this, boric acid was dehydrated at 200◦C to convert it
into its polymeric Lewis acid form and then sulfonated
using chlorosulphonic acid to introduce the mild Bron-
sted acid character. Boron is an electron deficient
element and electron withdrawing effect of adjacent
sulfate enhances its Lewis acidity, hence, it has both
Lewis as well as Bronsted acid characters (Scheme 1).
The development of a novel methodology which
serves green chemistry purpose by maximizing effi-
ciency and minimizing waste is currently in demand.
To achieve these objectives, herein we report sulfated
2.2 Preparation of sulfated polyborate
Sulfated polyborate catalyst was prepared from boric acid as
reported in the literature.60
2.3 General procedure for the synthesis of quinoxaline
derivatives
To a mixture of substituted o-phenylenediamines derivative
(2.0 mmol) and 1,2-diketone / α-hydroxy ketone (2.0 mmol),
was added sulfated polyborate (10 wt%). The reaction mix-
ture was stirred at 100◦C in an oil bath. The reaction was
monitored by thin layer chromatography (TLC). After com-
pletion of the reaction, the mixture was cooled to room
temperature and quenched by water. The resultant product
polyborate as a mild, efficient and eco-friendly catalyst was filtered/extracted with EtOAc to get the product. Crude
products were either recrystallized from ethanol or purified
by column chromatography using silica as the stationary
phase and EtOAc: pet. ether as mobile phase. The products
obtained were known compounds and were identified by
melting point and 1H and 13C NMR spectroscopy. The
spectral data were compared with the literature values.
The catalyst was prepared and characterized by var-
ious analytical techniques such as potentiometric analy-
sis, Fourier transform infrared spectroscopy (FTIR), X-ray
diffraction (XRD), and scanning electron microscopy (SEM)
energy dispersive X-ray spectroscopy (EDAX).60
for synthesis of quinoxalines under solvent-free condi-
tion with high yields and short duration of times. The
catalyst was prepared from readily available boric acid,
as economic and non-toxic starting material. This is
the first report on the use of sulfated polyborate for
the synthesis of quinoxalines (Scheme 1). The catalyst
is environmentally benign due to its mild acidity and
non-toxic nature.
2. Experimental
2.1 Materials and methods
3. Results and Discussion
Melting points of all the compounds were recorded by
Analab ThermoCal melting point apparatus in the open cap-
illary tube and are uncorrected. The FTIR spectra (KBr) were
recorded on Shimadzu FTIR Affinity-1 Fourier Transform
Infrared spectrophotometer. 1H NMR spectra were recorded
on MR400 Agilent Technology NMR spectrometer using
tetramethylsilane (TMS) as an internal standard and DMSO-
d6 or CDCl3 as a solvent. Chemicals and solvents used were
of LR grade and purchased from SD fine, Avra Synthesis and
Spectrochem and used without purification. The purity deter-
The acidity of the catalyst was determined by potentio-
metric titration in a mixture of water and glycerine (2:1)
against standard 0.1 N NaOH solution and the total con-
centration of H+ was found to be 19.5 mmol/g which is
due to both SO3H as well as associated B–O–H.
FTIR spectrum of the catalyst showed the presence
of a band at 3221 cm−1 corresponding to O–H stretch-
ing of B–O–H and at 1469 cm−1 for B–O stretching, and
bands at 1294 cm−1 for O = S = O asym. stretching,
mination of the starting materials and reaction monitoring 1068 cm−1 for sym. stretching, 1004 cm−1 for S = O

Sulfated polyborate catalyzed quinoxaline synthesis
stretching of the SO3H group. Powder XRD pattern (Scheme 2). The effect of the catalyst loading on
showed significant peaks positioned at 2θ = 28.1◦ time and yields of the reaction was assessed (Table 1,
which confirms the presence of B–O bonds in the crys- entries 2–6). In the absence of the catalyst, the reaction
tal structure of the catalyst. EDAX shows boron: oxy- proceeded at 100◦C but it required longer time with
gen: sulfur signal ratio of 30.32: 68.73: 0.96 wt% over poor yield (Table 1, entry 1), while increased catalyst
different areas.
loading resulted in an increased product yield with sig-
Recently, we have reported the efficiency of sulfated nificant reduction in reaction time. (Table 1, entries 2–
polyborate as a catalyst for one-pot multicomponent 5). The catalyst loading beyond 10 wt% was not advan-
synthesis of 3,4-dihydropyrimidin-2(1H)-ones/thiones tageous (Table 1, entries 6). Hence, a 10 wt% catalyst
via Biginelli60 reaction and synthesis of α-aminophos- loading was optimum for further study.
phinates via Kabachnik-Fields reaction61 both under
Temperature played a significant role in the synthe-
solvent-free conditions. Its ease of preparation, high sis of quinoxaline (Table 1, entries 5, 7 and 8). The
stability, mild acidity, and reusability prompted us for temperature effect was observed at ambient, 70◦C and
exploration of its potential to catalyze other useful 100◦C in presence of sulfated polyborate as a catalyst.
reaction transformations.
The reaction proceeded at 70◦C but took longer reaction
In continuation of the development of greener, eco- time with a lower yield (Table 1, entry 7). The reac-
friendly catalysts for the synthesis of various hetero- tion did not proceed at room temperature (Table 1, entry
cycles, herein, we report sulfated polyborate used as 8), while it proceeded at 100◦C with increased prod-
a catalyst for synthesis of quinoxalines from aromatic uct yield in a shorter reaction time (Table 1, entry 5).
1,2-diamines and 1,2-diketone/α-hydroxy ketone with Therefore, 100◦C was chosen as optimum temperature
good to excellent yields (Scheme 2).
for the reaction. The effect of different solvents on yield
Initially, we designed our study to investigate the and time of the reaction was assessed (Table 1, entries
suitability of sulfated polyborate as a catalyst at different 9–14). None of the solvents presented an advantage
reaction conditions for synthesis of the quinoxaline deri- over solvent-free condition. Therefore, the solvent-free
vatives. An equimolar mixture of o-phenylenediamines, condition was regarded as the best for the cost and
a representative substrate and benzil were used ecological benefits.
Scheme 2. Synthesis of quinoxaline from o-phenylenediamines and benzil.
Table 1. Catalyst loading, temperature and solvent optimization study.
Catalyst
(wt%)
Temperature
(◦C)
Yielda
(%)
Entry
Solvent
Time (min)
1.
2.
3.
4.
5.
6.
7.
8.
0
2.5
5.0
7.5
10.0
15.0
10
10
10
10
10
solvent-free
solvent-free
solvent-free
solvent-free
solvent-free
solvent-free
solvent-free
solvent-free
water
ACN
THF
Ethanol
Toluene
100
100
100
100
100
100
70
RT
Reflux
Reflux
Reflux
Reflux
Reflux
100
320
60
30
10
5
52
84
90
96
99
99
50
NRb
95
91
85
89
93
94
5
60
60
60
60
60
60
60
60
9.
10.
11.
12.
13.
14.
10
10
10
DMSO
aIsolated yield, bNo reaction.

Krishna S Indalkar et al.
Table 2. Efficiency of sulfated polyborate in comparison with polyborate and boric
acid.
Entry
Catalyst
Conditions
Time (min)
Yielda (%)
1.
2.
3.
Sulfated polyborate
Polyborate
solvent-free/100◦C
solvent-free/100◦C
solvent-free/100◦C
5
30
40
99
97
96
Boric acid
aIsolated yield.

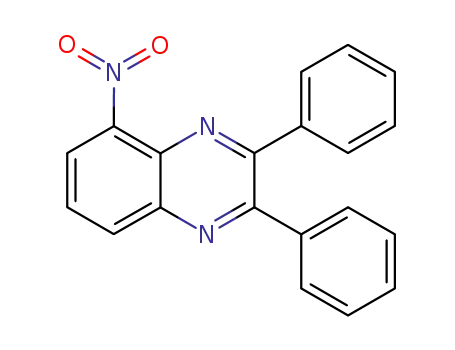

Table 3. Substrate scope for quinoxaline synthesis.
Melting point (◦C)
Entry 1,2-Diamine (R) Diketone (R1) Time (min) Yielda (%) Obtained
Literature
1.
2.
3.
4.
5.
6.
7.
8.
H
C6H5
C6H5
C6H5
C6H5
C6H5
C6H5
CH3
CH3
CH3
CH3
CH3
CH3
H
5
5
5
7
5
10
3
3
3
3
3
7
3
3
3
3
3
5
99
98
97
97
96
95
99
98
98
97
96
96
99
98
98
97
97
96
126–128
113–115
118–120
80–82
122–124
187–189
111–113
93–95
74–76
liquid
94–96
132–134
31–33
128–12952
112–11452
120–12162
8363
6-CH3
5-CH3
6-C4H9
6-Cl
6-NO2
H
6-CH3
5-CH3
6-C4H9
6-Cl
6-NO2
H
124–12662
188–19052
109–11062
94–9562
76–7762
NAb
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
92–9362
130–13264
29–3067
liquid67
18–2068
NAb
6-CH3
5-CH3
6-C4H9
6-Cl
H
H
H
H
liquid
liquid
liquid
64–66
63–6465
17466
6-NO2
H
172–173
aIsolated yields, bNot Available in literature.
Herein, the comparison of sulfated polyborate with the substrates and reaction yields of products were
polyborate and boric acid is shown in Table 2, which highly dependent on the substituent. It was observed
revealed that sulfated polyborate showed advantages that o-phenylenediamines with either electron donating
over its precursors with respect to time and yields groups or electron withdrawing groups gave the corre-
(Table 2).
sponding products in good to excellent yields. The dif-
To study the scope and generality of the present pro- ferences in the yields were very small but substrates
tocol, the optimized reaction conditions were applied having electron-withdrawing groups gave lower yields
for the synthesis of a variety of quinoxaline deriva- in increased reaction times compared to substrates hav-
tives from substituted o-phenylenediamines and 1,2- ing electron-donating groups (Table 3, entries 1–18).
diketones in the presence of a sulfated polyborate On the other hand, structurally diverse 1,2-diketone had
catalyst (Table 3, entries 1–18, Table 4, entries 1– no significant effect on the yields and the reaction times.
6). All the substrates gave excellent yields in short
The optimized protocol was also applied to the reac-
reaction times. All reactions proceeded very cleanly tion of α-hydroxy ketone, benzoin with substituted o-
and no undesirable side reactions were observed, phenylenediamines for the synthesis of quinoxalines
while the reaction time for a 100% conversion of derivatives. The reaction gave lower yield with longer

Sulfated polyborate catalyzed quinoxaline synthesis
Table 4. Quinoxaline synthesis using benzoin under solvent-free condition.
Time
(min)
Melting point (◦C)
Entry
1,2-Diamine (R)
Yielda (%)
Obtained
Literature
1.
2.
3.
4.
5.
6.
H
20
20
20
20
20
30
96
95
93
94
92
89
126–128
113–115
118–120
80–82
122–124
187–189
128–12952
112–11452
120–12162
8363
6-CH3
5-CH3
6-C4H9
6-Cl
124–12652
188–19052
6-NO2
aIsolated yields.
catalyst and environment-friendliness are the key fea-
tures of the present protocol. Moreover, this method has
the ability to tolerate a wide variety of substituents.
Supplementary Information (SI)
Full experimental details, 1H and 13C NMR spectra of com-
pounds are available in Supplementary Information at www.
ias.ac.in/chemsci.
Acknowledgements
The authors are grateful to University Grants Commission
(UGC), New Delhi, India for their financial support.
Figure 1. Reusability of the catalyst.
References
reaction time presumably due to subsequent air oxidation
of 2,3-diphenyl-1,2-dihydroquinoxaline, an intermediate,
to give 2,3-diphenylquinoxaline (Table 4, entries 1–6).
The reusability of the catalyst in the model reac-
tion under solvent-free conditions at 100◦C was evalu-
ated. After completion of each cycle of the reaction, the
catalyst was recovered by adding water and the prod-
uct was filtered off. The filtrate was evaporated under
reduced pressure to recover the catalyst quantitatively.
The recovered catalyst was reused four times with no
significant loss in a catalytic activity (Figure 1).
1. Hegedus L S, Greenberg M M, Wendling J J and Bullock
J P 2003 Synthesis of 5,12-dioxocyclam nickel(II) com-
plexes having quinoxaline substituents at the 6 and 13
positions as potential DNA bis-intercalating and cleav-
ing agents J. Org. Chem. 68 4179
2. Corona P, Vitale G, Loriga M, Paglietti G and
Paola M 1998 Quinoxaline chemistry. Part 11. 3-
Phenyl-2 [phenoxy- and phenoxymethyl]-6(7) or 6,8-
substituted quinoxalines and IV- [4- (6 (7) -substituted
or 6 &disubstituted-3-phenylquinoxalin-2-yl) hydroxy
or hydroxymethyl] benzoylglutamates. Synthesis and
evaluation of in vitro anticancer activity and enzymatic
inhibitory activity against dihydrofolate reductase and
thymidylate synthase Farmaco 53 480
4. Conclusions
3. Seitz L E, Suling W J and Reynolds R C 2002 Syn-
thesis and antimycobacterial activity of pyrazine and
quinoxaline derivatives J. Med. Chem. 45 5604
4. Sarges R, Howard H R, Browne R G, Lebel L A,
Seymour P A and B K Koe 1990 4-Amino[1,2,4]triazolo
[4,3-a] quinoxalines. A novel class of potent adenosine
receptor antagonists and potential rapid-onset antide-
pressants J. Med. Chem. 33 2240
In conclusion, sulfated polyborate is a mild, efficient,
eco-friendly and inexpensive catalyst for the synthesis of
quinoxalines of various substituted o-phenylenediamines
and 1,2-diketones/α-hydroxy ketones under optimal
conditions. Mild reaction conditions, shorter reaction
times, higher yields, ease of workup, recyclability of the

Krishna S Indalkar et al.
18. Li Z, Zhu A and Yang J 2012 Eco-friendly synthesis of
5. Budakoti A, Bhat A R and Azam A 2009 Synthe-
sis of new 2-(5-substituted-3-phenyl-2-pyrazolinyl)-1,3-
thiazolino[5,4-b]quinoxaline derivatives and evaluation
of their antiamoebic activity Eur. J. Med. Chem. 44 1317
6. Wagle S, Adhikari A V and Kumari N S 2009 Syn-
thesis of some new 4-styryl tetrazolo[1,5-a]quinoxaline
and 1-substituted-4-styryl[1,2,4]triazolo[4,3-a] quinox-
aline derivatives as potent anticonvulsants Eur. J. Med.
Chem. 44 1135
7. Guillon J, Grellier P, Labaied M, Sonnet P, Leger
J M, Deprez-Poulain R, Forfar-Bares I, Dallemagne
P, Lemaıtre N, Pehourcq F, Rochette J, Sergheraert C
and Jarry C 2004 Synthesis, antimalarial activity, and
molecular modeling of new pyrrolo[1,2-a]quinoxalines,
bispyrrolo[1,2-a]quinoxalines, bispyrido[3,2-e] pyrrolo
[1,2-a]pyrazines and bispyrrolo[1,2-a]thieno[3,2-e]pyra-
zines J. Med. Chem. 47 1997
8. Burguete A, Pontiki E, Hadjipavlou-Litina D, Villar R,
Vicente E, Solano B, Ancizu S, Pérez-Silanes S, Aldana
I and Monge A 2007 Synthesis and anti-inflammatory/
antioxidant activities of some new ring substituted 3-
phenyl-1-(1,4-di-N-oxide-quinoxalin-2-yl)-2-propen-1-
one derivatives and of their 4,5-dihydro-(1H)-pyrazole
analogues Bioorg. Med. Chem. Lett. 17 6439
9. Hui X, Desrivot J, Bories C, Loiseau P M, Franck X,
Hocquemiller R and Figadère B 2006 Bioorg. Med.
Chem. Lett. Synthesis and antiprotozoal activity of some
new synthetic substituted quinoxalines Med. Chem. Lett.
16 815
quinoxaline derivatives by grinding under solvent-free
conditions J. Heterocycl. Chem. 49 1458
19. Zhao Z, Wisnoski D D, Wolkenberg S E, Leister W H,
Wang Y and Lindsley C W 2004 General microwave-
assisted protocols for the expedient synthesis of quinoxa-
lines and heterocyclic pyrazines Tetrahedron Lett. 45 4873
20.
Mirjalili B B F, Bamoniri A and Akbari A 2011 Nano-
BF3·SIO2: A reusable and eco-friendly catalyst for
synthesis of quinoxalines Chem. Heterocycl. Compd.
47 487
21. Kaupp G and Naimi-Jamal M R 2002 Quantitative cas-
cade condensations between o-phenylenediamines and
1,2-dicarbonyl compounds without production of wastes
Eur. J. Org. Chem. 2002 1368
22. Darabi
H R, Mohandessi S, Aghapoor K and
Mohsenzadeh F 2007 A recyclable and highly effective
sulfamic acid/MeOH catalytic system for the synthesis
of quinoxalines at room temperature Catal. Commun.
8 389
23. Heravi M M, Taheri S, Bakhtiari K and Oskooie H A
2007 On water: A practical and efficient synthesis
of quinoxaline derivatives catalyzed by CuSO4:5H2O
Catal. Commun. 8 211
24. Li Z, Li W, Sun Y, Huang H and Ouyang P 2008 Room
temperature facile synthesis of quinoxalines catalyzed
by amidosulfonic acid J. Heterocycl. Chem. 45 285
25. Srinivas C, Kumar C N S S P, Rao V J and Palaniappan
S 2007 Efficient, convenient and reusable polyaniline-
sulfate salt catalyst for the synthesis of quinoxaline
derivatives J. Mol. Catal. A: Chem. 265 227
26. Da-Qing S and Guo-Lan D 2008 Efficient synthesis of
quinoxaline derivatives catalyzed by p-toluenesulfonic
acid under solvent-free conditions Synth. Commun.
38 3329
10. He W, Myers M R, Hanney B, Spada A P, Bilder G
Galzcinski H, Amin D, Needle S, Page K, Jayyosi Z and
Perrone M H 2003 Potent quinoxaline-based inhibitors
of PDGF receptor tyrosine kinase activity. Part 2: The
synthesis and biological activities of RPR127963 an
orally bioavailable inhibitor Bioorg. Med. Chem. Lett.
13 3097
11. Dell A, William D H, Morris H R, Smith G A, Feeney
J and Roberts G C K 1975 Synthesis and antimycobac-
terial activity of pyrazine and quinoxaline derivatives
J. Am. Chem. Soc. 97 2497
12. Abdelfattah M S, Kazufumi T and Ishibashi M 2010
Structure revision of the antibiotic echinomycin J. Nat.
Prod. 73 1999
13. Hirayama T, Yamasaki S, Ameku H, Ishi I T, Thiemann
T and Mataka S 2005 Fluorescent solvatochromism of
bi-polar N,N-diphenylaminoaryl-substituted hexaazat-
riphenylenes, tetraazaphenanthrene, and quinoxalines
Dyes Pigm. 67 105
14. Justin Thomas K R, Velusamy M, Lin Jiann T, Chuen
C H and Tao Y T 2005 Chromophore-labeled quinoxa-
line derivatives as efficient electroluminescent materials
Chem. Mater. 17 1860
15. Dailey S, Feast W J, Peace R J, Sage I C, Till S and
Wood E L 2001 Synthesis and device characterisation of
side-chain polymer electron transport materials for organic
semiconductor applications J. Mater. Chem. 11 2238
16. Sessler J L, Maeda H, Mizuno T, Lynch V M
and Furuta H 2002 Quinoxaline-bridged porphyrinoids
J. Am. Chem. Soc. 124 13474
27. Potewar T M, Ingale S and Srinivasan K V 2008
Efficient synthesis of quinoxalines in the ionic liquid
1-n-butylimidazolium tetrafluoroborate ([Hbim]BF4) at
ambient temperature Synth. Commun. 38 3601
28. Sithambaram S, Ding Y, Li W, Shen X, Gaenzler F and
Suib S L 2008 Manganese octahedral molecular sieves
catalyzed tandem process for synthesis of quinoxalines
Green Chem. 10 1029
29. Cai J J, Zou J P, Pan X Q and Zhang W 2008
Gallium(III) triflate-catalyzed synthesis of quinoxaline
derivatives Tetrahedron Lett. 49 7386
30. Huang T, Wang R, Shi L and Lu X 2008 Montmo-
rillonite K-10: An efficient and reusable catalyst for
the synthesis of quinoxaline derivatives in water Catal.
Commun. 9 1143
31. Huang T, Shi L, Wang R, Guo X and Lu X 2009 Keggin
type heteropolyacids-catalyzed synthesis of quinoxaline
derivatives in water Chinese Chem. Lett. 20 161
32. Liu J Y, Liu J, Wang J D, Jiao D Q and Liu H W
2010 Efficient, ecofriendly, and practical process for the
synthesis of quinoxalines catalyzed by amberlyst-15 in
aqueous media Synth. Commun. 40 2047
17. Brown D J 2004 In Quinoxalines: Supplement II. In The 33. Shi D Q, Dou G L, Ni S N, Shi J W and Li X Y 2008 An
Chemistry of Heterocyclic Compounds E C Taylor and
P Wipf (Eds.) (New Jersey: John Wiley)
efficient synthesis of quinoxaline derivatives mediated
by stannous chloride J. Heterocycl. Chem. 45 1797

Sulfated polyborate catalyzed quinoxaline synthesis
34. Darabi H R, Aghapoor K, Mohsenzadeh F, Jalali M R, leading to quinoxalines using molecular oxygen as oxi-
Talebian S, Ebadi Nia L, Khatamifar E and Aghaee A
2011 Heterogeneous SnCl2/SiO2 versus homogeneous
SnCl2 acid catalysis in the benzo[N,N]-heterocyclic
condensation Bull. Korean Chem. Soc. 32 213
35. Hasaninejad A, Zare A, Zolfigol M A and Shekouhy
M 2009 Zirconium tetrakis(dodecyl sulfate) [Zr(DS)4]
as an efficient lewis acid–surfactant combined catalyst
for the synthesis of quinoxaline derivatives in aqueous
media Synth. Commun. 39 569
36. Ajaikumar S and Pandurangan A 2009 Efficient synthe-
sis of quinoxaline derivatives over ZrO2/MxOy (M =
Al, Ga, In and La) mixed metal oxides supported on
MCM-41 mesoporous molecular sieves Appl. Catal. A
Gen. 357 184
37. Bhosale R S, Sarda S R, Ardhapure S S, Jadhav W N,
Bhusare S R and Pawar R P 2005 An efficient pro-
tocol for the synthesis of quinoxaline derivatives at
room temperature using molecular iodine as the catalyst
Tetrahedron Lett. 46 7183
38. Niknam K, Saberi D and Mohagheghnejad M 2009
Silica bonded S-Sulfonic acid: A recyclable catalyst
for the synthesis of quinoxalines at room temperature
Molecules 14 1915
39. Darabi H R, Aghapoor K, Mohsenzadeh F, Taala F,
Asadollahnejad N and Badiei A 2009 Silica-supported
antimony(III) chloride as highly effective and reusable
heterogeneous catalyst for the synthesis of quinoxalines
Catal. Lett. 133 84
40. Heravi M M, Tehrani M H, Bakhtiari K and Oskooie
H A 2007 Zn[(L)proline]: A powerful catalyst for the
very fast synthesis of quinoxaline derivatives at room
temperature Catal. Commun. 8 1341
41. Nandi G C, Samai S, Kumar R and Singh M S 2011
Silica-gel–catalyzed efficient synthesis of quinoxaline
derivatives under solvent-free conditions Synth. Com-
mun. 41 417
42. Jafarpour M, Rezaeifard A and Danehchin M 2011
Easy access to quinoxaline derivatives using alumina
as an effective and reusable catalyst under solvent-free
conditions Appl. Catal. A Gen. 394 48
43. Raghuveerachary P and Devanna N 2011 Samarium tri-
flate catalyzed efficient synthesis of quinoxalines Asian
J. Chem. 23 1628
44. Oskooie H A, Heravi M M, Bakhtiari K and Taheri S
2007 An efficient and facile synthesis of quinoxaline
derivatives catalyzed by KHSO4 at room temperature
Monatsh. Chem. 138 875
45. Huang T, Jiang D, Chen J, Gao W, Ding J and Wu
H 2011 Silica sulfuric acid (SSA)/polyethylene gly-
col (PEG) as a recyclable system for the synthesis of
quinoxalines and pyrazines Synth. Commun. 41 3334
46. Bachhav H M, Bhagat S B and Telvekar V N 2011 Effi-
cient protocol for the synthesis of quinoxaline, benzox-
azole and benzimidazole derivatives using glycerol as
green solvent Tetrahedron Lett. 52 5697
47. Narsaiah A V and Kumar J K 2012 Glycerin and
CeCl3·7H2O: A new and efficient recyclable reaction
medium for the synthesis of quinoxalines Synth. Com-
mun. 42 883
dant Tetrahedron 68 5258
49. Song W, Liu P, Lei M, You H, Chen X, Chen H, Ma L
and Hu L 2012 FeCl3 and morpholine as efficient cocat-
alysts for the one-step synthesis of quinoxalines from α-
hydroxyketones and 1,2-diamines Synth. Commun. 42 236
50. Pan F, Chen T M, Cao J J, Zou J P and Zhang
W 2012 Ga(ClO4)3-catalyzed synthesis of quinoxa-
lines by cycloaddition of a-hydroxyketones and o-
phenylenediamines Tetrahedron Lett. 53 2508
51. Kumbhar A, Kamble S, Barge M, Rashinkar G and
Salunkhe R 2012 Brönsted acid hydrotrope combined
catalyst for environmentally benign synthesis of quinox-
alines and pyrido[2,3-b]pyrazines in aqueous medium
Tetrahedron Lett. 53 2756
52. Kadam H K, Khan S, Kunkalkar R A and Tilve S G
2013 Graphite catalyzed green synthesis of quinoxalines
Tetrahedron Lett. 54 1003
53. Krishnakumar B and Swaminathan M 2011 A Recy-
clable solid acid catalyst sulfated titania for easy syn-
thesis of quinoxaline and dipyridophenazine derivatives
under microwave irradiation Bull. Chem. Soc. Jpn. 84 1261
54. Zhang X Z, Wang J X, Sun Y J and Zhan H W 2010
Synthesis of quinoxaline derivatives catalyzed by PEG-
400 Chin. Chem. Lett. 21 395
55. Shahrisa A, Esmati S and Nazari M G 2012 Boric acid
as a mild and efficient catalyst for one-pot synthesis of
1-amidoalkyl-2-naphthols under solvent-free conditions
J. Chem. Sci. 124 927
56. Arce G, Carrau G, Bellomo A and Gonzalez D 2015
Greener synthesis of an amide by direct reaction of
an acid and amine under catalytic conditions World J.
Chem. Educ. 3 27
57. Zheng Y J, Zhang J C and Lu H C 2012 Synthesis of
n-butyl salicylate catalyzed by boric Acid Adv. Mater.
Res. 466 319
58. Chandrasekhar S and Gopalaiah K 2002 Beckmann rear-
rangement of ketoximes on solid metaboric acid: A
simple and effective procedure Tetrahedron Lett. 43
2455
59. Sivrikaya O and Arol A 2010 Use of Boron Com-
pounds as Binders in Iron Ore Pelletization Open Miner.
Process. J. 3 25
60. Khatri C K, Rekunge D S and Chaturbhuj G U
2016 Sulfated polyborate: A new and eco-friendly
catalyst for one-pot multi-component synthesis of
3,4-dihydro pyrimidin-2(1H)-ones/thiones via Biginelli
reaction New J. Chem. 40 10412
61. Khatri C K, Satalkar V B and Chaturbhuj G U 2017 Sul-
fated polyborate catalyzed Kabachnik-Fields reaction:
An efficient and eco-friendly protocol for synthesis of
α-amino phosphonates Tetrahedron Lett. 58 694
62. Go A, Lee G, Kim J, Bae S, Lee B M and Kim B H 2015
One-pot synthesis of quinoxalines from reductive cou-
pling of 2-nitroanilines and 1,2-diketones using indium
Tetrahedron 71 1215
48. Zhang C, Xu Z, Zhang L and Jiao N 2012 Et3N- 63. Urban S, Ortega N and Glorius F 2011 Ligand-
catalyzed oxidative dehydrogenative coupling of α-
unsubstituted aldehydes and ketones with aryl diamines
controlled highly regioselective and asymmetric
hydrogenation of quinoxalines catalyzed by ruthenium

Krishna S Indalkar et al.
n-heterocyclic carbene complexes Angew. Chem. Int. 66. Zhu W, Dai M, Xu Y and Qian X 2008 Novel nitrohete-
Ed. 50 3803
rocyclic hypoxic markers for solid tumor: Synthesis and
biological evaluation Bioorg. Med. Chem. 16 3255
64. Mohammadi M, Bardajee G R and Pesyan N N 2015
Efficient solvent-free synthesis of pyridopyrazine and 67. Paul S and Basu B 2011 Synthesis of libraries of
quinoxaline derivatives using copper-DiAmSar complex
anchored on SBA-15 as a reusable catalyst Chin. J.
Catal. 36 1379
quinoxalines through eco-friendly tandem oxidation–
condensation or condensation reactions Tetrahedron
Lett. 52 6597
65. Rtishchev N I and Selitrennikov A V 2004 Phototrans- 68. Ulrich H and Galen K 1980 Carbon-13 NMR Stud-
formations of 6-X-5-nitroquinoxalines Russ. J. Gen.
Chem. 74 428
ies on some 5-Substituted Quinoxalines Org. Magn.
Resonance 14 300
