PAPER
Enantiospecific Route to cis-Chrysanthemic Acid
1069
13C NMR (100 MHz, CDCl3): d = 21.3, 23.4, 48.3, 56.0, 85.1, 97.1,
132.9, 160.1, 211.6.
13C NMR (100 MHz, CDCl3): d = 17.0, 19.0, 21.8, 22.1, 24.2, 26.8,
34.6, 38.6, 55.5, 83.7, 128.0, 130.1, 133.6, 145.3, 212.8.
LCMS: m/z = 171.1 [M + H]+.
LCMS: m/z = 323.2 [M + H]+.
HRMS (MALDI-TOF): m/z [M + Na]+ calcd for C9H14O3Na:
193.0841; found: 193.0848.
(1R,3S)-2,2-Dimethyl-3-(2-methylprop-1-enyl)cyclopropane-
carboxylic Acid (1)
To a cooled soln of KOH (52 mg, 0.93 mmol) in DMSO–H2O (4:1,
1 mL) was added tosylate 3 (50 mg, 0.15 mmol) at r.t. After stirring
at 70 °C for 4 h, the mixture was cooled to r.t. and acidified with
10% HCl (pH ~2). This was extracted with Et2O (4 × 10 mL). The
combined organic layers were washed with H2O (10 mL) and brine
(10 mL), dried (anhyd Na2SO4), concentrated, and purified by col-
umn chromatography to give 1 (14.5 mg, 56%) as a solid.
[a]D22.0 +82.0 (c 0.1, CHCl3) {Lit.3c [a]D20 +83.0 (c 1.75, CHCl3)}.
IR (neat): 1697, 3018 cm–1.
1H NMR (400 MHz, CDCl3): d = 1.21 (s, 3 H), 1.25 (s, 3 H), 1.65
(d, J = 8.8 Hz, 1 H), 1.70 (s, 3 H), 1.75 (s, 3 H), 1.96 (dd, J = 8.8,
8.4 Hz, 1 H), 5.35 (dt, J = 8.8, 1.2 Hz, 1 H), 10.74 (br s, 1 H).

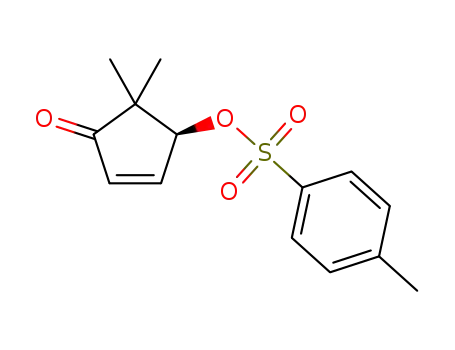

(S)-5,5-Dimethyl-4-oxocyclopent-2-enyl 4-Toluenesulfonate (9)
To a stirred soln of 8 (500 mg, 2.94 mmol) in THF (5 mL) was add-
ed 10% aq H2SO4 (5 mL) at r.t. and the mixture was refluxed for 3
h. The mixture was cooled to 0 °C and basified with aq sat. NaHCO3
soln and extracted with EtOAc (2 × 10 mL). The combined organic
layers were washed with H2O (10 mL) and brine (10 mL), dried (an-
hyd Na2SO4), concentrated, and purified by column chromatogra-
phy (9% EtOAc–hexanes) to give (S)-4-hydroxy-5,5-di-
methylcyclopent-2-enone (295 mg, 80%).
[a]D23.0 +80.2 (c 1.0, MeOH) {Lit.7 [a]D23.0 +87.2 (c 1.31, MeOH)}.
IR (neat): 1700, 3418 cm–1.
1H NMR (400 MHz, CDCl3): d = 1.08 (s, 3 H), 1.17 (s, 3 H), 2.07
(d, J = 6.8 Hz, 1 H), 4.58–4.60 (m, 1 H), 6.20 (dd, J = 6.0, 1.2 Hz,
1 H), 7.46 (dd, J = 5.6, 2.0 Hz, 1 H).
13C NMR (100 MHz, CDCl3): d = 15.1, 18.7, 26.3, 27.8, 29.2, 31.3,
33.5, 118.2, 135.5, 177.2.
13C NMR (100 MHz, CDCl3): d = 20.5, 23.0, 48.7, 79.9, 132.7,
161.8, 212.9.
LCMS: m/z = 169.1 [M + H]+.
To a stirred soln of (S)-4-hydroxy-5,5-dimethylcyclopent-2-enone
(250 mg, 1.98 mmol) in pyridine (5 mL) was added TsCl (567 mg,
2.97 mmol) at 0 °C. After stirring at r.t. for 15 h, pyridine was evap-
orated under reduced pressure. The resulting residue was taken in
EtOAc (10 mL) and washed with 1.0 M HCl (10 mL), H2O (10 mL),
and brine (10 mL), dried (anhyd Na2SO4), concentrated, and puri-
fied by column chromatography (5% EtOAc–hexanes) to give 9
(425 mg, 77%) as a white solid; mp 71–72 °C.
Supporting Information for this article is available online at
are copies of 1H and 13C NMR spectra of important intermediates 9,
8, 7, 6, 3, and synthesized cis-chrysanthemic acid 1.
Acknowledgment
[a]D21.7 +59.3 (c 1.0, CHCl3).
IR (neat): 1366, 1723 cm–1.
1H NMR (400 MHz, CDCl3): d = 1.03 (s, 3 H), 1.04 (s, 3 H), 2.48
(s, 3 H), 5.19 (t, J = 1.6 Hz, 1 H), 6.27 (dd, J = 6.0, 1.2 Hz, 1 H),
7.28 (dd, J = 6.0, 2.4 Hz, 1 H), 7.40 (d, J = 8.0 Hz, 2 H), 7.85 (d,
J = 8.0 Hz, 2 H).
We are grateful to Drs. Rashmi Barbhaiya and Kasim Mookhtiar for
their support and encouragement. Help from analytical group in ge-
nerating spectral data is appreciated. The authors thank Venkat Pan-
changula and Ajeet Singh of NCL, Pune for the MALDI spectra.
References
13C NMR (100 MHz, CDCl3): d = 20.9, 21.9, 22.4, 47.4, 86.3, 128.0,
130.2, 133.3, 135.0, 145.6, 155.7, 208.7.
(1) Advinus Publication No.: ADV-A-010.
(2) (a) Itagaki, M.; Suenobu, K. Org. Process Res. Dev. 2007,
11, 509. (b) Jeanmart, S. Aust. J. Chem. 2003, 56, 559.
(c) Fishman, A.; Kellner, D.; Ioffe, D.; Shapiro, E. Org.
Process Res. Dev. 2000, 4, 77. (d) Naumann, K. Chemistry
of Plant Protection, Synthetic Pyrethroid Insecticides, Vol.
5; Springer: Berlin, 1990, and references cited therein.
(3) Selected references for previous syntheses: (a) Krief, A.;
Jeanmart, S.; Kremer, A. J. Org. Chem. 2008, 73, 9795.
(b) Krief, A.; Gondal, H. Y.; Kremer, A. Chem. Commun.
2008, 4753. (c) Krief, A.; Kremer, A. Synlett 2007, 607.
(d) Krief, A.; Swinnen, D. Tetrahedron Lett. 1996, 37,
7123. (e) Krief, A.; Surleraux, D.; Ropson, N. Tetrahedron:
Asymmetry 1993, 4, 289. (f) Lambs, L.; Singh, N. P.;
Biellmann, J. F. J. Org. Chem. 1992, 57, 6301. (g) Krief,
A.; Surleraux, D.; Robson, M. J. Synlett 1991, 276.
(h) Krief, A.; Surleraux, D.; Frauenrath, H. Tetrahedron
Lett. 1988, 29, 6157. (i) Mulhr, J.; Kappert, M. Angew.
Chem., Int. Ed. Engl. 1983, 22, 63. (j) Sobti, R.; Dev, S.
Tetrahedron 1974, 30, 2927. (k) Krief, A.; Kremer, A.
Tetrahedron Lett. 2010, 51, 304.
Spectra were compared with those of racemic 9 known in the
literature9 and found to be identical.
(1S,2S,5R)-3,3,6,6-Tetramethyl-4-oxobicyclo[3.1.0]hexan-2-yl
4-Toluenesulfonate (3)
A soln of isopropyldiphenylsulfonium tetrafluoroborate8 (182 mg,
0.57 mmol) and CH2Cl2 (42 mg, 0.03 mL, 0.49 mmol) in anhyd
DME (6 mL) was cooled to –78 °C and treated with LDA [prepared
freshly by the addition of 1.6 M BuLi in hexane (0.31 mL, 0.49
mmol) to i-Pr2NH (0.07 mL, 0.49 mmol) in DME (1 mL) at 0 °C].
After 45 min, a soln of 9 (107 mg, 0.38 mmol) in DME (1 mL) was
added and the mixture was stirred for 30 min. The reaction was
quenched by the addition of H2O (5 mL). The aqueous layer was
separated and extracted with EtOAc (2 × 10 mL). The combined or-
ganic layers were washed with brine (20 mL), dried (anhyd
Na2SO4), concentrated, and purified by column chromatography
(4% EtOAc–hexanes) to give 3 (115 mg, 93%) as a white solid; mp
103–104 °C (Lit.3h 106 °C).
[a]D22.0 +77.9 (c 0.8, CHCl3).
IR (neat): 1728 cm–1.
1H NMR (400 MHz, CDCl3): d = 0.89 (s, 3 H), 1.00 (s, 3 H), 1.05
(s, 3 H), 1.07 (s, 3 H), 1.72 (d, J = 5.2 Hz, 1 H), 1.90 (d, J = 5.2 Hz,
1 H), 2.47 (s, 3 H), 4.50 (s, 1 H), 7.39 (d, J = 8.0 Hz, 2 H), 7.84 (d,
J = 8.0 Hz, 2 H).
(4) See earlier references from this group which use the
pantolactone chiral pool approach: (a) Hajare, A.; Datrange,
L.; Vyas, S.; Bhuniya, D.; Reddy, D. S. Tetrahedron Lett.
2010, 51, 5291. (b) Reddy, D. S.; Srinivas, G.; Rajesh, B.
M.; Kannan, M.; Rajale, T. V.; Iqbal, J. Tetrahedron Lett.
Synthesis 2011, No. 7, 1067–1070 © Thieme Stuttgart · New York
