Synthesis and evaluation of radiolabeled AGI-5198 analogues as candidate radiotracers for imaging mutant IDH1 expression in tumors

Article abstract of DOI:10.1016/j.bmcl.2018.01.015

Mutations in the metabolic enzyme isocitrate dehydrogenase 1 (IDH1) are commonly found in gliomas. AGI-5198, a potent and selective inhibitor of the mutant IDH1 enzyme, was radiolabeled with radioiodine and fluorine-18. These radiotracers were evaluated as potential probes for imaging mutant IDH1 expression in tumors with positron emission tomography (PET). Radioiodination of AGI-5198 was achieved using a tin precursor in 79 ± 6% yield (n = 9), and ¹⁸F-labeling was accomplished by the Ugi reaction in a decay-corrected radiochemical yield of 2.6 ± 1.6% (n = 5). The inhibitory potency of the analogous nonradioactive compounds against mutant IDH1 (IDH1-R132H) was determined in enzymatic assays. Cell uptake studies using radiolabeled AGI-5198 analogues revealed somewhat higher uptake in IDH1-mutated cells than that in wild-type IDH1 cells. The radiolabeled compounds displayed favorable tissue distribution characteristics in vivo, and good initial uptake in IDH1-mutated tumor xenografts; however, tumor uptake decreased with time. Radioiodinated AGI-5198 exhibited higher tumor-to-background ratios compared with ¹⁸F-labeled AGI-5198; unfortunately, similar results were observed in wild-type IDH1 tumor xenografts as well, indicating lack of selectivity for mutant IDH1 for this tracer. These results suggest that AGI-5198 analogues are not a promising platform for radiotracer development. Nonetheless, insights gained from this study may help in design and optimization of novel chemical scaffolds for developing radiotracers for imaging the mutant IDH1 enzyme.

Full text of DOI:10.1016/j.bmcl.2018.01.015

Accepted Manuscript
Synthesis and evaluation of radiolabeled AGI-5198 analogues as candidate ra-
diotracers for imaging mutant IDH1 expression in tumors
Satish K. Chitneni, Zachary J. Reitman, Rebecca Spicehandler, David M.
Gooden, Hai Yan, Michael R. Zalutsky
PII:
S0960-894X(18)30023-4
https://doi.org/10.1016/j.bmcl.2018.01.015
BMCL 25541
DOI:
Reference:
Bioorganic & Medicinal Chemistry Letters
To appear in:
Received Date:
Revised Date:
Accepted Date:
16 December 2017
9 January 2018
11 January 2018
Please cite this article as: Chitneni, S.K., Reitman, Z.J., Spicehandler, R., Gooden, D.M., Yan, H., Zalutsky, M.R.,
Synthesis and evaluation of radiolabeled AGI-5198 analogues as candidate radiotracers for imaging mutant IDH1
expression in tumors, Bioorganic & Medicinal Chemistry Letters (2018), doi: https://doi.org/10.1016/j.bmcl.
2018.01.015
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Synthesis and evaluation of radiolabeled AGI-5198 analogues as candidate radiotracers
for imaging mutant IDH1 expression in tumors
Satish K. Chitnenia,*, Zachary J. Reitmanb, Rebecca Spicehandlerc, David M. Goodend, Hai
Yanb, Michael R. Zalutskya,b
aDepartment of Radiology, Duke University Medical Center, Durham, NC 27710, USA
bDepartment of Pathology, Duke University Medical Center, Durham, NC 27710, USA
cDuke University, Durham, NC 27708, USA
dDepartment of Chemistry, Duke University, Durham, NC 27708, USA
*Corresponding author: Satish K. Chitneni, Box 3808, Duke University Medical Center, Durham,
NC 27710, USA. E-mail: satish.chitneni@duke.edu

Abstract
Mutations in the metabolic enzyme isocitrate dehydrogenase 1 (IDH1) are commonly found in
gliomas. AGI-5198, a potent and selective inhibitor of the mutant IDH1 enzyme, was
radiolabeled with radioiodine and fluorine-18. These radiotracers were evaluated as potential
probes for imaging mutant IDH1 expression in tumors with positron emission tomography (PET).
Radioiodination of AGI-5198 was achieved using a tin precursor in 79 ± 6% yield (n=9), and 18F-
labeling was accomplished by the Ugi reaction in a decay-corrected radiochemical yield of 2.6 ±
1.6% (n=5). The inhibitory potency of the analogous nonradioactive compounds against mutant
IDH1 (IDH1-R132H) was determined in enzymatic assays. Cell uptake studies using
radiolabeled AGI-5198 analogues revealed somewhat higher uptake in IDH1-mutated cells than
that in wild-type IDH1 cells. The radiolabeled compounds displayed favorable tissue distribution
characteristics in vivo, and good initial uptake in IDH1-mutated tumor xenografts; however,
tumor uptake decreased with time. Radioiodinated AGI-5198 exhibited higher tumor-to-
background ratios compared with 18F-labeled AGI-5198; unfortunately, similar results were
observed in wild-type IDH1 tumor xenografts as well, indicating lack of selectivity for mutant
IDH1 for this tracer. These results suggest that AGI-5198 analogues are not a promising
platform for radiotracer development. Nonetheless, insights gained from this study may help in
design and optimization of novel chemical scaffolds for developing radiotracers for imaging the
mutant IDH1 enzyme.
Keywords: IDH mutation, PET imaging, glioma, phenyl-glycine, IDH1 inhibitor
2

Malignant gliomas frequently harbor mutations in the gene encoding for the metabolic
enzyme isocitrate dehydrogenase 1 (IDH1).1 Studies suggest that IDH1 mutations contribute to
epigenetic dysregulation and widespread metabolic changes in tumor cells, including depletion
of key cellular biochemicals such as glutamine and glutamine-derived metabolites.2, 3 Most of
these effects are mediated by the metabolite D-2-hydroxyglutarate (D-2-HG), which is
generated by mutated IDH1 and accumulates in tumor cells at levels ~100-fold higher than
those found in wild-type cells.4, 5 IDH1 mutations impair the normal catalytic function of the
enzyme - its ability to convert isocitrate to α-ketoglutarate (α-KG) - and confer a new function
that enables the IDH1 mutant to recognize α-KG as a substrate and reduce it to D-2-HG.1, 4
IDH1 mutations are present in up to 80% of World Health Organization (WHO) grades II and III
gliomas and in secondary glioblastoma, but are seldom found in primary (de novo)
6
glioblastoma.1, IDH mutations are also present in several other cancers including acute
myeloid leukemia (AML),7 intrahepatic cholangiocarcinoma,8 Ollier disease and Maffucci
syndrome,9 suggesting a causative role played by IDH mutations in cancers.
Over the past few years, IDH1 mutations (IDH1-R132H, IDH1-R132C) have emerged as
novel and highly promising drug targets in gliomas. Several pharmaceutical companies have
active drug development programs targeting IDH1 mutations, and most of these programs are
based on small-molecule IDH1 inhibitors representing a variety of chemical scaffolds.10
Preclinical studies using prototypical compounds from some of these chemical classes have
established that small-molecule inhibitors can bind to the mutant IDH1 enzyme and inhibit its
ability to produce D-2-HG, thereby reversing the effects of IDH mutations on cancer cells that
harbor these mutations.11 Compounds based on a phenyl-glycine chemical scaffold were among
the first chemical analogues that were identified as potent inhibitors of mutant IDH1 enzymes.
High-throughput screening identified compounds with half-maximal inhibitory concentration
(IC50) values of ≤ 0.1 µM for the most potent analogues against IDH1-R132H, the most
3

commonly occurring IDH-mutation in glioma.12 The most extensively studied compound from the
phenyl-glycine series, AGI-5198 (IC50: 0.07 µM), has been shown to inhibit D-2-HG production
and have anti-tumor effects in IDH1-mutated glioma xenografts in vivo.11, 12 AGI-5198 also has
very high selectivity for mutant IDH1 vs. wild-type IDH1 indicated by its lack of inhibitory potency
against wild-type IDH1 (IC50: >100 µM)12. With the goal of developing radiolabeled compounds
for noninvasive imaging of IDH1 mutations in gliomas with positron emission tomography (PET),
we have synthesized radiolabeled analogues of AGI-5198 and evaluated their potential as
radiotracers for this purpose. AGI-5198 was labeled with radioiodine or fluorine-18 and the
labeled compounds were evaluated for their ability to bind to IDH1-mutated tumor cells in vitro
and in vivo.
In addition to its high potency and selectivity for mutant IDH1, AGI-5198 offers additional
advantage for radiolabeling - it has a fluorine atom which could be replaced with radioactive
halogens, fluorine-18 (18F, t1/2: 110 min) or iodine-124 (124I, t1/2: 4.2 d), for PET imaging
purposes. Structure-activity relationship (SAR) studies of phenyl-glycine analogues originally
published by Popovici-Muller et al. showed that replacement of the 2-methylimidazole moiety in
AGI-5198 with a phenyl or a heterocyclic function was well-tolerated in terms of inhibitory
potency against IDH1-R132H.12 Thus, in addition to AGI-5198 and its iodo-analogue 1,
compounds 2 and 3 were synthesized to explore the possibility of introducing 18F on a different
substituent and also to better understand the SAR for radiotracer development (Scheme 1). For
radiolabeling, the fluorine atom in compound 2 could be replaced with 18F by an aromatic
nucleophilic substitution reaction on precursors containing a suitable leaving group (e.g., nitro,
bromo).13 Similarly, 18F labeling of compound 4 could be achieved by using a sulfonate
precursor or by a fluoroalkylation reaction using [18F]fluoroethyl bromide ([18F]FEtBr) on a
phenol precursor.14 AGI-5198 as well as other nonradioactive reference compounds (1-3) were
synthesized and evaluated in racemic form similar to previously published reports, and as
4

Scheme 1. Synthesis scheme for the nonradioactive phenyl-glycine analogues.
15
shown in Scheme 1.12,
First, the chloroacetamide intermediate bearing a fluoro or iodo
function on the meta-position of the phenyl ring was constructed by four-component Ugi reaction
starting from 3-fluoroaniline or 3-iodoaniline, respectively. Next, the chloroacetamide
intermediates were reacted with either 2-methylimidazole for AGI-5198 and 1, or the
corresponding aromatic amine derivative for 2 and 3 to obtain the final compounds. The
synthesis of the chloroacetamide derivatives in the Ugi-reaction was achieved in about 65%
yield, and substitution of the chloro function with the corresponding amine analogue in
compounds 1-3 was accomplished in 59-81% yield.
5

The inhibitory activity of the unlabeled analogues against IDH1-R132H was evaluated in
enzymatic assays as previously described using serial twofold dilutions (n=12) of the test
compounds in the presence of the mutant IDH1 substrate α-KG, and by the
diaphorase/resazurin detection system.14 The inhibitory potency (IC50) and maximal inhibitory
capacity of the compounds were derived from the inhibitory response curves for each
compound (Figure 1A, Table 1). These studies revealed a robust inhibition of mutant IDH1 by
AGI-5198 and the iodo analogue 1, with IC50 values <0.05 µM for the two compounds. The
inhibitory potency of AGI-5198 observed in the present study is in good agreement with that
reported in the literature (IC50: 0.03 µM vs. 0.07 µM).12 Excellent retention of inhibitory activity for
the iodo analogue indicates that replacement of fluorine with iodine on the phenyl ring is well-
tolerated with respect to binding affinity for the mutant IDH1 enzyme. However, replacement of

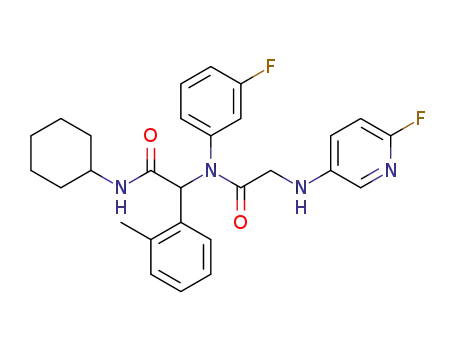

2-methylimidazole in AGI-5198 with a 6-fluoropyridine-3-amine function in compound 2
decreased the inhibitory potency of the compound significantly (IC50: 1.4 µM). A further
decrease in the inhibitory potency was observed for the fluoroethoxy analogue 3, which
displayed relatively poor enzyme inhibition (IC50: 26.3 µM). At all tested concentrations, the
inhibitory activity of the iodo analogue 1 was slightly more than that for the fluoro analogue AGI-
AGI-5198
125
100
1
100
75
50
25
0
2
3
75
50
25
0
-1
0
1
2
3
8
1
2
3
9
1
log[compond], M
5
AGI-
Compound
Figure 1. (A) Inhibitory activity curves for AGI-5198 and the synthesized analogues against
IDH1-R132H in enzymatic assays. (B) Inhibitory efficiency shown as the maximal enzyme
inhibition observed for the nonradioactive analogues in experiments depicted in A. Data are
presented as mean ± SEM.
6

5198, with enzyme inhibition reaching 100% at 6.12 µM compared with 12.25 µM for AGI-5198.
For comparison, the fluoropyridine analogue 2 and the fluoroethoxy compound 3 displayed a
maximal inhibition of 71.3 ± 5.3% (at 12.25 µM) and 34.3 ± 13.1% (at 98 µM), respectively,
suggesting limited inhibitory potency for compounds 2 and 3 against the mutant IDH1 (Figure
1B). Based on their higher inhibitory potency, compounds 1 and 2 were selected for
radiolabeling and further evaluation in mutant IDH tumor models.
Table 1. Structural characteristics and inhibitory potency against R132H mutant IDH1 for the synthesized
compounds.
Polar Surface Area
IC50 vs.
Compound
M. Wt.
clogP
(PSA)
IDH1-R132H (µM)
AGI-5198
462.6
570.5
492.6
535.6
4.7
5.7
5.8
6.4
65.0
0.03
1
2
3
65.0
73.8
70. 7
<0.01
1.39
26.31
Radioiodination of 1 was achieved from a tin precursor, which was synthesized from the
nonradioactive iodo compound 1 following a previously reported method.16 The tin precursor
was purified by preparative TLC twice, and aliquots of 100 µg were used for radiolabeling by an
electrophilic substitution reaction using hydrogen peroxide as the oxidizing agent in the
presence of acetic acid (Scheme 2A).16 Compound 1 was labeled with 125I (t1/2: 59.4 d) for in
vitro studies and 131I (t1/2: 8 d) for in vivo studies, with a radiolabeling efficiency of 79 ± 6% (n=9;
results for two radionuclides combined). For 18F labeling of AGI-5198 by aromatic nucleophilic
substitution, our efforts to synthesize a diaryliodonium salt precursor using a trimethyltin
compound and Koser’s reagent17 did not yield the desired product in reasonable yields or
7

sufficient purity for radiolabeling. Hence, [18F]AGI-5198 was constructed by the Ugi reaction
similar to that described for the chloroacetamide intermediates, and a modification of a
previously reported method for the radio-Ugi reaction.12, 18 For this reaction, 3-[18F]fluoroaniline19
was used as the prosthetic group and was reacted with the other Ugi components at 100°C in
ethanol (Scheme 2B). After radiolabeling, the Ugi reaction mixture was purified by semi-
preparative HPLC to obtain [18F]AGI-5198 in a decay-corrected radiochemical yield of 2.6 ±
1.6% (n=5) and with >98% purity (Supplementary Figures 1 and 2).
A)
[
125I]NaI
H2O2, CH3COOH
125I]1
3
[
R = Me or n-Bu
B)
+
+
EtOH
[18F]AGI-5198
Scheme 2. Synthesis scheme for labeling AGI-5198 with radioiodine (A) and fluorine-18 (B).
Cell uptake studies with radioiodinated 1 and [18F]AGI-5198 were conducted in tumor
cell lines expressing the IDH1-R132H mutation. Two cell lines were studied; the HCT116
colorectal carcinoma cell line genetically engineered to express the heterozygous IDH1-R132H
mutant enzyme (IDH1R132H/WT), and an IDH1-mutated astrocytoma cell line (IMA) containing a
native IDH1-R132H mutation (IDH1R132H/WT).20, 21 Isogeneic cell lines expressing only wild-type
IDH1 (WT-IDH1) were used as controls.14 As reported previously, these mutant IDH1 cell lines
8

have 80-100-fold elevated levels of D-2-HG compared to those in the corresponding WT-IDH1
cell line, confirming the functional activity of mutant IDH1 in these cell lines.20, 21 Cell uptake
studies revealed higher uptake of radioiodinated 1 in IDH1-mutated tumor cell lines to some
extent (left panels, Figure 2). Uptake of radioactivity was 1.7-2.1-fold higher in the IMA cell line
and 1.3-1.5-fold higher in the IDH1-mutated HCT-116 cell line, compared to the corresponding
WT-IDH1 cell line controls. For [18F]AGI-5198, the uptake in the IDH1-mutated HCT116 cell line
was significantly higher at all time points with uptake ratios increasing from about 1.6 at 5 min to
5
4
3
2
1
0
8
6
4
2
0
IDH1-R132H
WT-IDH1
IDH1-R132H
WT-IDH1
5
30
60
120
30
60
120
Incubation time (min)
Incubation time (min)
5
4
3
2
1
0
12
10
8
IDH1-R132H
WT-IDH1
IDH1-R132H
WT-IDH1
6
4
2
0
5
30
60
120
30
60
120
Incubation time (min)
Incubation time (min)
Figure 2. Uptake of radioiodinated 1 ([125I]1) and 18F-labeled AGI-5198 in isogenic tumor cell lines
expressing IDH1-R132H or wild-type IDH1. Upper panels: Uptake of labeled compounds in the IDH1-
mutated HCT116 cell line; Lower panels: uptake in the IDH1-mutated astrocytoma (IMA) cell line. Data
are mean ± SEM for three wells. *P < 0.05 (Student’s t-test).
9

2.0 at 30 min, remaining at that level until 120 min. However, in the IMA cell line, the uptake of
[18F]AGI-5198 was higher only at 5 min but not thereafter (right panels, Figure 2). Blocking
studies conducted with radioiodinated 1 conducted in parallel revealed an increase in uptake of
the labeled compound in the presence of an excess of nonradioactive 1 (50 µM) in both IDH1-
mutated and WT-IDH1 cell lines. In general, the uptake increased by a factor of 1.4-1.7 for the
IMA cell line and 1.5-1.8 for its isogenic WT-IDH1 cell line, but the uptake ratios between the
mutant IDH1 and WT-IDH1 cell lines remained very similar (1.8-2.0) to those for the no-carrier-
added experiments (Supplementary Figure 3).
Although these results were unexpected, the modest uptake ratios and the increased
uptake of radioiodinated 1 in the presence of nonradioactive 1 is consistent with possible
competitive inhibition of the radiolabeled compounds for binding to mutant IDH1 by either
endogenous substrates or ligands. It has been shown previously that the mode of binding of
phenyl-glycine-based inhibitors to IDH1-R132H is reversible and competitive with respect to the
15
endogenous substrate α-KG, and uncompetitive with respect to the co-factor NADPH.12,
Additionally, a recent report suggests that phenyl-glycine analogues also may bind to an
allosteric metal binding pocket on the mutant IDH1 enzyme (R132H). Moreover, the binding is
competitive with respect to the catalytically-essential magnesium ion (Mg2+).22 At radiotracer
levels, the molar concentration of radioiodinated 1 or [18F]AGI-5198 in cells is expected to be
much lower than the concentration of magnesium ion (0.1-1 mM)22 or α-KG (11-161 µmol per
gram in glioma)4. Thus, it is likely that radiolabeled phenyl-glycine analogues synthesized by no-
carrier-added radiosynthetic methods cannot compete at the mutant IDH1 binding pocket(s) with
the substrate α-KG or magnesium ion. Although this hypothesis needs to be tested further, this
could explain, at least in part, the lower uptake levels and uptake ratios of radioiodinated 1 and
[18F]AGI-5198 in cell uptake studies, despite their high inhibitory potency against mutant IDH1
(IC50 < 0.05 µM). In view of their limited uptake and uptake ratios in the cell uptake studies, we
10

have not attempted to achieve enantiomeric separation of the radiolabeled compounds by
chiral-HPLC. However, it has been reported previously for other phenyl-glycine analogues that
the (S)-enantiomer has higher potency, essentially responsible for all of the enzymatic activity,
compared to the (R)-enantiomer,12, 15 suggesting that enantioselective synthesis and evaluation
might improve the uptake and/or uptake ratios for these tracers by a factor of 2, assuming
similar non-specific binding for the two stereoisomers.
Next, radioiodinated 1 ([131I]1) and [18F]AGI-5198 were evaluated in separate groups of
athymic mice bearing IDH1-mutated HCT116 tumor xenografts to investigate their
biodistribution characteristics in an IDH1-R132H-expressing tumor model. Figure 3 shows the
tissue distribution results obtained between 0.5 and 4 h post injection (n=5 per time point),
expressed as percentage injected dose per gram (% ID/g). Comparison of the tissue distribution
data for [131I]1 and [18F]AGI-5198 revealed similar distribution profiles for the two compounds,
with both exhibiting rapid clearance of radioactivity from blood and major organs with time.
Although radioiodinated 1 showed somewhat lower blood activity at 30 min (0.35 ± 0.03% vs.
0.88 ± 0.16% ID/g for [18F]AGI-5198), the radioactivity levels in the blood were very similar for
the two compounds at 4 h (~0.1% ID/g). As would be expected for lipophilic small molecules,
the labeled phenyl-glycine analogues were eliminated primarily by the hepatobiliary system, with
liver and intestines accounting for 61 ± 18% of the injected dose (% ID) for [131I]1 and 87 ± 7%
ID for [18F]AGI-5198 at 4 h. The initial tumor uptake was also very similar for the two labeled
compounds - 0.93 ± 0.24 % ID/g for [131I]1 and 0.84 ± 0.18 % ID/g for [18F]AGI-5198 at 0.5 h.
The tumor uptake decreased at later time points, to 0.22 ± 0.11% ID/g for [131I]1 and 0.33 ±
0.08% ID/g for [18F]AGI-5198 at 4 h. With [131I]1, the tumor uptake was significantly higher than
that for the blood and muscle, resulting in peak tumor-to-blood ratios (TBR) of 4.6 ± 2.0 at 2 h,
and peak tumor-to-muscle ratios (TMR) of 5.0 ± 1.3 at 4 h. In comparison, [18F]AGI-5198
exhibited peak TBRs of 3.0 ± 1.3 (4 h) and TMRs of 2.5 ± 1.0 (2 h), somewhat lower than those
11

for [131I]1. Consistent with the lack of blood-brain-barrier (BBB) permeability reported for other
phenyl-glycine analogues (e.g., ML-309) in normal mice,15 the uptake and retention of the
labeled compounds in brain was very low. The low bone uptake for [18F]AGI-5198 and low
thyroid uptake for [131I]1 indicated that these compounds are stable against dehalogenation in
vivo (Figure 3).
90
0.5 h
70
1 h
50
30
10
2 h
4 h
5
4
3
2
1
0
t
.
.
t
r
r
s
s
n
h
t
e
d
loo
r
id
l
in
e
iv
y
g
c
e
e
n
n
I
a
c
o
a
r
I
e
n
a
r
e
mo
s
l
.
L
u
y
u
B
p
H
m
g
B
L
h
m.
idn
T
o
L
S
Mu
t
T
S
K
S
Tissue
90
70
50
30
10
0.5 h
1 h
2 h
4 h
5
4
3
2
1
0
t
.
.
t
r
r
s
s
n
h
t
e
e
d
loo
r
l
in
e
iv
y
g
c
e
e
n
n
I
n
a
c
a
r
I
e
n
a
o
e
mo
s
l
.
L
u
u
B
B
p
H
m
g
B
L
m.
idn
T
o
L
S
Mu
t
S
K
S
Tissue
Figure 3. Tissue distribution of radioiodinated 1 ([131I]1) (A) and [18F]AGI-5198 (B) in athymic
mice bearing HCT116 IDH1-R132H tumor xenografts in the flank region. Data are presented
as mean ± SEM for five animals at each time point.
12

In order to examine the selectivity of tracer uptake in mutant-IDH1 HCT116 tumor
xenografts, [131I]1 also was evaluated in WT-IDH1 tumor- bearing mice at 1-4 h (Figure 4A).
Comparison of the [131I]1 % ID/g values observed in the mutant-IDH1- and WT-IDH1 HCT116
tumor xenografts revealed no significant differences between the two tumor models (Figure
4B). The tumor-to-muscle ratios were also very similar for the mutant- and WT-IDH1 tumors at
1-4 h postinjection (Figure 4C), suggesting a lack of selectivity of [131I]1 for IDH1-R132H in this
xenograft model. These results, combined with the in vitro data, indicate that [131I]1 (or its
100
85
70
1 h
2 h
4 h
55
40
25
10
5
4
3
2
1
0
t
.
.
t
r
r
s
s
n
h
t
e
d
loo
r
id
l
in
e
y
g
c
e
n
n
I
a
c
o
a
r
I
e
iv
n
a
e
r
e
mo
s
l
.
L
u
y
u
B
p
H
m
g
B
L
h
m.
idn
T
o
L
S
Mu
t
T
S
K
S
Tissue
1.0
0.8
0.6
0.4
0.2
0.0
6
5
4
3
2
1
0
IDH1-R132H
WT-IDH1
IDH1-R132H
WT-IDH1
1
2
3
1
2
3
Time (h)
Time (h)
Figure 4. (A) Tissue distribution of radioiodinated 1 ([131I]1) in WT-IDH1 tumor xenografts. (B)
Comparison of tumor uptake (% ID/g) for radioiodinated 1 in mutant IDH1 vs. WT-IDH1 tumors
(HCT116). (C) Comparison of tumor-to-muscle ratios for radioiodinated 1 in in mutant IDH1 vs.
WT-IDH1 tumors. Data are presented as mean ± SEM for five animals at each time point.
13

labeled catabolite) likely binds to the WT-IDH1 enzyme as well in tumors. Although the reported
IC50 of AGI-5198 against WT-IDH1 is much higher than that for mutant IDH1 (>100 µM vs. 0.07
µM against IDH1-R132H), it is worth noting that the IC50 values are derived from different types
of assays – the IC50 reflect the ability of the compound to inhibit enzymatic activity (i.e.
isocitrate→α-KG conversion in case of WT-IDH1 assays and α-KG→2-HG conversion in mutant
IDH1 assays)12, 14 while the cell-based assays used in the present study reveal the direct
binding of the radiolabeled AGI-5198 analogues to mutant- and WT-IDH1 enzyme expressing
tumor cell lines.
The aim of this study was to investigate the potential usefulness of the phenyl-glycine
scaffold for developing radiotracers to image IDH1-R132H. We selected AGI-5198 as the lead
compound for radiotracer design and development because of its high inhibitory potency against
IDH1-R132H.12 Moreover, previous studies have demonstrated the ability of AGI-5198 to
decrease D-2-HG production and inhibit tumor growth in IDH1-R132H mutant glioma
xenografts,11, 12 indicating cellular target engagement of mutant IDH1 by AGI-5198 in vivo. In
view of its higher inhibitory potency, higher uptake ratios in the clinically relevant IMA cell line,
and the better tumor-to-background ratios obtained with [131I]1, further evaluation of this
compound in astrocytoma tumor models in vivo might be warranted. However, our data
suggests that compounds with binding to the mutant IDH1 enzyme that is competitive with
respect to the substrate α-KG or other cellular species (e.g., Mg2+) are not ideal for development
as radiotracers for mutant IDH1 imaging. In addition, the candidate radiotracers for imaging
mutant IDH1 expression in gliomas should fulfill the general criteria for CNS PET radiotracers,
including optimal lipophilicity (e.g., logD = 2.0-3.5), ability to enter brain in sufficient
concentration, high binding affinity for the mutant IDH1 enzyme (KD ideally <10 nM), adequate
metabolic stability in vivo, low nonspecific binding, and minimal or no binding to off-target
proteins in the brain.23-25 Based on insights gained from this study, we are currently evaluating
14

different chemical scaffolds whose analogues have been shown to bind to an allosteric binding
pocket on mutant IDH1 and exert noncompetitive inhibition with respect to the substrate α-KG.
This should circumvent potential interference from the substrate for radiotracer binding to the
mutant enzyme in IDH-mutated gliomas.26, which we have shown to be problematic with the
phenyl-glycine scaffold in the current study. Results with these new scaffolds will be reported
separately.
Acknowledgements
We thank Genglin Jin and Christopher G. Duncan for derivation of the cell lines used in this
work, and Dr. Xiao-Guang Zhao for help with the tissue distribution studies. This work was
supported by the Southeastern Brain Tumor Foundation and the National Institutes of Health
(CA182025).
Conflicts of Interest
None
15

References
1. Yan H, Parsons DW, Jin GL, et al. IDH1 and IDH2 Mutations in Gliomas. N Engl J Med. 2009;
360:765-773.
2. Reitman ZJ, Jin G, Karoly ED, et al. Profiling the effects of isocitrate dehydrogenase 1 and 2
mutations on the cellular metabolome. Proc Natl Acad Sci USA. 2011;108: 3270-3275.
3. Waitkus MS, Diplas BH, Yan H. Isocitrate dehydrogenase mutations in gliomas. Neuro Oncol.
2016;18: 16-26.
4. Dang L, White DW, Gross S, et al. Cancer-associated IDH1 mutations produce 2-
hydroxyglutarate. Nature. 2009;462: 739-744.
5. Gross S, Cairns RA, Minden MD, et al. Cancer-associated metabolite 2-hydroxyglutarate
accumulates in acute myelogenous leukemia with isocitrate dehydrogenase 1 and 2 mutations.
J Exp Med. 2010;207: 339-344.
6. Watanabe T, Nobusawa S, Kleihues P, Ohgaki H. IDH1 mutations are early events in the
development of astrocytomas and oligodendrogliomas. Am. J. Pathol. 2009;174: 1149-1153.
7. Mardis ER, Ding L, Dooling DJ, et al. Recurring Mutations Found by Sequencing an Acute
Myeloid Leukemia Genome. N Engl J Med. 2009;361: 1058-1066.
8. Wang P, Dong Q, Zhang C, et al. Mutations in isocitrate dehydrogenase 1 and 2 occur
frequently in intrahepatic cholangiocarcinomas and share hypermethylation targets with
glioblastomas. Oncogene. 2013;32: 3091-3100.
9. Pansuriya TC, van Eijk R, d'Adamo P, et al. Somatic mosaic IDH1 and IDH2 mutations are
associated with enchondroma and spindle cell hemangioma in Ollier disease and Maffucci
syndrome. Nat Genet. 2011;43: 1256-1261.
16

10. Dang L, Su SSM. Isocitrate Dehydrogenase Mutation and (R)-2-Hydroxyglutarate: From
Basic Discovery to Therapeutics Development. Annu. Rev. Biochem, Vol 86. 2017;86: 305-331.
11. Rohle D, Popovici-Muller J, Palaskas N, et al. An inhibitor of mutant IDH1 delays growth and
promotes differentiation of glioma cells. Science. 2013;340: 626-630.
12. Popovici-Muller J, Saunders JO, Salituro FG, et al. Discovery of the First Potent Inhibitors of
Mutant IDH1 That Lower Tumor 2-HG in Vivo. ACS Med Chem Lett. 2012;3: 850-855.
13. Dolci L, Dolle F, Jubeau S, Vaufrey F, Crouzel C. 2-[F-18]fluoropyridines by no-carrier-
added nucleophilic aromatic substitution with [F-18]FK-K-222 - A comparative study. J. Label.
Compd. Radiopharm. 1999;42: 975-985.
14. Chitneni SK, Reitman ZJ, Gooden DM, Yan H, Zalutsky MR. Radiolabeled inhibitors as
probes for imaging mutant IDH1 expression in gliomas: Synthesis and preliminary evaluation of
labeled butyl-phenyl sulfonamide analogs. Eur J Med Chem. 2016;119: 218-230.
15. Davis MI, Gross S, Shen M, et al. Biochemical, cellular, and biophysical characterization of
a potent inhibitor of mutant isocitrate dehydrogenase IDH1. J Biol Chem. 2014;289: 13717-
13725.
16. Vaidyanathan G, White B, Affleck DJ, McDougald D, Zalutsky MR. Radioiodinated O-6-
Benzylguanine derivatives containing an azido function. Nucl. Med. Biol. 2011;38: 77-92.
17. Pike VW, Butt F, Shah A, Widdowson DA. Facile synthesis of substituted diaryliodonium
tosylates by treatment of aryltributylstannanes with Koser's reagent. J. Chem. Soc., Perkin
Trans. 1. 1999: 245-248.
18. Li L, Hopkinson MN, Yona RL, Bejot R, Gee AD, Gouverneur V. Convergent F-18
radiosynthesis: A new dimension for radiolabelling. Chem Sci. 2011;2: 123-131.
17

19. Vasdev N, Dorff PN, O'Neil JP, Chin FT, Hanrahan S, VanBrocklin HF. Metabolic stability of
6,7-dialkoxy-4-(2-, 3-and 4-[F-18]fluoroanilino)quinazolines, potential EGFR imaging probes.
Bioorganic Med Chem. 2011;19: 2959-2965.
20. Duncan CG, Barwick BG, Jin G, et al. A heterozygous IDH1R132H/WT mutation induces
genome-wide alterations in DNA methylation. Genes Dev. 2012;22: 2339-2355.
21. Jin G, Reitman ZJ, Duncan CG, et al. Disruption of wild-type IDH1 suppresses D-2-
hydroxyglutarate production in IDH1-mutated gliomas. Cancer Res. 2013;73: 496-501.
22. Deng G, Shen J, Yin M, et al. Selective inhibition of mutant isocitrate dehydrogenase 1
(IDH1) via disruption of a metal binding network by an allosteric small molecule. J Biol Chem.
2015;290: 762-774.
23. Pike VW. PET radiotracers: crossing the blood-brain barrier and surviving metabolism.
Trends Pharmacol Sci. 2009;30: 431-440.
24. Chitneni SK. IDH1 Mutations in Glioma: Considerations for Radiotracer Development. SM
Radiol J. 2016;2.
25. Eckelman WC, Kilbourn MR, Mathis CA. Discussion of targeting proteins in vivo: in vitro
guidelines. Nuc Med Biol. 2006;33: 449-451.
26. Yen K, Travins J, Wang F, et al. AG-221, a First-in-Class Therapy Targeting Acute Myeloid
Leukemia Harboring Oncogenic IDH2 Mutations. Cancer Discov. 2017;7: 478-493.
18

Graphical Abstract
[
131I]1
AGI-5198
Mutant IDH1 inhibitor
IC50 = 0.07 µM
[18F]AGI-5198
19
