cm−1; MS m/z 357.3 ([M + H]+); ESI-HRMS calcd for C19H41O2Si2
([M + H]+) 357.2640, found 357.2648.
1.33 (m, 1H), 0.88 (s, 9H), 0.83 (d, J = 6.9 Hz, 3H), 0.04 (s, 6H); 13C
NMR (100 MHz, CDCl3) δ 138.2, 128.3, 127.6, 127.5, 77.4, 73.3, 72.9,
70.8, 70.7, 59.4, 38.9, 36.1, 35.4, 25.9, 18.3, 4.8, −5.4; FT-IR (film)
3411, 2927, 1093 cm−1; MS m/z 417.3 ([M + Na]+); ESI-HRMS calcd
for C22H38O4SiNa ([M + Na]+) 417.2437, found 417.2437.
(2-((2S,5R,6S)-6-((Benzyloxy)methyl)-5-methyl-5,6-dihydro-
2H-pyran-2-yl)ethoxy)(tert-butyl)dimethylsilane (22). To a
solution of 19 (245 mg, 0.63 mmol) in dry THF (6.3 mL) was
added NaHMDS (1 M in THF, 0.94 mL) at −78 °C. The reaction was
kept at −78 °C for 1 h before a solution of PhNTf2 (290 mg, 0.81
mmol) in THF (1 mL) was added. The reaction was stirred at that
temperature for 30 min and then at 23 °C overnight. The reaction was
quenched with aq NH4Cl. The mixture was extracted with ethyl
acetate, and the combined extracts were washed with water and brine,
dried over Na2SO4, and concentrated. Purification of the residue by
passing through a short pad of silica gel (20% EtOAc/hexanes) gave
the crude enol triflate as a colorless oil.
(2-((2S,5S,6S)-6-(Benzyloxymethyl)-5-methyl-4-(triethylsily-
loxy)-5,6-dihydro-2H-pyran-2-yl)ethoxy)(tert-butyl)-
dimethylsilane (7). A mixture of the TES-enol ether 10 (3.4 g, 9.55
mmol), 12 (4.3 g, 28.7 mmol) and 4 Å molecular sieves (3.2 g) was
treated with Jacobsen’s catalyst, 11 (278 mg, 0.57 mmol) at 23 °C for
48 h. The reaction was diluted with EtOAc, filtered through a short
pad of Celite, and eluted with EtOAc. The combined filtrate was
concentrated in vacuo. The residue was purified with flash
chromatography (1% NEt3/5% EtOAc/hexane) to afford the desired
cycloadduct 7 as a colorless oil: [α]D25 +46.3 (c 0.8, CHCl3); 1H NMR
(300 MHz, CDCl3) δ 7.37−7.21 (m, 5H), 4.69 (m, 1H), 4.58 (ABq,
JAB = 12.0 Hz, 2H), 3.23 (t, J = 5.1 Hz, 1H), 3.90−3.63 (m, 3H), 3.58
(dd, J = 9.8, 6.9 Hz, 1H), 3.47 (dd, J = 9.8, 6.1 Hz, 1H), 2.10−1.98 (m,
1H), 1.80−1.68 (m, 2H), 0.99 (t, J = 3.8 Hz, 9H), 0.98 (d, J = 7.5 Hz,
3H), 0.91 (s, 9H), 0.68 (q, J = 7.9 Hz, 6H), 0.06 (s, 6H); 13C NMR
(75 MHz, CDCl3) δ 153.4, 138.2, 128.2, 127.6, 127.4, 104.1, 75.5,
73.3, 71.4, 70.4, 59.6, 39.4, 36.1, 25.9, 18.3, 11.9, 6.6, 4.9, −5.4; FT-IR
(film) 2935, 2955, 1664, 1089 cm−1; MS m/z 507.25 ([M + H]+);
ESI-HRMS calcd for C28H51O4Si2 ([M + H]+) 507.3320, found
507.3335.
To a solution of the former enol triflate, Pd(OAc)2 (7 mg, 0.03
mmol), PPh3 (16.4 mg, 0.06 mmol), and DIPEA (404 mg, 3.13 mmol)
in dry DMF (5 mL) was added HCO2H (86.3 mg, 1.88 mmol) at 23
°C. After addition, the reaction was allowed to stir at 65 °C for 1 h.
Then it was cooled to 23 °C, diluted with ether, washed with water
and brine, and dried over Na2SO4. Evaporation of solvent gave a
residue, which was chromatographed (20% EtOAc/hexanes) to afford
alkene 22 (176 mg, 75% over 2 steps) as a colorless oil: [α]D25 −46.7
( 2 S , 3 S , 6 S ) - 2 - ( ( B e n z y l o x y ) m e t h y l ) - 6 - ( 2 - ( ( t e r t -
butyldimethylsilyl)oxy)ethyl)-3-methyldihydro-2H-pyran-
4(3H)-one (19). To a solution of the former silyl enol ether 7 in dry
THF (100 mL) was added HOAc (1.1 mL, 19.1 mmol) followed by
TBAF (1 M in THF, 9.55 mL, 9.55 mmol) dropwise at 0 °C. The
reaction was allowed to stir at 0 °C for 2 h. The reaction was quenched
with aq NaHCO3. The mixture was extracted with ethyl acetate. The
combined extracts were washed with water and brine, dried over
Na2SO4, and concentrated. Purification of the residue by flash
chromatography (10% EtOAc/hexanes) gave ketone 19 (2.69 g,
1
(c 1.2, CHCl3); H NMR (400 MHz, CDCl3) δ 7.35−7.26 (m, 5H),
5.82−5.77 (m, 1H), 5.58 (d, J = 10.0 Hz, 1H), 4.62 and 4.52 (ABq, JAB
= 11.6 Hz, 2H), 4.29 (m, 1H), 3.89−3.82 (m, 1H), 3.80−3.71 (m,
2H), 3.55 (dd, J = 10.4, 6.8 Hz, 1H), 3.44 (dd, J = 10.1, 6.0 Hz, 1H),
2.12 (m, 1H), 1.80−1.69 (m, 2H), 0.90 (d, J = 7.2 Hz, 3H), 0.89 (s,
9H), 0.05 (s, 6H); 13C NMR (100 MHz, CDCl3) δ 138.4, 131.0,
129.3, 128.3, 127.6, 127.5, 75.1, 73.3, 72.4, 70.9, 59.5, 38.6, 30.8, 25.9,
18.3, 13.9, −5.4; FT-IR (film) 2928, 1255, 1089 cm−1; MS m/z 377.3
([M + H]+); ESI-HRMS calcd for C22H37O3Si ([M + H]+) 377.2512,
found 377.2509.
25
1
72%) as a colorless oil: [α]D +14.6 (c 1.07, CHCl3); H NMR (400
MHz, CDCl3) δ 7.32−7.27 (m, 5H), 4.59 and 4.50 (ABq, JAB = 11.7
Hz, 2H), 3.90−3.85 (m, 1H), 3.85−3.70 (m, 3H), 3.65 (dd, J = 9.6,
6.9 Hz, 1H), 3.49 (dd, J = 9.6, 6.2 Hz, 1H), 2.58−2.52 (m, 1H), 2.46
(dd, J = 13.0, 11.6 Hz, 1H), 2.28 (d, J = 15.1 Hz, 1H), 1.90−1.82 (m,
1H), 1.78−1.68 (m, 1H), 1.09 (d, J = 7.5 Hz, 3H), 0.89 (s, 9H), 0.05
(s, 6H); 13C NMR (100 MHz, CDCl3) δ 210.8, 137.9, 128.3, 127.7,
127.6, 74.1, 73.3, 69.4, 58.8, 46.8, 44.5, 39.2, 25.9, 18.2, 10.8, −5.4,
−5.5; FT-IR (film) 2928, 1717, 1093 cm−1; ESI-MS m/z 393.2 ([M +
H]+), 415.1 ([M + Na]+); ESI-HRMS calcd for C22H36O4SiNa ([M +
Na]+) 415.2275, found 415.2282.

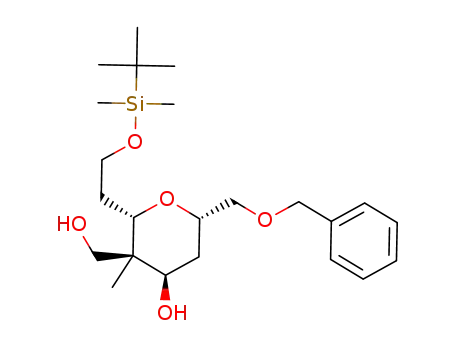

(2S,3R,4S,6S)-2-((Benzyloxy)methyl)-6-(2-((tert-
butyldimethylsilyl)oxy)ethyl)-3-methyltetrahydro-2H-pyran-4-
ol (21). To a solution of 22 (40 mg, 0.11 mmol) in MeCN (1 mL)
and buffer (pH = 7.5, Na2HPO4−NaH2PO4, 1 mL) was added a
solution of DMDO in acetone (1.5 mL) at −15 °C slowly. The
reaction was allowed to stir at −15 °C for 20 min and then at 23 °C
for 4 h. The reaction was quenched with aq Na2SO3. The mixture was
extracted with ethyl acetate. The combined extracts were washed with
water and brine, dried over Na2SO4, and concentrated. Silica gel
chromatography (10% EtOAc/hexanes) of the residue gave the
epoxide (29 mg, 69%) as a colorless oil.
To a solution of the epoxide (26 mg 0.07 mmol) in dry THF (1
mL) was added DIBAL-H (1 M in CH2Cl2, 0.2 mL) slowly at −15 °C.
The reaction was allowed to stir at 0 to 23 °C for 2 h before it was
quenched with aq Rochelle's salt. EtOAc was added, and the reaction
was allowed to stir vigorously at 23 °C for another 2 h. The layers were
separated, and the aqueous phase was extracted with ethyl acetate. The
combined extracts were washed with water and brine, dried over
Na2SO4, and concentrated. Silica gel afforded the desired alcohol 21
(26 mg, 99%) as a colorless oil.
2-((2S,4S,5S,6S)-6-((Benzyloxy)methyl)-4-((tert-
butyldimethylsilyl)oxy)-5-methyltetrahydro-2H-pyran-2-yl)-
ethanol (24). To a solution of 21 (1.38 g, 3.49 mmol) in dry CH2Cl2
(20 mL) was added 2,6-lutidine (747 mg, 6.98 mmol) followed by
TBSOTf (1.2 g, 4.53 mmol) at 0 °C. The reaction was kept at 0 °C for
1 h before it was quenched with aq NaHCO3. The layers were
separated, and the aqueous phase was extracted with CH2Cl2. The
combined extracts were dried over Na2SO4 and concentrated.
Purification of the residue by flash chromatography (5% EtOAc/
hexanes) afforded di-TBS-protected diol (1.72 g, 97%) as a colorless
oil.
(2S,3R,4R,6S)-2-((Benzyloxy)methyl)-6-(2-((tert-
butyldimethylsilyl)oxy)ethyl)-3-methyltetrahydro-2H-pyran-4-
ol (18) and (2S,3R,4S,6S)-2-((Benzyloxy)methyl)-6-(2-((tert-
butyl-dimethylsilyl)oxy)ethyl)-3-methyltetrahydro-2H-pyran-
4-ol (20). To a solution of 19 (2.7 g, 6.89 mmol) in dry CH2Cl2 (50
mL) was added DIBAL-H (1 M in CH2Cl2, 10.3 mL) dropwise at −78
°C. The reaction was kept at −78 °C for 2 h before it was quenched
with MeOH (1 mL). EtOAc and aq Rochelle's salt were added. The
reaction was stirred for 2 h and then extracted with ethyl acetate. The
combined extracts were washed with water and brine, dried over
Na2SO4, and concentrated. The residue was purified by flash
chromatography (20% EtOAc/hexanes to 30% EtOAc/hexanes) to
25
afford alcohol 21 (810 mg, 30%) as a colorless oil: [α]D −12.6 (c
1
1.10, CHCl3); H NMR (400 MHz, CDCl3) δ 7.34−7.26 (m, 5H),
4.60 and 4.49 (ABq, JAB = 12.3 Hz, 2H), 4.13 (dt, J = 2.8, 6.9 Hz, 1H),
3.95−3.86 (m, 2H), 3.75−3.68 (m, 2H), 3.53 (dd, J = 9.6, 6.8 Hz,
1H), 3.39 (dd, J = 9.7, 6.1 Hz, 1H), 1.78−1.65 (m, 2H), 1.65−1.48
(m, 3H), 0.89 (s, 9H), 0.88 (d, J = 7.2 Hz, 3H), 0.04 (s, 6H); 13C
NMR (100 MHz, CDCl3) δ 138.4, 128.3, 127.6, 127.5, 73.2, 72.7, 71.0,
70.5, 69.0, 59.5, 39.2, 36.5, 34.4, 25.9, 18.3, 10.9, −5.4; FT-IR (film)
3443, 2927, 1096 cm−1; MS m/z 395.2 ([M + H]+). 417.2 ([M +
Na]+); ESI-HRMS calcd for C22H38O4SiNa ([M + Na]+) 417.2437,
found 417.2440.
Undesired alcohol 20 (1.76 g, 65%) was obtained as a colorless oil:
25
1
To a solution of the former di-TBS ether (1.72 g, 3.39 mmol) in
MeOH (15 mL) and CH2Cl2 (15 mL) was added CSA (78.6 mg, 0.34
mmol) at 23 °C. After 2 h, the reaction was quenched with aq
NaHCO3. The aqueous phase was extracted with ethyl acetate. The
[α]D −6.7 (c 1.04, CHCl3); H NMR (400 MHz, CDCl3) δ 7.30−
7.26 (m, 5H), 4.59 and 4.48 (ABq, JAB = 12.0 Hz, 2H), 3.90 (m, 1H),
3.89−3.61 (m, 2H), 3.60−3.45 (m, 3H), 3.45 (m, 1H), 2.02−1.99 (m,
1H), 1.80−1.71 (m, 1H), 1.70−1.60 (m, 2H), 1.56 (br, 1H), 1.43−
2563
