Z. Wang, C. Lambert, F. Negri et al.
were performed under an argon atmosphere in a CH2Cl2/Bu4NPF6 (0.2m)
solution. The potentials were applied in 20 mV steps by using an EG&G
Princeton Applied Research Model 283 potentiostat. UV/Vis/NIR spec-
tra were recorded with a JASCO V-570 spectrophotometer in reflection
mode at the polished working electrode, which was adjusted to 100 mm
above the cell bottom by using a micrometer screw.
experimental results. UV/Vis absorption and fluorescence
spectroscopy revealed different degrees of interaction,
which may be understood in terms of exciton coupling and
conjugation effects, with the latter effect dominating the in-
teractions in the triply linked compound (10). The electro-
chemical properties (cyclic voltammetry) as well as spec-
troelectrochemical analysis showed quite-different degrees
of PBI interactions in the reduced molecules. Again, the
singly- and doubly linked diPBIs were electronically almost
decoupled but showed weak IV-CT excitations in the NIR,
which resulted from weak interactions between the two PBI
moieties of the mono- and tri-anions of compounds 2 and 9,
respectively. In this regard, the observation of such a quasi-
CT band in the di-anions of compounds 2 and 9 was surpris-
ing in view of their symmetry, but it was explained by a mix-
ture of two CT excitations of the a and b electrons. Howev-
er, the anions of compound 10 showed excitations that were
due to the delocalized wavefunction of the p-system. In con-
trast to our initial expectations, the degree of interaction in
both the neutral and the reduced forms of the bay-linked
PBIs did not follow the order of the number of linkers but
rather qualitatively followed the order: doubly linked<
singly linked !triply linked, owing to the different degrees
of twisting between the two PBIs moieties.
Synthesis of singly-linked diPBI (2): A Schlenk flash was charged with 1-
bromoperylene bisimide (5, 100 mg, 0.13 mmol), copper powder (Aldrich,
particle size<100 nm, 99.8%, 81 mg, 1.27 mmol), and dry DMSO
(20 mL) under an argon atmosphere. The mixture was heated at 608C
with vigorous stirring for 8 h. Next, the cooled mixture was poured into
water and extracted with CH2Cl2. The organic layers were separated,
washed with brine, dried over Na2SO4, and purified by column chroma-
tography on silica gel (petroleum ether/CH2Cl2, 1:2 v/v) to afford com-
pound 2 as an red–violet solid (76 mg, 84.4%). 1H NMR (400 MHz,
CDCl3, TMS) d=8.86–8.91 (m, 8H), 8.72 (d, 3J
ACTHNUTRGNE(NUG H,H)=8.0 Hz, 2H),
8.33–8.35 (m, 4H), 7.45–7.50 (m, 4H; phenyl H), 7.30–7.35 (m, 8H; phe-
nyl H), 2.64–2.82 (m, 8H; isopropyl H), 1.15–1.20 (m, 24H; isopropyl H),
1.06–1.10 ppm (m, 24H; isopropyl H); 13C NMR (100 MHz, CDCl3,
TMS): d=163.69, 163.59, 163.49, 163.36, 146.11, 146.05, 145.83, 142.27,
135.63, 135.42, 135.03, 134.87, 133.83, 132.65, 131.66, 130.60, 130.51,
130.47, 130.11, 129.83, 129.40, 128.25, 127.88, 124.72, 124.55, 124.49,
124.42, 124.21, 124.14, 124.01, 123.67, 31.93, 29.51, 29.46, 24.37, 24.28,
22.99, 14.46 ppm; MS (MALDI-TOF): calcd: 1418.6 [M]À; found: 1419.0;
elemental analysis calcd (%) for C96H82N4O8: C 81.22, H 5.82, N 3.95;
found: C 81.05, H 5.68, N 3.89.
Synthesis of singly-linked PBI-based oligomers: A Schlenk flash was
charged with 1,7-dibromoperylene bisimide (6, 200 mg, 0.23 mmol),
copper powder (Aldrich, particle size<100 nm, 99.8%, 147 mg,
2.30 mmol) and dry DMSO (50 mL) under an argon atmosphere. The
mixture was heated at 608C with vigorous stirring for 5 h. Next, the
cooled mixture was poured into water and extracted with CH2Cl2. The or-
ganic layers were separated, washed with brine, dried over Na2SO4, and
purified by column chromatography on silica gel (petroleum ether/
CH2Cl2, 1:2 v/v) to afford dimer 2 (24 mg, 14.7%) and trimer 3 (16 mg,
9.8%) as red–violet solids, whilst the residual fractions contained a tetra-
mer and other oligomers up to an octadecamer (detected by MS).
Experimental Section
Materials and methods: All chemicals and solvents were purchased from
commercial suppliers and used without further purification unless other-
wise specified. DMSO was freshly distilled from CaH2. N,N’-di(2,6-diiso-
propylphenyl)perylene-3,4:9,10-tetracarboxylic acid bisimide (PBI, 1) and
N,N’-di(2,6-diisopropylphenyl)-1,6,7,12-tetrabromoperylene-3,4:9,10-tet-
racarboxylic acid bisimide (7) were synthesized according to literature
procedures.[26] 1-Bromoperylene bisimide (5) and 1,7-dibromoperylene bi-
simide (6) were prepared according to our previously reported proce-
dure.[18]
1H (400 MHz) and 13C NMR spectra (100 MHz) were recorded on
a Bruker ADVANCE 400 NMR Spectrometer. J values are expressed in
Hz and chemical shifts (in ppm) are given downfield of tetramethylsilane
(TMS) with the residual protonated solvent used as an internal standard.
The signals were designated as follows: s (singlet), d (doublet), t (triplet),
q (quartet), dd (doublet of doublets), and m (multiplet). MS (MALDI-
TOF) were determined on a Bruker BIFLEX III Mass Spectrometer. El-
emental analysis was performed on a FLASH EA1112 elemental ana-
lyzer. UV/Vis spectra were measured with a Hitachi (Model U-3010)
UV/Vis spectrophotometer in a 1 cm quartz cell. Fluorescence excitation
and emission spectra were recorded with a Hitachi FP-6600 FL fluorime-
ter at room temperature. Fluorescence quantum yields were determined
by optical dilute method with N,N’-di(2,6-diisopropylphenyl)perylene-
3,4:9,10-tetracarboxylic acid bisimide (PBI) in CHCl3 as a reference
(ffl =1.0).[20] Cyclic voltammograms (CVs) were recorded on a Zahner
IM6e electrochemical workstation at a scan rate of 100 mVsÀ1, with
glassy carbon discs as the working electrode, Pt wire as the counter elec-
trode, Ag/AgCl electrode as the reference electrode, and ferrocene/ferro-
cenium as an internal potential marker for the calibration of potential.
0.1m Bu4NPF6 in CH2Cl2 (HPLC grade) was used as the supporting elec-
trolyte.

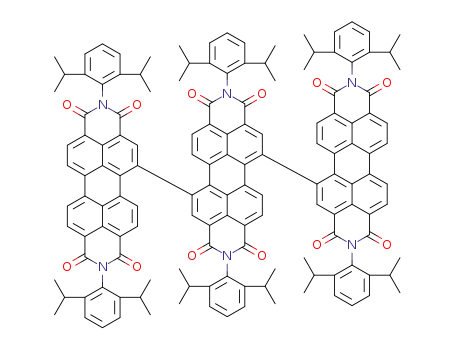

Trimer 3: 1H NMR (400 MHz, [D6]DMSO, TMS) d=9.19 (t, 3J
8.0 Hz, 4H), 8.71–8.77 (m, 8H), 8.57 (s, 2H), 8.45 (s, 2H), 8.38 (t, 3J-
(H,H)=8.0 Hz, 4H), 7.21–7.44 (m, 18H; phenyl H), 2.46–2.66 (m, 12H;
ACHTUNGTRENNUNG(H,H)=
AHCTUNGTRENNUNG
isopropyl H), 0.82–1.04 ppm (m, 72H; isopropyl H); 13C NMR (150 MHz,
CDCl3, TMS): d=163.70, 163.56, 163.45, 163.22, 163.18, 163.13, 146.05,
146.00, 145.85, 142.77, 141.99, 135.97, 135.85, 135.06, 134.98, 134.89,
134.26, 133.48, 132.73, 132.69, 130.73, 130.60, 130.59, 130.47, 130.30,
130.12, 129.87, 129.50, 128.38, 124.75, 124.71, 124.52, 124.44, 124.34,
124.25, 124.04, 123.93, 123.73, 29.55, 29.50, 29.45, 29.43, 29.35, 24.31,
24.26 ppm; MS (MALDI-TOF): calcd: 2126.9 [M]À; found: 2127.6; ele-
mental analysis calcd (%) for C144H122N6O12: C 81.25, H 5.78, N 3.95;
found: C 81.08, H 5.69, N 3.79.
1,12-Dibromoperylene bisimide (8): A mixture of tetrabromoperylene bi-
simide (7, 500 mg, 0.49 mmol), CuI (558 mg, 2.92 mmol), and l-proline
(393 mg, 3.41 mmol) was heated in dry DMSO (10 mL) at 608C under an
argon atmosphere for 24 h. Next, the cooled mixture was poured into
HCl (20 mL, 1m), and extracted with CH2Cl2 (3ꢄ50 mL). The organic
layers were separated, washed with brine, dried over Na2SO4, and puri-
fied by column chromatography on silica gel (petroleum ether/CH2Cl2,
1:1 v/v) to afford compound 8 as an orange–red solid (138 mg, 32.5%,
65.1% based on the recovered 4Br-PBI). 1H NMR (400 MHz, CDCl3,
TMS) d=8.94 (s, 2H), 8.84 (d, 3J
(H,H)=8.0 Hz, 2H), 8.67 (d, 3J
ACHUTGTNRENNUG ACHTUNGTRENNUNG
8.0 Hz, 2H), 7.53 (t, 3J(H,H)=8.0 Hz, 2H; phenyl H), 7.39 (d, 3J
G
ACHTUNGTRENNUNG
8.0 Hz, 4H; phenyl H), 2.73–2.82 (m, 4H; isopropyl H), 1.18–1.22 ppm
(m, 24H; isopropyl H); 13C NMR (100 MHz, CDCl3, TMS): d=163.66,
162.96, 145.97, 138.02, 135.19, 133.37, 131.63, 130.54, 130.22, 130.03,
127.92, 124.63, 124.55, 124.03, 123.64, 123.22, 29.63, 29.57, 24.37 ppm; MS
(MALDI-TOF): calcd: 866.1 [M]À; found: 866.2; elemental analysis calcd
(%) for C48H40Br2N2O4: C 66.37, H 4.64, N 3.22; found: C 66.25, H 4.58,
N 3.21.
Spectroelectrochemistry experiments were performed in a cylindrical
quartz cell with a three-electrode setup that consisted of a platinum disc
working electrode (6 mm diameter), a gold-coated metal plate as counter
electrode, and a Ag/AgCl pseudo-reference electrode. Measurements
&
10
&
ꢀ 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Chem. Eur. J. 0000, 00, 0 – 0
ÝÝ
These are not the final page numbers!
