6
W. Liu et al.
Arch. Pharm. Chem. Life Sci. 2012, 000, 1–8
360 mmol) was added and the flask immersed into an oil bath.
On heating a yellow solid began to form at 608C. The reaction
mixture became clear and almost colorless between 110 and
1208C. Stirring at 1208C was continued for 1 h. The temperature
was then raised to 1508C and stirring was continued for 3 h at
this temperature. Some white solid precipitated at the end of this
period. The reaction mixture was allowed to cool to rt during
which a white waxy solid formed. At this point all following
operations were carried out in air. CH2Cl2 (40 mL) was added and
the solution transferred to a separatory funnel. The CH2Cl2 layer
was separated and the remaining light brown liquid extracted
with CH2Cl2 (2 ꢁ 40 mL). The pooled CH2Cl2 layers were washed
twice with H2O (2 ꢁ 15 mL) to remove excess hydrazine hydrate.
The combined H2O extracts were then repeatedly extracted with
CH2Cl2 (6 ꢁ 20 mL). The combined CH2Cl2 solutions were dried
(Na2SO4), filtered, and rotary evaporated to give an off-white
solid. The product was recrystallized from THF, and colorless
rhombic crystals separated on cooling to rt. Yield: 4.84 g (73.3%)
of a white solid (mp 130–1318C); MS m/z: 628 [M]þ; 1H NMR
(CDCl3): d 1.26 (t, 6H, CH2CH3, J ¼ 7.2 Hz), 3.76 (s, 6H, OCH3),
3.80 (q, 4H, CH2CH3, J ¼ 7.2 Hz), 3.87 (s, 6H, OCH3), 6.75 (d, 4H,
ArH, J ¼ 8.8 Hz), 6.78 (d, 4H, ArH, J ¼ 8.8 Hz), 7.24 (d, 4H, ArH,
J ¼ 8.8 Hz), 7.40 (d, 4H, ArH, J ¼ 8.8 Hz), 7.58 (s, 2H, CH2);
13C NMR (CDCl3): d 16.3 (s, CH3); 40.0 (s, CH2); 49.9 (s, CH2);
55.0, 55.2 (s, OCH3); 113.5, 114.5, 122.8, 127.1, 127.5, 127.7,
132.0, (s, CAr); 135.6, 137.7 (s, NCN); 156.1, 159.7 (s, CAr). Anal.
calcd for C39H40N4O4: C, 74.50; H, 6.41; N, 8.91. Found C, 74.55; H,
6.52; N, 8.73.
that compound 4 exhibited higher activity than AgNO3 and
the gold complex Au1 and open a new application of this type
of compounds. In the next step of this SAR study we will
exchange the methylen/gold center by other metals.
Furthermore, investigations are in progress to get deeper
insight into the mechanism of action of bisNHC–metal
complexes.
Experimental
Chemistry
General
The following instrumentation was used: 1H or 13C NMR spectra:
Bruker ADX 400 spectrometer operated at 400 or 100 MHz
(internal standard, tetramethylsilane); Electron impact (EI) MS
spectra: Varian CH-7A (70 eV) spectrometer; ESI-TOF spectra:
Agilent 6210 ESI-TOF, Agilent Technologies, Santa Clara, CA,
USA; Elemental C, H, N analysis: PerkinElmer 240 B and C
analyzer; Melting point: capillary tube; uncorrected.
Chemicals were obtained from Sigma–Aldrich (Germany) and
used without further purification. Reactions were all monitored
by TLC on silica gel plates 60 F254 (Merck, Darmstadt, Germany),
visualized by UV light. Column chromatography was performed
with Merck silica gel 60H, grain size <0.063 mm, 230 mesh
ASTM (Darmstadt, Germany).
1-Ethyl-4,5-bis(4-methoxyphenyl)-1H-imidazole (1) was synthes-
ized according to Refs. [6, 7].
Bis[1,3-diethyl-4,5-bis(4-methoxyphenyl)imidazol-2-
ylidene]methane dibromide 4

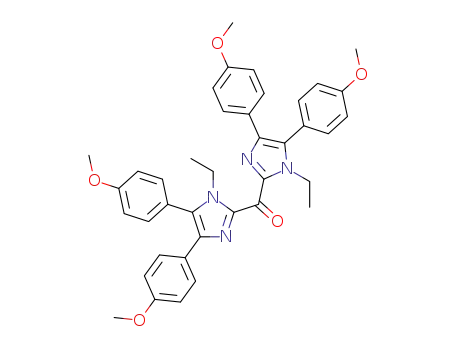

Bis[1-ethyl-4,5-bis(4-methoxyphenyl)-1H-imidazol-2-yl]-
methanone 2
Ethyl bromide (2.7 g, 25.0 mmol) and 3 (3.14 g, 5.0 mmol) were
combined and refluxed in 50 mL of acetonitrile for 48–72 h.
Removal of the solvent under reduced pressure gave the crude
product which was washed with Et2O (3 ꢁ 30 mL) and dried
in vacuo. Yield: 3.29 g (77.6%) of a white solid (mp 149–1518C);
A solution of 1-ethyl-4,5-bis(4-methoxyphenyl)-1H-imidazole (1)
(20.0 g, 65 mmol) in dry THF (200 mL) was cooled to ꢂ458C
and n-BuLi (2.5 M in hexane) (26 mL, 65 mmol) was slowly added.
The yellow solution was stirred at ꢂ458C for 30 min and then
cooled to ꢂ808C. Diethylcarbonate (3.8 g, 32.5 mmol) was added
dropwise. The color of the solution changed from pale yellow to
purple. After the reaction mixture was allowed to warm to ꢂ208C
during 5 h, the reaction was quenched by addition
of H2O (10 mL). After warming to rt, THF was removed in vacuo
and the residue extracted with CH2Cl2 (3 ꢁ 50 mL). The CH2Cl2
layer was extracted, dried (Na2SO4), filtered, and evaporated to
give a brown orange oil. The pure product was obtained as
colorless crystals after recrystallization from acetone, and from
the resulting mother liquor after slow evaporation in air. Yield:
11.2 g (54.0%) of a white solid (mp 203–2058C); MS m/z: 642 [M]þ;
1H NMR (CDCl3): d 1.35 (t, 6H, CH2CH3, J ¼ 7.2 Hz), 3.77 (s, 6H,
OCH3), 3.89 (s, 6H, OCH3), 4.23 (q, 4H, CH2CH3, J ¼ 7.2 Hz), 6.77
(d, 4H, ArH, J ¼ 8.8 Hz), 7.02 (d, 4H, ArH, J ¼ 8.8 Hz), 7.32 (d, 4H,
ArH, J ¼ 8.8 Hz), 7.49 (d, 4H, ArH, J ¼ 8.8 Hz); 13C NMR (CDCl3): d
16.8 (s, CH3); 40.9 (s, CH2); 55.1, 55.2 (s, OCH3); 113.5, 114.5, 122.8,
126.9, 128.3, 128.6, 132.1 (s, CAr); 140.0, 142.4 (s, NCN); 158.5,
160.2 (s, CAr); 174.6 (s, CO). Anal. calcd for C39H38N4O5: C, 72.88; H,
5.96; N, 8.72. Found C, 72.64; H, 5.71; N, 8.81.
ESI-MS m/z: 686 [M–2Br]2þ 1H NMR (DMSO-d6): d 1.30 (t, 12H,
;
CH2CH3, J ¼ 7.2 Hz), 3.77 (s, 12H, OCH3), 4.07 (q, 8H, CH2CH3,
J ¼ 7.2 Hz), 7.01 (d, 8H, ArH, J ¼ 8.4 Hz), 7.33 (d, 8H, ArH,
J ¼ 8.8 Hz), 9.40 (s, 2H, CH2); 13C NMR (CDCl3): d 15.9 (s, CH3);
43.2 (s, CH2); 55.4 (s, OCH3); 114.8, 116.9, 131.5, 131.8 (s, CAr);
136.2 (s, NCHN); 160.9 (s, CAr). Anal. calcd for C43H50Br2N4O4: C,
61.00; H, 5.95; N, 6.62. Found C, 61.00; H, 5.82; N, 6.77.
Bis[1-ethyl-4,5-bis(4-hydroxyphenyl)-1H-imidazol-2-yl]-
methane 5
A solution of 3 (1.00 mmol, 0.63 g) in 20 mL of dry CH2Cl2 was
cooled to ꢂ608C. At this temperature BBr3 (4.5 mmol, 1.12 g) in
5 mL of dry CH2Cl2 was added under N2 atmosphere. Then the
reaction mixture was allowed to warm to rt and was stirred for
further 48 h. After cooling the reaction mixture with an ice bath,
the surplus of BBr3 was hydrolyzed three times with methanol
and the phenolic product was dissolved in 0.1 N NaOH. The
alkaline water phase was filtered and the pH was adjusted to
8 with 2 N HCl. The precipitate was collected by suction filtration
and washed with CH2Cl2 and acetone to give the product. Yield:
0.374 g (65.5%) of a red solid (mp 304–3068C); MS m/z: 572 [M]þ;
1H NMR (DMSO-d6): d 1.24 (t, 6H, CH2CH3, J ¼ 7.2 Hz), 4.19 (q, 4H,
CH2CH3, J ¼ 7.2 Hz), 6.69 (d, 4H, ArH, J ¼ 8.4 Hz), 6.96 (d, 4H,
ArH, J ¼ 8.4 Hz), 7.25 (d, 4H, ArH, J ¼ 8.4 Hz), 7.30 (d, 4H, ArH,
J ¼ 8.4 Hz), 9.62 (s, 2H, CH2), 10.03 (s, 4H, OH, exchangeable
Bis[1-ethyl-4,5-bis(4-methoxyphenyl)-1H-imidazol-2-yl]-
methane 3
Compound 2 (6.75 g, 10.5 mmol) and KOH (2 g, 35.6 mmol) were
placed into
a Schlenk flask. Hydrazine hydrate (17.5 mL,
