Synthesis of triazenes by using aryl diazonium silica sulfates under mild conditions

Article abstract of DOI:10.1016/j.dyepig.2013.10.022

An efficient, fast and straightforward procedure for the synthesis of aryltriazenes is described in the present paper by using aryl diazonium silica sulfates and secondary amines. Using the present method, different kinds of aryl diazonium silica sulfates

Full text of DOI:10.1016/j.dyepig.2013.10.022

Dyes and Pigments 101 (2014) 295e302
Contents lists available at ScienceDirect
Dyes and Pigments
journal homepage: www.elsevier.com/locate/dyepig
Synthesis of triazenes by using aryl diazonium silica sulfates under
mild conditions
,
b
,
c
,
d
e
Amin Zarei a
, Leila Khazdooz , Hamidreza Aghaei , Ghobad Azizi ,
**
*
Alireza Najafi Chermahini e, Abdol R. Hajipour e
,
f
a Department of Science, Fasa Branch, Islamic Azad University, Post Box No 364, Fasa 7461789818, Fars, Iran
b Department of Science, Fasa University, Fasa 7461781189, Fars, Iran
c Department of Science, Khorasgan Branch, Islamic Azad University, Isfahan 81595-158, Iran
d Department of Chemistry, Shahreza Branch, Islamic Azad University, Shahreza 311-86145, Isfahan, Iran
e Pharmaceutical Research Laboratory, College of Chemistry, Isfahan University of Technology, Isfahan 84156, Iran
f Department of Pharmacology, University of Wisconsin, Medical School, 1300 University Avenue, Madison, 53706 1532 WI, USA
a r t i c l e i n f o
a b s t r a c t
Article history:
An efficient, fast and straightforward procedure for the synthesis of aryltriazenes is described in the
present paper by using aryl diazonium silica sulfates and secondary amines. Using the present method,
different kinds of aryl diazonium silica sulfates, containing electron withdrawing groups as well as
electron donating groups, were rapidly converted to the corresponding of aryltriazenes in good yield and
short reaction time. These reactions were carried out in water at room temperature under mild and
heterogeneous conditions. Moreover, temperature dependent NMR spectra were studied for 1-(2-
nitrophenyl)-3,3-diethyltriazene to determine the rotational barrier energy around N(2)eN(3) bond of
this molecule. Simple and clean work-up, short reaction times and good yields were the advantages of
this method.
Received 2 August 2013
Received in revised form
11 October 2013
Accepted 14 October 2013
Available online 22 October 2013
Keywords:
Aryl diazonium silica sulfates
Secondary amines
Aryltriazenes
Ó 2013 Elsevier Ltd. All rights reserved.
Mild conditions
Dynamic NMR
Rotational barrier energy
1. Introduction
semiconductors and nanoelectronics [25]. Two most widely useful
methods for the synthesis of triazenes are the coupling of aryl
Triazenes are a unique class of polyazo compounds with a long
history in both biological and chemical sciences. These compounds
are used for many purposes such as anticancer agents [1], against
brain tumors [2] and malignant melanoma [3] with minimal side
effects, as protecting groups in natural product synthesis [4e6], as
useful linkers in solid-phase organic synthesis [7e12], as dyes and
photoactive substrates [13e16] and in the formation of novel het-
erocycles [17e20]. Moreover, they are known as important in-
termediates for the modern organic synthesis [21e24]. Recently,
triazenes have been used as precursors to facilitate coupling of
functionalized arenes on the silicon surfaces for the applications in
diazonium salts to primary or secondary amines [26e28] and the
addition of organometallic reagents (RMgX, RLi, etc.) to alkyl azides
[29,30]. However, some of these reagents are very reactive,
commonly flammable, which it is necessary to use special equip-
ment for safety. Therefore, these restrictions necessitate the
development of new methods for the preparation of these signifi-
cant compounds. In continuation of our studies on the stabilization
of diazonium salts on silica sulfuric acid and their application in
organic synthesis [31e40], we report herein an efficient, conve-
nient and environmentally friendly method for the synthesis of
aryltriazenes by employing aryldiazonium silica sulfates with sec-
ondary amines (Scheme 1). These reactions were carried out in
water at room temperature under mild and heterogeneous condi-
tions. Silica sulfate as a bulky counterion with high surface not only
increases the stability of the present salts but also increases the
reaction rate so that these salts can be used under solvent-free
conditions at room temperature [31,32,34,35].
* Corresponding author. Tel.: þ98 9171302525; fax: þ98 3112289113.
** Corresponding author. Department of Science, Fasa Branch, Islamic Azad Uni-
versity, Post Box No 364, Fasa 7461789818, Fars, Iran.
E-mail addresses: aj_zarei@yahoo.com (A. Zarei), Leila_khazdooz@yahoo.com,
lkhazdooz@yahoo.com (L. Khazdooz).
0143-7208/$ e see front matter Ó 2013 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.dyepig.2013.10.022

296
A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
Et
Et
N
Et
H2O, 10-15 min
ArN2+ -OSO3-SiO2
HN
+
N
N
r.t.
Et
Ar
X
N
X
H2O, 10-15 min
r.t.
ArN2+ -OSO3-SiO2
X = CH2, O
+
N
N
HN
Ar
Scheme 1. An efficient, convenient and environmentally friendly method for the synthesis of aryltriazenes by employing aryldiazonium silica sulfates with secondary amines.
2. Experimental
Calcd for C11H14ClN3: C, 59.06; H, 6.31; N, 18.78. Found: C, 58.92; H,
6.45; N, 18.69.
2.1. General
2.3.3. (Table 1, entry 11) Yellow solid
All reagents were purchased from Merck and Aldrich and used
without further purification. Aryl diazonium silica sulfates were
synthesized according to the previous work [31]. All yields refer to
the isolated products after purification. The products were char-
acterized by comparison with authentic samples and by spectro-
scopic data (IR, 1H NMR, 13C NMR spectra and melting point). All
melting points were taken on a Gallenkamp melting apparatus and
were uncorrected. UV spectra were recorded on a JASCO V-570 UV/
vis/NIR spectrophotometer. IR spectra were recorded on a JASCO
FT/IR-680 PLUS spectrometer. 1H NMR spectra were recorded on
Bruker 400 and 500 MHz.
UV (lmax in CH2Cl2): 346 nm. Mp 74e75 ꢂC; FTIR (KBr) cmꢁ1
:
3034, 2945, 2858, 1639, 1594, 1457, 1394, 1355, 1300, 1273, 1188,
1142, 1105, 1019, 992, 918, 864, 794, 746, 701. 1H NMR (500 MHz,
CDCl3)
d
¼ 7.82 (2 H, d, J ¼ 8.2 Hz), 7.78 (2 H, d, J ¼ 7.4 Hz), 7.56 (1 H,
t, J ¼ 7.3 Hz), 7.51e7.45 (4 H, m), 3.85 (4 H, brs), 1.72 (6 H, brs). 13
C
NMR (125 MHz, CDCl3)
131.91, 130.28, 128.60, 120.56, 43.24, 24.50. Anal. Calcd for
18H19N3O: C, 73.69; H, 6.53; N, 14.32. Found: C, 73.58; H, 6.46; N,
d
¼ 196.53, 154.79, 138.75, 134.49, 132.37,
C
14.24.
2.3.4. (Table 1, entry 14) Yellow oil
UV (lmax in CH2Cl2): 301 nm. FTIR (KBr) cmꢁ1: 3073, 2941, 2858,
1600, 1576, 1525, 1462, 1420, 1355, 1295, 1266, 1188, 1110, 1084,
2.2. General procedure for the synthesis of triazenes
1015, 856, 775, 749, 684. 1H NMR (500 MHz, CDCl3)
d
¼ 7.65 (1 H, d,
J ¼ 8.1 Hz), 7.53, (1 H, d, J ¼ 8.2 Hz), 7.44 (1 H, t, J ¼ 8.3 Hz), 7.17 (1 H,
To a solution of a secondary amine (2 mmol) in water (10 mL),
freshly diazonium silica sulfate (1 mmol) was added and the re-
action mixture was stirred at room temperature for the time
specified in Table 1. The reaction progress was monitored by TLC
(hexane/EtOAc, 75:25). After completion of the reaction (absence of
azo coupling with 2-naphthol), the mixture was diluted with EtOAc
(15 mL) and filtered after vigorous stirring. The residue was
extracted with EtOAc (2 ꢀ 10 mL) and the combined organic layer
was washed with H2O (2 ꢀ 15 mL) and dried over anhydrous
Na2SO4. The solvent was evaporated under reduced pressure to
afford the corresponding product and if necessary, the crude
product was purified by flash column chromatography.
t, J ¼ 8.1 Hz), 3.83 (4 H, brs), 1.71 (6 H, brs). 13C NMR (125 MHz,
CDCl3)
d
¼ 145.62, 144.32, 132.63, 125.22, 124.14, 119.92, 42.41,
24.60. Anal. Calcd for C11H14N4O2: C, 56.40; H, 6.02; N, 23.92.
Found: C, 56.32; H, 6.11; N, 24.01.
2.3.5. (Table 1, entry 20) Pale yellow oil
UV (lmax in CH2Cl2): 292 nm. FTIR (KBr) cmꢁ1: 3065, 2975, 2935,
2873, 1585, 1571, 1467, 1406, 1341, 1265, 1249, 1201, 1106, 1053,
1033, 998, 939, 753, 722, 698, 632. 1H NMR (500 MHz, CDCl3)
d
¼ 7.42e7.38 (2 H, m), 7.19 (1 H, t, J ¼ 7.3 Hz), 7.04 (1 H, t, J ¼ 7.3 Hz),
3.80 (4 H, q, J ¼ 7.1 Hz), 1.31 (6 H, brs). 13C NMR (125 MHz, CDCl3)
d
¼ 148.05, 130.37, 129.70, 127.46, 126.04, 119.00, 42.63, 11.85. Anal.
Calcd for C10H14ClN3: C, 56.74; H, 6.67; N, 19.85. Found: C, 56.67; H,
6.78; N, 19.80.
2.3. The spectral data of new compounds
2.3.1. (Table 1, entry 3) Pale yellow oil
2.3.6. (Table 1, entry 23) Yellow oil
UV (lmax in CH2Cl2): 293 nm. FTIR (KBr) cmꢁ1: 3019, 2938, 2855,
1597, 1483, 1434, 1356, 1292, 1258, 1197, 1175, 1096, 1000, 853, 757,
UV (lmax in CH2Cl2): 298 nm. FTIR (KBr) cmꢁ1: 3073, 2977, 2937,
2875, 1600, 1576, 1525, 1468, 1402, 1352, 1269, 1237, 1201, 1114,
1080, 997, 949, 854, 767, 748, 680. 1H NMR (400 MHz, CDCl3)
718. 1H NMR (500 MHz, CDCl3)
d
¼ 7.34 (1 H, d, J ¼ 7.8 Hz), 7.18 (1 H,
d, J ¼ 7.5 Hz), 7.14 (1 H, d, J ¼ 7.6 Hz), 7.07 (1 H, t, J ¼ 7.3 Hz), 3.77
d
¼ 7.65 (1 H, dd, J1 ¼ 8.0 Hz, J2 ¼ 1.6 Hz), 7.53 (1 H, dd, J1 ¼ 8.0 Hz,
(4 H, brs), 2.42 (3 H, s), 1.71 (6 H, brs). 13C NMR (125 MHz, CDCl3)
J2 ¼ 1.2 Hz), 7.44 (1 H, td, J1 ¼ 8.4 Hz, J2 ¼ 1.6 Hz), 7.15 (1 H, td,
J1 ¼ 8.0 Hz, J2 ¼ 1.2 Hz), 3.80 (2 H, q, J ¼ 7.2 Hz), 3.73 (2 H, q,
J ¼ 7.2 Hz), 1.34 (3 H, J ¼ 7.2 Hz), 1.19 (3 H, J ¼ 7.2 Hz). 13C NMR
d
¼ 149.16, 133.16, 130.96, 126.69, 125.98, 116.96, 48.22, 25.62,
24.94, 18.02. Anal. Calcd for C12H17N3: C, 70.90; H, 8.43; N, 20.67.
Found: C, 70.78; H, 8.56; N, 20.75.
(100 MHz, CDCl3)
d
¼ 145.42, 144.60, 132.55, 124.83, 124.06, 119.99,
49.91, 42.53, 14.81, 11.65. Anal. Calcd for C10H14N4O2: C, 54.04; H,
6.35; N, 25.21. Found: C, 54.11; H, 6.47; N, 25.15.
2.3.2. (Table 1, entry 8) Pale yellow oil
UV (lmax in CH2Cl2): 293 nm. FTIR (KBr) cmꢁ1: 3064, 2939, 2856,
1584, 1468, 1420, 1355, 1296, 1255, 1221, 1186, 1106, 1053, 1001, 852,
753, 701, 644. 1H NMR (500 MHz, CDCl3)
d
¼ 7.46 (1 H, d, J ¼ 8.0 Hz),
3. Results and discussion
7.39 (1 H, d, J ¼ 7.9 Hz), 7.20 (1 H, t, J ¼ 7.5 Hz), 7.07 (1 H, t,
J ¼ 7.6 Hz), 3.85 (4 H, brs), 1.71 (6 H, brs). 13C NMR (125 MHz, CDCl3)
Aryldiazonium salts (ArNþ2 Xꢁ) have been prepared and studied
as useful intermediates in classical and modern organic synthesis
d
¼ 147.68, 130.45, 129.82, 127.53, 126.51, 118.97, 44.79, 24.77. Anal.

A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
297
Table 1
Preparation of (E)-aryltriazenes using aryl diazonium silica sulfates with secondary amines in water at room temperature.a
Entry
Amine
Diazonium salt
Product
Time (min)
10
Yield (%)
C6H5Nþ2 -OSO3eSiO2
86
83
N
N N
1
Piperidine
N
N N
2
3
4
5
6
4-MeC6H4Nþ2 -OSO3eSiO2
2-MeC6H4Nþ2 -eOSO3eSiO2
4-MeOC6H4Nþ2 -OSO3eSiO2
4-BrC6H4Nþ2 -OSO3eSiO2
4-ClC6H4Nþ2 -OSO3eSiO2
10
15
15
10
10
Me
N
N
N
N
80
79
82
82
Me
N
N
MeO
Br
N
N N
N
N
N
N
N
N
Cl
Cl
7
8
3-ClC6H4Nþ2 -OSO3eSiO2
2-ClC6H4Nþ2 -OSO3eSiO2
10
15
84
81
N
N N
Cl
N
N N
9
4-NCC6H4Nþ2 -OSO3eSiO2
10
15
84
83
NC
Me
N
N
N
N
10
4-MeCOC6H4Nþ2 -OSO3eSiO2
O
N
N
11
4-PhCOC6H4Nþ2 -OSO3eSiO2
15
80
Ph
O
N
N N
12
13
4-NO2C6H4Nþ2 -OSO3eSiO2
3-NO2C6H4Nþ2 -OSO3eSiO2
10
10
85
87
O2N
O2N
N
N N
(continued on next page)

298
A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
Table 1 (continued )
Entry
Amine
Diazonium salt
Product
Time (min)
15
Yield (%)
82
N
N N
14
2-NO2C6H4Nþ2 -OSO3eSiO2
NO2
Et
Et
15
16
17
Diethylamine
C6H5Nþ2 -OSO3eSiO2
10
10
15
83
80
76
N
N
N
N
Et
Et
4-MeC6H4Nþ2 -OSO3eSiO2
2-MeC6H4Nþ2 -OSO3eSiO2
Me
N
N
N
Et
Et
N
N
Me
Et
18
19
20
4-BrC6H4Nþ2 -OSO3eSiO2

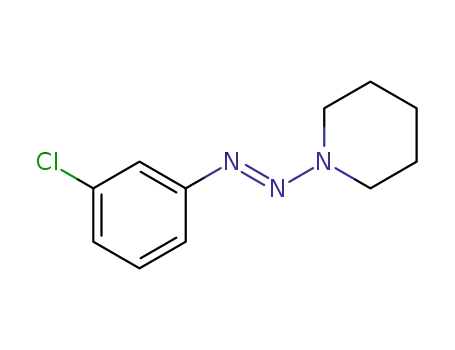

4-ClC6H4Nþ2 -OSO3eSiO2
2-ClC6H4Nþ2 -OSO3eSiO2
10
10
15
81
79
78
Br
Cl
N
N
N
N
N
Et
Et
N
Et
Et
Et
N
N
N
Cl
Et
N
N N
Et
21
4-MeCOC6H4Nþ2 -OSO3eSiO2
10
81
Me
O
O2N
Et
Et
22
23
3-NO2C6H4Nþ2 -OSO3eSiO2
2-NO2C6H4Nþ2 -OSO3eSiO2
10
15
85
81
N
N
N N
Et
N
N
Et
NO2
Et
Et
24
25
4-CNC6H4Nþ2 -OSO3eSiO2
4-MeC6H4Nþ2 -OSO3eSiO2
10
10
82
80
NC
Me
N
N
N
O
N
N N
Morpholine
O
N
N N
26
4-ClC6H4Nþ2 -OSO3eSiO2
10
10
83
82
Cl
O
27
3-NO2C6H4Nþ2 eOSO3eSiO2
O2N
N N N
a
The yields refer to isolated pure products which were characterized from their spectral data by comparison with those reported in the literature [47e56].
due to their ready availability and high reactivity. These salts have
been prepared by a wide variety of methods. One of the oldest and
commonly used methods involves the diazotation of aromatic
amines with sodium nitrite in the presence of an aqueous Brønsted
acid [26,41]. The counterion (Xꢁ), determined by the choice of the
acid, has an important role for both stability and reactivity of the
diazonium salt [41]. For example, aryl diazonium chlorides are
usually highly unstable above 0 ꢂC and even explosive. Moreover,
because of this instability, subsequent reactions with diazonium
salts must be carried out under the same conditions that these salts

A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
299
density. As shown in Scheme 2, an obvious effect of this resonance
is an increase in rotation barrier around the N(2)eN(3) bond
determined by dynamic NMR spectroscopy [57].
In the present work, by studying the NMR spectral data of the
triazene derivatives, it was found that only 1-(2-nitrophenyl)-3,3-
diethyltriazene (Table 1, entry 23) showed a restriction in rotation
around the N(2)eN(3) bond at room temperature. This phenome-
non led to formation of two diastereotopic ethyl groups. Therefore,
the methylene and methyl groups gave different respective signals
in 13C NMR and 1H NMR spectroscopy (Figs. 1 and 2). At room
temperature and in CDCl3, the methylene carbons appear at 49.91
and 42.53 ppm and the methyl carbons resonate at 14.81 and
11.65 ppm (Fig. 1). Moreover, at ambient temperature, the 1H NMR
spectrum of this compound in CDCl3 indicates that the diaster-
eotopic methylene protons appear as two broad quartet peaks be-
tween 3.82 and 3.71 ppm and the diastereotopic methyl protons
resonate as two equally intense triplets at 1.34 and 1.22 ppm (Fig. 2).
By studying the temperature of the 1H NMR (400 MHz) of this
molecule in CDCl3 (Fig. 3), it is found that the methylene and methyl
peaks broaden and coalesce when the temperature is raised. The
chemical shift for all protons were unaffected by increase of the
temperature. Moreover, to increase the clearness of the spectra, we
moved each spectrum as much as 0.1 ppm to right in comparison
with the former spectrum (Fig. 3). As shown in Figs. 2 and 3, the
appearance of the 1H NMR spectra for the diastereotopic methyl
groups is clearer than that of the corresponding methylene ones.
Therefore, the thermodynamic parameters of the present com-
pound were calculated for the methyl groups. These parameters are
the coalescence temperature (Tc), the rate constant of the exchange
at the coalescence temperature (kc) and the free energy of activation
Scheme 2. Obvious effect of the resonance in rotation barrier around the N(2)eN(3)
bond.
are formed. Thus, aryldiazonium salts with higher stability and
versatility that can be easily made and stored under solid state
conditions with explosion-proof properties are desired and
necessary. Later developments showed that the stability of diazo-
nium salts can be modulated by change of the counterion. In this
area of research, tetrafluoroborates [42,43] became the most used
salts. Moreover, disulfonimides [44], carboxylates [45] and tosy-
lates [46] have also been described for their good stability. Diazo-
tization reactions of these anhydrous aryl diazonium salts are
carried out in an appropriate organic solvent and to precipitate the
corresponding aryl diazonium salt, it is necessary to add Et2O into
the reaction mixture. Moreover, in some of these procedures, it is
required to control the reaction temperature. Recently, we have
reported a new method for the preparation of anhydrous aryldia-
zonium salts on the surface of silica sulfuric acid named aryldia-
zonium silica sulfates (ArN2þ-eOSO3eSiO2) [31e40]. Diazotization
reactions of these aryl diazonium salts are easily carried out in a
few minutes under solvent-free conditions at room temperature. In
the present work, the reaction of aryldiazonium silica sulfates with
a number of secondary amines was studied. As shown in Table 1, all
reactions were carried out in water at room temperature under
mild and heterogeneous conditions. The corresponding (E)-aryl-
triazenes were obtained in good to high yields. The yields refer to
isolated pure products which were characterized from their spec-
tral data by comparison with those reported in the literature [47e
56]. Aryldiazonium silica sulfates with electron-withdrawing
groups or electron-donating groups also reacted effectively. The
steric effects of ortho substituents had relatively little influence on
the yields and reaction times. The corresponding phenol de-
rivatives were formed in trace amounts as by-products. Another
advantage of this method was the easy work-up since the crude
products were extracted with ethyl acetate and, if necessary, were
purified by flash column chromatography. Finally, after completion
of the reaction and isolation of the product, the solid support could
be recycled according to the previous work [32].
(D
Gzc) for the exchange. As shown in Fig. 3, the coalescence tem-
perature was 326 K and the rate constant was calculated to be
117 sꢁ1 for the exchange of the methyl groups at the coalescence
temperature by using the GutowskyeHolm equation (kc ¼ (
p/O2)
(
Dy2 þ 6J2)1/2) [57]. In the present equation, Dy is the difference in
chemical shift of the two sites and J is the coupling constant. So, for
this molecule the difference in chemical shift of the two methyl
groups was calculated 50 Hz and the coupling constant between the
methyl and methylene protons was obtained 6.8 Hz (Fig. 3). More-
over, the free energy of activation was obtained 16.07 kcal molꢁ1 for
the exchange of the methyl groups by following the Eyring equation
(
D
Gzc ¼ 4.57Tc [9.97 þ log (Tc/Dy)]) [57]. It is clear that the Gutow-
skyeHolm equation and the Eyring equation are strictly valid where
the populations of two sites are equal [57e59].
Wealsosynthesized[(2-nitrophenyl)diazenyl]-1-azacyclohexane
using piperidine instead of diethylamine under the same conditions
It is known that aryldialkyltriazenes with an extended
jugated system exhibit considerable delocalization of charge
p-con-
Fig. 1. 13C NMR spectrum (100 MHz) of 1-(2-nitrophenyl)-3,3-diethyltriazene in CDCl3 at room temperature.

300
A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
Fig. 2. 1H NMR spectrum (400 MHz) of 1-(2-nitrophenyl)-3,3-diethyltriazene in CDCl3 at room temperature.
(Table 1, entry 14) and studied its NMR spectral data. In contrast to 1-
(2-nitrophenyl)-3,3-diethyltriazene, it was not observed the rotation
restriction around the N(2)eN(3) bond at room temperature. It may
be due to the inversion of the piperidyl ring that decreases the
coplanarityof thelone-pairelectronson the piperidine nitrogenwith
Table 2, the rotational barrier energy of the aryltriazenes is more than
that of the aliphatic ones. It may be due to decrease of -conjugated
p
system in the structure of the aliphatic triazenes. Moreover, the
substituted functionalgroupson thearomaticringof thearyltriazenes
affect the rotational barrier. In comparison with electron donating
groups, electron withdrawing groups on the aromatic triazenes in-
N]N bond[57,60]. Thisreason decreases p-conjugated systemof the
present triazene which leads to lower rotational barrier energy
around N(2)eN(3) bond. Therefore, the rotation around the present
bond is almost unhindered at room temperature and consequently it
was not observed diastereotopic methylene in this molecule.
crease the D p-conjugated system.
Gzc values owing to extension of
Furthermore, thestericeffectofthealiphaticgroupsonN(3)hasalittle
influence on rotational barrier energy when the size of R increases
from methyl to ethyl and isopropyl (Table 2, entries 3, 7,10). Also 1-(2-
Finally, we compared
D
Gzc of 1-(2-nitrophenyl)-3,3-diethyltriazene
nitrophenyl)-3,3-diethyltriazene has the highest
these aryltriazene derivatives (Table 2, entry 9). It may be due to
D
Gzc value among
with a number of triazenes reported in the literature. As shown in
Fig. 3. Temperature-dependent 1H NMR spectra (400 MHz) of 1-(2-nitrophenyl)-3,3-diethyltriazene in CDCl3.

A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
301
Table 2
reactions proceed in water at room temperature under mild and
heterogeneous conditions in good to high yields. Furthermore,
temperature dependent NMR spectra were studied for 1-(2-
nitrophenyl)-3,3-diethyltriazene to determine the rotational bar-
rier energy around N(2)eN(3) bond of this molecule. Among the
notable advantages of this method, we can mention the following:
operational simplicity, generality, availability of reactants, short
reaction times, and easy work-up.
Rotational barrier energy of some triazenes in different solvents.
Entry Triazene
Solvent D
Gzc (kcal molꢁ1) Ref.
Me
N
N
1
CDCl3 12.7
[59]
Me
N
OMe
Me
Me
N
N
N
N
N
2
3
4
CDCl3 13
[59]
[60]
[59]
Acknowledgment
N
Me
We gratefully acknowledge the funding support received for this
project from the Islamic Azad University, Fasa Branch.
Me
Me
CDCl3 13.8
CDCl3 13.9
N
References
Me
Me
N
[1] Wanner MJ, Koch M, Koomen GJ. Synthesis and antitumor activity of meth-
yltriazene prodrugs simultaneously releasing DNA-methylating agents and
the antiresistance drug O6-benzylguanine. J Med Chem 2004;47:6875e83.
[2] Newlands ES, Stevens MFG, Wedge SR, Wheelhouse RT, Brock C. Temozolo-
mide: a review of its discovery, chemical properties, pre-clinical development
and clinical trials. Cancer Treat Rev 1997;23:35e61.
[3] Bleehen NM, Newlands ES, Lee SM, Thatcher N, Selby P, Calvert HA, et al.
Cancer research campaign phase II trial of temozolomide in metastatic mel-
anoma. J Clin Oncol 1995;13:910e3.
[4] Lazny R, Sienkiewicz M, Bräse S. Application of triazenes for protection of
secondary amines. Tetrahedron 2001;57:5825e32.
[5] Lazny R, Poplawski J, Köbberling J, Enders D, Bräse S. Triazenes: a useful
protecting strategy for sensitive secondary amines. Synlett 1999:1304e6.
[6] Gross ML, Blank DH, Welch WM. The triazene moiety as a protecting group for
aromatic amines. J Org Chem 1993;58:2104e9.
[7] Bräse S, Dahmen S, Pfefferkorn M. Solid-phase synthesis of urea and amide
libraries using the T2 triazene linker. J Comb Chem 2000;2:710e5.
[8] Bräse S, Enders D, Kobberling J, Avemaria F. A surprising solid-phase effect:
development of a recyclable “traceless” linker system for reactions on solid
support. Angew Chem Int Ed 1998;110:3614e6.
[9] Bräse S. The virtue of the multifunctional triazene linkers in the efficient solid
phase synthesis of heterocycle libraries. Acc Chem Res 2004;37:805e16.
[10] Bräse S, Kobberling J, Enders D, Lazny R, Wang M, Brandtner S. Triazenes as
robust and simple linkers for amines in solid-phase organic synthesis. Tet-
rahedron Lett 1999;40:2105e8.
N
N
Cl
Me
Me
Me
N
5
CD2Cl2 10.7
CD2Cl2 10.5
[57]
N
N
CH2Ph
N
N
6
7
[57]
[60]
Me
Et
CH2CH2CH2CH3
N
N
CS2
13.8
Et
N
Et
Et
N
N
N
N
8
9
CDCl3 15.7
CDCl3 16.1
[57]
N
NO2
Et
Et
O2N
[11] Lazny R, Nodzewska A, Klosowski P. A new strategy for synthesis of polymeric
supports with triazene linkers. Tetrahedron 2004;60:121e30.
Present work
N
[12] Enders D, Rijksen C, Bremus-Kobberling E, Gillner A, Kobberling J. A triazene-
based new photolabile linker in solid phase chemistry. Tetrahedron Lett
2004;45:2839e41.
[13] Isaad J, Malek F, Achari AE. A facile route to the new triazene dyes based
on substituted pyrazolidin-3,5-dione derivatives. Dyes Pigments 2012;92:
1212e22.
Me
N
Me
Me
10
11
CS2
14.4
10.8
[60]
[60]
N
N
N
N
Me
Me
[14] Rapp L, Diallo AK, Nénon S, Alloncle AP, Videlot-Ackermann C, Fages F, et al.
Laser printing of a semiconducting oligomer as active layer in organic thin
film transistors: impact of
2012;520:3043e7.
a protecting triazene layer. Thin Solid Films
[15] Tabone R, Barra M. Thermal cis-to-trans isomerisation of triazene dyes in
doped polymer films. Dyes Pigments 2011;88:180e6.
[16] Fu J, Lau K, Barra M. Kinetic studies on the thermal cis-to-trans isomeri-
CS2
N
Me
zation of 1-phenyltriazenes derived from cyclic amines.
J Org Chem
2009;74:1770e3.
[17] Rivera A, Gonzalez-Salas D. Synthesis and characterization of novel triazenes
from the reaction of the cyclic aminal 1,3,6,8-tetraazatricyclo[4.3.1.13,8
]
undecane (TATU) with diazonium ions. Tetrahedron Lett 2010;51:2500e4.
[18] Knochel P, Liu CY. Preparation of polyfunctional arylmagnesium reagents
electronic and resonance effect of nitro group at ortho situation. It is
bearing
2543e6.
a triazene moiety. A new carbazole synthesis. Org Lett 2005;7:
notable that 2,6-dimethyl-1-piperidinoazobenzene has the lowest
D
nomenon may be owing to the inversion of the piperidyl ring that
decreases the coplanarity of the lone-pair electrons on the piperidine
Gzc value among these aryltriazenes (Table 2, entry 11). This phe-
[19] Kimball DB, Weakley TJR, Haley MM. Cyclization of 1-(2-alkynylphenyl)-3,3-
dialkyltriazenes: a convenient, high-yield synthesis of substituted cinnolines
and isoindazoles. J Org Chem 2002;67:6395e405.
[20] Kimball DB, Weakley TJR, Herges R, Haley MM. Deciphering the mechanistic
dichotomy in the cyclization of 1-(2-ethynylphenyl)-3,3-dialkyltriazenes:
competition between pericyclic and pseudocoarctate pathways. J Am Chem
Soc 2002;124:13463e73.
nitrogenwith N]N bond [57, 60]. This reason decreases
p
-conjugated
system of the present triazene which leads to lower
D
Gzc value.
[21] Kimball DB, Haley MM. Triazenes: a versatile tool in organic synthesis. Angew
Chem 2002;41:3338e51.
4. Conclusion
[22] Saeki T, Son EC, Tamao K. Boron trifluoride induced palladium-catalyzed
cross-coupling reaction of 1-aryltriazenes with areneboronic acids. Org Lett
2004;6:617e9.
[23] Nishiwaki K, Ogawa T, Tagami KI, Tanabe G, Muraoka O, Matsuo K. A new
method of constructing dearomatized compounds using triazene. Tetrahe-
dron 2006;62:10854e8.
To sum up, what has been done in the present study can be
considered as an efficient, rapid, experimentally simple and envi-
ronmentally benign method for the preparation of aryltriazenes
using aryl diazonium silica sulfates with secondary amines. These

302
A. Zarei et al. / Dyes and Pigments 101 (2014) 295e302
[24] Zhu C, Yamane M. Synthesis of 3,4-disubstituted cinnolines by the Pd-
catalyzed annulation of 2-iodophenyltriazenes with an internal alkyne. Tet-
rahedron 2011;67:4933e8.
[43] Taylor JG, Moro AV, Correia CRD. Evolution and synthetic applications of the
Heck-Matsuda reaction: the return of arenediazonium salts to prominence.
Eur J Org Chem 2011:1403e28.
[25] Chen B, Flatt AK, Jian H, Hudson JL, Tour JM. Molecular grafting to silicon
surfaces in air using organic triazenes as stable diazonium sources and HF as a
constant hydride-passivation source. Chem Mater 2005;17:4832e6.
[26] Zollinger H. Diazo chemistry I, aromatic and heteroaromatic compounds.
Weinheim: Wiley VCH; 1994.
[27] Barbero M, Degani I, Diulgheroff N, Dughera S, Fochi R. 1-Aryl-3,3-
dialkyltriazenes: a convenient synthesis from dry arenediazonium o-benze-
nedisulfonimides e a high yield break down to the starting dry salts and
efficient conversions to aryl iodides, bromides and chlorides. Synthesis 2001:
2180e90.
[44] Barbero M, Crisma M, Degani I, Fochi R, Perracinoa P. New dry arenediazo-
nium salts, stabilized to an exceptionally high degree by the anion of o-
benzenedisulfonimide. Synthesis 1998:1171e5.
[45] Colas C, Goeldner M. An efficient procedure for the synthesis of crystalline
arydiazonium trifluoroacetates-synthetic applications. Eur J Org Chem 1999:
1357e66.
[46] Filimonov VD, Trusova M, Postnikov P, Krasnokutskaya EA, Lee YM,
Hwang HY, et al. Unusually stable, versatile, and pure arenediazonium tosy-
lates: their preparation, structures, and synthetic applicability. Org Lett
2008;10:3961e4.
[28] Sadtchikova EV, Morkushin VS. Interaction of diazoimidazoles and their dia-
zonium salts with primary and secondary amines. Mendeleev Commun
2002;2:70e1.
[29] Kirk KL. Facile synthesis of 2-substituted imidazoles. J Org Chem 1978;43:
4381e3.
[47] Patrick TB, Willaredt RP, DeGonia DJ. Synthesis of biaryls from aryltriazenes.
J Org Chem 1985;50:2232e5.
[48] Tonelli M, Vazzana I, Tasso B, Boido V, Sparatore F, Fermeglia M, et al. Antiviral
and cytotoxic activities of aminoarylazo compounds and aryltriazene de-
rivatives. Bioorg Med Chem 2009;17:4425e40.
[30] Vaughan K, Stevens KFG. Monoalkyltriazenes. Chem Soc Rev 1978;7:377e97.
[31] Zarei A, Hajipour AR, Khazdooz L, Mirjalili BF, Najafichermahini A. Rapid and
efficient diazotization and diazo coupling reactions on silica sulfuric acid
under solvent-free conditions. Dyes Pigments 2009;81:240e4.
[32] Zarei A, Hajipour AR, Khazdooz L. A one-pot method for the iodination of aryl
amines via stable aryl diazonium silica sulfates under solvent-free conditions.
Synthesis 2009:941e4.
[33] Zarei A, Hajipour AR, Khazdooz L, Aghaei H. A fast and efficient method for the
preparation of aryl azides using stable aryl diazonium silica sulfates under
mild conditions. Tetrahedron Lett 2009;50:4443e5.
[34] Zarei A, Hajipour AR, Khazdooz L, Aghaei H. Fast, efficient, and convenient
method for the preparation of arylazo aryl sulfones using stable aryldiazo-
nium silica sulfates under mild conditions. Synlett 2010:1201e4.
[35] Zarei A, Khazdooz L, Hajipour AR, Aghaei H. Fast, efficient and convenient
method for the preparation of arylazo sulfides using aryl diazonium silica sul-
fates under mild and solvent-free conditions. Dyes Pigments 2011;91:44e8.
[36] Zarei A, Khazdooz L, Pirisedigh A, Hajipour AR, Seyedjamali H, Aghaei H.
Aryldiazonium silica sulfates as efficient reagents for Heck-type arylation
reactions under mild conditions. Tetrahedron Lett 2011;52:4554e7.
[37] Zarei A, Khazdooz L, Hajipour AR, Rafiee F, Azizi G, Abrishami A. Suzuki-
Miyaura cross-coupling of aryldiazonium silica sulfates under mild and het-
erogeneous conditions. Tetrahedron Lett 2012;53:406e8.
[38] Pirisedigh A, Zarei A, Seyedjamali H, Khazdooz L, Hajipour AR. Heck-type
reaction of aryldiazonium silica sulfates. Monatshefte Chem 2012;143:791e5.
[39] Zarei A. One-pot, efficient, and regioselective syntheses of 1,4-disubstituted
1,2,3-triazoles using aryldiazonium silica sulfates in water. Tetrahedron Lett
2012;53:5176e9.
[49] Berridge MS, Crouzel C, Comar D. Aromatic fluorination with N.C.A. F-18
fluoride:
687e94.
a comparative study. J Labelled Compd Radiopharm 1985;22:
[50] Ku H, Barrio JR. Convenient synthesis of aryl halides from arylamines via
treatment of 1-aryl-3,3-dialkyltriazenes with trimethylsilyl halides.
J Org
Chem 1981;46:5239e41.
[51] Shoko S, Tanno M. Preparation and properties of novel trisubstituted N-
nitrosoureas which decompose to afford triazenes and nitro compounds un-
der mild conditions. Chem Pharm Bull 1985;33:488e96.
[52] Wautelet P, Moigne JL, Videva V, Turek P. Spin exchange interaction through
phenylene-ethynylene bridge in diradicals based on iminonitroxide and
nitronylnitroxide radical derivatives. 1. Experimental investigation of the
through-bond spin exchange coupling. J Org Chem 2003;68:8025e36.
[53] Satyamurthy N, Jorge R, Barrio JR. Cation exchange resin (hydrogen form)
assisted decomposition of 1-aryl-3,3-dialkyltriazenes. A mild and efficient
method for the synthesis of aryl iodides. J Org Chem 1983;48:4394e6.
[54] Threadgill MD, Stevens MFG. Selective reactions in the triazene series; I.
Reduction of 1-(4-Acetylphenyl)-triazenes. Synthesis 1983:289e90.
[55] Henry RA, Dehn WM. Aryl diazomorpholides.
J Am Chem Soc 1943;65:
479e80.
[56] Gescher A, Turnbull CP, Stevens MFG. Triazines and related products. Part 20.
Oxidation of 1-(arylazo)-piperidines with potassium permanganate. J Chem
Soc Perkin Trans 1977;1:2078e83.
[57] Oki M. Application of dynamic NMR spectroscopy to organic chemistry. VCH;
1985.
[58] Modarresi-Alam AR, Keykha H, Khamooshi F, Dabbagh AH. Dynamic 1H NMR
study of 4-methylphenoxyimidoyl azides: conformational or configurational
isomerisation. Tetrahedron 2004;60:1525e30.
[40] Zarei A, Khazdooz L, Hajipour AR, Aghaei H, Azizi G. Microwave-assisted click
chemistry synthesis of 1,2,3-triazoles from aryldiazonium silica sulfates in
water. Synthesis 2012:3353e60.
[41] Felpin FX, Hardy LN, Callonnec FL, Fouquet E. Recent advances in the Heck-
Matsuda reaction in heterocyclic chemistry. Tetrahedron 2011;67:2815e31.
[42] Roglands A, Pla-Quintana A, Moreno-Mañas M. Diazonium salts as substrates in
palladium-catalyzed cross-coupling reactions. Chem Rev 2006;106:4622e43.
[59] Akhtar MH, McDaniel RS, Feser M, Oehlschlager AC. NMR study of hindered
rotation in 1-aryl-3,3-dimethyltriazenes. Tetrahedron 1968;24:3899e906.
[60] Lunazzi L, Ceriono G, Foresti E, Macciantelli D. Conformational studied
by dynamic nuclear magnetic resonance. Part X.1 Stereodynamics and
conformations of hindered triazenes.
J Chem Soc Perkin Trans 1978;2:
686e91.
