New organic-inorganic hybrid materials based on
perylene diimide – polyhedral oligomeric
silsesquioxane dyes with reduced quenching of the
emission in the solid state
Elena Lucenti,a,b,* Chiara Botta,c Elena Cariati,b,d Stefania Righetto,b,d Michele Scarpellini,b,d Elisa
Tordin,b,d and Renato Ugob,d
a Institute of Molecular Science and Technology of CNR, Via Golgi 19, 20133 Milan, Italy. b Italian
Interuniversity Consortium on Materials Science and Technology (INSTM), Research Unit of
Milan. c Institute for Macromolecular Studies of CNR, Via Bassini 15, 20133 Milan, Italy.
dDepartment of Chemistry, University of Milan, Via Golgi 19, 20133 Milan, Italy.
* Corresponding author. Tel.: +39 02 50134369; fax: +39 02 50134405.
E-mail address: e.lucenti@istm.cnr.it (E. Lucenti)
Abstract.
Solid state luminescent materials are the subject of ever growing interest both from a scientific and
a technological point of view because high-tech applications of light emitting materials very often
require their use in the condensed phase. Aggregation caused quenching processes however
represent an obstacle to the development of most luminogens in the condensed phase. This is why
particularly fascinating are those materials showing high emission intensity in the solid state.
Aggregation caused quenching is particularly detrimental for π–extended polycyclic aromatic
1

ACCEPTED MANUSCRIPT
hydrocarbons, for example perylene tetracarboxylic acid diimides which are characterized by a
near-unity fluorescence quantum yield in solution but are far less emissive in the solid state.
Here we report on the easy preparation and on the optical investigation of perylene tetracarboxylic
acid diimide derivatives linked to the inorganic cage of polyhedral oligomeric silsesquioxanes.
These new hybrid perylene diimide - polyhedral oligomeric silsesquioxane dyes show in solution
the typical absorption and emission features of the perylene diimide fragment, with a quantum
efficiency close to unity. Moreover, in the solid state (both as spin-coated films and powders) the
electronic absorption spectra indicate a reduced fluorophore aggregation and significant quantum
yield efficiencies induced by the positive effect of the polyhedral oligomeric silsesquioxane cage.
Keywords: Perylene Tetracarboxylic Acid Diimide; Polyhedral Oligomeric Silsesquioxanes;
Photoluminescence; Aggregation Caused Quenching.
1. Introduction.
In recent years extensive efforts have been spent on the discovery and development of
efficient solid-state emissive organic materials to be applied in organic optoelectronic devices, such
as organic light-emitting diodes, organic field-effect transistors, solid-state lasers and fluorescent
sensors. However, most organic molecular chromophores are non-luminescent in the solid state,
even if they are highly emissive in solution, due to the quenching of the emission caused by
intermolecular interactions such as excimer formation and energy transfer in the condensed phase.
In particular this phenomenon is quite detrimental for red-light emitting chromophores which
usually consist of π–extended polycyclic aromatic hydrocarbons, prone to aggregation particularly
in the condensed phase by π–π stacking [1]. Such interactions are frequently encountered in
perylene tetracarboxylic acid diimides (PDI)-based materials and are usually associated to H-type
excimeric dimers responsible of aggregation-caused quenching (ACQ) phenomena [2-6]. PDI, an
important class of pigments, have been recently investigated as organic luminogens due to their
2

ACCEPTED MANUSCRIPT
outstanding properties such as near-unity fluorescence quantum yields in solution, high chemical
and photochemical stabilities, and strong electron-accepting character [3, 7]. All these properties
qualified PDIs for a wide range of optoelectronic applications such as in organic field-effect
transistors (OFETs) [8-15], fluorescent solar collectors [16], electrophotographic devices [17], dye
lasers [18, 19], organic photovoltaic cells (OPVs) [14, 15, 20-24], and optical power limiters [25].
Moreover PDIs are excellent chromophores for relevant photophysical processes such as energy and
electron transfer [26-32]. However PDIs are characterized by significant π–π stacking and
consequently intrinsic low solubility. Practical applications were made possible through the
development of soluble derivatives; one successful approach has been developed by Langhals and
co-workers by introducing long secondary alkyl chains (“swallow tail” substituents), that offer an
excellent compromise between preparative accessibility and increased solubility [7, 33]. Still
fluorescence quenching is observed in these derivatives at increasing concentration or in the solid
state, nevertheless in a few instances steric shielding of the chromophores by introduction of bulky
substituents, such tetraphenylmethane or branched aliphatic groups, can inhibit aggregation with a
positive effect on the fluorescence quantum yields at high concentrations or in the solid state [34,
35]. Another strategy usually employed to increase the solubility of perylene derivatives is the
functionalization at the aromatic core, typically at the 1,6,7,12-bay positions, by introduction of aryl
or aryloxy groups. In these derivatives the electronic and optical properties of PDI are also strongly
modified and many investigations have been devoted to elucidate how bay-substitutions could
affect absorption and emission properties of PDIs, as well as their π–π aggregation. It has been
found that the typical quenching of fluorescence emission is maintained in solution at increasing
concentration and/or in the solid state due to the formation of aggregates [3], except for a series of
PDI derivatives which display significant fluorescent quantum yields in the solid state, due to a
packing based on J-type aggregates [36]. Finally, perylene derivatives substituted at the 2,5,8,11-
bay positions, some of which show an intense fluorescence in the solid state, have been recently
synthesized [37, 38].
3

ACCEPTED MANUSCRIPT
While the effects of bulky organic substituents both at imide and bay positions on π-π stacking and
supramolecular organization of PDIs have been intensely studied, much less work has been
addressed towards the preparation of inorganic-organic hybrid PDI systems, which offer the
possibility to combine the properties of the PDI dyes with those of an inorganic scaffold with the
aim to both optimize the emission performance in the solid state and to promote processability
thanks to increased solubility. To such purpose the introduction as substituents of sterically
demanding inorganic scaffolds such Polyhedral Oligomeric Silsesquioxanes (POSS) is quite
appealing.
POSS are an interesting family of silicon-oxygen cages with the idealized empirical formula
(RSiO1.5)n. that have attracted much attention in recent years because of their particular properties
such as ease of synthesis and purification, chemical and thermal robust nature compared to most
traditional organic molecules, and the facility to tailor their functionalities to particular applications
[39-43]. It has been proven that incorporation of POSS in several organic materials may be a way to
enhance specific properties such as thermal and thermomechanical stability, mechanical toughness,
optical transparency, dielectric constant and solubility. Hence the large number of applications of
POSS cages in many research fields such as aerospace [44], biomedical applications [45-47],
protective coatings [39], microelectronics [48, 49] and catalysis [50-62].
More recently, silsesquioxane derivatives have been incorporated in light emitting polymers [63]
and in organic light emitting diodes (OLEDs) [64-68]. This has led to preparation of devices with
improved performances in terms of brightness, colour stabilities, lifetimes and quantum efficiencies
compared with the parent devices prepared without introduction of the POSS cage. In particular it
has been reported that the presence of bulky POSS cages could minimize aggregation of
polyfluorene derivatives, with a positive effect on their photoluminescence quantum yields [69].
Despite such increasing interest towards the synthesis of POSS-functionalized organic materials, to
our knowledge there are only few reports on the preparation of organic-inorganic PDI-POSS hybrid
nanoparticles [70-73].
4

ACCEPTED MANUSCRIPT

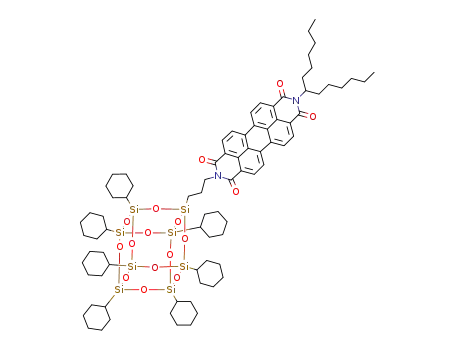

Here we report on the synthesis and optical characterization of new hybrid organic-inorganic
materials based on asymmetrically substituted perylene moieties linked to POSS cages showing
reduced emission aggregation quenching in the solid state.
2. Experimental Section.
2.1 Chemicals and instrumentation
POSS 1 [74] and 4 [75] were prepared according to the literature. Perylene diimides 2 [76], 5 [77]
and 7 [78] (see Figure 1) were prepared starting from perylene-3,4,9,10-tetracarboxylic dianhydride
[79].
All reagents and catalysts were purchased from Sigma-Aldrich and used as received, except for
CySi(OMe)3, purchased from Fluorochem. Toluene was distilled over Na/benzophenone, CHCl3
and CH2Cl2 were distilled over CaH2 before use. When anhydrous conditions were required, the
reactions were performed using Schlenk line techniques under a nitrogen atmosphere.
All products were characterized by 1H, 13C and 29Si NMR (Bruker Avance DRX 400 spectrometer),
mass spectroscopy (VG Autospec M246), infrared spectroscopy (Jasco FT-IR 420) and elemental
analysis (Perkin-Elmer CHN 2400).
Thin films were prepared by spin-coating on glass slides of a 6.6 10-3 M solution in CHCl3 of the
desired PDI-POSS compound.
Electronic absorption spectra were obtained using a Jasco V-530 spectrophotometer.
Photoluminescence (PL) measurements and PL Quantum Yields (QY) for solutions were obtained
by a Jobin-Yvon Fluorolog-3 spectrometer equipped with double monochromators and Hamamatsu-
928 photomultiplier tube (PMT) as the detector. Photoluminescence (PL) measurements on solids
were obtained with a SPEX 270 M monochromator equipped with a N2 cooled charge-coupled
device exciting either with a monochromated Xe lamp or an Ar+ laser. The spectra were corrected
for the instrument response. Absolute PL QY measurements for the solid state materials were
carried out using a home-made integrating sphere according to the procedure reported elsewhere
5

ACCEPTED MANUSCRIPT
[80].
2.2
Synthesis
of
(c-C6H11)7Si8O12-2-Propyl-9-(1-hexyl-heptyl)-anthra[2,1,9-def;6,5,10-
d'e'f']diisoquinoline-1,3,8,10-tetraone (3)
Perylene 2 was prepared according to the literature procedure by reaction of 2-Allyl-9-(1-hexyl-
heptyl)-anthra[2,1,9-def;6,5,10-d'e'f']diisoquinoline-1,3,8,10-tetraone (300 mg, 0,49 mmol) with
trimethoxysilane (4mL, 0.55 mmol) in anhydrous chloroform (60mL) and in the presence of
Karstedt catalyst [76]. Due to its sensitivity to moisture the product was no further purified by
column chromatography and directly used for condensation reaction.
A solution of 2 (360 mg, 0,49 mmol) dissolved in anhydrous toluene (50 mL) was added with POSS
1 (0.476 g, 0.50 mmol) together with p-toluensulfonic acid (a few mg) and stirred at 100°C for 24h
under N2 atmosphere. The reaction mixture was concentrated under reduced pressure and purified
by chromatography on silica gel (CH2Cl2:hexane, 1:1) to give a red solid which was further
crystallized from CH2Cl2/MeOH solution (193 mg, 23% yield).
1H NMR (400 MHz, CDCl3, 298K): δ (ppm) 0.76 (m, 7H, Cy), 0.85 (t, J(H-H) = 7.0 Hz, 6H,
2xCH3), 1.24-1.34 (m; 35H, Cy; 16H, 8xCH2, 4H, alkylic CH2), 1.74 (m, 35H, Cy), 1.88 (m, 2H, β-
CH2), 2.28 (m, 2H, β-CH2), 4.19-4.22 (m, 2H, CH2-N),5.19-5.24 (m, 1H, CH-N), 8.48-8.64 (m, 8H,
aromatic CH).
13C NMR (100 MHz, CDCl3, 298K): δ (ppm) 14.03, 22.59, 23.09, 26.63, 26.96, 27.48, 29.22,
29.68, 31.77, 32.38, 54.81, 122.85, 123.16, 126.13, 126.26, 129.14, 129.47, 131.02, 134.13, 134.26,
162.95.
29Si NMR (79.5 MHz, CDCl3, 298K): δ (ppm) -67.06 (1), -68.70 (7).
Elemental Analysis C82H118N2O16Si8: found %C .60.83; %H 7.55; %N 1.59; calculated %C 61.08;
%H 7.38; %N 1.74.
Mass: [M+] 1613 (FAB+).
6

ACCEPTED MANUSCRIPT
Melting Point: 330°C
FT-IR (KBr): ν(cm-1) 2923 (vs), 2848 (s), 1700 (s; C=O), 1662 (s), 1595 (s), 1579 (w), 1507 (vw),
1447 (m), 1405 (m), 1383 (w), 1339 (s), 1274 (m), 1254 (m), 1197 (m), 1108 (vs, br; Si-O),
1038(m) 1026 (m), 998 (m), 893 (m), 850 (m), 825 (w), 810 (m), 746 (m).
2.3 Synthesis of vinylsilsesquioxane-4-[2-(1-Hexyl-heptyl)-9-(phenyl)-anthra[2,1,9-def;6,5,10-
d'e'f']diisoquinoline-1,3,8,10-tetraone] (6)
POSS 4 (416 mg, 0.4 mmol), PDI 5 (313 mg, 0.4 mmol), and bis(tri-t-butylphosphine)-palladium(0)
[Pd[P(tBu)3]2] were added into a 100-mL Schlenk flask under N2 atmosphere. Anhydrous toluene
(40 mL), and dicyclohexylmethylamine (Cy2NCH3) (0.103 mL, degassed under nitrogen for 15 min
prior to use) were added, then 3 freeze-pump-thaw cycles were performed. The reaction was stirred
for 6 days at 80°C under N2 atmosphere. The mixture was then filtered on celite and the solution
concentrated in vacuum. The solid was purified by column chromatography (CH2Cl2:Hexane, 1:1)
followed by crystallization from CH2Cl2/methanol o give a red solid (677 mg, 37% yield).
1H NMR (400 MHz, CDCl3, 298K): δ (ppm) 0.81 (m, 7H, Cy), 0.85 (t, J(H-H) = 6.8 Hz, 6H,
2xCH3), 1.28-1.34 (m; 35H, Cy; 16H, 8xCH2), 1.77-1.82 (m, 35H, Cy), 1.90 (m, 2H, β-CH2), 2.23-
2.31 (m, 2H, β-CH2), 5.21 (m, 1H, CH-N), 6.27 (d, J(H-H) = 19.0 Hz, 1H, CH=CH), 7.31 (d, J(H-
H) = 19.0 Hz, 1H, CH=CH), 7.37 (d, J(H-H) = 8.4 Hz, 2H, aromatic phenyl), 7.69 (d, J(H-H) = 8.4
Hz, 2H, aromatic phenyl), 8.67-8.77 (m, 8H, aromatic perylene).
13C NMR (100 MHz, CDCl3, 298K): δ (ppm) 14.04, 22.58, 23.15, 26.67, 26.92, 27.50, 29.21,
31.76, 32.38, 54.84, 120.56, 123.07, 123.27, 123.33, 126.45, 126.72, 127.76, 128.78, 129.56,
129.87, 131.87, 134.32, 135.18, 138.40, 146.95, 163.53.
29Si NMR (79.5 MHz, CDCl3, 298K): -68.44, -68.59, -68.64, -79.28. (3:3:1:1).
Elemental Analysis C87H118N2O16Si8: found %C 62.53; %H 7.06; %N 1.78; calculated %C 62.48;
%H 7.11; %N 1.67.
7

ACCEPTED MANUSCRIPT
Mass: [M+] 1672 (FAB+).
Melting Point: >350°C
FT-IR (KBr): ν(cm-1) 2923 (vs), 2849 (s), 1713 (s; C=O), 1700 (s; C=O), 1674 (s), 1661 (s), 1595
(s), 1579 (m), 1509 (m), 1447 (m), 1405 (m), 1383 (w), 1342 (vs), 1292 (vw), 1274 (m), 1269 (m),
1253 (m), 1197 (s), 1108 (vs, br; Si-O), 1038(m) 1027 (m), 999 (m, sh), 966 (w), 893 (m), 850 (m),
836 (w), 827 (w), 811 (m), 786 (w), 746 (m).
3. Results and discussion
3.1 Synthesis
The synthesis of the PDI-POSS derivatives was accomplished according to two different
approaches, as depicted in Scheme 1 and 2, in which the PDI dye was linked to the POSS scaffold
either by a flexible alkylic chain or by a more rigid styryl bridge.
In the first approach we chose as inorganic scaffold POSS 1, namely trisilanol Cy7Si7O9(OH)3 (Cy=
c-C6H11), with three potentially reactive OH groups which is widely used to model the silanol
groups of the silica surface [41, 56]. The presence of bulky cyclohexyl substituents at each silicon
atom of POSS 1 should reduce π-π aggregation of the perylene moieties and impart higher
solubility.
POSS 1 was reacted with the trimethoxysilane perylene derivative 2, recently described in the
literature and successfully employed for the preparation of fluorescent silica nanoparticles [76].
Corner capping reaction of 1 with 2 was performed in dry toluene and in the presence of para-
toluensulfonic acid as a catalyst working at 100°C. Previous attempts of condensation in CHCl3 or
toluene at reflux but in the absence of the acid catalyst gave negative results. The reaction was
monitored through 29Si-NMR spectroscopy, by following the disappearance of the typical three
signals of 1 (δ = -60.1, -67.7 and -69.4 ppm in a 3:1:3 ratio) and the appearance of a new set of
peaks at δ = -67.06 and -68.70 ppm (in a 1:7 ratio) which have been attributed to the new PDI-
POSS derivative 3; the reaction was stopped after 24h. After purification of the crude by silica gel
8

ACCEPTED MANUSCRIPT
chromatography and crystallization from CH2Cl2/MeOH, 3 was obtained as a brilliant red coloured
solid in 23% yield. The compound was characterized by NMR (1H, 13C, 29Si) spectroscopy, by mass
spectroscopy, by infrared spectroscopy and by elemental analysis (see experimental section 2.2).
The optical characterization was performed both in solution and in the solid state (see section 3.2).
INSERT SCHEME 1
In the second approach, POSS 4, namely VyCy7Si8O12 (Cy= c-C6H11; Vy = CH=CH2), which bears
one vinyl group suitable for further functionalization, was reacted by Heck coupling with an halide-
substituted PDI. The reaction was performed in toluene at 80°C, using bis(tri-t-butyl-
phosphine)palladium(0) [Pd[P(tBu)3]2] as catalyst and dicyclohexylmethylamine as base [67, 81,
82]. First attempts with 4-bromophenyl substituted perylene failed, only the more reactive 4-
iodophenyl derivative 5 gave the desired product 6 (Scheme 2). The formation of 6 was followed
through 1H NMR spectroscopy by monitoring the disappearance of the vinyl signals typical of 4 and
the appearance of new signals relative to the trans double bond of 6. After purification by silica gel
chromatography and crystallization from CH2Cl2/MeOH, pure 6 was obtained as a brilliant red solid
in 37% yield. The compound was characterized by NMR (1H, 13C, 29Si) spectroscopy, by mass
spectroscopy, by infrared spectroscopy and by elemental analysis (see experimental section 2.3).
The optical characterization was performed both in solution and in the solid state (see section 3.2).
INSERT SCHEME 2
9

ACCEPTED MANUSCRIPT
3.2 Optical Characterization
3.2.1 Absorption and emission spectra in solution
Absorption and emission spectra of 3 and 6 were recorded in chloroform solution and compared
with those of the symmetrically substituted diimide 7 (Figure 1).
INSERT FIGURE 1
As expected, the introduction of a POSS fragment at one imidic position, did not affect the
electronic properties of the perylene moiety and the electronic absorption spectra of 3 and 6 in
CHCl3 solution display the typical features of a perylene diimide (see Figure 2), with three distinct
vibronic transitions (0,0), (0,1), (0,2) and one shoulder (0,4) [83]. Similarly, the emission spectra
have the characteristic features of perylene diimides being mirror images of the absorption spectra
[83]. The fluorescence quantum yields, measured in CHCl3 solution with 7 as standard [76, 84],
were 90% and 100% for 3 and 6 respectively.
INSERT FIGURE 2
3.2.2 Absorption and emission spectra in the solid state
The solid state absorption spectra of 3, 6 and 7 were recorded on both thin films (see experimental
section 2.1) and powders. The absorption spectra of thin films, reported in Figure 3, clearly show
that aggregation becomes predominant for all compounds, with an increase of the (0,1) vibronic
transition compared to the (0,0) transition [83]. For the standard compound 7 an additional band at
10

ACCEPTED MANUSCRIPT
about 550 nm, partially superimposed to the 530 nm (0,0) band, is also observed. This band is in
agreement with the presence of strong intermolecular interactions in the solid phase of perylene
based compounds [4, 5]. Interestingly, the absorption spectra of 3 and 6 do not display such a red-
shifted band, suggesting weaker aggregation with respect to 7. This hypothesis is also indirectly
supported by the analysis of absorption spectra of powders of 3, 6 and 7 before and after grinding in
a mortar. In Figure 4 the absorption spectra before grinding show the presence of a broad and
poorly resolved band for all compounds. However, after grinding, powders of 3 and 6 display
resolved and blue-shifted absorption bands, quite similar to those displayed in the corresponding
spectra in solution. The absorption spectrum of powdered 7 was unaffected by grinding suggesting
that this compound possessed stronger π-π intermolecular interactions.
INSERT FIGURE 3
INSERT FIGURE 4
In addition, the PL spectra of thin films and powders of the three compounds show unstructured,
red-shifted and broadened bands with respect to the solution, again suggesting the presence of
intermolecular interactions (see Figure 5) [83].
In order to confirm the positive effect of the POSS fragment in reducing the aggregation of 3 and 6
with respect to 7, measurements of PL quantum yields were performed on ungrinded powders of the
three compounds (Table 1). Interestingly, while the PL QY of 7 drops from 100% to 34% by
moving from solution to the solid state, the PL QY of 3 and 6 show a reduced quenching going
from 90% to 70% and from 100% to 45% respectively. Such smaller decrease of the PL QY
represents a further evidence of a lower degree of intermolecular interactions induced by linking the
PDI moieties to POSS cages.
11

ACCEPTED MANUSCRIPT
INSERT FIGURE 5
INSERT TABLE 1
4. Conclusion
By reaction of POSS 1 (Cy7Si7O9(OH)3; Cy= c-C6H11) or 4 (VyCy7Si8O12 where Cy= c-C6H11; Vy
= CH=CH2) with appropriately functionalized asymmetric perylene diimides we have been able to
synthesize two new PDI-POSS hybrid derivatives, which are characterized by a high solubility in
common organic solvents which is a necessary condition for the production of thin films by the spin
coating technique. These new PDI-POSS materials show in solution the typical molecular
absorption and emission spectra of the isolated perylene unit, with PL QY close to 100%.
Interestingly, the detrimental ACQ phenomenon, frequently encountered in PDI materials, is
significantly reduced by the presence of the bulky POSS cage allowing to get PL QY up to 70%
from powders.
These findings encourage further investigations on this new class of PDI-POSS hybrid materials to
be applied in the production of efficient emissive devices.
Acknowledgment
The authors thanks the Institute of Molecular Science and Technologies of the National Research
Council (CNR-ISTM) and the Italian Ministry of University and Research (MIUR: FIRB 2004 -
RBPR05JH2P and PRIN 2008 - 2008FZK5AC_002) for financial support.
12

ACCEPTED MANUSCRIPT
References
[1]
[2]
Shimizu M, Hiyama T. Organic Fluorophores Exhibiting Highly Efficient
Photoluminescence in the Solid State. Chem Asian J 2010;5(7):1516-31.
Burgdorff C, Loehmannsroeben HG, Reisfeld R. A perylene dye in sol-gel matrixes:
photophysical
properties
of
N,N'-bis(2,5-di-tert-butylphenyl)-3,4:9,10-
perylenebis(dicarboximide) in glasses and thin films. Chem Phys Lett 1992;197(4-5):358-
63.
[3]
Huang C, Barlow S, Marder SR. Perylene-3,4,9,10-tetracarboxylic Acid Diimides:
Synthesis, Physical Properties, and Use in Organic Electronics. J Org Chem
2011;76(8):2386-407.
[4]
[5]
[6]
Mizuguchi J. Electronic characterization of N,N'-bis(2-phenylethyl)perylene-3,4:9, 10-
bis(dicarboximide) and its application to optical disks. J Appl Phys 1998;84(8):4479-86.
Mizuguchi J, Tojo K. Electronic structure of perylene pigments as viewed from the crystal
structure and excitonic interactions. J Phys Chem B 2002;106(4):767-72.
Yagai S, Seki T, Karatsu T, Kitamura A, Würthner F. Transformation from H- to J-
aggregated perylene bisimide dyes by complexation with cyanurates. Angew Chem, Int Ed
2008;47(18):3367-71.
[7]
[8]
Langhals H. Control of the interactions in multichromophores: Novel concepts. Perylene
bis-imides as components for larger functional units. Helv Chim Acta 2005;88(6):1309-43.
Ahrens MJ, Fuller MJ, Wasielewski MR. Cyanated perylene-3,4-dicarboximides and
perylene-3,4:9,10-bis(dicarboximide): facile chromophoric oxidants for organic photonics
and electronics. Chem Mater 2003;15(14):2684-6.
[9]
Chen HZ, Ling MM, Mo X, Shi MM, Wang M, Bao Z. Air Stable n-Channel Organic
Semiconductors for Thin Film Transistors Based on Fluorinated Derivatives of Perylene
Diimides. Chem Mater 2007;19(4):816-24.
13

ACCEPTED MANUSCRIPT
[10] Jiménez AJ, Spänig F, Rodríguez-Morgade MS, Ohkubo K, Fukuzumi S, Guldi DM, et al. A
Tightly Coupled Bis(zinc(II) phthalocyanine)-Perylenediimide Ensemble To Yield Long-
Lived Radical Ion Pair States. Org Lett 2007;9(13):2481-4.
[11] Jones BA, Ahrens MJ, Yoon M-H, Facchetti A, Marks TJ, Wasielewski MR. Electron
transport: High-mobility air-stable n-type semiconductors with processing versatility:
dicyanoperylene-3,4:9,10-bis(dicarboximides). Angew Chem Int Ed 2004;43(46):6363-6.
[12] Jung BJ, Tremblay NJ, Yeh M-L, Katz HE. Molecular Design and Synthetic Approaches to
Electron-Transporting Organic Transistor Semiconductors. Chem Mater 2011;23(3):568-82.
[13] Lindner SM, Kaufmann N, Thelakkat M. Nanostructured semiconductor block copolymers:
Ï€-Ï€ Stacking, optical and electrochemical properties. Org Electron 2007;8(1):69-75.
[14] Zhan X, Facchetti A, Barlow S, Marks TJ, Ratner MA, Wasielewski MR, et al. Rylene and
Related Diimides for Organic Electronics. Adv Mater 2011;23(2):268-84.
[15] Zhan X, Tan Za, Domercq B, An Z, Zhang X, Barlow S, et al. A High-Mobility Electron-
Transport Polymer with Broad Absorption and Its Use in Field-Effect Transistors and All-
Polymer Solar Cells. J Am Chem Soc 2007;129(23):7246-7.
[16] Gvishi R, Reisfeld R, Burshtein Z. Spectroscopy and laser action of the "red perylimide
dye" in various solvents. Chem Phys Lett 1993;213(3-4):338-44.
[17] Law KY. Organic photoconductive materials: recent trends and developments. Chem Rev
1993;93(1):449-86.
[18] Ford WE, Kamat PV. Photochemistry of 3,4,9,10-perylenetetracarboxylic dianhydride dyes.
3. Singlet and triplet excited-state properties of the bis(2,5-di-tert-butylphenyl)imide
derivative. J Phys Chem 1987;91(25):6373-80.
[19] Sadrai M, Bird GR. A new laser dye with potential for high stability and a broad band of
lasing action: perylene-3,4,9,10-tetracarboxylic acid-bis-N,N'-(2',6'-xylidyl)diimide. Opt
Commun 1984;51(1):62-4.
14

ACCEPTED MANUSCRIPT
[20] Li C, Wonneberger H. Perylene Imides for Organic Photovoltaics: Yesterday, Today, and
Tomorrow. Adv Mater 2012;24(5):613-36.
[21] Anthony JE. Small-Molecule, Nonfullerene Acceptors for Polymer Bulk Heterojunction
Organic Photovoltaics. Chem Mater 2011;23(3):583-90.
[22] Avlasevich Y, Li C, Muellen K. Synthesis and applications of core-enlarged perylene dyes.
J Mater Chem 2010;20(19):3814-26.
[23] Schmidt-Mende L, Fechtenkötter A, Müllen K, Moons E, Friend RH, MacKenzie JD. Self-
organized discotic liquid crystals for high-efficiency organic photovoltaics. Science
2001;293(5532):1119-22.
[24] Tan Za, Zhou E, Zhan X, Wang X, Li Y, Barlow S, et al. Efficient all-polymer solar cells
based on blend of tris(thienylenevinylene)-substituted polythiophene and poly[perylene
diimide-alt-bis(dithienothiophene)]. Appl Phys Lett 2008;93(7):073309/1-/3.
[25] Belfield KD, Bondar MV, Hernandez FE, Przhonska OV. Photophysical Characterization,
Two-Photon Absorption and Optical Power Limiting of Two Fluorenylperylene Diimides. J
Phys Chem C 2008;112(14):5618-22.
[26] An Z, Odom SA, Kelley RF, Huang C, Zhang X, Barlow S, et al. Synthesis and
Photophysical Properties of Donor- and Acceptor-Substituted 1,7-Bis(arylalkynyl)perylene-
3,4:9,10-bis(dicarboximide)s. J Phys Chem A 2009;113(19):5585-93.
[27] Fukuzumi S, Ohkubo K, Ortiz J, Gutierrez AM, Fernandez-Lazaro F, Sastre-Santos A.
Formation of a long-lived charge-separated state of a zinc phthalocyanine-perylenediimide
dyad by complexation with magnesium ion. Chem Commun 2005(30):3814-6.
[28] O'Neil M P, Niemczyk MP, Svec WA, Gosztola D, Gaines GL, Wasielewski MR.
Picosecond optical switching based on biphotonic excitation of an electron donor-acceptor-
donor molecule. Science 1992;257(5066):63-5.
15

ACCEPTED MANUSCRIPT
[29] Prathapan S, Yang SI, Seth J, Miller MA, Bocian DF, Holten D, et al. Synthesis and
Excited-State Photodynamics of Perylene-Porphyrin Dyads. 1. Parallel Energy and Charge
Transfer via a Diphenylethyne Linker. J Phys Chem B 2001;105(34):8237-48.
[30] Serin JM, Brousmiche DW, Fréchet JMJ. Cascade energy transfer in a conformationally
mobile multichromophoric dendrimer. Chem Commun 2002(22):2605-7.
[31] Shoaee S, An Z, Zhang X, Barlow S, Marder SR, Duffy W, et al. Charge photogeneration in
polythiophene-perylene diimide blend films. Chem Commun 2009(36):5445-7.
[32] Würthner F. Perylene bisimide dyes as versatile building blocks for functional
supramolecular architectures. Chem Commun 2004(14):1564-79.
[33] Langhals H. Cyclic carboxylic imide structures as structure elements of high stability. Novel
developments in perylene dye chemistry. Heterocycles 1995;40(1):477-500.
[34] Langhals H, Ismael R, Yuruk O. Persistent fluorescence of perylene dyes by steric inhibition
of aggregation. Tetrahedron 2000;56(30):5435-41.
[35] Langhals H, Krotz O, Polborn K, Mayer P. A novel fluorescent dye with strong, anisotropic
solid-state fluorescence, small Stokes shift, and high photostability. Angew Chem Int Ed
2005;44(16):2427-8.
[36] Würthner F, Kaiser TE, Saha-Möller CR. J-aggregates: from serendipitous discovery to
supramolecular engineering of functional dye materials. Angew Chem Int Ed Engl
2011;50(15):3376-410.
[37] Nakazono S, Easwaramoorthi S, Kim D, Shinokubo H, Osuka A. Synthesis of arylated
perylene bisimides through C-H bond cleavage under ruthenium catalysis. Org Lett
2009;11(23):5426-9.
[38] Nakazono S, Imazaki Y, Yoo H, Yang J, Sasamori T, Tokitoh N, et al. Regioselective Ru-
Catalyzed Direct 2,5,8,11-Alkylation of Perylene Bisimides. Chem Eur J 2009;15(31):7530-
3, S/1-S/25.
16

ACCEPTED MANUSCRIPT
[39] Baney RH, Itoh M, Sakakibara A, Suzuki T. Silsesquioxanes. Chem Rev 1995;95(5):1409-
30.
[40] Cordes DB, Lickiss PD, Rataboul F. Recent developments in the chemistry of cubic
polyhedral oligosilsesquioxanes. Chem Rev 2010;110(4):2081-173.
[41] Feher FJ, Budzichowski TA. Silasesquioxanes as ligands in inorganic and organometallic
chemistry. Polyhedron 1995;14(22):3239-53.
[42] Harrison PG. Silicate cages: precursors to new materials. J Organomet Chem
1997;542(2):141.
[43] Laine RM, Roll MF. Polyhedral Phenylsilsesquioxanes. Macromolecules 2011;44(5):1073-
109.
[44] Phillips SH, Haddad TS, Tomczak SJ. Developments in nanoscience: polyhedral oligomeric
silsesquioxane (POSS)-polymers. Curr Opin Solid State Mater Sci 2004;8(1):21-9.
[45] Fong H, Dickens SH, Flaim GM. Evaluation of dental restorative composites containing
polyhedral oligomeric silsesquioxane methacrylate. Dent Mater 2005;21(6):520-9.
[46] Gao F, Tong Y, Schricker SR, Culbertson BM. Evaluation of neat resins based on
methacrylates modified with methacryl-POSS, as potential organic-inorganic hybrids for
formulating dental restoratives. Polym Adv Technol 2001;12(6):355-60.
[47] Kannan RY, Salacinski HJ, Butler PE, Seifalian AM. Polyhedral Oligomeric Silsesquioxane
Nanocomposites: The Next Generation Material for Biomedical Applications. Acc Chem
Res 2005;38(11):879-84.
[48] Leu C-M, Chang Y-T, Wei K-H. Polyimide-Side-Chain Tethered Polyhedral Oligomeric
Silsesquioxane Nanocomposites for Low-Dielectric Film Applications. Chem Mater
2003;15(19):3721-7.
[49] Tegou E, Bellas V, Gogolides E, Argitis P, Eon D, Cartry G, et al. Polyhedral Oligomeric
Silsesquioxane (POSS) Based Resists: Material Design Challenges and Lithographic
Evaluation at 157 nm. Chem Mater 2004;16(13):2567-77.
17

ACCEPTED MANUSCRIPT
[50] Abbenhuis HCL. Advances in homogeneous and heterogeneous catalysis with metal-
containing silsesquioxanes. Chem Eur J 2000;6(1):25-32.
[51] Carniato F, Bisio C, Boccaleri E, Guidotti M, Gavrilova E, Marchese L.
Titanosilsesquioxane anchored on mesoporous silicas: a novel approach for the preparation
of heterogeneous catalysts for selective oxidations. Chem Eur J 2008;14(27):8098-101.
[52] Duchateau R. Incompletely Condensed Silsesquioxanes: Versatile Tools in Developing
Silica-Supported Olefin Polymerization Catalysts. Chem Rev 2002;102(10):3525-42.
[53] Duchateau R, Abbenhuis HCL, van Santen RA, Meetsma A, Thiele SKH, van Tol MFH.
Ethylene Polymerization with Dimeric Zirconium and Hafnium Silsesquioxane Complexes.
Organometallics 1998;17(26):5663-73.
[54] Feher FJ, Blanski RL. Olefin polymerization by vanadium-containing silsesquioxanes:
synthesis of a dialkyl-oxo-vanadium(V) complex that initiates ethylene polymerization. J
Am Chem Soc 1992;114(14):5886-7.
[55] Feher FJ, Budzichowski TA, Blanski RL, Weller KJ, Ziller JW. Facile syntheses of new
incompletely condensed polyhedral oligosilsesquioxanes: [(c-C5H9)7Si7O9(OH)3], [(c-
C7H13)7Si7O9(OH)3], and [(c-C7H13)6Si6O7(OH)4]. Organometallics 1991;10(7):2526-8.
[56] Feher FJ, Newman DA, Walzer JF. Silsesquioxanes as models for silica surfaces. J Am
Chem Soc 1989;111(5):1741-8.
[57] Feher FJ, Soulivong D, Eklund AG, Wyndham KD. Cross-metathesis of alkenes with vinyl-
substituted silsesquioxanes and spherosilicates: a new method for synthesizing highly-
functionalized Si/O frameworks. Chem Commun 1997(13):1185-6.
[58] Hanssen RWJM, van Santen RA, Abbenhuis HCL. The dynamic status quo of polyhedral
silsesquioxane coordination chemistry. Eur J Inorg Chem 2004(4):675-83.
[59] Pescarmona PP, Van der Waal JC, Maxwell IE, Maschmeyer T. A new, efficient route to
titanium-silsesquioxane epoxidation catalysts developed by using high-speed
experimentation techniques. Angew Chem Int Ed 2001;40(4):740-3.
18

ACCEPTED MANUSCRIPT
[60] Quadrelli EA. Molecular insight for silica-supported organometallic chemistry through
transition metal silsesquioxanes. In: Basset J-M, Psaro R, Roberto D, Ugo R, editors.
Modern Surface Organometallic Chemistry, Weinheim, Germany: Wiley-VCH; 2009, p.
557-98.
[61] Severn JR, Duchateau R, van Santen RA, Ellis DD, Spek AL. Homogeneous Models for
Chemically Tethered Silica-Supported Olefin Polymerization Catalysts. Organometallics
2002;21(1):4-6.
[62] Ward AJ, Masters AF, Maschmeyer T. Transition metal single site catalysts - from
homogeneous to immobilized systems. In: Basset J-M, Psaro R, Roberto D, Ugo R, editors.
Modern Surface Organometallic Chemistry, Weinheim, Germany: Wiley-VCH; 2009, p.
167-237.
[63] Xiao S, Nguyen M, Gong X, Cao Y, Wu H, Moses D, et al. Stabilization of semiconducting
polymers with silsesquioxane. Adv Funct Mater 2003;13(1):25-9.
[64] Chan KL, Sonar P, Sellinger A. Cubic silsesquioxanes for use in solution processable
organic light emitting diodes (OLED). J Mater Chem 2009;19(48):9103-20.
[65] Froehlich JD, Young R, Nakamura T, Ohmori Y, Li S, Mochizuki A, et al. Synthesis of
Multi-Functional POSS Emitters for OLED Applications. Chem Mater 2007;19(20):4991-7.
[66] Laine RM, Sulaiman S, Brick C, Roll M, Tamaki R, Asuncion MZ, et al. Synthesis and
Photophysical Properties of Stilbeneoctasilsesquioxanes. Emission Behavior Coupled with
Theoretical Modeling Studies Suggest a 3-D Excited State Involving the Silica Core. J Am
Chem Soc 2010;132(11):3708-22.
[67] Lo MY, Zhen C, Lauters M, Jabbour GE, Sellinger A. Organic-Inorganic Hybrids Based on
Pyrene Functionalized Octavinylsilsesquioxane Cores for Application in OLEDs. J Am
Chem Soc 2007;129(18):5808-9.
19

ACCEPTED MANUSCRIPT
[68] Yang X, Froehlich JD, Chae HS, Li S, Mochizuki A, Jabbour GE. Efficient Light-Emitting
Devices Based on Phosphorescent Polyhedral Oligomeric Silsesquioxane Materials. Adv
Funct Mater 2009;19(16):2623-9.
[69] Chou C-H, Hsu S-L, Dinakaran K, Chiu M-Y, Wei K-H. Synthesis and characterization of
luminescent polyfluorenes incorporating side-chain-tethered polyhedral oligomeric
silsesquioxane units. Macromolecules 2005;38(3):745-51.
[70] Clarke D, Mathew S, Matisons J, Simon G, Skelton BW. Synthesis and characterization of a
range of POSS imides. Dyes Pigm 2011;92(1):659-67.
[71] Du F, Tian J, Wang H, Liu B, Jin B, Bai R. Synthesis and Luminescence of POSS-
Containing Perylene Bisimide-Bridged Amphiphilic Polymers. Macromolecules
2012;45(7):3086-93.
[72] Ren X, Sun B, Tsai C-C, Tu Y, Leng S, Li K, et al. Synthesis, self-assembly, and crystal
structure of
a
shape-persistent polyhedral-oligosilsesquioxane-nanoparticle-tethered
perylene diimide. J Phys Chem B 2010;114(14):4802-10.
[73] Jeganathan SG, Bramer D, Kote R, Maladkar GJ. Ciba Specialty Chemicals Corp., USA.
Novel polyhedral oligomeric silsesquioxane based fluorescent colorants; 2008. U.S. Patent
2008/0029739.
[74] Feher FJ, Terroba R, Ziller JW. A new route to incompletely-condensed silsesquioxanes:
base-mediated cleavage of polyhedral oligosilsesquioxanes. Chem Commun 1999(22):2309-
10.
[75] Shockey EG, Bolf AG, Jones PF, Schwab JJ, Chaffee KP, Haddad TS, et al. Functionalized
polyhedral oligosilsesquioxane (POSS) macromers: new graftable POSS hydride, POSS α-
olefin, POSS epoxy, and POSS chlorosilane macromers and POSS-siloxane triblocks. Appl
Organomet Chem 1999;13(4):311-27.
[76] Langhals H, Esterbauer AJ. Fluorescent silica nanoparticles by silylation. Chem Eur J
2009;15(19):4793-6.
20

ACCEPTED MANUSCRIPT
[77] Langhals H, Esterbauer AJ, Walter A, Riedle E, Pugliesi I. Foerster Resonant Energy
Transfer in Orthogonally Arranged Chromophores. J Am Chem Soc 2010;132(47):16777-
82.
[78] Demmig S, Langhals H. Very soluble and photostable perylene fluorescent dyes. Chem Ber
1988;121(2):225-30.
[79] Soh N, Ariyoshi T, Fukaminato T, Nakajima H, Nakano K, Imato T. Swallow-tailed
perylene derivative: a new tool for fluorescent imaging of lipid hydroperoxides. Org Biomol
Chem 2007;5(23):3762-8.
[80] Moreau J, Giovanella U, Bombenger J-P, Porzio W, Vohra V, Spadacini L, et al. Highly
emissive nanostructured thin films of organic host-guests for energy conversion. Chem Phys
Chem 2009;10(4):647-53.
[81] Fu GC. The development of versatile methods for palladium-catalyzed coupling reactions of
aryl electrophiles through the use of P(t-Bu)3 and PCy3 as ligands. Acc Chem Res
2008;41(11):1555-64.
[82] Littke AF, Fu GC. A Versatile Catalyst for Heck Reactions of Aryl Chlorides and Aryl
Bromides under Mild Conditions. J Am Chem Soc 2001;123(29):6989-7000.
[83] Mohamad DK, Fischereder A, Yi H-N, Cadby AJ, Lidzey DG, Iraqi A. A novel 2,7-linked
carbazole based "double cable" polymer with pendant perylene diimide functional groups:
Preparation, spectroscopy and photovoltaic properties. J Mater Chem 2011;21(3):851-62.
[84] Langhals H, Karolin J, Johansson LBÅ. Spectroscopic properties of new and convenient
standards for measuring fluorescence quantum yields. J Chem Soc, Faraday Trans
1998;94(19):2919-22.
21

ACCEPTED MANUSCRIPT
Figure Captions
Scheme 1: Synthesis of 3
Scheme 2: Synthesis of 6
Figure 1: Perylene diimide 7
Figure 2: Normalized absorption (solid line) and emission (dashed line) spectra in CHCl3 solution
of 3 (blue), 6 (green) and 7 (red).
Figure 3: Normalized absorption spectra of thin films of 3 (blue), 6 (green) and 7 (red).
Figure 4: Normalized absorption spectra of powders of 3 (blue), 6 (green) and 7 (red) before
grinding (dotted line) and after grinding (solid line). The absorption spectrum of 6 in solution
(dashed line) is reported for comparison. The spectra are shifted vertically for clarity.
Figure 5: Normalized emission spectra of powders of 3 (blue), 6 (green) and 7 (red).
Table 1: Photoluminescence quantum yield (PL QY) of 3, 6 and 7 measured as powder, and in
CHCl3 solution
22

ACCEPTED MANUSCRIPT
Table 1: Photoluminescence quantum yield (PL QY) of 3, 6 and 7 measured as powder, and in
CHCl3 solution
Compound
solution
λem [nm]
solid
λem [nm]
(b)
(c)
λmax [nm](a)
525
Φf
90
Φf
70
533
535
533
656
668
669
3
6
7
527
100
100
45
34
526
aThe longest absorption maxima; bλexc = 488 nm; c λexc = 457 nm;

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
