Diastereoselective Synthesis of 5-Hydroxy-8-methoxy-1-
oxaspiro[5,5]undeca-7,10-diene-9-one
Guy L. Plourde * and Thomas W. Scully
Department of Chemistry, University of Northern British Columbia, 3333 University Way,
Prince George, BC V2N 4Z9, Canada
* Author to whom correspondence should be addressed; E-Mail: plourde@unbc.ca;
Tel.: +1-250-960-6694; Fax: +1-250-960-5845.
Received: 13 December 2012; in revised form: 10 January 2013 / Accepted: 14 January 2013 /
Published: 17 January 2013
Abstract: A short five steps synthesis of the title compound from vanillin is described. The
racemic spiroether 7 was obtained in 61% yield and in >99% diastereomeric excess (by
1H-NMR) from the corresponding phenolic derivative 3 by oxidation with lead (IV) acetate.
Keywords: synthesis; diastereoselective; spirolactone; spiroether; spirocompound; dienone;
oxidation; lead tetraacetate
1. Introduction
In recent years, our work on the oxidative spiroannulation of phenolic derivatives has been focused
in part on finding ways to asymmetrically prepare small spirocompounds [1–5]. In 2002 we showed
that it was possible to prepare small spiroethers such as 1 (Figure 1) diastereoselectively [1], although
the diastereoselectivity (81/19 ratio of diastereomers) was moderate at best. A subsequent investigation
resulted in the diastereoselective synthesis of two new spirolactones 2a,b derived from L-3-
nitrotyrosine [2], and we were later able to determine the absolute configuration of the spirocarbon in 2 [3].
In the synthesis of spirolactones 2a,b, we observed a slight decrease in the diastereoselectivity
(3/1 diastereomeric ratio) of the products formed, which we attributed to the position of the chiral
centre on the propionic side chain. As can be seen in Figure 1, the key difference between
spirocompounds 1 and 2 is the position of the chiral carbon. In spiroether 1 the chiral carbon is directly
linked to the oxygen which acted as the nucleophile in our original investigation [1], while in
spirolactones 2 the chiral carbon is found further away from the nucleophilic oxygen. The next logical

Molecules 2013, 18
1175
investigation was to study the effect on the diastereoselectivity that would be associated with a chiral
centre located near the future spirocarbon. Hence, we have synthesized the phenolic derivative 3
(Figure 1) to study this effect, as well as study the effect that a longer side chain may have on the
diastereoselectivity of this reaction. Our results are reported therein.
Figure 1. Locations of the chiral centre in spirocompounds and phenol.
O
OH
O
H
OCH3
OCH3
N
R
O
O
*
O
*
HO
*
TsHN
O
OH
2a (R=CH3 3:1 dr)
2b (R=Ph 3:1 dr)
1 (81:29 dr)
3
2. Results and Discussion
The diastereoselective synthesis of the title compound 7 is shown in Scheme 1. Protection of the
phenolic hydroxyl of vanillin was carried out as previously described [1,6] and produced the known
benzyloxy vanillin 4 in quantitative yield [7]. This protection was necessary in order to avoid
deprotonation with the Grignard reagent in the second step of the synthesis. The subsequent three steps
were uneventful, i.e., the formation of the known adduct 5 (91%) [8] was carried out by nucleophilic
addition of allylmagnesium bromide to the aldehyde carbonyl in 4, the anti-Markovnikov hydration of
the alkene function in 5 producing 6 (87%), and the deprotection of the phenolic hydroxyl in 6
generating the phenol 3 (93%), all giving the desired product in excellent yields.
Scheme 1. Synthesis of spiroether 7.
However, the synthesis of the spiroether 7 turned out to be more problematic. Our first attempt at
transforming 3 to 7 was carried out with phenyliodine bis(trifluoroacetate) (PIFA) in acetone as
previously described [2,9,10], but we could not identify the product’s typical signals (two doublets and
1
one doublet-of-doublets between 5.50–7.00 ppm) in the H-NMR spectrum. These three signals
represent the protons of the dienone ring in similar spirocompounds and are usually characteristic of
1
such structure. Figure 2a shows a portion of the H-NMR spectrum of spiroether 1 as a reference.
Other attempts using PIFA (changes in temperature or solvent) ended up giving similar results.
We then attempted the spiroannulation with lead tetraacetate in acetone, conditions which gave us

Molecules 2013, 18
1176
good results in previous studies [1,11–14] and were able to determine that the product had formed
1
based on H-NMR spectroscopy. However, the amount of material obtained was low (~40%), and the
1
crude H-NMR spectrum was not clean enough to allow for the determination of the diastereomeric
ratio as previously described [1,2,5]. We eventually were able to carry out this transformation and
obtained 7 in 61% yield using lead tetraacetate in dichloromethane. However, it should be noted that
the product of this reaction appears to decompose easily under the isolation conditions used. For
instance, using a long chromatography column packed with silica gel (18 inches in length), we were
able to isolate the product in yields ranging from 19–27%. Attempts to increase the yield by adding a
small amount of base (Et3N) in the eluting solvent (0.1% base was used) increased the yield only
marginally to 30–35%. Eventually we found out that vacuum filtration of the product through silica gel
gave the best result and spiroether 7 could be obtained in 55–61% yield. In order to confirm the
sensitivity of the product to the purification conditions used, 40 mg of purified compound 7 were
dissolved in 50% EtOAc/hexanes (10 mL) and 0.5 g of silica gel were added. After stirring at room
temperature for 1.5 h, filtering and evaporating the solvent, only 12 mg of the product was recovered
(only the signals of spiroether 7 could be observed in the 1H-NMR spectrum after this process). We did
not attempt to recover the lost material which we assumed was left with the solid support. We have
previously observed this type of sensitivity to chromatography with other spirocompounds [9].
1
Figure 2. Characteristic portion of the crude H-NMR spectra of spiroether 1 (a) and
spiroether 7 (b).
As can be seen from Figure 2, the spiroannulation of 3 produced 7 as a single diastereomer. When
1
compared with the crude H-NMR spectrum of compound 1 (Figure 2a), all the characteristic signals
of the dienone ring of compound 7 (doublet at 5.72, doublet at 6.30 and doublet-of-doublets at 6.85)

Molecules 2013, 18
1177
can be found (Figure 2b), however the second set of signals characteristic of a second diastereomer [as
shown in Figure 2a for compound 1] are absent. While the high diastereoselectivity in this reaction can
be attributed in part to the location of the chiral centre in 3, the fact that a 6-membered ring was
formed in structure 7 may also have had an effect on the diastereoselectivity of the reaction. Assuming
that: (1) an intermediate phenoxonium ion was produced in the reaction of 3 to 7 as previously
reported [4,15] and (2) the approach of the nucleophile took place from a chair-like conformation, one
can see that one approach would be more energically preferred. As can be seen in Figure 3, conformation
A should not be favored as a strong steric effect can be observed between the axial hydroxyl group on
C1 of the butanol side chain and H7 of the dienone. This steric interaction appears comparable to a
1,3-diaxial interaction on a cyclohexane and the alternative chair-like conformation B should be
favored since this steric factor is no longer present given that the hydroxyl group is now in the
equatorial position. As a result the conformation of the hydroxyl on C5 and the ether oxygen O1 would
be s-trans at the C5-C6 bond in product 7.
Figure 3. Chair-like conformations of the potential intermediate.
It should also be noted that while the spiroannulation of phenols leading to spiroethers and
spirolactones bearing 5-membered rings is well known and many examples can be found in the
literature [16,17], only a few examples of spirocompounds having 6-membered rings as in the structure
of 7 [18–20] have been reported.
3. Experimental
General
Melting points were determined on a hot stage instrument and are uncorrected. Infrared spectra
1
were recorded either as KBr pellets or neat on a Perkin Elmer System 2000 FTIR. H-NMR spectra
were recorded on a Bruker Fourier 300 spectrometer at 300 MHz and chemical shifts are expressed in
ppm using TMS as internal standard. 13C-NMR spectra were recorded on a Bruker Fourier 300
spectrometer at 75.4 MHz and chemical shifts are expressed in ppm using the solvent residual signal as
internal standard. All spectral assignments were confirmed by COSY, DEPT-135 and HSQC experiments.
1-(4-Benzyloxy-3-methoxyphenyl)but-3-en-1-ol (5). A solution of allyl magnesium bromide in
tetrahydrofuran (2.0 M, 0.05 mL, 0.71 mmol) was added at room temperature under an inert atmosphere
(N2) to a solution of benzaldehyde 4 (116 mg, 0.47 mmol) in anhydrous tetrahydrofuran (5 mL). The
solution was refluxed for 2 h, cooled to room temperature, water (5 mL) was added and the reaction

Molecules 2013, 18
1178
mixture was extracted with ethyl acetate (3 × 10 mL). The organic fractions were combined, washed
with brine (10 mL), dried (MgSO4) and the solvent was evaporated in vacuo to afford a yellow oil
(130 mg). Chromatography on silica gel (15% EtOAc/hexanes) afforded a white solid (124 mg, 91%).
mp: 58–61 °C; IR (KBr) cm−1: 3401; 1H-NMR (CDCl3) : 2.41–2.55 (m, 2H, H2), 3.88 (s, 3H, OCH3),
4.86–5.06 (m, 3H, H1, H4), 5.28 (s, 2H, OCH2), 5.82–5.95 (m, 1H, H3), 6.82 (s, 1H, H2'), 6.87–6.95 (m,
13
2H, H5', H6'), 7.31–7.49 (m, 5H, ArH); C-NMR (CDCl3) : 40.6 (C2), 57.1 (OCH3), 71.6 (OCH2),
74.9 (C1), 113.0 (C2'), 114.6 (C5'), 117.8 (C4), 121.4 (C6'), 127.9 (benzyl C2, C3), 129.9 (benzyl C4),
135.1 (C1'), 137.2 (C3), 138.6 (benzyl C1), 148.3 (C4'), 152.1 (C3').
1-(4-Benzyloxy-3-methoxyphenyl)butan-1,4-diol (6). A solution of BH3-THF (1 M, 0.7 mL, 0.7 mmol)
was added slowly to a cold (0 °C) solution of alkene 5 (132 mg, 0.46 mmol) in anhydrous tetrahydrofuran
(5 mL). The solution was stirred at 0 °C for 15 min then at room temperature for 1 h. Aqueous NaOH
(1 M, 1 mL, 1 mmol) and 30% hydrogen peroxide (1.9 mL, 6.1 mmol) were added and the resulting
solution was stirred at room temperature overnight. The solution was extracted with ethyl acetate
(3 × 15 mL), the organic fractions were combined, washed with brine (10 mL), dried (MgSO4) and the
solvent was evaporated in vacuo to afford a tan oil (207 mg). Chromatography on silica gel (30%
EtOAc/hexanes) afforded a colorless oil (122 mg, 87%). IR (neat) cm−1: 3426, 3039, 1252, 1038;
1H-NMR (CDCl3) : 1.71–1.77 (m, 2H, H3), 1.79–1.90 (m, 2H, H2), 3.68 (t, 2H, J = 6.9 Hz, H4), 3.96
(s, 3H, OCH3), 4.69 (t, 1H, J = 6.8 Hz, H1), 5.26 (s, 2H, OCH2), 6.91 (s, 1H, H2'), 6.91–7.17 (m, 2H,
H5', H6'), 7.38–7.50 (m, 5H, ArH); 13C-NMR (CDCl3) : 21.4 (C3), 34.7 (C2), 56.7 (OCH3), 64.1 (C4),
72.4 (OCH2), 73.9 (C1), 112.6 (C2'), 114.1 (C5'), 120.7 (C6'), 128.2 (benzyl C2, C3), 129.1 (benzyl C4),
136.2 (C1'), 137.7 (benzyl C1), 147.5 (C4'), 150.1 (C3'); Anal. Calc’d for C18H22O4: C 71.50, H 7.33;
found C 71.44, H 7.35.

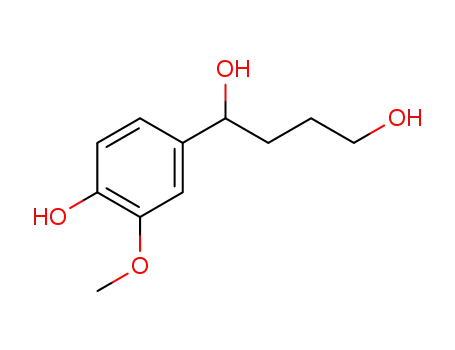

1-(4-Hydroxy-3-methoxyphenyl)butan-1,4-diol (3). 5% Pd/C (42 mg) was added to a solution of diol 6
(112 mg, 0.37 mmol) in tetrahydrofuran (15 mL). The mixture was placed in a hydrogenator and
agitated for 2.5 h under a H2 pressure of 30 psi. The mixture was filtered through Celite® using acetone
as a washing solvent. The solvent was evaporated in vacuo to afford a clear oil (73 mg, 93%). IR (neat)
cm−1: 3428, 1248,1035; 1H-NMR (CDCl3) : 1.77–185 (m, 2H, H3), 1.98–2.08 (m, 2H, H2), 3.87–3.95
(overlapping s/m, 5H, OCH3, H4), 4.11 (t, 1H, J = 6.8 Hz, H1), 6.79–6.93 (m, 3H, H2', H5', H6');
13C-NMR (CDCl3) : 27.3 (C3), 35.6 (C2), 57.4 (OCH3), 64.7 (C4), 75.3 (C1), 111.5 (C2'), 115.8 (C5'),
119.3 (C6'), 136.3 (C1'), 146.1 (C4'), 148.7 (C3'): Anal. Calc’d for C11H16O4: C 62.25, H 7.60; found C
62.30, H 7.57.
5-Hydroxy-8-methoxy-1-oxaspiro{5,5]undeca-7,10-dien-9-one (7). Lead tetraacetate (302 mg, 0.68 mmol)
was added at 0 °C to a solution of phenol 3 (68 mg, 0.32 mmol) in dichloromethane (7 mL). The
resulting yellow mixture was stirred at 0 °C for 30 min then at room temperature for 4 h. The mixture
was filtered through Celite® using dichloromethane as a washing solvent. Ethylene glycol (4 drops)
was added to remove the lead residue by chelation and the solution was stirred at room temperature
overnight. The mixture was filtered through Celite® and the solvent was evaporated in vacuo to give a
yellow solid. The product was dissolved in a minimum amount of ethyl acetate and filtered through
silica gel using 50% EtOAc/hexanes as eluent to give an off white solid (41 mg, 61%). mp: decomposed;

Molecules 2013, 18
1179
1
IR (KBr) cm−1: 3347, 1646, 1249, 1053; H-NMR (CDCl3) : 1.78–1.85 (m, 2H, H3), 2.01–2.15 (m,
2H, H4), 3.76 (t, 2H, J = 7.1 Hz, H2), 3.81 (s, 3H, OCH3), 4.20–4.26 (m, 1H, H5), 5.72 (d, 1H, J = 2.9 Hz,
H7), 6.30 (d, 1H, J = 9.1 Hz, H10), 6.85 (dd, 1H, J = 2.9, 9.1 Hz, H11); 13C-NMR (CDCl3) : 25.4 (C3),
26.7 (C4), 57.8 (OCH3), 63.7 (C2), 72.4 (C5), 81.9 (C6), 114.6 (C7), 127.1 (C10), 149.6 (C11), 153.3
(C8), 178.1 (C9); Anal. Calc’d for C11H14O4: C 62.85, H 6.71; found C 62.81, H 6.73.
4. Conclusions
We have successfully carried out the diastereoselective synthesis of a new spiroether in 61% yield
and >99% de. While the diastereoselective syntheses of small spirocompounds have been reported
before, to our knowledge this represents the first synthesis producing a single diastereomer. We are
now investigating the synthesis of optically pure 7 in order to determine the absolute configuration of
the new spirocarbon, as well as to confirm our hypothesis for the high level of diastereoselectivity
observed in this reaction.
References
1. Plourde, G.L. Studies towards the diastereoselective spiroannulation of phenolic derivatives.
Tetrahedron Lett. 2002, 43, 3597–3599.
2. Plourde, G.L.; Spaetzel, R.R.; Kwasnitza, J.S.; Scully, T.W. Diastereoselective spiroannulation of
phenolic substrates: Advances towards the asymmetric formation of the manumycin m-C7N core
skeleton. Molecules 2007, 12, 2215–2222.
3. Plourde, G.L.; Susag, L.M.; Dick, D.G. Determination of the absolute configurations of
(+)-N-((3S)-3-{[(4-methylphenyl)sulfonyl]amino}-1-oxaspiro[4.5]deca-6,9-dien-2,8-dion-7-yl)
acetamide and benzamide. Molbank 2008, M579.
4. Plourde, G.L.; English, N.J. Diastereoselective spiroannulation of phenolic substrates: Synthesis
of (+/−)-2-tbutyl-6-methoxy-1-oxaspiro[4,5]deca-6,9-diene-8-one. Molecules 2005, 10, 1335–1339.
5. Plourde, G.L.; Susag, L.M. Diastereoselective spiroannulation of phenolic derivatives: Effect of
the O-alkoxy substituent on the diastereoselectivity. Int. J. Chem. 2011, 3, 3–9.
6. Mendelson, W.L.; Holmes, M.; Dougherty, J. The regioselective 4-benzylation of
2,4-dihydroxybenzaldehyde. Synth. Commun. 1996, 26, 593–601.
7. Bukas, A.; Dufour, C. N-Vanilylpelargonamide. Ann. Pharm. Fr. 1959, 17, 453–455.
8. Samaresh, J.; Chandrani, G.; Subhas, C.R. Mild and efficient allylation of aldehydes mediated by
titanium (III) chloride. Tetrahedron Lett. 2004, 45, 6575–6577.
9. Plourde, G.L.; Fisher, B.B. Synthesis of 6-methoxy-1-oxaspiro[4,5]-6,9-diene-8-one. Molecules
2002, 7, 315–319.
10. Plourde, G.L.; Speatzel, R.R. Synthesis of N-(2,8-Dioxo-1-oxaspiro[4,5]deca-6,9-dien-7-yl)
acetamide and benzamide. Molbank 2009, M599.
11. Plourde, G.L. (+/−)-7-Methoxy-2-methyl-1-oxaspiro[4,5]deca-6,9-diene-8-one. Molbank 2003, M316.
12. Plourde, G.L. (+/−)-7-Methoxy-2-isopropyl-1-oxaspiro[4,5]deca-6,9-diene-8-one. Molbank 2003,
M319.
13. Plourde, G.L. (+/−)-2-tButyl-7-methoxy-1-oxaspiro[4,5]deca-6,9-diene-8-one. Molbank 2003, M322.

Molecules 2013, 18
1180
14. Plourde, G.L.; Fairchild, M.D.; Sarohia, G.S. Synthesis of a new spirolactone: 7,10-Dimethoxy-1-
oxaspiro[4,5]deca-6,9-diene-2,8-dione. Int. J. Chem. 2012, 4, 2–6.
15. Quideau, S.; Looney, M.A.; Pouységu, L. Oxidized arenol intermediates in intermolecular carbon-
carbon bond formation. Naphthoid 2,4-cyclohexadienones via oxidative nucleophilic substitution.
Org. Lett. 1999, 1, 1651–1654.
16. Dohi, T.; Uchiyama, T.; Yamashita, D.; Washimi, N.; Kita, Y. Efficient phenolic oxidations using
u-oxo-bridged phenyliodine trifluoroacetate. Tetrahedron Lett. 2011, 52, 2212–2215.
17. Minamitsuji, Y.; Kato, D.; Fujoka, H.; Dohi, T.; Kita, Y. Organo-catalyzed oxidative
spirocyclization of phenols using peracetic acid as a green and economic terminal oxidant.
Aust. J. Chem. 2009, 62, 648–652.
18. Taylor, E.C.; Andrade, J.G.; Rall, G.J.H.; Turchi, I.J.; Steliou, K.; Jagdmann, G.E., Jr.; McKillop, A.
Thallium in organic synthesis. 61. Intramolecular capture of radical cations from thallium (III)
trifluoroacetate oxidation of arylalkanoic acids and arylalkanols. New routes to oxygen heterocycles.
J. Am. Chem. Soc. 1981, 103, 6856–6863.
19. El-Mobayed, M.; Ismail, N.; Abo El-Enein, G.; Abd El-Haleem, E. Anodic oxidation of α-naphthol
derivative. A facile route to ring closure products. J. Chem. Soc. Pakistan 1986, 8, 305–310.
20. Fujioka, H.; Komatsu, H.; Nakamura, T.; Miyoshi, A.; Hata, K.; Ganesh, J.; Murai, K.; Kita, Y.
Organic synthesis using a hypervalent iodine reagent: Unexpected and novel domino reaction to
spiro cyclohexadienone lactones. Chem. Commun. 2010, 46, 4133–4135.
Sample Availability: Not available.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
