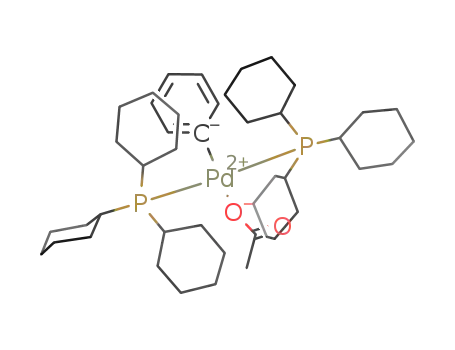

mixture by 1H and 11B NMR spectroscopy after the reduction
of 1 by B2pin2 indicated that 2.0 equiv AcOBpin is formed
along with the {L2Pd0} complex, with no detectable formation
of phosphine oxide or Pd black.
A visual comparison of the two methods of catalyst
activation is shown in Figure 1. As previously indicated, the
base-promoted reduction of 1 leads to significant formation of
Pd black and only 50% net conversion of the PdII source into
[Pd(PCy3)2] (pathway A), whereas the B2pin2-mediated
Table 1: Evaluation of various reagents for the reduction of 1 to 2.
Entry
Reagent
Equiv
t
Yield [%][a]
1
2
3
None
PCy3
H2O
5 h
5 h
5 h
0
0
4
1.0
5.0
4
5
6
7
8
9
10
11
12
KOAc
10.0
10.0
10.0
10.0
10.0
1.1
1.1
10.0
1.1
5 h
5 h
20 min
1 h
1 h
3
TBAOAc
TBAOAc[b]
TBABF4
TBAOTf
KOH[c]
TBAOH
B2pin2
B2pin2
12
47
0
3
1 h
49
50
96
84
20 min
10 min
16 h
[a] Yield determined by 31P NMR spectroscopy with triphenylphosphine
oxide as an internal standard. [b] Addition of 1.0 equiv of H2O.
[c] Addition of 2.0 equiv of [18]crown-6.
the Pd-catalyzed borylation of aryl halides, we evaluated the
possibility that the acetate base in the reaction could promote
catalyst activation. However, heating 1 and excess KOAc in
toluene gave only trace reduction after 5 h (Table 1, entry 4).
Owing to the poor solubility of KOAc in toluene, we also
evaluated the more soluble base, tetrabutylammonium ace-
tate (TBAOAc). The reaction of 1 and excess oven-dried
TBAOAc stalled at 30% conversion of the PdII complex into
[Pd(PCy3)2] (2, 12%), with concomitant formation of phos-
phine oxide and Pd black (entry 5). As trace amounts of water
are typically present in catalytic reactions containing base,[15]
we allowed 1 to react with TBAOAc in the presence of
1.0 equiv H2O. Under these conditions, complete reduction of
1 was observed to give 50% yield of 2 along with 1.0 equiv of
Figure 1. Reduction of 1 by TBAOAc (pathway A)[15] and by B2pin2
(pathway B).
reduction of 1 leads to the quantitative formation of [Pd-
(PCy3)2] (pathway B). In the former pathway, one phosphine
ligand coordinated to the PdII center is converted into the
corresponding phosphine oxide, leaving an unstable mono-
phosphine {L1Pd0} species that undergoes rapid disproportio-
nation to {L2Pd0} and Pd black. Owing to the oxidation of one
equivalent of phosphine during the base-mediated reduction,
standard preparations of {LnPd0} complexes from [LnPdCl2]
and KOH typically require the addition of excess free
phosphine.[14a,c]
In the case of B2pin2-mediated reduction, no phosphine
oxide is formed; therefore, catalyst activation through this
pathway proceeds cleanly and forms the Pd0 complex 2 in high
yield. To determine the generality of using a diboron species
as a reductant for {LnPdII}, we examined the reduction of
[LnPd(OAc)2] complexes of P(iPr)3, P(tBu)3, PPhCy2, and A-
taPhos as well as the analogous dichloride PdII complex
[(Cy3P)2PdCl2]. For each of the acetoxy–PdII complexes, full
conversion into the corresponding [(R3P)2Pd0] species was
observed after 1 h at 708C using 10 equiv B2pin2. In contrast,
[(Cy3P)2PdCl2] proved unreactive under these conditions,
suggesting that acetoxy groups on the PdII center are
necessary for the reduction to occur.
=
O PCy3 after 20 min at 708C (entry 6). Based on our
observation that increasing amounts of water enhances the
rate of reduction, we hypothesized that hydroxide, rather than
ammonium cation or acetate anion, was responsible for
promoting the reduction of 1. Indeed, ammonium salts such as
TBABF4 and TBAOTf gave less than 5% reduction of 1 to 2
(entries 7 and 8), while hydroxide bases such as KOH[16] or
TBAOH reduced 1 to a mixture of 2, phosphine oxide, and Pd
black (entries 9 and 10).
Although the experiments summarized in entries 1–10 of
Table 1 are consistent with a base-promoted, phosphine-
mediated PdII reduction process, they do not rule out the
existence of alternative reduction pathways in the Miyaura
borylation. Along with phosphine-mediated reduction, nucle-
ophilic coupling partners such as organolithium reagents,[17]
organostannanes,[18] arylboronic acids,[19] alcohols,[20] and
amines[21] have also been reported to effect the reduction of
PdII to Pd0. Therefore, we conducted the reaction of 1 with the
diboron reagent, B2pin2. Heating 1 with 10 equiv B2pin2 led to
the quantitative conversion of 1 into [Pd(PCy3)2] (2) within
10 min at 708C (entry 11).[22] Further investigation revealed
that only one equivalent of B2pin2 is required for complete
reduction of 1 to 2, but the rate of the reduction is slower
under these conditions (entry 12). Analysis of the reaction
Based on our understanding of the available pathways for
PdII reduction, we next examined the impact of catalyst
activation on the Pd/PCy3-catalyzed borylation of bromoben-
zene (Figure 2). Using a standard “dump-and-stir” procedure,
wherein all reagents are charged simultaneously with no prior
catalyst pre-aging, the borylation of PhBr catalyzed by
0.2 mol% 1 formed the corresponding phenylboronate ester
(PhBpin) in 84% yield after 5 h at 708C (condition A).
