Organocatalytic oxa/aza-Michaelꢀ
Michael Cascade Strategy for the
Construction of Spiro [Chroman/
Tetrahydroquinoline-3,30-oxindole] Scaffolds
Haibin Mao,† Aijun Lin,† Yang Tang,† Yan Shi,† Hongwen Hu,† Yixiang Cheng,† and
Chengjian Zhu*,†,‡
School of Chemistry and Chemical Engineering, State Key Laboratory of Coordination
Chemistry, Nanjing University, Nanjing, 210093, China, and Shanghai Institute of
Organic Chemistry, Chinese Academy of Sciences, Shanghai, 200032, China
cjzhu@nju.edu.cn
Received June 6, 2013
ABSTRACT
A new useful and effective chiral amine-catalyzed oxa- and aza-MichaelꢀMichael cascade methodology for the construction of enantiomerically
enriched indolinones spiro-fused with chromans or tetrahydroquinolines is reported. By employing suitable organocatalysts depending on the
different Michael donors (Ar-OH/Ar-NHR), the processes offered excellent stereocontrol (dr >20:1, >99% ee) under mild conditions.
Spirooxindole,1 chroman,2 and tetrahydroquinoline3
skeletons containing multiple stereogenic centers are pri-
vileged heterocyclic ring systems thatare featured ina large
number of bioactive alkaloids and medicinally relevant
compounds. Furthermore, some sophisticated structures
in which the oxindole core is fused with a chroman/
tetrahydroquinoline moiety at the C3-position were docu-
mented as possessing remarkable biological activities.4
Because of the significant medicinal value and structural
complexities, these intriguing frameworks have emerged as
attractive synthetic targets (Scheme 1a).5 However, the
efficient asymmetric synthetic methodology to construct
these rigid spiroarchitectures with multistereocenters is
deficient. Very recently, Shi and Tu realized the highly
stereoselective synthesis of spiro [tetrahydroquinoline-
2,30-oxindole] derivatives through an isatin-involved
Povarov reaction (Scheme 1b).6 Nevertheless, enantiomeri-
cally enriched spiro [chroman/tetrahydroquinoline-3,30-
oxindole] scaffolds possessing the potential as an important
pharmacophore have not been constructed until now.
Asymmetric organocatalytic domino reactions7 which
proceed consecutively and under the same reaction
† Nanjing University.
‡ Chinese Academy of Sciences.
(1) For selected reviews of spirooxindoles: (a) Lin, H.; Danishefsky,
S. J. Angew. Chem., Int. Ed. 2003, 42, 36. (b) Galliford, C. V.; Scheidt,
K. A. Angew. Chem., Int. Ed. 2007, 46, 8748. (c) Zhou, F.; Liu, Y.-L.;
Zhou, J. Adv. Synth. Catal. 2010, 352, 1381. (d) Ball-Jones, N. R.;
Badillo, J. J.; Franz, A. K. Org. Biomol. Chem. 2012, 10, 5165. (e) Singh,
G. S.; Desta, Z. Y. Chem. Rev. 2012, 112, 6104. (f) Hong, L.; Wang, R.
Adv. Synth. Catal. 2013, 355, 1023.
(2) For selected reviews of chromans: (a) Zeni, G.; Larock, R. C.
Chem. Rev. 2004, 104, 2285. (b) Shen, H. C. Tetrahedron 2009, 65, 3931.
(3) For selected reviews of tetrahydroquinoline: (a) Katritzky, A. R.;
Rachwal, S.; Rachwal, B. Tetrahedron 1996, 52, 15031. (b) Sridharan,
(5) Han, Y.-Y.; Han, W.-Y.; Hou, X.; Zhang, X.-M.; Yuan, W.-C.
Org. Lett. 2012, 14, 4054.
(6) Shi, F.; Xing, G.-J.; Zhu, R.-Y.; Tan, W.; Tu, S. Org. Lett. 2013,
15, 128.
ꢀ
V.; Suryavanshi, P. A.; Menendez, J. C. Chem. Rev. 2011, 111, 7157.
(4) (a) Kouznetsov, V. V.; Arenas, D. R. M.; Arvelo, F.; Forero,
~
J. S. B.; Sojo, F.; Munoz, A. Lett. Drug Des. Discovery 2010, 7, 632. (b)
Patel, D. V.; Gless, R. D. J.; Webb, H.; Heather, K.; Anandan, S. K.;
Aavula, B. R. Int. Patent WO 2008/073623 A2, 2008. (c) Padiya, K. J.;
Nair, P. S.; Pal, R. R.; Chaure, G. S.; Gudade, G. B.; Parkale, S. S.;
Manojkumar, V. L.; Swapnil, R. B.; Smita, A. B.; Sachin, D. S.; Palle,
V. P.; Kamboj, R. K. Int. Patent WO 2012/049555 A1, 2012.
€
(7) For selected reviews: (a) Enders, D.; Grondal, C.; Huttl, M. R. M.
Angew. Chem., Int. Ed. 2007, 46, 1570. (b) Grondal, C.; Jeanty, M.;
Enders, D. Nat. Chem. 2010, 2, 167. (c) Westermann, B.; Ayaz, M.;
van Berkel, S. S. Angew. Chem., Int. Ed. 2010, 49, 846.
r
10.1021/ol401595g
XXXX American Chemical Society

in organocatalytic Michaelꢀhemiacetalization cascade re-
actions with carbonyl compounds.9 However, chiral Lewis
base catalyzed oxa-MichaelꢀMichael cascade reactions
of (E)-2-(2-nitrovinyl)phenol derivatives with electron-
deficient olefins are less developed;10 the asymmetric reac-
tions involving (E)-2-(2-nitrovinyl)aniline derivatives have
not even been reported. Inspired by the pioneering work of
Wang on the use of bifunctional tertiary amine-hydrogen-
bond donor catalysts in asymmetric domino reactions,11
and also in conjunction with the construction of spiro
[chroman/tetrahydro-quinoline-3,30-oxindole] skeletons,
herein, we described our results on chiral Lewis base
catalyzed oxa/aza-MichaelꢀMichael cascade sequences
between methyleneindolinones and (E)-2-(2-nitrovinyl)
phenol/aniline derivatives (Scheme 1c).
Scheme 1. Spiro [Chroman/Tetrahydroquinoline-3,30-oxindole]
Scaffold Synthesis
Initial examinations were carried out by using variously
N-protected methyleneindolinones 2and (E)-2-(2-nitrovinyl)-
phenol 3a in the presence of 20 mol % DABCO (Table 1,
entries 1ꢀ4). The preliminary studies revealed that the
reaction efficiency highly depended on the protection form
of the nitrogen. The promising racemic product was
obtained only when Boc was used (Table 1, entry 4).
Inspired by this result, we examined a number of chiral
tertiary amines (1aꢀ1d) and bifunctional tertiary amine-
hydrogen-bond donor catalysts (1eꢀ1h) for the enantio-
induction of the reaction using N-Boc protected methyl-
eneindolinone 2a as the Michael acceptor (Table 1, entries
5ꢀ12). This led to identification of squaramide-cinchona
bifunctional catalyst 1h as the optimal catalyst, which
provided the desired product in 71% yield with 85% ee,
10:1 dr (Table 1, entry 12). To further increase the reaction
diastereo- and enantioselectivity, we focused on varying
reaction parameters including solvent, temperature, and
concentration of the reactants (see Supporting Informa-
tion (SI), Table S1). After investigating these parameters,
the optimized conditions were established to afford spiro
[chroman-3,30-oxindole] 4a in 72% yield with >20:1 dr and
92% ee in CH2Cl2 (0.05 mol/L) at 0 °C (Table S1, entry 11).
With optimized reaction conditions in hand, we exam-
ined an array of N-Boc protected methyleneindolinones 2
and 2-(E)-(2-nitrovinyl)phenol derivatives 3 to explore the
generality of this asymmetric oxa-MichaelꢀMichael cas-
cade reaction. The results are summarized in Scheme 2.
The scope of the reaction could be successfully extended to
N-Boc protected methyleneindolinones with various ester
groups, and high stereoselectivities (>20:1 dr, 92%-98% ee)
were generally achieved (Scheme 2, 4aꢀ4e). Further ex-
ploration of the substrate scope focused on the 2-(E)-(2-
nitrovinyl)phenol derivatives 3 (Scheme 2, 4fꢀ4l). These
results indicated that enantioselectivities were almost
conditions to construct complex frameworks from simple
precursors are characterized by high efficiencies, excellent
stereoselectivities, and environmental friendliness. There-
fore, organocatalytic domino reactions are widely regarded
as powerful tools in contemporary organic synthesis.
Recently, methyleneindolinones were selected to enantio-
selectively construct spirooxindole scaffolds in organo-
catalytic domino reactions and cycloadditions.8 (E)-2-(2-
Nitrovinyl)phenols bearing both a Michael donor and
Michael acceptor were important starting materials for
affording chiral chromene or chroman cores, particularly
(8) For selected examples: (a) Chen, X.-H.; Wei, Q.; Luo, S.-W.;
Xiao, H.; Gong, L.-Z. J. Am. Chem. Soc. 2009, 131, 13819. (b)
Bencivenni, G.; Wu, L.-Y.; Mazzanti, A.; Giannichi, B.; Pesciaioli, F.;
Song, M.-P.; Bartoli, G.; Melchiorre, P. Angew. Chem., Int. Ed. 2009, 48,
7200. (c) Jiang, K.; Jia, Z.-J.; Chen, S.; Wu, L.; Chen, Y.-C. Chem.;Eur.
J. 2010, 16, 2852. (d) Tan, B.; Candeias, N. R.; Barbas, C. F. J. Am.
Chem. Soc. 2011, 133, 4672. (e) Jia, Z.-J.; Jiang, H.; Li, J.-L.; Gschwend,
B.; Li, Q.-Z.; Yin, X.; Grouleff, J.; Chen, Y.-C.; Jørgensen, K. A. J. Am.
ꢀ
Chem. Soc. 2011, 133, 5053. (f) Tan, B.; Hernandez-Torres, G.; Barbas,
C. F. J. Am. Chem. Soc. 2011, 133, 12354. (g) Tan, B.; Candeias, N. R.;
Barbas, C. F. Nat. Chem. 2011, 3, 473. (h) Sun, W.; Zhu, G.; Wu, C.;
Hong, L.; Wang, R. Chem.;Eur. J. 2012, 18, 6737. (i) Duan, S.-W.; Li,
Y.; Liu, Y.-Y.; Zou, Y.-Q.; Shi, D.-Q.; Xiao, W.-J. Chem. Commun.
2012, 48, 5160. (j) Li, G.; Liang, T.; Wojtas, L.; Antilla, J. C. Angew.
Chem., Int. Ed. 2013, 52, 4628. (k) Wang, L.; Shi, X.-M.; Dong, W.-P.;
Zhu, L.-P.; Wang, R. Chem. Commun. 2013, 49, 3458. (l) Shi, Y.; Lin, A.;
Mao, H.; Mao, Z.; Li, W.; Hu, H.; Zhu, C.; Cheng, Y. Chem.;Eur. J.
2013, 19, 1914.
(9) (a) Enders, D.; Wang, C.; Yang, X.; Raabe, G. Adv. Synth.Catal.
2010, 352, 2869. (b) Lu, D.; Li, Y.; Gong, Y. J. Org. Chem. 2010, 75,
6900. (c) Hong, B.-C.; Kotame, P.; Lee, G.-H. Org. Lett. 2011, 13, 5758.
(d) Enders, D.; Yang, X.; Wang, C.; Raabe, G.; Runsik, J. Chem.;
Asian J. 2011, 6, 2255. (e) Hong, B.-C.; Kotame, P.; Liao, J.-H. Org.
Biomol. Chem. 2011, 9, 382. (f) Ramachary, D. B.; Shiva Prasad, M.;
Madhavachary, R. Org. Biomol. Chem. 2011, 9, 2715. (g) Enders, D.;
Urbanietz, G.; Raabe, G. Synthesis 2011, 2011, 1905. (h) Ramachary,
D. B.; Sakthidevi, R.; Shruthi, K. S. Chem.;Eur. J. 2012, 18, 8008. (i)
Ramachary, D. B.; Madhavachary, R.; Prasad, M. S. Org. Biomol.
Chem. 2012, 10, 5825. (j) Enders, D.; Urbanietz, G.; Hahn, R.; Raabe, G.
Synthesis 2012, 44, 773.
(10) Only some examples using R,β-unsaturated aldehydes as sub-
strates based on chiral secondary amines catalysis: (a) Kotame, P.;
Hong, B.-C.; Liao, J.-H. Tetrahedron Lett. 2009, 50, 704. (b) Zhang, X.;
Zhang, S.; Wang, W. Angew. Chem., Int. Ed. 2010, 49, 1481. (c) Hong,
B.-C.; Kotame, P.; Tsai, C.-W.; Liao, J.-H. Org. Lett. 2010, 12, 776. (d)
Wang, C.; Yang, X.; Raabe, G.; Enders, D. Adv. Synth.Catal. 2012, 354,
2629.
(11) (a) Zu, L.; Wang, J.; Li, H.; Xie, H.; Jiang, W.; Wang, W. J. Am.
Chem. Soc. 2007, 129, 1036. (b) Wang, J.; Xie, H.; Li, H.; Zu, L.; Wang,
W. Angew. Chem., Int. Ed. 2008, 47, 4177.
B
Org. Lett., Vol. XX, No. XX, XXXX

Table 1. Screening for the Optimal Catalysta

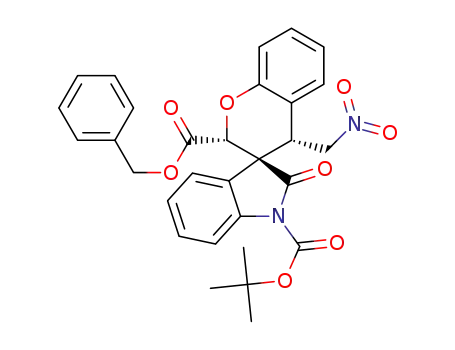

Scheme 2. Synthesis of 4-(Nitromethyl)spiro [Chroman-3,30-
oxindole] Derivatives 4a,b
