1034 Bioconjugate Chem., Vol. 21, No. 6, 2010
Maresca et al.
amino-6-(bis((1-methyl-1H-imidazol-2-yl)methyl)amino)hexanoic acid
(320 mg, 0.958 mmol, 96% yield). 1H NMR (400 MHz, DMSO-d6)
δ 7.94 (s, 1 H), 7.04 (d, J ) 3, 1.2 Hz, 2H), 6.74 (d, J ) 1.2 Hz, 2 H),
3.54 (s, 4 H), 3.98 (brs, 1 H), 2.88 (s, 3 H), 2.72 (s, 3 H), 2.35 (t, J )
6.8 Hz, 2 H), 1.60-1.54 (m, 1 H), 1.43-1.29 (m, 3 H), 1.16-1.11
(m, 2 H). MS (ESI): 335 (M + H)+.
1-(2,2-Dimethoxyethyl)-1H-imidazole-2-carbaldehyde (2A).
To a solution of the imidazole-2-carboxaldehyde (410 mg, 4.3
mmol) dissolved in DMF (1 mL) was added 1.1 equiv of
2-bromo-1,1-dimethoxyethane (800 mg, 4.7 mmol), potassium
carbonate, and a catalytic amount of potassium iodide. The
mixture was heated at 110 °C for 18 h followed by evaporation
to dryness and purified utilizing a Biotage SP4 with a gradient
method of 5-50% methanol in DCM to yield the desired
compound (250 mg, 1.4 mmol, 32% yield). 1H NMR (400 MHz,
DMSO-d6) δ 9.9 (s, H), 7.85 (s, H), 7.55 (s, H), 5.82 (m, H),
4.75 (d, 2H), 3.45 (s, 6H).
NMR (400 MHz, DMSO-d6) δ 7.67 (d, 2H), 7.35 (m, 4H), 7.30
(m, 2H), 7.05 (s, H), 6.7 (s, H), 4.70 (s, 4H), 4.2 (m, 4H), 3.4
(d, 2H), 2.4 (m, 2H), 1.8 (s, 2H), 1.39 (s, 18H). 1.2 (m, 2H).
ESMS m/z: 758 (M + H)+. The purified compound was
deprotected by treatment with piperidine/DMF 1:1 (1 mL), and
the mixture was stirred at room temperature for 18 h. Following
evaporation to a residue, aqueous extraction from DCM afforded
the desired product (25 mg, 0.047 mmol, 25% yield) as an off-
white solid. 1H NMR (400 MHz, DMSO-d6) δ 7.0 (s, 2H), 6.65
(s, H), 4.70 (s, 4H), 4.2 (m, 4H), 3.2 (d, 2H), 2.4 (m, 2H), 1.8
(s, 2H), 1.39 (s, 18H). 1.15 (m, 2H). ESMS m/z: 535 (M +
H)+.
(S)-2-Amino-6-(bis((1-(2-hydroxyethyl)-1H-imidazol-2-yl)methyl)-
amino)hexanoic Acid (5). To a solution of 3 (25 mg, 0.055 mmol)
dissolved in DCM (10 mL) was added 1.0 M boron tribromide
in DCM (83 mg, 0.333 mmol) at -20 °C. The mixture was
stirred at -20 °C for 2 h and was subsequently quenched with
water and washed with excess DCM. The water portion was
evaporated to dryness and purified as the product utilizing a
Biotage SP4 with a gradient method of 5-50% methanol in
(S)-2-Amino-6-(bis((1-(2,2-dimethoxyethyl)-1H-imidazol-2-yl)-
methyl)amino)hexanoic Acid (2). Following the same procedure
as utilized in the preparation of 1 yielded the desired compound
(93 mg, 0.132 mmol, 54% yield). 1H NMR (400 MHz, DMSO-
d6) δ 7.90 (d, 2H), 7.72 (d, 2H), 7.41 (m, 2H), 7.30 (m, 2H),
7.05 (s, H), 6.75 (s, H), 4.45 (m, 3H), 4.2 (m, 4H), 3.95 (d,
2H), 3.80 (m, H), 3.55 (s, 2H), 3.2 (s, 6H), 2.3 (m, 2H), 1.60
(m, H), 1.35 (m, H) 1.15 (m, 2H). ESMS m/z: 705 (M + H)+.
The purified compound was deprotected by treatment with
piperidine/DMF 1:1 (1 mL), and the mixture was stirred at room
temperature for 18 h. Following evaporation to residue, aqueous
extraction from DCM afforded the desired product (44 mg, 0.093
1
DCM (15 mg, 0.038 mmol, 34% yield). H NMR (400 MHz,
DMSO-d6) δ 8.40 (m, 2H), 8.16 (d, 2H), 7.70 (d, 2H), 5.50 (s,
2H), 4.20 (s, 2H), 4.05 (m, 4H), 3.68 (d, 2H), 3.15 (m, 5H),
2.46 (s, 2H), 1.70 (m, 2H), 1.65 (m, 2H). 1.21 (m, 2H). ESMS
m/z: 395 (M + H)+.
Diethyl 3-(2-Formyl-1H-imidazol-1-yl)propylphosphonate (6A).
Following the same procedure as utilized in the preparation of
2A, the target compound was prepared from diethyl (3-
bromopropyl)phosphonate (2.96 g, 11.4 mmol) and imidazole-
2-carboxaldehyde to yield the desired compound (466 mg, 1.69
mmol, 16% yield). ESMS m/z: 275 (M + H)+.
1
mmol, 76% yield) as an off-white solid. H NMR (400 MHz,
DMSO-d6) δ 7.98 (s, H), 7.05 (s, H), 6.85 (s, H), 4.45 (s, 2H),
3.95 (m, 4H), 3.55 (s, 2H), 3.2 (s, 6H), 2.85 (m, 2H), 2.15 (m,
2H), 1.40 (m, 2H). 1.15 (m, 2H). ESMS m/z: 483 (M + H)+.
1-(2-Ethoxyethyl)-1H-imidazole-2-carbaldehyde (3A). Following
the same procedure as utilized in the preparation of 2A, the
target compound was prepared from 1-bromo-2-ethoxyethane
(3.51 g, 22 mmol) and imidazole-2-carboxaldehyde to yield the
(S)-2-Amino-6-(bis((1-(3-(diethoxyphosphoryl)propyl)-1H-imi-
dazol-2-yl)methyl)amino)hexanoic Acid (6). Following the same
procedure as utilized in the preparation of 1 yielded the desired
Fmoc-protected product (63 mg, 0.071 mmol, 21% yield). ESMS
m/z: 443 (M/2). The purified compound (53 mg, 0.060 mmol)
was deprotected by treatment with piperidine/DMF 1:1 (1 mL),
and the mixture was stirred at room temperature for 18 h.
Following evaporation to a residue, aqueous extraction from
DCM afforded the desired product (32 mg, 0.048 mmol, 80%
yield) as an off-white solid. 1H NMR (400 MHz, DMSO-d6) δ
7.1 (s, 2H), 6.78 (s, 2H), 3.98 (m, 4H), 3.8 (m, 4H), 3.6 (s,
4H), 2.85 (m, 4H), 2.75 (s, H), 2.38 (s, 2H), 1.77 (m, 4H), 1.55
(m, 4H), 1.39 (s, 2H), 1.18 (t, 12H). ESMS m/z: 664 (M +
H)+.

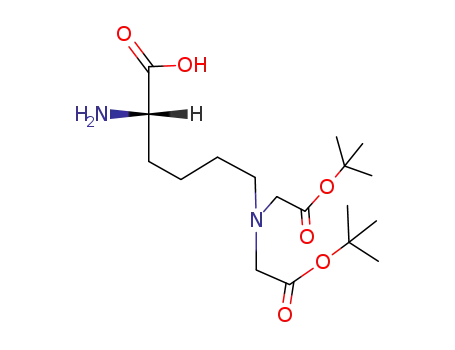

(S)-2-Amino-6-((carboxymethyl)(thiazol-2-ylmethyl)amino)hex-
anoic Acid (7). A suspension of Fmoc-Lys-OH ·HCl (6.1 g, 15
mmol) and thiazole-2-carbaldehyde (1.697 g, 15 mmol) in DCE
(100 mL) was refluxed for 30 min under nitrogen. The reaction
mixture was cooled to 0 °C and treated sequentially with sodium
triacetoxyborohydride (7.9 g, 38 mmol) and crude tert-butyl
glyoxalate (3.53 g, 27 mmol) as previously reported (26). The
reaction mixture was stirred at room temperature overnight and
decomposed with water. The reaction mixture was extracted
with DCM. The organic layer was dried and concentrated under
reduced pressure. The residue was purified by flash chroma-
tography over silica gel to afford (S)-1-(9H-fluoren-9-yl)-14,14-
dimethyl-3,12-dioxo-10-(thiazol-2-ylmethyl)-2,13-dioxa-4,10-
diazapentadecane-5-carboxylic acid (1.85 g, 21%). MS (ESI),
580 (M + H)+. To a solution of (S)-1-(9H-fluoren-9-yl)-14,14-
dimethyl-3,12-dioxo-10-(thiazol-2-ylmethyl)-2,13-dioxa-4,10-
diazapentadecane-5-carboxylic acid (72.5 mg, 0.125 mmol) in
DMF (1.0 mL) was added piperidine (0.20 mL). The mixture
was stirred at room temperature for 2 h. Solvent was evaporated
under reduced pressure to afford a residue, which was purified
by flash chromatography over silica eluting with 10% MeOH
in DCM to afford (S)-2-amino-6-((2-tert-butoxy-2-oxoethyl)(thi-
1
desired compound (580 mg, 3.56 mmol, 17% yield). H NMR
(400 MHz, DMSO-d6) δ 9.63 (s, H), 7.6 (s, H), 7.21 (s, H),
4.45 (dd, 2H), 3.62 (dd, 2H), 3.38 (m, 2H), 1.05 (t, 3H).
(S)-2-Amino-6-(bis((1-(2-ethoxyethyl)-1H-imidazol-2-yl)methyl)-
amino)hexanoic Acid (3). Following the same procedure as
utilized in the preparation of 1 yielded the desired Fmoc-
protected product (141 mg, 0.210 mmol, 44% yield). 1H NMR
(400 MHz, DMSO-d6) δ 7.67 (d, 2H), 7.35 (m, 4H), 7.30 (m,
2H), 7.05 (s, H), 6.75 (s, H), 3.95 (m, 4H), 3.58 (d, 4H), 3.55
(s, 4H), 3.3 (s, 4H), 2.30 (m, 2H), 2.15 (m, 2H), 1.50 (m, 2H).
1.15 (s, 2H), 1.05 (t, 6H). ESMS m/z: 674 (M + H)+. The
purified compound was deprotected by treatment with piperi-
dine/DMF 1:1 (1 mL), and the mixture was stirred at room
temperature for 18 h. Following evaporation to residue, aqueous
extraction from DCM afforded the desired product (31 mg, 0.069
1
mmol, 91% yield) as an off-white solid. H NMR (400 MHz,
DMSO-d6) δ 8.35 (s, H), 7.98 (s, H), 7.05 (s, H), 6.75 (s, H),
3.95 (m, 4H), 3.58 (d, 4H), 3.55 (s, 4H), 3.3 (s, 4H), 2.30 (m,
2H), 2.15 (m, 2H), 1.50 (m, 2H). 1.15 (s, 2H), 1.05 (t, 6H).
ESMS m/z: 451 (M + H)+.
tert-Butyl 2-(2-Formyl-1H-imidazol-1-yl)acetate (4A). Following
the same procedure as utilized in the preparation of 2A, the
target compound was prepared from tert-butyl 2-bromoacetate
and imidazole-2-carboxaldehyde to yield the desired compound
(850 mg, 4.03 mmol, 39% yield). 1H NMR (400 MHz, DMSO-
d6) δ 7.6 (s, H), 7.23 (s, H), 5.15 (s, 2H), 1.40 (s, 9H).
(S)-2,2′-(2,2′-(5-Amino-5-carboxypentylazanediyl)bis(methylene)-
bis(1H-imidazole-2,1-diyl))diacetic Acid (4). Following the same
procedure as utilized in the preparation of 1 yielded the desired
Fmoc-protected product (155 mg, 0.205 mmol, 42% yield). 1H
