(C-3′), 2 × 127.1 d, 127.7 d, 127.8 d, 128.2 d, 128.4 d, 128.7 d, 131.0 d (Ar); 133.8 s (C-11), 136.4 s
and 136.6 s (C-4a, C-6a), 138.8 s (C-11a), 143.0 s (C-10a), 173.0 s (COOH). For C23H26ClNO2S +
0.5 H2O (425.0) calculated: 65.00% C, 6.40% H, 8.34% Cl, 3.30% N, 7.54% S; found: 65.14% C,
6.61% H, 8.42% Cl, 3.83% N, 7.31% S.
1-[3-(Thioxannnthene-9-ylidene)propyl]piperidine-3-carboxylic acid (IIIa). Reaction of IX (4.8 g,
15 mmol) with ethyl nipecotate (2.7 g, 17 mmol) and the following hydrolysis resulted in 2.9 g
(42%) of IIIa hydrogen oxalate, m.p. 155 – 160 °C (acetone–ether). 1H NMR spectrum (200 MHz):
1.49 m, 1 H (H-5a″); 1.82 – 1.97 m, 3 H (H-5e″, 2 × H-4″); 2.86 m, 5 H (H-2a″, H-6a″, 2 × H-2′,
H-3″); 3.23 – 3.54 m, 4 H (H-2e″, H-6e″, 2 × H-1′); 5.90 t, 1 H (H-3′, J = 7.0); 7.31 – 7.54 m, 8 H
(ArH); 8.80 bs, 3 H (3 × COOH). 13C NMR spectrum: 21.8 t (C-5″, 24.3 t (C-2′), 25.2 t (C-4″),
38.8 d (C-3″), 51.4 t (C-6″), 55.5 t (C-1′), 60.8 t (C-2″), 125.9 d and 126.1 d (C-3′, Ar), 126.8 d,
126.9 d, 127.3 d, 2 × 127.5 d, 128.0 d, 128.9 d (Ar), 130.9 s (C-9), 132.5 s and 132.8 s (C-4a,
C-10a), 136.6 s and 137.6 s (C-9a, C-8a), 164.6 s (COOH in oxalate), 171.6 s (COO− in oxalate),
173.3 s (COOH). For C24H25NO6S (455.5) calculated: 63.28% C, 5.53% H, 3.08% N, 7.04% S;
found: 63.55% C, 6.09% H, 3.18% N, 7.18% S.
In this case, the intermediate crystalline ester IIIb, i.e. ethyl 1-[3-(thioxanthene-9-ylidene)propyl]-
piperidine-3-carboxylate, was isolated as hydrochloride, m.p. 161 – 164 °C (benzene). IR spectrum
(Nujol): 740, 770 (ArH), 1 221, 1 309, 1 736 (COOR); 1 581, 1 666, 3 043 (Ar); 2 523, 2 608
(NH+). 1H NMR spectrum (100 MHz): 1 22 t, 3 H (CH3, J = 7.0); 1.60 – 3.60 m, 13 H (CH and
CH2); 4.13 q, 2 H (OCH2, J = 7.0); 5.94 t, 1 H (H-3′, J = 7.0); 7.30 – 7.60 m, 8 H (ArH). For
C24H28ClNO2S (430.0) calculated: 67.04% C, 6.56% H, 3.26% N, 8.25% Cl, 7.46% S; found:
67.09% C, 6.71% H, 3.31% N, 8.50% Cl, 7.25% S.
1-[3-(4,9-Dihydrothieno[2,3-c]-2-benzothiepin-4-ylidene)propyl]piperidine-3-carboxylic acid
(IVa). The bromopropylidene compound X (5.1 g, 15 mmol) was reacted with ethyl nipecotate (2.7 g,
17 mmol) and the crude product gave by hydrolysis and further processing 3.0 g (41%) of IVa hy-
1
drogen oxalate hemihydrate, m.p. 95 – 105 °C (acetone–ether). H NMR spectrum (200 MHz): 1.47 –
1.96 m, 4 H (2 × H-4″, 2 × H-5″); 2.41 m, 2 H (H-2a″, H-6a″); 2.80 m, 3 H (H-3″, 2 × H-2′);
3.16 m, 4 H (H-2e″, H-6e″, 2 × H-1′); 3.93 d, 1 H and 4.58 d, 1 H (2 × H-9, J = 13.2); 6.00 t, 1 H
(H-3′, J = 6.5); 7.05 d, 1 H (H-3, J = 5.4); 7.15 – 7.38 m, 5 H (ArH), 9.25 bs, 3 H (3 × COOH).
13C NMR spectrum: 21.7 t (C-5″), 24.2 t (C-2′), 25.0 t (C-4″), 34.2 t (C-9), 38.6 d (C-3″), 51.6 t
(C-6″), 55.3 t (C-1′), 60.8 t (C-2″), 122.1 d (C-3′), 2 × 127.6 d, 127.8 d, 128.1 d, 128.7 d, 129.0 d
(Ar), 134.1 s (C-4), 135.9 s (C-3a), 137.2 s and 137.6 s (C-8a, C-10a), 143.6 s (C-4a), 164.6 s
(COOH in oxalate), 172.0 s (COO− in oxalate), 173.4 s (COOH). For C23H25NO6S2 + 0.5 H2O
(484.6) calculated: 57.00% C, 5.41% H, 2.89% N; found: 57.12% C, 5.75% H, 2.72% N.

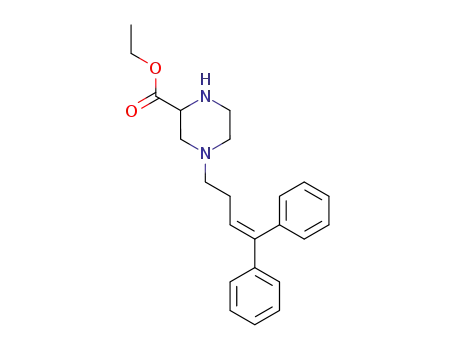

Ethyl 1-(4,4-Diphenyl-3-butene-1-yl)piperazine-3-carboxylate (Vb)
A) A mixture of ethyl piperazine-2-carboxylate9 (3.0 g, 18.9 mmol), 4-bromo-1,1-diphenylbutene10
(5.6 g, 18.9 mmol), triethylamine (1.9 g, 18.9 mmol) and tetrahydrofuran (45 ml) was refluxed for
24 h. The precipitated triethylamine hydrobromide was filtered off, the filtrate was evaporated, the
residue was dissolved in ether and the solution neutralized with HCl in ether; yield 5.5 g (63%)
of Vb dihydrochloride hydrate, m.p. 167 – 169 °C. IR spectrum: 703, 744 (ArH); 1 261, 1 290,
1 308, 1 329, 1 743 (COOR); 1 490, 1 542, 3 010 (Ar); 1 630 (C=C); 2 400, 2 540, 2 635 (NH+);
3 440 (NH). Mass spectrum: 364 (M+, C23H28N2O2, 0.05), 291 (1.6), 171 (100), 128 (10), 98 (17),
1
97 (21), 91 (8), 56 (10), 44 (12). H NMR spectrum (200 MHz): 1.24 t, 3 H (CH3, J = 6.8); 2.53 m,
2 H (H-2a, H-5a); 3.38 – 3.58 m, 7 H (H-2e, H-5e, H-6a, 2 × H-1′, 2 × H-2′); 3.84 d, 1 H
(H-6e, J = 10.8); 4.25 q, 2 H (OCH2, J = 6.8); 4.81 d, 1 H (H-3, J = 7.2); 6.17 t, 1 H (H-3′, J = 6.2);
7.17 – 7.44 m, 10 H (ArH); 10.40 bs, 1 H (NH+). 13C NMR spectrum: 14.0 q (CH3), 24.3 t (C-2′),
