Discovery of a potent and highly specific β2proteasome inhibitor from a library of copper complexes

Article abstract of DOI:10.1016/j.bmcl.2016.10.043

We reported the synthesis, characterization and biological activity of several copper(II) Schiff base complexes, which exhibit high proteasome inhibitory activities with particular selectivity of β₂subunit. Structure–activity relationships info

Full text of DOI:10.1016/j.bmcl.2016.10.043

Bioorganic & Medicinal Chemistry Letters xxx (2016) xxx–xxx
Contents lists available at ScienceDirect
Bioorganic & Medicinal Chemistry Letters
journal homepage: www.elsevier.com/locate/bmcl
Discovery of a potent and highly specific b2 proteasome inhibitor
from a library of copper complexes
a
a
a
a
Tongliang Zhou a, Yuanbo Cai b, Lei Liang a, , Lingfei Yang , Fengrong Xu , Yan Niu , Chao Wang ,
⇑
Jun-Long Zhang b, , Ping Xu a,
⇑
⇑
a Department of Medicinal Chemistry, School of Pharmaceutical Sciences, Peking University Health Science Center, Beijing 100191, China
b Beijing National Laboratory for Molecular Sciences, State Key Laboratory of Rare Earth Materials Chemistry and Applications, College of Chemistry and Molecular Engineering,
Peking University, Beijing 100871, China
a r t i c l e i n f o
a b s t r a c t
Article history:
We reported the synthesis, characterization and biological activity of several copper(II) Schiff base com-
plexes, which exhibit high proteasome inhibitory activities with particular selectivity of b2 subunit.
Structure–activity relationships information obtained from complex Na2[Cu(a4s1)] demonstrated that
distinct bonding modes in b2 and b5 subunits determines its selectivity and potent inhibition for b2
subunit.
Received 10 June 2016
Revised 29 September 2016
Accepted 14 October 2016
Available online xxxx
Ó 2016 Elsevier Ltd. All rights reserved.
Keywords:
Proteasome inhibitors
Schiff base
Copper complex
Drug design
Structure–activity relationships
Metal complexes have been widely used in clinic application
since the great discovery of cisplatin by Rosenberg in the late
1960s.1–5 However, severe side effects like nephrotoxicity, ototox-
icity restrict their use as clinic treatment,6–8 thus development of
new metal complexes with low cytotoxicity, low drug-resistance,
high selectivity as well as potent efficacy is highly demanded.
Among them, copper, as an essential intracellular cofactor for
many enzymes, is playing vital roles in many physiological pro-
cesses. It has gained rapid growing interests and their complexes
have been applied as antitumor drug candidates.9–13 Up to date,
several copper complexes such as some copper–Phenanthroline
complexes have been propelled into pre-clinical research as antitu-
mor drug candidates, which demonstrated considerable antitumor
potential and relatively lower side effects compared with some
platinum drugs. A typically proposed mechanism regarding the
antitumor activity is that copper complexes are able to generate
reactive oxygen species (ROS) which trigger DNA degradation
and apoptosis of cancer cells.14 Recent Letters demonstrated cop-
per complexes also interface cell processes via enzyme inhibi-
tion.15–17 For example, Dou demonstrated some copper Schiff
base complexes which have significant antitumor activity, associ-
ated with proteasome inhibition. The detailed mechanism is prob-
ably cytotoxic effect raised by ROS which is induced by these
copper Schiff base complexes.15 Nevertheless, in this Letter, we
focus on screening copper Schiff base complexes as selective pro-
teasome b2 inhibitors.
The Ubiquitin–Proteasome pathway (UPP), as the major path-
way of intracellular protein degradation in eukaryotic cells, is
essential for some key cellular functions, such as cell cycling, signal
transduction, antigen processing for appropriate immune
responses, and apoptosis.18–20 It also plays a pivotal role in the ori-
gin, evolution and transfer of malignant carcinoma.21 It has been
reported that tumor cells are more sensitive to proteasome inhibi-
tors than normal cells and thus proteasomes are recognized as
promising antitumor drug targets. Recently, many proteasome
inhibitors have been explored extensively as potential antitumor
agents and several successful hits including bortezomib, carfil-
zomib, and marizomib, were approved by FDA in 2003, 2012, and
2014, respectively, for the treatment of multiple myeloma.22–24
It is well known 26S proteasome is a large multicatalytic pro-
tein complex, consisting of two 19S regulatory particles and one
20S catalytic core. Crystal structure (PDB:3MG6) shows that the
active sites of the 20S proteasome are mainly located on the b1,
b2 and b5 subunits, which have caspase-like (C-L), trypsin-like
(T-L), and chymotrypsin-like (ChT-L) activities, respectively.
Recent studies on the function of these subunits demonstrated that
⇑
Corresponding authors. Tel.: +86 8280 1505 (L.L.), +86 6276 7034 (J.-L.Z.),
+86 8280 2632 (P.X.).
E-mail addresses: leiliang@bjmu.edu.cn (L. Liang), zhangjl@pku.edu.cn
(J.-L. Zhang), pingxu@bjmu.edu.cn (P. Xu).
http://dx.doi.org/10.1016/j.bmcl.2016.10.043
0960-894X/Ó 2016 Elsevier Ltd. All rights reserved.
Please cite this article in press as: Zhou, T.; et al. Bioorg. Med. Chem. Lett. (2016), http://dx.doi.org/10.1016/j.bmcl.2016.10.043

2
T. Zhou et al. / Bioorg. Med. Chem. Lett. xxx (2016) xxx–xxx
inhibition of b5 subunit could achieve therapeutic effects.25–31
However, co-inhibition of proteasome b1 or b2 subunit have
attracted much attention, since inhibition of b1 or b2 subunit is also
important in some cancer cell lines.32 So far the effect of inhibition
of b1 or b2 subunit has not been fully elucidated mainly due to the
lack of specific inhibitor. Therefore, exploration of selective protea-
some b1 or b2 inhibitors may provide us more information to study
the mechanism and further develop novel drug candidates, as well
as avoiding side effects. Herein we report the copper Schiff base
complexes as selective proteasome b2 inhibitors with valuable
structure–activity relationship.
The Schiff base contains a C@N double bond as a functional
group prepared by condensation of an aldehyde or ketone with a
primary amine. As ligand, Schiff base coordinates metals in various
states by the lone pair of the nitrogen atom of the C@N moiety and
other electron-rich functional groups.33 In the previous Letters,
various copper Schiff base complexes have been designed with dif-
ferent substituted groups. The synthetic method has also been
explored and optimized.34–36 In this work, we hypothesized that
modification of the Schiff base ligand would change the docking
mode of the inhibitor in the active site of proteasome. As shown
in Figure 1, various diamines (a) and salicylaldehydes (s) were
employed to construct tridentate and tetradentate Schiff base
ligands by typical methods.
Table 1
Schiff base ligands as proteasome inhibitorsa
b
Ligand
IC50
NIc
(l
M)
Ligand
IC50 (lM)
a1s1
a4s4
b1 = 1.26 0.02
b2 = 1.19 0.01
b5 = 1.29 0.08
b1 = 1.65 0.06
b2 = 1.71 0.08
b5 = 1.82 0.18
b1 = 9.38 0.27
b2 = 12.47 0.29
b5 = 10.24 0.30
NI
a2(s3)1/2
a2s3
NI
NI
a4s5
a5s3
a6s1
a3s2
b1 = 7.35 0.16
b2 = 8.20 0.18
b5 = 8.02 0.14
NI
b1 = 9.52 0.27
b2 = 12.32 0.28
b5 = 10.05 0.29
NI
a3s3
a3s5
a6s3
a7s1
NI
NI
a4s1
a8s3
a9s3
NI
NI
a4s3
NI
Bortezomibd
4.2 0.34
a
Values represent the mean SD of three independent experiments, each based
on four biological replicates.
b
Percent inhibition at 25
NI: no inhibition.
Positive control.
l .
g mLÀ1
c
d
Before assessment of the copper Schiff base complexes, we pre-
pared various Schiff base ligands and measured their activity
toward proteasome inhibition (Table 1). Different diamines and
salicylaldehydes were chosen to construct a library for further
study of structure–activity relationships (Scheme 1). It is revealed
that the synthesized Schiff base ligands showed no selectivity
toward all three b subunits though some have inhibitory activities.
To increase the water solubility of the ligands, sulfonate groups
were introduced to the salicylaldehyde moiety (s3). However, all
the Schiff base ligands containing s3 showed no inhibitory activity
substituted diamine a4 to build Schiff base ligands with disubsti-

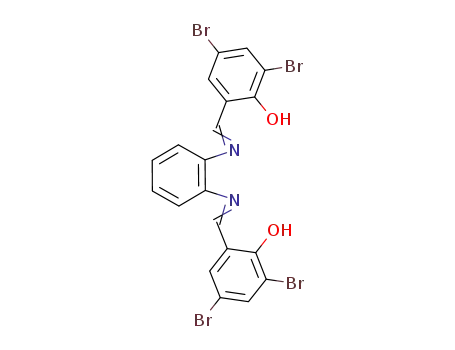

tuted 3,5-dichloro and 3,5-dibromo salicylaldehydes (s4, s5). To
our delight, a4s4, a4s5 showed obvious improvement of protea-
some inhibitory activity around 1 lM despite a4s3 was incompe-
tent. Bulky diamine moiety binaphthyl diamine a9 was used to
replace a4, but the activity disappeared. Furthermore, when the
salicylaldehyde moiety s5 was fixed, a3s5 was prepared to com-
pare with a4s5. Although both of them have activity, a3s5 showed
higher IC50 approximately 6 times to a4s5. Therefore, both the dia-
mine and the salicylaldehyde are crucial, and precise collaboration
of these two moieties is essential for the rational design of metal
Schiff base complexes as proteasome inhibitors.
Then we synthesized series of copper(II) and platinum(II) com-
plexes in different solvents with modest to good yields (Scheme 1).
To confirm the accurate structure of the copper(II) complex, proper
diffusion of ethanol into the aqueous solution of Na2[Cu(a2s3)]
afforded brownish red crystals. Before this, crystal structure of
Na2[Cu(a2s3)] with half-hydrolyzed C@N bond has been reported
by Rogez and co-workers.37 In this work, we obtained the intact
single crystal of Na2[Cu(a2s3)] which crystallizes in the triclinic
P1 space group. The X-ray diffraction reveals a complete Schiff base
ligand in the space lattice consists of NNOO tetradentate coordina-
tion with a central copper ion structure. It is also clear to see the
two deprotonated sulfonate groups on the salicylaldehydes bond-
ing sodium ions (Fig. 2).
except a5s3 which exhibited IC50 10 lM for all b subunits. a2s3,
a3s3, a4s3, a6s3, a8s3, a9s3 and the tridentate ligand a2(s3)1/2
showed negligible activities. Moreover, tetradentate ligands
including a1s1, a4s1, a6s1, a7s1 showed no activities neither.
To identify the diamine moiety, we used the 5-carboxylic acid
Although complexation of copper ion with Schiff base ligand
might change the structure significantly, the primary results of
proteasome inhibition of the Schiff base ligands are still valuable.
We considered that complexation of copper ion with Schiff base
ligand might change the activity by alteration of the molecular
configuration and further the bonding mode in the active site of
proteasome. Before the evaluation of copper(II) complexes, we
examined the fluorescence spectrum of our compounds including
all the Schiff base ligands and copper(II) complexes in the presence
of the reaction buffer, all of them showed negligible fluorescence
intensity under the test condition of proteasome inhibition exper-
iment. Furthermore, we tested the fluorescence of Schiff base
ligand with addition of magnesium ion in HEPEs buffer but no
obvious change of fluorescence spectrum has been observed
which indicated that magnesium ion has no influence to our
Figure 1. Different diamines and salicylaldehydes used in this work.
Please cite this article in press as: Zhou, T.; et al. Bioorg. Med. Chem. Lett. (2016), http://dx.doi.org/10.1016/j.bmcl.2016.10.043

T. Zhou et al. / Bioorg. Med. Chem. Lett. xxx (2016) xxx–xxx
3
R1
R1
CHO
OH
N
NH2
N
O
NH
Cu
R1
EtOH
reflux
Cu(OAc)2
MeOH
+
R4
R4
OH
R4
H2N
NH2
R3
R2
R3
R2
R3
R2
as1/2
a
s1/2
Cu(as1/2)
R1
N
R1
CHO
OH
N
N
O
N
O
Cu
R1
Cu(OAc)2
MeOH
EtOH
reflux
+ 2R4
R4
OH HO
R4
R4
R4
H2N
NH2
R3
R2
R3
R2
R2
R3
R3
R2
R2
R3
a
s
as
Cu(as)
Scheme 1. Synthetic routes of tridentate and tetradentate copper(II) Schiff base complexes.
Figure 2. An ORTEP view (50% ellipsoids) of Na2[Cu(a2s3)] (CCDC 847754).
experiments.38 Then we did control experimental to eliminate the
possible quenching and we found the copper(II) complexes does
not quench the final fluorescent readout. All of these preliminary
experiments showed the possible deviation of our results inter-
rupted by photoluminescence does not exist thus we initiated
our biological evaluation of these copper(II) complexes.
As shown in Table 2, although the Schiff base ligands and their
corresponding copper complexes exhibited nonparallel relation-
ship on the proteasome inhibition, we still found encouraging
results that Na2[Cu(a3s3)], Na2[Cu(a4s4)], Na2[Cu(a4s5)] and
Na2[Cu(a9s3)] showed obvious proteasome b2 inhibitory activities
with negligible effect on b1 and b5 subunits. It is noteworthy that
Na2[Cu(a4s1)] showed submicromolar IC50 toward b2 subunit.
Besides, Na2[Cu(a2s3)] also showed b2 inhibitory activity approxi-
mate to Na2[Cu(a4s1)]. Parallel to the results of Schiff base ligands,
5-carboxylic acid substituted diamine a4 played positive role in
proteasome b2 inhibition. All copper complexes containing a4 moi-
ety exhibited moderate to excellent activities. In detail, s3 still
played negative role similar to the results obtained from Schiff
base ligands. In spite of the negative effect of s3 involved in the
specific type of a4 family, it reversed the effect in Na2[Cu(a2s3)]
and Na2[Cu(a9s3)]. Structure differentiation affecting the interac-
tion between copper complexes and their targets is accountable
for the proteasome inhibition though the details are not clear.
To reveal the structure–activity relationships, AutoDock was
often used in our previous study as one of the powerful tools.39
Herein, Autodock 4.2 was used to predict of the bonding mode
between the potent copper complexes and different proteasome
b subunits by docking Cu(a4s1) into b2 and b5 subunits (PDB:
5cgi) of proteasome respectively. As shown in Figure 3a and b,
the 3,4-diaminobenzoic acid moiety stretched into the pocket of
b2, generating hydrogen bonds between OH(Thr1)-COOH, C@O
(Arg19)-COOH, NH(Lys33)-COOH. Meanwhile, the salicylaldehyde
groups are buried in the gap, with the two oxygen atoms as part
of the hydrogen bond network together with Gln22. In another
case, the binding mode of Cu(a4s1) in b5 subunit is distinguished.
Table 2
Copper Schiff base complexes as proteasome b2 inhibitorsa
b
Complex
IC50
(lM)
Complex
IC50 (lM)
Na2[Cu(a1s1)]
Na2{Cu[a2(s3)1/2]}
Na2[Cu(a2s3)]
Na2[Cu(a3s2)]
Na2[Cu(a3s3)]
Na2[Cu(a4s1)]
Na2[Cu(a4s3)]
Na2[Cu(a4s4)]
NIc
NI
1.08 0.09
NI
7.01 0.14
0.89 0.02
23.94 0.32
3.77 0.21
Na2[Cu(a4s5)]
Na2[Cu(a5s3)]
Na2[Cu(a6s1)]
Na2[Cu(a6s3)]
Na2[Cu(a7s1)]
Na2[Cu(a8s3)]
Na2[Cu(a9s3)]
Bortezomibd
7.65 0.24
NI
NI
NI
NI
NI
6.78 0.18
4.2 0.34
a
Values represent the mean SD of three independent experiments, each based
on four biological replicates.
b
Percent inhibition at 25
NI: no inhibition.
l
gÁmLÀ1
.
c
d
Positive control.
Please cite this article in press as: Zhou, T.; et al. Bioorg. Med. Chem. Lett. (2016), http://dx.doi.org/10.1016/j.bmcl.2016.10.043

4
T. Zhou et al. / Bioorg. Med. Chem. Lett. xxx (2016) xxx–xxx
Figure 3. (a) and (b) Conformation of Cu(a4s1) in proteasome b2 subunit. (c) (d) Cu(a4s1) in proteasome b5 subunit.
As shown in Figure 3c and d, the spatial orientation of Cu(a4s1) in
b5 subunit is opposite. The hydrogen bonds formed by nearest resi-
dues of amino acids including Thr1, Gly47 with two phenoxy oxy-
gen atoms of salicylaldehydes [OH(Thr1)-O, OH(Gly47)-O].
Besides, the phenoxy group of Tyr170 might has interaction with
the copper center.
Supplementary data
Supplementary data associated with this article can be found, in
the online version, at http://dx.doi.org/10.1016/j.bmcl.2016.10.
043.
Comparing the bonding mode of Cu(a4s1) in b2 and b5 subunits,
it is observed clearly that the buried depth and spatial orientation
of inhibitor in each pocket, the amount and pattern of hydrogen
bonds are quite different. Due to the carboxylic group, the spatial
orientation of Cu(a4s1) in b2 and b5 subunits are opposite while
Cu(a4s1) embedded deeper in b2 than in b5. Moreover, the amount
of hydrogen bonds between Cu(a4s1) and target in b2 subunit is
more than that in b5 subunit. All of these differences might con-
tribute to the selective proteasome inhibition of copper(II)
complexes.
In summary, we demonstrated the design, synthesis and biolog-
ical evaluation of series of copper(II) Schiff base complexes as pro-
teasome inhibitors. Consequently we discovered several copper(II)
Schiff base complexes which exhibited highly inhibitory activities
toward proteasome with selective b2 subunit inhibition. Together,
some valuable structure–activity relationships information has
been obtained in our present study which may lead further opti-
mization for copper complexes as antitumor drug candidates.
Mechanistic study and other evaluation of these copper Schiff base
complexes as antitumor agents is now underway in our laboratory.
References and notes
1. (a) Rosenberg, B.; Van Camp, L.; Krigas, T. Nature 1965, 205, 698; (b) Rosenberg,
B.; Van Camp, L.; Trosko, J. E.; Mansour, V. H. Nature 1969, 222, 385.
2. Guo, Z.-J.; Sadler, P. J. Angew. Chem., Int. Ed. 1999, 38, 1513.
3. Selvakumaran, M.; Pisarcik, D. A.; Bao, R.; Yeung, A. T.; Hamilton, T. C. Acad. J.
Cancer. Res. 2003, 63, 1311.
4. Freitas, N.; Gomes, A.; Porto, G.; Fernandes, E. J. Biol. Inorg. Chem. 2010, 15,
1275.
5. Kabolizadeh, P.; Engelmann, B. J.; Pullen, N.; Stewart, J. K.; Ryan, J. J.; Farrell, N.
P. J. Biol. Inorg. Chem. 2012, 17, 123.
6. Baird, R. D.; Kaye, S. B. Eur. J. Cancer 2003, 39, 2450.
7. Hartmann, J. T.; Lipp, H. P. Expert. Opin. Pharm. 2003, 4, 889.
8. Wang, D.; Lippard, S. J. Nat. Rev. Drug. Disc. 2005, 4, 307.
9. Linder, M. Biochemistry of Copper; Plenum Press: New York, 1991.
10. Aggett, P. J.; Fairweather-Tait, S. Am. J. Clin. Nutr. 1998, 67, 1061S.
11. Labbe, S.; Thiele, D. J. Trends Microbiol. 1999, 7, 500.
12. Tapiero, H.; Townsend, D. M.; Tew, K. D. Biomed. Pharm. 2003, 57, 386.
13. Finney, L.; Vogt, S.; Fukai, T.; Glesne, D. Clin. Exp. Pharm. Phys. 2009, 36, 88.
14. Tardito, S.; Marchiò, L. Curr. Med. Chem. 2009, 16, 1325.
15. (a) Adsule, S.; Barve, V.; Chen, D.; Ahmed, F.; Dou, Q. P.; Padhye, S.; Sarkar, F. H.
J. Med. Chem. 2006, 49, 7242; (b) Zhang, X.; Bi, C.; Fan, Y.; Cui, Q.; Chen, D.; Xiao,
Y.; Dou, Q. P. Int. J. Mol. Med. 2008, 22, 677; (c) Xiao, Y.; Bi, C.; Fan, Y.; Cui, Q.;
Zhang, X.; Dou, Q. P. Int. J. Oncol. 2008, 1073, 33; (d) Padhye, S.; Yang, H.;
Jamadar, A.; Cui, Q.; Chavan, D.; Dominiak, K.; Mckinney, J.; Banerjee, S.; Dou,
Q. P.; Sarkar, F. H. Pharm. Res. 1874, 2009, 26; (e) Zhai, S.; Yang, L.; Cui, Q. C.;
Sun, Y.; Dou, Q. P. J. Biol. Inorg. Chem. 2010, 15, 259; (f) Zhang, Z.; Bi, C.; Schmitt,
S. M.; Fan, Y.; Dong, L.; Zuo, J.; Dou, Q. P. J. Biol. Inorg. Chem. 2012, 17, 1257; (g)
Zhang, Z.; Bi, C.; Fan, Y.; Zhang, N.; Deshmukh, R.; Yan, X.; Lv, X.; Zhang, P.;
Zhang, X.; Dou, Q. P. J. Biol. Inorg. Chem. 2015, 205, 109.
Acknowledgments
This work was supported by the National Natural Science Foun-
dation of China (21202003/21571007/21271013), the Beijing Nat-
ural Science Foundation (7162110).
16. Holla, B. S.; Veerendra, B.; Shivananda, M. K.; Poojary, B. Eur. J. Med. Chem.
2003, 38, 759.
17. Creaven, B. S.; Duff, B.; Egan, D. A.; Kavanagh, K.; Rosair, G.; Thangella, V. R.;
Walsh, M. Inorg. Chim. Acta 2010, 363, 4048.
Please cite this article in press as: Zhou, T.; et al. Bioorg. Med. Chem. Lett. (2016), http://dx.doi.org/10.1016/j.bmcl.2016.10.043

T. Zhou et al. / Bioorg. Med. Chem. Lett. xxx (2016) xxx–xxx
5
18. Clechanover, A. Cell 1994, 79, 13.
19. Hochstrasser, M. Curr. Opin. Cell Biol. 1995, 7, 215.
Overkleeft, H. S.; Kisselev, A. F. Chem. Biol. 2009, 16, 1278; (b) Screen, M.;
Britton, M.; Downey, S. L.; Verdoes, M.; Voges, M. J.; Blom, A. E. M.; Geurink, P.
P.; Risseeuw, M. D. P.; Florea, B. I.; van der Linden, W. A.; Pletnev, A. A.;
Overkleeft, H. S.; Kisselev, A. F. J. Biol. Chem. 2010, 285, 40125; (c) Mirabella, A.
C.; Pletnev, A. A.; Downey, S. L.; Florea, B. I.; Shabaneh, T. B.; Britton, M.;
Verdoes, M.; Filippov, D. V.; Overkleeft, H. S.; Kisselev, A. F. Chem. Biol. 2011, 18,
608.
20. Orlowski, R. Z.; Dees, E. C. Breast Cancer Res. 2003, 5, 1.
21. Borissenko, L.; Groll, M. Chem. Rev. 2007, 107, 687.
22. Huber, E. M.; Groll, M. Angew. Chem., Int. Ed. 2012, 51, 8708.
23. Rentsch, A.; Landsberg, D.; Brodmann, T.; Bülow, L.; Girbig, A.-K.; Kalesse, M.
Angew. Chem., Int. Ed. 2013, 52, 5450.
24. Buckley, D. L.; Crew, C. M. Angew. Chem., Int. Ed. 2014, 53, 2312.
25. Imajoh-Ohmi, S.; Kawaguchi, T.; Sugiyama, S.; Tanaka, K.; Omura, S.; Kikuchi,
H. Biochem. Biophys. Res. Commun. 1995, 217, 1070.
33. Cozzi, P. G. Chem. Soc. Rev. 2004, 33, 410.
34. Liang, L.; Wang, W.; Wu, J.; Xu, F.; Niu, Y.; Xu, B.; Xu, P. Chem. Eur. J. 2013, 19,
13774.
26. Seemüller, E.; Lupas, A.; Stock, D.; Löwe, J.; Huber, R.; Baumeister, W. Science
1995, 268, 579.
27. Shinohara, K.; Tomioka, M.; Nakano, H.; Tone, S.; Ito, H.; Kawashima, S.
Biochem. J. 1996, 317, 385.
35. Cai, Y.; Liang, L.; Zhang, J.; Sun, H.; Zhang, J.-L. Dalton Trans. 2013, 42, 5390.
36. (a) Qu, Y.; Ke, F.; Zhou, L.; Li, Z.; Xiang, H.; Wu, D.; Zhou, X.-G. Chem. Commun.
2011, 3912; (b) Wang, Y.; Wu, Z.; Wang, L.; Li, Z.; Zhou, X.-G. Chem. Eur. J. 2009,
15, 8971.
28. Drexler, H. C. Proc. Natl. Acad. Sci. U.S.A. 1997, 94, 855.
29. Lopes, U. G.; Erhardt, P.; Yao, R.; Cooper, G. M. J. Biol. Chem. 1997, 272, 12893.
30. Amici, M.; Forti, K.; Nobili, C.; Lupidi, G.; Angeletti, M.; Fioretti, E.; Eleuteri, A.
M. J. Biol. Inorg. Chem. 2002, 7, 750.
37. Delahaye, É.; Diop, M.; Welter, R.; Boero, M.; Massobrio, C.; Rabu, P.; Rogez, G.
Euro. J. Inorg. Chem. 2010, 28, 4450.
38. Lin, H.-C.; Huang, C.-C.; Shi, C.-H.; Liao, Y.-H.; Chen, C.-C.; Lin, Y.-C.; Liu, Y.-H.
Dalton Trans. 2007, 781.
31. Gallastegui, N.; Beck, P.; Arciniega, M.; Huber, R.; Hillebrand, S.; Groll, M.
Angew. Chem., Int. Ed. 2012, 51, 247.
32. (a) Britton, M.; Lucas, M. M.; Downey, S. L.; Screen, M.; Pletnev, A. A.; Verdoes,
M.; Tokhunts, R. A.; Amir, O.; Goddard, A. L.; Pelphrey, P. M.; Wright, D. L.;
39. (a) Fu, Y.; Xu, B.; Zou, X.; Ma, C.; Yang, X.; Mou, K.; Fu, G.; Lv, Y.; Xu, P. Bioorg.
Med. Chem. Lett. 2007, 17, 1102; (b) Sun, Q.; Xu, B.; Niu, Y.; Xu, F.; Liang, L.;
Wang, C.; Yu, J.; Yan, G.; Wang, W.; Jin, H.; Xu, P. ChemMedChem 2015, 10, 498.
Please cite this article in press as: Zhou, T.; et al. Bioorg. Med. Chem. Lett. (2016), http://dx.doi.org/10.1016/j.bmcl.2016.10.043
