10070 J. Am. Chem. Soc., Vol. 118, No. 42, 1996
Gregg and Cutler
far, SiH/SiD isotope exchange,3a hydrosilane alcoholysis,9a
hydrosilation of organic aldehydes and ketones,9b,10 hydrosila-
tion-reduction of esters,9c and silation of carboxylic acids.9d
Previously, Gladysz and co-workers11 reported that treating
aldehydes with (CO)5MnSiMe3 produced R-(trimethylsiloxy)-
alkyl compounds (CO)5MnCH(OSiMe3)R. Although reported
to be unstable, these compounds were carbonylated and deriva-
tized as their acyl complexes. Akita, Moro-oka, and co-workers8
generated examples of (CO)5MnCH(OSiHPh2)R in C6D6 or THF
by hydrosilation of (CO)5MnC(O)R (eq 1) with excess H2SiPh2
and 1% (PPh3)3RhCl. The rhodium catalyst, however, is
unnecessary.1a,c In an earlier study on the reaction of triethyl-
silane and 1 in THF, Wegman12a reported that a 10-fold excess
of this silane and 1 atm of CO (at 25°C) exclusively gave
acetaldehyde and (CO)5MnSiEt3.
We now report the hydrosilation chemistry involving 1 and
13 monohydrosilanes. Ten R-siloxyethyl complexes
(CO)5MnCH(OSiR3)CH3 (2) were generated, seven of which
were isolated in 46-70% yields after column chromatography
and five of which were carbonylated to give their R-siloxypro-
pionyl derivatives (CO)5MnC(O)CH(OSiR3)CH3 (4). In six of
the hydrosilation reactions, R-siloxyvinyl byproducts (CO)5MnC-
(OSiR3)dCH2 (3) were detected, with triethylsilane producing
(CO)5MnC(OSiEt3)dCH2 (3j) as the major product. We
account for the formation of both products 2 and 3 by an
autocatalytic pathway in which silane-induced degradation of
the initially formed 2 provides the active catalyst. Observations
on forming and subsequently degrading (CO)5MnCH(OSiMe2-
Ph)CH3 (2a), (CO)5MnCH(OSiEt3)CH3 (2j), and other manga-
nese complexes with excess monohydrosilanes accordingly are
discussed.
over activated 4 Å molecular sieves. Triethylsilane was dried over
freshly activated 4 Å molecular sieves and fractionally distilled. Only
the fraction that was collected over the boiling point range 107-108
1
°C was used; its NMR spectral data, H δ 3.87 (sept, J ) 3.1 Hz,
SiH), 0.97 (t, J ) 6.8, SiCH2CH3), 0.54 (m, SiCH2CH3); 13C{1H} δ
8.3 (SiCH2CH3), 2.9 (SiCH2CH3); 29Si{1H} δ 0.42, are consistent with
the absence of the disiloxane (Et3Si)2O [13C{1H} δ 7.0 (SiCH2CH3),
6.8 (SiCH2CH3); 29Si{1H} δ 9.29] or detectable concentrations of other
triethylsilyl derivatives.
14
Manganese complexes (CO)5MnC(O)CH3 (1) and (CO)5MnCH3
were prepared by treating Mn(CO)5-K+ 15 in THF with acetyl chloride
or methyl iodide. The acetyl 1 was isolated as a pale yellow solid
(86% yield) after column chromatography on flash-grade silica gel/
hexane, before it was sublimed to a cooled probe (-78 °C) at 10-1
Torr. The p-toluoyl complex (CO)5MnC(O)-p-C6H4CH316 was prepared
by a similar procedure and was purified by column chromatography
on flash-grade silica gel/hexane. Samples of (CO)5MnCH2CH3,17 (CO)5-
MnSi(CH3)2Ph (5a),1a (PPh3)(CO)4MnC(O)CH3,18 CH3CH2OSiMe2Ph
(7a), and CH3CH2OSiEt3 (7j)9a,19 were prepared by literature procedures
1
and judged pure by IR and H NMR spectroscopy.
Hydrosilation of (CO)5MnC(O)CH3 (1) with Monohydrosilanes.
Dimethylphenylsilane. A pale yellow solution of 1 (300 mg, 1.26
mmol) in 600 mg of C6D6 was treated with HSiMe2Ph (172 mg, 1.26
mmol) before it was transferred to a NMR tube and securely stoppered
with a rubber septum. The solution turned dark orange within 25 min
as 1 was depleted (1H NMR spectral monitoring). This solution was
chromatographed on a 1 × 4 cm column of deactivated silica gel (60-
200 mesh) with hexane; an orange band was eluted (30 mL), leaving
the column pale orange. The first five drops of the eluate, which
retained contaminating (PhMe2Si)2O (1H NMR, δ 0.31, SiMe), were
discarded. Evaporation of solvent from the remaining eluate left an

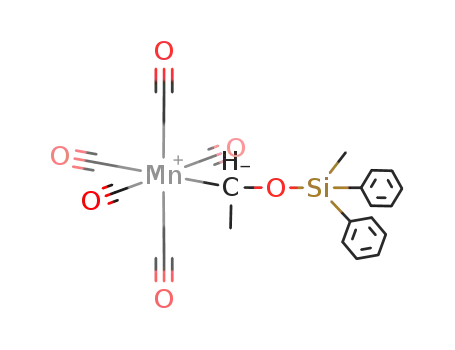

orange oil (258 mg) that was identified as (CO)5MnCH(OSiMe2Ph)-
CH3 (2a) (55% yield). Anal. Calcd for C15H15O6SiMn: C, 48.13; H,
4.04. Found: C, 48.06; H, 4.04.
Monohydrosilanes. Analogous experimental conditions were used
for the other monohydrosilanes; R-siloxyethyl complexes 2b-2h were
isolated as spectroscopically pure orange oils (Table 1). For (CO)5MnCH-
(OSiMe2OSiMe3)CH3 (2d), Anal. Calcd for C12H19O7Si2Mn: C, 37.30;
H, 4.96. Found: C, 36.99; H, 4.61. Spectral data are in Table 2.
Hydrosilation of (CO)5MnC(O)CH3 (1) with Triethylsilane.
Reaction Profile. Manganese acetyl 1 (112 mg, 0.47 mmol), HSiEt3
(100 mg, 0.87 mmol), and anisole (33 mg, 0.31 mmol) were dissolved
in 600 mg of C6D6 and then transferred to a 5-mm NMR tube that was
fitted with a rubber septum. 1H NMR spectra were recorded within
10 min using spectrometer parameters that had been optimized with a
38° pulse angle for quantitative analyses of known concentrations of 1
and anisole. As a result, integration traces are believed to be accurate
to within (5%. The spectrometer pulse delay time of 10 s coincided
with measurements of spin-lattice (T1) relaxation times by a standard
inversion-recovery experiment: 1 (δ 2.22, T1 ) 0.11 s), (CO)5MnC-
(OSiEt3)dCH2 (3j) (T1 ) 1.21 and 1.27 s), and PhOCH3 (δ 3.31, T1 )
2.58 s).
Experimental Section
Synthetic manipulations were performed in a nitrogen atmosphere
using a combination of standard Schlenk line, glovebox, and vacuum
line procedures.13 Infrared spectra were recorded on a Perkin-Elmer
Model 1600 FT spectrophotometer. NMR spectral data were obtained
in C6D6 and were reported as δ values relative to residual C6D5H (1H,
7.15 ppm), C6D6 (13C, 128.00 ppm), and external SiMe4 (29Si, 0 ppm)
using Varian Model XL-200, Unity 500, and IBM-WP100 spectrom-
eters. 29Si{1H} NMR spectra of concentrated C6D6 solutions containing
Cr(acac)3 (0.5 mol %) were recorded using inverse gated decoupling
for ∼500 transients (<1 h) using a 90° pulse angle and a 1 s delay
time. Combustion microanalyses were done by Quantitative Technolo-
gies, Bound Brook, NJ.
Organic and inorganic reagents were obtained commercially and used
as received; silanes and C6D6 were stored in a glovebox under nitrogen.
Diethyl ether, hexane, and benzene were distilled from sodium
benzophenone ketyl; acetonitrile was purged with nitrogen and stored
NMR spectral scans, recorded every 10 min, were integrated vs the
anisole internal standard signal, δ 3.31 (s, PhOCH3). The following
(9) (a) Gregg, B. T.; Cutler, A. R. Organometallics 1994, 13, 1039. (b)
DiBiase-Cavanaugh, M.; Gregg, B. T.; Cutler, A. R. Manuscript submitted.
(c) Mao, Z.; Gregg, B. T.; Cutler, A. R. J. Am. Chem. Soc. 1995, 117,
10139. (d) Mao, Z.; Gregg, B. T.; Cutler, A. R. Manuscript in preparation.
(10) Reviews: (a) Ojima, I. In The Chemistry of Organic Silicon
Compounds; Patai, S., Rappoport, Z., Eds.; Wiley: New York, 1989;
Chapter 25. (b) Chaloner, P. A. Handbook of Coordination Catalysis in
Organic Chemistry; Butterworths: Boston, 1986; Chapter 7.2. (c) Marciniec,
B.; Gulin˜ski, J. J. Organomet. Chem. 1993, 446, 15.
(14) (a) Closson, R. D.; Kozikowski, J.; Coffield, T. H. J. Org. Chem.
1957, 22, 598. (b) King, R. B. Organometallic Syntheses; Academic Press:
New York, 1965; Part I, Vol. 1, p 147. (c) Mckinney, R. J.; Crawford, S.
S. Inorg. Synth. 1989, 26, 155. (c) Anderson,J. M.; Moss, J. R. Organo-
metallics 1994, 13, 5013.
(15) Gladysz, J. A.; Williams, G. M.; Tam, W.; Johnson, D. L.; Parker,
D. W.; Selover, J. C. Inorg. Chem. 1979, 18, 553.
(11) (a) Gladysz, J. A. Acc. Chem. Res. 1984, 17, 326. (b) Johnson, D.
L.; Gladysz, J. A. Inorg. Chem. 1981, 20, 2508. (c) Brinkman, K. C.;
Gladysz, J. A. Organometallics 1984, 3, 147. (d) Selover, J. C.; Vaughn,
G. D.; Strouse, C. E.; Gladysz, J. A. J. Am. Chem. Soc. 1986, 108, 1455.
(e) Vaughn, G. D.; Strouse, C. E.; Gladysz, J. A. J. Am. Chem. Soc. 1986,
108, 1462. Vaughn, G. D.; Gladysz, J. A. J. Am. Chem.. Soc. 1986, 108,
1473. Vaughn, G. D.; Krein, K. A.; Gladysz, J. A. Organometallics 1986,
5, 936. (f) Brinkman, K. C.; Vaughn, G. D.; Gladysz, J. A. Organometallics
1982, 1, 1056.
(12) (a) Wegman, R. W. Organometallics 1986, 5, 707. (b) Kovacs, I.;
Sisak, A.; Ungvary, F.; Marko, L. Organometallics 1988, 7, 1025.
(13) Shriver, D. F.; Drezdon, M. A. The Manipulation of Air-SensitiVe
Compounds, 2nd ed.; Wiley-Interscience: New York, 1986.
(16) (a) Lukehart, C. M.; Torrence, G. P.; Zeile, J. V. Inorg. Synth. 1978,
18, 56. (b) Motz, P. L.; Sheeran, D. J.; Orchin, M. J. Organomet. Chem.
1990, 383, 201.
(17) (a) Hieber, W.; Wagner, G. Justus Liebigs Ann. Chem. 1958, 618,
24. (b) Hieber, W.; Braun, G.; Beck, W. Chem. Ber. 1960, 93, 901. (c)
Green, M. L. H.; Nagy, P. L. I. J. Organomet. Chem. 1963, 1, 58.
(18) (a) Mawby, R. J.; Basolo, F.; Pearson, R. G. J. Am. Chem. Soc.
1964, 86, 5043. (b) Kraihanzel, C. S.; Maples, P. K. Inorg. Chem. 1968, 7,
1806. (c) Noack, K.; Ruch, M.; Calderazzo, F. Inorg. Chem. 1968, 7, 345.
(19) Caseri, W.; Pregosin, P. S. Organometallics 1988, 7, 1373.
(20) Messerle, L. In Experimental Organometallic Chemistry; ACS
Symposium Series No. 357; Wayda, A. L., Darensbourg, M. Y., Eds.;
American Chemical Society: Washington, DC, 1987; Chapter 7, p 198.
