Notes
J . Org. Chem., Vol. 63, No. 12, 1998 4161
th a t a n a p p r op r ia te sep tu m is u tilized a s a p r essu r e r elief
d evice. The pKa of 1 was determined by an alkalimetric
titration (KOH) with a computerized instrument.31 TLC was
carried out using precoated silica gel plates (60F254 80.2 mm,
Merck) in 15-30% diethyl ether in isohexane, and the spots were
detected with UV light. Column chromatography was carried
out using silica gel (Merck G60) and gradient elution using
diethyl ether and isohexane. The elemental analyses were
performed by MikroKemi AB, Uppsala, Sweden.
nucleophiles, such as malonate or â-keto esters, is not
facile. The presence of a cyano group26 combined with
strong bases, e.g. t-BuOK or NaH, is reported to be
essential for successful reactions (Takahashi aryla-
tion).27,28 Therefore, it seems less likely that 3 is derived
from a direct halide displacement by an enolate anion.25,29
Moreover, no arylated products were traced in reactions
where NaH had been employed as base.
Ma ter ia ls. 1,2-Cyclohexanedione (1) was obtained from
Sigma, and palladium(II) acetate was purchased from Merck-
Schuchardt. 2-Ethoxy-2-cyclohexenone (4) was prepared as
described in this section but is also sold by Aldrich. Triph-
enylphosphine (Merck) was recrystallized from 95% ethanol, and
diisopropylethylamine (Fluka) was stored over potassium hy-
droxide. All other reagents obtained from commercial sources
were used without further purification. Products 3b,6d 3f,6c,d,f
and 5f6e have been synthesized and characterized by other
authors.
Gen er a l P r oced u r e for th e P r ep a r a tion of 2-Hyd r oxy-
3-a r yl-2-cycloh exen on es (3a -h ). A mixture of 1 (1.0 mmol,
112 mg), aryl bromide (4.0 mmol), diisopropylethylamine (4.0
mmol, 515 mg), Pd(OAc)2 (0.05 mmol, 11.2 mg), Ph3P (0.12 mmol,
31.5 mg), and water (0.75 mL) in DMF (4.25 mL) was degassed
under a nitrogen flow for 5 min. The reaction mixture was
stirred and heated at 100 °C for an appropriate time (see Table
1). The reaction mixture was allowed to cool and was poured
into a saturated aqueous ammonium chloride solution. The
aqueous layer was extracted with diethyl ether, and the com-
bined organic phases were washed with saturated aqueous
ammonium chloride, dried over MgSO4, filtered, and concen-
trated at reduced pressure. The residue was purified on a silica
gel column to give pure 3a -h .
The formation of the arylated enol ethers 5 can be
explained with an analogous reaction sequence as in
Scheme 1. In this coupling, the C3-functionalized prod-
uct 5 is probably liberated after isomerization via a
palladium-enolate followed by syn-â-elimination.20 No-
tably, the reaction conditions for arylation of both 1 and
4 are identical (except for the choice of ligand with the
electron-deficient aryl bromides).
In conclusion, we propose that the palladium-catalyzed
reaction of 1,2-cyclohexanedione with aryl bromides in
aqueous DMF proceeds via Heck arylation of the enol
form of the dione. The simple procedure, good functional
group tolerance, and availability of the starting materials
render the palladium-catalyzed arylation of 1,2-cyclohex-
anedione and 2-ethoxy-2-cyclohexenone valuable comple-
ments to other existing methods6 for the preparation of
3-aryl-1,2-cyclohexanediones.
Exp er im en ta l Section
Gen er a l Meth od s. Melting points were determined on a
capillary melting point apparatus and are uncorrected. 1H NMR
spectra were recorded (in δ scale) at 400 MHz. 13C NMR spectra
were recorded at 100.4 MHz using 1H-decoupled modes. Chemi-
cal shifts were indirectly referenced to TMS by the solvent signal
(CHCl3: 7.26 and CDCl3: 77.0). Signal assignments were made
from homonuclear and heteronuclear correlated spectra. Low
resolution MS spectra (EI+) were measured at an ionization
potential of 70 eV. The mass detector was interfaced with a gas
The experiments with NaH as base were conducted as
described above (but in absence of water).
2-Hydr oxy-3-(3-m eth ylph en yl)-2-cycloh exen on e (3c). Yel-
low semisolid, 134 mg (66%). 1H NMR (CDCl3): 7.53 (s, 1H,
Ar), 7.52 (d, J ) 7.8 Hz, 1H, Ar), 7.29 (t, J ) 7.8 Hz, 1H, Ar),
7.14 (d, J ) 7.3 Hz, 1H, Ar), 6.71 (s, 1H, OH), 2.79 (t, J ) 5.9
Hz, 2H, H-4), 2.63 (t, J ) 6.6 Hz, 2H, H-6), 2.38 (s, 3H, Me),
2.15-2.09 (m, 2H, H-5). 13C NMR (CDCl3): 195.5, 143.4, 137.7,
137.0, 129.1, 128.7, 128.4, 128.1, 125.3, 35.8, 28.9, 22.6, 21.6.
IR (CH2Cl2): 3417, 1665, 1626, 1374 cm-1. MS m/z (% relative
intensity): 202 (M+, 100), 187 (71), 174 (23), 159 (13), 115 (22),
91 (17). Anal. Calcd for C13H14O2: C, 77.2; H, 6.9. Found: C,
77.7; H, 7.1. HRMS calcd 202.0994. Found 202.0994.
P r ep a r a tion of 2-Eth oxy-2-cycloh exen on e (4). 1,2-Cy-
clohexanedione (40 mmol, 4.48 g), p-toluenesulfonic acid mono-
hydrate (1.05 mmol, 200 mg), and 20 mL of 99.5% ethanol were
dissolved in 120 mL of dry benzene in a 250-mL flask equipped
with a Dean-Stark trap.32 The reaction mixture was heated to
boiling, and the azeotrope (benzene, ethanol and water) was
removed for 16 h. The residual solution was washed with 10%
aqueous sodium hydroxide which had been saturated with
sodium chloride and water and was thereafter concentrated at
reduced pressure. Column chromatography of the crude liquid
yielded 2.36 g (42%) pure product.
chromatograph equipped with
a
HP-1 (25 m × 0.20 mm)
capillary column. High-resolution MS analyses (EI+, mean value
of three determinations) were performed by Mr E. Nilsson,
Instrumentstationen, Kemicentrum, Lund, Sweden. Infrared
spectra were recorded on a FTIR spectrophotometer. All pal-
ladium-catalyzed reactions were carried out in heavy-walled
Pyrex tubes, sealed with a screw cap fitted with a Teflon gasket.
The microwave treatment was performed with a MicroWell 10
single-mode cavity30 from Labwell AB, SE-753 19 Uppsala,
Sweden. The Pyrex tubes used in the microwave experiments
(8 mL, l ) 150 mm) were sealed with a silicon septum. It is not
recommended to repeat these reactions in a multimode domestic
microwave oven producing nonuniform irradiation.16b Ca u tion !
It is im p or ta n t to n ote th a t w h en ca r r yin g ou t m icr ow a ve-
h ea ted r ea ction s in closed vessels it is p ossible to gen er -
a te qu ite la r ge p r essu r es, a n d th er efor e it is im p er a tive

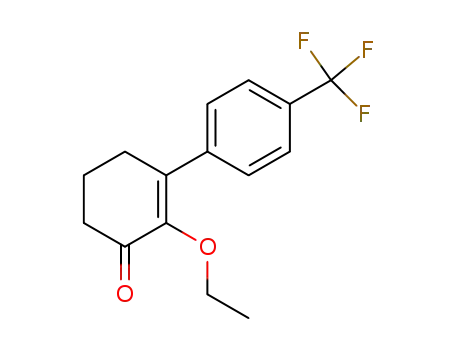

Gen er a l P r oced u r e for th e P r ep a r a tion of 2-Eth oxy-3-
a r yl-2-cycloh exen on es (5a -c,f,i-m ). A mixture of 4 (0.20
mmol, 28.0 mg), aryl bromide (0.80 mmol), diisopropylethyl-
amine (0.80 mmol, 103 mg), Pd(OAc)2 (0.010 mmol, 2.24 mg),
phosphine ligand (0.024 mmol, see Table 2), and water (0.15 mL)
in DMF (0.85 mL) was degassed under a nitrogen flow for 5 min.
The reaction mixture was stirred and heated at 100 °C for an
appropriate time (see Table 2). The reaction mixture was
allowed to cool and was poured into cold water. The aqueous
layer was extracted with diethyl ether, and the combined organic
phases were washed with water, dried over MgSO4, filtered, and
concentrated at reduced pressure. The residue was purified on
a silica gel column to give pure 5a -c,f,i-m .
(26) See ref 1e, p 244.
(27) (a) Uno, M.; Seto, K.; Takahashi, S. J . Chem. Soc., Chem.
Commun. 1984, 932. (b) Uno, M.; Seto, K.; Masuda, M.; Ueda, W.;
Takahashi, S. Tetrahedron Lett. 1985, 26, 1553. (c) Sakamoto, T.;
Katoh, E.; Kondo, Y.; Yamanaka, H. Chem. Pharm. Bull. 1988, 36,
1664. (d) Sakamoto, T.; Kondo, Y.; Suginome, T.; Ohba, S.; Yamanaka,
H. Synthesis 1992, 552.
(28) Intermolecular arylations of soft carbon nucleophiles lacking
cyano groups have been reported with aryl lead(IV) compounds, (a)
Donnelly, D. M. X.; Finet, J .-P.; Rattigan, B. A. J . Chem. Soc., Perkin
Trans. 1 1993, 1729, or with a copper(I) catalyst. (b) Okuro, K.;
Furuune, M.; Miura, M.; Nomura, M. J . Org. Chem. 1993, 58, 7606.
(29) For examples of Pd-catalyzed intramolecular arylations of
enolate anions (from â-diketones or monoketones) see: (a) Ciufolini,
M. A.; Qi, H.-B.; Browne, M. E. J . Org. Chem. 1988, 53, 4151. (b) Piers,
E.; Marais, P. C. J . Org. Chem. 1990, 55, 3454. (c) Piers, E.; Renaud,
J . J . Org. Chem. 1993, 58, 11. (d) Muratake, H.; Hayakawa, A.;
Natsume, M. Tetrahedron Lett. 1997, 38, 7577. (e) Muratake, H.;
Natsume, M. Tetrahedron Lett. 1997, 38, 7581.
(31) The operation of this type of instrument for the determination
of pKa and log P has been described in detail. Avdeef, A. Lipophilicity
in Drug Action and Toxicology; Pliska, V., Testa, B., van de Water-
beemd, H., Eds.; VCH: Weinheim, 1996; p 109.
(30) Stone-Elander, S. A.; Elander, N.; Thorell, J .-O.; Solås, G.;
Svennebrink, J . J . Label. Cmpds. Radiopharm. 1994, 10, 949.
(32) Gannon, W. F.; House, H. O. Org. Synth. 1960, 40, 41.
