SYNTHESIS
Papers
1174

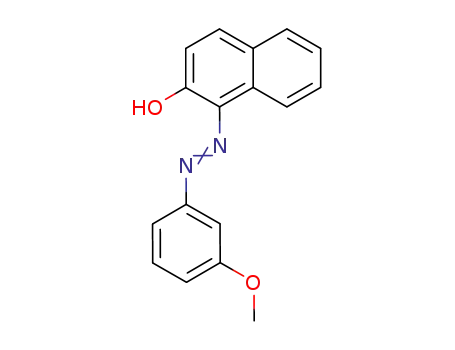

Azo Coupling Reactions: (2-Hydroxy-1-naphthyl)phenyldiazene
(4a); Typical Procedure:
X-ray Analysis of Compound 3s:
Crystals of 3s (C12H7Cl2N3O4S2), grown by slow evaporation from
MeCN, are monoclinic: a = 7.360(1), b = 16.391(2), c = 13.173(2) Å,
b = 99.6(1)°, V = 1566.9 Å3, Dcalc = 1.663 g/cm3, Z = 4, space group
P21/c. The unit-cell parameters and intensities of 3791 independent
reflections were measured on a Philips PW110 four-circle diffracto-
meter, using graphite monochromated MoKα radiation (λ= 0.71073 Å),
θ –2θ scan mode up to θmax = 28°. The structure was solved by direct
methods of SHELXS-86 program.16 Refinement was carried out by
full-matrix least-squares on F2, using the full dataset, with anisotropic
displacement parameters for all non-hydrogen atoms, by application
of the SHELXL-93 program.17 Hydrogen atoms were included at cal-
culated positions with idealized geometry, and during the refinement
A solution of 2-naphthol (0.72 g, 5 mmol) in 10% aq NaOH solution
(4.4 mL, 11 mmol) was added dropwise over a period of 5 min to a
suspension of benzenediazonium o-benzenedisulfonimide (3a;
1.61 g, 5 mmol) in H2O (20 mL), under vigorous stirring. A red pre-
cipitate of 4a began to separate at once. Stirring was continued for 15–
20 min until completion of the reaction. Then the mixture was extracted
with CHCl3 (3 × 60 mL) and the organic extracts were separated from
the aqueous solution and washed with H2O (2 × 50 mL). After drying
(Na2SO4) and solvent removal in vacuo, the residue was virtually pure
4a (1.15 g, 93%). The product was furthermore purified by column
chromatography (silica gel, CHCl3); yield unchanged; mp 133°C
(CHCl3/PE) (Lit.13 mp 133°C). Using the same workup as previously
described,14 o-benzenedisulfonimide (2) was recovered from the aque-
ous solution. This was acidified with concd HCl, concentrated in vacuo
until 4–5 mL and then passed through a 15 g column of Dowex 50 × 8
ion-exchange resin (Fluka), eluting with H2O (about 15 mL). After re-
moval of H2O in vacuo, virtually pure (NMR) 2 was recovered in 94%
yield (1.03 g); mp 192–194°C (toluene) (Lit.8,14 mp 192–194°C).
Also diazenes 4b–t were prepared according to the above procedure.
In all the cases o-benzenedisulfonimide (2) was recovered in yields
usually greater than 90%. Yields and mp are reported in Table 1.
they were allowed to ride on their carrying atom, with U set equal
iso
to 1.2 times the U of the atom to which they are bonded. Refine-
eq
ment converged to R1 = 0.039 [on F, for 2407 reflections with Fo
≥4(σ)Fo] and wR2 = 0.125 (on F2) for all data. The data / restraints /
parameters ratio was 3791 / 0 / 208. Goodness of fit = 0.970. Maxi-
mum shift / e.s.d.s. 0.001. Maximum and minimum ∆ρ in the final
difference Fourier map: +0.45 and –0.32 e/Å3. Selected bond lenghts
and bond angles are listed in Table 2. Complete lists of fractional
atomic coordinates, bond distances, bond angles, and anisotropic dis-
placement parameters have been deposited and are available at the
Cambridge Crystallographic Data Centre.
Thermal Decomposition of Benzenediazonium o-Benzenedisulf-
onimide (3a):
This work was supported by the National Research Council of Italy
(CNR), Legge 95/95 and by Ministero dell’Università e della Ricerca
Scientifica e Tecnologica (MURST).
Procedure A: Salt 3a (1 g) was heated in an oven-dried 10-ml flask
equipped with a drying tube, at 110°C (oil bath) for 10 min, until the
release of nitrogen ceased and a proof of azo coupling reaction with 2-
naphthol was negative. CHCl3 (5 mL) was added to the solid residue
and the mixture was heated under reflux for 5 min. The organic solution
was separated by decantation and the insoluble solid substance was
washed again with the same solvent (2 × 2 mL). The crude residue ob-
tained after evaporation of the solvent under reduced pressure was
chromatographed on a silica gel column with CHCl3 as eluent. Com-
pound 6 was obtained in 18% yield (0.16 g). Anhyd MeOH (5 mL) was
added to the solid substance which was insoluble in CHCl3 and the mix-
ture was heated under reflux for 5–10 min. The organic solution was
separated by decantation and evaporated under reduced pressure to af-
ford virtually pure (NMR) compound 5 in 66% yield (0.60 g).
Procedure B: A suspension of salt 3a (1 g) in anhyd toluene (5 mL)
was heated at 110°C as described above. The release of N2 ceased af-
ter 2 h. The organic solution was separated by decantation from the
insoluble solid substance which was washed again with toluene (2 ×
2 mL). The crude residue obtained after evaporation of the solvent un-
der reduced pressure was chromatographed on a silica gel column
with CHCl3 as eluent. Two fractions were collected. After evapora-
tion under reduced pressure of the first fraction, a solid substance was
obtained. GC and GC/MS analyses showed the presence of three
products, i.e. o-, m- and p-methyldiphenyl, each with m/z 168 (M+),
in a 2.2:1:1.1 ratio; yield: 7% (0.036 g). Structure of the three isomers
was confirmed by comparison with authentic samples (Aldrich).
Evaporation of the second fraction afforded compound 6 in 14% yield
(0.13 g). The solid substance insoluble in toluene was virtually pure
compound 5 (0.72 g, 79%).
(1) General references:
a) Zollinger, H. Diazo Chemistry I; VCH: Weinheim, 1994; pp
24, 25.
b) Engel, A. In Houben-Weyl, 4th ed., Vol. 16a, Part 2; Kla-
mann, D., Ed.; Thieme-Verlag: Stuttgart, 1990; p 1052.
c) Hertel, H. In Ullmann’s Encyclopedia of Industrial Chem-
istry, 5th ed., Vol. A8; Gerhartz, W., Ed.; VCH: Weinheim,
1987; p 506.
d) Wulfman, D. S. In The Chemistry of Diazonium and Diazo
Groups, Part 1; Patai, S., Ed.; Wiley: New York, 1978; pp 250–
252.
e) Putter, R. In Houben-Weyl, 4th ed., Vol. 10/3, Part 3; Stroh,
R., Ed.; Thieme-Verlag: Stuttgart, 1965; pp 32–34.
f) Zollinger, H. Azo and Diazo Chemistry; Interscience Pub-
lishers: New York, 1961; pp 51–53.
g) Roe, A. In Organic Reactions, Vol. 5; Adams, R., Ed.; Wiley:
New York, 1949; pp 194–200.
(2) Haas, A.; Yagupolskii, Y. L.; Klare, C. Mendelev Commun.
1992, 70.
(3) Zhu, S.-Z.; DesMarteau, D. D. Inorg. Chem. 1993, 32, 223.
(4) a) Barbero, M.; Degani, I.; Fochi, R.; Perracino, P. IT Patent
MI97A 000473; 1997. PCT/EP98/01145.
b) Barbero, M.; Degani, I.; Fochi, R.; Perracino, P. 2nd Ger-
man-Italian Symposium, Goslar (Germany), 29.5–1.6.1997, ab-
stract p 32.
Compound 5: mp 194–195°C (from MeOH/PE) (Lit.15 mp 195°C).
1H NMR (CF3 COOD): δ = 7.10–7.35 and 7.50–7.80 (2 m, 5:4, 9 H).
13C NMR (CD3OD): δ = 122.85, 124.61, 130.67, 131.68, 134.71 (d,
CH), 143.30 (s, CS), 213.73 (s, CN).
(5) For the preparation of (CF3SO2)2NH, see:
a) Foropoulos, J.; DesMarteau D. D. Inorg. Chem. 1984, 23,
3720.
MS: m/z = 295 (M+ ).
b) DesMarteau, D. D.; Witz, M. J. Fluorine Chem. 1991, 52, 7.
For the preparation of O2S(CF2)3SO2NH, the following note is
reported in Ref. 3:
Zuberi, S.; DesMarteau, D.D., manuscript in preparation. To
our knowledge, until today no preparation of the reagent is re-
ported in the literature.
Compound 6: mp 106°C (CHCl3/PE).
1H NMR (CDCl3): δ = 7.05–7.70 and 7.95–8.20 (2 m, 5:4, 9 H).
13C NMR (CDCl3): δ = 122.74, 123.58, 128.79, 130.31, 134.35,
136.87 (d, CH), 131.66 (s, CO), 145.12 (s, CS), 148.32 (s, CS).
MS: m/z = 295 (M+).
Anal. C12H9NO4S2 (295.3): calcd C, 48.80; H, 3.07; N, 4.74; S,
21.71; found: C, 48.72; H, 3.04; N, 4.69; S, 21.65.
(6) Barbero, M.; Degani, I.; Fochi, R.; Regondi, V. Gazz. Chim.
Ital. 1986, 116, 165.
