First Successful Molecular Design of an Artificial Lewis
Oligosaccharide Binding System Utilizing Positive Homotropic
Allosterism
Atsushi Sugasaki, Kazunori Sugiyasu, Masato Ikeda, Masayuki Takeuchi, and
Seiji Shinkai*
Contribution from the Department of Chemistry and Biochemistry, Graduate School of Engineering,
Kyushu UniVersity, Fukuoka 812-8581, Japan
ReceiVed March 28, 2001. ReVised Manuscript ReceiVed August 14, 2001
Abstract: We have designed phenylboronic acid group appended Ce(IV) bis(porphyrinate) double decker 1
and meso-meso linked porphyrin 2, useful for the allosteric binding of biologically important saccharides,
Lewis oligosaccharides. Compound 1 binds Lewis oligosaccharides in aqueous media because of the boronic
acid-diol interaction, but the complexation event can occur only above the critical concentrations because of
the sigmoidal [oligosaccharide] versus [complex] isotherm. Compound 1 has a sufficiently high affinity with
Lewis oligosaccharides (K ) 105-106 M-2) with Hill coefficients n of 1.8-2.0, and LewisX series and Lewisa
series give opposite, symmetrical CD spectra. This is the first example of efficient binding of Lewis
oligosaccharides to the artificial receptor, which has become possible by positive homotropic allosterism.
Introduction
approach to these oligosaccharides to develop inhibitors for
selectins.
It is known that oligosaccharides play crucial roles in
molecular recognition events in biological systems. Particularly
noteworthy are Lewis oligosaccharides, such as LewisX (LeX)
and Lewisa (Lea), which are involved in the adhesion of
leukocytes and neutrophils to vesicular endothelical cells during
normal and pathogenic inflammatory responses.1,2 Appearance
of Lewis oligosaccharides on the cell surface and in the blood
serum above the critical concentrations is often a sign associated
with tumor progression and malignancy. For example, overex-
pression of sialyl LewisX (sLeX) containing mucins has been
found in the sera of gastrointestinal, pancreatic, and breast cancer
patients.3 Thus, it is undoubted that sensitive detection of Lewis
oligosaccharides is one of the most urgent subjects to be
developed in the chemical therapeutic field. So far, however,
the investigation has been limited to the approach from the
biochemical field;4,5 the typical examples are (i) the structural
analysis of Lewis oligosaccharides/E-, P-, and L-selectin
complexes as a model of cell adhesion and (ii) the synthetic
Our research purpose is, in contrast to these preceding
biochemical approaches, to develop rationally designed artificial
synthetic receptors for these oligosaccharides, which will lead
to generation of small molecular antagonists and design of
specific sensory systems. It is undoubted that the development
of such artificial receptors is very useful for the sensitive and
convenient detection of these oligosaccharide antigens in the
blood serum.6
(1) (a) Kobata, A. In Biology of Carbohydrates; Ginsburg, V., Robins,
P. W., Eds.; John Wiley and Sons: New York, 1984; Vol. 2, p 87. (b)
Feizi, T. Nature 1985, 314, 53. (c) Hakomori, S. AdV. Cancer Res. 1989,
52, 257. (d) Schauer, R. AdV. Carbohydr. Chem. Biochem. 1982, 40, 131.
(f) Looms, L. M.; Vemura, K.; Childs, R. A.; Paulson, J. C.; Rogers, G.
N.; Scudder, P. R.; Michalski, J.; Hounsell, E. F.; Taylor-Robinson, D.;
Feizi, T. Nature 1984, 307, 560.
(2) (a) Lorant, D. E.; Topham, M. K.; Whatley, R. E.; McEver, R. P.;
Mclntyre, T. M.; Prescott, S. M.; Zimmerman, G. A. J. Clin. InVest. 1993,
92, 559. (b) Lasky, L. A. Science 1992, 258, 964.
(3) (a) Magnani, J. L.; Nilsson, B.; Brockhaus, M.; Zopf, D.; Steplewski,
Z.; Koprowski, H.; Ginsburg, V. Cancer Res. 1983, 43, 5489. (b) Kannagi,
R.; Fukushi, Y.; Tachikawa, T.; Noda, A.; Shin, S.; Shigeta, K.; Hiraiwa,
N.; Fukuda, Y.; Inamoto, T.; Hakomori, S.; Imura, H. Cancer Res. 1986,
46, 2619.
(4) (a) Wada, Y.; Saito, T.; Matsuda, N.; Ohmoto, H.; Yoshino, K.;
Ohashi, M.; Kondo, H. J. Med. Chem. 1996, 39, 2055. (b) Koeller, K. M.;
Smith, M. E. B.; Haung, R.-F.; Wong, C.-H. J. Am. Chem. Soc. 2000, 122,
4241. (c) Wu, W.-g.; Pasternack, L.; Haung, D.-H.; Koeller, K. M.; Lin,
C.-C.; Seitz, O.; Wong, C.-H. J. Am. Chem. Soc. 1999, 121, 2409. (d) Seitz,
O.; Wong, C.-H. J. Am. Chem. Soc. 1997, 119, 8152.
Then, what is the potential strategy for the molecular design?
There are two basic requirements: that is, (i) to sensitively detect
Lewis oligosaccharides, the receptors must have the large
(5) (a) Ichikawa, Y.; Lin, Y.-C.; Dumas, D. P.; Shen, G.-J.; Garcia-
Junceda, E.; Williams, M. A.; Bayer, R.; Ketcham, C.; Walker, L. E.;
Paulson, J. C.; Wong, C.-H. J. Am. Chem. Soc. 1992, 114, 9283. (b) Poppe,
L.; Brown, G. S.; Philo, J. S.; Nikrad, P. V.; Shah, B. H. J. Am. Chem.
Soc. 1997, 119, 1727. (c) Hiramatsu, Y.; Tsujishita, H.; Kondo, H. J. Med.
Chem. 1996, 39, 4547. (d) Hiramatsu, Y.; Moriyama, H.; Kiyoji, T.; Tsukida,
T.; Inoue, Y.; Kondo, H. J. Med. Chem. 1998, 41, 2302. (e) DeFrees, S.
A.; Phillips, L.; Guo, L.; Zalipsky, S. J. Am. Chem. Soc. 1996, 118, 6101.
(f) Allen, J. R.; Harris, S. J.; Danishefsky, S. J. J. Am. Chem. Soc. 2001,
123, 1890.
10.1021/ja010806e CCC: $20.00 © 2001 American Chemical Society
Published on Web 09/29/2001

10240 J. Am. Chem. Soc., Vol. 123, No. 42, 2001
Sugasaki et al.
association constants and (ii) because they are expressed even
in normal tissues and sera,7 the receptor’s function must change
from a tense (T) state to a rest (R) state only above the critical
concentrations as alllosteric proteins seen in nature.
aqueous media to form 1:2 1/Lewis oligosaccharide complexes
with Hill coefficients 1.8-2.0. To the best of our knowledge,
It thus occurred to us that the concept of “positive homotropic
allosterism”8,9 might be successfully applied to the molecular
design of a desired Lewis oligosaccharide binding system,
because (i) the binding isotherm is characterized by a sigmoid-
shaped curve with a steep threshold region and (ii) the
association constants and binding signal are amplified by the
cooperative action in a positive homotropic allosteric binding
process.9h,i Provided that positive homotropic allosterism oper-
ates, as expected, in the Lewis oligosaccharide binding process,
it would become possible to detect these essential oligosaccha-
rides selectively and sensitively only above the critical concen-
trations.

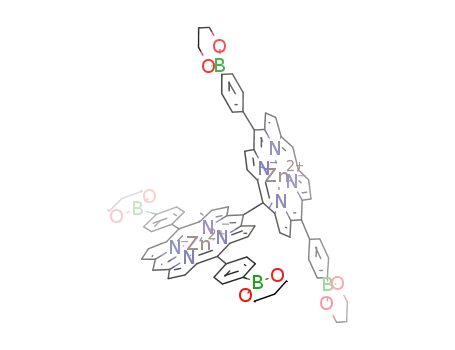

Recently, we designed phenylboronic acid group appended
cerium(IV) bis(porphyrinate) double decker 110 and meso-meso
linked porphyrin dimer 211 as artificial oligosaccharide recep-
tors.12 In these studies, we have demonstrated that (i) compounds
1 and 2 can bind malto- or laminari-oligosaccharides coopera-
tively and effectively in aqueous solution, (ii) the positive
homotropic allosterism is indispensable for highly efficient
oligosaccharide binding, and (iii) the binding signal is amplified
according to a sigmoidal isotherm through positive homotropic
allosterism. These findings clearly show that these compounds
would act as candidates for Lewis oligosaccharide binding
receptors, which are expected to work even in aqueous solution.
In this contribution, we report that 1 can bind Lewis
oligosaccharides because of positive homotropic allosterism in
this is the first totally synthetic artificial receptor which can
touch Lewis oligosaccharides in aqueous media sensitiVely only
aboVe the critical concentrations. The rational amalgamation
of artificial saccharide binding moieties, “boronic acids,”13 and
the concept of “allosterism” now paves the way to construct a
biologically important oligosaccharide sensing system useful in
aqueous solution.
