Formation of imine-vinylidene-osmium(II) derivatives by hydrogen transfer from alkenyl ligands to azavinylidene groups in alkenyl-azavinylidene-osmium(IV) complexes

Article abstract of DOI:10.1021/om0005295

Treatment at room temperature of the hydride-azavinylidene complexes OsHCl₂(=N=CR₂)(PⁱPr₃)₂ [CR₂ = CMe₂ (1), C(CH₂)₄CH₂ (2)] with Ag[CF₃

Full text of DOI:10.1021/om0005295

5454
Organometallics 2000, 19, 5454-5463
F or m a tion of Im in e-Vin ylid en e-Osm iu m (II) Der iva tives
by Hyd r ogen Tr a n sfer fr om Alk en yl Liga n d s to
Aza vin ylid en e Gr ou p s in
Alk en yl-Aza vin ylid en e-Osm iu m (IV) Com p lexes
Ricardo Castarlenas, Miguel A. Esteruelas,* and Enrique On˜ate
Departamento de Quı´mica Ino´rganica-Instituto de Ciencia de Materiales de Arago´n,
Universidad de Zaragoza-CSIC, 50009 Zaragoza, Spain
Received J une 21, 2000
Treatment at room temperature of the hydride-azavinylidene complexes OsHCl2(dNdCR2)-
(PiPr3)2 [CR2 ) CMe2 (1), C(CH2)4CH2 (2)] with Ag[CF3SO3] and the subsequent addition at
-25 °C of phenylacetylene to the resulting solutions affords the alkenyl-azavinylidene
derivatives [Os{(E)-CHdCHPh}Cl(dNdCR2)(PiPr3)2][CF3SO3] [CR2 ) CMe2 (3), C(CH2)4CH2
(4)], where the Hâ atoms of the alkenyl ligands interact with the osmium atoms to form
agostic bonds. The addition at -30 °C of NaCl to tetrahydrofuran solutions of 3 and 4
produces the split of the agostic interactions and the formation of the neutral six-coordinate
alkenyl-azavinylidene compounds Os{(E)-CHdCHPh}Cl2(dNdCR2)(PiPr3)2 [CR2 ) CMe2
(5), C(CH2)4CH2 (6)]. In dichloromethane at room temperature complexes 5 and 6 evolve
into the imine-vinylidene derivatives OsCl2(dCdCHPh)(NHdCR2)(PiPr3)2 [CR2 ) CMe2 (7),
C(CH2)4CH2) (8)], as a result of the hydrogen transfer from the styryl ligands to the
azavinylidene groups. The structure of 7 in the solid state has been determined by an X-ray
diffraction study. The geometry around the metal center could be described as a distorted
octahedron with the imine group disposed trans to a chlorine atom and cis to the other one.
The N-H hydrogen atom of the imine interacts with the latter to form an intramolecular
N-H‚‚‚Cl hydrogen bond, which is manifested by a short Cl‚‚‚‚H separation of 2.366 Å and
a Cl-Os-N angle of 77.34(18)°, largely deviated from the ideal value of 90°. Complexes 3
and 4 also react with water at -20 °C to give the cationic imine-vinylidene derivatives

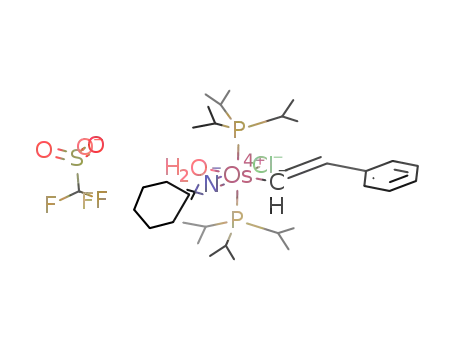

[OsCl(dCdCHPh)(NHdCR2)(H2O)(PiPr3)2][CF3SO3] [CR2 ) CMe2 (9), C(CH2)4CH2 (10)]. The
structure of 9 in the solid state has been also determined by an X-ray diffraction study. The
geometry around the metal center is octahedral with the imine group disposed trans to
chlorine atom and cis to the water molecule. In this case the N-H hydrogen atom of the
imine interacts with the oxygen atom of water molecule. The N-H‚‚‚O hydrogen bond is
manifested by an O‚‚‚H separation of 2.36 Å and a N-Os-O angle of 78.3(2)°. The formation
of 9 and 10 proceeds via the cationic six-coordinate alkenyl-azavinylidene-osmium(IV)
intermediates [Os{(E)-CHdCHPh}Cl(dNdCR2)(H2O)(PiPr3)2][CF3SO3] [CR2 ) CMe2 (11), C-
1
(CH2)4CH2 (12)], which have been characterized in solution at -90 °C by H and 31P{1H}
NMR spectroscopy. Complexes 3 and 4 react with acetonitrile to give [OsCl(dCdCHPh)-
(NHdCR2)(CH3CN)(PiPr3)2][CF3SO3] [CR2 ) CMe2 (13), C(CH2)4CH2 (14)] via the intermedi-
ates [Os{(E)-CHdCHPh}Cl(dNdCR2)(CH3CN)(PiPr3)2[CF3SO3] [CR2 ) CMe2 (15), C-
(CH2)4CH2 (16)].
In tr od u ction
forward route arises from the activation of terminal
alkynes which, depending upon of the nucleophilicity
of the metallic center, initially give η2-coordinated
alkyne or alternatively hydride-alkynyl intermediates.
The η2-alkynes evolve by direct 1,2-hydrogen migration
over the carbon-carbon triple bond. The hydride-
alkynyl intermediates dissociate the hydride as a proton
to yield alkynyl species; subsequently, the protonation
Vinylidene complexes are considered the central point
of important selective transformations of terminal
alkynes with atom economy.1 Several methods have
been employed for their preparation.2 The most straight-
(1) Bruneau, C.; Dixneuf, P. H. Acc. Chem. Res. 1999, 32, 311.
(2) Bruce, M. I. Chem. Rev. 1991, 91, 197.
10.1021/om0005295 CCC: $19.00 © 2000 American Chemical Society
Publication on Web 11/15/2000

Imine-Vinylidene-Osmium(II) Derivatives
Organometallics, Vol. 19, No. 25, 2000 5455
of the alkynyl group at the Câ atom affords the vi-
nylidene derivatives.3 In agreement with the last, the
electrophilic addition to alkynyl complexes has shown
to be also a general strategy to prepare vinylidene
complexes.2 In addition, the deoxygenation of acylmetal
derivatives by treatment with (CF3SO2)2O,4 the depro-
tonation of metal carbynes,5 the rearrangement of
alkylidene metallacyclobutane species,6 and the reduc-
tion of allenylidene compounds should be mentioned.7
With some exceptions,8 from hydride complexes, the
most favored pathway is the insertion of the triple bond
of terminal alkynes into the M-H bonds to form alkenyl
intermediates, which undergo R-hydrogen elimination.9
The dehydrochlorination of chloroalkenyl compounds
has been also used.2,10
nucleophilic attack, to form functionalized amines.13 In
particular, complexes containing N-protio imines with
low molecular weight have proven difficult to isolate.
The reaction of Cr(CO)5{dC(OMe)Me} with oximes of
aliphatic, alicyclic, and aromatic ketones affords Cr-
(CO)5(NHdCRR′), including dimethyl imine.14 Related
compounds of chromium, molybdenum, tungsten, and
iron have been prepared from the corresponding metal-
ammonia starting materials and ketones.15 The benzo-
phenone imine derivatives M(CO)5(NHdCPh2) (M ) Cr,
W) have been synthesized by reaction of M(CO)5(dCPh2)
with trimethylsilyl azide.16 Gladysz and co-workers have
reported imine complexes of the type [Re(η5-C5H5)(NO)-
(NHdCRR′)(PPh3)][CF3SO3], which are obtained by
displacement of triflate by the free imine or by addition
of nucleophiles to cationic nitrile complexes followed by
protonation.17 Complexes Os(C2Ph)2(CO)(NHdCPh2)-
(PiPr3)218 and MHCl(CO)(NHdCPh2)(PiPr3)2 (M ) Ru,19a
Os19b) have been obtained by addition of benzophenone
imine to the corresponding five-coordinate precursors.
Imine complexes are intermediate states during the
transformations between amine and nitrile deriva-
tives.11 However, there are comparatively few examples
of monodentate nitrogen-bonded imine compounds, as
a consequence of the weak Lewis basicity of the imine
nitrogen atom,12 and the vulnerability of the imines to
The protonation of OsH(CO)(NHdC(Ph)C6H4}(CO)-
(PiPr3)2 with HBF4‚OEt2 gives [OsH(CO)(NHdCPh2)-
(PiPr3)2]BF4, which by reaction with carbon monoxide
or trimethyl phosphite affords [OsH(CO)(NHdCPh2)L-
(PiPr3)2]BF4 [L ) CO, P(OMe)3].20 Half-sandwich ruthe-
nium and osmium complexes containing aldimine and
benzophenone imine ligands have been also synthe-
sized.21
