A. M. E. Attia, A. E.-H. A. A. Ismail / Tetrahedron 59 (2003) 1749–1752
1751
C, 56.38; H, 3.36; N, 18.79%]; nmax 3450–3180 (OH, NH2
and NH), 2218 (CN) cm21; dH (DMSO-d6) 3.92 (3H, s,
OCH3), 7.67–7.74 (3H, m, Ar-H), 7.87 (1H, s, NH), 8.34
(2H, s, NH2), 9.78 (1H, s, OH); dC (DMSO-d6) 55.6
(OCH3), 101.8 (C5), 112.6 (C3), 115.2 (CN), 116.1 (CN),
121.4–148.2 (Ar-C), 155.7 (C4), 157.3 (C6), 182.4 (C2);
m/z 298.
Compound 5b. Yield 76% as white crystals, mp 1698C.
[Found: C, 55.46; H, 4.57; N, 13.79 C19H18N4SO5 requires
C, 55.07; H, 4.35; N, 13.53%]; nmax 3480–3240 (OH and
NH2), 2215 (CN), 1738 (CO) cm21; dH (DMSO-d6) 2.01
(3H, s, CH3CO), 3.85 (3H, s, OCH3), 4.25 (2H, t, J¼5.0 Hz,
2H-30), 4.84 (2H, t, J¼5.0 Hz, 2H-40), 5.80 (2H, s, 2H-10),
7.05–7.14 (3H, m, Ar-H), 7.98 (2H, s, NH2), 9.44 (1H, s,
OH); dC (DMSO-d6) 20.8 (CH3), 55.5 (OCH3), 62.8 (C40),
67.3 (C30), 81.4 (C10), 102.2 (C5), 111.7 (C3), 115.1 (CN),
116.7 (CN), 119.5–149.6 (Ar-C), 154.4 (C4), 158.3 (C6),
163.5 (C2), 170.9 (CO); m/z 414.

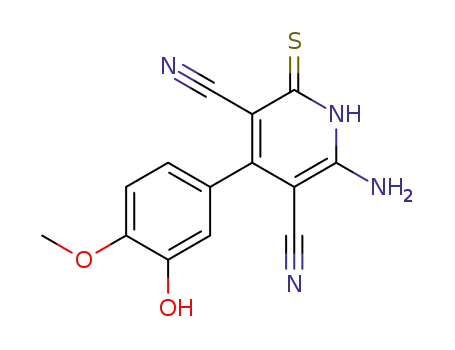

Compound 3b. Yield 70% as yellow crystals, mp 2088C.
[Found: C, 56.71; H, 3.52; N, 19.06 C14H10N4SO2) requires
C, 56.38; H, 3.36; N, 18.79%]; nmax 3470–3200 (OH, NH2
and NH), 2220 (CN) cm21; dH (DMSO-d6) 3.96 (3H, s,
OCH3), 7.62–7.71 (3H, m, Ar-H), 7.86 (1H, s, NH), 8.28
(2H, s, NH2), 9.70 (1H, s, OH); dC (DMSO-d6) 55.5
(OCH3), 101.9 (C5), 112.2 (C3), 115.4 (CN), 116.1 (CN),
121.8–149.2 (Ar-C), 154.8 (C4), 158.0 (C6), 182.1 (C2);
m/z 298.
Compound 5c. Yield 75% as white crystals, mp 1508C.
[Found: C, 55.31; H, 4.36; N, 10.40 C19H17N3SO6 requires
C, 54.94; H, 4.10; N, 10.12%]; nmax 3420–3280 (OH), 2210
(CN), 1740 (CO) cm21; dH (DMSO-d6) 2.04 (3H, s,
CH3CO), 3.86 (3H, s, OCH3), 4.31 (2H, t, J¼4.8 Hz,
2H-30), 4.94 (2H, t, J¼4.8 Hz, 2H-40), 5.70 (2 H, s, 2H-10),
7.09–7.18 (3H, m, Ar-H), 8.68 (1H, s, OH), 9.46 (1H, 0s,
OH); dC (DMSO-d6) 20.5 (CH3), 55.6 (OCH3), 61.9 (C4 ),
64.6 (C30), 87.1 (C10), 94.9 (C5), 111.8 (C3), 115.0 (CN),
115.4 (CN), 119.9–148.4 (Ar-C), 158.1 (C4), 159.7 (C6),
163.1 (C2), 170.2 (CO); m/z 415.
Compound 3c. Yield 66% as yellow crystals, mp 1988C.
[Found: C, 56.61; H, 3.23; N, 14.39 C14H9N3SO3 requires
C, 56.19; H, 3.01; N, 14.05%]; nmax 3450–3190 (OH and
NH), 2215 (CN) cm21; dH (DMSO-d6) 3.88 (3H, s, OCH3),
7.10–7.18 (3H, m, Ar-H), 7.68 (1H, s, NH), 8.48 (1H, s,
OH), 9.14 (1H, s, OH); dC (DMSO-d6) 55.4 (OCH3), 101.7
(C5), 111.6 (C3), 115.2 (CN), 116.3 (CN), 119.4–148.7
(Ar-C), 156.0 (C4), 156.8 (C6), 183.4 (C2); m/z 299.
Compound 5d. Yield 77% as white crystals, mp 1288C.
[Found: C, 55.37, H, 4.29; N, 10.43 C19H17N3SO6 requires
C, 54.94; H, 4.10; N, 10.12%]; nmax 3410–3260 (OH), 2212
(CN) cm21; dH (DMSO-d6) 2.09 (3H, s, CH3CO), 3.82 (3H,
s, OCH3), 4.30 (2H, t, J¼5.2 Hz, 2H-30), 4.98 (2H, t, J¼
5.2 Hz, 2H-40), 5.54 (2H, s, 2H-10), 7.11–7.21 (3H, m,
Ar-H), 8.96 (1H, s, OH), 9.71 (1H, s, OH); dC (DMSO-d6)
20.7 (CH3), 55.7 (OCH3), 61.9 (C40), 68.4 (C30), 83.0 (C10),
98.1 (C5), 112.2 (C3), 115.4 (CN), 115.6 (CN), 121.1–
147.9 (Ar-C), 157.5 (C4), 158.6 (C6), 163.2 (C2), 170.8
(CO); m/z 415.
Compound 3d. Yield 65% as yellow crystals, mp 2208C.
[Found: C, 56.58; H, 3.24; N, 14.37 C14H9N3SO3 requires
C, 56.19; H, 3.01; N, 14.05%]; nmax 3430–3180 (OH and
NH), 2222 (CN) cm21; dH (DMSO-d6) 3.90 (3H, s, OCH3),
7.12–7.21 (3H, m, Ar-H), 7.49 (1H, s, NH), 8.14 (s, 1H,
OH), 9.44 (1H, s, OH); dC (DMSO-d6) 55.6 (OCH3), 101.9
(C5), 112.6 (C3), 115.1 (CN), 116.3 (CN), 121.4–148.1
(Ar-C), 155.9 (C4), 157.1 (C6), 182.5 (C2); m/z 299.
1.1.2. 3,5-Dicyano-4-aryl-2-[(2-acetoxyethoxy)methyl]
pyridines (5). General procedure. To a stirred solution of
pyridinethiones 3 (1 mmol) in dry dimethylformamide
(25 mL) was added (1.1 mmol) of sodium hydride. After
evolution of hydrogen had ceased, the mixture was cooled to
2108C and a solution of (2-acetoxyethoxy) methyl bromide
4 (1.1 mmol) in DMF (5 mL) was added slowly. The stirred
mixture was allowed to warm slowly to room temperature
over a period of 2 h, 0.5 mL of 1 M NaHCO3 (aq) was
added, and volatile materials were evaporated in vacuo.
The residue was applied to a silica gel column and elution
with chloroform–methanol (19:1) afforded the desired
nucleosides as a white solid, which then were recrystallized
from chloroform–petroleum ether 40–60 to give the title
compounds 5a–d.
1.1.3. 3,5-Dicyano-4-aryl-2-[(ethoxy) methyl] pyridines
(7). General procedure. To a stirred solution of pyridine-
thiones 3 (1 mmol) in dry dimethylformamide (25 mL) was
added (1.1 mmol) of sodium hydride. After evolution of
hydrogen had ceased, the mixture was cooled to 08C and a
solution of ethoxymethyl chloride 6 (1.1 mmol) in DMF
(5 mL) was added slowly. The stirred mixture was allowed
to warm slowly to room temperature over a period of 3 h
and then quenched with saturated NaHCO3 (20 mL).
The aqueous phase was extracted with CHCl3 (2£20 mL).
The organic phase was dried (MgSO4) and evaporated under
reduced pressure. The product was purified by silica gel
column chromatography (50% EtOAc–PE) to give the title
compounds 7a–d.
Compound 7a. Yield 82% as white crystals, mp 1468C.
[Found: C, 57.58; H, 4.73; N, 15.99 C17H16N4SO3 requires
C, 57.30; H, 4.49; N, 15.73%], nmax 3450–3230 (OH and
NH2), 2218 (CN) cm21; dH (DMSO-d6) 1.13 (3H, t, J¼
6.8 Hz, CH3), 3.84 (3H, s, OCH3), 4.60 (2H, q, J¼6.8 Hz,
OCH2), 5.52 (2H, s, SCH2), 7.07–7.20 (3H, m, Ar-H), 7.95
(2H, s, NH2), 9.73 (1H, s, OH); m/z 356.
Compound 5a. Yield 78% as white crystals, mp 1598C.
[Found: C, 55.39; H, 4.60; N, 13.88 C19H18N4SO5 requires
C, 55.07; H, 4.35; N, 13.53%]; nmax 3450–3220 (OH and
NH2), 2214 (CN), 1736 (CO) cm21; dH (DMSO-d6) 2.03
(3H, s, CH3CO), 3.88 (3H, s, OCH3), 4.32 (2H, t, J¼4.7 Hz,
2H-30), 4.93 (2H, t, J¼4.7 Hz, 2H-40), 5.67 (2 H, s, 2H-10),
7.08–7.22 (3H, m, Ar-H), 8.02 (2H, s, NH2), 9.66 (1H, s,
OH); dC (DMSO-d6) 20.6 (CH3), 55.8 (OCH3), 61.9 (C40),
64.6 (C30), 79.8 (C10), 94.8 (C5), 112.9 (C3), 115.2 (CN),
115.9 (CN), 121.7–157.5 (Ar-C), 158.1 (C4), 159.7 (C6),
163.2 (C2), 170.1 (CO); m/z 414.
Compound 7b. Yield 80% as white crystals, mp 1238C.
[Found: C, 57.61; H, 4.70; N, 16.05 C17H16N4SO3 requires
C, 57.30; H, 4.49; N, 15.73%]; nmax 3390–3210 (OH and
NH2), 2215 (CN) cm21; dH (DMSO-d6) 1.18 (3H, t,
