to photoinduced charge transfers (PICT) between the donors
and the acceptors.9,11 As an n-type semiconductor, CdS works as
an electron acceptor, while PPA functions as an electron donor in
the hybrid. The PICT process takes place when the photoreceptor
is illuminated. The strong bonding of the CdS nanorods with
the PPA chains and the uniform distribution of the CdS nanorods
in H1 facilitate the PICT process and the successive charge
separation and transport, hence enhancing its photosensitivity.

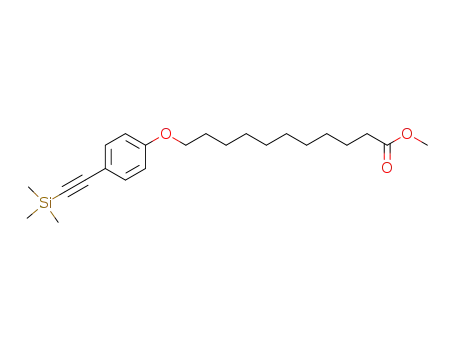

In summary, in this work we have developed a facile strategy for
the hybridization of CdS nanorods with polyacetylene chains.
Taking an approach of assembly plus copolymerization, we have
successfully prepared a CdS–PPA nanohybrid that is fully soluble
in common organic solvents and that can form homogeneous films
when its solutions are cast on solid substrates. With the aid of the
bonding interactions between the thiol groups and the cadmium
atoms, the nanorods can be uniformly dispersed in the polymer
matrix. The uniform distribution of the CdS nanorods in the
hybrid film and the efficient PICT process between the n-type
nanorods and the p-type polymer chains have synergistically
boosted the photosensitivity of the hybrid photoreceptor. Noting
that the thiol group can bond with metallic species in many other
inorganic semiconductors, the process developed in this work may
prove to be a versatile approach towards the fabrication of a
wealth of inorganic–organic hybrids, using various combinations
of different nanostructured inorganic semiconductors and con-
jugated organic polymers.
Fig. 3 SEM images of (A) an as-fabricated H1 film, (B) an H1 film with
a deliberately torn fissure, and (C) a film of CdS–PPA blend (B1) that was
prepared by the polymerization of phenylacetylene in the presence of the
CdS nanorods. (D) TEM image of the CdS nanorods used in this study.
Table 1 Photosensitivity of the double-layered photoreceptor device
prepared by using H1, CdS, PPA, B1 or B2 as charge generation
material (CGM)a
CGM V0 (V) Rd (V s21
) )
Vr (V) t1/2 (s) S (1023 mm2 (mW s)21
H1
CdS
PPA
B1
1027
749
891
656
675
25
22
25
30
35
317
308
308
226
252
2.63
4.74
3.67
3.35
4.30
34.3
19.0
24.5
26.9
21.0
This work was partially supported by the National Science
Foundation of China (20634020, 50573065 and 50603021), the
Ministry of Science and Technology of China (2002CB613401),
and the Research Grants Council of Hong Kong (602706 and
603505). B. Z. T. acknowledges support from the Cao Guangbiao
Foundation of Zhejiang University.
B2
a
Exposed to a light with an intensity of 11 mW mm22 from a
halogen lamp. Abbreviations: V0
5 initial surface potential;
Rd 5 dark decay rate; Vr 5 residual surface potential; t1/2 5 half
discharge time under exposure; and S 5 photosensitivity. B2 denotes
a simple blend of CdS and preformed PPA.
Notes and references
1 (a) W. U. Huynh, J. J. Dittme and A. P. Alivisatos, Science, 2002, 295,
2425; (b) W. J. E. Beek, M. M. Wienk and R. A. J. Janssen, Adv.
Mater., 2004, 16, 1009.
2 J. W. Y. Lam and B. Z. Tang, Acc. Chem. Res., 2005, 38, 745.
3 (a) H. Xu, J. Sun, A. Qin, J. Hua, Z. Li, Y. Q. Dong, H. Xu, W. Yuan,
Y. Ma, M. Wang and B. Z. Tang, J. Phys. Chem. B, 2006, 110, 21701;
(b) J. Hua, Z. Li, J. W. Y. Lam, H. Xu, J. Sun, Y. P. Dong, Y. Q. Dong,
A. Qin, W. Yuan, H. Chen, M. Wang and B. Z. Tang, Macromolecules,
2005, 38, 8127.
4 (a) J. C. Love, L. A. Estroff, J. K. Kriebel, R. G. Nuzzo and
G. M. Whitesides, Chem. Rev., 2005, 105, 1103; (b) T. T. Liang,
Y. Naitoh, M. Honkawa, T. Ishida and W. Mizutani, J. Am. Chem.
Soc., 2006, 128, 1372; (c) A. Shavel, N. Gaponik and A. Eychmuller,
J. Phys. Chem. B, 2006, 110, 19280; (d) A. C. Wisher, I. Bronstein and
V. Chechik, Chem. Commun., 2006, 1637; (e) C. L. McGuiness,
A. Shaporenk, C. K. Mars, S. Uppili, M. Zharrukov and D. L. Allara,
J. Am. Chem. Soc., 2006, 128, 5231.
5 B. Z. Tang, H. Chen, R. Xu, J. W. Y. Lam, K. K. L. Cheuk,
H. N. C. Wong and M. Wang, Chem. Mater., 2000, 12, 213.
6 Y. Li, H. Liao, Y. Ding, Y. Fan, Y. Zhang and Y. Qian, Inorg. Chem.,
1999, 38, 1382.
7 D. Xu, Z. Liu, J. Liang and Y. Qian, J. Phys. Chem. B, 2005, 109,
14344.
8 B. Z. Tang and H. Xu, Macromolecules, 1999, 32, 2569.
9 P. M. Borsenberger and D. S. Weiss, Organic Photoreceptors for
Imaging Systems, Marcel Dekker, New York, 1993.
10 H.-P. Xu, M.-M. Shi, H.-Z. Chen, M. Wang and B. Z. Tang,
Chin. J. Polym. Sci., 2005, 23, 675.
11 (a) L. Cao, H. Chen, M. Wang, J. Sun, X. Zhang and F. Kong, J. Phys.
Chem. B, 2002, 106, 8971; (b) J. Sun, J. Cao, H. Li, J. Hong and
M. Wang, Chem. J. Chin. Univ., 2006, 26, 1722.
y650 uC; ESI{). From the TGA data (ESI{, Fig. S6), the nanorod
content was found to be ca. 10.8 wt%. Elemental analyses of the
materials were also carried out (ESI{, Table S2), which gave a CdS
nanorod content of y9 wt%, very close to the value estimated
from the TGA analysis.
Thanks to its solubility and film-forming capability, H1 can be
used as an active material to construct photoelectronic devices. A
series of double-layered photoreceptors were prepared by a
solution-casting process and their photoconductivities were
evaluated by a photoinduced discharge technique (ESI{).3a,5,9
Upon exposure to illumination by a halogen lamp, the initial
surface potential of the photoreceptor using H1 as CGM dropped
quickly to its half value in as short a time as 2.63 s (Table 1,
entry 1). Its photosensitivity (S) is 34.3 6 1023 mm2 (mW s)21
,
higher than those of all the devices using its parent forms of PPA
and CdS as well as their blends (B1 and B2) as CGMs.
In our previous study on the photoconduction in the devices
prepared using polyacetylene derivatives as CGMs, we found that
the introduction of phthalimido groups into poly(1-phenyl-1-
alkyne)s as pendants can dramatically improve the performances
of the devices due to the formation of charge-transfer
complexes.3a,10 Photoreceptors prepared from donor–acceptor
nanocomposites are known to exhibit high photosensitivities owing
