Immunochemical Determination of 2,4,6-Trichloroanisole
J. Agric. Food Chem., Vol. 51, No. 14, 2003 3925
4-chloro-methylphenoxyacetic acid; C4, 3-chlorophenoxyacetic acid;
C5, 3-(2-hydroxy-3,5,6-trichlorophenyl)-2-propenoic acid; C7, 3-(3-
hydroxy-2,4,6-trichlorophenyl)propanoic acid; C8, 3-(2-hydroxy-3,5,6-
trichlorophenyl)propanoic acid; C13, 3-(4-hydroxy-3,5-dichlorophenyl)-
propanoic acid; C14, 3-(2-hydroxy-3,6-dichlorophenyl)propanoic acid;
C15, 2,6-dichloro-3-hydroxyacetic acid; C16, 2,4-dichloro-5-hydroxy-
acetic acid; and C21, 3-hydroxy-2,4,6-trichlorophenylacetic acid has
already been reported (36, 37, 41). Hapten C6, 2-hydroxy-3,5,6-
trichlorobenzoic acid, as well as other chemical reagents were obtained
from Aldrich Chemical Co. (Milwaukee, WI). The synthesis of the
haptens A, B, and C is described below. The synthesis and the spectral
data of the haptens C9, C10, C12, C18-C20, and C22 are given as
Supporting Information. The chemical structures of the immunizing
and competitor haptens are shown in Figure 1.
with organic solvents followed by solid phase extraction
procedures are always required. Moreover, because of the
intrinsic volatility of the TCA and its ability to adsorb to the
solid surfaces, no agreement has been achieved regarding the
efficiency of the TCA extraction procedures (2). In the last years,
other approaches that may improve the reliability of the TCA
analysis have been evaluated such as solid phase microextraction
(19, 20) or supercritical fluid extraction (21). However, high-
throughput screening (HTS) methods based on economically
attainable and straightforward technologies are required for the
small and medium wine and cork producer companies. In this
context, immunochemical techniques could not only afford the
necessary detectability and specificity for the target analyte with
little sample pretreatment but also offer other advantages such
as their reliability, simplicity, and low cost (22-28). Moreover,
immunochemical techniques can easily be adapted to the
simultaneous analysis of many samples, constituting excellent
HTS methods.
Immunochemical methods are based on selective antibodies
binding to the target analyte. The production of antibodies to
low weight molecules, such as TCA, implies the preparation of
derivatives named haptens, which have to be coupled to larger
molecules in order to raise immunogenicity. The preparation
of optimum haptens as immunogens and competitors has been
regarded as the most crucial step in the development of an
immunochemical technique for small molecules. Many literature
examples prove that an appropriate hapten design determines
the features of the resulting antibodies, which mainly govern
the specificity and the selectivity of an immunochemical
technique (22, 29-33). Theoretical molecular models and
calculations can be useful tools to assist prediction of which
hapten will be the most appropriate to raise antibodies (34-
36). Similarly, they can be used to assess the influence of the
degree of heterology between the competitors and the analyte
(37, 38). With these precedents, in the present paper, we report
the studies made to rationalize the effect of the immunizing
hapten chemical structure on the features of the resulting
immunoassays against TCA.
3-(2,4,6-Trichloro-3-methoxyphenyl)propanoic Acid (3, Hapten A)
General Protocol. A mixture of CH3I (0.5 mL, 7.2 mmol) and dry
K2CO3 (0.975 g, 7.2 mmol) was added to a solution of the ester 1
(methyl 3-(3-hydroxy-2,4,6-trichlorophenyl)propanoate) (36) (0.50 g,
1.8 mmol) in anhydrous dimethylformamide (DMF) (7 mL) at room
temperature under Ar atmosphere. The mixture was stirred for 12 h at
room temperature, washed with H2O to eliminate the excess of CH3I,
and extracted with Et2O. The organic layer was then washed again with
water and aqueous 1 N HCl to eliminate the remaining DMF. Finally,
the resulting organic phase was dried with MgSO4, filtered, and
evaporated under reduced pressure. The crude product was purified by
column chromatography (silica gel, CH2Cl2:hexane 1:1) to obtain the
pure anisole 2 as a white solid (0.38 g, 72% yield). Methyl 3-(3-
methoxy-2,4,6-trichlorophenyl)propanoate (2): IR ν (KBr, cm-1): 1745
1
(CdO), 1458 (COO- st), 1176 (C-O st), 865 (ArC-H δ oop). H
NMR (200 MHz, CDCl3) δ (ppm): 2.56 (t, J ) 8 Hz, 2H, -CH2-
COO-), 3.24 (t, J ) 8 Hz, 2H, PhCH2-), 3.72 (s, 3H, -OCH3 ester),
3.88 (s, 3H, -OCH3 anisole), 7.36 (s, 1HAr meta). 13C NMR (75 MHz,
CDCl3) δ (ppm): 27.1 (-OCH3 ester), 31.7 (C-3), 51.7 (C-2), 60.5
(-OCH3 anisole), 127.4 (C-4′), 128.7 (C-2′), 129.8 (C-6′), 130.6 (C-
5′), 136.2 (C-1′), 151.4 (C-3′), 172.4 (C-1). EM m/z (%): 296 (M+,
10), 261 (M+-Cl+, 100), 219 (M+-C6H5+, 88), 159 (C10H7O2, 35), 123
(C6OCl, 78), 59 (C2H3O2, 76). Anal. calcd for C11H11Cl3O3: C, 44.40;
H, 3.72; Cl, 35.74. Found: C, 44.57; H, 3.93; Cl, 35.92. Following,
the methyl ester was hydrolyzed by dissolving 2 (0.10 g, 0.3 mmol) in
tetrahydrofuran (THF, 6 mL) in a round bottom flask provided with a
condenser and a magnetic stirrer. A solution of aqueous 1 N NaOH
(0.032 g, 0.8 mmol) was added, and the mixture was heated at 80 °C
for 3 h. The THF was evaporated, and the crude product was redissolved
with a NaHCO3 saturated solution (10 mL) and washed with Et2O.
The aqueous phase was then acidified and extracted with AcOEt, dried
with MgSO4, filtered, and evaporated under reduced pressure to obtain
hapten A as a white solid (88 mg, 93% yield). IR ν (KBr, cm-1): 2939
(COO-H st), 1714 (CdO), 1458 (COO- st), 1051 (C-O st), 865
EXPERIMENTAL SECTION
Chemistry. General Methods and Instruments. Thin-layer chroma-
tography (TLC) was performed on 0.25 mm, precoated silica gel 60
F254 aluminum sheets (Merck, Darmstadt, Germany). Unless otherwise
indicated, purification of the reaction mixtures was accomplished by
“flash” chromatography using silica gel as the stationary phase. 1H and
13C NMR spectra were obtained with a Varian Unity-300 (Varian Inc.,
Palo Alto, CA) spectrometer (300 MHz for 1H and 75 MHz for 13C) or
1
(ArC-H δ oop). H NMR (200 MHz, CDCl3) δ (ppm): 2.62 (t, J )
8 Hz, 2H, -CH2COO-), 3.26 (t, J ) 8 Hz, 2H, PhCH2-), 3.88 (s,
3H, -OCH3), 7.37 (s, 1HAr meta). Melting point, 102-105 °C.
1
on a Gemini 200 (199.975 MHz for H and 50.289 for 13C). Infrared
5-(2,4,6-Trichlorophenoxy)pentanoic Acid (6, Hapten B). A solution
of methyl 5-bromovalerate (0.59 g, 2.5 mmol) in dry acetone (10 mL)
was added dropwise to a mixture of 2,4,6-trichlorophenol (4) (0.50 g,
2.5 mmol) and dry K2CO3 (0.96 g, 3.4 mmol) in dry acetone (5 mL)
and placed in a round bottom flask provided with a magnetic stirring
bar, a Dimroth refrigerant, and a balanced addition funnel under Ar
atmosphere. The mixture was heated at 80 °C for 5 h until the
disappearance of the starting material by TLC. The solvent was then
evaporated, and the remaining crude product was suspended in 1 N
HCl (20 mL) and extracted with Et2O (2 × 30 mL). The organic layer
was then washed with a saturated solution of NaCl, dried with MgSO4,
filtered, and evaporated to obtain a crude oil that was purified by silica
gel flash chromatography using hexane:Et2O (4:1) as the mobile phase.

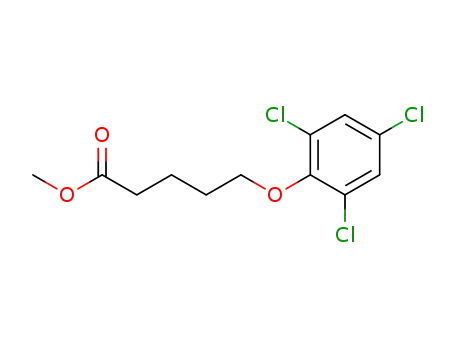

As a result, the methyl 5-(2,4,6-trichlorophenoxy)pentanoate (5) was
spectra were measured on a Bomen MB 120 FTIR spectrophotometer
(Hartmann & Braun, Que´bec, Canada). GC/MS was performed on a
MD-800 capillary gas chromatograph with an MS quadrupole detector
(Fison Instruments, VG, Manchester, U.K.), and the data are reported
as m/z (relative intensity). The ion-source temperature was set at 200
°C, and a 15 m × 0.25 mm i.d. × 0.15 mm (film thickness) DB-225
fused capillary column (J&W, Folsom, CA) was used. He was the
carrier gas employed at 1 mL/min. GC conditions were as follows:
temperature program, 80-220 °C (10 °C/min), 220 °C (10 min); injector
temperature, 250 °C.
Molecular Modeling and Theoretical Calculations. Molecular mod-
eling was performed using the Hyperchem 4.0 software package
(Hyperube Inc, Gainesville, FL). Theoretical geometries and electronic
distributions were evaluated for 2,4,6-TCA and potential haptens using
semiempirical quantum mechanics MNDO (39) and PM3 (40) models.
All of the calculations were performed using standard computational
chemistry criteria.
1
isolated pure as yellow oil (0.48 g, 61% yield). H NMR (200 MHz,
CDCl3) δ (ppm): 1.89 (m, 4H, -CH2-), 2.43 (t, J ) 6.8 Hz, 2H,
-CH2COO-), 3.69 (s, 3H, -OCH3), 4.00 (t, J ) 5.4 Hz, 2H, PhCH2-),
7.3 (2, 2HAr meta). 13C NMR (75 MHz, CDCl3) δ (ppm): 21.3 (C-3),
29.3 (C-4), 33.5 (C-2), 51.4 (-OCH3), 73.1 (C-5), 128.6 (C-2′, C-6′),
129.2 (C-4′), 130.0 (C-3′, C-5′), 150.4 (C-1′), 173.7 (C-1). Following,
Synthesis of the Haptens. The preparation of the haptens C1, 2,4,6-
thichlorophenoxyacetic acid; C2, 2,4,5-trichlorophenoxyacetic acid; C3,
