Oxidative Addition of Aryl Tosylates to Palladium(0) and Coupling of
Unactivated Aryl Tosylates at Room Temperature
Amy H. Roy and John F. Hartwig*
Department of Chemistry, Yale UniVersity, P.O. Box 208107, New HaVen, Connecticut 06520-8107
Received April 28, 2003; E-mail: John.Hartwig@yale.edu
The oxidative addition of aryl halides and sulfonates to pal-
ladium(0) is a fundamental organometallic transformation.1 Many
studies have been conducted on the oxidative addition of aryl halides
to palladium(0),2-11 but fewer studies have been conducted on the
oxidative addition of aryl sulfonates.9,11,12 The oxidative addition
of aryl tosylates is particularly rare because of the low reactivity
of this substrate. Yet, palladium-catalyzed couplings of aryl tosylates
would be more attractive than the more common reactions of
triflates because they are more crystalline than aryl triflates and
are generated from less expensive reagents.
Cross couplings of aryl tosylates with nickel,13-15 iron,16,17 cop-
per,18 or palladium catalysts have required high temperatures, ac-
tivated aryl tosylates, or high catalyst loadings.14,19-22 Although
complexes of hindered alkylphosphines have recently reacted with
aryl chlorides,23 most of them do not add aryl tosylates that lack
activating groups. We report a Pd(0) complex that oxidatively adds
aryl tosylates at room temperature to form isolable arylpalladium-
(II) tosylate complexes. This mild activation created palladium-
catalyzed couplings of aryl tosylates with aryl Grignard reagents
and amines at room temperature or at elevated temperatures with
low loadings.
has been typically attributed to coordination of the anion to Pd(0)
prior to oxidative addition.3,5,12,26 Thus, we measured the order of
reaction in different reagents by 31P NMR spectroscopy at 55 °C
in THF solvent in the presence and absence of added bromide. The
concentration of PhOTs was varied from 0.062 to 0.45 M;
[N(octyl)4Br] was varied from 0 to 0.34 M, and [P(o-tolyl)3] was
varied from 0.088 to 0.26 M. Compound 1 was formed in situ from
Pd[P(o-tolyl)3]2 and PPF-t-Bu. Excellent fits to a first-order decay
of 1 were obtained.27 A first-order dependence of kobs on [PhOTs]
in both the presence and absence of added bromide was observed.
Plots of 1/kobs vs [P(o-tolyl)3] from reactions in the presence and
absence of added N(octyl)4Br were linear, indicating that the
reaction is inverse first order in P(o-tolyl)3.
Plots of kobs vs [NR4X] from reactions conducted with added
bromide and PF6 were linear with a positive slope and a clear,
nonzero y-intercept. The value of kobs for reaction in the absence
of bromide [(4.1 ( 0.6) × 10-4 s-1)] matched the y-intercept of
the plot of kobs vs [N(octyl)4Br] [(3.9 ( 0.6) × 10-4 s-1)] and the
plot of kobs vs [NBu4PF6] [(3.3(0.7) × 10-4)]. The slope of the
plot of kobs vs [NBu4PF6] was roughly 4 times greater than that of
the plot of kobs vs [N(octyl)4Br]. Thus, reactions in the presence of
[NBu4PF6] were faster than those conducted with added bromide.
Low solubility of 1 limited quantitative data, but reactions in DMF
and NMP were faster than reactions in less polar solvents. With 5
equiv of P(o-tol)3 at 55 °C, reactions in DMF and NMP appeared
complete in 0.5 h instead of 3.5 h in C6H6 or THF. Oxidative
addition of PhOTs to 2 was complete within 5 min at 25 °C in
THF, C6H6, or DMF.
Potential mechanisms for the reaction in eq 1 are shown in
Scheme 1. Path A begins with direct oxidative addition of aryl
tosylate to the 16-electron complex 1, followed by dissociation of
P(o-tolyl)3. In the presence of bromide, the halogen would replace
the coordinated tosylate after addition. This pathway predicts first-
order behavior in aryl tosylate and zero-order behavior in both
bromide and P(o-tolyl)3. This pathway is inconsistent with the
observed inverse-order behavior in P(o-tolyl)3 and the positive-
order behavior in bromide.
Path B is initiated by dissociation of P(o-tolyl)3 from 1, irrever-
sible oxidative addition of aryl tosylate and subsequent more rapid
exchange of bromide for tosylate to form 5 if bromide is present.
This pathway predicts first-order behavior in aryl tosylate, inverse-
order behavior in P(o-tolyl)3, and zero-order behavior in added
bromide. The kinetic orders in PhOTs and added P(o-tol)3 are
consistent with reaction by path B in the absence of added bromide.
Taken alone, the acceleration of rate by added bromide suggests
that path C, which involves initial associative or dissociative
exchange of bromide for P(o-tolyl)3 and subsequent irreversible
oxidative addition of aryl tosylate to the anionic Pd(0), occurs
concurrently with path B in the presence of added bromide. This
pathway predicts a reaction that is first order in aryl tosylate, inverse
order in P(o-tolyl)3, and first order in bromide. However, faster
Pd(0) complexes generated from sterically hindered versions of
the commercially available Josiphos ligands24,25 underwent addition
of aryl tosylate under mild conditions. Reaction between Pd[P(o-
tolyl)3]2 and PPF-t-Bu or CyPF-t-Bu at room temperature formed
Pd(PPF-t-Bu)[P(o-tolyl)3] (1) or Pd(CyPF-t-Bu)[P(o-tolyl)3] (2, eq

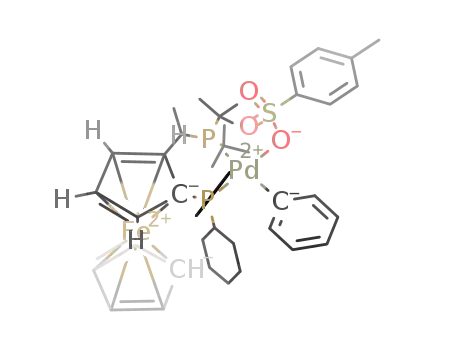

1). Subsequent treatment of 1 with PhOTs produced the phenylpal-
ladium tosylate complex 3 in 85% yield (eq 1) after 16 h at room
temperature by the first oxidative addition of an aryl tosylate to
generate an isolable addition product. Reaction in the presence of
N(octyl)4Br formed the phenylpalladium bromide complex 5 in 95%
yield after only 9 h. Reactions of phenyl tosylate with CyPF-t-Bu
complex 2 were even faster. Phenylpalladium tosylate 4 formed
from 2 in 92% yield in less than 5 min. The same reaction in the
presence of bromide formed the bromide complex 6 in 94% yield
in less than 5 min. Two isomeric versions of 3-6 could form, but
only one product that contained the palladium-bound phenyl cis to
the smaller phosphine was observed by NMR and X-ray diffraction
(see Supporting Information). Reactions of the analogues of 1
containing Josiphos ligands that lack a tert-butyl group formed the
addition product in lower yields and with slower rates.
Added anions have been shown to influence the mechanisms of
oxidative addition of aryl halides and sulfonates to Pd(0). This effect
9
8704
J. AM. CHEM. SOC. 2003, 125, 8704-8705
10.1021/ja035835z CCC: $25.00 © 2003 American Chemical Society

C O M M U N I C A T I O N S
Scheme 1
The palladium-catalyzed amination of aryl tosylates at 110 °C
was reported previously,19,22 but the mild additions of aryl tosylates
now allow for the amination of aryl tosylates under milder condi-
tions. Octylamine and phenyl tosylate underwent coupling at room
temperature in 76% yield after only 6 h in toluene in the presence
of 1 mol % PdCl2(PPF-t-Bu) and 2.5 equiv of NaO-t-Bu (eq 2). In
addition, reaction in the presence of 1 mol % of PPF-t-Bu and
commercially available PdCl2(PhCN)2 formed the arylamine in 72%
yield after 6 h. The increased rate of addition by the Pd(0) complex
of CyPF-t-Bu further increased the rate of amination. Octylamine
coupled with phenyl tosylate in 74% yield after 2 h at 25 °C.
The mild activation of aryl tosylates reported here has several
important consequences. First, the mild addition allows for pal-
ladium-catalyzed Kumada and amination reactions with unactivated
aryl tosylates at room temperature. Second, the rapid oxidative addi-
tion step shows that the scope of couplings of aryl tosylates can be
limited by transmetalation and reductive elimination15 instead of
oxidative addition. As a result, aryl tosylates may ultimately replace
the more expensive and less convenient aryl triflates in many
coupling applications.
Table 1. Pd-Catalyzed Couplings of ArOTs and ArMgBra
Acknowledgment. We thank the NIH (GM58108) for support,
Johnson-Matthey for a gift of PdCl2, Solvias AG for a gift of CyPF-
t-Bu, and Merck Research Laboratories for unrestricted support.
Supporting Information Available: Experimental methods, kinetic
data, procedures, and spectral data; X-ray crystallographic data for 5
and 6 (PDF); X-ray crystallographic files for 5 and 6 (CIF). This
material is available free of charge via the Internet at http://pubs.acs.org.
References
(1) Stille, J. K.; Lau, K. S. Y. Acc. Chem. Res. 1977, 10, 434.
(2) Amatore, C.; Pfluger, F. Organometallics 1990, 9, 2276.
(3) Amatore, C.; Azzabi, M.; Jutand, A. J. Am. Chem. Soc. 1991, 113, 1670.
(4) Amatore, C.; Jutand, A.; M′Barki, M. A. Organometallics 1992, 11, 3009.
(5) Amatore, C.; Jutand, A.; Suarez, A. J. Am. Chem. Soc. 1993, 115, 9531.
(6) Portnoy, M.; Milstein, D. Organometallics 1993, 12, 1665.
(7) Hartwig, J. F.; Paul, F. J. Am. Chem. Soc. 1995, 117, 5373.
(8) Amatore, C.; Broeker, G.; Jutand, A.; Khalil, F. J. Am. Chem. Soc. 1997,
119, 5176.
a 1 mmol ArOTs and 2.0 equiv ArMgBr. b Isolated yields are an average
of two runs.
(9) Jutand, A.; Hii, K. K. M.; Thornton-Pett, M.; Brown, J. M. Organome-
tallics 1999, 18, 5367.
(10) Alcazar-Roman, L. M.; Hartwig, J. F.; Liable-Sands, L. M.; Guzei, I. A.
J. Am. Chem. Soc. 2000, 112, 4618.
rates in the presence of more weakly coordinating anions imply
that the more polar medium created by the added bromide and not
direct coordination of this ion to palladium accounts for the faster
rates. Consistent with this assertion, reactions in more polar solvents
in the absence of added halogen occurred faster. This large
acceleration of oxidative addition of an aryl electrophile to Pd(0)
in more polar solvents28 is unusual.2,10,11,29
These room-temperature oxidative additions of aryl tosylates al-
lowed us to develop palladium-catalyzed cross-couplings of aryl
tosylates under mild conditions. Results of the reactions of aryl
tosylates with aryl Grignard reagents are summarized in Table 1.
Reactions with 0.1-1.0 mol % Pd(dba)2 and PPF-t-Bu in toluene
at either room temperature or 80 °C produced the corresponding
biaryls in good yields in many cases. Most reactions were complete
within 24 h. Reactions with 0.01 mol % catalyst were slow and
gave lower yields of biaryl. Two equivalents of nucleophile were
required for complete conversion of the aryl tosylate due to com-
peting homocoupling of the Grignard reagent. Both electron-dona-
ting and -withdrawing aryl tosylates underwent reaction. Sterically
hindered aryl tosylates and Grignard reagents also reacted, although
in lower yields.
(11) Alcazar-Roman, L. M.; Hartwig, J. F. Organometallics 2002, 21, 491.
(12) Jutand, A.; Mosleh, A. Organometallics 1995, 14, 1810.
(13) Kobayashi, Y.; Mizojiri, R. Tetrahedron Lett. 1996, 37, 8531.
(14) Bolm, C.; Hildebrand, J. P.; Rudolph, J. Synthesis 2000, 7, 911.
(15) Zim, D.; Lando, V. R.; Dupont, J.; Monteiro, A. L. Org. Lett. 2001, 3,
3049.
(16) Fu¨rstner, A.; Leitner, A.; Mendez, M.; Krause, H. J. Am. Chem. Soc. 2002,
124, 13856.
(17) Fu¨rstner, A.; Leitner, A. Angew. Chem., Int. Ed. 2002, 41, 609.
(18) Erdik, E.; Eroglu, F. Synth. React. Inorg. Met.-Org. Chem. 2000, 30, 955.
(19) Hamann, B. C.; Hartwig, J. F. J. Am. Chem. Soc. 1998, 120, 7369.
(20) Kawatsura, M.; Hartwig, J. F. J. Am. Chem. Soc. 1999, 121, 1473.
(21) Kubota, Y.; Nakada, S.; Sugi, Y. Synlett 1998, 183.
(22) Huang, X.; Anderson, K. W.; Zim, D.; Jiang, L.; Klapars, A.; Buchwald,
S. L. J. Am. Chem. Soc. 2003, 125, 6653.
(23) Littke, A. F.; Fu, G. C. Angew. Chem., Int. Ed. 2002, 41, 4176.
(24) Togni, A.; Breutel, C.; Schnyder, A.; Spindler, F.; Landert, H.; Tijani, A.
J. Am. Chem. Soc. 1994, 116, 4062.
(25) Commercially available from Strem Chemicals; catalog no. 26-1201, 26-
0975.
(26) Scott, W. J.; Stille, J. K. J. Am. Chem. Soc. 1986, 108, 3033.
(27) See Supporting Information for kinetic data.
(28) Sørensen, H. S.; Larsen, J.; Rasmussen, B. S.; Laursen, B.; Hansen, S.
G.; Skrydstrup, T.; Amatore, C.; Jutand, A. Organometallics 2002, 21,
5243.
(29) Amatore, C.; Jutand, A.; Khalil, F.; M’Barki, M. A.; Mottier, L.
Organometallics 1993, 12, 3168.
JA035835Z
9
J. AM. CHEM. SOC. VOL. 125, NO. 29, 2003 8705
