[3+3]cycloalkyne dimers linked by an azo group: A stable cis-Azo compound forms polymeric aggregates by nonplanar π-π interactions

Article abstract of DOI:10.1021/ja034942q

We previously reported that the structure of the linker moiety controlled intramolecular and bimolecular aggregation of [3+3]cycloalkyne oligomers, which are cyclic acetylene derivatives containing helicenes. Here, novel [3+3]cycloalkyne dimers linked by

Full text of DOI:10.1021/ja034942q

Published on Web 07/15/2003
[3+3]Cycloalkyne Dimers Linked by an Azo Group: A Stable cis-Azo
Compound Forms Polymeric Aggregates by Nonplanar π-π Interactions
Yuto Saiki,† Hiroki Sugiura,† Keiichi Nakamura,† Masahiko Yamaguchi,*,† Tomonori Hoshi,‡ and
Jun-ichi Anzai‡
Departments of Organic Chemistry and Pharmaceutical Physicochemistry,
Graduate School of Pharmaceutical Sciences, Tohoku UniVersity, Aoba, Sendai 980-8578, Japan
Received March 1, 2003; E-mail: yama@mail.pharm.tohoku.ac.jp
Scheme 1
The π-π interactions are noncovalent bondings between π-elec-
tron systems with a face-to-face orientation. Construction of a self-
assembly system based on the π-π interactions, however, is not
facile, because the interactions are weak and result in a higher
degree of aggregation under forced conditions. Usually, external
factors such as templates,1 solvophobic effects,2 or hydrogen
bonding3 are required to promote and control such aggregation of
π-compounds. Recently, we have found that [3+3]cycloalkynes,
which are chiral macrocyclic alkynes containing three helicenes,
form a strong and selective bimolecular aggregate in organic sol-
vents.4 It was also observed that the aggregation of [3+3]cyclo-
alkyne oligomers could be controlled by changing the structure of
the linker moieties:5 Oligomers with flexible linkers form intra-
molecular aggregates, and those with rigid linkers form bimolecular
aggregates without forming a higher degree of aggregation. We
were then interested in the formation of polymeric aggregates using
this system, and we describe here our finding that a [3+3]cyclo-
alkyne dimer cis-(M,M,M)/(M,M,M)-1 possessing a cis-azo linker
does polymerize, while trans-(M,M,M)/(M,M,M)-1 forms a bi-
molecular aggregate without forming a higher degree of aggregation.
This is a self-assembly system employing only the nonplanar π-π
Figure 1. UV-vis spectra of (M,M,M)/(M,M,M)-1 (0.001 mM) in CHCl3
at 25 °C.
interactions of helicenes, which appear to be much stronger than
the planar π-π interactions. It was also observed that the trans-
and cis-(M,M,M)/(M,M,M)-1 do not isomerize when subjected to
heating or irradiation.
CD (CHCl3) spectra of trans-(M,M,M)/(M,M,M)-1 are concentra-
tion-independent below 0.01 mM and concentration-dependent
above 0.01 mM, providing isosbestic points at 280, 320, 345, and
395 nm (Figure 2a,c). 1H NMR (CDCl3) signals of trans-(M,M,M)/
(M,M,M)-1 shift upfield and broaden as the concentration increases
from 0.1 to 10 mM.6 Vapor pressure osmometry (VPO) in CHCl3
revealed bimolecular aggregate formation of the compound above
2 mM (Figure 3). The retention volume of GPC provided an
apparent molecular weight of 6400 in CHCl3 (2 mM); the MW of
trans-(M,M,M)/(M,M,M)-1 was 3033.6 These analyses indicate that
trans-(M,M,M)/(M,M,M)-1 is monomeric below 0.01 mM, and a
bimolecular aggregate is selectively formed above 2 mM without
Isomeric trans- and cis-(M,M,M)/(M,M,M)-1 were synthesized
forming a higher degree of aggregation.

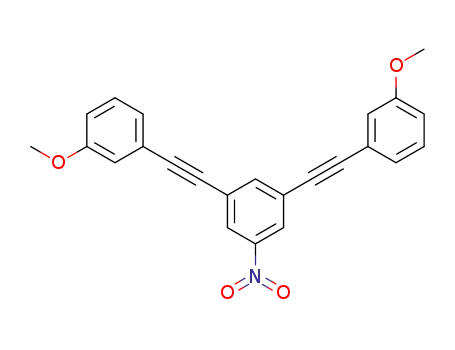

as shown in Scheme 1. Cyclization of (M,M,M)-34 and 3,5-
CD (CHCl3) spectra of cis-(M,M,M)/(M,M,M)-1 are concentra-
diiodonitrobenzene 4 produced a nitro derivative (M,M,M)-5 in 50%
tion-independent between 0.001 and 0.5 mM (Figure 2b,d). 1H
yield, which was reduced by iron to form an amine (M,M,M)-6 in
NMR (CDCl3) spectra of cis-(M,M,M)/(M,M,M)-1 are concentra-
96% yield. Oxidative coupling with manganese(IV) oxide in toluene
tion-independent below 1 mM and broaden above 1 mM.6 VPO in
generated trans- and cis-(M,M,M)/(M,M,M)-1 in 47% and 17%
CHCl3 revealed trimolecular aggregate formation below 1 mM and
yields, respectively, which were readily separable by GPC.6 The
polymeric aggregate formation above 1 mM (Figure 3). The GPC
cis/trans-stereochemistry was determined by UV-vis spectroscopy
analysis gave a molecular weight of 8400 in CHCl3 (1 mM).6 It
(Figure 1): The trans-(M,M,M)/(M,M,M)-1 with a larger retention
has become clear that cis-(M,M,M)/(M,M,M)-1 polymerizes in
volume by GPC exhibits stronger absorption at 300-400 nm (π-
solution employing the nonplanar π-π interactions as the only
π* transition) and weaker absorption in the visible region (n-π*
driving force.
transition).7
It is also noticed that trans- and cis-(M,M,M)/(M,M,M)-1 are inert
toward heat and light. trans-(M,M,M)/(M,M,M)-1 in CHCl3 at 5
and 0.1 mM does not isomerize when subjected to irradiation at
† Department of Organic Chemistry.
‡ Department of Pharmaceutical Physicochemistry.
9
9268
J. AM. CHEM. SOC. 2003, 125, 9268-9269
10.1021/ja034942q CCC: $25.00 © 2003 American Chemical Society

C O M M U N I C A T I O N S
Figure 4. Aggregation behaviors of (M,M,M)/(M,M,M)-1.
exist in the same plane,11 they do not aggregate in a bimolecular
fashion. As a result, cis-(M,M,M)/(M,M,M)-1 gives trimolecular or
higher aggregates. It is in contrast to the bimolecular aggregate
formation of trans-(M,M,M)/(M,M,M)-1, the [3+3]cycloalkyne
moieties of which can exist in the same plane.5,12 The present
finding would provide a novel methodology for constructing a
controlled self-assembly system involving selective bimolecular
π-π interactions of helicene.
Figure 2. CD spectra of (a) trans-(M,M,M)/(M,M,M)-1, and (b) cis-
(M,M,M)/(M,M,M)-1 in CHCl3 at 25 °C. Plots of ∆ꢀ at 360 nm versus
concentration for (c) trans-(M,M,M)/(M,M,M)-1, and for (d) cis-(M,M,M)/
(M,M,M)-1.
Acknowledgment. The authors thank JSPS for providing
financial support.
Supporting Information Available: Experimental procedures for
the synthesis of 1, 2, 5, and 6, GPC chromatogram and 1H NMR spectra
of trans-(M,M,M)/(M,M,M)-1 and cis-(M,M,M)/(M,M,M)-1, isomeriza-
tion experiment procedures for 1 and 2 (PDF). This material is available
free of charge via the Internet at http://pubs.acs.org.
References
(1) Wang, M.; Silva, G. L.; Armitage, B. A. J. Am. Chem. Soc. 2000, 122,
9977-9986. Cooper, T. M.; Stone, M. O. Langmuir 1998, 14, 6662-
6668. Nakashima, N.; Ando, R.; Fukushima, H.; Kunitake, T. J. Chem.
Soc., Chem. Commun. 1982, 707-709.
Figure 3. Degree of aggregation by VPO (CHCl3, 35 °C) for trans-
(M,M,M)/(M,M,M)-1 (O), and cis-(M,M,M)/(M,M,M)-1 (×). The red and
blue lines are drawn to guide the eye.
(2) Zhao, D.; Moore, J. S. Chem. Commun. 2003, 7, 807-818. Tobe, Y.;
Utsumi, N.; Kawabata, K.; Nagano, A.; Adachi, K.; Araki, S.; Sonoda,
M.; Hirose, K.; Naemura, K. J. Am. Chem. Soc. 2002, 124, 5350-5364.
Zhao, D.; Moore, J. S. J. Org. Chem. 2002, 67, 3548-3554.
(3) Tamaru, S.; Uchino, S.; Takeuchi, M.; Ikeda, M.; Hatano, T.; Shinkai, S.
Tetrahedron Lett. 2002, 43, 3751-3755. Tamaru, S.; Nakamura, M.;
Takeuchi, M.; Shinkai, S. Org. Lett. 2001, 3, 3631-3634.
(4) Nakamura, K.; Okubo, H.; Yamaguchi, M. Org. Lett. 2001, 3, 1097-
1099.
365 nm for 30 min.6 At a lower concentration (0.001 mM), UV-
vis absorption of trans-(M,M,M)/(M,M,M)-1 decreases following
irradiation at 365 nm because of the decomposition.6 cis-(M,M,M)/
(M,M,M)-1 in CHCl3 at 0.1, 0.01, 0.001, and 0.0005 mM also does
not isomerize when subjected to irradiation of visible light at above
450 nm for 30 min or to heating in refluxing toluene (0.1 mM) for
3 h.6 In contrast, the model compound 2, lacking the cyclic helicene
moiety, readily isomerizes under these conditions.6 Several methods
of stabilizing diaryl cis-azo compounds were reported, which utilize
inclusion complex formation,8 hydrogen bonding,9 and hydrophobic
interactions.10 It may therefore be interesting to note that azo-
compounds can be stabilized by another driving force, possibly by
self-aggregation.
A polymeric aggregate is currently obtained using cis-(M,M,M)/
(M,M,M)-1 in a series of [3+3]cycloalkyne oligomers.5 This is
probably because cis-(M,M,M)/(M,M,M)-1 cannot form either an
intramolecular aggregate or a bimolecular aggregate (Figure 4). The
rigid cis-azo structure possessing a 120° direction does not allow
the formation of the intramolecular aggregated structure. Because
two [3+3]cycloalkyne moieties of cis-(M,M,M)/(M,M,M)-1 cannot
(5) Saiki, Y.; Nakamura, K.; Nigorikawa, Y.; Yamaguchi, M. Angew. Chem.,
Int. Ed., submitted.
(6) See Supporting Information.
(7) Griffiths, J. Chem. Soc. ReV. 1972, 1, 481-493.
(8) Kusukawa, T.; Fujita, M. J. Am. Chem. Soc. 1999, 121, 1397-1398. Yabe,
A.; Kawabata, Y.; Niino, H.; Tanaka, M.; Ouchi, A.; Takahashi, H.;
Tamura, S.; Takagi, W.; Nakahara, H.; Fukuda, K. Chem. Lett. 1988, 1-4.
Niino, H.; Yabe, A.; Ouchi, A.; Tanaka, M.; Kawabata, Y.; Tamura, S.;
Miyasaka, T.; Takagi, W.; Nakahara, H.; Fukuda, K. Chem. Lett. 1988,
1227-1230.
(9) Kim, S.-J.; Reneker, D. H. Polym. Bull. 1993, 31, 367-374.
(10) Chambers, E. J.; Haworth, I. S. J. Chem. Soc., Chem. Commun. 1994,
1631-1632. Also see: Crogan, C.; Fields, R.; Pratt, A. C.; Saleem, L.
M. N.; Dawson, P. E. J. Fluorine Chem. 1983, 22, 61-72.
(11) See the following for the X-ray structure of cis-azobenzene: Mostad, A.;
Rømming, Chr. Acta Chem. Scand. 1971, 25, 3561-3568.
(12) X-ray structure of trans-azobenzenes: Bouwstra, J. A.; Schouten, A.;
Kroon, J.; Helmholdt, R. B. Acta Crystallogr. 1985, C41, 420-426.
Komeyama, M.; Yamamoto, S.; Nishimura, N.; Hasegawa, S. Bull. Chem.
Soc. Jpn. 1973, 46, 2606-2607.
