Hybrid Diphenylalkyne-Dipeptide Oligomers Induce Multistrand β-Sheet Formation

Article abstract of DOI:10.1002/chem.201502690

Functionalized diphenylalkynes provide a template for the presentation of protein-like surfaces composed of multistrand β-sheets. The conformational properties of three-, four-, and seven-stranded systems have been investigated in the solid- and solution-state. This class of molecule may be suitable for the mediation of therapeutically relevant protein-protein interactions. β-Sheets: Functionalized diphenylalkynes provide a template for the presentation of protein-like surfaces composed of multi-strand β-sheets. The conformational properties of three-, four-, and seven-stranded systems have been investigated in the solid- and solution-state. This class of molecule may be suitable for the mediation of therapeutically relevant protein-protein interactions.

Full text of DOI:10.1002/chem.201502690

DOI: 10.1002/chem.201502690
Communication
&
Peptidomimetics
Hybrid Diphenylalkyne–Dipeptide Oligomers Induce Multistrand
b-Sheet Formation
Jonathan E. Ross, Peter C. Knipe, Sam Thompson,* and Andrew D. Hamilton*[a]
Dedicated to Professor Sir Alan R. Battersby FRS on the occasion of his 90th birthday
Abstract: Functionalized diphenylalkynes provide a tem-
plate for the presentation of protein-like surfaces com-
posed of multistrand b-sheets. The conformational proper-
ties of three-, four-, and seven-stranded systems have
been investigated in the solid- and solution-state. This
class of molecule may be suitable for the mediation of
therapeutically relevant protein–protein interactions.
There is much current interest in the design of synthetic oligo-
mers that mimic the recognition and folding properties of sec-
ondary structural domains on the surface of proteins.[1] These
foldamers[2] have the potential to bind complementary protein
targets and modulate their interactions with other proteins.[3]
Considerable progress has been made in the design of various
unnatural amino acid oligomers that are controlled by intramo-
lecular hydrogen-bonding interactions. In particular, b-pep-
tides,[4,5] g-peptides,[6] and sequences containing aminoquino-
lines,[7] anthranilamides,[8,9] and dialkylamino acids[10–14] have
been shown to adopt helical conformations of varying pitch
and dimensions. The b-sheet is also an important secondary
structural protein element, motivating researchers to develop
a range of synthetic templation strategies for two-stranded
systems.[12–18] Macrocyclic peptides have frequently been used
to stabilize the formation of sheetlike structures and have pro-
vided insights into their supramolecular properties.[19] However,
there are a limited number of templates that take advantage
of intramolecular hydrogen bonding to stabilize structures
formed of three or more strands.[20] These include turn mimics
that incorporate d-Pro,[21,22] oligomers of a/b-amino acids,[23,24]
and the self-assembly of two-stranded b-sheet mimics[25] and
Figure 1. Multistranded b-sheets are key components of higher-order pro-
tein structures, and present large surface areas for interfacial protein–protein
interactions: a) the b-repeat (also known as a b-meander), exemplified by
Koide’s protein self-assembly mimics (PDB 2HKD);[29] b) extended b-meander
macrocycles[26,27] into larger complexes.
Nature provides many examples of extended and stable
sheet structures, as both components of soluble globular pro-
teins and insoluble aggregates such as amyloid fibrils. These
provide two functionalized surfaces, formed from the side-
motifs based upon the diphenylalkyne linker as a turn motif.
chain residues projected above and below the folded frame.
The b-meander protein is an example of a super-secondary
protein element formed of several short peptide strands occu-
pying extended conformations, and is itself a common compo-
nent of larger structures such as the b-barrel (Figure 1A).[28]
Our interest lay in creating oligomeric scaffolds that stabilize
extended b-sheet-like structures, with programmable surfaces
projected above and below a common plane. Di-functionalized
[a] J. E. Ross, Dr. P. C. Knipe, Dr. S. Thompson, Prof. Dr. A. D. Hamilton
Chemistry Research Laboratory, University of Oxford
12 Mansfield Road, Oxford, OX1 3TA (UK)
E-mail: sam.thompson@chem.ox.ac.uk
andrew.hamilton@chem.ox.ac.uk
Homepage: http://hamilton.chem.ox.ac.uk
Supporting information for this article is available on the WWW under
http://dx.doi.org/10.1002/chem.201502690.
Chem. Eur. J. 2015, 21, 13518 – 13521
13518
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim

Communication
diphenylalkynes were introduced by Kemp as a non-peptidic
anti-parallel b-turn inducer,[30,31] and have been extended by
Spivey to display peptide loops,[32,33] and by our group to tem-
plate bi-directional b-sheet formation.[34] The motif also has the
potential to stabilize large surfaces as a modular unit of a folda-
mer, in which multiple peptide strands are linked in an anti-
parallel fashion (Figure 1B).
To explore the folding propensities of a series of anti-parallel
two-peptide strands linked through diphenylalkynes, we syn-
thesized 1 on a multigram scale from readily available starting
materials (see the Supporting information). Alanine was select-
ed as the amino acid for this proof-of-principle system due to
its propensity to form b-sheets. Building block 1 can be or-
thogonally deprotected to reveal either the free C-terminus 2,
or N-terminus 3. Amide coupling between 2 and 3 gave
double turn motif 4 (Scheme 1). Further elaboration through
iterative deprotection, amidation with a suitable two-amino
acid unit (2 or 3), and capping of the resultant termini with
protected amino acids gave three- (5) and four-stranded (6)
mimics (Figure 2).

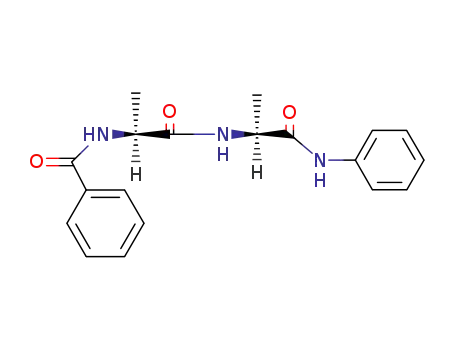

Figure 2. Solution-phase analysis of meander mimics: a) ROESY of three-
stranded 5; and b) NOESY of four-stranded 6; c) single-stranded control
compounds 8, 9, and 10, which are incapable of intramolecular sheet forma-
tion. Solid and dashed red arrows indicate selected strong and weak nOe
correlations respectively (13.33 mm in CDCl3).
strand results in a steric clash between the tert-butyl group
and the aromatic hydrogens, thus weakening the hydrogen
bonding and causing fraying. Alternatively, weaker H-bonding
at this position may be due to the reduced H-bond donor abil-
ity of carbamate, relative to amide, NHs (labeling of NHs is
shown in Figure 2, full data in the Supporting Information).
The Ca-Hs of mimics 5 and 6 show a pronounced downfield
Scheme 1. Synthesis of a double turn motif with orthogonal N-/C-terminal
protecting groups. Conditions: a) trifluoroacetic acid, CH2Cl2, 93%, b) piperi-
dine:CH2Cl2 (0.1m, 4:1 v/v), 95%; c) EDC, HOBt, iPr2NEt, CH2Cl2, 62%. Dashed
lines indicate hydrogen bonds. EDC=1-ethyl-3-(3-dimethylaminopropyl)car-
bodiimide, HOBt=hydroxybenzotriazole.
1
shift in the H NMR spectra when compared to single-stranded
control molecules, consistent with increasing b-sheet charac-
ter.[38,39] The non-terminal amino acids showed shifts of 0.78–
1.04 (5) and 0.81–1.21 ppm (6) relative to the controls. Larger
values in the latter case are likely due to the enforcement of
greater sheet character by increased interstrand H-bond coop-
erativity. The corresponding range for terminal amino acids
was 0.12–0.32 ppm, indicative of less-pronounced b-sheet
structure (Figure 3a). The assignment of a secondary structural
propensity score using the Foreman–Kay method[40] allows
contributions from different nuclei to be weighted according
to their sensitivity to a- and b-structure. Mean b-sheet scores
in excess of 94.0 and 99.8% for three- (5) and four-stranded
mimics (6), respectively, were consistent with significant b-
sheet character, whilst control molecules 8–10 showed mini-
mal b-sheet propensity (between 0 and 31.7%).
Extensive cross-strand correlations between the Ca-, Cb-,
and amide N-Hs of the ROESY (5) and NOESY (6) CDCl3 spectra
were consistent with the population of folded multistrand
sheet conformations.[35,36] Support for the existence of well-
conserved intramolecular hydrogen-bond networks is provided
by N-H/D exchange between a solution of mimic in a mixture
of CDCl3 and CD3OD, where hydrogen-bonded NHs that are
protected from the solvent are expected to undergo exchange
less rapidly than those exposed to solvent.[34,37] All NHs of
single-stranded control molecules 8–10 underwent greater
than 50% exchange after 9 min. Likewise, 50% exchange oc-
curred for Hb/Hg (three-stranded 5) and Hb/Hj (four-stranded 6)
in less than 5 min, suggesting that they occupy solvent ex-
posed positions. Hc/Hf (of 5 and 6), and Hi (of 6), closest to the
turn motifs, showed very slow rates with less than 12% ex-
change after 105 min. Ha (of 5), Hd/He (of 5 and 6), and Hg/Hh
(of 6), show intermediate rates of exchange, indicative of hy-
drogen bonds further from the turn motifs being of moderate
strength. Consistent with the ROESY data, Hh (of 5), and Hk (of
6) reached 50% exchange within five minutes. It may be that
the additional length of the N- compared to the C-terminal
Solution-phase conformational behavior in a more demand-
ing medium for intramolecular H-bonding was explored by ti-
tration of (CD3)2SO into a solution of sheet-mimic in CDCl3.
Hb/Hg (of 5) and Hb/Hj (of 6) shifted markedly downfield, sug-
gesting greater exposure to solvent, whereas the other hydro-
gens shifted to an equal or greater degree upfield, consistent
with adoption of a well-folded multi-strand sheet conformation
(Figure 3b).[41] For mimics 5 and 6 a quantitative comparison
1
of H NMR chemical shifts of the non-terminal amide NHs for
spectra acquired in neat CDCl3 and neat (CD3)2SO gave a high
Chem. Eur. J. 2015, 21, 13518 – 13521
www.chemeurj.org
13519
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim

Communication
drogens (Hb/Hg for 5, Hb/Hj for 6) suggested an absence of in-
tramolecular H-bonding.[43]
X-ray crystallography of single crystals of 5 was consistent
with a structure formed of three intramolecularly hydrogen-
bonded strands. In agreement with the solution-phase work,
a network of six intramolecular hydrogen bonds places three
side-chains above the plane and three below (coloured orange
and purple respectively, Figure 4a/b).[44] Average dihedral
angles of (f, Y)=(À135Æ328, 136Æ378) are in excellent
agreement with those of a canonical b-sheet (À135, 135). See
the Supporting Information for more details.[45]
With solid- and solution-phase data consistent with the
three- and four-stranded mimics adopting multi-stranded b-
sheet conformation, we sought to explore the preparation of
extended systems with a greater number of strands. Further
iteration of the synthetic route afforded seven-stranded mean-
der mimic 7, with protected termini allowing extension to
larger surfaces (Figure 4c,d).[36]
Circular dichroism spectra of three- (5), four- (6), and seven-
stranded mini-protein mimic (7) showed maxima at 253 nm
and minima at 228 nm, consistent with b-sheet formation,
whereas single-stranded control (9) gave a spectrum character-
istic of random coil behavior. Maxima at 255 nm are due to
chiral perturbations of the 2-amino-2’-diphenylalkyne chromo-
phore (Figure 4e).[30,31]
1
Figure 3. a) Secondary structural behavior: H NMR chemical-shift values of
the a-hydrogens in i) three-stranded 5; and ii) four-stranded 6 mimics rela-
tive to single-stranded controls (8–10). Residue numbering indicated in
Figure 2. b) Amide 1H NMR behavior upon titration of (CD3)2SO into a CDCl3
solution of i) three-stranded 5 and ii) four-stranded 6 mimics. Labeling of
NHs indicated in Figure 2. 10 mm in 500 mL of CDCl3; (CD3)2SO added in por-
tions as follows: 10, 20, 20, 50, 50, 50 mL.
In conclusion, we have shown that several short peptide
strands may be linked in an anti-parallel arrangement by di-
phenylalkynes to give large surfaces presenting side-chains on
two faces. The approach provides a template for the stabiliza-
tion of multi-strand b-sheets and may find use in mediating
protein–protein interactions. Work is underway to prepare ex-
tended systems containing longer sequences of amino acids
per strand, and to incorporate hydrophilic side chains for func-
tional studies in aqueous media.
level of confidence for hydrogen-bonding networks consistent
with well-folded multi-strand sheet conformation.[42] The hy-
drogens corresponding to the C- and N-terminal amino acids
(He/Hh for 5, He/Hk for 6) gave intermediate values indicative of
fraying, whereas the chemical shift change of the external hy-
Figure 4. X-ray diffraction structure of three-stranded mimic 5: a) top- and b) side-elevation. Side-chains highlighted in orange and purple (opposite face), di-
phenylalkyne turns in maroon, tert-butyl protecting groups in grey, dotted red lines represent hydrogen bonds, some hydrogens omitted for clarity. Mimicry
of a seven-stranded b-meander 7: c) structure; d) schematic representation; e) circular dichroism mean residue ellipticity ([q]) of three- (5), four- (6), and
seven-stranded (7) mimics relative to single-stranded control molecule (9); averages of ten acquisitions, 100 mm in trifluoroethanol.
Chem. Eur. J. 2015, 21, 13518 – 13521
www.chemeurj.org
13520
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim

Communication
[25] H. A. Lashuel, S. R. LaBrenz, L. Woo, L. C. Serpell, J. W. Kelly, J. Am. Chem.
Soc. 2000, 122, 5262.
Acknowledgements
[26] P.-N. Cheng, C. Liu, M. Zhao, D. Eisenberg, J. S. Nowick, Nat. Chem.
2012, 4, 927.
[27] J. D. Pham, N. Chim, C. W. Goulding, J. S. Nowick, J. Am. Chem. Soc.
2013, 135, 12460.
[28] C.-I. BrändØn, J. Tooze, Introduction to Protein Structure, Garland Publish-
ing, New York, 1999.
We thank The EPSRC (EP/G03706X/1) and the University of
Oxford for funding and Diamond Light Source for an award of
beam time (MT9981).
[29] K. Makabe, D. McElheny, V. Tereshko, A. Hilyard, G. Gawlak, S. Yan, A.
Koide, S. Koide, Proc. Natl. Acad. Sci. USA 2006, 103, 17753.
[30] D. S. Kemp, Z. Q. Li, Tetrahedron Lett. 1995, 36, 4175.
[31] D. S. Kemp, Z. Q. Li, Tetrahedron Lett. 1995, 36, 4179.
[32] A. C. Spivey, J. McKendrick, R. Srikaran, B. A. Helm, J. Org. Chem. 2003,
68, 1843.
[33] D. A. Offermann, J. E. McKendrick, J. J. P. Sejberg, B. Mo, M. D. Holdom,
B. A. Helm, R. J. Leatherbarrow, A. J. Beavil, B. J. Sutton, A. C. Spivey, J.
Org. Chem. 2012, 77, 3197.
[34] H. Lingard, J. T. Han, A. L. Thompson, I. K. H. Leung, R. T. W. Scott, S.
Thompson, A. D. Hamilton, Angew. Chem. Int. Ed. 2014, 53, 3650;
Angew. Chem. 2014, 126, 3724.
[35] Unambiguous Assignment of the 1H and 13C NMR spectra was made
possible with band-selective HMBC, see: T. D. W. Claridge, I. PØrez-Victo-
ria, Org. Biomol. Chem. 2003, 1, 3632.
Keywords: foldamer · peptidomimetics · protein surface ·
protein–protein interaction · secondary structure · b-sheet
[1] I. Avan, C. D. Hall, A. R. Katritzky, Chem. Soc. Rev. 2014, 43, 3575.
[2] S. Hecht, I. Huc, Foldamers: Structure, Properties, and Applications, Wiley-
VCH, Weinheim, 2007.
[3] M. R. Arkin, Y. Tang, J. A. Wells, Chem. Biol. 2014, 21, 1102.
[4] D. Seebach, J. L. Matthews, Chem. Commun. 1997, 2015.
[5] R. P. Cheng, S. H. Gellman, W. F. DeGrado, Chem. Rev. 2001, 101, 3219.
[6] D. Seebach, D. F. Hook, A. Glättli, Biopolymers 2006, 84, 23.
[7] C. Dolain, H. Jiang, J.-M. LØger, P. Guionneau, I. Huc, J. Am. Chem. Soc.
2005, 127, 12943.
[8] Y. Hamuro, S. J. Geib, A. D. Hamilton, J. Am. Chem. Soc. 1996, 118, 7529.
[9] Y. Hamuro, S. J. Geib, A. D. Hamilton, J. Am. Chem. Soc. 1997, 119,
10587.
[10] R. A. Brown, V. Diemer, S. J. Webb, J. Clayden, Nat. Chem. 2013, 5, 853.
[11] G. R. Marshall, E. E. Hodgkin, D. A. Langs, G. D. Smith, J. Zabrocki, M. T.
Leplawy, Proc. Natl. Acad. Sci. USA 1990, 87, 487.
[36] Meander compounds 5, 6, and
9 exhibited sharp, well-dispersed
1H NMR spectra in CDCl3 that were invariant across at least three orders
of magnitude of concentration, consistent with no aggregation occur-
ring (see the Supporting Information).
[37] L. R. Steffel, T. J. Cashman, M. H. Reutershan, B. R. Linton, J. Am. Chem.
Soc. 2007, 129, 12956.
[38] D. S. Wishart, B. D. Sykes, F. M. Richards, J. Mol. Biol. 1991, 222, 311.
[39] D. S. Wishart, B. D. Sykes, F. M. Richards, Biochemistry 1992, 31, 1647.
[40] J. A. Marsh, V. K. Singh, Z. Jia, J. D. Forman-Kay, Protein Sci. 2006, 15,
2795.
[41] H. Kessler, Angew. Chem. Int. Ed. Engl. 1982, 21, 512; Angew. Chem.
1982, 94, 509.
[42] M. H. Abraham, R. J. Abraham, W. E. Acree, A. E. Aliev, A. J. Leo, W. L.
Whaley, J. Org. Chem. 2014, 79, 11075.
[43] Abraham “A” values evaluate intramolecular H-bonding as follows:
<0.05=strong, >0.16=absent. Intermediate values are indicative of
an ensemble in which there is H-bond sampling. See the Supporting In-
formation for calculation of the NHs in 5 and 6.
[44] CCDC 1049256 (5) contains the supplementary crystallographic data for
this paper. These data are provided free of charge by The Cambridge
Crystallographic Data Centre.
[12] F. Freire, J. D. Fisk, A. J. Peoples, M. Ivancic, I. A. Guzei, S. H. Gellman, J.
Am. Chem. Soc. 2008, 130, 7839.
[13] G. A. Lengyel, W. S. Horne, J. Am. Chem. Soc. 2012, 134, 15906.
[14] P.-N. Cheng, J. D. Pham, J. S. Nowick, J. Am. Chem. Soc. 2013, 135, 5477.
[15] J. A. Robinson, Acc. Chem. Res. 2008, 41, 1278.
[16] J. S. Nowick, Acc. Chem. Res. 2008, 41, 1319.
[17] H. E. Stanger, S. H. Gellman, J. Am. Chem. Soc. 1998, 120, 4236.
[18] F. Blanco, M. Ramírez-Alvarado, L. Serrano, Curr. Opin. Struct. Biol. 1998,
8, 107.
[19] T. A. Hill, N. E. Shepherd, F. Diness, D. P. Fairlie, Angew. Chem. Int. Ed.
2014, 53, 13020; Angew. Chem. 2014, 126, 13234.
[20] Huc has demonstrated such a system in which p/p stacking is the
structural determinant rather than hydrogen bonding, see: L. Sebaoun,
V. Maurizot, T. Granier, B. Kauffmann, I. Huc, J. Am. Chem. Soc. 2014,
136, 2168.
[21] C. Das, P. Balaram, S. Raghothama, Chem. Commun. 1999, 967.
[22] J. Venkatraman, G. A. Nagana Gowda, P. Balaram, J. Am. Chem. Soc.
2002, 124, 4987.
[45] The relatively large errors in these values are due to fraying of the C-
and N-terminal amino acids (see above).
[23] Z. Hegedüs, E. WØber, É. Kriston-Pµl, I. Makra, . Czibula, É. Monostori,
T. A. Martinek, J. Am. Chem. Soc. 2013, 135, 16578.
[24] R. Sonti, H. N. Gopi, U. Muddegowda, S. Ragothama, P. Balaram, Chem.
Eur. J. 2013, 19, 5955.
Received: July 9, 2015
Published online on August 11, 2015
Chem. Eur. J. 2015, 21, 13518 – 13521
www.chemeurj.org
13521
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
