60% yield. The orange bpy complex 3 (59% yield, 95%
purity) is particularly air-sensitive and poorly stable, showing
signs of decomposition (darkening) within a few days even if
stored in an argon-filled glove-box. It is noteworthy that
highly air-sensitive 3 is the C2F5 congener of [(bpy)CuCF3], an
active complex[12] in the oxidative trifluoromethylation of
arylboronic acids.[13] The NHC complex 5 was isolated
spectroscopically pure in 68% yield. Recrystallization from
benzene/hexanes gave analytically pure 5. As mentioned
above, [(phen)CuC2F5] exists in equilibrium with
[(phen)2Cu]+[Cu(C2F5)2]À.[8] Similarly, solutions of 2, 3, and
4 were found to contain 8%, 11%, and 5% of [Cu(C2F5)2]À,
respectively (19F NMR). In contrast, the NHC complex 5 does
not equilibrate with [(IPr*)2Cu]+[Cu(C2F5)2]À in solution,
apparently due to the exceptional steric bulk of the IPr*
ligand.[14]
Figure 5. ORTEP drawing of [(Ph3P)Cu(phen)Cl]·C2H4Cl2 (6·C2H4Cl2)
with the cocrystallized molecule of 1,2-dichloroethane and all H atoms
omitted for clarity and thermal ellipsoids drawn at the 50% probability
level.
As mentioned above, pentafluoroethyl ketones are of
particular importance for the synthesis of biologically active
C2F5 derivatives. Readily available and inexpensive acid
chlorides RCOCl would be ideal precursors to RCOC2F5 by
precipitate of 6 was produced. The structure of 6 in the form
of a 1:1 1,2-dichloroethane solvate was established by X-ray
analysis (Figure 5).
À
pentafluoroethylation of the C Cl bond. However, the only
currently available one-step transformation of this type
proceeds via a ketene intermediate and is, therefore, inappli-
cable to a broad variety of acid chlorides devoid of H atoms in
the a position.[15] In general, C2F5CuI reagents seem promis-
Various acid chlorides 7 cleanly reacted with 4 (1 equiv) to
give the corresponding ketones 8 in high yield (Scheme 2).
The reaction proceeded smoothly with benzoic acid chlorides
bearing electron-withdrawing and electron-donating substitu-
ents in the ortho, meta, and para positions of the benzene ring

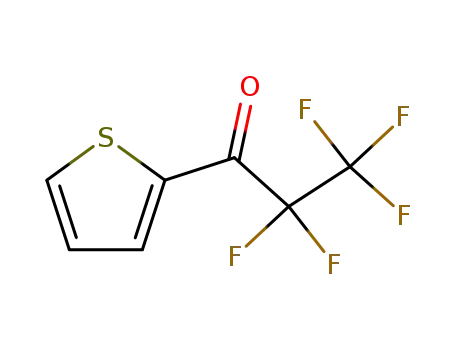

(7a–r) and 1-naphthoic acid chloride (7s). Both 2-furancar-
boxylic acid chloride (7t) and 2-thiophenecarboxylic acid
chloride (7u) underwent pentafluoroethylation in nearly
quantitative yield. The aliphatic (7v) and vinylic (7w)
derivatives were also converted into the corresponding
pentafluoroethyl ketones in 85% and 92% yield, respectively.
In all reactions, the conversion was close to quantitative.
Fluorine and chlorine atoms on the aromatic ring are well-
tolerated (8h–n), and so is bromine in the meta position (8p),
as manifested by the high yields (85–95%) of the correspond-
ing ketone products. In contrast, the reaction of 2-bromo-
benzoic acid chloride furnished the desired product (8o) in
only 61% yield, as a consequence of competing pentafluor-
À
ing for pentafluoroethylation of the RCO Cl bond. Neither
1 nor ligandless CuC2F5, however, could be used for this
transformation. First, complex 1 bearing C2F5 and tBuO
ligands on the Cu center both pentafluoroethylates and tert-
butoxylates electrophiles[9] (see above). Second, the tBuOH
by-product present in the ligandless CuC2F5 solutions
(Scheme 1) could esterify RCOCl, especially in the presence
of Cu. Finally, the DMF solvent can react with acid chlorides
+
À
=
to generate [RCOOCH NMe2] Cl , a Vilsmeyer–Haack-
type adduct that is reactive toward nucleophiles, alcohols
included.[16] In contrast, the well-defined pre-isolated C2F5CuI
complexes 2–5 in an inert solvent are devoid of these
problems. Therefore, we explored the possibility of using
them as pentafluoroethylating agents for acid chlorides. The
initial tests were performed with 4-FC6H4COCl as the
substrate to obtain additional information by 19F NMR
spectroscopic analysis of the reaction mixtures.
À
oethylation of the aromatic C Br bond. The so-called “ortho
effect”,[3,17] that is, the enhanced reactivity of halogen atoms
in the 2-position of the ring, evidently brought about the side
formation of 2-(C2F5)C6H4COC2F5 (15%) and 2-
(C2F5)C6H4COCl (10%) in the reaction of 2-BrC6H4COCl.
Likewise, the reaction of 4-IC6H4COCl, which contains
Exploratory experiments indicated that 4-FC6H4COCl
reacted with 1.05 equiv of 2 or 5 (THF, 658C) in a nonselective
manner to give 4-FC6H4COC2F5 in only about 5–25% yield
(19F NMR) at > 90% conversion. The bpy complex 3 was not
considered as a reagent because of its poor stability and
exceedingly facile oxidizability (see above). We were
delighted to find, however, that the mixed phen-PPh3 complex
4 smoothly pentafluoroethylated 4-FC6H4COCl in a highly
selective manner. To achieve high chemoselectivity and avoid
the formation of by-products, 4 used for the fluoroalkylation
should be thoroughly purified by recrystallization. THF was
a particularly convenient solvent for the reaction because the
Cu by-product, [(Ph3P)Cu(phen)Cl] (6), appeared to be
poorly soluble in THF and precipitated out as the penta-
fluoroethylation occurs. Only 1 equiv of 4 was needed to
reach > 95% conversion of 4-FC6H4COCl after 3 h at 658C.
During that time, the red color from 4 vanished and a yellow
À
an even more reactive Ar I bond, with 1 equiv of 4
gave rise to 4-IC6H4COC2F5, 4-(C2F5)C6H4COCl, and 4-
(C2F5)C6H4COC2F5 in an approximately 3:4:6 molar ratio.
With 2 equiv of 4, this reaction afforded the disubstituted
À
product (8q) in 72% yield. The aromatic C Cl (7l–n) and
À
certain C Br (7p) bonds staying intact in the reaction provide
an opportunity for further functionalization of the penta-
fluoroethylated products by a variety of metal-catalyzed
cross-coupling reactions. Such chloroarenes bearing the
strongly electron-withdrawing COC2F5 group on the ring
(8l–n) are electron-deficient and therefore “activated”
[18]
À
toward C Cl bond functionalization with transition metals.
Electron-withdrawing groups on the ring of substituted
benzoic acid chloride derivatives facilitate the reaction. The
