A biomimetically inspired, efficient synthesis of the south 7 hemisphere of cephalostatin 7

Article abstract of DOI:10.1021/ja0531935

Synthesis of the South 7 hemisphere of cephalostatin 7 is described applying a second-generation synthetic strategy, which retains all the existing carbons in hecogenin acetate 1. TFAT (trifluoroacetyl trifluoromethanesulfonate)-assisted E-ring opening yi

Full text of DOI:10.1021/ja0531935

Published on Web 09/03/2005
A Biomimetically Inspired, Efficient Synthesis of the South 7 Hemisphere of
Cephalostatin 7
Jong Seok Lee* and Philip L. Fuchs*
Department of Chemistry, 560 OVal DriVe, Purdue UniVersity, West Lafayette, Indiana 47907
Received May 16, 2005; E-mail: pfuchs@purdue.edu
Scheme 1. Biomimetic Strategy of North 1 and South 7
Our quest to supply multigram quantities of cephalostatin
analogues to the clinic has featured improved syntheses of several
Southern hemispheres, including ritterazine GN,1 23′-deoxy cepha-
lostatin 1, and 17-hydroxy, 23-deoxy cephalostatin 1. Combining
these segments with the North 1 segment has given a series of potent
agents exhibiting promising cell-line specificity.2
Completing the goal requires a vastly improved preparation of
South 7 and several variants of the North 1 hemisphere. Our
approach to these materials involves conversion of the plant-derived,
hecogenin acetate 1 to spiroketals 2H and 2OH.3 In concept,
electrophilic opening of 2H or 2OH could give the corresponding
oxonium ions 3H or 3OH. Furthermore, the enol from 3H may
serve as a precursor to 4OH. Conversion of 4H and 4OH to key
polyols 7H and 7OH requires elimination to 5 followed by
dihydroxylation to D-ring dienes 6. Cephalostatin-related steroidal
D-ring dienes have previously been subjected to [4 + 2] reactions
with singlet oxygen,4 but this communication reports the first
appropriately oxygenated, stereodefined substrates that deliver a
synthetically relevant outcome.
Scheme 2. Synthesis of Dienes 15a-c and 16a-d
Olefinic polyols 7H and 7OH each have the potential of being
in equilibrium with four diastereomeric hemiketals, of which 8 and
10 appear preordained to suffer mild acid-catalyzed cyclization to
9 and 11, respectively. Alternatively, ionization of the C-14 tertiary
allylic alcohol of 7 may result in capture of the C-22 ketone
followed by kinetic closure of the spiroketal, again potentially
yielding 9 and 11 or their diastereomers (Scheme 1).
Acid-catalyzed ring-opening reactions of steroidal spiroketals are
generally based upon the seminal 1939-1940 Marker protocol.5
The reaction conditions are quite severe (Ac2O, 200 °C, 10 h), and
substrates such as 2 bearing a D-ring olefin decompose when
subjected to these conditions. Our new procedure involves low
temperature (-30 to -40 °C) treatment of spiroketals with tri-
fluoroacetyltriflate (TFAT) for 2 h, followed by cold, aqueous
workup.6 Application of this protocol to steroid 2H gave dihydro-
furan 12. If one allows the reaction to reach room temperature, the
product is ring-opened diene 13, which has unfortunately suffered
equilibration of the doubly activated C-20 stereocenter (Scheme
2). The problem was avoided by reaction of 143b,7 with TFAT to
provide dienyl trifluoroacetate 15a in high yield with no loss of
C-20 stereochemistry. Mild hydrolysis and Swern oxidation (Hu¨nig’s
base is essential to avoid C-20 isomerization) afforded the
equilibration-sensitive ketone 15c with only a trace epimerization
at C-20 (Scheme 2).
The biomimetic hypothesis was initially tested with dienes 15a-
c, which added singlet oxygen in high yield, but gave no facial
preference (Table 1, entries 1-3). Molecular modeling of C-22
propylene glycol ketals prefigured the singlet oxygen reaction as a
function of the conformational bias of the C-21 methyl moiety.
Specifically, it appears that the natural C-21R methyl ketal exists
as a group of three low-energy conformers, which shield the top
face of the D-ring diene, while the corresponding five conformers
of the â-methyl isomer block the bottom face (Figure 1).
In the event, C-22 ketals 16a-c (from 15c in 91, 53, and 91%
yield, respectively)8,9 smoothly underwent [4 + 2] cycloaddition
of singlet oxygen in 80-98% yield (entries 4-6), stereospecifically
providing R-face adducts. In striking contrast, but consistent with
the model in Figure 1, unnatural C-21 methyl ketal 16d gave only
the expected â-adduct 20d-â (entry 7).
With selective cycloaddition achieved, biomimetic synthesis of
the South 7 hemisphere was next addressed. Conversion of terminal
olefin 14 to differentially protected C-25,26 diol 21a-r (not shown)
was accomplished in three operations with 93% yield and >4.3:1
de with either C-25 selectivity as a function of catalyst in the
Sharpless AD reaction (see Supporting Information).

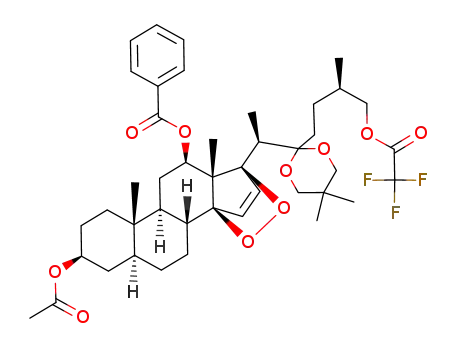

Cleavage of the isolable and characterized peroxide 22a-r (see
Supporting Information) with Zn/HOAc provided diol 23a-r in 86%
yield (Scheme 3). The stage was now set to deprotect ketal 23a-r
9
13122
J. AM. CHEM. SOC. 2005, 127, 13122-13123
10.1021/ja0531935 CCC: $30.25 © 2005 American Chemical Society

C O M M U N I C A T I O N S
Table 1. [4 + 2] Cycloaddition of Steroidal D-ring Dienes with Singlet Oxygen
a Calculated by crude 1H NMR spectrum; ns ) not separated. b Isolated yields. c Structure confirmed by X-ray crystallography. See Supporting Information.
In conclusion, the above synthesis affords a new, practical route
to the South 7 hemisphere 28 in 20% overall yield over 16
operations from hecogenin acetate 1. This compares with our first-
generation synthesis that required 25 operations with an overall
yield of 2%.11 In addition, this communication provides a biomi-
metic strategy potentially appropriate for a vastly improved
synthesis of the crucial North 1 hemisphere and its analogues.
Figure 1. Molecular models of C-22 propylene glycol ketals.
Acknowledgment. This work was supported by the National
Institute of Health (CA 60548). We thank Dr. Phillip Fanwick and
Arlene Rothwell for providing the X-ray and MS data.
Scheme 3. Completion of Synthesis of South 7 (28)
Supporting Information Available: Extended discussion, experi-
mental procedures, and 1H, 13C spectra. This material is available free
of charge via the Internet at http://pubs.acs.org.
References
(1) LaCour, T. G.; Guo, C.; Bhandaru, S.; Boyd, M. R.; Fuchs, P. L. J. Am.
Chem. Soc. 1998, 120, 692.
(2) (a) Li, W.; LaCour, T. G.; Fuchs, P. L. J. Am. Chem. Soc. 2002, 124,
4548. (b) Li, W.; Fuchs, P. L. Org. Lett. 2003, 5, 2849.
(3) (a) LaCour, T. G.; Guo, C.; Bhandaru, S.; Boyd, M. R.; Fuchs, P. L. J.
Am. Chem. Soc. 1998, 120, 692. (b) Lee, J. S.; Fuchs, P. L. Org. Lett.
2003, 5, 2247.
(4) (a) Fell, J. D.; Heathcock, C. H. J. Org. Chem. 2002, 67, 4742. (b) Ba¨sler,
S.; Brunck, A.; Jautelat, R.; Winterfeldt, E. HelV. Chim. Acta 2000, 83,
1854.
(5) (a) Marker, R. E.; Rohrmann, E. J. Am. Chem. Soc. 1939, 61, 3592. (b)
Marker, R. E.; Rohrmann, E. J. Am. Chem. Soc. 1940, 62, 518. (c)
Micovic, I. V.; Invanovic, M. D.; Piatak, D. M. Synthesis 1990, 591. (d)
Tavares, R.; Randoux, T.; Braekman, J.; Daloze, D. Tetrahedron 1993,
49, 5079. (e) Borah, P.; Chowdhury, P. Ind. J. Chem., Sect. B: Org. Chem.
Incl. Med. Chem. 1998, 37B, 408. (f) Haeuser, H. German Patent
DE19635418, 1997. (g) Chowdhury, P. K.; Bordoloi, M. J.; Barua, N.
C.; Sarmah, H. P.; Goswami, P. K.; Sharma, R. P.; Barua, A. P.; Mathur,
R. K.; Ghosh, A. C. U.S. Patent 5808117, 1998.
(6) Lee, J. S.; Fuchs, P. L. Org. Lett. 2003, 5, 3619.
(7) (a) Lee, S.; LaCour, T. G.; Lantrip, D.; Fuchs, P. L. Org. Lett. 2002, 4,
313. (b) Lee, S.; Fuchs, P. L. Org. Lett. 2002, 4, 317.
(8) (a) Ishihara, K.; Karumi, Y.; Kubota, M.; Yamamoto, H. Synlett 1996,
839. (b) Fukuzawa, S.; Tsuchimoto, T.; Hotaka, T.; Hiyama, T. Synlett
1995, 1077.
to ketone 7 and test the plan for formation of spiroketal 9 (Scheme
1) by selective monodeprotection at C-25,26.
After many unsuccessful attempts at ketal deprotection, treatment
of 23a-r via HCN catalysis (controlled release from aqueous
DDQ)10 afforded the unexpected, but welcome, hydroxypropyl ether
25, presumably via ketal participation followed by hydrolysis of
intermediate oxonium ion 24. Oxidation to 26, concurrent cleavage
of silyl ether and acrolein gives 27, which, upon a finishing
acidification, directly gave the South 7 spiroketal 28 in 66% yield
accompanied by the C-25 diastereomer 28-epi, resulting from
parallel processing of the inseparable C-25 diol carried forward
from the stage of the Sharpless AD reaction (Supporting Informa-
tion).
(9) Corey, E. J.; Trybulski, E. J.; Suggs, J. W. Tetrahedron Lett. 1976, 17,
4577.
(10) Oku, A.; Kinugasa, M.; Kamada, T. Chem. Lett. 1993, 163.
(11) (a) Jeong, J. U.; Fuchs, P. L. Tetrahedron Lett. 1994, 35, 5385. (b) Jeong,
J. U.; Fuchs, P. L. Tetrahedron Lett. 1995, 36, 2431.
JA0531935
9
J. AM. CHEM. SOC. VOL. 127, NO. 38, 2005 13123
