C O M M U N I C A T I O N S
thermal effects associated with the helix racemization on melting-
recrystallization were observed. Cyclopolymerization of 1,5-hexa-
diene may lead to main-chain chiral poly(methylene-1,3-cyclopen-
tane) if the stereocontrol is trans-diisotactic.1 All the complexes
Lig1-5Zr(Bn)2 led to active catalysts for 1,5-hexadiene polymeri-
zation, their activity following the trend observed above, that is,
highly active catalysis by the complexes featuring electron with-
drawing phenolate substituents, low activity by the catalysts bearing
bulky groups, and intermediate activity by Lig3Zr(Bn)2. While most
samples were highly insoluble, 13C NMR spectra at high temperature
of a more soluble sample (prepared from (R,R)-(∆)-Lig2Zr(Bn)2)
featured only cyclopolymerization peaks, and no vinyl groups peaks
or peaks attributed to cross-linking were observed. Peak integration
aided by spectrum simulation of the C4,5 peaks region of the 13C
NMR spectrum supported a preference for trans substituted rings
(1 - σ ) 0.75), and a mild isotactic preference (R ) 0.75).1 The
combination of these two properties should render this polymer
chiral; however, its insolubility prevents a direct optical rotation
assessment. Polymers prepared from Lig2Zr(Bn)2 and Lig3Zr(Bn)2
show clear melting peaks at ca. 100 °C and glass transition at ca.
+5 °C (second heating thermograms), indicating a semicrystalline
structure. In contrast, the polymers derived from Lig4Zr(Bn)2 and
Lig5Zr(Bn)2 showed strong glass transitions at ca. -4 °C,7 and no
melting, indicating lack of crystallinity, which, combined with their
insolubility, may suggest a higher degree of cross-linking.
Figure 1. An ORTEP representation of rac-Lig3Zr(Bn)2, 50% probability.
(Bn)2 led to highly isotactic poly(1-hexene).9 Lig5Zr(Bn)2 is
somewhat more active than Lig4Zr(Bn)2, and the 13C NMR spectrum
of its polymer shows no traces of any stereo-errors (e.g., mmmr),
signifying a very high degree of isotacticity.7,5,10 These results are
consistent with those obtained with the analogous zirconium
complex of the nonchiral ligand in propylene polymerization.8 As
expected, the two catalysts featuring the electron withdrawing
groups (Lig1,2Zr(Bn)2) exhibited very high activities. In contrast to
their analogues based on the nonchiral ligands,5b they led to high-
molecular-weight polymers rather than to oligomers. This is
tentatively attributed to their higher rigidity that may restrict
conformations that favor termination events.
In conclusion, we have introduced the first zirconium complexes

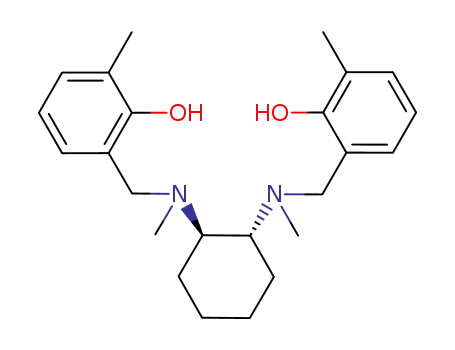

of chiral Salan ligands. They were found to form as single
diastereomers of predetermined chirality around the metal and led
to active polymerization catalysts of higher R-olefins whose
isotacticity induction depended on the ligands’ bulk. We are
currently investigating further polymerizations as well as other
enantioselective transformations with these types of catalysts.
Acknowledgment. We thank the Israel Science Foundation and
the United States-Israel Binational Science Foundation for financial
support. We thank Dr Limor Frish for helpful discussions.
Lig1-5Zr(Bn)2
1-hexene
8 poly(1-hexene)
(1)
B(C6F5)3, rt
Supporting Information Available: Details of the syntheses and
characterization of the complexes, polymerization procedures, and
polymer characterization; crystallographic data in text format for rac-
Lig3Zr(Bn)2, rac-Lig5Zr(Bn)2, and rac-Lig3Zr(O-tert-Bu)2. This material
These catalysts were also found suitable for polymerization of
the somewhat bulkier monomer, 4-methyl-1-pentene. This polym-
erization followed the trend observed for 1-hexene polymeriza-
tion: The two complexes featuring electron-withdrawing phenolate
substituents (Lig1,2Zr(Bn)2) gave rise to highly active catalysts, and
to high-molecular weight stereoirregular polymers. On the other
hand, the two complexes featuring the bulky phenolate substituents
(Lig4,5Zr(Bn)2) led to catalysts of low activity and to crystalline
polymers insoluble in common solvents at room temperature. 13C
NMR at an elevated temperature of these crystalline polymers
indicated the formation of highly isotactic poly(4-methyl-1-pentene).
Differential scanning calorimetry results for polymer samples
synthesized from (rac)-Lig4Zr(Bn)2, (R,R)-(∆)-Lig4Zr(Bn)2, and
(rac)-Lig5Zr(Bn)2 supported their crystalline structure as evident
from the presence of exothermal (crystallization) peaks on the
cooling thermograms and endothermal (melting) peaks on the
heating thermograms. The melting peak (second heating thermo-
grams) temperatures are at 218.0, 216.7, and 222.7 °C, respectively.7
The somewhat higher melting point of the polymer derived from
(rac)-Lig5Zr(Bn)2 may signify a higher isotacticity. It is noteworthy
that the first and the second heating thermograms of the polymer
samples derived from the enantiomerically pure and the racemic
varieties of Lig4Zr(Bn)2 are almost identical. Thus, although a
presumable enantiomorphic-site control mechanism is expected to
produce chains of single helicity from (R,R)-(∆)-Lig4Zr(Bn)2
(assuming no helix-racemization prior to precipitation), no expected
References
(1) (a) Coates, G. W.; Waymouth, R. M. J. Am. Chem. Soc. 1991, 113, 6270.
(b) Coates, G. W.; Waymouth, R. M. J. Am. Chem. Soc. 1993, 115, 91.
(c) de Ballesteros, O. R.; Venditto, V.; Auriemma, F.; Guerra, G.; Resconi,
L.; Waymouth, R.; Mogstad, A.-L. Macromolecules 1995, 28, 2383.
(2) (a) Kaminsky, W.; Ahlers, A.; Mo¨ller-Lindenhof, N. Angew. Chem., Int.
Ed. Engl. 1989, 28, 1216. (b) Pino, P.; Cioni, P.; Wei, J. J. Am. Chem.
Soc. 1987, 109, 6189.
(3) Baar, C. R.; Levy, C. J.; Min, E. Y.-J.; Henling, L. M.; Day, M. W.;
Bercaw, J. E. J. Am. Chem. Soc. 2004, 126, 8216.
(4) Wild, F. R. W. P.; Zsolnai, L.; Huttner, D. S.; Brintzinger, H. H. J.
Organomet. Chem. 1982, 232, 233.
(5) (a) Tshuva, E. Y.; Goldberg, I.; Kol, M. J. Am. Chem. Soc. 2000, 122,
10706. (b) Segal, S.; Goldberg, I.; Kol, M. Organometallics 2005, 24,
200.
(6) Yeori, A.; Groysman, S.; Goldberg, I.; Kol, M. Inorg. Chem. 2005, 44,
4466. See also: Balsells, J.; Carroll, P. J.; Walsh, P. J. Inorg. Chem. 2001,
40, 5568.
(7) See Supporting Information for further details.
(8) A zirconium complex of the nonchiral ligand introduced by Busico and
co-workers led to highly isotactic polypropene: Busico, V.; Cipullo, R.;
Friederichs, N.; Ronca, S.; Talarico, G.; Togrou, M.; Wang, B. Macro-
molecules 2004, 37, 8201.
(9) Under the conditions employed, these catalysts did not lead to living
polymerization.
(10) (a) van der Linden, A.; Schaverian, C. J.; Meijboom, N.; Ganter, C.; Orpen,
A. G. J. Am. Chem. Soc. 1995, 117, 3008. (b) Babu, G. N.; Newmark, R.
A.; Chien, J. C. W. Macromolecules 1994, 27, 3383.
JA0647654
9
J. AM. CHEM. SOC. VOL. 128, NO. 40, 2006 13063
