HETEROCYCLES, Vol. 59, No. 1, 2003, pp. 283 - 291, Received, 30th July, 2002
THE AERIAL OXIDATION OF A COBALT(II)-2-
AMINOMETHYLPYRIDINE COMPLEX: AN IMPROVED METHOD FOR
SYNTHESIS OF 2,3,5,6-(TETRAPYRIDIN-2-YL) PYRAZINE
Kuniyoshi Ogura,a Yoshihisa Kurasawa,b Yoshimi Yamaguchi,c and
Yoshihisa Okamoto*c
Chemicals Development Laboratories, Mitsubishi Rayon Co., Ltd.,
Daikoku-chyo, Tsurumi-ku, Yokohama 230-0053, Japana
School of Pharmaceutical Sciences, Kiasato University, Shirokane,
Minato-ku, Tokyo 108-8641, Japanb
Center for Natural Sciences, Kitasato University, Kitasato, Sagamihara
228-8555, Japanc
Abstract – An excellent tridentate chelate compound for iron(II) ion,
2,3,5,6-(tetrapyridin-2-yl)pyrazine (2), was directly synthesized by aerial
oxidation of a cobalt(II)-2-aminomethylpyridine complex. Oxidation
pathways are also proposed.
The work of oxygen fixation by metal complexes has been contributed not only to unraveling the
biological problem but also to an understanding of the pathways by which molecular oxygen
functions as an oxidizing agent. The reversible complexation of molecular oxygen by cobalt(II)-
ammine complexes had already been known in the nineteenth century.1 Since the original

discovery of the oxygen-carrying properties of bis(salicylaldehyde ethyleneimine)-Co(II)
complex,2 a wide variety of analogous oxygen complexes have been characterized, generally as
µ -peroxo complexes.3 In the course of studying tridentate chelate compounds, Lions and his
co-worker4 found that 2,3,5,6-(tetrapyridin-2-yl)pyrazine (2) was an excellent tridentate for iron(II)
cations wherein the compound (2) was synthesized by fusion of α-pyridoin and ammonium
acetate in 32% yield. In a previous comunication,5 we reported a new facile synthesis of 2 from
2-aminomethylpyridine (1) using cobalt(II) chloride. The reaction is based on the fixation of
molecular oxygen by a cobalt(II) complex and just carried out in water or ethanol, although a
trace amount of by-product, 2,4,5-(tripyridin-2-yl)oxazole (3), was formed (Scheme 1). This
paper is concerned with an improved method for synthesizing the tridentate (2) and the
investigation of the oxidation of 1 by molecular oxygen as an oxidizing agent.
Scheme 1
Table I
The Correlation between the molar ratio of 1 (1 g) to Co( II ) ion and the yield of 2*
Entry
Molar ratio (1/Co(II)ion)
Yield(%) of 2
1
2
3
6 / 1
3 / 1
1 / 1
7.8
48
0.45
*
Synthesized by procedure B

Table II
The Correlation between the reaction temperature and the yield of 2
(under conditions used in Entry No.2, Table I)
Entry
Reaction Temperature
Room Temperature
Heating at 90 ˚C
Yield(%) of 2
1
2
5
48
Chart 1
1H-NMR (ppm, J in Hz)
7.80, ddd
(J:8.0,7.5,1 .0 Hz)
H
8.39, ddd
(J:8.0,2.0,1.0 Hz)
7.28, ddd
8.39, ddd
H
H
(J:7.5,5.0,1.0 Hz)
(J:8.0,2.0,1 .0 Hz)
7.90, ddd
(J:8.0,7.5,1 .0 Hz)
H
H
H8(J.:656.,0d,2d.d0,1.0 Hz)
O
N
N
7.47, ddd
(J:7.5,5.0,1.0 Hz)
H
10.20, ddd
H
N
(J:7.5,2.0,1.0 Hz)
N
8.84, ddd
(J:5.0,2.0,1 .0 Hz) H
8.62, ddd
(J:8.0,2.0,1.0 Hz)
7.04, ddd
H
H
(J:7.5,7.5,1.0 Hz)
H
7.38, ddd
(J:8.0,7.5,1.0 Hz)
13 C-NMR (ppm)
136.65
186.52
135.92
122.95
122.75
148.14
136.24 125.61
O
150.41
N
N
125.34
155.98
138.22
N
N
127.45
115.69
149.41
120.44
129.27
127.15
The formation of 2 from 1 should depend on an intermolecular carbon-carbon bond formation by
a radical coupling where the chelation between 2-aminomethylpyridine (1) and cobalt(II) ion, and
participation of molecular oxygen are essential. In fact, when 3-aminomethylpyridine and 4-
aminomethylpyridine in place of 2-aminomethylpyridine (1) were employed in this reaction under

normal conditions, the starting amines were also recovered, respectively. Moreover, when the
reaction carried out under a nitrogen stream, a blue color appeared, but the color never changed
during the reaction, and 2-aminomethylpyridine (1) was finally recovered. Oxidation of 1 with
potassium ferricyanide under a nitrogen stream gave a trace amount of 2 with many other by-
products (checked by TLC), and the starting amine (1) was mostly recovered. The structures of
2 and 3 were established by MS and NMR spectral analyses (Chart 1 shows NMR data of 3).
Table I shows the correlation between the molar ratio of 2-aminomethylpyridine (1) to cobalt(II)
ion and the yield of the product (2). Although all cases provided 2, the optimum yield was
obtained when the ratio of 1 to cobalt(II) ion was three to one. Table II shows the correlation
between reaction temperature and the yield of 2. The reaction proceeded at room temperature,
but it was more effective by heating on a water bath. On the contrary, the mild reaction
temperature might be more preferable for the formation of 3. Thus the optimum reaction
conditions for synthesizing 2 were determined, however, we encountered an obstacle in the
stage of extraction process. When reaction products were extracted with chloroform, emulsion
occurred, and we had to use a centrifuge to separate it. However, when we employed ethanol
as the reaction solvent in place of water, such a trouble was eliminated.
Other metal complexes using Group VIII (8-10) elements were also prepared as oxygen carrier.6
When nickel(II) ion was used in the above reaction, the yield of the product (2) was very much
lower than that obtained using cobalt(II) ion. However, when copper(II) ion was used, no
oxidation reaction occurred at all (Scheme 2).
Oxidation pathways of the reaction were considered and two possible pathways were proposed.
One is that the complex of 2-aminomethylpyridine (1) with cobalt(II) ion readily reacts with
molecular oxygen to provide µ -peroxodicobalt(III) complex (4), which undergoes irreversible
reaction to provide a cation radical(5) as shown in Scheme 3. In fact, µ -peroxodicobalt(III)

Scheme 2
Scheme 3
Scheme 4
complexes containing di-(2-pyridyl)ketone and 2’,2”,2’”-tripyridyl ligands have been prepared
by bubbling oxygen through a solution containing cobalt(II) ions, sodium perchlorate, and the
ligands of the pyridine derivatives.7 On the other hand, Sargeson and his co-worker8 pointed
out that the tightness and the steric bulk of the ligand structures prevent access of molecular
oxygen to the hindered cobalt(II) center, and they synthesized macrotricyclic hexaamine cage
complexes of cobalt(III) by aerial oxidation of cobalt(II) ions in a solution of the ligand.
Moreover, it is known that complexes of cobalt(III) with the sterically bulky ligands such as
10
macromonocycle9 and vitamin B12 apparently exhibit reduction of the metal ion by two one-
electron steps to produce cobalt(II) and then cobalt(I) complexes, and that such reductions are

accompanied by stereochemical change involving loss of axial ligands.11 From this point of view,
there is a possibility of the formation of cobalt(III) –1 complex (6) by the aerial oxidation of
cobalt(II) ions in a solution of 2-aminomethylpyridine (1), and cation radical (5) may also be
provided from 6 and 7 where L is 2-aminomethylpyridine (1) (Scheme 4). On the basis of these
data, we propose reaction pathways in Scheme 5. The ligand (1) was oxidized to cation radical
(5) which was converted to radical (9) by dehydrogen. Intermolecular coupling of 9 gave 10
which was again oxidized to 11. Oxidation followed by hydrolysis converted 11 to 12 which
reacted with 11 to give 2, while 12 reacted with 9 to give 13 which was dehydrogenated to
provide 3.
Scheme 5

EXPERIMENTAL
Melting points were determined using a Yamato Scientific stirred liquid apparatus and are
uncorrected. The NMR spectra were measured with a Varian XL-400 spectrometer at 400 MHz.
The chemical shifts are given in the δ scale. The MS were obtained on JMS-O1S and DX-300
(equipped with JMA-3100) spectrometers (Japan Electron Optics Laboratory Co., Ltd.).
Elemental analyses were performed on a Perkin-Elmer model 240B machine.
2,3,5,6-(Tetrapyridin-2-yl)pyrazine (2)
Procedure A (Synthesis in water); A solution of 1 (1 g, 9.2 mmol) in 50 mL of water was heated
with stirring on a boiling water bath in the presence of cobalt(II) chloride hexahydrate (0.74 g, 3.1
mmol) for 3 h. The color of the solution changed during the reaction (first, blue and finally to
reddish-brown), and the solution contained cobalt(II) complex of the product (2). The solution
was extracted with chloroform (40 mL x 5). The extraction was also carried out from the
solution which was made alkaline (above pH 11) by addition of 10% sodium hydroxide solution.
When emulsion was formed during the process, a centrifuge was used for the separation. The
extract was washed with a small amount of water, and dried over sodium sulfate. The solution
was evaporated to dryness under reduced pressure. Chromatography was carried out on silica
gel with chloroform-methanol (9:1) as eluent, and 2 (Rf 0.26) was obtained in 45% yield (0.40 g),
mp 280-282 (with a trace amount of 3 (Rf 0.65), mp 140-141 ); MS: m/z 388 (M+); 1H-NMR
(CDCl3): 8.38 (ddd, J=5.0, 2.0, 1.0 Hz, 4H, pyridine-6), 8.04 (ddd, J=8.0, 2.0, 1.0 Hz, 4H,
pyridine-3), 7.79 (ddd, J=8.0, 8.0, 2.0 Hz, 4H, pyridine-4), 7.22 (ddd, J=8.0, 5.0, 1.0 Hz, 4H,
13
pyridine-5); C-NMR (CDCl3); 122.9 (pyridine-5), 124.4 (pyridine-3), 136.4 (pyridine-4), 148.5
(pyridine-6), 149.4 (pyrazine), 156.8 (pyridine-2). Anal. Calcd for C24H16N6: C, 74.21; H, 4.15; N,

21.64. Found: C, 73.93; H, 4.03; N, 21.37.
Procedure B (An improved method); A solution of 1 (1 g, 9.2 mmol) in 10 mL of ethanol was
added to a solution of cobalt(II) chloride hexahydrate (0.74 g, 3.1 mmol) in 50 mL of ethanol, and
the mixture was refluxed on a boiling water-bath for 3.5 h under aeration. After removal of the
solvent under reduced pressure, 50 mL of water was added to the residue, and the solution was
basified with sodium carbonate (pH 11). The alkaline solution was extracted with chloroform
(40 mL x 4), the extract was evaporated to dryness, and 17 mL of ethanol was added to the
residue, then, the mixture was filtered off while it was hot to provide 0.40 g of pure golden plates
of 2. From the filtrate, crystals of 2 were obtained in 0.03 g (total yield 48%).
Procedure C (Synthesis in ethanol using nickel (II) chloride hexahydrate); A solution of 1 (1 g, 9.2
mmol) in 10 mL of ethanol was added to a solution of nickel(II) chloride hexahydrate (0.74 g, 3.1
mmol) in 50 mL of ethanol, and the mixture was refluxed on a boiling water bath for 3.5 h under
aeration. After removal of the solvent under reduced pressure, 50 mL of water was added to
residue, and the solution was basified with sodium carbonate (pH 11). The alkaline solution
was extracted with chloroform (40 mL x 4), the extract was evaporated to dryness, and 0.5 ml of
ethanol was added to the residue, then the mixture was filtered off to give 2.1 mg (0.23%) of pure
crystals of 2.

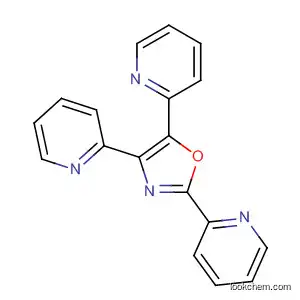

2,4,5-(tripyridin-2-yl)oxazole (3)
A mixed solution of 1 (1 g, 9.2 mmol) and cobalt (II) chloride hexahydrate ( 1g, 4.2 mmol) in 80
mL of water was warmed at 40
for 3 days under the air. The solution was extracted with
chloroform (50 mL x 4 times) to provide 2 (Rf 0.26) and 3 (Rf 0.65) (checked by TLC;
chloroform/methanol=9/1). The compound (3) was isolated by column chromatography using

silica gel in 1.7% yield (16 mg), mp 140-141 ; MS: m/z 300.100 (M+) [Calcd m/z 300.101 (M+)];
1H and 13C-NMR (CDCl3): See Chart 1. Anal. Calcd for C18H12N4O: C, 71.99; H, 4.03; N, 18.66.
Found: C, 71.87; H, 4.23; N, 18.58.
REFERENCES AND NOTES
1. E. Fremy, Liebigs Ann. Chem., 1852, 83, 227. Ibid., 1852, 83, 289.
2. T. Tsumaki, Bull. Chem. Soc. Jap., 1938, 13, 252.
3. G. McLendon and A. E. Martell, Coord. Chem. Rev., 1976, 19, 1.
4. H. A. Goodwin and F. Lions, J. Am. Chem. Soc., 1959, 81, 6415.
5. Y. Okamoto, K. Ogura, and T. Kinoshita, Polyhedron, 1984, 3, 635.
6. L. Vaska, Acc. Chem. Res., 1976, 9, 175. J. S. Valentine, Chem. Rev., 1973, 73, 235.
7. J. D. Ortego and M. Seymour, Polyhedron, 1982, 1, 21.
8. A. Hammershøi and A. M. Sargeson, Inorg. Chem., 1983, 22, 3554.
9. A. M. Tait, F. V. Lovecchio, and D. H. Busch, Inorg. Chem., 1977, 16, 2206.
10. D. G. Brown, Prog. Inorg. Chem., 1973, 18, 177.
11. A. M. Bond, G. A. Lawrance, P. A. Lay, and A. M. Sargeson, Inorg. Chem., 1983, 22, 2010.
