Molecularly-mediated assembly of gold nanoparticles with interparticle rigid, conjugated and shaped aryl ethynyl structures

Article abstract of DOI:10.1039/b927496k

The rigidity, conjugation, and shape-persistent architectures of aryl ethynyls of V, Y, and X shapes serve as an ideal model system for defining interparticle structures, which have been demonstrated for the mediated assembly of gold nanoparticles.

Full text of DOI:10.1039/b927496k

View Article Online / Journal Homepage / Table of Contents for this issue
COMMUNICATION
www.rsc.org/chemcomm | ChemComm
Molecularly-mediated assembly of gold nanoparticles with interparticle
rigid, conjugated and shaped aryl ethynyl structuresw
Hong Yan,ab Stephanie I. Lim,b Ying-Jun Zhang,a Qiang Chen,a Derrick Mott,b
Wei-Tai Wu,c De-Lie An,*a Shuiqin Zhouc and Chuan-Jian Zhong*b
Received (in Austin, TX, USA) 6th January 2010, Accepted 1st February 2010
First published as an Advance Article on the web 24th February 2010
DOI: 10.1039/b927496k
The rigidity, conjugation, and shape-persistent architectures of
aryl ethynyls of V, Y, and X shapes serve as an ideal model
system for defining interparticle structures, which have been
demonstrated for the mediated assembly of gold nanoparticles.
The control of interparticle interactions and structures in
nanoparticle assemblies using molecular or biomolecular
mediators1–6 has attracted increasing interests for the design
of functional nanostructures.7,8 However, the understanding
of such control is often hampered by the lack of well-defined
mediator structures in terms of size, shape, rigidity and other
properties. Arylalkynes are known to serve as intriguing
building blocks for the covalent construction of molecular
architectures.9 The viability of interparticle linkages via
coordination of the methylthio groups of X-shaped aryl-
ethynes to gold surfaces was demonstrated recently in our
laboratory.10 However, a key challenge is to determine

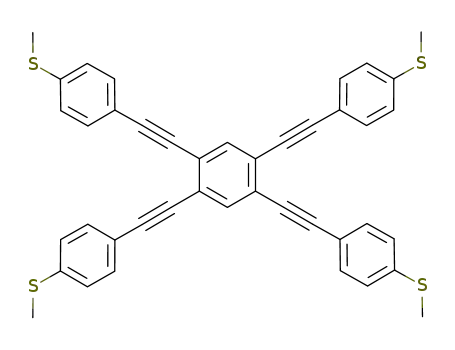

Scheme 1 (A) Structures of V(1)-, X(2)-, Y(3)-, and Y0(4)-shaped
aryl ethynyls (a = 1.8, b = 1.0, c = 1.5, d = 3.0, and e = 2.6 nm).
the orientation of such interparticle shaped molecules for
(See ESI for detailed synthesisw); 1,3-diiodobenzene (DIB); 1,3,5-
exploiting their unique optical and electrical properties.
A relevant question is how the size, shape and number of
methylthio groups of the rigid arylethynes influence the
assembly of nanoparticles from both kinetic and thermo-
dynamic perspectives, and the optical or spectroscopic
properties (e.g., surface-enhanced Raman scattering (SERS)).
Aryl ethynyls of different shapes serve as an ideal model
system for defining interparticle structures because of their
rigidity, conjugation, and shape-persistent architectures.10–13
We report herein novel findings of using rigid methylthio
arylethynes with several sizes and shapes such as V(1)-,
X(2)-, Y(3)-, and Y0(4) (Scheme 1) to define interparticle
bridging and orientation for the assembly of gold nano-
particles. The X-shaped molecule10 is included for a detailed
comparison of these structures and properties. The ability to
engineer the interparticle size, shape, and structural properties
would allow advanced exploitation of the nanoscale optical
and spectroscopic properties.
triiodobenzene (TIB); 1,2,4,5-tetraiodobenzene (TTIB); 1,3,5-tris-
((4-odophenyl) ethynyl) benzene (TEB). (B) Schematic illustration of
the molecularly-mediated assembly of nanoparticles.
Fig. 1 Spectral evolution of SP band in toluene solution with
[mediator]/[AuNPs] = 2.1 for 1-(a), 2- (b), 3-(c), and 4-(d) mediated
assemblies. The reactions were followed for 1 h.
Fig. 1 show a representative set of spectral evolution of the
surface plasmon (SP) resonance band of gold nanoparticles
(AuNPs) capped with a tetraoctylammonium (TOA+) bromide
monolayer (5.1 ꢀ 0.9 nm, see ESIw) (525 nm in toluene
solution)14 for the different mediators. The spectral evolution
for the assembly mediated by 1–4 all features a decrease of the
525 nm band and an increase in the long-wavelength band
region as a result of the mediated assembly.
a Department of Chemistry, Hunan University, Changsha, Hunan,
410082, China. E-mail: deliean@sina.com
b Department of Chemistry, State University of New York at
Binghamton, Binghamton, New York 13902, USA.
E-mail: cjzhong@binghamton.edu
c Department of Chemistry, City University of New York,
Staten Island, New York 10314, USA
w Electronic supplementary information (ESI) available: Details of
synthesis, and measurements, and additional optical and microscopic
data. See DOI: 10.1039/b927496k
Based on the band characteristics and the kinetics of the
spectral evolution of the red-shift SP band (e.g., @ 700 nm)
(Fig. 2A), apparent rate constants were derived from fitting
ꢁc
This journal is The Royal Society of Chemistry 2010
2218 | Chem. Commun., 2010, 46, 2218–2220

View Article Online
Fig. 2 (A) Kinetics for the absorbance at 700 nm in toluene solution
with [mediator]/[AuNPs] = 2.1 for 1-(K), 2-(.), 3-(’) and 4-(m)
assemblies (dashed lines: 1st-order kinetic fits). (B) The red-shift
(Dl/l0) (see ESI Table S1w for Dl and l0 values) as a function of the
interparticle separation (s/D) as defined in the inserted scheme (dashed
line: theoretical fit with eqn (1)).
Fig. 3 (A–B): SP band absorbance (A) and the DLS intensity (B) in
response to sequential addition of two mediators in the solution of
AuNPs: V–Y (S1) and V–X (S2). ([mediator]/[Au] = 4.2(A), and
8.1(B)) (dashed lines: 1st-order kinetic fits).
the time dependence of the absorbance with an exponential
growth (k, 1st-order). Under the same concentration, the
resulting rate constants displayed an order of 3 (8.4 ꢂ
decrease for Y–X (S3) was due to precipitation of the assembly.
This observation was in contrast to Y(X)–V (S4) where no
spectral evolution was found upon 2nd mediator addition.
The kinetic evolution was further substantiated by in situ
dynamic light scattering (DLS) measurement of the diameter
vs. assembly time (Fig. 3B). The further increase in size upon
the addition of the 2nd mediator was evident. A close
examination of the DLS data for V–Y (S1), V–X (S2), and
Y–X (S3) series (see ESI Table S3w) and the initial stage of the
2nd mediator assembly provided some mechanistic insights
into the two-mediator assembly process. For the V–Y and
Y–X sequences, there was an initial size reduction (disassembly)
or up-down transient within the first 1–2 min before the size
increase became dominant. The rate constant for the assembly
growth by the 2nd mediator was also found to be faster than
that for the 1st by a factor of 2–3 (e.g., kY/kV = 1.8). Based on
TEM analysis of the final assembly sizes (ESI Fig. S3, S4w), the
V(1) mediated assemblies showed individually-isolated clusters
of nanoparticles ranging from 90 to 170 nm, and the addition
of the 2nd mediator Y(3) appeared to lead to interconnection of
the clusters into a spreading network architecture, indicative of
the interconnection of the 1st mediator assemblies (V–NP) by
2nd mediator (Y).
10ꢃ3
s
ꢃ1) 4 4 (5.8 ꢂ 10ꢃ3
s
ꢃ1) 4 2 (3.7 ꢂ 10ꢃ3
s
ꢃ1) 4 1
(2.1 ꢂ 10ꢃ3
s
ꢃ1). Upon completion of the assembly, the peak
position of the red-shift of the SP band was found to exhibit
the order of 1 (lmax = 930 nm) 4 2 (lmax = 790 nm) 4 3
(lmax = 670 nm) 4 4 (lmax = 602 nm (see ESIw).
The SP band characteristics were further analyzed based on
the correlation between the interparticle separation (s/D) and
the SP band’s red-shift (Dl/l0):14
ꢀ
ꢁ
Dl
l0
1 s
¼ C exp ꢃ
ð1Þ
t D
(s: interparticle gap, D: particle diameter (5.1 ꢀ 0.9 nm),
t: decay constant, l0: wavelength for SP band, Dl: red-shift,
C: constant). As shown in Fig. 2B, an exponential decay was
evident for the interparticle spacing parameters defined by
these mediator structures. In comparison with the decay
constant for simulated metallic nanoparticle pairs using
discrete dipole approximation method (B0.2),14 t was found
to be 0.17, consistent with the theory that both the inter-
particle near-field dipolar coupling potential and the intra-
particle restoring potential depend on similar powers of
particle radius separation distance defined by ethynyl
structures. The measured average edge-to-edge interparticle
distance (s, see ESI Fig. S1w) showed B1.1 nm for V(1)
assembly, B1.3 nm for X(2) assembly and B1.7 nm for
Y(3) assembly, which are in good agreement with the
molecular modeling results for the interparticle orientations
defined in Fig. 2B.
Based on a spectrophotometric analysis of the relative
changes of the constituents in the mediated assembly system
(ESI Table S4w), 18–34% of V(1) were found to be incorpo-
rated into V–NP assembly, about 43% of X(2), or 11% of
Y(3), were found for the 2nd mediator (X(2), or Y(3) to
incorporate into the V–Y–NP and V–X–NP assemblies, and
about 23% or 33% of V(1) were found to be released as a
result. On average, about one mediator per NP was found
(e.g., 1.4 for V(1), 1.5 for X(2) and 0.8 for Y(3) per NP). The
relative changes of the incorporated 2nd mediator were
consistent with the released 1st mediators.
The differences between these mediator-NP assemblies were
assessed by introducing two different mediators to the solution
of nanoparticles in different sequences. Following addition of
the 1st mediator, the addition of the 2nd mediator in a
controlled concentration ratio led to a distinct change in the
SP band. The red-shift band (at 700 nm) for the V–Y
(S1 sequence), V–X (S2 sequence), and Y–X (S3 sequence)
series was characterized by a sharp increase in absorbance
before levelling off (Fig. 3A). As indicated by the ratio of the
rate constants (i.e., k (2nd) vs. k (1st) (e.g., kY/kV = 3.5)), the
rate for the 2nd mediator was faster than that for the 1st by a
factor of 2–4 (ESI Table S2w). Note that the absorbance
The interparticle mediators were confirmed by examining
the SERS signatures of the aryl ethynyl structures in the
mediators. As shown in Fig. 4, the detected spectral signatures
were characteristic of the triple bond stretching (n(CRC)
(B2200 cmꢃ1), and the benzene ring breathing (n(f)
)
)
(B1600 cmꢃ1). There were clear differences in peak positions
(ꢀ1–6 cmꢃ1), or new bands being detected in the 1400–2400 cmꢃ1
region. The data clearly revealed signatures from the
mediators, including the elimination of peak splitting for
ꢁc
This journal is The Royal Society of Chemistry 2010
Chem. Commun., 2010, 46, 2218–2220 | 2219

View Article Online
revealed by TEM (e.g., 90–170 nm for V(1), 90–130 nm for
Y(3), and 40–60 nm for X(2) assemblies (ESI Fig. S1w), which
were in agreement with the optical data. Both aryl ethynyl
shape- and size-determined interparticle structural effects are
believed to be operative in the assembly process, the detailed
understanding of which requires a more systematic tuning of
the structures. A certain degree of intershell overlap is also
believed to operate for the growth of larger-sized assemblies at
a slower assembly rate. This type of interparticle structural
control of optical and spectroscopic properties have important
implications to enabling the design of a wide range of
nanoparticle assembly systems for potential applications in
chemical/biosensing, spectroscopic signal amplification, and
microelectronics.
Fig. 4 Raman spectra for two sets of samples: (A) V-(a), Y-(b), and
V–Y-(c) mediated assemblies; (B) V-(a), X-(d), and V–X-(e) mediated
assemblies.
This work was supported by the National Science Foundation
(CHE 0848701) USA, and by the National Natural Science
Foundation of China (No. 20672033) and Hunan Provincial
Natural Science Foundation of China (No. 07JJ3026). HY
acknowledges the support of a fellowship from China Scholarship
Council.
Scheme 2 A schematic illustration of the nanoparticle assembly by
two mediators (e.g., V(1) and Y(3)) in a sequential addition process,
involving a partial disassembly of V-NPs and an assembly of the
partially-disassembled V-NPs and NPs toward (V + Y)-NPs.
Notes and references
1 R. Elghanian, J. J. Storhoff, R. C. Mucic, R. L. Letsinger and
C. A. Mirkin, Science, 1997, 277, 1078.
2 S. Lim, W. Ip, E. Crew, P. Njoki, D. Mott, Y. Pan, S. Zhou and
C. J. Zhong, Langmuir, 2007, 23, 826.
V(1) in n(f) mode and the shift of n(CRC) band corresponding
to X(2) or Y(3), demonstrating the presence of both mediators
in the two-mediator assemblies. A comparison between the
Raman intensities between the solid and the interparticle
assembly samples yielded an estimate of 104–105 for the SERS
enhancement factor.
3 A. K. Boal, F. Ilhan, J. E. DeRouchey, T. Thurn-Albrecht,
T. P. Russell and V. M. Rotello, Nature, 2000, 404, 746;
E. R. Zubarev, J. Xu, A. Sayyad and J. D. Gibson, J. Am. Chem.
Soc., 2006, 128, 15098; G. A. DeVries, M. Brunnbauer, Y. Hu,
A. M. Jackson, B. Long, B. T. Neltner, O. Uzun, B. H. Wunsch
and F. Stellacci, Science, 2007, 315, 358.
4 N. N. Kariuki, L. Han, N. K. Ly, M. J. Patterson, M. M. Maye,
G. Liu and C. J. Zhong, Langmuir, 2002, 18, 8255.
5 S. Lim, F. Goroleski, D. Mott, N. Kariuki, W. Ip, J. Luo and
C. J. Zhong, J. Phys. Chem. B, 2006, 110, 6673.
As illustrated in Scheme 2, the structural evolution for the
sequential addition of V(1) and Y(3) involved an initial partial
disassembly as a result of the displacement of V(1) by Y(3) and
6 M. M. Maye, S. Lim, J. Luo, Z. Rab, D. Rabinovich, T. Liu and
C. J. Zhong, J. Am. Chem. Soc., 2005, 127, 1519.
a
subsequent assembly by Y(3), forming an assembly
with interconnected (V+Y)–NP moieties. The observed
characteristics of the SP band, the assembly size, and the
SERS signatures provided strong evidence for the assessment.
As supported by the DLS (Fig. 3) and the SERS data
(Fig. 4), the addition of the second mediator (stronger) led
to an initial partial disassembly of the first mediator (weaker)
mediated assembly before the second mediator mediated
assembly of them towards the formation of the V–Y, V–X,
or Y–X assemblies. As such, the first mediator was not
completely replaced by the second mediator, and both the
first and second mediators were present in the mixed-mediator
assemblies. These findings have demonstrated that the inter-
particle spacing and structures of nanoparticle assemblies are
well defined by rigid, conjugated, and shape-persistent aryl
ethynyls. It is important to note that these mediated assemblies
all showed highly-clustered features with various sizes as
7 M. C. Daniel and D. Astruc, Chem. Rev., 2004, 104, 293; W. Lin,
W. J. Rieter and K. M. L. Taylor, Angew. Chem., Int. Ed., 2009, 48,
650; A.-H. Lu, E. L. Salabas and F. Schth, Angew. Chem., Int. Ed.,
2007, 46, 1222.
8 S. Lim and C. J. Zhong, Acc. Chem. Res., 2009, 42, 798.
9 A. Al Ouahabi, P. N. W. Baxter, J.-P. Gisselbrecht, A. D. Cian,
L. Brelot and N. Kyritsakas-Gruber, J. Org. Chem., 2009, 74,
4675.
10 S. Lim, C. Vaiana, Z. Y. Zhang, Y. J. Zhang, D. L. An and
C. J. Zhong, J. Am. Chem. Soc., 2007, 129, 5368.
11 D. Astruc, Modern Arene Chemistry, Wiley-VCH, Weinheim,
2002, pp. 1–16.
12 J. P. Novak and D. L. Feldheim, J. Am. Chem. Soc., 2000, 122,
3979; J.-K. Kim, E. Lee, Y.-B. Lim and M. Lee, Angew. Chem., Int.
Ed., 2008, 47, 4662.
13 A. M. Moore, A. A. Dameron, B. A. Mantooth, R. K. Smith,
D. J. Fuchs, J. W. Ciszek, F. Maya, Y. X. Yao, J. M. Tour and
P. S. Weiss, J. Am. Chem. Soc., 2006, 128, 1959.
14 W. Huang, W. Qian, P. K. Jain and M. A. El-Sayed, Nano Lett.,
2007, 7, 3227.
ꢁc
This journal is The Royal Society of Chemistry 2010
2220 | Chem. Commun., 2010, 46, 2218–2220
