T. Elkin and C.T. Saouma
InorganicaChimicaActa497(2019)119076
from UV to visible, allowing for facile tuning of the excitation energy
[19]; it was found that linker defects also impact these energies [27].
This may explain why different groups see different reactivities, for
example in the photocatalytic reduction of CO2 to formate [7,15]. Fi-
nally, changing the metal identity also impacts photocatalysis, pri-
marily by altering the MLCT energy [28]. These studies underscore the
need to study the effect of both linker and metal on catalytic processes,
and to determine whether the effects are due to differing electronics or
differing morphologies.
crystalline nature of the MOFs and are in agreement of previously re-
ported in the literature for the related UiO-66 MOFs [26,35,36,39].
Thermogravimetric analysis (TGA) of newly prepared MOFs Hf-py and
Zr-py (Fig. 1b) indicate that the MOFs are thermally robust, and consist
of initial mass loss while heating to 100 °C due to the presence of the
remaining solvents, followed by loss of the linker above 500 °C [39].
Elemental analysis of Hf-py is consistent with a structure that has two
missing linkers, while Zr-py has three linkers missing (see Table S1).
Our syntheses yield one more missing linker than that reported by Stock
Many photocatalytic studies of Zr-UiO-66 compare Zr-UiO-66 to
related MOFs whereby the BDC linker has an amino substitution, ty-
pically Zr-UiO-66-NH2 (Zr-UiO-66-NH2 = Zr6(μ3-O)4(μ3-OH)4(NH2-
BDC)6 [7,15,26,29]. The latter has heightened photocatalytic activity,
which is ascribed to it’s ability to absorb in the visible region. We hy-
pothesized that the enhanced reactivity of the amino-substituted MOF
may also be in part due to its ability to conduct protons, which is central
to proton-coupled electron transfer (PCET) redox transformations. (In
this manuscript, PCET refers to a reaction where an electron and proton
is transferred, regardless of whether it occurs in a stepwise or concerted
manner). To test this, we sought to prepare and evaluate the photo-
catalytic activity of Zr-UiO-66-py, whereby the BDC linker is replaced
by 2,5-dicarboxylate pyridine. Pyridine is slightly more basic than
aniline in MeCN (12.53 versus 10.62) [30], and thus may offer insight
into the acid-base properties. Moreover, several reports suggest that
pyridine is essential to the transfer of proton and electron equivalents in
a variety of transformations, including the direct reduction of CO2 to
MeOH (both electrochemically [31] and photocatalytically [32,33]),
and its role in Schrock’s N2 reduction catalyst that yields NH3 [34].
Herein we disclose the results of our study that looks at the effect of
linker and metal identities on catalytic reductions. The Zr and Hf ana-
logues of M-UiO-66-NH2, M-UiO-66-py and M-UiO-66 were prepared,
and their photocatalytic reactivity towards the reduction of nitroaro-

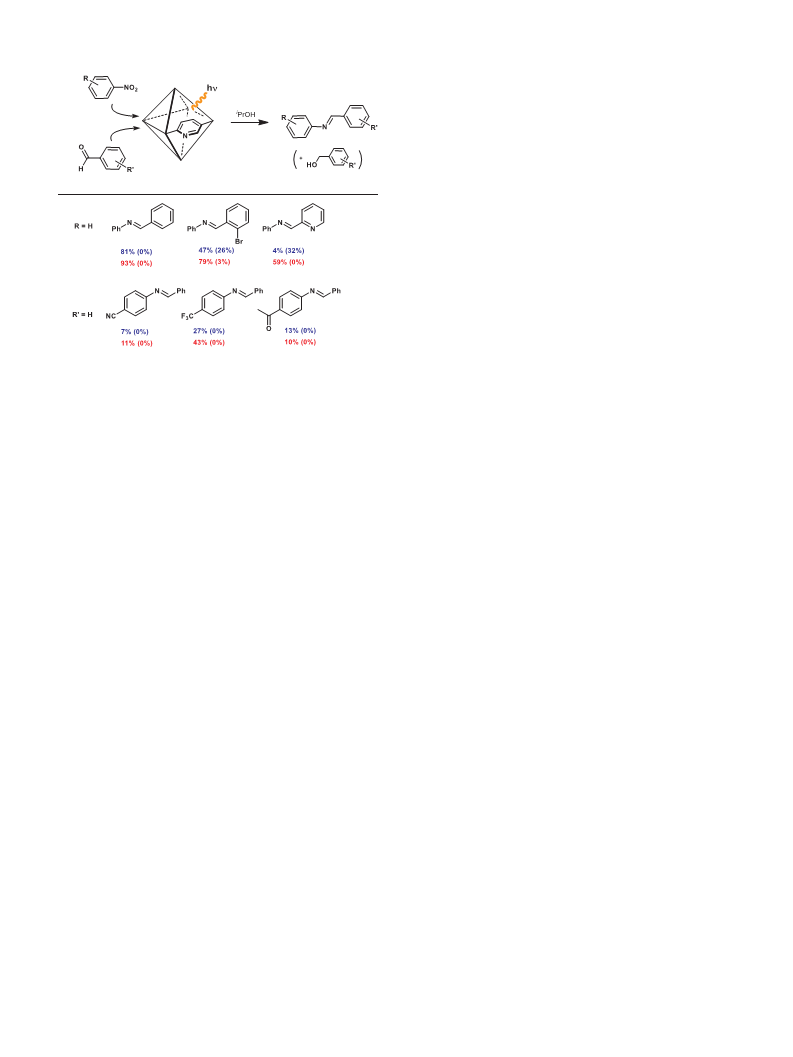

matics to anilines compared. Moreover, we describe a one-pot photo-
catalytic condensation of nitroaromatics and aldehydes to imines.
We observe that the particle size of Hf-py is smaller (35–125 nm)
than that Zr-py (450–550 nm) (Fig. 2 and ESI, Fig. S2). Both Hf-py and
Zr-py have semi-spherical morphologies, which may be due to the fast
nucleation of the MOF crystals under the aqueous reflux conditions in
the presence of the acetic acid modulator [43]. BET analysis (ESI, Table
S3) [40,41] reveals surface areas of 279 m2/g for Hf-py and 480 m2/g
for Zr-py. While these values are low for UiO-66 MOFs [42], lower
values [35] were previously observed for the hydrothermally prepared
UiO-66 MOFs. We were unable to estimate the accurate pore size for Hf-
py based on N2 adsorption, and we find that for Zr-py the average pore
size is 15.66 Å. One of the reasons for not being able to measure the
pore size properly may arise from inability to completely remove water
from the pores, as evident from the TGA analysis as well (Fig. 1b).
However, we did not subject MOF Hf-py to high temperatures for
longer periods of time than was stated in the experimental procedure,
since it caused the material to turn completely into black powder ma-
terial, indicating full degradation of Hf-py. Given that all other MOFs
were prepared following literature protocol [12,35,36], we assume si-
milar surface area and porosity to what is published.
With the six MOFs prepared, we sought to establish the effect of
linker and metal on the photocatalytic reduction of nitrobenzenes to
aniline derivatives. This reaction was chosen as it is pertinent to pol-
lution remediation (due to adverse health effects) [43,44] and synth-
esis, the aniline derivatives being precursors to fine chemicals [45].
While the photocatalysis of Zr-NH2 and the effect of linker on photo-
catalysis is better established [7,15,23-26], very few studies have been
2. Results and discussion
i
We sought to initiate or studies in neat PrOH, as this serves as the
Zr-UiO-66 (Zr-H), Zr-UiO-66-NH2 (Zr-NH2), Hf-UiO-66-H (Hf-H),
and Hf-UiO-66-NH2 (Hf-NH2) were prepared following standard lit-
erature methods [12,35,36]. The synthesis of Zr-UiO-66-py (Zr-py) and
Hf-UiO-66-py (Hf-py) are described below. While this manuscript was
being prepared, a report by Stock and co-workers [37] described the
syntheses of these MOFs. We nonetheless describe our synthetic pro-
tocol to highlight similarities and differences.
The syntheses of UiO-66-py MOFs that incorporate a pyridine di-
carboxylate linker via solvothermal method did not lead to desired
analogues, unlike the ease of access to the UiO-67 bi-pyridine di-
carboxylate MOFs [38]. For example, our attempts to prepare Zr-py via
standard solvothermal methods using DMF as a solvent led to the for-
mation of amorphous solids (ESI, Fig. S1). However, we found that both
Hf-py and Zr-py can be prepared following the recently developed
hydrothermal synthesis (Scheme 1) [37], which uses water as a solvent
and acetic acid as a modulator.
solvent and has desirable viscosity and solubility properties. It has also
been shown to serve as a sacrificial reductant in related studies [48],
presumably being converted to acetone. Visible light (λ > 400 nm)
irradiation of Hf-py in neat iPrOH with nitrobenzene results in 89%
conversion to aniline after 48 h. Repeating the experiment using UV–vis
light (Hg/Xe 200 W lamp) gave the same level of reduction to aniline
after 6 h. For this reason, all subsequent screening reactions were set up
using the full UV–vis spectrum (Scheme 2).
When the photolysis experiment is repeated with Zr-py, only 11% of
aniline is produced (Table 1) after 18 h of irradiation with UV-light. The
discrepancy may be due to changing the metal or may be due to
changes in the surface area to volume ratio of the MOFs.
As crystals of Hf-py are significantly smaller than those of Zr-py, the
surface area exposed to bulk solution to volume ratio of Hf-py is ~5
times greater than that of Zr-py (assuming all particles are spheres and
taking average radius into the calculation, see Table S2, ESI). The
greater surface area results in more efficient exposure of the MOF
particles to light and thereby results in generation of more active-sites
on the surface, which then should increase turnover frequency of ni-
trobenzene reduction, as mass transport issues are minimized (from
substrate/product entering/leaving the pores, and/or protons and
electrons migrating to the surface from the middle of the MOF).
Alternatively, based on standard reduction potentials, the reduced
Hf MOFs should be more reducing than the Zr counter-parts [49].
Consistent with this, supported Zr-NH2 has a less negative flat-band
potential than Hf-NH2 [47]. Indeed, we observe better reactivity with
Hf-py than Zr-py. It should be noted that others have observed the
reverse reactivity trend with a different linker [46], which likely is due

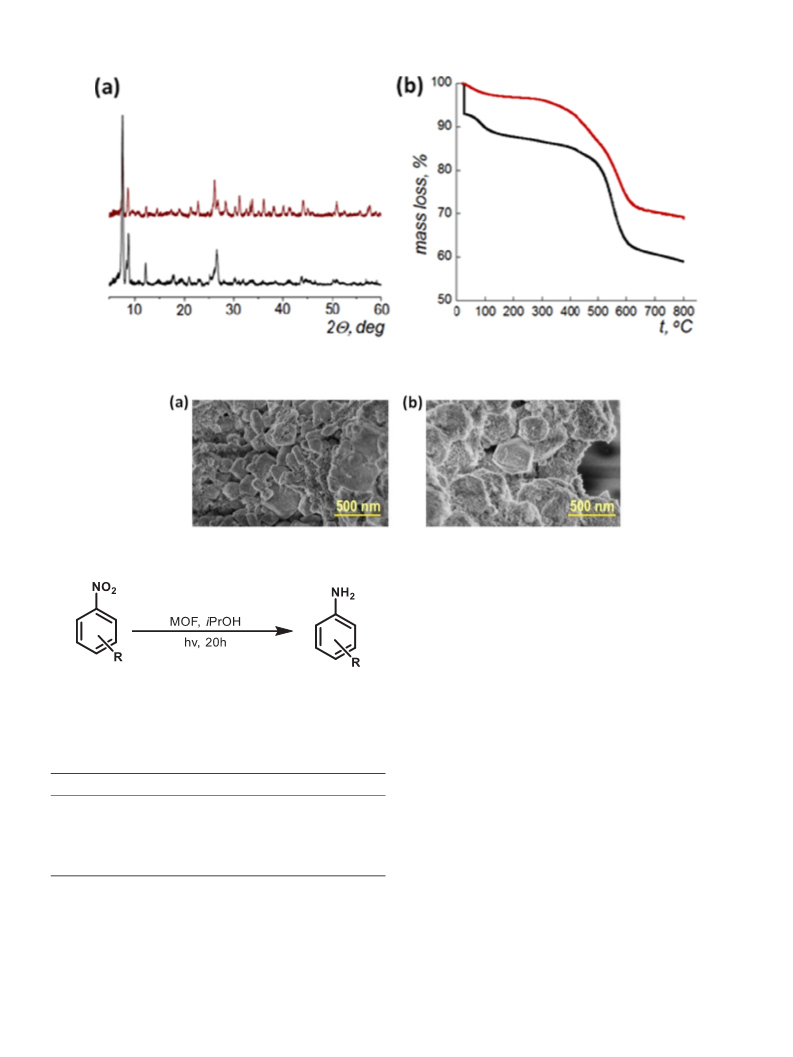

The PXRD patterns (Fig. 1a) of Hf-py and Zr-py point to the

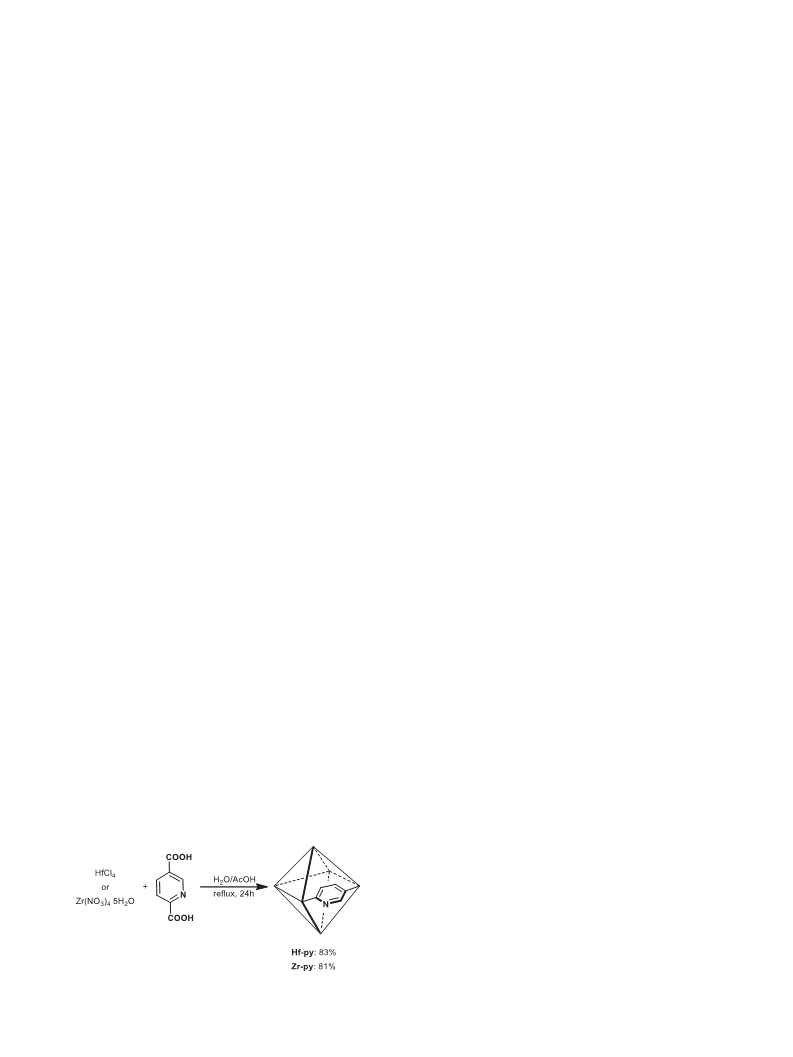

Scheme 1. Synthesis of Hf-py and Zr-py.
2
