Construction of Pd/BiOCl Catalyst for Highly-selective Synthesis of Benzoin Ethyl Ether by Chlorine Promoted Coupling Reaction

Article abstract of DOI:10.1002/cctc.201900517

Exploring novel catalyst supports with unique performance creates more opportunity for transforming organic chemicals in heterogeneous catalysis. In this paper, BiOCl is first presented as an effective support for Pd nanoparticles (NPs) toward application in the coupling reaction of benzaldehyde. The Cl^? ion dissociates from BiOCl, which forms nucleophile with Pd nanoparticles; this is key for the one-step synthesis of benzoin ethyl ether, the conversion and selectivity of which can reach to 100 % and 97.9 % at 100 °C, respectively. DFT calculations reveal that Cl^? ions can be stabilized by stronger Bi?Cl bonds through doping of Fe ions in substituting Bi sites in BiOCl. The parallel catalytic evaluation using Pd/Fe-doped BiOCl catalyst shows the suppression of coupling reaction, conversely, demonstrating the crucial role of nucleophile. This work provides new insights into support tailoring for the synthesis of vital organic chemicals in heterogeneous catalysis by changing chemical reaction pathway.

Full text of DOI:10.1002/cctc.201900517

Accepted Article
Title: Construction of Pd/BiOCl Catalyst for Highly-selective Synthesis
of Benzoin Ethyl Ether by Chlorine Promoted Coupling Reaction
Authors: Qinglin Yuan, Wanbing Gong, Yixing Ye, Jun Liu, Yue Lin,
Chun Chen, Haimin Zhang, Pengfei Li, Weiren Cheng,
Xiangjun Wei, and Changhao Liang
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: ChemCatChem 10.1002/cctc.201900517
Link to VoR: http://dx.doi.org/10.1002/cctc.201900517
A Journal of
www.chemcatchem.org

ChemCatChem
10.1002/cctc.201900517
Construction of Pd/BiOCl Catalyst for Highly-selective Synthesis of Benzoin Ethyl Ether
by Chlorine Promoted Coupling Reaction
†
†
Qinglin Yuan, Wanbing Gong, Yixing Ye, Jun Liu, Yue Lin*, Chun Chen, Haimin Zhang,
Pengfei Li, Weiren Cheng, Xiangjun Wei, Changhao Liang*
Q. L. Yuan, W. B. Gong, Y. X. Ye, J. Liu, C. Chen, H. M. Zhang, P. F. Li, Prof. C. H. Liang
Key Laboratory of Materials Physics and Anhui Key Laboratory of Nanomaterials and
Nanotechnology, Centre for Environmental and Energy Nanomaterials, CAS Centre for
Excellence in Nanoscience, Institute of Solid State Physics, Chinese Academy of Sciences,
Hefei 230031, China. E-mail: chliang@issp.ac.cn
Q. L. Yuan, Y. Lin
Hefei National Laboratory for Physical Sciences at the Microscale, University of Science and
Technology of China, Hefei 230026, China. E-mail: linyue@ustc.edu.cn
W. R. Cheng
National Synchrotron Radiation Laboratory, University of Science and Technology of China,
Hefei 230029, China.
X. J. Wei
Shanghai Synchrotron Radiation Facility, Shanghai Institute of Applied Physics, Chinese
Academy of Sciences, Shanghai, China.
[†] These authors contributed equally to this work.
Keywords heterogeneous catalysis, coupling reaction, BiOCl , nucleophile , Pd nanoparticles,
selectivity
Abstract Exploring novel catalyst supports with unique performance creates more
opportunity for transforming organic chemicals in heterogeneous catalysis. In this paper,
BiOCl is first presented as an effective support for Pd nanoparticles (NPs) toward application
−
in the coupling reaction of benzaldehyde. The Cl ion dissociates from BiOCl, which forms
nucleophile with Pd nanoparticles; this is key for the one-step synthesis of benzoin ethyl ether,
1
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
the conversion and selectivity of which can reach to 100% and 97.9% at 100 °C, respectively.
−
DFT calculations reveal that Cl ions can be stabilized by stronger Bi–Cl bonds through
doping of Fe ions in substituting Bi sites in BiOCl. The parallel catalytic evaluation using
Pd/Fe-doped BiOCl catalyst shows the suppression of coupling reaction, conversely,
demonstrating the crucial role of nucleophile. This work provides new insights into support
tailoring for the synthesis of vital organic chemicals in heterogeneous catalysis by changing
chemical reaction pathway.
1
. Introduction
Benzoin ethyl ether is an effective and valuable photosensitizer, and has been widely used
in printing and coating industries.1-2 As known, benzoin ethyl ether is produced industrially
through the condensation of benzoin with ethanol in a certain way of homogeneous catalysis.
During this process, cyanide or organics with strong nucleophilicity are usually used to
synthesize benzoin, such as thiazolium salt, thiamine (vitamin B ) or N-heterocyclic
1
carbenes.3-6 However, not only cyanide is highly toxic, but organic catalysts used can lead to
low conversion and by-products. Besides, the homogeneous synthesis cannot meet the
challenges in reuse of catalysts and purification of products. Until recently, benzoin ethyl
ether could be obtained in one-step by using Ni- or Zeolite-based heterogenous catalysts; it is
a pity that the conversion is still not high enough.7-9 Therefore, the development of a
heterogeneous catalyst continues to be a significant challenge for environment-friendly
synthesis of benzoin ethyl ether with high conversion and selectivity through a cost-effective
and one-step process.
Generally, the supported materials for catalysts not only play a role in the dispersion of
metal sites to prevent their aggregation, but also influence catalytic activity and the reaction
pathway through strong metal-support interactions.10-13 In this respect, various means have
been performed to tailor the supports, including choosing varieties of supports, tuning the size
2
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
and morphology, and doping with some metal ions.14-19 Regarding halogen-based materials,
BiOCl is gradually chosen as a model support in catalysis due to its well functionalization,
low cost and environmental-friendly characteristic, while it is widely known as a
photocatalyst.20-23 In particular, halogen elements are as active as CN for many well-known
nucleophilic reactions owing to their strong polarity and electron-richness.24-27 Exactly, Cl−
ions can dissociate from the BiOCl crystal structure because of the weak van der Waals
−
2
8
forces. Meanwhile, the volume and quality of halogen elements are larger than those of
carbon elements, which makes the dipole moment and bond energy of C–X (X=halogen
elements) greater than those of C–H. Therefore, the halogen elements drift away from C–X
easily, which may facilitate the coupling of C–C bonds. On the other hand, owing to its
typical light-responsive properties, the small size of noble metal catalysts can be loaded
2
9
dispersedly on the BiOCl supports through a simple photo-reduction method. Hence, the
exploration of novel supports of BiOCl for noble metal catalysts may boost developments in
the field of heterogeneous catalysis. To the best of our knowledge, such experimental
phenomenon has not been reported yet.
Here, combining the methods of laser irradiation in liquids (LIL) and photoreduction, we
report a new heterogeneous catalyst of Pd NPs supported on ultrathin BiOCl nanosheets. The
catalytic performance of Pd/BiOCl catalyst is investigated, realizing the coupling reaction of
benzaldehyde into one-step synthesis of benzoin ethyl ether, where the selectivity reaches to
−
9
7.9% with full conversion. The proposed mechanism is that the dissociated Cl ions form the
nucleophile with Pd NPs promoting the coupling reaction of benzaldehyde. Based on DFT
−
calculations, doping Fe ions in Bi sites is constructed to stabilize Cl ions in BiOCl structure
through enhanced Bi–Cl bond energy. The parallel experimental results of Pd/Fe-doped
BiOCl catalyst display the suppressing of coupling reaction along with another hydrogenation
−
reaction, which demonstrates the decisive nucleophile role of dissociated Cl ions in coupling
3
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
reaction of benzaldehyde. This study may open up a new pathway of constructing supports for
heterogenous catalysts in organic chemical transformations.
2
2
. Results and discussion
.1. Structural characterization of as-prepared catalysts
The supports of BiOCl and Fe-doped BiOCl were first synthesized by hydrothermal method
and LIL technique. The LIL technique not only realizes the resizing of BiOCl structure but
also dopes Fe elements into the BiOCl nanocrystalline structure in one-step. As shown in
Figure S1, the as-prepared supports exhibit ultrathin nanosheet structure with a size of 50–200
nm. The X-ray diffraction (XRD) patterns (Figure S2) indicate that BiOCl and Fe-doped
BiOCl samples all display the typical crystalline pattern of BiOCl. Subsequently, the Pd NPs
were reduced to deposit on BiOCl and Fe-doped BiOCl through a photoreduction method.
To understand the structure of Pd NPs and distribution of Fe elements clearly, aberration-
corrected high-angle annular dark-field scanning TEM (AC HAADF-STEM) images and
energy-dispersive X-ray (EDX) mappings of Pd/BiOCl and Pd/Fe-doped BiOCl were
investigated. AC HAADF-STEM image (Figure 1a) reveals that Pd NPs are homogeneously
dispersed onto BiOCl nanosheet. Figure 1b shows that the crystalline structure with an
interplanar distance of 0.224 nm matches well with the (111) facet of Pd supported on the
crystal structure of BiOCl. The corresponding EDX mappings (Figure 1c-d) further
demonstrate the uniform distribution of Pd NPs on the supports. Similarly, Figure S3a shows
the homogeneous distribution of Pd NPs on Fe-doped BiOCl nanosheet, displaying the same
morphology characteristic with the catalyst of Pd/BiOCl. AC HAADF-HRSTEM image
(Figure S3b) exhibits crystalline Pd loaded on Fe-doped BiOCl structure with an interplanar
distance of 0.275 nm that matched well with (110) facet. Pd NPs and Fe elements were
homogeneously distributed on Pd/Fe-doped BiOCl (Figure S3c). The corresponding XRD
patterns displays no peaks of Pd NPs (Figure S4), which could be ascribed to the low amount
4
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
of Pd loading or the small size of Pd NPs. The Pd loading amount of Pd/BiOCl is 3.10 wt%
estimated through inductively-coupled plasma atomic emission spectrometry (ICP-AES)
analysis. For Pd/Fe-doped BiOCl, the amounts of Fe doping and Pd loading are 2.2 wt% and
−
2
.95 wt%, respectively. To decode the effect of Cl ions with Pd NPs on catalytic
performance, Pd/BiOCl catalysts with various amounts of Pd-loading and Fe-doping were
also constructed using the same method (Table S1, Figure S5a-5d and S6a-6b). In addition,
according to statistical analysis of 200 Pd NPs from TEM images, the average sizes of Pd NPs
loaded on BiOCl-based support are in the range of 1.9–2.73 nm, indicating the size effect of
Pd NPs on catalytic performance could be ignored (Figure S5e-5h and S6c-6d).
X-ray photoelectron spectroscopy (XPS) and X-ray absorption fine structure (XAFS)
analyses were performed to determine the chemical state of the catalysts and the Fe doping

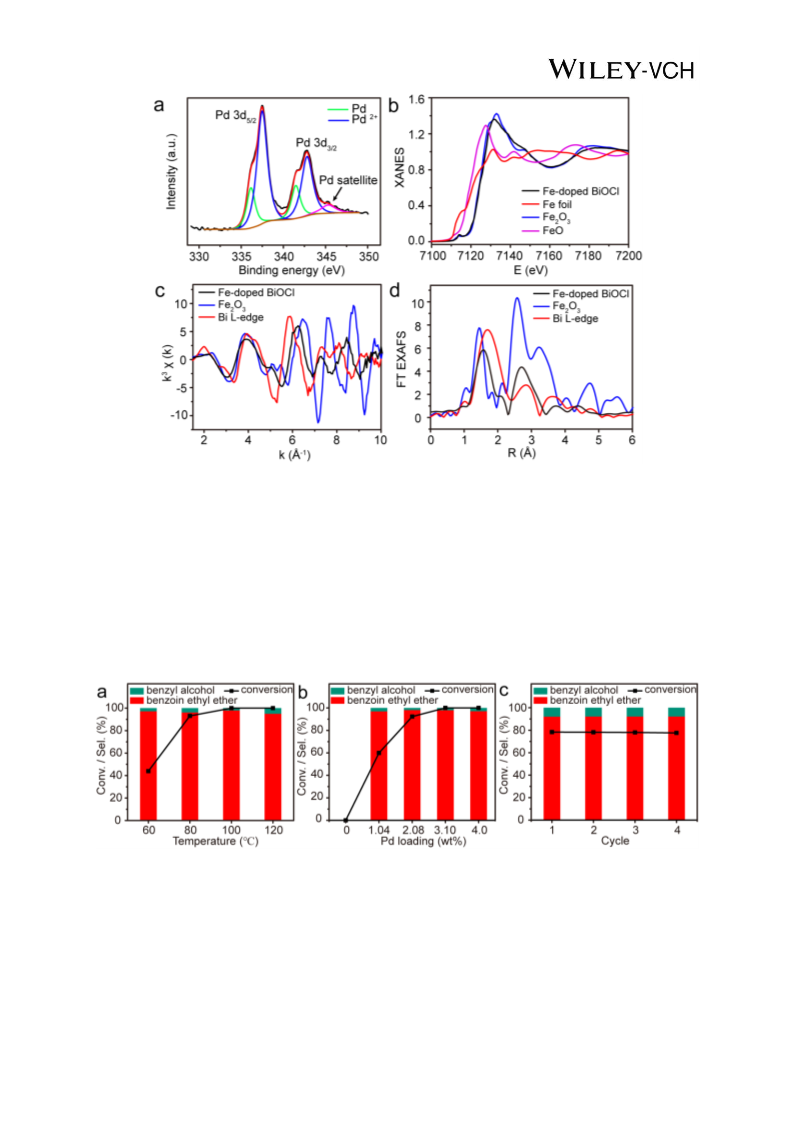

position in the BiOCl structure. As shown in Figure 2a and Figure S7a, the Pd 3d XPS spectra
of Pd/BiOCl and Pd/Fe-doped BiOCl both exhibit two chemical states of Pd, where a lower
0
binding energy doublet was assigned to Pd with a Pd satellite peak and the higher was
2
+ 30,31
2+
2−
attributed to Pd .
The existence of Pd species is ascribed to the adsorbate of PdCl
4
on
3
2
the surface of BiOCl-based Pd composites. Moreover, to analyze the Fe-doping types in the
single-crystal structure of BiOCl, the 2.2 wt% Fe-doped BiOCl sample was further identified
through XAFS. Figure 2b shows the Fe K-edge X-ray absorption near-edge structure
(
XANES) spectra of the Fe-doped BiOCl sample and other three reference materials,
including Fe foil, FeO and Fe . It can be seen that the energy position of Fe absorption edge
for Fe-doped BiOCl is located at 7122.2 eV, very close to that of Fe (7122.3 eV),
2
O
3
2
O
3
3
+
suggesting the main existence of Fe in Fe-doped BiOCl, which is consistent with the XPS
3
result (Figure S7b). Moreover, seen from the k χ (k) oscillation curves shown in Figure 2c,
the peak shape and oscillation frequency of Fe K-edge for Fe-doped BiOCl is similar to that
of corresponding Bi L-edge and quite different from that of Fe K-edge of Fe
2
3
O , indicating
the partial substitution of Bi site by doping Fe within Fe-doped BiOCl. The oscillation curves
5
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
of Fe K-edge for Fe-doped BiOCl shows a little positive shift relative to that of Bi L-edge
−
1
over 4-9 Å , which is owing to the atomic size difference between Fe and Bi atoms.
Furthermore, the FT curves of Fe K-edge EXAFS for Fe-doped BiOCl shows two main peaks
located at 1.56 and 2.7 Å, respectively, which was found to be similar with that of Bi L-edge
and much different from that of Fe
replacing Bi site by doping Fe within Fe-doped BiOCl structure.
.2. Catalytic performance of the catalysts
2
3
O (Figure 2d). These results evidently confirm the
2
It is well-known that Pd-based catalysts for organocatalysis, especially Pd-catalyzed
coupling reactions have become an active area of research and application.33-37 Herein, the
coupling reaction of benzaldehyde was chosen to evaluate the catalytic performance of
Pd/BiOCl catalyst for obtaining benzoin ethyl ether. The conversion efficiency and stability
are displayed in Figure 3. The Pd/BiOCl catalyst with 3.10 wt% of Pd for the coupling
reaction was investigated at different temperature (Figure 3a). At the reaction temperature
within 100 °C, the conversion of benzaldehyde gradually increases and the selectivity to
benzoin ethyl ether is more than 96%. At the temperature of 100 °C, the conversion is 100%
and the selectivity to benzoin ethyl ether reaches to 97.9%. As the temperature rises to 120 °C,
the selectivity to benzoin ethyl ether slightly decreases to 95% with the conversion of 100%,
indicating that the Pd/BiOCl catalyst retains excellent catalytic performance in a wide range
of temperature. The Pd/BiOCl catalysts with different Pd loadings were also used to catalyze
benzaldehyde (Figure 3b). Although the BiOCl support without Pd NPs has no catalytic
ability, the 1.04, 2.08, and 3.10 wt% Pd/BiOCl achieve 59.9%, 92.3%, and 100% conversion
of benzaldehyde with the similarly high selectivity to benzoin ethyl ether, respectively. With
the Pd loading amount increasing to 4.0 wt%, the Pd/BiOCl still maintain high selectivity
with full conversion. These results reveal that the combination of BiOCl with certain amount
of Pd NPs can improve the conversion and facilitate high selectivity for transforming
6
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
benzaldehyde to benzoin ethyl ether. With the excellent performance, the stability of 3.10
wt% Pd/BiOCl was examined. As shown in Figure 3c, the 3.10 wt% Pd/BiOCl can maintain
the conversion and selectivity to benzoin ethyl ether within 4 cycles after 3 h at 100 °C,
reflecting the good stability in the coupling reaction. After 4 cycle tests, Pd NPs exhibit the
aggregation and the mean size of 4.37 nm, larger than Pd nanoparticles before catalytic
reactions (Figure S8). Meanwhile, the ICP-AES result displays that Pd loading amount is 2.57
wt%, showing slight metal leaching in this reaction system. However, the aggregation and
metal leaching of Pd NPs has not affected greatly the catalytic performance of Pd/BiOCl in
the coupling reaction.
Usually, the common supports loaded with Pd catalysts tend to realize the hydrogenation
of benzaldehyde to benzyl alcohol under H
2
atmosphere, but the coupling reaction to benzoin
ethyl ether would not occur. 38, 39 To verify the superiority of BiOCl support for Pd NPs in
synthesizing benzoin ethyl ether, Pd/TiO
2
, Pd/g–C
3
N
4
, and commercial Pd/C catalyst were
catalysts were also prepared
used for catalyzing benzaldehyde. Pd/TiO
2
and Pd/g–C
3
N
4
through the same photoreduction method (Figure S9 and S10). These Pd-based catalysts were
evaluated under the same conditions. As shown in Table 1, even though these Pd-based
catalysts all show more than 95% conversion of benzaldehyde, but the high selectivity is
toward to benzyl alcohol. That is to say, benzoin ethyl ether is not conducive to obtain by
−
these Pd-based catalysts without Cl ions. As discussed above, the support BiOCl loaded with
Pd NPs can successfully achieve the production of benzoin ethyl ether with the exceptionally
high conversion of 100% and selectivity of 97.9%. The Pd/bulk BiOCl also promote the
coupling reaction of benzaldehyde, showing the conversion of 95.4% and selectivity of 85.3%
toward benzoin ethyl ether. Ultrathin BiOCl nanosheets as support exhibit better catalytic
activity than that of bulk BiOCl owing to its larger surface area for adsorbing reactants. The
BiOCl-based Pd catalysts facilitate the coupling reaction, which was observed for the first
7
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
time. The supposed mechanism of the coupling reaction to benzoin ethyl ether is shown
−
detailedly in Figure S11. Most important, Cl ion escapes from BiOCl structure and becomes
−
the dissociated Cl ions under certain temperature and atmosphere pressure conditions. Given
−
the existence of Pd NPs, the dissociated Cl ions are considered to play the nucleophile role
and facilitate the coupling of C–C bond originated from two benzaldehyde molecules. Then,
benzoin forms and condenses with the ethanol solvent, favoring benzoin ethyl ether. These
results show that the Pd/BiOCl catalyst is highly efficient for the coupling reaction of
benzaldehyde to synthesize benzoin ethyl ether under the nucleophile role of the dissociated
−
Cl ions with Pd NPs.
−
2
.3. The role of Cl in BiOCl with Pd
−
To clearly understand the effect of Cl ions dissociated from BiOCl structure, we performed
DFT calculations to get in-depth knowledge of chemical bonds in BiOCl structure. It is found
that doping Fe atoms into Bi atom sites in BiOCl can change the bond length of molecule,
thus influencing the stability of whole structure. Figure 4 displays the structures of BiOCl and
Fe-doped BiOCl. According to the theoretical calculation, the Bi
length of pure BiOCl is 3.12 Å and that of Fe-doped BiOCl is 2.97 Å. The Bi
Cl ) bond length is shorter by 0.15 Å by doping Fe atoms in Bi atom sites, which leads to the
1
–Cl
2
(or Bi
2
–Cl
1
) bond
1
–Cl
2
(or Bi –
2
1
increasement of Bi–Cl bond energy, i.e., the introduction of Fe atoms makes the Bi–Cl bond
−
stronger, constraining Cl ions in the crystal structure. In view of this result, Fe-doped BiOCl
−
supports are designed for Pd catalysts to stabilize Cl ions in BiOCl structure and decrease the
−
escape of Cl ions from BiOCl.
The Pd/Fe-doped BiOCl catalysts with 0, 0.7, 2.2 wt% of Fe doping toward catalytic
experiments were carried out. Based on the experimental results at 100 °C (Figure S12), the

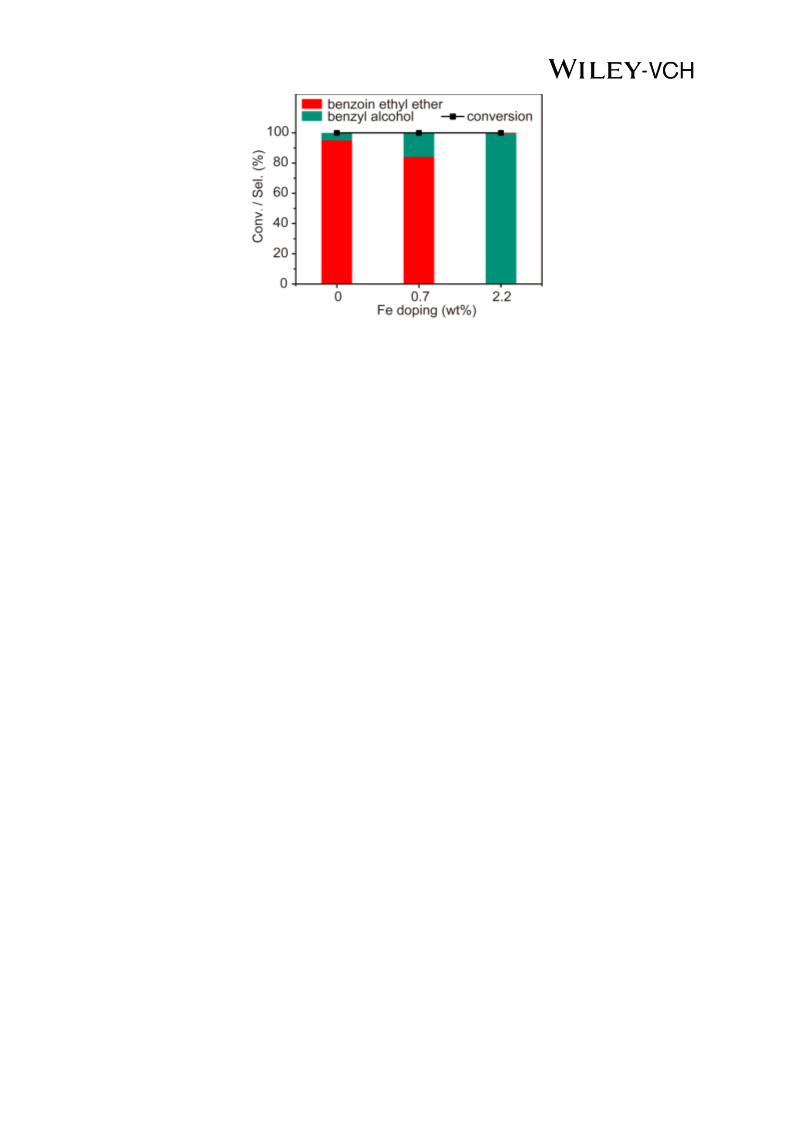

reaction temperature was optimized at 120 °C. As shown in Figure 5, the three catalysts all
8
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
show the conversion of 100%. Pd/BiOCl catalyst without Fe doing displays the selectivity of
5% for benzoin ethyl ether and 5% for benzyl alcohol at 120 °C. When 0.7 wt% Fe is doped
9
into the crystal structure of BiOCl, the selectivity of benzoin ethyl ether drops to 84.1%, while
the selectivity of benzyl alcohol increased to 15.9%. Subsequently, when the doping amount
of Fe increases to 2.2 wt%, the selectivity of benzyl alcohol reaches to 99.5% as expected,
indicating the hydrogenation of benzaldehyde becomes the dominant reaction. It obviously
−
reflects that the coupling reaction is suppressed by doping Fe atoms to constrain Cl ions in
−
BiOCl structure. These results demonstrate that dissociated Cl ions with Pd NPs have the
decisive nucleophile action for the formation of C–C bond of two benzaldehyde molecules in
the coupling reaction. Significantly, the support design for Pd catalyst can be controlled to
−
determine whether Cl ions take effect in catalytic reaction.
3
. Conclusion
In summary, we develop a tunable BiOCl-supported Pd catalyst for the coupling reaction of
benzaldehyde. Pd/BiOCl catalyst successfully realizes synthesizing benzoin ethyl ether with
−
superior conversion of 100% and selectivity of 97.9%. It is ascribed to that Cl ions
dissociated from BiOCl exhibit the nucleophile role with Pd NPs on the formation of C–C
−
bond in the coupling reaction of benzaldehyde. The dissociation of Cl ions can be controlled
through enhancing Bi–Cl bond by doping Fe ions on the basis of DFT calculations. When Cl−
ions is not involved in coupling reaction, Pd/Fe-doped BiOCl catalyst is designed and
−
facilitates hydrogenation property, which conversely demonstrate the key role of Cl ions in
the coupling reaction. This work brings a new insight into the support construction of
heterogeneous catalysts for expanding promising chemical synthesis and catalytic applications.
4
. Experimental Section
Materials: Bismuth nitrate pentahydrate (Bi(NO
thiourea, benzaldehyde, ethanol and Na PdCl were purchased from Sinopharm Chemical
3
)
3
•5H O), potassium chloride (KCl), urea,
2
2
4
9
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Reagent Co. Ltd., PR China. Titanium oxide (TiO
2
), iron chloride hexahydrate (FeCl
3
•6H O),
2
Pd/C (10%) were purchased from Aladdin Chemical Reagent Co. Ltd., PR China. Deionized
water (18.2 MΩ) was employed in the all experiments. All chemicals were used without
further purification.
Preparation of the support BiOCl: Firstly, a bulk BiOCl crystal was prepared as precursor by
a hydrothermal method. 0.97014 g of Bi(NO
Teflon-lined stainless autoclave with 30 mL deionized water. After the mixture was stirred for
0 min, the autoclave was heated at 160 °C for 24 h. Then the bulk BiOCl material was
3
)
3
•5H O and 0.1491g of KCl were added into a
2
3
collected and washed with deionized water and ethanol. The support BiOCl was prepared via
the method of laser irradiation in water. Typically, 25 mg bulk BiOCl in 10 mL deionized
water was irradiated by an unfocused laser with 355 nm in wavelength, frequency of 20 Hz,
and an energy of 35 mJ per pulse under continuous stirring for 20 min. The resulting
precipitates were collected and dried without washing, and the support BiOCl was obtained.
Preparation of Fe-doped BiOCl: In a typical preparation, Fe
2
O
3
/BiOCl was synthesized as
•6H O (27mg) in a
precursors by hydrothermal treatment of bulk BiOCl (75 mg) and FeCl
3
2
Teflon-lined stainless autoclave with 30 mL deionized water at 180 °C for 12 h. The obtained
powder was washed and collected in reserve. And Fe-doped BiOCl was prepared by laser
irradiating 25mg of Fe
2
3
O /BiOCl in 10 mL deionized water. The laser parameters is the same
with that of the preparation of the support BiOCl. Then, the 2.2 wt% Fe-doped BiOCl was
obtained. Also, the doping concentration of Fe ions was controlled by different concentration
of FeCl
preparation of Fe
irradiation in water with other conditions unchanged.
3
•6H
2
O solution. When 10mg of FeCl
3
•6H
2
O was added into the autoclave for
2
O
3
/BiOCl, the 0.7 wt% Fe-doped BiOCl was prepared by the laser
Preparation of Pd/BiOCl: A photoreduction method was used to load Pd NPs onto the
support BiOCl. Typically, 20 mg of the support BiOCl were added into four quartz tubes with
3
0 mL deionized water. Then 0.3 mL, 0.6 mL, 0.8 mL, and 1.2 mL 13.6 mM of Na
2
PdCl
4
1
0
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
solution were added into the quartz tubes, respectively. The mixed solution was ultrasounded
for 20 min. Finally, the quartz tubes were transferred to a photocatalyst reaction setup, where
the solutions were illuminated under 500 W Xe lamp with 420 nm cutoff filters for 60 min.
The obtained powders were washed with deionized water and ethanol for four times. Then
1
.04 wt%, 2.08 wt%, 3.10 wt%, and 4.0 wt% Pd/BiOCl were synthesized and collected for
future use. Moreover, the above-mentioned bulk BiOCl was chosen as support, and 3.46 wt%
Pd/bulk BiOCl was synthesized in the same condition as that of Pd/BiOCl when adding 0.8
mL 13.6 mM of Na
Preparation of Pd/Fe-doped BiOCl: In a typical synthesis, the preparation method is the
same with that of Pd/BiOCl. 0.8 mL 13.6 mM Na PdCl solution was added into a quartz tube
2
PdCl
4
Na
2
PdCl
4
solution.
2
4
containing 30 mL deionized water with 20 mg of Fe-doped BiOCl. Then the quartz tube was
ultrasounded for 20 mins and illuminated under 500 W Xe lamp with 420 nm cutoff filters for
6
0 min. The obtained powder washed and collected was 2.95 wt% Pd/Fe-doped BiOCl.
Preparation of Pd/g-C : In a typical preparation of catalyst Pd/g-C , g-C
prepared by calcining the mixture of urea and thiourea at 550 °C for 2 h in air atmosphere. 20
mg of g-C and 0.8 mL 13.6 mM Na PdCl solution were added into the 30 mL deionized
N
3 4
3
N
4
3
4
N was
3
N
4
2
4
water in a quartz tube. The mixture was ultrasounded for 20 min at room temperature and the
catalyst was uniformly dispersed in the solution. Subsequently, the quartz tube was
transferred to a photocatalyst reaction setup. The solution was illuminated under 500 W Xe
lamp with 420 nm cutoff filters for 60 min. The final product was washed and collected with
1
.05 wt% Pd loading by ICP-AES analysis.
Preparation of Pd/TiO : Pd/TiO was prepared followed as: 0.8 mL 13.6 mM Na
solution was added into a quartz tube containing 30 mL deionized water with 20 mg of TiO
Then the solution was illuminated under 500 W Xe lamp for 60 min. The product was washed
2
2
2
PdCl
4
2
.
with deionized water and ethanol for four times. 3.97 wt% Pd/TiO
synthesized.
2
was successfully
1
1
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Characterization: A transmission electron microscope (FEI Tecnai G2 F20) with a 200 kV
acceleration voltages was used to obtain the structural information of the products. X-ray
diffraction (XRD) phase analysis of the prepared products was carried out using a Philips
X’Pert system with Cu Kα radiation (λ = 1.5419 Å; scanning rate, 1.0°/min). High-angle
annular dark-field scanning transmission electron microscopy (HAADF-STEM) images were
obtained on a spherical aberration corrected transmission electron microscope (JEM-ARM
2
00F). And energy-dispersive X-ray spectroscopy (EDX) elemental mapping images were
captured on high resolution TEM (Talos F200X). An X-ray photoelectron spectroscopy (XPS)
system (Thermo ESCALAB 250) was used to analyze the valence states of the as-prepared
samples. The binding energy was calibrated against C 1s (284.6 eV). Inductively coupled
plasma atomic emission spectrometer (ICP-AES Optima 7300 DV) was used to estimate the
Pd loading amount and Fe doping amount. X-ray absorption fine structure spectroscopy
measurements were used to analyze the Fe doping location in the BiOCl crystal and
performed at BL14W1 station in Shanghai Synchrotron Radiation Facility (SSRF). The
electron storage ring of SSRF was operated at 3.5 GeV with a maximum current of 250 mA.
The Bi L-edge spectrum was recorded in the transmission mode and the Fe K-edge spectrum
was recorded in the fluorescence mode in ambient conditions.
Catalytic tests: In a typically catalytic reaction of benzaldehyde, 0.5 mmol of benzaldehyde,
1
5 mg of catalyst, and 5 mL of ethanol were added into a 25 mL stainless steel autoclave. The
reaction solutions were under a magnetic stirrer with a speed of ~ 1000 rpm. N at 1 MPa was
used to purge the sealed autoclave three times and then H with the pressure of 1 MPa was
2
2
injected into the autoclave during the catalytic process. The gas pressure is controlled by a
pressure gauge. An automatic temperature control apparatus controls the reaction temperature.
When the temperature was set at a specific value, the reaction proceeded for a certain time.
After the autoclave was cooled down, the autoclave contents were centrifuged to separate the
catalyst and liquid product.
1
2
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Gas chromatography–mass spectrometry (GC-MS, Thermo Fisher Scientific-TXQ Quntum
XLS) was used to identify the liquid product. The quantitative analysis of product was
obtained by GC (Shimadzu, GC-2010 Plus), equipped with FID and a KB-WAX capillary
column (Kromat Corporation, USA).
For the catalyst stability test, after every catalytic reaction, the catalyst was recycled by
centrifuging the reaction content. Then the catalyst was washed with water and ethanol to
remove the product and unreacted benzaldehyde. Finally the catalyst was dried under vacuum
o
oven at 60 C for the next test.
Calculation details: The spin-polarized DFT calculations are performed based on the
generalized gradient approximation (GGA), as implemented in the Vienna Ab initio
4
0
Simulation Package (VASP) 5.4.1 code. The all-electron plane-wave basis set within the
projector augmented wave (PAW) method is adopted and the Perdew–Burke–Ernzerhof
4
1
(
PBE) exchange–correlation functional is selected. The cutoff energy for expansion of the
wave function into plane waves is set to be 500 eV. A dense enough k points sampling in the
first Brillouin zone is examined with energy tolerance in 1 meV/atom. For geometric
optimization, both lattice constants and atomic positions are relaxed until the forces on atoms
-5
are less than 0.01 eV/ Å and the total-energy change is less than 1 × 10 eV. The van der
Waals interaction are considered through the cooperation of opt88-vdW functional.42
Supporting Information
Supporting Information is available from the Wiley Online Library or from the author.
Acknowledgements
This work was financially supported by the National Natural Science Foundation of China
(NSFC, No. 11504375, 11604320, 11674321, 51571186), the Instrument Developing Project
of the Chinese Academy of Sciences (Grant No. YZ201627), and the National Key Basic
1
3
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Research Program of China (2014CB931704), and the China Postdoctoral Science Foundation
Grant No. 2018M632559), and the CAS/SAFEA International Partnership Program for
(
Creative Research Teams. The authors thank SSRF BL14W1 for providing beam time.
Received: ((will be filled in by the editorial staff))
Revised: ((will be filled in by the editorial staff))
Published online: ((will be filled in by the editorial staff))
References
[
1]
R. S. Davidson, H. J. Hageman, S. P. Lewis, J. Photochem. Photobiol. A: Chem. 1998,
1
16, 257-263.
[
[
2]
3]
K. Yan, A. C. Chen, Environ. Chem. Lett. 2013, 11, 171-175.
J. P. Kuebrich, R. L. Schowen, M. S. Wang, M. E. Lupes, J. Am. Chem. Soc. 1971, 93,
1
214-1220.
[
[
[
[
[
[
4]
R. Breslow, J. Am. Chem. Soc. 1958, 80, 3719-3726.
5]
6]
7]
8]
9]
T. Ugai, S. Tanaka, S. Dokawa, J. Pharm. Soc. Jpn. 1943, 63, 296.
M. N. Hopkinson, C. Richter, M. Schedler, F. Glorius, Nature 2014, 510, 485-496.
X. Wu, Y. L. Du, X. An, X. M. Xie, Cata Commun. 2014, 50, 44-48.
X. Wu, X. An, X. M. Xie, Trans. Nonferrous Met. Soc. China 2014, 24, 1440-1445.
X. X. Zhou, H. R. Chen, Y. Zhu, Y. D. Song, Y. Chen, Y. X. Wang, Y. Gong, G. B.
Zhang, Z. Shu, X. Z. Cui, J. J. Zhao, J. L. Shi, Chem. Eur. J. 2013, 19, 10017-10023.
10] M. Imran, A. B. Yousaf, X. Zhou, Y. F. Jiang, C. Z. Yuan, A. Zeb, N. Jiang, A. W. Xu,
J. Phys. Chem. C 2017, 121, 1162-1170.
[
[
[
11] B. D. Chandler, Nat. Chem. 2017, 9, 108-109.
12] F. Huang, Y. C. Deng, Y. L. Chen, X. B. Cai, M. Peng, Z. M. Jia, P. J. Ren, D. Q.
Xiao, X. D. Wen, N. Wang, H. Y. Liu, D. Ma, J. Am. Chem. Soc. 2018, 140, 13142-13146.
1
4
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
[
13] K. Larmier, W. C. Liao, S. Tada, E. Lam, R. Verel, A. Bansode, A. Urakawa, A.
Comas-Vives, C. Coperet, Angew. Chem. Int. Ed. 2017, 56, 2318-2323.
14] D. Kubicka, J. Horácek, M. Setnicka, R. Bulánek, A. Zukal, I. Ku-bicková, Appl.
Catal. B: Environ. 2014, 145, 101-107.
[
[
[
[
15] M. Haruta, Catal Today 1997, 36,153-166.
16] V. Lordi, N. Yao, J. Wei, Chem. Mater. 2001, 13, 733-737.
17] P. R. Chen, A. Khetan, F. K. Yang, V. Migunov, P. Weide, S. P. Stꢀrmer, P. H. Guo,
K. Kahler, W. Xia, J. Mayer, H. Pitsch, U. Simon, M. Muhler, ACS Catal. 2017, 7, 1197-
206.
18] P. F. Ji, Y. Song, T. Drake, S. S. Veroneau, Z. K. Lin, X. D. Pan, W. B. Lin, J. Am.
Chem. Soc. 2018, 140, 433-440.
19] L. He, F. Weniger, H. Neumann, M. Beller, Angew. Chem. Int. Ed. 2016, 55, 12582-
2594.
20] H. Li, F. Qin, Z. P. Yang, X. M. Cui, J. F. Wang, L. Z. Zhang, J. Am. Chem. Soc.
017, 139, 3513-3521.
1
[
[
1
[
2
[
[
21] H. G. Yu, C. Cao, X. F. Wang, J. G. Yu, J. Phys. Chem. C 2017, 121, 13191-13201.
22] H. Li, J. Shang, H. J. Zhu, Z. P. Yang, Z. H. Ai, L. Z. Zhang, ACS Catal. 2016, 6,
8
276-8285.
23] M. L. Guan, C. Xiao, J. Zhang, S. J. Fan, R. An, Q. M. Cheng, J. F. Xie, M. Zhou, B. J.
Ye, Y. Xie, J. Am. Chem. Soc. 2013, 135, 10411-10417.
[
[
[
[
[
24] Ansell, M. F.; Dewar, M. J. S. Nature 1955, 175, 982-983.
25] E. D. Hughes, Nature 1942,149, 126-130.
26] J. B. Hu, W. Zhang, F. Wang, Chem. Commun. 2009, 48, 7465-7478.
27] R. Wilcken, M. O. Zimmermann, M. R. Bauer, T. J. Rutherford, A. R. Fersht, A. C.
Joerger, F. M. Boeckler, ACS Chem Biol 2015, 10, 2725-2732.
1
5
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
[
28] S. J. Wu, J. G. Sun, S. Z. Yang, Q. Y. He, L. Zhang, L. D. Sun, Inorg. Chem. 2018, 57,
988-8993.
29] P. X. Liu, Y. Zhao, R. X. Qin, S. G. Mo, G. X. Chen, L. Gu, D. M. Chevrier, P. Zhang,
Q. Guo, D. D. Zang, B. H. Wu, G. Fu, N. F. Zheng, Science 2016, 352, 797-800.
30] M. Korzec, P. Bartczak, A. Niemczyk, J. Szade, M. Kapkowski, P. Zenderowska, K.
Balin, J. Lelatko, J. Polanski, J. Catal. 2014, 313, 1-8.
31] Z. P. Chen, E. Vorobyeva, S. Mitchell, E. Fako, M. A. Ortuno, N. Lopez, S. M.
Collins, P. A. Midgley, S. Richard, G. Vile, J. Perez-Ramirez, Nat. Nanotechnol. 2018, 13,
02-707.
8
[
[
[
7
[
[
[
32] X. C. Meng, Z. S. Zhang, Appl. Catal. B-Environ. 2017, 209, 383-393.
33] R. A. Altman, S. L. Buchwald, Nat. Protoc. 2007, 2, 3115-3121.
34] X. M. Duan, J. Liu, J. F. Hao, L. M. Wu, B. J. He, Y. Q, J. Zhang, Z. L. He, J. B. Xi, S.
Wang, Carbon. 2018, 130, 806-813.
35] X. M. Duan, J. Liu, J. F. Hao, L. M. Wu, B. J. He, Y. Q, J. Zhang, Z. L. He, J. B. Xi, S.
Wang, Carbon. 2017, 119, 326-331.
36] J. B. Xi, H. Y. Sun, D. Wang, Z. Y. Zhang, X. M. Duan, J. W. Xiao, F. Xiao, L. M. Liu,
S. Wang, Appl. Catal. B-Environ. 2018, 225, 291-297.
37] J. Liu, J. F. Hao, C. C. Hu, B. J. He, J. B. Xi, J. W. Xiao, S. Wang, Z. W. Bai, J. Phys.
Chem. C, 2018, 122, 2696-2703.
38] F. Pinna, F. Menegazzo, M. Signoretto, P. Canton, G. Fagherazzi, N. Pernicone, Appl.
Catal. A: Gen. 2001, 219, 195-200.
39] Y. Song, U. Sanyal, D. Pangotra, J. D. Holladay, D. M. Camaioni, O. Y. Gutiérrez, J. A.
Lercher, J. Catal. 2018, 359, 68-75.
[
[
[
[
[
[
[
[
40] G. Kresse, J. Furthmuller, Phys. Rev. B 1996, 54, 11169-11186.
41] J. P. Perdew, K. Burke, M. Ernzerhof, Phys. Rev. Lett. 1996, 77, 3865-3868.
42] J. Klimes, D. R. Bowler, A. Michaelides, Phys. Rev. B 2011, 83, 195131.
1
6
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Figures and Tables
Figure 1. The structure and element distributions of Pd/BiOCl. (a) AC HAADF-STEM image.
b) AC HAADF-HRSTEM image. (c) and (d) AC HAADF-STEM images and corresponding
EDX element mappings showing the distributions of Bi, Cl, O, and Pd.
(
1
7
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Figure 2. (a) Pd 3d XPS spectrum of Pd/BiOCl. (b) Fe K-edge XANES spectra of Fe-doped
3
BiOCl, Fe foil, FeO and Fe
2
O
3
. (c) Fe K-edge k χ (k) oscillation curves of Fe-doped BiOCl
3
and Fe
FT) curves of Fe K-edge EXAFS spectra for Fe-doped BiOCl and Fe
EXAFS spectra for Fe-doped BiOCl.
2
O
3
, and Bi L-edge k χ (k) oscillation curves of Fe-doped BiOCl. (d) Fourier transform
(
2
O
3
and of Bi L-edge
Figure 3. (a) Conversion and selectivity of 3.10 wt% Pd/BiOCl catalyst for coupling reaction
of benzaldehyde at different temperature after 5 h. (b) Activity and selectivity for coupling
reaction of benzaldehyde with various Pd loadings of Pd/BiOCl after 5 h at 100 °C. (c) The
stability test of 3.10 wt% Pd/BiOCl catalyst for coupling reaction of benzaldehyde after 3 h at
1
00 °C. (Reaction condition: 1 MPa H )
2
1
8
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Table 1. Conversion and selectivity of Pd catalysts on different supports after 5 h of reaction
at 100 °C and 1 MPa H
2
.
Selectivity (%)
Pd
wt%)
Conversion
(%)
Catalysts
Benzoin
Benzyl
alcohol
(
ethyl ether
Pd/BiOCl
3.10
3.46
3.97
1.05
10
100
95.4
100
95.1
100
97.9
85.3
0
2.1
Pd/bulk BiOCl
14.7
90.6
91.5
47.5
Pd/TiO
Pd/g-C
Pd/C
2
3
N
4
0
0
Figure 4. Structures and Bi–Cl bond lengths of BiOCl and Fe-doped BiOCl.
1
9
This article is protected by copyright. All rights reserved.

ChemCatChem
10.1002/cctc.201900517
Figure 5. Conversion and selectivity toward benzaldehyde on the Pd/Fe-doped BiOCl with
different Fe doping amounts (Pd: 2.95 wt%) after 5 h of reaction at 120 °C and 1 MPa H
2
.
2
0
This article is protected by copyright. All rights reserved.
