Layered double hydroxide supported nanopalladium catalyst for Heck-, Suzuki-, Sonogashira-, and Stille-type coupling reactions of chloroarenes

Article abstract of DOI:10.1021/ja026975w

Layered double hydroxide and Merrifield resin supported nanopalladium(0) catalysts are prepared by an exchange of PdCl₄^2- followed by reduction and well characterized for the first time. The ligand-free heterogeneous layered double hydroxide supported nanopalladium (LDH-Pd⁰) catalyst using the basic LDH in place of basic ligands indeed exhibits higher activity and selectivity in the Heck olefination of electron-poor and electron-rich chloroarenes in nonaqueous ionic liquids (NAIL) over the homogeneous PdCl₂ system. Using microwave irradiation, the rate of the Heck olefination reaction is accelerated, manifold with the highest turnover frequency ever recorded in the case of both electron-poor and electron-rich chloroarenes. The basic LDH-Pd⁰ shows a superior activity over a range of supported catalysts, from acidic to weakly basic Pd/C, Pd/SiO₂, Pd/Al₂O₃, and resin-PdCl₄^2- in the Heck olefination of deactivated electron-rich 4-chloroanisole. The use of LDH-Pd⁰ is extended to the Suzuki-, Sonogashira-, and Stille-type coupling reactions of chloroarenes in an effort to understand the scope and utility of the reaction. The catalyst is quantitatively recovered from the reaction by a simple filtration and reused for a number of cycles with almost consistent activity in all the coupling reactions. The heterogeneity studies provide an insight into mechanistic aspects of the Heck olefination reaction and evidence that the reaction proceeds on the surface of the nanopalladium particles of the heterogeneous catalyst. TEM images of the fresh and used catalyst indeed show that the nanostructured palladium supported on LDH remains unchanged at the end of the reaction, while the XPS and evolved gas detection by TGA-MS of the used catalyst identify ArPdX species on the heterogeneous surface. Thus, the ligand-free nanopalladium supported on LDH, synthesized by the simple protocol, displays superior activity over the other heterogeneous catalysts inclusive of nanopalladium in the C-C coupling reactions of chloroarenes.

Full text of DOI:10.1021/ja026975w

Layered Double Hydroxides Supported Nanopalladium
Catalyst for Heck-, Suzuki-, Sonogashira-, and Stille type
Coupling Reactions of Chloroarenes
Boyapati M. Choudary,* Sateesh Madhi, Naidu S. Chowdari, Mannepalli L.
Kantam and Sreedhar .B
Inorganic & Physical Chemistry Division, Indian Institute of Chemical Technology,
Hyderabad 500 007, India.
Supporting Information

0

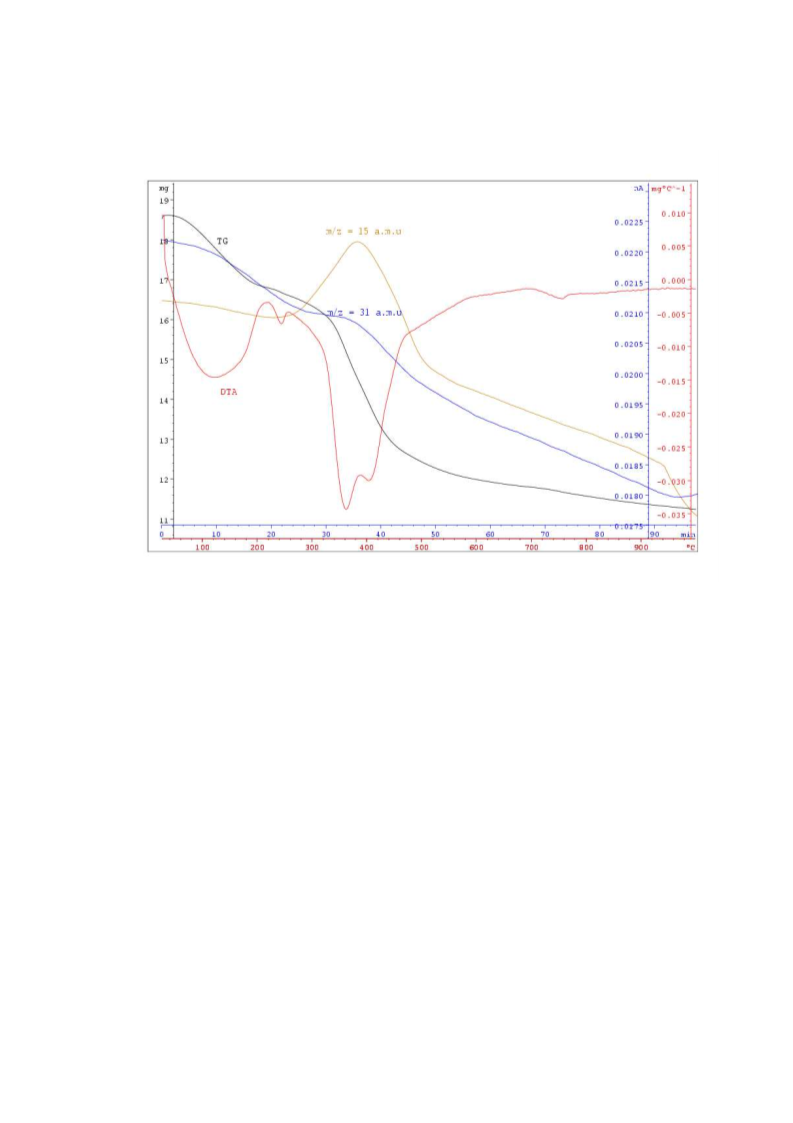

Figure A. TGA-DTA-MS thermogram of LDH-Pd AR for MeO (m/z = 31 a.m.u.) and
Me (m/z = 15 a.m.u.) in nitrogen atmosphere with an heating rate of 10°C/min.
S1

0

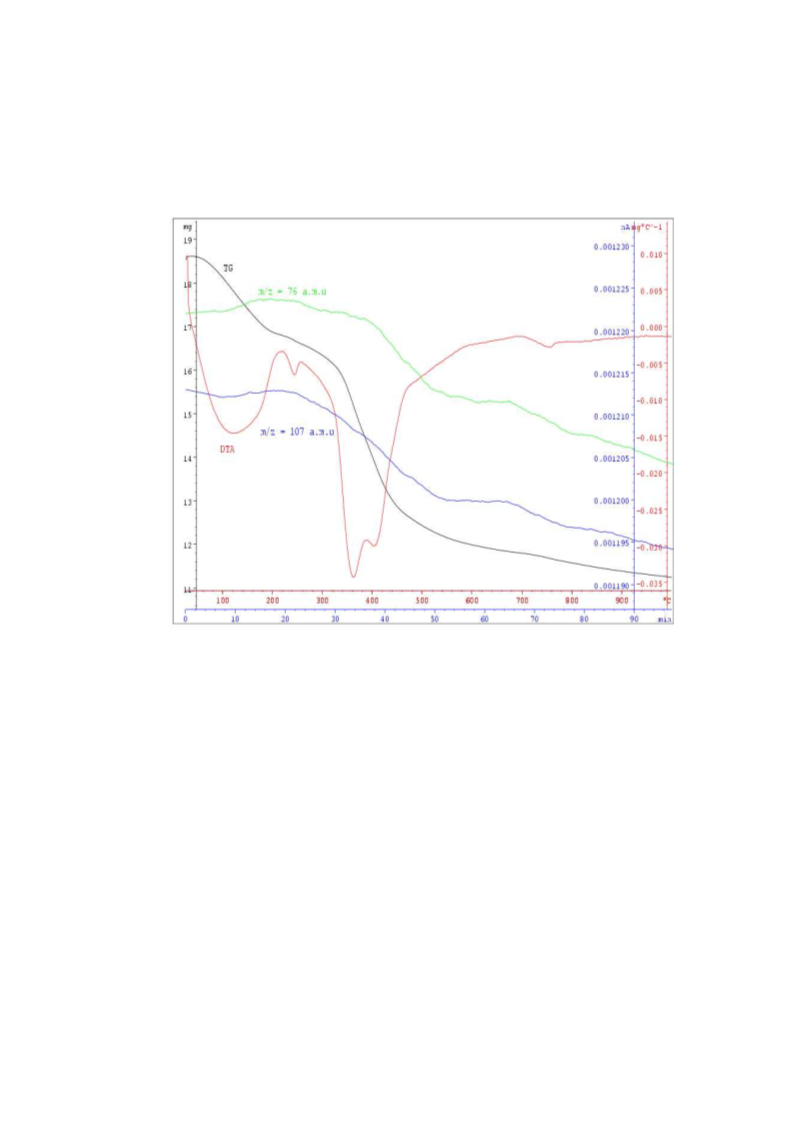

Figure B. TGA-DTA-MS thermogram of LDH-Pd AR for C
6
H (m/z = 76
4
a.m.u.) and MeOPh (m/z = 107 a.m.u.) in nitrogen atmosphere with an
heating rate of 10°C/min.
S2

0

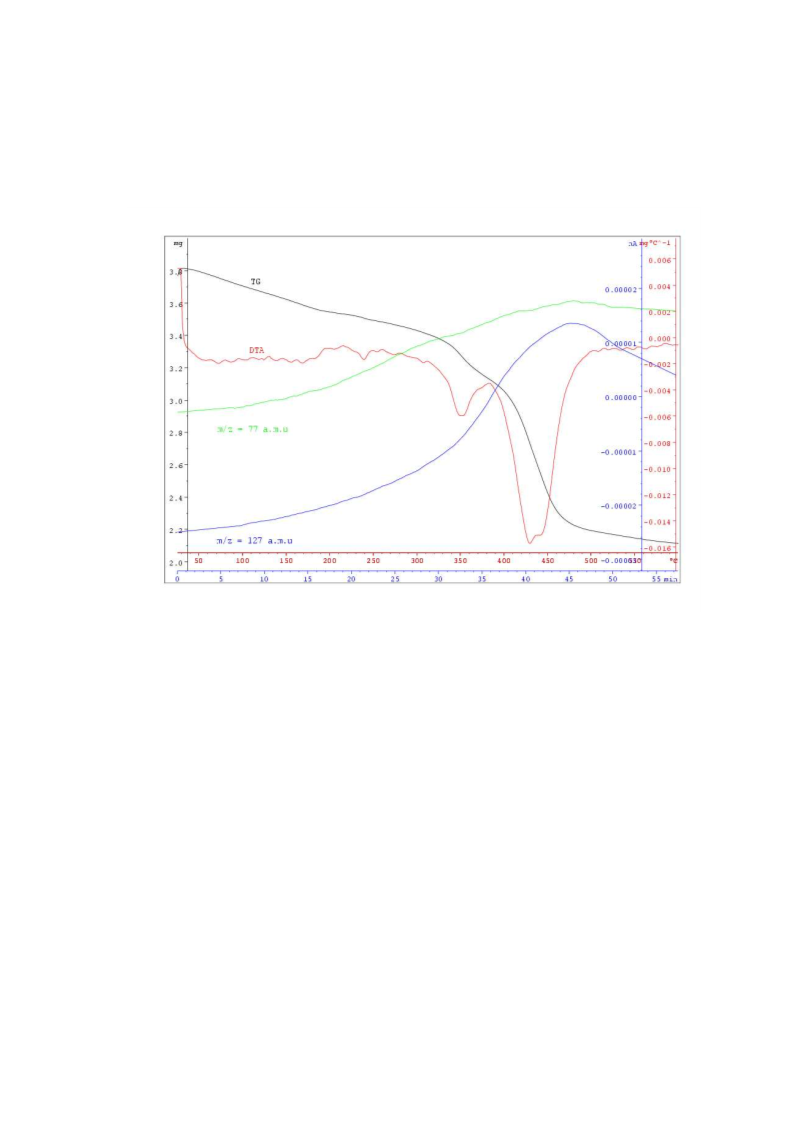

Figure C. TGA-DTA-MS thermogram of LDH-Pd BR for Phenyl (m/z = 77
a.m.u.) and Iodo (m/z = 127 a.m.u.) in nitrogen atmosphere with an heating
rate of 10°C/min.
S3

0

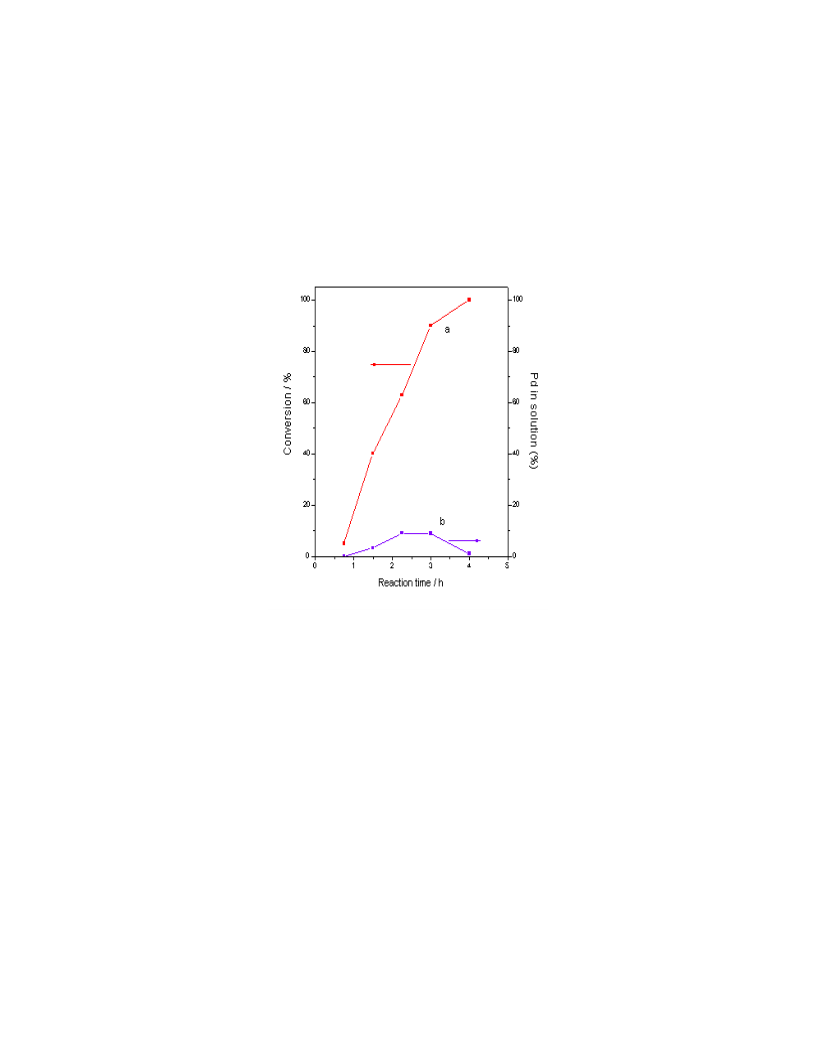

Figure D. (a) Activity profile for LDH-Pd catalyzed
Heck reaction of iodobenzene with styrene (left-hand
side scale) and (b) the amount of palladium present in
solution (right-hand side scale).
S4
