Y. Xu et al.
Applied Catalysis A, General 622 (2021) 118230
Fig. 3. a) Nitrogen adsorption-desorption isotherms of Ni-NC-300, Ni-NC-700 and Ni-NC-G-700; b) pore-size distribution of Ni-NC-300, Ni-NC-700 and Ni-NC-G-700
based on adsorption isotherms.

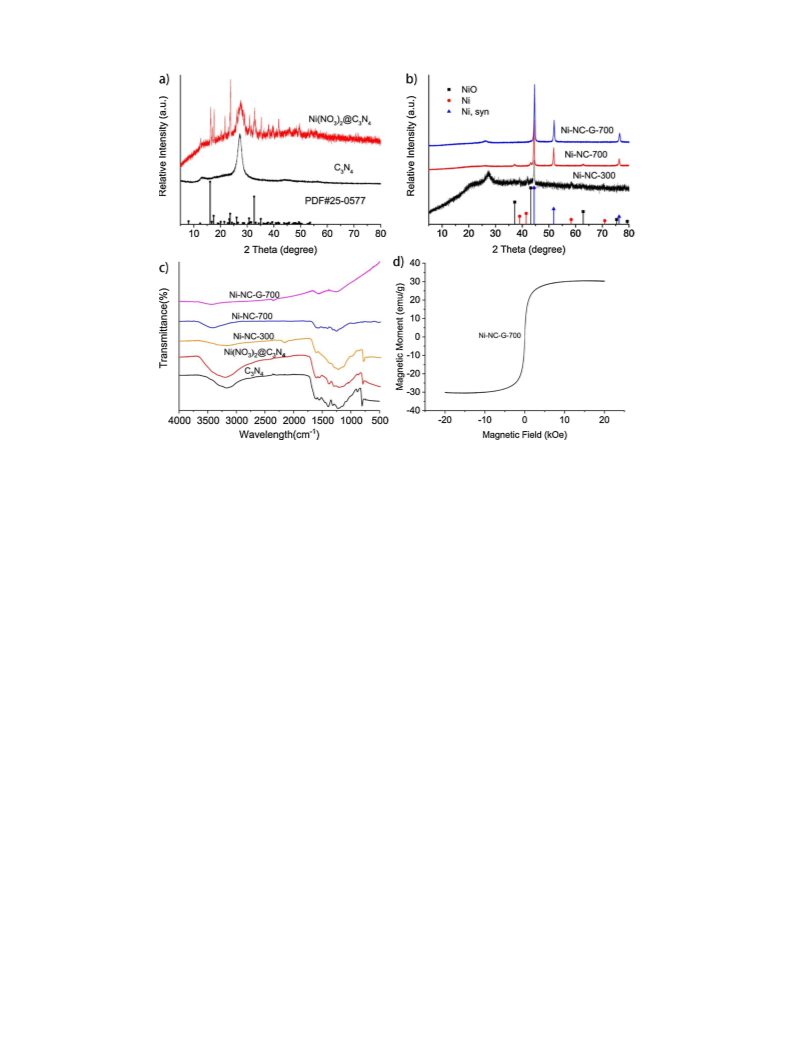

of cubic nickel arise and the characteristic diffraction of C3N4 disappears
(Fig. 1b), indicating the structure of nickel components transformed and
carbon nitride decomposed during the annealing process. Besides, a
small and broad peak corresponding to nickel oxide can also be distin-
guished, illustrating that the nickel was partly oxidized in air atmo-
sphere or nickel was not totally reduced. To eliminate the nickel oxide
species which maybe impact the catalytic activity, extra glucose (1 mol
% of Ni) was introduced into Ni-NC-300 before annealing at 700 ◦C.
Satisfactorily, there is no diffraction peaks of nickel oxide in the pattern
of Ni-NC-G-700, which implies that the extra carbon derived from
glucose was conducive to fully reduce nickel oxide and protected the
nickel from being oxidized in air. In the FTIR spectra (Fig. 1c) of C3N4, Ni
(NO3)2@C3N4 and Ni-NC-300, the peaks at 808 cmꢀ 1 and
1200~1600 cmꢀ 1 are ascribed to the characteristic vibrations of

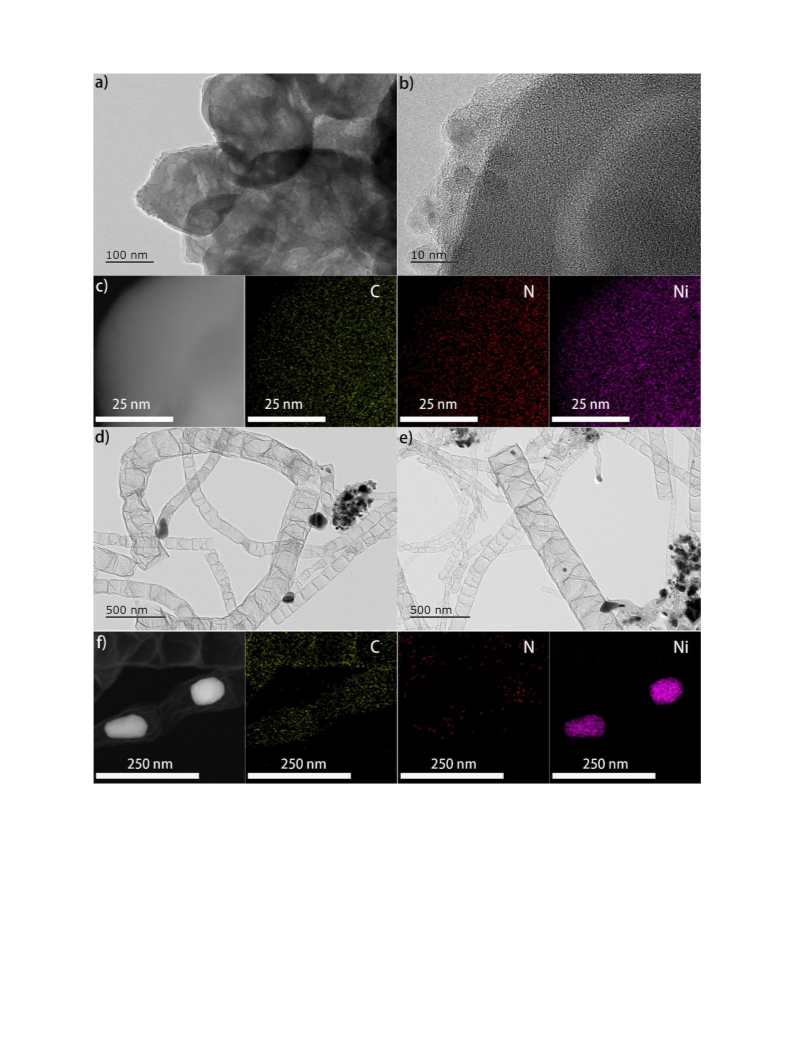

nanoparticles can be observed on the support of C3N4 (Fig. 2a, b), further
illustrating nickel nitrate decomposed during popping procedure.
Elemental mapping analyses (Fig. 2c) pointed out that nickel element
was well-distributed on carbon nitride. To our surprise, nickel nano-
particles encapsulated in carbon nanotubes can be observed in the im-
ages of Ni-NC-700 and Ni-NC-G-700 (Fig. 2d, e). Why does the simple
annealing process promote carbon nanotubes to grow up? As described
in previous reports, C3N4 would be decomposed when annealing tem-
perature was higher than 600 ◦C. In addition, supported nickel nano-
particles can be used as catalyst to prepare carbon nanotubes due to
their excellent carburizing capacitor [26]. Therefore, we deduced that
the nickel oxide nanoparticles could be reduced firstly by carbon species
decomposed from C3N4 and then functioned as a seed to grow carbon
nanotubes. Because the decomposed products from C3N4 contain ni-
trogen element, the carbon nanotubes covered on nickel nanoparticles is
a kind of N-doped carbon nanotubes. This point can be demonstrated by
elemental mapping analysis. As shown in Fig. 2f, carbon and nitrogen
elements are well distributed in the carbon nanotubes and the nano-
particles in the nanotube are composed of nickel component. However,
there is no obvious difference between the TEM images of Ni-NC-700
and Ni-NC-G-700 (Fig. 2d, e), further indicating that carbon for
growing carbon nanotubes comes from carbon nitride but NOT glucose.
The function of glucose is just to help carbon nanotubes to improve the
stability of nickel nanoparticles in air.
–
s-triazine ring and C N heterocycles in carbon nitride, respectively.
–
This result further demonstrates that the main structure of C3N4 in the
sample Ni-NC-300 remains. In the spectra of Ni-NC-700 and
Ni-NC-G-700, the characteristic peak locating at 808 cmꢀ 1 almost dis-
–
appears and the vibrations C N heterocycles situating at 1200~1600
–
cmꢀ 1 remains, suggesting that structure of C3N4 was destroyed and the
structure of N-doped carbon generated at high calcination temperature.
With careful observation, the FTIR spectrum of Ni-NC-G-700 is simpler
than Ni-NC-700, indicating that Ni-NC-G-700 possesses high degree of
graphitization with the help of extra glucose at high annealing tem-
perature. Interestingly, the sample Ni-NC-G-700 possesses excellent
magnetic property because the metal nickel exists, which was investi-
gated by using a magnetic property measurement system at room tem-
perature (Fig. 1d). The saturation magnetization value of Ni-NC-G-700
reached to 30.5 emu/g. Besides, the hysteresis loop and remanence
cannot be identified, pointing out that Ni-NC-G-700 was super-
paramagnetic at room temperature so that it was easily recycled when
Ni-NC-G-700 was used as catalyst.

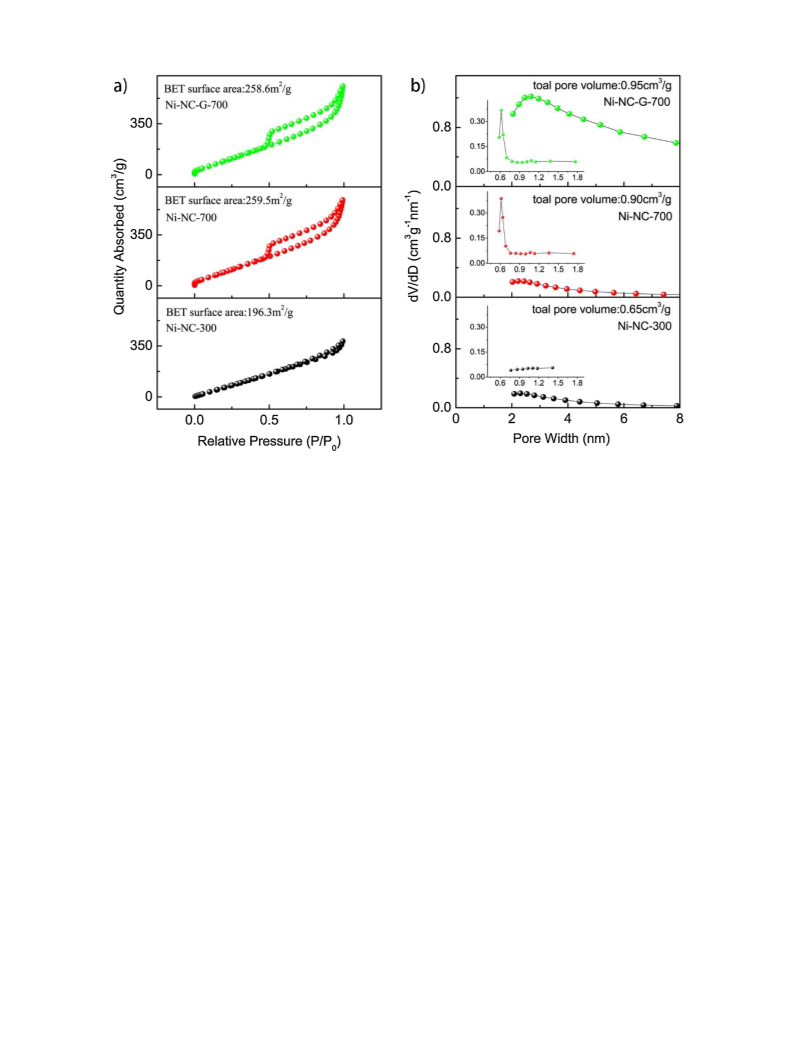

BET surface area of Ni-NC-300 based on nitrogen adsorption-
desorption experiment is about 196 m2/g and only possesses meso-
porous structure with 0.65 cm3/g total pore volume (Fig. 3). Ni-NC-700
and Ni-NC-G-700 have similar shape of nitrogen adsorption-desorption
isotherms and almost same BET surface area of about 260 m2/g. The
two samples both have micro (~0.65 nm) and mesoporous (~2 nm)
structures with about 0.9 cm3/g total pore volume. This result illustrates
that the introduction of small amount of glucose do not influence the
structure of final product.
The morphology of Ni-NC-300, Ni-NC-700 and Ni-NC-G-700 was
studied by TEM (Fig. 2). For the sample Ni-NC-300, small nickel oxide

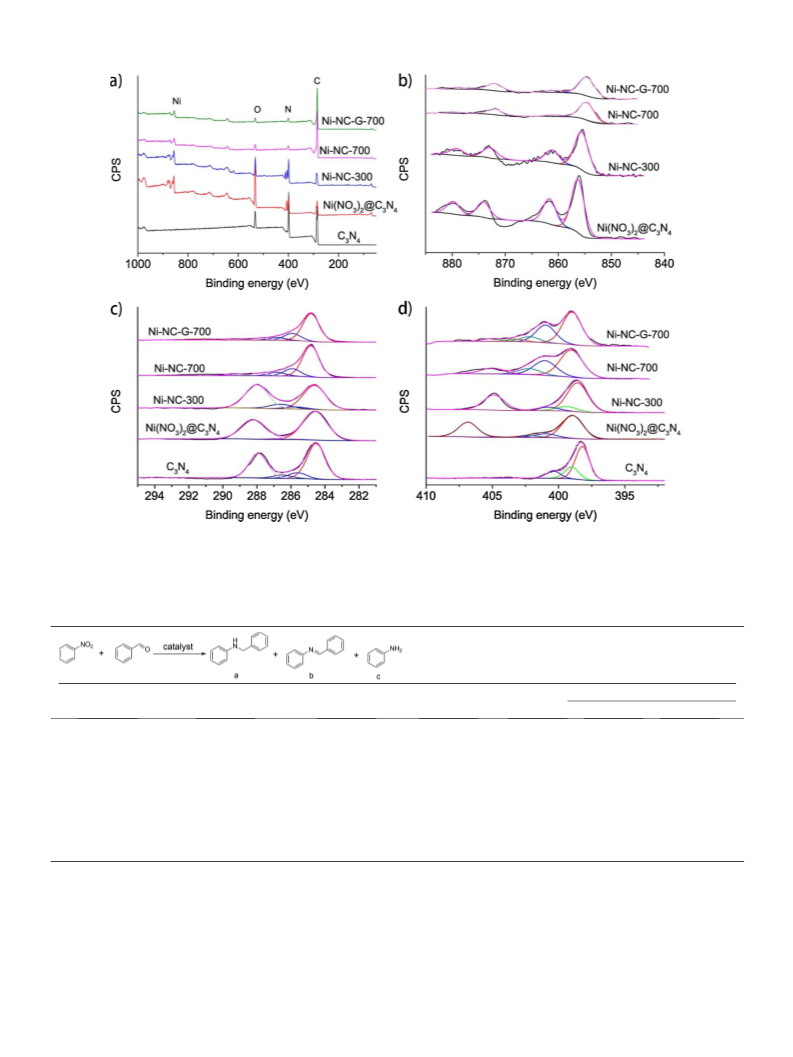

The difference of surface composition of C3N4, Ni-NC-300, Ni-NC-G-
4
