Isotope-Edited Infrared Spectroscopy for Efficient Discrimination between Pharmaceutical Salts and Cocrystals

Article abstract of DOI:10.1021/acs.molpharmaceut.7b00226

Isotope-edited infrared spectroscopy using carboxylic acids selectively labeled with ¹³C is proposed herein for the efficient discrimination of pharmaceutical salts and cocrystals, whereby proton-transfer probe vibrations are highlighted by isotope shifts. This new technique can accurately discriminate even a confusing salt from a cocrystal for the traditional method, highlighting the diagnostic peaks. In addition, the established technique also provided the OH in-plane bending vibrations corresponding to intermolecular hydrogen bonding at the carbonyl oxygens of the cocrystals. The technique will accelerate the discrimination, which is a critical process in cocrystal development.

Full text of DOI:10.1021/acs.molpharmaceut.7b00226

Evaluation Only. Created with Aspose.PDF. Copyright 2002-2021 Aspose Pty Ltd.
Subscriber access provided by TRENT UNIV
Article
Isotope-edited Infrared Spectroscopy for Efficient
Discrimination between Pharmaceutical Salts and Cocrystals
Kentaro Iwata, Masatoshi Karashima, and Yukihiro Ikeda
Mol. Pharmaceutics, Just Accepted Manuscript • Publication Date (Web): 14 May 2017
Downloaded from http://pubs.acs.org on May 15, 2017
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Molecular Pharmaceutics is published by the American Chemical Society. 1155
Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Evaluation Only. Created with Aspose.PDF. Copyright 2002-2021 Aspose Pty Ltd.
Page 1 of 32
Molecular Pharmaceutics
1
2
3
4
Cover page
5
6
7
8
9
Isotopeꢀedited Infrared Spectroscopy for Efficient
Discrimination between Pharmaceutical Salts and
Cocrystals
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

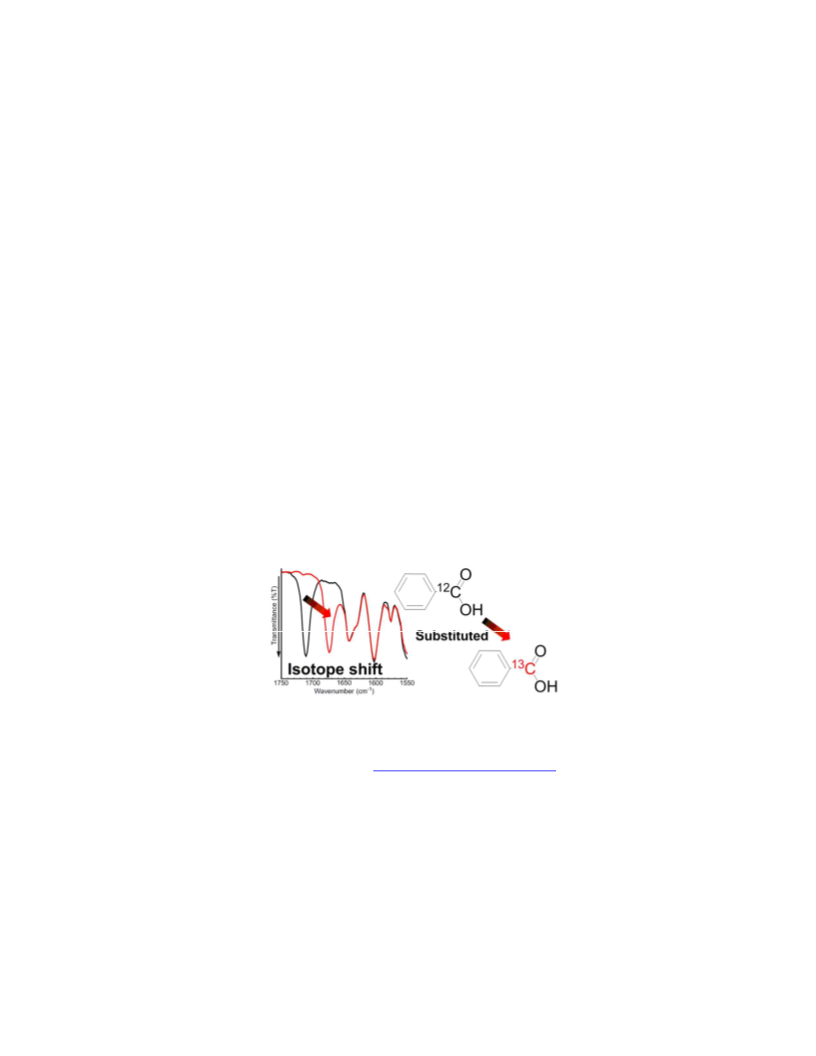

Kentaro Iwata*, Masatoshi Karashima and Yukihiro Ikeda
Abstract: Isotopeꢀedited infrared spectroscopy using carboxylic acids selectively labeled with
13C is proposed herein for the efficient discrimination of pharmaceutical salts and cocrystals,
whereby protonꢀtransfer probe vibrations are highlighted by isotope shifts. This new technique
can accurately discriminate even a confusing salt from a cocrystal for the traditional method,
highlighting the diagnostic peaks. In addition, the established technique also provided the OH
inꢀplane bending vibrations corresponding to intermolecular hydrogen bonding at the carbonyl
oxygens of the cocrystals. The technique will accelerate the discrimination which is critical
process in cocrystal development.
*Analytical Development, Pharmaceutical Sciences, Takeda Pharmaceutical Company Limited,
2ꢀ26ꢀ1, MuraokaꢀHigashi, Fujisawa, Kanagawa, 251ꢀ8555, Japan, Tel No. +81ꢀ466ꢀ32ꢀ2855,
Fax No. +81ꢀ466ꢀ29ꢀ4432 Eꢀmail address: kentarou.iwata@takeda.com
Keywords: Salt, Cocrystal, Infrared Spectroscopy, Isotope shift and Carboxylic acid
ACS Paragon Plus Environment
1

Evaluation Only. Created with Aspose.PDF. Copyright 2002-2021 Aspose Pty Ltd.
Molecular Pharmaceutics
Page 2 of 32
1
2
3
4
5
6
7
8
9
Isotopeꢀedited Infrared Spectroscopy for Efficient
Discrimination between Pharmaceutical Salts and
Cocrystals
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Kentaro Iwata*, Masatoshi Karashima and Yukihiro Ikeda
*Analytical Development, Pharmaceutical Sciences, Takeda Pharmaceutical Company Limited,
2ꢀ26ꢀ1, MuraokaꢀHigashi, Fujisawa, Kanagawa, 251ꢀ8555, Japan, Tel No. +81ꢀ466ꢀ32ꢀ2855,
Fax No. +81ꢀ466ꢀ29ꢀ4432, Eꢀmail address: kentarou.iwata@takeda.com
Abstract
Isotopeꢀedited infrared spectroscopy using carboxylic acids selectively labeled with 13C is
proposed herein for the efficient discrimination of pharmaceutical salts and cocrystals, whereby
protonꢀtransfer probe vibrations are highlighted by isotope shifts. This new technique can
accurately discriminate even a confusing salt from a cocrystal for the traditional method,
highlighting the diagnostic peaks. In addition, the established technique also provided the OH inꢀ
plane bending vibrations corresponding to intermolecular hydrogen bonding at the carbonyl
oxygens of the cocrystals. The technique will accelerate the discrimination which is critical
process in cocrystal development.
ACS Paragon Plus Environment
2

Evaluation Only. Created with Aspose.PDF. Copyright 2002-2021 Aspose Pty Ltd.
Page 3 of 32
Molecular Pharmaceutics
1
2
3
4
Introduction
5
6
7
8
9
Cocrystal technology has drawn much attention for its application in the development of
neutral active pharmaceutical ingredients (APIs) and the improvement of their pharmaceutical
profiles1, 2. Pharmaceutical development of cocrystals has recently been highlighted in
publications by the U.S. Food and Drug Administration (FDA)3 and the European Medicines
Agency (EMA)4. These publications commonly require elucidating whether newly developed
API crystals exist as cocrystals, which are homogeneous multicomponent crystals where no
proton transfer occurs between the different components, unlike the case of salt crystals.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Discrimination of cocrystals and salts is now an essential step to satisfy regulatory
requirements, and various techniques have been developed with this aim. While the ꢁpKa rule
(ꢁpKa = pKa(base) – pKa(acid)) is commonly used to predict the existence of proton transfer
between a given pair of components in a crystal, robust prediction by said rule is limited due to
the broad ꢁpKa boundaries5, 6 and the experimental difficulties in determining the accurate pKa of
poorly soluble APIs. For analytical discrimination, single crystal Xꢀray and neutron crystal
structure analysis are the most definitive and widely applicable techniques7, 8. However, these
methodologies are not always suitable due to limitations in the crystal size. Alternatively,
infrared (IR) spectroscopy5, 9, solidꢀstate nuclear magnetic resonance (ssNMR)10ꢀ13, and Xꢀray
photoelectron spectroscopy (XPS)14, 15 have been investigated as discrimination techniques.
Especially, midꢀIR spectroscopy is a common analytical method in pharmaceutical
development16, and the IR vibrations of various functional groups in coformers and APIs are
available for discrimination analysis9, 17ꢀ20. Furthermore, IR spectroscopy is an orthogonal
method for discrimination compared to ssNMR spectroscopy and XPS, since the spectra from
such techniques reflect the electron density of the target atoms, while the IR bands are related to
