Synthesis, anti-proliferative activity evaluation and 3D-QSAR study of naphthoquinone derivatives as potential anti-colorectal cancer agents

Article abstract of DOI:10.3390/molecules23010186

Colorectal cancer (CRC) is a disease with high incidence and mortality, constituting the fourth most common cause of death from cancer worldwide. Naphthoquinones are attractive compounds due to their biological and structural properties. In this work, 36 naphthoquinone derivatives were synthesized and their activity evaluated against HT-29 cells. Overall, high to moderate anti-proliferative activity was observed in most members of the series, with 15 compounds classified as active (1.73 < IC₅₀ < 18.11 μM). The naphtho[2,3-b]thiophene-4,9-dione analogs showed potent cytotoxicity, 8-hydroxy-2-(thiophen-2-ylcarbonyl)naphtho[2,3-b]thiophene-4,9-dione being the compound with the highest potency and selectivity. Our results suggest that the toxicity is improved in molecules with tricyclic naphtho[2,3-b]furan-4,9-dione and naphtho[2,3-b]thiophene-4,9-dione systems 2-substituted with an electron-withdrawing group. A 3D-QSAR study of comparative molecular field analysis (CoMFA) was carried out, resulting in the generation of a reliable model (r² = 0.99 and q² = 0.625). This model allowed proposing five new compounds with two-fold higher theoretical anti-proliferative activity, which would be worthwhile to synthesize and evaluate. Further investigations will be needed to determine the mechanism involved in the effect of most active compounds which are potential candidates for new anticancer agents.

Full text of DOI:10.3390/molecules23010186

molecules
Article
Synthesis, Anti-Proliferative Activity Evaluation and
3D-QSAR Study of Naphthoquinone Derivatives as
Potential Anti-Colorectal Cancer Agents
Julio Acuña 1,†, Jhoan Piermattey 2,†, Daneiva Caro 1, Sven Bannwitz 3, Luis Barrios 1,4
,
Jairo López 2, Yanet Ocampo 1, Ricardo Vivas-Reyes 4,5, Fabio Aristizábal 6, Ricardo Gaitán 2,
Klaus Müller 3 and Luis Franco 1,
1
*
ID
Biological Evaluation of Promising Substances Group, Faculty of Pharmaceutical Sciences,
University of Cartagena, 130014 Cartagena, Colombia; julio.acuna.gutierrez@gmail.com (J.A.);
dcarof@unicartagena.edu.co (D.C.); luisba1121@gmail.com (L.B.); yocampob@unicartagena.edu.co (Y.O.)
Natural Products Group, Faculty of Pharmaceutical Sciences, University of Cartagena, 130014 Cartagena,
Colombia; jpiermatteyditta@gmail.com (J.P.); jairodejesuslopez@gmaill.com (J.L.);
rgaitani@unicartagena.edu.co (R.G.)
Institute of Pharmaceutical and Medicinal Chemistry, PharmaCampus, Westphalian Wilhelms University,
Corrensstraße 48, D-48149 Münster, Germany; bannwitz@uni-muenster.de (S.B.);
kmuller@uni-muenster.de (K.M.)
2
3
4
5
6
Theoretical and Computational Chemistry Group, Faculty of Natural and Exact Sciences,
University of Cartagena, 130015 Cartagena, Colombia; rvivasr@unicartagena.edu.co
CipTec Group, Faculty of Engineering, Fundación Tecnológico Comfenalco de Cartagena,
130015 Cartagena, Colombia
Cancer Pharmacogenetics Research Group, National University of Colombia, 111321 Bogotá, Colombia;
faaristizabalg@unal.edu.co
*
Correspondence: lfrancoo@unicartagena.edu.co; Tel.: +57-5-669-9771
†
These authors contributed equally to this work, as first authors.
Received: 16 December 2017; Accepted: 16 December 2017; Published: 17 January 2018
Abstract: Colorectal cancer (CRC) is a disease with high incidence and mortality, constituting the
fourth most common cause of death from cancer worldwide. Naphthoquinones are attractive
compounds due to their biological and structural properties. In this work, 36 naphthoquinone
derivatives were synthesized and their activity evaluated against HT-29 cells. Overall, high to
moderate anti-proliferative activity was observed in most members of the series, with 15 compounds
classified as active (1.73 < IC50 < 18.11 µM). The naphtho[2,3-b]thiophene-4,9-dione analogs showed
potent cytotoxicity, 8-hydroxy-2-(thiophen-2-ylcarbonyl)naphtho[2,3-b]thiophene-4,9-dione being the
compound with the highest potency and selectivity. Our results suggest that the toxicity is improved
in molecules with tricyclic naphtho[2,3-b]furan-4,9-dione and naphtho[2,3-b]thiophene-4,9-dione
systems 2-substituted with an electron-withdrawing group. A 3D-QSAR study of comparative
molecular field analysis (CoMFA) was carried out, resulting in the generation of a reliable model
(r2 = 0.99 and q2 = 0.625). This model allowed proposing five new compounds with two-fold higher
theoretical anti-proliferative activity, which would be worthwhile to synthesize and evaluate. Further
investigations will be needed to determine the mechanism involved in the effect of most active
compounds which are potential candidates for new anticancer agents.
Keywords: colorectal cancer; naphthoquinone derivatives; anti-proliferative activity; 3D-QSAR
1. Introduction
According to the World Health Organization (WHO), in 2012, 14 million cases and 8.2 million
deaths were attributed to cancer, a disease characterized by abnormal and uncontrolled growth of
Molecules 2018, 23, 186; doi:10.3390/molecules23010186
www.mdpi.com/journal/molecules

Molecules 2018, 23, 186
2 of 21
cells (tumor) and colonization of tissues (metastasis); which is documented as the second cause of
mortality after cardiovascular diseases, and is expected to surpass 20 million new cases by 2025 [ ].
The colorectal cancer (CRC) is the third most commonly diagnosed cancer worldwide, after lung
and breast cancer, and constitutes the fourth cause of cancer death [ ]. CRC, as other types of cancer,
1
2
is the result of accumulation of genetic and epigenetic mutations in specific oncogenes and/or tumor
suppressor genes causing the formation of adenocarcinomas, with about 10–30% of patients having a
family history of the disease (familial CRC) and only 5–6% caused by a defined hereditary syndrome,
whereas about 75% of patients with CRC have sporadic adenomatous colorectal polyps and 3.7%
extensive ulcerative colitis [
rapidly advance, allowing the improvement of prediction, early diagnostic, prognosis, and clinical
management [ ]. Current treatment of CRC employs surgical resection combined with chemotherapy,
cytotoxic drugs, and radiotherapy [ ]. These therapies are often ineffective, mainly due to the resistance
3,4]. The molecular understanding of CRC carcinogenesis continues to
5
6
developed by cancer stem cells, leading to recurrence in a significant amount of patients with late-stage
CRC, as well as a high incidence of serious and even life-threatening adverse effects that significantly
reduce the quality of life of patients [7,8]. Given the serious adverse effects, the elevated costs associated
with the treatment, and the low efficiency of current chemotherapy; there is a clear necessity to discover
new anticancer agents that are more effective, safe and affordable.
Naphthoquinones are molecules widely distributed in nature that possess a broad spectrum of
biological activities, including anticancer activity, which has stimulated their study and recognition as
privileged structures in medicinal chemistry [9,10]. Cytotoxic activity exhibited by quinone derivatives
is mediated mainly by several mechanisms, including the inhibition of DNA topoisomerase-II,
an enzyme essential in the replication of DNA and the condensation and segregation of chromosomes;
as well as through the formation of semiquinones and superoxide radicals, which contribute to the
production of hydroxyl radical, the main source of oxidative generated damage to cellular DNA [11–13].
Interestingly, medicinal plants containing naphthoquinones, such as Tabebuia spp. (locally known as
lapacho, pau-d’arco, roble or guayacan), are extensively employed in South America for their analgesic,
anti-inflammatory, and anti-neoplastic properties. Furthermore, many clinically important antitumor
agents, such as anthracyclines (e.g., daunorubicin and doxorubicin), mitomycin, mitoxantrone and
saintopin, contain the quinone nucleus. Nevertheless, little information is available regarding their
ability to treat CRC. In addition, studies aiming to design or optimize the structure of naphthoquinones
to improve specifically their bioactivity or selectivity against CRC are infrequent.
In this work, we synthetized a series of 36 naphthoquinone derivatives, analogous of quinones
isolated from Tabebuia spp., which were designed to include a wide arrange of chemical modifications
(alkylation, amination, epoxidation, halogenation, and cycloaddition) to evaluate the changes in
their cytotoxicity against CRC cells. Furthermore, a three-dimensional quantitative structure–activity
relationship (3D-QSAR) was carried out to correlate the bioactivity with the chemical structure.
2. Results and Discussion
2.1. Chemistry
The compounds evaluated in this work (Figure 1) were synthesized using several starting
materials, as outlined in Schemes 1–5. Naphthalene-1,4-dione (
hydrogen peroxide to yield compound 1a. On the other hand, was subjected to an amination reaction
by means of Michael-type 1,4-conjugate addition to give (Scheme 1). Subsequently, an oxidative free
radical reaction was performed with either aldehydes or simple ketones in the presence of manganese
(III) acetate to afford a series of indolenaphthoquinones (2a 2f) (Scheme 2) [14]. Compound 3a was
obtained using 2-methylnaphthalene-1,4-dione ( ) as starting material and a similar procedure as that
. Epoxidation reaction of afforded 3b, followed by an acid hydrolysis to
1) was subjected to epoxidation with
1
2
–
3
employed to synthetize
2
3
yield 3c (Scheme 3).

Molecules 2018, 23, 186
3 of 21

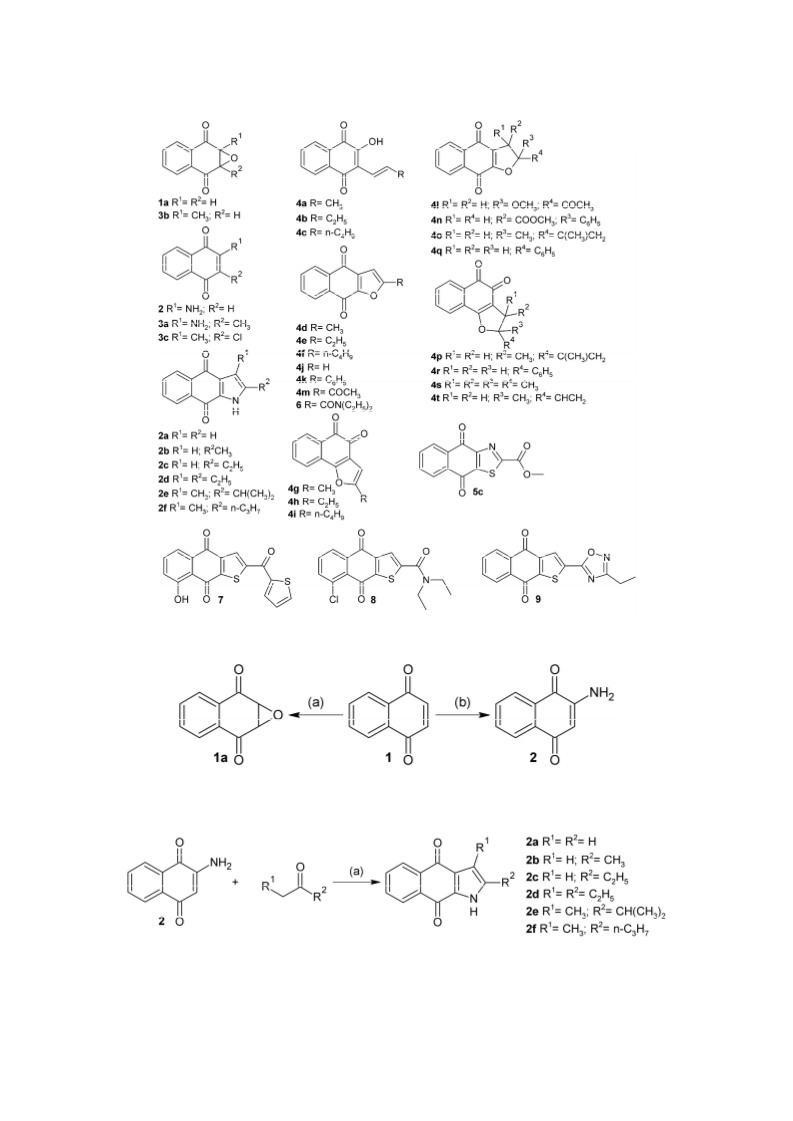

Figure 1. Naphthoquinone derivatives designed, synthesized and evaluated in this study.
Scheme 1. Synthesis of (1a and
NaN3, H2O, HCl, 50 C, 16 h.
2). Reagents and conditions: (a) EtOH, H2O2, Na2CO3; and (b) EtOH,
◦
◦
Scheme 2. Synthesis of (2a–2f). Reagents and conditions: (a) Mn(AcO)3, CH3CN, 80 C, 39 h.

Molecules 2018, 23, 186
4 of 21
◦

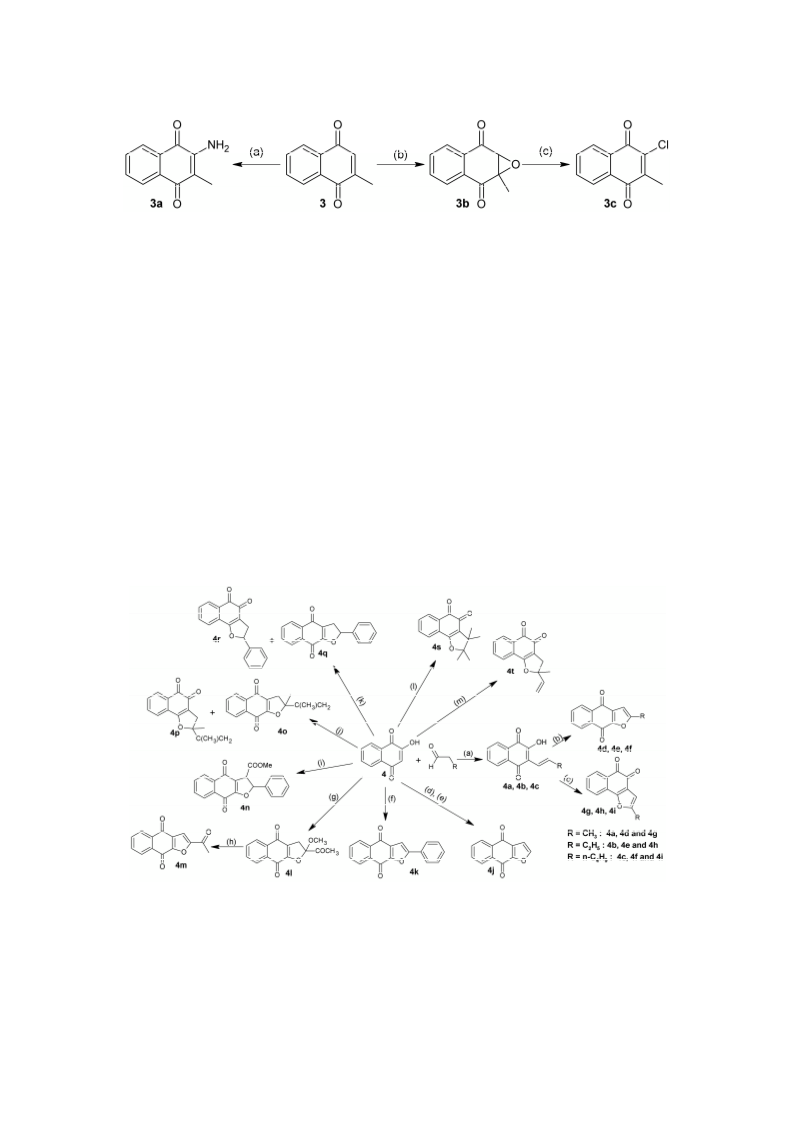

Scheme 3. Synthesis of (3a
EtOH, H2O2, Na2CO3; and (c) HCl, MeOH, 70 C, 3 h.
–
3c). Reagents and conditions: (
a
) EtOH, NaN3, H2O, HCl, 50 C, 16 h; (
b)
◦
Condensation of 2-hydroxynaphthalene-1,4-dione (
carried out as described by Hooker [15] to afford compounds 4a
4
) with aldehydes in acidic condition was
4b, and 4c. These compounds were
,
oxidized and cyclized by mercuric acetate in harsh reaction conditions, concentrated hydrochloric
◦
acid, 65 C and 2 h of reaction time, to afford 4d
,
4e, and 4f, respectively. Alternatively, milder reaction
conditions, i.e. diluted hydrochloric acid, 65 ◦C and 15 min of reaction time, were used to obtain 4g
4h, and 4i 16]. Cycloaddition reactions of with different reagents were carried out to obtain the
compounds 4j 4t. The compound 4m was obtained by the hydrolysis of 4l (Scheme 4). For the synthesis
of naphthothiazole compounds, naphtho[2,3-d]thiazole-4,9-dione ( ) [17] was subjected to reductive
,
[
4
–
5
methylation to afford 5a. This was directly carboxylated and converted to the ester in a one-pot
procedure with carbon dioxide and methyl iodide in the presence of cesium carbonate [18] to give
methyl ester 5b. Final oxidation and ether cleavage using diammonium cerium(IV) nitrate provided
the target structure 5c (Scheme 5). Finally, following previously reported procedures, the compound
N,N-diethyl-4,9-dioxo-4,9-dihydronaphtho[2,3-b]furan-2-carboxamide (
naphthothiophene derivatives 8-hydroxy-2-(thiophen-2-ylcarbonyl)naphtho[2,3-b]thiophene-4,9-dione
) [20], 8-chloro-N,N-diethyl-4,9-dioxo-4,9-dihydronaphtho[2,3-b]thiophene-2-carboxamide ( ) [21],
6) [19], as well as the
(7
8
and 2-(3-ethyl-1,2,4-oxadiazol-5-yl)naphtho[2,3-b]thiophene-4,9-dione (9) [22] were synthesized.
◦
Scheme 4. Synthesis of (4a
65 C; EtOH, HClconc., 65 C, 2 h; (
–
4t). Reagents and conditions: (
a
) AcOH, HCl, 60 C; (
b
◦
) Hg(AcO)2, AcOH,
◦
◦
◦
c
) Hg(AcO)2, AcOH, 65 C; EtOH, HCldil., 65 C, 15 min; (
d) vinyl
acetate, acetone, uv, 7 h; (
e
) p-TsOH, dry benzene, reflux; (
f
) phenylacetylene, CH3CN, CAN, 0 ◦C,
) benzene, DBU, r.t., 5 h; ( ) acetone,
◦
20 min; (g) 2,3-dimethoxy-1,3-butadiene, CH3CN, CAN, 0 C, 6 h; (
h
i
m◦ethyl (2E) 2-phenylpropionate, uv, 22 h; (
j
) 2,3-dimethoxy-1,3-butadiene, CH3CN, CAN, Na2CO3,
◦
◦
0 C, 3 h; (
k
) styrene, CH3CN, CAN, 0 C, 20 min; (
l) 2,3-dimethyl-2-butene, CH3CN, CAN 0 C,
◦
20 min; and (m) isoprene, CH3CN, CAN, 0 C, 3 h.

Molecules 2018, 23, 186
5 of 21
Scheme 5. Synthesis of (5a
–
5c). Reagents and conditions: (
a
) Na2S2O4, Bu4NBr, THF, KOH, Me2SO4,
◦
◦
N2; (
b
) C2CO3, CO2, DMF, 125 C, 400 mbar, 16 h; CH3I, 60 C, 2 h; and (
c) (NH4)2[Ce(NO3)6], MeCN,
◦
H2O, 0 C.
2.2. Biological Evaluation
These as-synthesized quinone derivatives were further utilized to investigate their cytotoxic effect
against a human colorectal cancer cell line (HT-29) and normal dermal fibroblasts (PCS-201-012).
The toxicity of the thirty-six compounds was determined in vitro by means of the MTT assay.
Doxorubicin, a drug widely used to treat different types of cancer, was employed as a positive control,
whereas the solvent (DMSO) was used as negative control. Results of the anti-proliferative activity of
quinone derivatives against HT-29 cells, expressed as the IC50 values, as well as the selectivity index,
are presented in Table 1. Out of the 36 compounds tested, 25 could reduce the growth of the cells to 50%
or less, at concentrations equal to or lower than 100
activity into three categories: active (IC50 20
M), moderately active (20 µM < IC50 ≤ 100 µM) and
inactive (IC50 > 100 M). In general, moderate to high cytotoxic activity was observed for most of the
members of the series. Results showed 15 compounds classified as active (1a 3c 4d 4g 4h 4i 4j 4m
4r 4s 5c , and ) with IC50 values ranging from 1.73 to 18.11 M, and 10 compounds classified
as moderately active ( 2c 3b 4e 4f 4l 4o 4p 4q, and 4t) with IC50 values ranging from 23.73 to
µM, and thus classified according to their cytotoxic
≤
µ
µ
,
,
,
,
,
,
,
,
,
,
,
6,
7,
8
9
µ
2
,
,
,
,
,
,
,
,
88.1 µM, while the remaining compounds were inactive.
Table 1. Cytotoxic activity of quinone derivatives against HT-29 colorectal cancer cells and
fibroblasts PCS-201-012.
HT-29
PCS-201-012
IC50 µM (95% CI)
Compound
Selectivity Index 2
IC50 µM (95% CI 1)
1a
2
2a
2b
2c
2d
2e
2f
10.76 (9.72–11.86)
24.60 (20.89–28.33)
>100
8.17 (7.35–9.21)
7.34 (6.35–8.44)
—
0.76
0.30
nd3
nd
1.98
0.75
nd
>100
—
40.18 (32.43–48.74)
68.71 (55.88–83.93)
>100
79.39 (61.54–102.41)
51.53 (35.90–73.74)
—
>100
—
nd
3a
3b 4
3c
4a
4b
4c
>100
—
nd
57.29 (46.39–70.40)
11.02 (10.29–11.84)
>100
28.42 (22.24–36.32)
9.92 (9.19–10.74)
—
0.50
0.90
nd
nd
nd
>100
>100
—
—
4d
4e
4f
4g
4h
4i
17.62 (14.83–21.30)
24.95 (21.01–29.79)
21.68 (17.68–26.17)
8.36 (7.10–9.80)
13.68 (12.36–15.07)
9.16 (7.99–10.45)
8.20 (7.22–9.30)
>10
18.49 (14.58–23.52)
20.09 (16.03–25.03)
10.00 (7.79–12.92)
1.93 (1.66–2.24)
3.68 (3.16–4.29)
3.86 (3.16–4.70)
8.28 (7.16–9.52)
—
1.05
0.80
0.46
0.23
0.27
0.42
1.01
nd
4j
4k 5
4l 4
4m
34.85 (30.06–40.54)
4.61 (3.72–5.67)
12.87 (9.29–17.63)
3.50 (2.92–4.21)
0.37
0.76

Molecules 2018, 23, 186
6 of 21
Table 1. Cont.
PCS-201-012
HT-29
Compound
Selectivity Index 2
IC50 µM (95% CI 1)
IC50 µM (95% CI)
4n 4
>100
—
nd
4o 4
25.79 (21.08–31.83)
28.08 (24.26–32.39)
30.25 (25.4136.13)
14.76 (12.10–18.04)
18.11 (16.48–20.02)
88.10 (79.74–96.52)
13.90 (11.60–16.69)
2.67 (2.26–3.18)
1.73 (1.48–2.02)
6.89 (5.66–8.29)
3.07 (2.54–3.69)
1.07 (0.86–1.30)
47.88 (38.63–58.55)
4.19 (3.63–4.86)
9.16 (7.90–10.70)
8.20 (6.53–10.29)
19.94 (15.44–26.35)
19.69 (17.39–22.28)
7.26 (6.33–8.30)
1.49 (1.26–1.75)
4.56 (3.63–5.75)
2.56 (2.23–2.98)
1.03 (0.81–1.33)
—
1.86
0.15
0.30
0.56
1.10
0.22
0.52
0.56
2.63
0.37
0.34
nd
4p 4
4q 4
4r 4
4s
4t 4
5c
6
7
8
9
Doxorubicin
1 Confidence interval. 2 Selectivity index (SI) = IC50Fibroblast/IC50HT-29cells
Compound 4k could not be evaluated at concentrations higher to 10 µM due to lack of solubility with DMSO.
.
3 nd. Not determined. 4 Racemic mixtures.
5
The naphtho[2,3-b]thiophene-4,9-dione analogs (
HT-29 cells. Notably, compound showed the strongest activity against this cell line with an IC50 of
1.73 M, and the highest selectivity index. On the other hand, it is important to highlight the activity
shown by the furanonaphthoquinone derivatives (4a 4t and ), which were classified within the
moderately (4e and 4f) and highly active (4d 4g 4h 4i 4j 4m, and ) groups. In contrast, the groups
7, 8, and 9) showed a potent activity against
7
µ
–
6
,
,
,
,
,
6
of 1,4-naphthoquinone, dihydrofuran-naphthoquinone and benzo[f]indole-4,9-dione derivatives had
proportionally fewer molecules with cytotoxic potential compared to the above-mentioned analogs.
In the case of the naphthoquinone group, only compounds 1a and 3c were classified as active,
suggesting that carbon chain substituents in the B ring decrease the activity of these derivatives (2 vs.
3a and 1a vs. 3b). Dihydrofuran-naphthoquinone compounds showed mainly moderately activity
against HT-29 cells, with only compounds 4r and 4s classified as active molecules. Alternatively,
the benzo[f]indole-4,9-dione derivatives showed the lowest cytotoxic potential of the series, without
molecules categorized as active and only the 2c derivative classified as moderately active. Thus, the
presence of an indole moiety in naphthoquinones, within a tricyclic system, had a negative effect on
their cytotoxic activity against HT-29 colorectal cancer cell line.
Regarding the selectivity index of the synthesized series, only three derivatives showed selectivity
towards CRC cells (2c, 4o, and 7), demonstrating that HT-29 cells are resistant to naphthoquinone
derivatives, but specific modifications might improve their bioactivity. Furthermore, it was evident
that cycloaddition to the basic naphthoquinone moiety potentiates the selectivity, which might be
related to enhanced stability or uptake in the HT-29 cells when compared to normal fibroblasts.
In general, our results showed a clear structure–activity relationship (SAR). It is observed that the
presence of a furan or thiophene ring on the naphthoquinone scaffold increases the anti-proliferative
activity against CRC cells. Probably, these structural changes might lead to enhanced: (1) compound
stability in the presence of serum; (2) uptake into HT-29 cells; or (3) affinity for an unknown target.
Additionally, electron-attracting groups in 2-position of the furan or thiophene ring improve the
bioactivity, as observed in the quinone derivatives (4m
values between 1.73 and 13.9 M. On the contrary, furanonaphthoquinones 2-substituted with
an electron releasing group (alkyl substituents) showed reduced activity (4j vs. 4d 4e, and 4f).
, 5c, 6, 7, 8, and 9) which showed IC50
µ
,
This structure–activity relationship was also observed by Wang et al. [23], who evaluated several
quinone derivatives against a panel of four cancer cell lines, including the furanonaphthoquinone
4m, observing drastic changes on the activity in function of the substituent present in the mentioned
position. Similarly, Inagaki et al. [24], evaluated the cytotoxic activity of furanonaphthoquinone
analogs against two cancer cell lines, observing stronger cytotoxicity in compounds with a 2-acetyl

Molecules 2018, 23, 186
7 of 21
substituted furan ring. Likewise, a series of analogs substituted at the 2-position of the tricyclic
naphtho-[2,3-b]furan-4,9-dione system, including the compounds 4d 4e 4j and , were evaluated
,
,
6
to determine the ability to suppress keratinocyte hyperproliferation, showing the importance of
2-electron withdrawing substituents [19]. Furthermore, it was observed that quinone derivatives with
a tricyclic system in an angular conformation (4,5-diones) showed higher activity than those with a
linear conformation (4,9-diones), suggesting that the spatial configuration is important for the cytotoxic
activity; which agrees with the report of Kongkathip et al. [25].
2.3. 3D-QSAR
To better understand the structure activity relationship, a three-dimensional quantitative
structure–activity relationship (3D-QSAR) study of comparative molecular field analysis (CoMFA),
using the module QSAR Project Manager of SYBYL-X 2.0 (Tripos, St. Louis, MO, USA), was carried
out using 18 quinone derivatives with defined stereochemistry, including all ranges of activity.
The cytotoxic activity of molecules, expressed as
−
logIC50 (pIC50), was related to the independent
variables using the partial least squares (PLS) analysis. The statistical parameters of CoMFA model
indicated good correlation and predictive power (r2 = 0.99, q2 = 0.625; for four components); the
contribution of steric and electrostatic fields was found to be 40:60. Experimental and predicted values
of pIC50 obtained from the best CoMFA model for each compound of the compounds included in the
study are presented in Table 2. In addition, the correlation plot between experimental versus predicted
cytotoxic activity for the training set and the test set is shown in Figure 2. Our results demonstrate a
good predictability for all molecules with the absence of outliers. In addition, all parameters of the
CoMFA model show some reliability and feasibility to ensure the design of new quinone derivatives
with potent cytotoxicity against CRC cells.
Table 2. Experimental and predicted values of pIC50 obtained with the best comparative molecular
field analysis (CoMFA) model for the training and test sets.
Compound
pIC50 Experimental
pIC50 Predicted
1a
2
4.968
4.609
4.396
4.163
4.754
4.603
5.078
4.864
5.038
5.086
4.857
5.574
5.762
5.162
5.513
4.958
4.664
4.742
4.968
4.592
4.429
4.147
4.782
4.617
5.020
4.952
5.039
5.035
4.808
5.567
5.720
5.166
5.586
4.897
4.973
4.974
2c
2d
4d
4e
4g
4h
4i
4j
5c
6
7
8
9
3c 1
4f 1
4s 1
1
Compounds in the test set.
CoMFA is a shape-dependent 3D-QSAR technique which is sensitive to both conformational and
configurational changes within a series of molecules [26]. In CoMFA method, results are presented as
contour maps that correlate the change in biological activity with the molecular field value. In this
work, compounds 2d and
7 were selected to explain the field contributions of different properties
obtained from the CoMFA analysis, since they have the extreme values of cytotoxic activity. The steric
and electrostatic contour CoMFA fields are shown in Figures 3 and 4, respectively, to illustrate the

Molecules 2018, 23, 186
8 of 21
most influential areas for biological activity. In the CoMFA steric field, the green contours represent the
region favorable regions where bulky groups increase the cytotoxicity, whereas unfavorable regions are
represented by yellow contours (Figure 3). In the case of the electrostatic CoMFA fields, red contours
indicate regions where electronegative groups enhance the bioactivity, while blue contours show the
regions where electropositive groups improve the activity (Figure 4).

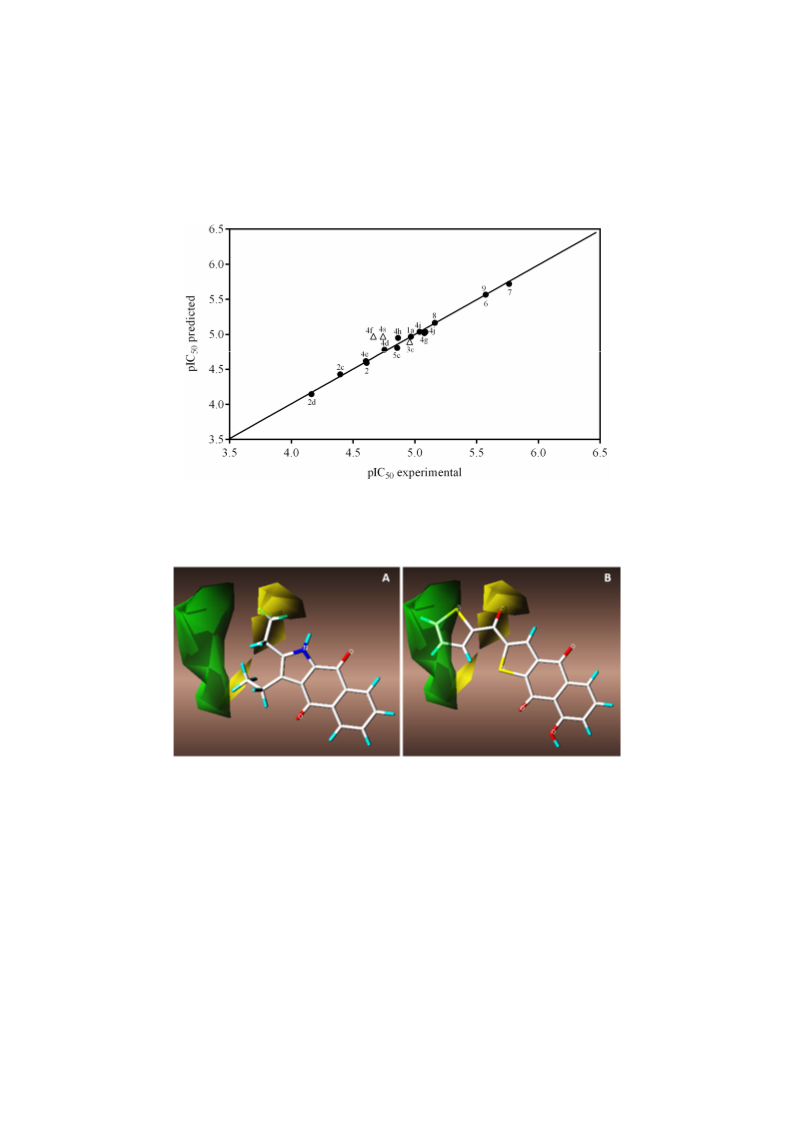

Figure 2. Correlation between predicted and experimental cytotoxic activity (pIC50) of training
(dark circles) and test (light triangles) sets using the best comparative molecular field analysis
(CoMFA) model.
Figure 3. Steric contour maps generated by comparative molecular field analysis (CoMFA) for:
(A) 2,3-diethyl-1H-benzo[f]indole-4,9-dione (2d), the least active compound of the series; and
(B) hydroxy-2-(thiophen-2-ylcarbonyl)naphtho[2,3-b]thiophene-4,9-dione (7), the most active.
As shown in Figure 3, CoMFA steric map shows the presence of a thiophenyl group (D ring)
of compound
7 in the favorable zone to bulky group (green polyhedron in Figure 3B). In contrast,
compound 2d has no presence of substituent in this area, while an ethyl substituent is oriented towards
the yellow polyhedron, that constitute unfavorable zones for bulky substituents (Figure 3A), negatively
affecting its anti-proliferative activity against this cell line. Alternatively, CoMFA electrostatic map
shows that while molecule
7 does not have any electronegative atom within the red favorable contour,
it possesses a carbonyl group in proximity to the red polyhedron, which in turn improves its bioactivity.
Notably, this substituent is absent in compound 2d. Furthermore, the presence of a nitrogen atom in
the ring C of compound
2, in proximity to a blue contour, explains the reduction of its anti-proliferative
activity in comparison to compound 7, which has sulfur, a less electronegative atom.

Molecules 2018, 23, 186
9 of 21

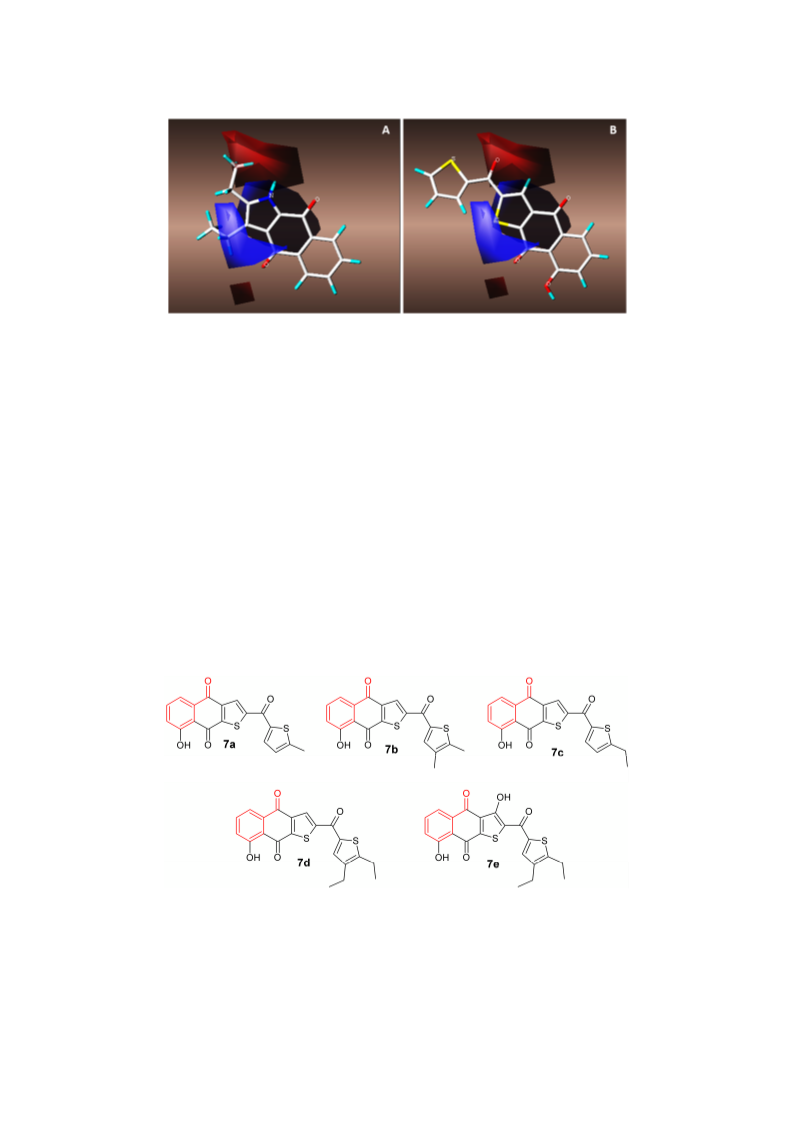

Figure 4. Electrostatic contour maps generated by comparative molecular field analysis (CoMFA)
for: ( ) 2,3-diethyl-1H-benzo[f]indole-4,9-dione (2d), the least active compound of the series; and (B)
A
hydroxy-2-(thiophen-2-ylcarbonyl)naphtho[2,3-b]thiophene-4,9-dione (7), the most active.
Design of New Quinone Derivatives
Analytical interpretation of the 3D-QSAR models resulted in the identification of key structural
features which could be exploited for improving the potency of the molecule , used as a reference for
being the most active of the series. Therefore, a library of new structures based on compound was
7
7
designed, where methyl or ethyl substituents were added to the thiophenyl group (D ring) attached to the
naphtho[2,3-b]thiophene-4,9-dione structure, to increase the bulkiness in this zone (green polyhedron).
Thus, five new compounds are proposed: 2-[(5-methylthiophen-2-yl)carbonyl]naphtha[2,3-b]thiophene-
4,9-dione (7a), 2-[(4,5-dimethylthiophen-2-yl)carbonyl]naphtho[2,3-b]thiophene- 4,9-dione (7b), 2-[(5-
ethylthiophen-2-yl)carbonyl]naphtho[2,3-b]thiophene-4,9-dione (7c), 2-[(4,5-diethylthiophen-2-yl)
carbonyl]naphtho[2,3-b]thiophene-4,9-dione (7d), and 2-[(4,5-diethylthiophen-2-yl)carbonyl]-
3-hydroxynaphtho[2,3-b]thiophene-4,9-dione (7e) (Figure 5). These molecules were digitized,
optimized and aligned using the same methodology described for the experimental molecules, and
a two-fold improved theoretical anti-proliferative activity against HT-29 cells was calculated in
comparison to the parental compound (7) (Table 3).
Figure 5. Chemical structure of the molecules designed according to comparative molecular field
analysis (CoMFA) analysis.
The first modification to
7 was the introduction of a methyl group in the C3 of the thiophenyl
ring resulting in molecule 7a, which showed an increased activity. Nevertheless, when a double
methyl substitution was made in C3 and C4, the new molecule 7b presented a theoretical activity
lower than the analog with only one substitution (7a), although higher than the parental compound (7).

Molecules 2018, 23, 186
10 of 21
The inclusion of ethyl groups in these positions resulted in better activity, giving compounds 7c and 7d
,
with one and two substitutions, respectively. Interestingly, when the ethyl group was employed, the
di-substituted compound was the most active. Finally, molecule 7d was modified with the insertion of
a hydroxyl (OH) group in the favorable zone for electronegative groups (red polyhedron), specifically
at 3-position of the thiophene (ring C), to obtain the compound 7e. Unexpectedly, this modification
produced a decrease of the bioactivity in comparison with molecule 7d.
Table 3. Predicted cytotoxic activity for the newly designed structures using the comparative molecular
field analysis (CoMFA) model.
Compound
pIC50 Predicted
IC50 Predicted (µM)
7a
7b
7c
7d
7e
6.2054
6.1853
6.3186
6.3884
6.3361
0.623
0.653
0.480
0.409
0.461
To sum up, a library of five new molecules with higher predicted cytotoxicity was proposed.
All the designed molecules presented a theoretical IC50 value lower than 1 M, demonstrating the
µ
efficacy of the 3D-QSAR model for the design of new and more potent cytotoxic naphthoquinones
against CRC cell line HT-29.
3. Materials and Methods
3.1. General Information
All the reagents were ACS grade and purchased from Sigma-Aldrich (St. Louis, MO, USA); the
solvents were obtained from J.T. Baker (Center Valley, PA, USA), and the Silica 60-230, analytical
and preparative thin layer (TLC) chromatography plates from Merck (Merck Millipore, Billerica, MA,
USA). Melting points were measured with a Fisher/Johns melting point apparatus (Thermo Fisher
Scientific, Waltham, MA, USA) and are uncorrected. The IR spectra were determined on a FTIR-8400S
spectrometer (Shimadzu Corporation, Kyoto, Japan) using KBr disks. The NMR spectra were acquired
on Bruker spectrometers (300 MHz, 400 MHz or 600MHz) (Bruker, Billerica, MA, USA and Bruker,
Rheinstetten, Germany) using deuterated chloroform as solvent, and trimethylsilane (TMS) as internal
standard. The mass spectra were obtained from an Agilent HP 6890 gas chromatograph equipped with
an HP 5973 selective mass detector (Agilent Technologies, Santa Clara, CA, USA). TLC, MS, NMR,
and/or HPLC analytical data confirmed that purity of test compounds was ≥95%.
3.2. Synthesis of Naphthoquinone Derivatives
3.2.1. Synthesis of 1a,7a-Dihydronaphtho[2,3-b]oxirene-2,7-dione (1a)
To a solution of 200 mg of 1 in 10 mL of hot ethanol was added 3 mL of H2O2 (30%) with 0.2 g
of anhydrous sodium carbonate; the reaction mixture was allowed to cool until the yellow color
disappeared completely. Then, 50 mL of cold water was added and the mixture was immersed in an
ice bath to form a white precipitate, which was filtered in vacuum to afford white needles; 22.63%
◦
yield; m.p. 125 C; FTIR (KBr)
ν
: 3000, 2968, 1680, 1590, 1260 cm−1; 1H-NMR (600 MHz, CDCl3):
191.150 (C-1; C-4), 135.162 (C-9;
δ 8.20
(m, 2H), 7.80 (m, 2H), 3.90 (s, 2H) ppm; 13C-NMR (600 MHz, CDCl3):
C-10), 134.72 (C-6; C-7); 127.673 (C-5; C-8), 55.74 ppm (C-2; C-3); MS m/z 174 [M+, C10H6O3].
δ
3.2.2. Synthesis of 2-Aminonaphthalene-1,4-dione (2)
To a previously stirred solution of 2 g of
1 in 100 mL of ethanol was added 4.74 g of sodium
azide in 34 mL of distilled water, then adjusted to pH 4 with HCl and allowed to stir for 15 h at reflux

Molecules 2018, 23, 186
11 of 21
temperature. After completion of the reaction time, extraction was performed with ethyl acetate (3
100 mL). The organic extracts were washed with saline solution, dried over anhydrous Na2SO4 and
concentrated. The residue was crystallized from a mixture of diethyl ether/hexane to afford an orange
×
powder; 90% yield; m.p. 207.5 ◦C; FTIR (KBr)
(300 MHz, CDCl3):
CDCl3):
ν
: 3381, 3191, 3065, 2923, 1685, 1613 cm−1; 1H-NMR
δ
8.10 (m, 2H), 7.67 (m, 2H), 6.0 (s, 1H), 5.12 (s, 2H) ppm; 13C-NMR (300 MHz,
δ
186.20 (C-4), 184.01 (C-1), 151.52 (C-2), 136.34 (C-9), 135.31 (C-10), 133.80 (C-6), 132.52 (C-7),
126.90 (C-8), 126.71 (C-5), 104.90 (C-3) ppm; MS m/z 173 [M+, C10H7O2N].
3.2.3. General Synthesis of Benzo[f]indole-4,9-diones (2a–2f)
A mixture of 109 mg (0.64 mmol) of
2
, 6.4 mmol of ketone (or aldehyde) and 1.04 g (3.88 mmol)
◦
of manganese (III) acetate in 10 mL of acetonitrile was heated at 80 C for 16 h; at this point,
1.04 g (3.88 mmol) of manganese (III) acetate was added again and heated for another 23 h, then
the mixture reaction was diluted with 100 mL of ethyl acetate, washed with 50 mL of saturated
aqueous sodium bisulfate, three time with 50 mL of water, and dried over Na2SO4. The solvent was
evaporated under reduce pressure and the crude product was purified by column chromatography
(SiO2; CH2Cl2/hexane, 1/1), followed by crystallization (ethyl acetate–hexane).
1H-Benzo[f]indole-4,9-dione (2a). Yellow powder; 44% yield; m.p. 281–283 ◦C; FTIR (KBr)
1655, 1387 cm−1; 1H-NMR (300 MHz, DMSO-d):
8.01 (m, 2H), 7.75 (m, 2H), 6.42 (s, 1H), 2.3 (s, 3H)
ppm; 13C-NMR (300 MHz, DMSO-d):
180.76 (C-4), 175.16 (C-9), 134.08 (C-12), 133.95 (C-10), 133.86
ν: 3424, 3292,
δ
δ
(C-11), 133.55 (C-7), 132.73 (C-6), 128.39 (C-2), 127.53 (C-8), 126.73 (C-5), 126.42 (C-13), 108.55 (C-3)
ppm; MS m/z 197.19 [M+, C12H7O2N].
◦
2-Methyl-1H-benzo[f]indole-4,9-dione (2b). Yellow powder; 34% yield; m.p. 302–304 C; FTIR (KBr)
ν
:
3454, 3218,1648, 1223 cm−1; 1H-NMR (300 MHz, DMSO-d):
δ 8.03 (m, 2H), 7.7 (m, 2H), 7.35 (s, 1H),
180.80 (C-4), 174.24 (C-9), 139.45 (C-12), 133.92
6.69 (s, 1H) ppm; 13C-NMR (300 MHz, DMSO-d):
δ
(C-10), 133.79 (C-11), 133.68 (C-7), 133.64 (C-6), 131.89 (C-2), 128.17 (C-5), 126.57, 126.26 (C-8), 126.0
(C-13), 107.04 (C-3), 13.13 (C-14) ppm; MS m/z 211.21 [M+, C13H9O2N].
2-Ethyl-1H-benzo[f]indole-4,9-dione (2c). Yellow powder; 53% yield; m.p. 200–207 ◦C; FTIR (KBr)
ν
: 3485, 3201, 1652, 1393 cm−1; 1H NMR (300 MHz, DMSO- d)
δ
8.01 (m, 2H), 7.74 (m, 2H), 7.15 (s,
1H), 2.76 (q, J = 7.4 Hz, 2H), 1.19 (t, J = 7.4 Hz, 3H) ppm; 13C-NMR (300 MHz, DMSO-d):
δ
181.47
(C-4), 175.06 (C-9), 134.59 (C-12), 133.72 (C-10), 133.65 (C-11), 133.52 (C-7), 133.47 (C-6), 129.08 (C-2),
126.95 (C-5), 126.49 (C-8), 126.16 (C-13), 124.13 (C-3), 19.28 (C-14), 14.79 (C-15); MS m/z 225.24 [M+,
C14H11O2N].
◦
2,3-Diethyl-1H-benzo[f]indole-4,9-dione (2d). Orange powder; 36% yield; m.p. 205–209 C; FTIR (KBr)
ν
: 3446, 3214, 1655, 1467 cm−1; 1H NMR (300 MHz, DMSO-d)
δ
13.17 (s, 1H), 8.06 (d, J = 4.5 Hz, 2H),
7.81 (m, 2H), 3.03 (q, J = 7.1 Hz, 2H), 2.70 (q, J = 7.4 Hz, 2H), 1.1 (m, 6H) ppm; 13C-NMR (300 MHz,
DMSO-d): 180.91 (C-4), 175.36 (C-9), 146.74 (C-12), 134.80 (C-10), 134.25 (C-11), 133.99 (C-7), 132.69
δ
(C-6), 131.73 (C-2), 127.10 (C-5), 126.19 (C-8), 124.32 (C-13), 121.34 (C-3), 19.91 (C-14), 19.02 (C-16), 14.74
(C-15), 8.96 (C-17); MS m/z 253.29 [M+, C16H15O2N].
3-Methyl-2-(propan-2-yl)-1H-benzo[f]indole-4,9-dione (2e). Orange powder; 42% yield; m.p. 245–248
◦C; FTIR (KBr)
ν
: 3423, 3198, 1655, 1378 cm−1; 1H NMR (300 MHz, DMSO-d)
δ
7.99 (m, 2H), 7.74 (m,
181.62 (C-4), 173.85
2H), 2.65 (m, 1H), 2.22 (s, 3H), 1.01 (m, 6H) ppm; 13C-NMR (300 MHz, DMSO-d):
δ
(C-9), 136.24 (C-12), 134.29 (C-10), 133.61 (C-11), 133.52 (C-7), 130.74 (C-6), 126.42 (C-2), 126.01 (C-5),
125.22 (C-8), 124.64 (C-13), 106.24 (C-3), 17.75 (C-14), 15.18 (C-15; C-16), 10.82 (C-17); MS m/z 253.31
[M+, C16H15O2N].
3-Methyl-2-propyl-1H-benzo[f]indole-4,9-dione (2f). Orange powder; 41% yield; m.p. 266–270 ◦C;
FTIR (KBr)
ν
: 3424, 1655 cm−1; 1H NMR (300 MHz, DMSO-d)
δ
7.99 (m, 2H), 7.72 (m, 2H), 2.60 (m,
181.91 (C-4), 173.95
2H), 2.26 (s, 3H), 1.64 (m, 2H), 1.15 (t, 3H) ppm; 13C-NMR (300 MHz, DMSO-d):
δ

Molecules 2018, 23, 186
12 of 21
(C-9), 143.12 (C-12), 134.43 (C-10), 133.87 (C-11), 133.47 (C-7), 133.38 (C-6), 131.25 (C-2), 126.34 (C-5),
126.03 (C-8), 125.34 (C-13), 117.84 (C-3), 25.54 (C-14), 18.80 (C-15), 14.32 (C-17), 10.07 (C-16); MS m/z
253.29 [M+, C16H15O2N].
3.2.4. Synthesis of 2-Amino-3-methylnaphthalene-1,4-dione (3a)
Compound 3a was obtained with the same procedure for the synthesis of
2-methyl-1,4-naphthoquinone as starting material and 36 h for reaction time. This afforded a red
powder; 68.66% yield; m.p. 158 ◦C; FTIR (KBr) : 3455, 3411, 2940, 1670, 1628, 1590 cm−1; 1H-NMR
(600 MHz, CDCl3):
8.1 (m, 2H), 7.7 (m, 2H), 5.15 (s, 2H), 2.01 (s, 3H) ppm; 13C-NMR (600 MHz,
CDCl3):
2, using
ν
δ
δ
182.95 (C-1), 181.22 (C-4), 145.32 (C-2), 134.56 (C-10), 133.22 (C-9), 132.06 (C-7), 130.48 (C-6),
126.27 (C-8), 125.82 (C-5), 113.29 (C-3), 12.981 (C-11) ppm; MS m/z 187.19 [M+, C11H9O2N].
3.2.5. Synthesis of 1a-Methyl-1a,7a-dihydronaphtho[2,3-b]oxirene-2,7-dione (3b)
To a solution of 1.25 g of
3 in 20 mL of hot ethanol was added 7.5 mL of H2O2 (30%) with 0.5 g of
sodium carbonate. The reaction mixture was allowed to reach room temperature (rt) until the yellow
color of the quinone completely disappeared. Then, 125 mL of cold water was added and the mixture
was immersed in an ice bath to form a white precipitate which was filtered in vacuum to afford white
solid; 65.5% yield; m.p. 138 ◦C; FTIR (KBr)
(600 MHz, CDCl3):
CDCl3):
ν
: 3095, 3039, 2995, 2939, 1680, 1590, 1260 cm−1; 1H-NMR
δ
8.04 (m, 2H), 7.76 (m, 2H), 3.86 (s, 1H), 1.75 (s, 1H) ppm; 13C-NMR (600 MHz,
192.36 (C-1), 192.19 (C-4), 134.99 (C-9), 134.80 (C-10), 132.56 (C-7), 132.44 (C-6), 127.89 (C-8),
127.25 (C-5), 61.82 (C-2), 59.67 (C-3), 15.13 (C-11) ppm; MS m/z 188.18 [M+, C11H8O3].
δ
3.2.6. Synthesis of 2-Chloro-3-methylnaphthalene-1,4-dione (3c)
◦
To 100 mL of HCl (5%) in methanol was added 280 mg of 3b and refluxed at 70 C for 3h.
The obtained mixture was extracted with ethyl acetate (3 100 mL), then the organic phase was
×
filtered in the presence of anhydrous Na2SO4, the solvent was removed by rotaevaporation. The
obtained residue was purified by column chromatography (SiO2; CH2Cl2) to afford yellow needles;
◦
1
25.5% yield; m.p. 158 C; FTIR (KBr)
(600 MHz, CDCl3):
8.10 (m, 2H), 7.71 (m, 2H), 2.28 (s, 3H) ppm; 13C-NMR (600 MHz, CDCl3):
ν
: 3095, 3038, 3000, 2957, 1669, 1587, 705 cm−1; H-NMR
δ
δ 183.05
(C-1), 178.01 (C-4), 145.32 (C-3), 143.77 (C-2), 134.59 (C-6), 134.35 (C-7), 132.14 (C-10), 131.83 (C-9),
127.62 (C-5), 127.44 (C-8), 14.92 (C-11) ppm; MS m/z 206.63 [M+, C11H7O2Cl].
3.2.7. General Synthesis of Hydroxynaphthalene-1,4-diones (4a–4c)
Two grams of
4 were dissolved in 30 mL of glacial acetic acid, and then 2 mL of hydrochloric acid
and 7 mL of aldehyde (propanal, butanal or hexanal) were added. The mixture was heated at 60 ◦C
until disappearance of the starting compounds, monitored by analytical TLC. The obtained mixture
was mixed with 200 mL of water and kept in the dark overnight, affording a dark oily phase and a
clear aqueous layer, which was separated by filtration. Subsequently, the oil phase was dissolved in
diethyl ether and extraction was carried out with NaOH (1%), obtaining an intense purple alkaline
solution. HCl diluted was then added dropwise until purple color of the solution turned to orange,
causing the formation of a precipitate. The solid formed was filtered, washed, extracted with hexane
and purified by crystallization from ethanol/water.
◦
2-Hydroxy-3-[(1E)-prop-1-en-1-yl]naphthalene-1,4-dione (4a). Orange scales; 41.5% yield; m.p. 135 C; r.t.:
90 min; FTIR (KBr)
(dd, J = 24.9, 7.4 Hz, 2H), 7.73 (m, 3H), 7.09 (dd, J = 15.9, 7.0 Hz, 1H), 6.65 (d, J = 16.1 Hz, 1H), 2.01 (d,
J = 6.6 Hz, 3H); 13C-NMR (600 MHz, CDCl3):
187.55 (C-1), 181.49 (C-4), 149.84 (C-2), 133.97 (C-12),
ν δ 8.11
: 3231.84, 2962.76, 1654.01, 1614.47, 1573 cm−1; 1H-NMR (400 MHz, CDCl3):
δ
133.69 (C-7), 133.06 (C-6), 131.96 (C-10), 131.34 (C-9), 128.24 (C-8), 126.99 (C-5), 123.67 (C-11), 116.49
(C-3), 17.20 (C-13) ppm; MS m/z 214 [M+, C13H10O3].

Molecules 2018, 23, 186
13 of 21
2-[(1E)-But-1-en-1-yl]-3-hydroxynaphthalene-1,4-dione (4b). Orange powder; 47.5% yield; m.p. 107 ◦C;
r.t.: 75 min; FTIR (KBr)
: 3329.25, 3069.81, 3039.91, 2962.76, 2921.29, 2880.78, 1649.19, 1593.25 cm−1
1H-NMR (400 MHz, CDCl3):
8.11 (dd, J = 24.8, 7.5 Hz, 2H), 7.74 (m, 3H), 7.13 (dt, J = 16.1, 6.7 Hz,
1H), 6.63 (d, J = 16.2 Hz, 1H), 2.24 (m, 2H), 1.67 (s, 14H), 1.14 (t, J = 7.4 Hz, 3H); 13C-NMR (600 MHz,
CDCl3): 187.48 (C-1), 182.11 (C-4), 150.44 (C-3), 142.36 (C-12), 133.97 (C-7), 133.06 (C-6), 131.96 (C-9),
ν
;
δ
δ
131.34 (C-10), 128.24 (C-8), 126.99 (C-5), 123.28 (C-11), 116.37 (C-2), 23.89 (C-13), 13.84 (C-14) ppm; MS:
m/z 228 [M+, C14H12O3].
2-[(1E)-Hex-1-en-1-yl]-3-hydroxynaphthalene-1,4-dione (4c). Orange powder; 40.1% Yield; m.p. 85 ◦C;
r.t.: 40 min; FTIR (KBr)
(400 MHz, CDCl3): 8.10 (dd, J = 25.1, 7.5 Hz, 2H), 7.77 (m, 3H), 7.09 (m, 1H), 6.63 (d, J = 16.2 Hz, 1H),
2.32 (q, J = 7.2 Hz, 2H), 1.44 (m, 4H), 0.93 (m, 3H); 13C-NMR (600 MHz, CDCl3):
187.48 (C-1), 182.11
ν
: 3268.49, 2958.9, 2925.15, 2869.56, 1653.06, 1620.26, 1568.18 cm−1; 1H-NMR
δ
δ
(C-4), 150.44 (C-3), 140.39 (C-12), 133.97 (C-7), 133.06 (C-6), 131.96 (C-9), 131.34 (C-10), 128.24 (C-8),
127.81 (C-5), 126.99 (C-11), 116.37 (C-2), 31.63 (C-13), 31.33 (C-14), 21.86 (C-15), 14.02 (C-16) ppm; MS:
m/z 256 [M+, C16H16O3].
3.2.8. General Synthesis of Naphtho[2,3-b]furan-4,9-diones and Naphtho[1,2-b]furan-4,5-diones (4d
–4i)
Two grams of 4a 4b or 4c were added in a solution of 6 g of mercuric acetate in 60 mL of acetic
,
acid. The mixture was allowed to stir continuously for 30 min at r.t., subsequently warmed to 65 ◦C
and allowed to cool to r.t., then the solvent was removed by rotaevaporation and ethyl ether was added
to the concentrate. This solution was filtered to remove the non-soluble impurities and the ether was
allowed to evaporate to form a very viscous, deep red liquid which was diluted in 30 mL of ethanol
and 10 mL of concentrated HCl, then heated to 65 ◦C for 2 h with constant stirring. Once the reaction
was completed and r.t. was reached, a pinch of activated carbon was added and filtered. Finally,
250 mL of water was added to the solution with caution, precipitating the compound (4d
, 4e or 4f) as a
yellow powder which was filtered, washed and dried. Compounds 4g 4h and 4i were obtained as an
,
orange powder, following the same procedure described above, with changes in the amount of ethanol
(40 mL instead of 30 mL), HCl (1 mL instead of 10 mL) and reaction time (15 min/65 ◦C instead of
2 h/65 ◦C).
2-Methylnaphtho[2,3-b]furan-4,9-dione (4d). Yellow powder; 21.3% yield; m.p. 174 ◦C; FTIR (KBr)
2924.18, 1676.2, 1585.5, 1533.46, 1206.51 cm−1; 1H-NMR (400 MHz, CDCl3):
8.11 (m, 2H), 7.67 (m,
2H), 6.54 (t, J = 2.4 Hz, 1H), 2.44 (d, J = 0.7 Hz, 3H); 13C-NMR (101 MHz, CDCl3):
180.85 (C-4), 173.11
ν:
δ
δ
(C-9), 160.48 (C-2), 151.67 (C-13), 133.82 (C-6), 133.57 (C-7), 133.09 (C-12), 132.51 (C-10), 131.93 (C-11),
126.88 (C-8), 126.79 (C-5), 105.00 (C-3), 14.14 (C-14) ppm; MS: m/z 212 [M+, C13H8O3].
◦
2-Ethylnaphtho[2,3-b]furan-4,9-dione (4e). Yellow powder; 42.3% yield; m.p. 143 C; FTIR (KBr)
ν
:
3117.07, 2978.19, 2930.93, 1673.3, 1530.57, 1202.66 cm−1; 1H-NMR (400 MHz, CDCl3):
7.74 (p, J = 7.6 Hz, 2H), 6.63 (s, 1H), 2.86 (q, J = 7.5 Hz, 2H), 1.37 (t, J = 7.6 Hz, 3H); 13C-NMR (101 MHz,
CDCl3): 180.91 (C-4), 173.17 (C-9), 165.88 (C-2), 151.56 (C-13), 133.78 (C-6), 133.53 (C-7), 133.09 (C-12),
δ 8.18 (m, 2H),
δ
132.57 (C-10), 131.78 (C-11), 126.85 (C-8), 126.78 (C-5), 103.51 (C-3), 21.80 (C-14), 11.60 (C-15) ppm; MS:
m/z 226 [M+, C14H10O3].
◦
2-Butylnaphtho[2,3-b]furan-4,9-dione (4f). Yellow powder; 39.2% yield; m.p. 104 C; FTIR (KBr):
ν:
3121.09, 3068.24, 2936.72, 2863.42, 1668.48, 1530.57, 1212.3 cm−1; 1H-NMR (400 MHz, CDCl3):
(m, 2H), 7.75 (m, 2H), 6.63 (s, 1H), 2.83 (t, J = 7.6 Hz, 2H), 1.76 (m, 2H), 1.43 (m, 2H), 0.98 (t, J = 7.4 Hz,
3H); 13C-NMR (101 MHz, CDCl3):
180.97 (C-4), 173.14 (C-9), 164.85 (C-2), 151.56 (C-13), 133.80 (C-6),
δ 8.2
δ
133.53 (C-7), 133.11 (C-12), 132.60 (C-10), 131.79 (C-11), 126.85 (C-8), 126.79 (C-5), 104.16 (C-3), 29.51
(C-14), 28.04 (C-15), 22.18 (C-16), 13.68 (C-17) ppm; MS: m/z 254 [M+, C16H14O3].
2-Methylnaphtho[1,2-b]furan-4,5-dione (4g). Orange powder; 12.3% Yield; m.p. 124 ◦C; FTIR (KBr)
3122.86, 2923.22, 1673.3, 1554.68, 1215.19 cm−1; 1H-NMR (400 MHz, CDCl3):
8.04 (m, 1H), 7.63 (m,
ν:
δ

Molecules 2018, 23, 186
14 of 21
2H), 7.43 (ddd, J = 7.7, 6.8, 2.0 Hz, 1H), 6.45 (d, J = 1.1 Hz, 1H), 2.43 (d, J = 1.1 Hz, 3H); 13C-NMR
(101 MHz, CDCl3): 180.71 (C-5), 174.38 (C-4), 159.62 (C-2), 155.90 (C-13), 135.34 (C-8), 130.45 (C-10),
δ
129.78 (C-6), 128.69 (C-7), 128.57 (C-11), 122.67 (C-9), 121.95 (C-12), 104.52 (C-3), 13.61 (C-14) ppm; MS:
m/z 212 [M+, C13H8O3].
◦
2-Ethylnaphtho[1,2-b]furan-4,5-dione (4h). Orange powder; 35.6% yield; m.p. 136 C; FTIR (KBr):
ν
:
3119.96, 2976.26, 2927.26, 1668.48, 1549.86, 1208.44 cm−1; 1H-NMR (400 MHz, CDCl3):
7.63 (m, 2H), 7.42 (ddd, J = 7.7, 7.1, 1.7 Hz, 1H), 6.43 (m, 1H), 2.76 (qd, J = 7.5, 1.0 Hz, 2H), 1.32 (t,
J = 7.5 Hz, 3H); 13C-NMR (101 MHz, CDCl3):
180.74 (C-5), 174.43 (C-4), 161.46 (C-2), 159.55 (C-13),
δ 8.03 (m, 1H),
δ
135.33 (C-8), 130.42 (C-10), 129.77 (C-6), 128.74 (C-7), 128.60 (C-11), 122.48 (C-9), 121.99 (C-12), 103.07
(C-3), 21.31 (C-14), 11.67 (C-15) ppm; MS: m/z 226 [M+, C14H10O3].
◦
2-Butylnaphtho[1,2-b]furan-4,5-dione (4i). Orange powder; 32.7% Yield; m.p. 64 C; FTIR (KBr):
ν:
3109.36, 2943.47, 2861.49, 1668.48, 1552.75, 1206.51 cm−1; H-NMR (400 MHz, CDCl3):
δ 8.03 (d,
1
J = 7.5 Hz, 1H), 7.63 (qd, J = 7.6, 1.2 Hz, 2H), 7.42 (td, J = 7.7, 1.7 Hz, 1H), 6.44 (s, 1H), 2.72 (t, J = 7.5 Hz
2H), 1.72 (tt, J = 15.3, 7.7 Hz, 2H), 1.44 (dq, J = 14.6, 7.4 Hz, 2H), 0.97 (m, 3H); 13C-NMR (101 MHz,
CDCl3): 180.77 (C-5), 174.47 (C-4), 160.32 (C-2), 159.54 (C-13), 135.33 (C-8), 130.43 (C-10), 129.76 (C-6),
,
δ
128.78 (C-7), 128.59 (C-11), 122.50 (C-9), 122.01 (C-12), 103.69 (C-3), 29.55 (C-14), 27.56 (C-15), 22.13
(C-16), 13.73 (C-17) ppm; MS: m/z 254 [M+, C16H14O3].
3.2.9. Synthesis of Naphtho[2,3-b]furan-4,9-dione (4j)
Vinyl acetate and
1 in a molar relation 1:1, were dissolved in acetone. The mixture was irradiated
with a mercury lamp of 450 W of high pressure at r.t. for 7 h, to yield a yellow precipitate. Subsequently,
precipitate was reacted with p-TsOH in dry benzene at reflux temperature to afford yellow crystals;
65.6% yield; m.p. 229.4 ◦C; FTIR (KBr) : 3069, 1679, 1646, 1206 cm−1; 1H-NMR (600 MHz, CDCl3):
ν
δ
8.16 (m, 2H), 8.14 (d, 1H), 7.88 (m, 2H), 7.08 (d, 1H) ppm; 13C-NMR (600 MHz, CDCl3):
δ 180.65 (C-4),
180.26 (C-9), 158.36 (C-13), 156.01 (C-2), 136.34 (C-6), 135.16 (C-7), 134.07 (C-12), 133.24 (C-10), 133.36
(C-11), 129.05 (C-8), 128.27 (C-5), 110.11 (C-3); MS m/z 198 [M+, C12H6O3].
3.2.10. Synthesis of 2-Phenylnaphtho[2,3-b]furan-4,9-dione (4k)
Phenylacetylene (2.93 g) and
r.t. This solution was then cooled to 0 C and 3.16 g of CAN was added in portions to the yellow
solution, which immediately turned orange, this solution was kept at 0 C for 20 min until the reaction
1
(500 mg) were dissolved in 115 mL of acetonitrile by stirring at
◦
◦
was quenched with saturated solution of NH4Cl. The reaction mixture was extracted with ethyl
acetate (4
×
20 mL), washed with saturated solution of NaHCO3, and dried over anhydrous Na2SO4.
The solvent was removed under reduced pressure and the crude product was purified by open column
◦
chromatography (SiO2; CH2Cl2) to afford yellow crystals; 18.2% yield, m.p. 220 C; FTIR (KBr)
3046, 1665, 1580, 1530, 1252 cm−1; 1H-NMR (600 MHz, CDCl3):
2H), 7.40 (m, 3H), 7.10 (s, 1H) ppm; 13C-NMR (600 MHz, CDCl3):
ν
:
δ
8.10 (m, 2H), 7.80 (m, 2H), 7.70 (m,
181.27 (C-4), 173.49 (C-9), 160.79
δ
(C-2), 152.01 (C-13), 134.43 (C-6), 134.06 (C-7), 133.53 (C-10), 133.30 (C-11), 132.86 (C-12), 130.72 (C-1’),
129.54 (C-4’), 128.75 (C-3’; C-5’), 127.40 (C-8), 127.35 (C-5), 125.99 (C-2’; C-6’), 103.37 (C-3) ppm; MS
m/z 274.27 [M+, C18H10O3].
3.2.11. Synthesis of 2-Acetyl-2-methoxy-2,3-dihydronaphtho[2,3-b]furan-4,9-dione (4l)
To a solution of 1 g of 1 and 1.5 mL of 2,3-dimethoxy-1,3-butadiene in 60 mL of acetonitrile was
added 9.58 g of CAN. The reaction was carried out at 0 ◦C for 6 h. The obtained mixture was diluted
with water and extracted with ethyl acetate which was subsequently evaporated. The residue was
purified by chromatography (SiO2; hexane/ethyl acetate, 5/1) to afford yellow powder; 51.43% yield;
m.p. 145 ◦C; FTIR (KBr):
CDCl3):
(600 MHz, CDCl3):
ν
: 3069, 2946, 2843, 1690, 1673, 1634, 1560, 1260 cm−1; 1H-NMR (600 MHz,
8.11 (m, 2H), 7.75 (m, 2H), 3.66 (d, 1H), 307 (d, 1H), 3.36 (s, 3H), 3.30 (s, 3H); 13C-NMR
182.00 (C-14), 178.00 (C-4), 172.00 (C-9), 158.97 (C-13), 134.89 (C-6), 134.75 (C-7),
δ
δ

Molecules 2018, 23, 186
15 of 21
133.52 (C-10), 126.80 (C-11), 126.51 (C-8), 124.65 (C-5), 118.20 (C-12), 102.32 (C-2), 51.27 (C-16), 27.33
(C-3), 17.03 (C-15) ppm; MS m/z 272.25 [M+, C15H12O5].
3.2.12. Synthesis of 2-Acetylnaphtho[2,3-b]furan-4,9-dione (4m)
To a solution of 266 mg of 4l in 15 mL of benzene was added 0.3 mL of 1,8-diazabicyclo [5.4.0]
undec-7-ene (DBU), the mixture was allowed to react at r.t. for 5 h. The reaction was quenched with
aqueous ammonium chloride solution and extracted with ethyl acetate. After drying the solvent,
the residue was purified by chromatography (SiO2; hexane/ethyl acetate, 4/1) initially, following by
◦
CH2Cl2 to afford yellow solid; 31% yield; m.p. 209 C; FTIR (KBr):
ν
: 3113, 3017, 2940, 1690, 1672, 1582,
1262 cm−1; 1H-NMR (600 MHz, CDCl3):
δ 8.20 (m, 2H), 7.77 (m, 2H), 7.53 (s, 1H), 2.59 (s, 1H) ppm;
188.23 (C-14), 180.29 (C-4), 174.44 (C-9), 155.76 (C-2), 153.33 (C-13),
13C-NMR (600 MHz, CDCl3):
δ
134.96 (C-6), 134.83 (C-7), 133.45 (C-10), 132.94 (C-11), 131.10 (C-12), 127.76 (C-8), 127.62 (C-5), 112.95
(C-3), 27.04 (C-15) ppm; MS m/z 240.21 [M+, C14H8O4].
3.2.13. Synthesis of Methyl 4,9-Dioxo-2-phenyl-2,3,4,9-tetrahydronaphtho[2,3-b]furan-3-carboxylate (4n
)
To a solution of 200 mg of
1 in 46 mL of acetone was added 931 mg of methyl (2E)
2-phenylpropionate, and irradiated with pyrex® glass filtered ultraviolet light at r.t. for 22 h, then the
solvent was removed by evaporation under reduced pressure and the crude reaction product was
purified by chromatography (SiO2; CH2Cl2) to afford yellow crystals; 20% yield; m.p. 167 ◦C; FTIR
(KBr):
2H), 7.60 (m, 2H), 7.30 (s, 5H), 6.00 (dd, 1H), 4.30 (dd, 1H), 3.80 (s, 3H) ppm; 13C-NMR (600 MHz,
CDCl3): 181.57 (C-4), 178.01 (C-9), 171.33 (C-14), 160.86 (C-13), 138.55 (C-1’), 134.95 (C-6), 133.71 (C-7),
ν δ 8.20 (m,
: 3066, 3030, 2953, 1741, 1680, 1649, 1587, 1203 cm−1; 1H-NMR (600 MHz, CDCl3):
δ
133.36 (C-10), 132.02 (C-11), 129.72 (C-8), 129.51 (C-4’), 126.99 (C-3’; C-5’), 126.80 (C-2’; C-6’), 125.98
(C-5), 122.06 (C-12), 90.06 (C-2), 54.57 (C-3), 53.67 (C-15) ppm; MS m/z 334.32 [M+, C20H14O5].
3.2.14. General Synthesis of Dihydronaphtho[2,3-b]furan-4,9-diones and Dihydronaphtho[1,2-b]
furan-4,5-diones (4o–4p)
To a solution of 174 mg of
1 and 0.6 mL of 2,3-dimethyl-1,3-butadiene in 25 mL of acetonitrile,
1.206 g of CAN and sodium bicarbonate were added at 0 ◦C, allowing to react for 3 h. The obtained
mixture was extracted with ethyl acetate (3
by chromatography (SiO2; CH2Cl2).
×
100 mL), the solvent was dried and the residue purified
2-Methyl-2◦-(prop-1-en-2-yl)-2,3-dihydronaphtho[2,3-b]furan-4,9-dione (4o). Yellow powder; 47.63% yield;
1
m.p. 135 C; FTIR (KBr):
ν
: 3097, 3070, 2985, 2929, 2860, 1680, 1643, 1590, 1254 cm−1; H-NMR
(600 MHz, CDCl3):
δ
8.0 (m, 2H), 7.62 (m, 2H), 5.05 (d, 1H), 4.86 (d, 1H), 3.14 (d, 1H), 2,96 (d, 1H), 1.78
182.91 (C-4), 178.49 (C-9), 159.38 (C-13), 145.99
(s, 3H), 1.59 (s, 3H) ppm; 13C-NMR (600 MHz, CDCl3):
δ
(C-14), 134.54 (C-6), 133.35 (C-7), 132.09 (C-10), 126.76 (C-11), 126.75 (C-8), 123.81 (C-5), 117.72 (C-12),
111.73 (C-15), 95.01 (C-2), 39.14 (C-3), 26.67 (C-17), 18.86 (C-16) ppm; MS m/z 254.28 [M+, C16H14O3].
2-Methyl-2-(prop-1-en-2-yl)-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (4p). Red powder; 40.55% yield; m.p.
◦
147 C; FTIR (KBr):
8.03 (d, 1H), 7.6 (m, 3H), 5.11 (s, 1H), 4.95 (s, 1H), 3.12 (d, 1H), 2.86 (d, 1H), 1.78 (s, 3H), 1.61 (s, 3H)
ppm; 13C-NMR (600 MHz, CDCl3):
181.59 (C-4), 176.03 (C-5), 169.03 (C-13), 146.17 (C-14), 134.96
ν
: 3066, 2980, 2932, 1700, 1647, 1625, 1590, 1254 cm−1; 1H-NMR (600 MHz, CDCl3):
δ
δ
(C-8), 132.38 (C-10), 131.34 (C-6), 129.94 (C-7), 129.91 (C-9), 128.18 (C-11), 115.35 (C-12), 111.55 (C-15),
96.63 (C-2), 38.36 (C-3), 26.77 (C-17), 18.91 (C-16) ppm; MS m/z 254.3 [M+, C16H14O3].
3.2.15. General Synthesis of Dihydronaphtho[2,3-b]furan-4,9-diones and Dihydronaphtho[1,2-b]furan-
4,5-diones (4q–4r)
Compound
1 (500 mg) and styrene (3 g) were dissolved in 115 mL of acetonitrile. This solution
was then cooled to 0 ◦C and 3.16 g (5.74 mmol) of CAN was added in portions to the yellow solution,

Molecules 2018, 23, 186
16 of 21
◦
which immediately turned orange, this solution was kept at 0 C for 20 m until the reaction was
quenched with saturated solution of NH4Cl. After evaporation of the solvent, the crude product
was extracted with ethyl acetate. The organic phase was washed successively with saturated sodium
bicarbonate solution and saline solution and dried over anhydrous Na2SO4. After removal of the
solvent under reduced pressure, the crude product was purified by chromatography (SiO2; CH2Cl2)
initially, followed by (SiO2; hexane/ethyl acetate, 4/1).
2-Phenyl-2,3-dihydronaphtho[2,3-b]furan-4,9-dione (4q). Yellow crystals; 27% yield; m.p. 158 ◦C; FTIR
(KBr):
ν
: 3057, 3010, 1674, 1647, 1594, 1243 cm−1; 1H-NMR (600 MHz, CDCl3):
δ
8.00 (m, 2H), 7.60 (m,
182.65
2H), 7.30 (s, 5H), 6.00 (dd, 1H), 3.60 (dd, 1H), 3.20 (dd, 1H) ppm; 13C-NMR (600 MHz, CDCl3):
δ
(C-4), 178.17 (C-9), 160.28 (C-13), 139.96 (C-1’), 134.66 (C-6), 133.51 (C-7), 132.04 (C-10), 129.35 (C-11),
126.83 (C-8), 126.55 (C-4’), 126.43 (C-3’; C-5’), 124.29 (C-2’; C-6’), 123.64 (C-5), 123.57 (C-12), 87.22 (C-2),
35.72 (C-3) ppm; MS m/z 276.28 [M+, C18H12O3].
2-Phenyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (4r). Orange crystals; 26% yield; m.p. 115 ◦C; FTIR
(KBr):
ν δ 8.10 (m, 1H), 7.60
: 3062, 3035, 1652, 1618, 1588, 1240 cm−1; 1H-NMR (600 MHz, CDCl3):
(m, 3H), 7.30 (s, 5H), 6.00 (dd, 1H), 3.50 (dd, 1H), 3.10 (dd, 1H) ppm; 13C-NMR (600 MHz, CDCl3):
δ
182.00 (C-4), 175.86 (C-5), 169.93 (C-13), 139.93 (C-1’), 135.03 (C-8), 132.53 (C-10), 131.24 (C-6), 130.04
(C-7), 129.55 (C-4’), 129.49 (C-3’; C-5’), 127.88 (C-2’; C-6’), 126.48 (C-11), 125.11 (C-9), 115.55 (C-12),
88.79 (C-2), 34.93 (C-3) ppm; MS m/z 276.28 [M+, C18H12O3].
3.2.16. Synthesis 2,2,3,3-Tetramethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (4s)
To a solution of 500 mg of
1 and 2.42 g of 2,3-dimethyl-2-butene in 115 mL of acetonitrile was
cooled to 0 ◦C and 3.16 g of CAN were added in portions to the yellow solution which immediately
◦
turned orange, this solution was kept at 0 C for 20 min until the reaction was quenched with saturated
solution of NH4Cl. After evaporation of the solvent under reduced pressure, the crude product was
extracted with ethyl acetate (3
×
100 mL). The organic phase was washed successively with saturated
solution of NaHCO3, then with saline and dried over anhydrous Na2SO4. After removal of the solvent
under reduced pressure, the crude product was separated by chromatography (SiO2; CH2Cl2) to afford
orange crystals; 2.5% yield; m.p. 91 ◦C; FTIR (KBr):
1H-NMR (600 MHz, CDCl3):
13C-NMR (600 MHz, CDCl3):
ν ;
: 3090, 2980, 1963, 1695, 1638, 1614, 1588 cm−1
δ
8.06 (m, 1H), 7.65 (m, 2H), 7.58 (m, 1H), 1.48 (s, 6H), 1,36 (s, 6H) ppm;
181.73 (C-4), 175.63 (C-5), 167.40 (C-13), 134.36 (C-8), 131.58 (C-10),
δ
130.91 (C-6), 129.13 (C-7), 128.26 (C-11), 124.44 (C-9), 123.23 (C-12), 97.23 (C-2), 46.35 (C-3), 23.17 (C-14;
C-15), 22.01 (C-16; C-17) ppm; MS m/z 256.30 [M+, C16H16O3].
3.2.17. Synthesis of 2-Ethenyl-2-methyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (4t)
To a solution of 174 mg of
1 and 0.6 mL of isoprene in 25 mL of acetonitrile was added 1.206 g of
CAN and sodium bicarbonate at 0 ◦C, allowing reacting for 3 h. The obtained mixture was extracted
with ethyl acetate, the solvent was dried and the residue purified by flash chromatography (SiO2;
CH2Cl2) to afford yellow powder; 48.75% yield; m.p. 150 ◦C; FTIR (KBr):
ν
: 3068, 2926, 1693, 1643,
8.09 (d, 1H), 7.69 (m, 3H), 6.10 (dd, 1H), 5.39 (d,
1H), 5.26 (d, 1H), 3.17 (d, 1H), 3.02 (d, 1H), 1.70 (s, 3H), ppm; 13C-NMR (600 MHz, CDCl3):
181.11
1612, 1586, 1251 cm−1; 1H-NMR (600 MHz, CDCl3):
δ
δ
(C-4), 175.53 (C-5), 168.44 (C-13), 139.79 (C-14), 134.51 (C-8), 132.05 (C-10), 130.09 (C-6), 129.60 (C-7),
127.75 (C-11), 124.68 (C-9), 114.19 (C-15), 93.86 (C-12), 89.96 (C-2), 38.34 (C-3), 26.95 (C-16) ppm; MS
m/z 240.25 [M+, C15H12O3].
3.2.18. Synthesis of 4,9-Dimethoxy-4,9-dihydronaphtho[2,3-d][1,3]thiazole (5a)
To a solution of 4.30 g (20 mmol) of 5 and 65 mg (0.20 mmol) tetrabutylammonium bromide in
150 mL of dry THF under N2, 34.82 g (200 mmol) sodium dithionite in 100 mL of water was added
dropwise. The mixture was vigorously stirred for 30 min and then treated with 22.44 g (400 mmol)
◦
KOH in 70 mL of water. After 30 min, it was cooled to 0 C on an ice-bath, 22.8 mL of dimethyl sulfate

Molecules 2018, 23, 186
17 of 21
(30.27 g, 240 mmol) was added, and the mixture was then stirred for 2 h at 0 ◦C. Then, it was allowed
to warm at rt and stirred for 2 h. Ammonia solution (10%, 50 mL) was added, and the mixture was
stirred for 30 min and then extracted with CH2Cl2 (3
×
100 mL). The combined organic phase was
washed with water (150 mL), then with a saturated solution of NaCl (150 mL), dried over Na2SO4 and
evaporated. The residue was purified by chromatography (SiO2; CH2Cl2) to afford beige crystals; 77%
◦
yield; m.p. 85 C; FTIR (KBr):
ν
: 2935, 1582 cm−1; 1H-NMR (400 MHz, CDCl3):
δ
8.93 (s, 1H,), 8.43 (m,
153.36 (C-2),
1H), 8.21 (m, 1H), 7.51 (m, 2H), 4.42 (s, 3H), 4.11 (s, 3H); 13C-NMR (400 MHz, CDCl3):
δ
146.14 (C-12), 145.33 (C-4), 142.78 (C-9), 126.51 (C-13), 126.31 (C-10), 125.86 (C-11), 125.49 (C-6), 124.09
(C-7), 123.43 (C-8), 121.17 (C-5), 63.07 (C-14), 60.81 (C-15) ppm; MS m/z 245.29 [M+, C13H11O2NS].
3.2.19. Synthesis of Methyl 4,9-dimethoxy-4,9-dihydronaphtho[2,3-d][1,3]thiazole-2-carboxylate (5b)
Following a procedure reported by Vechorkin et al. [18], 2.50 g (10.20 mmol) 5a and 4.00 g
(12.28 mmol) Cs2CO3 were evacuated in a dried Schlenck flask for 1 h. Then, anhydrous DMF (20 mL)
was added under N2, and the reaction vessel was degassed and flushed alternately with N2 and CO2
◦
three times each. Then, the reaction mixture was heated at 125 C under an overpressure of CO2
(400 mbar) for 16 h. Thereafter, the reaction mixture was allowed to reach 60 ◦C, methyl iodide (1.87
mL, 4.26 g, 30 mmol) was added with a syringe through a septum, and the mixture was stirred for
◦
an additional 2 h at 60 C. Then, it was cooled to r.t., water (20 mL) was added, and the mixture
was extracted with CH2Cl2 (3
×
30 mL). The combined organic phase was washed with a saturated
solution of NaCl (40 mL) and dried over Na2SO4. The solvent was evaporated and the residue purified
by chromatography (SiO2; CH2Cl2/hexane, 9/1) to afford orange crystals; 64% yield; m.p. 150 ◦C;
FTIR (KBr):
3J = 8.6 Hz, 1H), 7.60 (dd, 3J1 = 8.7 Hz, 3J2 = 6.7 Hz, 1H), 7.54 (dd, 3J1 = 8.6 Hz, 3J2 = 6.7 Hz, 1H), 4.51 (s,
3H), 4.11 (s, 3H), 4,09 (s, 3H); 13C-NMR (600 MHz, CDCl3):
161.35 (C-14), 156.64 (C-2), 148.40(C-9),
ν δ
: 2970, 1713, 1574 cm−1; 1H-NMR (600 MHz, CDCl3): 8.46 (d, 3J = 8.7 Hz, 1H), 8.20 (d,
δ
144.71 (C-12), 142.02 (C-4), 127.42 (C-13), 127.18 (C-10), 126.55 (C-11), 126.22 (C-6), 125.75 (C-7), 124.00
(C-8), 121.24 (C-5), 63.51 (C-16), 60.93 (C-17), 53.99 (C-15) ppm; MS m/z 318.36 [M+, C16H16O4NS].
3.2.20. Synthesis of Methyl 4,9-Dioxo-4,9-dihydronaphtho[2,3-d][1,3]thiazole-2-carboxylate (5c)
To a suspension of 5b (0.10 g, 0.33 mmol) in MeCN (1 mL) and water (4 mL) at 0 ◦C was added
dropwise within 20 min (NH4)2[Ce(NO3)6] (0.51 g, 0.92 mmol) in MeCN (4 mL) and water (4 mL)
under vigorous stirring. The mixture was allowed to react for 30 min under the same conditions.
Then it was poured onto ice-water (20 mL) and extracted with CH2Cl2 (3
organic phase was washed with a saturated solution of NaCl (2 50 mL), dried over Na2SO4, then
concentrated, and purified by chromatography (SiO2; CH2Cl2) to afford a yellow solid; 43% yield;
m.p. 175–176 ◦C; FTIR (KBr): : 2966, 1720, 1678, 1585 cm−1; 1H-NMR (CDCl3, 400 MHz)
8.34 (dd,
3J = 7.5 Hz, 4J = 1.6 Hz, 1H), 8.24 (dd, 3J = 7.3 Hz, 4J = 1.8 Hz, 1H), 7.83 (m, 2H), 4.08 (s, 3H,); 13C-NMR
(CDCl3, 600 MHz) 178.50 (C-9), 177.22 (C-4), 164.25 (C-14), 159.96 (C-2), 155.12 (C-12), 145.76 (C-10),
×
30 mL). The combined
×
ν
δ
δ
135.33 (C-11), 134.69 (C-7), 133.26 (C-6), 133.20 (C-13), 128.46 (C-8), 127.67 (C-5), 54.38 (C-15) ppm; MS
m/z 288.3 [M+, C14H10O4NS].
3.3. Biological Evaluation
3.3.1. Cell Culture
The synthesized compounds were evaluated for their in vitro cytotoxic activities against a human
colorectal cancer cell line (HT-29) and normal dermal fibroblasts (PCS-201-012), obtained from the
American Type Culture Collection (ATCC; Manassas, VA, USA). Cells were maintained routinely in
McCoy’s 5A (HT-29) or Dulbecco’s Modified Eagle
fetal bovine serum, sodium bicarbonate (1.5 g/L), penicillin (100 UI/mL), streptomycin (100
and low serum growth supplement (Invitrogen) for dermal fibroblasts, at 37 ◦C and 5% CO2.
'
s medium (PCS-201-012), supplemented with 10%
µg/mL),

Molecules 2018, 23, 186
18 of 21
3.3.2. Preparation of Test Compounds
Test compounds were dissolved in DMSO to obtain stock solutions that were maintained as small
aliquots at
20 ◦C. At time of drug addition, an aliquot was thawed and diluted to obtain the desired
final maximum test concentration of 100 M, with complete medium. The final percentage of DMSO
in the wells was less than 1% (v/v). The racemic mixtures of compounds 3b 4l 4n 4o 4p 4q 4r and
−
µ
,
,
,
,
,
,
4t were evaluated because their isomers were not available separately.3.3.3. Anti-Proliferative Assay
The effect of tests compounds on cell viability was evaluated using the
3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) reduction assay [27], Briefly,
HT-29 cells were cultured at 37 ◦C and 5% CO2, with various concentrations of quinone derivatives
(0–100
µM). Doxorubicin, a drug widely used to treat different types of cancer, was used as a
positive control. After 48 h, the medium was removed and cells were incubated with MTT solution
(0.25 mg/mL). Four hours later, the medium was carefully aspired and formazan crystals were
dissolved in DMSO (100 µL). The OD550 was measured using a plate reader (Multiskan Go, Thermo
Scientific, Waltham, MA, USA). Inhibition of cell proliferation was expressed as percentage of viable
cells in treated samples as compared to vehicle-treated cells and the 50% inhibitory concentration
of cell proliferation (IC50) was calculated by nonlinear regression. The selectivity index (SI), was
calculated as a ratio of IC50Fibroblast/IC50HT-29cells
.
3.4. 3D-QSAR Study
A three-dimensional quantitative structure–activity relationship study (3D-QSAR) was carried
out, using comparative molecular field analysis (CoMFA), with 18 molecules (1a 2c 2d 3c 4d 4e
4f 4g 4h 4i 4j 4s 5c and ) with defined stereochemistry, which showed cytotoxic activity on
HT-29 cell line (IC50 < 100 M). Molecules were digitized and optimized (Hartree-Fock method with
,
2,
,
,
,
,
,
,
,
,
,
,
,
,
6,
7
,
8
9
µ
base function 3-21G) using the GaussView 5.0 program (Gaussian Inc., Wallingford, CT, USA) [28].
The resulting geometry was converted to Mol2 format using Open Babel 2.3.1 software [29]. Geometry
of compound 7, the most active molecule of the series, was used as a reference for the alignment,
and the ring highlighted in red on this compound was taken as a common substructure (Figure 6).
The QSAR Project Manager module of SYBYL-X 2.0 program package (Tripos, St. Louis, MO, USA),
was used to generate the CoMFA model, in which cytotoxic activity ( logCL50 (pIC50)), of the set of
−
molecules were correlated with its structural parameters. The partial least squares method (PLS) was
used to correlate the structural changes (CoMFA fields) with the changes in the biological activity of
the quinone derivatives. The cross-validation of the model was carried out using the Leave-One-Out
method (LOO) [30].

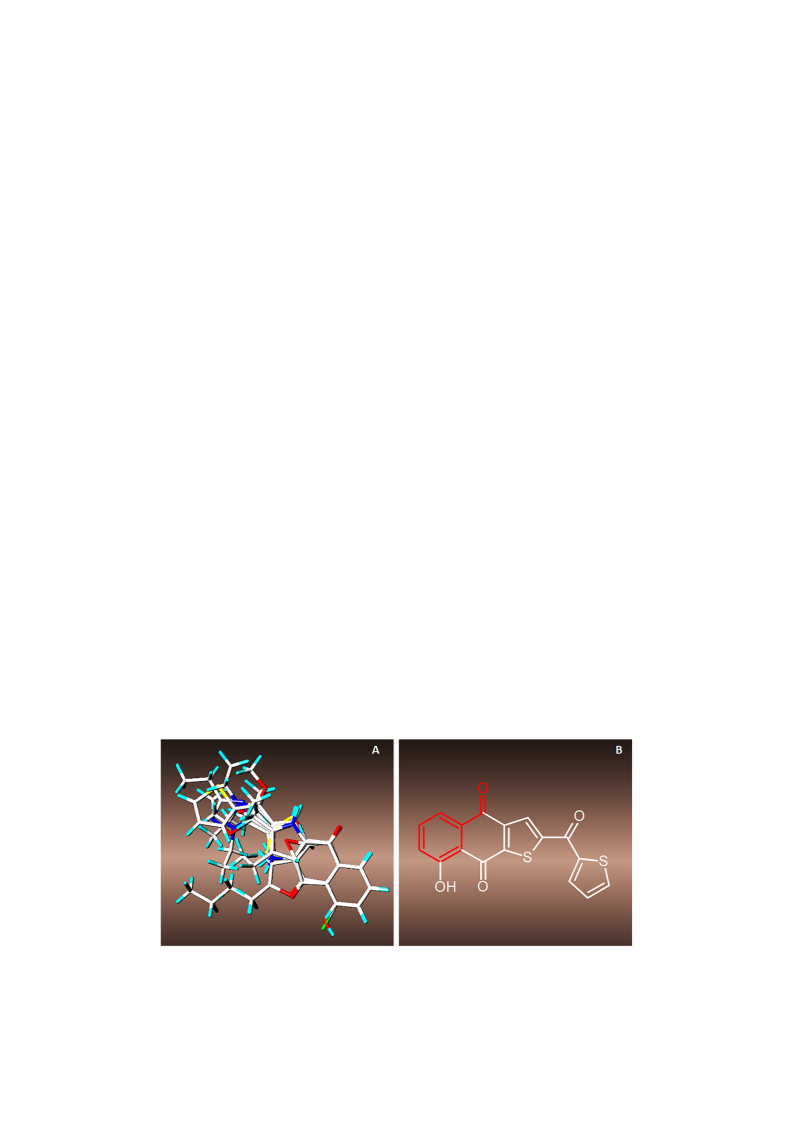

Figure 6.
template; and (
and highlighted in the structure of compound 7.
(
A
) Alignment of the training and test sets of quinone derivatives using compound
7 as a
B
) the pharmacophore was defined as a common substructure for all studied molecules

Molecules 2018, 23, 186
19 of 21
3.5. Statistical Analysis
The results are expressed as the mean of triplicate measurements in at least two independent
experiments. Concentrations that inhibited cell survival (IC50) were calculated employing nonlinear
regression and are shown together with their 95% confidence interval (IC).
4. Conclusions
In this work, we synthesized a series of naphthoquinone derivatives and evaluated their
anti-proliferative activity against the human cell line of colorectal cancer HT-29. Several of these
compounds exhibited significant anti-proliferative activity, with compound 7 being the most
active of the series. A SAR analysis suggests that the activity is improved in molecules with
tricyclic naphtho[2,3-b]furan-4,9-dione and naphtho[2,3-b]thiophene-4,9-dione systems 2-substituted
with an electron-withdrawing group. On the other hand, the CoMFA analysis of steric and
electrostatic fields showed that bulky groups as the thiophenyl group (ring D), at the C-2 of the
naphtho[2,3-b]thiophene-4,9-dione system, have a positive influence on the anti-proliferative activity
of these compounds, which is enhanced when ethyl groups are included in C-3 and C-4 of the
ring D. Taking into account these results, we proposed five new compounds with better theoretical
activity than the parental compound (7). From the set of designed compounds, 7d presented the best
theoretical pharmacological potential, which warrants its synthesis and biological evaluation. Further
investigations are needed to determine the mechanism involved in the cytotoxic effect of the most
active compounds which are potential candidates for new anti-CRC agents.
Acknowledgments: This research was funded by Colciencias and the University of Cartagena (Grant
110756933930-2012). The authors acknowledge the Program Young Investigators and Innovators from Colciencias
that sponsored V. Teheran and O. Pérez (Call grant 617-2013). The authors thank Jenny Castro for her
technical assistance.
Author Contributions: L. Franco and R. Gaitán conceived and designed the study; J. Piermattey, J. López,
S. Bannwitz and K. Müller performed the synthesis of quinone derivatives; J. Acuña, D. Caro, Y. Ocampo and
F. Aristizabal performed the biological evaluation; L. Barrios and R. Vivas carried out the 3D-QSAR study; J. Acuña
and J. Piermattey wrote the first draft of the paper; and L. Franco, Y. Ocampo, R. Gaitán and K. Muller critically
reviewed the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
Stewart, B.; Wild, C.P. World Cancer Report 2014; World Health Organization: Lyon, France, 2017.
Gustavsson, B.; Carlsson, G.; Machover, D.; Petrelli, N.; Roth, A.; Schmoll, H.J.; Tveit, K.M.;
Gibson, F. A review of the evolution of systemic chemotherapy in the management of colorectal cancer.
Clin. Colorectal Cancer 2015, 14, 1–10. [CrossRef] [PubMed]
3.
Kanth, P.; Grimmett, J.; Champine, M.; Burt, R.; Samadder, N.J. Hereditary colorectal polyposis and cancer
syndromes: A primer on diagnosis and management. Am. J. Gastroenterol. 2017, 112, 1509–1525. [CrossRef]
[PubMed]
4.
5.
6.
Rogler, G. Chronic ulcerative colitis and colorectal cancer. Cancer Lett. 2014, 345, 235–241. [CrossRef]
[PubMed]
Obuch, J.C.; Ahnen, D.J. Colorectal cancer: Genetics is changing everything. Gastroenterol. Clin. N. Am. 2016
,
45, 459–476. [CrossRef] [PubMed]
Li, B.; Zhao, J.; Wang, C.Z.; Searle, J.; He, T.C.; Yuan, C.S.; Du, W. Ginsenoside rh2 induces apoptosis and
paraptosis-like cell death in colorectal cancer cells through activation of p53. Cancer Lett. 2011, 301, 185–192.
[CrossRef] [PubMed]
7.
8.
Botchkina, G.I.; Ju, J.; Savitt, A.G.; Rowehl, R.A.; Zuniga, E.; Das, M.; Wang, H.; Zhu, S.; Ojima, I.
New-generation taxoid sb-t-1214 inhibits stem cell-related gene expression in colon and prostate CSCs.
In Proceedings of the AACR 101st Annual Meeting, Washington, DC, USA, 17–21 April 2010.
Miller, K.D.; Siegel, R.L.; Lin, C.C.; Mariotto, A.B.; Kramer, J.L.; Rowland, J.H.; Stein, K.D.; Alteri, R.; Jemal, A.
Cancer treatment and survivorship statistics, 2016. CA Cancer J. Clin. 2016, 66, 271–289. [CrossRef] [PubMed]

Molecules 2018, 23, 186
20 of 21
9.
De Castro, S.L.; Emery, F.S.; da Silva Júnior, E.N. Synthesis of quinoidal molecules: Strategies towards
bioactive compounds with an emphasis on lapachones. Eur. J. Med. Chem. 2013, 69, 678–700. [CrossRef]
[PubMed]
10. Castellanos, J.R.G.; Prieto, J.M.; Heinrich, M. Red lapacho (tabebuia impetiginosa)—A global
ethnopharmacological commodity? J. Ethnopharmacol. 2009, 121, 1–13. [CrossRef] [PubMed]
11. Pelageev, D.N.; Dyshlovoy, S.A.; Pokhilo, N.D.; Denisenko, V.A.; Borisova, K.L.; Keller-von Amsberg, G.;
Bokemeyer, C.; Fedorov, S.N.; Honecker, F.; Anufriev, V.P. Quinone–carbohydrate nonglucoside conjugates
as a new type of cytotoxic agents: Synthesis and determination of in vitro activity. Eur. J. Med. Chem. 2014
77, 139–144. [CrossRef] [PubMed]
,
12. Cadet, J.; Wagner, J.R. Oxidatively generated base damage to cellular DNA by hydroxyl radical and
one-electron oxidants: Similarities and differences. Arch. Biochem. Biophys. 2014, 557, 47–54. [CrossRef]
[PubMed]
13. Verma, R.P. Anti-cancer activities of 1,4-naphthoquinones: A QSAR study. Anticancer Agents Med. Chem.
2006, 6, 489–499. [CrossRef] [PubMed]
14. Tseng, C.M.; Wu, Y.L.; Chuang, C.P. Solvent effects on the oxidative free radical reactions of
2-amino-1,4-naphthoquinones. Tetrahedron 2004, 60, 12249–12260. [CrossRef]
15. Hooker, S.C. Condensation of aldehydes with
β-hydroxy-α-naphthoquinone. Synthesis of hydrolapachol1,
2. J. Am. Chem. Soc. 1936, 58, 1163–1167. [CrossRef]
16. Dudley, K.H.; Miller, H.W. Mercuric acetate oxidation of isolapachol. J. Org. Chem. 1967, 32, 2341–2344.
[CrossRef]
17. Boggust, W.; Cocker, W.; Schwarz, J.; Stuart, E. 133. Some naphthothiazoles. J. Chem. Soc. (Res.) 1950, 680–682.
[CrossRef]
18. Vechorkin, O.; Hirt, N.; Hu, X. Carbon dioxide as the c1 source for direct c h functionalization of aromatic
−
heterocycles. Org. Lett. 2010, 12, 3567–3569. [CrossRef] [PubMed]
19. Reichstein, A.; Vortherms, S.; Bannwitz, S.; Tentrop, J.; Prinz, H.; Müller, K. Synthesis and structure-activity
relationships of lapacho analogues. 1. Suppression of human keratinocyte hyperproliferation by
2-substituted naphtho[2,3-b]furan-4,9-diones, activation by enzymatic one- and two-electron reduction,
and intracellular generation of superoxide. J. Med. Chem. 2012, 55, 7273–7284. [PubMed]
20. Bannwitz, S.; Krane, D.; Vortherms, S.; Kalin, T.; Lindenschmidt, C.; Zahedi Golpayegani, N.; Tentrop, J.;
Prinz, H.; Müller, K. Synthesis and structure–activity relationships of lapacho analogues. 2. Modification
of the basic naphtho[2,3-b]furan-4,9-dione, redox activation, and suppression of human keratinocyte
hyperproliferation by 8-hydroxynaphtho[2,3-b]thiophene-4,9-diones. J. Med. Chem. 2014, 57, 6226–6239.
[CrossRef] [PubMed]
21. Lindenschmidt, C.; Krane, D.; Vortherms, S.; Hilbig, L.; Prinz, H.; Mueller, K. 8-halo-substituted
naphtha[2,3-b]thiophene-4,9-diones as redox-active inhibitors of keratinocyte hyperproliferation with
reduced membrane-damaging properties. Eur. J. Med. Chem. 2016, 110, 280–290. [CrossRef] [PubMed]
22. Basoglu, A.; Dirkmann, S.; Golpayegani, N.Z.; Vortherms, S.; Tentrop, J.; Nowottnik, D.; Prinz, H.; Fröhlich, R.;
Müller, K. Oxadiazole-substituted naphtho[2,3-b]thiophene-4,9-diones as potent inhibitors of keratinocyte
hyperproliferation. Structure-activity relationships of the tricyclic quinone skeleton and the oxadiazole
substituent. Eur. J. Med. Chem. 2017, 134, 119–132. [CrossRef] [PubMed]
23. Wang , M.-Z.; Xie, W.-J.; Guan , Y.-F.; Song , X.; Hung, N.V.; Cuong, N.M.; Santarsiero, B.D.; Fong, H.H.S.;
Soejarto, D.D.; Zhang , H.-J. Bioactive constituents from radermachera boniana. Chem. Sel. 2016, 1, 1575–1579.
24. Inagaki, R.; Ninomiya, M.; Tanaka, K.; Watanabe, K.; Koketsu, M. Synthesis and cytotoxicity on human
leukemia cells of furonaphthoquinones isolated from tabebuia plants. Chem. Pharm. Bull. 2013, 61, 670–673.
[CrossRef] [PubMed]
25. Kongkathip, N.; Kongkathip, B.; Siripong, P.; Sangma, C.; Luangkamin, S.; Niyomdecha, M.; Pattanapa, S.;
Piyaviriyagul, S.; Kongsaeree, P. Potent antitumor activity of synthetic 1,2-naphthoquinones and
1,4-naphthoquinones. Bioorg. Med. Chem. 2003, 11, 3179–3191. [CrossRef]
26. Waller, C.L.; Oprea, T.I.; Giolitti, A.; Marshall, G.R. Three-dimensional qsar of human immunodeficiency
virus (i) protease inhibitors. 1. A comfa study employing experimentally-determined alignment rules.
J. Med. Chem. 1993, 36, 4152–4160. [CrossRef] [PubMed]
27. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and
cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [CrossRef]

Molecules 2018, 23, 186
21 of 21
28. Dennington, R.; Keith, T.; Millam, J. Gaussview; Version 5; Semichem Inc.: Shawnee Mission, KS, USA, 2009.
29. Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open babel: An open
chemical toolbox. J. Cheminform. 2011, 3, 33. [CrossRef] [PubMed]
O
'
30. Thibaut, U.; Folkers, G.; Klebe, G.; Kubinyi, H.; Merz, A.; Rognan, D. Recommendations for CoMFA studies
and 3D QSAR publications. Mol. Inform. 1994, 13, 1–3. [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
