H. Huang, et al.
CatalysisTodayxxx(xxxx)xxx–xxx
the hydrogenation of DMO [15,28–30].
were carried out on a Perkin-Elmer PHI 1600 ESCA system operated at a
pass energy of 187.85 eV for survey spectra with an Mg Kα X-ray source
(E =1253.6 eV).
Recently, Dai et al. [31] reported a copper-based hydroxyapatite
(HAP) supported (Cu/HAP) catalysts with excellent catalytic perfor-
mance for the synthesis of MG with a yield of 70%. The author pointed
out that the relatively lower hydrogen activation ability was one of the
important reasons for the high selectivity to MG. Sun et al. [32] re-
ported a sputtering (SP) Cu/SiO2 catalysts with a selectivity of more
than 87% via freezing Cu in a zero-valence state. The author pointed
out that the regulation of Cu chemical properties by changing the
electron structure is a feasible strategy to control the hydrogenation
products.
The specific surface area of metallic copper was measured by the
adsorption and decomposition of N2O using the pulse titration method
described in the literature [1,2]. Briefly, 100 mg of catalyst sample was
reduced in 5% H2-Ar at 623 K for 4 h and cooled to 363 K. Then 15%
N2O-Ar was introduced at a rate of 30 ml/min for 2 h, ensuring that
surface Cu atoms were completely oxidized according to the reaction
2Cu(s) + N2O → Cu2O(s) + N2. The quantity of chemisorbed N2O was
measured by a hydrogen pulse chromatographic technique on a Mi-
cromeritics Autochem II 2920 equipped with a TCD. Hydrogen pulse
reduction of surface Cu2O to metallic copper was conducted at 623 K to
ensure that the chemisorbed N2O on the copper surface immediately
reacted with hydrogen gas introduced from the pulse loop. Hydrogen
pulse-dosing was repeated until the pulse area no longer changed. The
consumed amount of hydrogen was the value obtained by subtracting
the small area of the first few pulses from the area of the other pulses.
The specific area of metallic copper was calculated from the total
amount of hydrogen consumption with 1.46 × 1019 copper atoms per
As reported by the previous work, copper phyllosilicates, which is
responsible for the formation of Cu+, can be formed during the pre-
paration of Cu/SiO2 catalysts by ammonia evaporation (AE) method
[33]. Under the ammonia conditions, Cu2+ complex can react with the
silanol groups of the silica surface via hydrolytic adsorption to form
SiOCuII monomer, which is difficult to be reduced to metallic copper
due to the strong interaction between the copper species and SiO2. In
this paper, Na2SiO3 was applied to modify the surface characteristic of
the Cu/SiO2 catalyst to modulate its hydrogen activation ability. The
4−
SiO4
group derived from the hydrolysis of Na2SiO3 was found to be
able to enhance the formation of copper phyllosilicates. Thus, the
amount of exposed metallic copper decreased in the final reduced
catalysts and the hydrogen activation ability of the catalyst can be
modulated. Fortunately, the Cu/SiO2 decorated with sodium silicate in
the present work displays an un-expectative catalytic performance with
a high yield of MG (YMG = 83%). Moreover, the effect of the copper
valence state distribution on the hydrogenation of DMO to MG was
evaluated to clarify the formation mechanism of MG.
Textual properties of the catalyst were determined by the mercury
intrusion porosimetry (MIP) test using a Micromeritics Autopore IV.
2.3. Catalytic activity test
The catalytic performance was carried out in a continuous flow unit
equipped with a stainless-steel tube reactor placed vertically inside a
furnace with a temperature controller. The catalyst (40–60 meshes) was
packed in the center of the tube reactor. The reaction was carried out
after the catalyst was reduced in pure hydrogen atmosphere at 623 K for
4 h. The reactant (20 wt. % DMO (99.9% purity) in methanol (AR
purity) solution) was injected from the top of the reactor through a
high-pressure pump (Lab Alliance Series II pump) with a system pres-
sure of 2.5 MPa. The reaction was performed at 473 K, with the weight
liquid hourly space velocity (WLHSV) of 1.5 gDMO gcat−1 h−1 (for short
2. Experimental
2.1. Catalyst preparation
Cu/SiO2 powder was prepared by the ammonia-evaporation (AE)
method which has been described in detail in our previous reports
[13,20]. Na2SiO3-modified Cu/SiO2 catalyst was prepared by the im-
pregnation method through immersing uncalcined Cu/SiO2 powder in
sodium silicate solution, stirred for 4 h, subsequently evaporated at
353 K using vacuum rotary, and then dried at 393 K for 4 h, calcined at
673 K in flowing air for 4 h. The final calcined sample was designed as
xSS-Cu/SiO2, where SS and x represented Na2SiO3 and its mass content
to the catalyst, respectively.
h
−1). The products collected in a condenser were analyzed on an
Agilent Micro GC 6820 with an HP-INNOWAX capillary column
(Hewlett-Packard Company, 30 m ×0.32 mm ×0.50 μm) equipped
with a flame ionization detector (FID). To ensure repeatability, 4–6
separate GC samples were taken and the results were averaged for each
experimental data point, and uncertainties were typically within 3%.
3. Results and discussion
2.2. Catalyst characterization
3.1. Effect of Na2SiO3 on structure properties of the catalysts
Fourier-transform infrared radiation (FTIR) spectra were recorded
on a Thermo Scientific Nicolet 6700 in the range of 4000–400 cm−1
The samples were finely grounded, dispersed in KBr, and pelletized. The
spectral resolution was 4 cm−1, and 32 scans were recorded for each
spectrum.
Transmission electron microscopy (TEM) images were obtained
using a Philips TECNAI G2 F20 system electron micro-scope at 100 kV
equipped with a field emission gun.
.
The physicochemical properties of the catalysts modified with/
without Na2SiO3 were listed in Table 1. According to the data measured
by N2 physisorption, the specific surface area (SBET) and the average
pore diameter of the catalysts only showed neglect changes with the
increment of Na2SiO3. However, when come to the results obtained by
MIP method, the pore volume declined dramatically from 0.46 to
0.27 cm3/g and the average pore diameter increased nearly doubled
from 16 to 30 nm with increasing of Na2SiO3. It has been reported that
for the Cu/SiO2 catalyst, the pore about 3 nm belonged to the pores
between the layers of the copper phyllosilicate, and the pores about
15 nm were attributed to the accumulation pore [11]. Because we could
only detect the pore structure larger than 10 nm by MIP method, above
results suggested that addition of Na2SiO3 changed the structure of
large pore and had little influence on the mesoporous between 2 nm
and 8 nm. This suggestion can be also well illustrated by their pore size

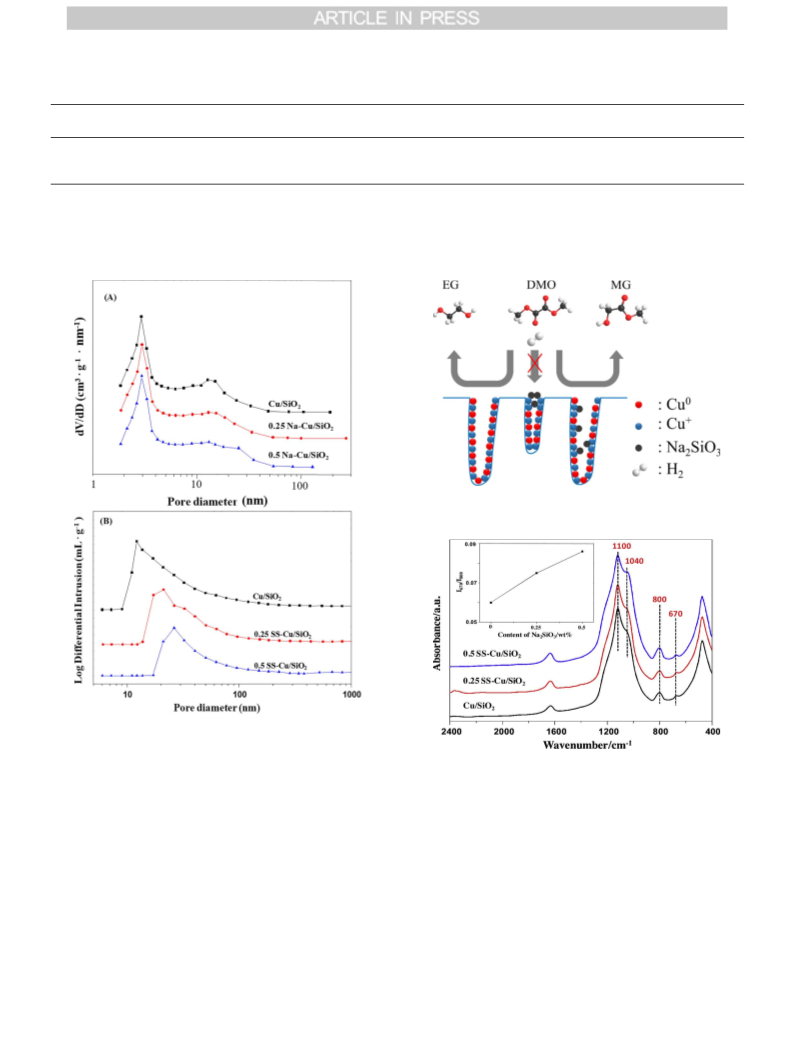

distribution curves shown in Fig. 1 This could be attributed to the
condensation polymerization of silicate ions (SiO44−) derived from the
hydrolysis of Na2SiO3, which were anchored on the surface of the
catalyst during the preparation procedure. As a result, it led to the

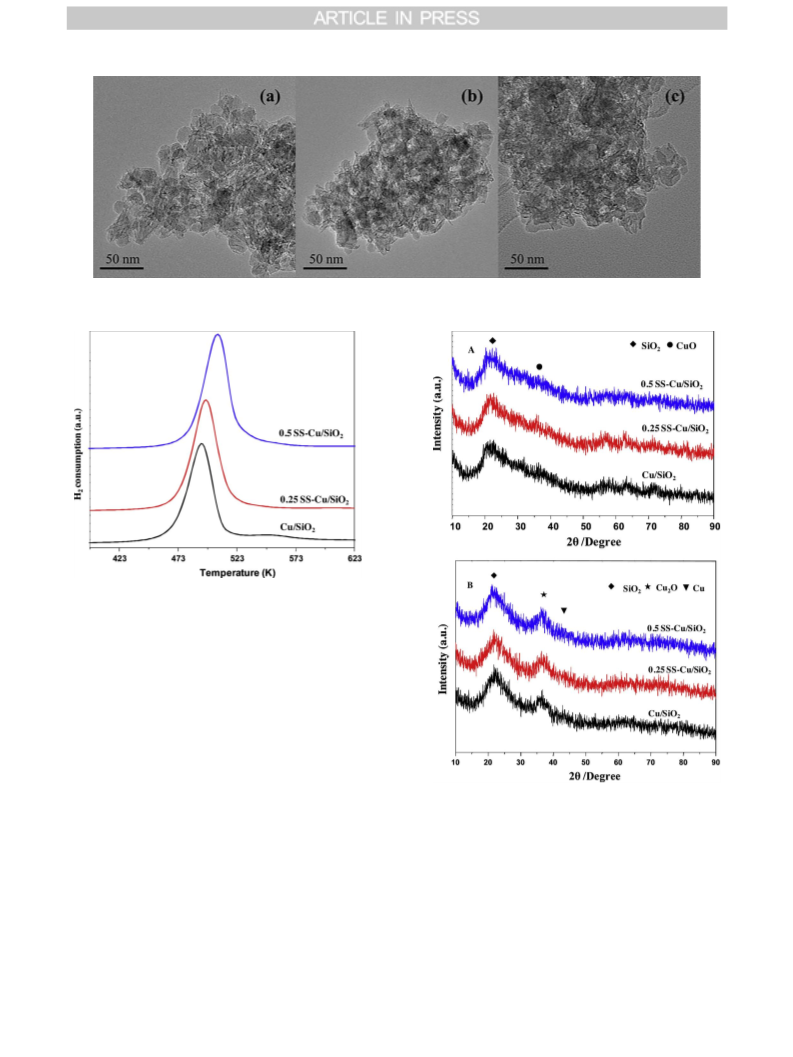

Temperature-programmed reduction (TPR) was carried out on a
Micromeritics Autochem II 2920. Catalyst of 50 mg was loaded into a
quartz tube and dried in an argon stream at 393 K for 1 h before the
reduction. The catalyst was then heated in 30 ml/min of 5%H2-Ar at a
heating rate of 10 K/min up to 973 K. The amount of H2 consumption
was monitored by a thermal conductivity detector (TCD).
Powder X-ray diffraction (XRD) analysis of the catalysts were per-
formed using a Rigaku C/max-2500 diffractometer employing the gra-
phite filtered Cu Kα radiation (λ =1.5406 Å) at room temperature.
Data points were acquired by step scanning with a rate of 12˚/min from
2θ = 10˚ to 2θ = 90˚.
X-ray photoelectron spectroscopy (XPS) analysis of the catalysts
2
