Isoreticular interpenetrated pillared-layer microporous metal-organic framework as a highly effective catalyst for three-component synthesis of pyrano[2,3-d]pyrimidines

Article abstract of DOI:10.1016/j.inoche.2018.06.002

Two isoreticular microporous Zn(II)-MOFs, [Zn₂(NH₂-BDC)₂(4-bpdh)]·3DMF (TMU-16-NH₂) and [Zn₂(BDC)₂(4-bpdh)]·3DMF (TMU-16), (NH₂-BDC = amino-1,4-benzenedicarboxylate, BDC = 1,4-be

Full text of DOI:10.1016/j.inoche.2018.06.002

InorganicChemistryCommunications94(2018)80–84
Contents lists available at ScienceDirect
Inorganic Chemistry Communications
journal homepage: www.elsevier.com/locate/inoche
Short communication
Isoreticular interpenetrated pillared-layer microporous metal-organic
framework as a highly effective catalyst for three-component synthesis of
pyrano[2,3-d]pyrimidines
Saeideh Beheshtia, Vahid Safarifardb, Ali Morsalia,⁎
a
Department of Chemistry, Faculty of Sciences, Tarbiat Modares University, P.O. Box 14115-175, Tehran, Islamic Republic of Iran
Department of Chemistry, Iran University of Science and Technology, P.O. Box 16846-13114, Tehran, Islamic Republic of Iran
b
G R A P H I C A L A B S T R A C T
A R T I C L E I N F O
A B S T R A C T
Keywords:
Microporous
Metal-organic framework
Catalyst
Three-component reaction
Two isoreticular microporous Zn(II)-MOFs, [Zn2(NH2-BDC)2(4-bpdh)]·3DMF (TMU-16-NH2) and [Zn2(BDC)2(4-
bpdh)]·3DMF (TMU-16), (NH2-BDC = amino-1,4-benzenedicarboxylate, BDC = 1,4-benzenedicarboxylate and
4-bpdh = 2,5-bis(4-pyridyl)-3,4-diaza-2,4-hexadiene) were used as heterogeneous catalysts. The TMU-16-NH2
was used as an efficient heterogeneous base catalyst for the three-component cyclocondensation of 1,3-di-
methylbarbituric acid, aryl aldehydes and malononitrile, giving rise to pyrano[2,3-d]pyrimidines. The ease of
catalyst synthesis, excellent conversions and reusability of the catalyst for five consecutive cycles without a
significant degradation in its catalytic activity, suggests significant future potential of this metal-organic fra-
mework for a wide range of base catalyzed reactions.
Metal–organic frameworks are crystalline compounds consisting of
infinite lattices built up of the inorganic secondary building unit (SBU,
metal ions, or clusters) and organic linkers, connected by coordination
bonds of moderate strength. MOFs contain three well-differentiated
parts where the catalytic function can be allocated: the metallic com-
ponent, the organic linker, and the pore space [1]. These materials have
shown a variety of enormous potential applications including (but not
limited to) gas adsorption [2], separations [3], luminescent [4], drug
⁎
Corresponding author.
E-mail address: morsali_a@modares.ac.ir (A. Morsali).
https://doi.org/10.1016/j.inoche.2018.06.002
Received 7 April 2018; Received in revised form 26 May 2018; Accepted 1 June 2018
Availableonline18June2018
1387-7003/©2018ElsevierB.V.Allrightsreserved.

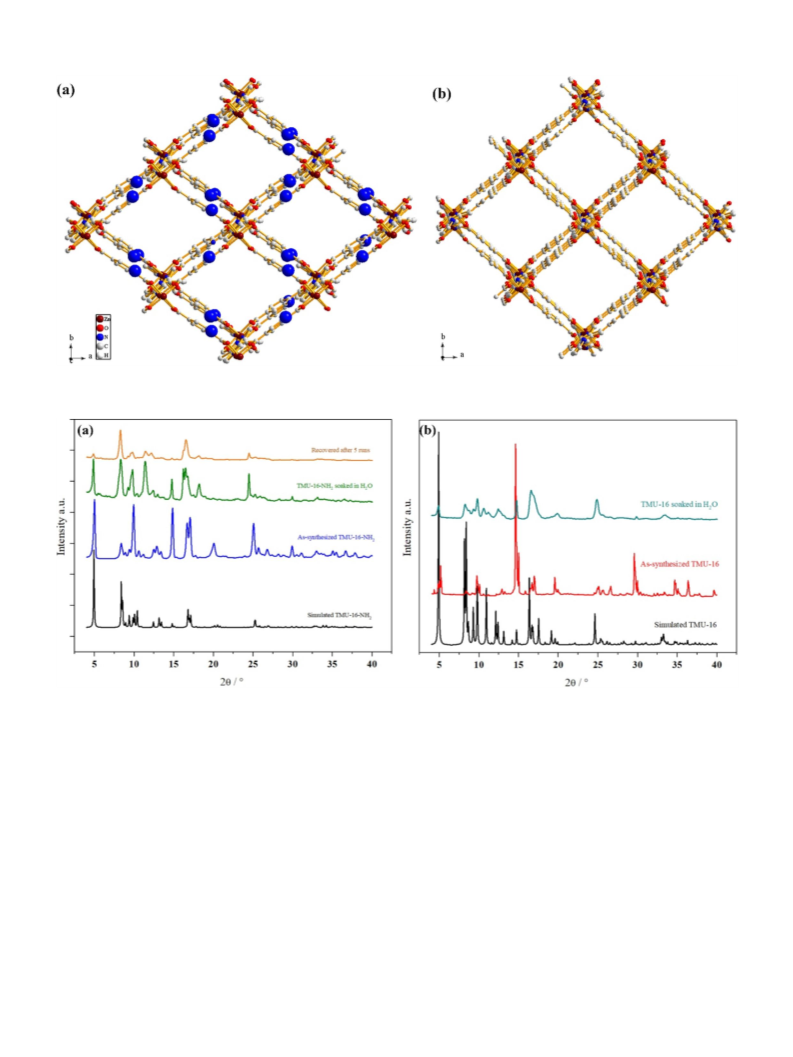

S. Beheshti et al.
InorganicChemistryCommunications94(2018)80–84
Fig. 1. Representations of the two-fold interpenetration (a) TMU-16-NH2, highlighting the amine groups and (b) TMU-16, which contain 1D channels of 3 Å, viewed
along the rectangular diagonal of the paddle-wheel clusters. All hydrogen atoms and the disordered guest molecules are omitted for clarity.
Fig. 2. PXRD of (a) TMU-16-NH2: simulated (black), as-synthesized (blue), immersed in water for 2 h (green), and recovered after five runs, (b) TMU-16: simulated
(black), as-synthesized (red), and immersed in water for 2 h (green). (For interpretation of the references to color in this figure legend, the reader is referred to the
web version of this article.)
delivery [5] and sensing [6]. Over the last few years, abundant ex-
amples in literature have demonstrated the potential of MOFs in cata-
lysis [7–11]. 4H-Pyrans and pyrimidinones are very important organic
compounds with a wide range of biological activities. These compounds
are reported to possess significant antibacterial, anticoagulant, antic-
ancer, spasmolytic, diuretic, antianaphylactic, antihypertensive and
anti-inflammatory activities [12–18]. On the other hand, pyrano[2,3-d]
pyrimidines have received considerable attention over the past years
due to their wide range of the diverse pharmacological action such as
antitumor, cardiotonic, hepatoprotective, antihypertensive and anti-
bronchitic activity [19–23]. These compounds are generally synthe-
sized via a one-pot three-component cyclocondensation of 1,3-di-
methylbarbituric acid, aryl aldehydes and malononitrile in the presence
of several catalysts such as 1,8-diazabicyclo[5.4.0]undec-7-ene [24],
MgO [25], PEG-stabilized Ni nanoparticles [26], ZnFe2O4 nanoparticles
[27], KF [28] and Mn/ZrO2 [29]. Synthesis of these compounds using
microwave irradiation [30] and electrocatalytic procedure in the
presence of sodium bromide as electrolyte [31] have been also re-
ported. However, most of these methodologies suffer from dis-
advantages such as unsatisfactory yields, long reaction times and the
use of relatively expensive catalysts. These finding prompted us toward
further investigation in search for a new catalyst which will carry out
the synthesis of these compounds under simpler experimental set up
and eco-friendly conditions [32]. Continuing to our previous work [33],
in this work we wish to report the utilization of isostructural two-fold
interpenetrated microporous metal-organic framework, [Zn2(NH2-
BDC)2(4-bpdh)]·3DMF (TMU-16-NH2) as an efficient heterogeneous
catalyst for the condensation of 1,3-dimethylbarbituric acid, aryl al-
dehydes and malononitrile to achieve biologically interest Pyrano[2,3-
d]pyrimidines. TMU-16-NH2 is a pillared-layer MOFs like those was
reported previously [34–37]. High catalytic activity was observed and
catalyst could be reused without significant degradation in activity.
Avoiding the utilization of harmful solvents in this environmentally
friendly process is particularly appealing.
81

S. Beheshti et al.
InorganicChemistryCommunications94(2018)80–84
[Zn2(NH2-BDC)2(4-bpdh)]·3DMF (TMU-16-NH2) is a two-fold in-
Table 2
The reaction in the presence of TMU-16 and TMU-16-NH2.
terpenetrated pillared-layer microporous Zn-MOF [38, 39]. TMU-16-
NH2 is composed of paddle-wheel dinuclear zinc carboxylate units
Zn2(COO)4, which are bridged by the NH2-BDC ligands to form a dis-
torted 2D square grid. The 2D square grids are pillared by 4-bpdh
molecules to form a 3D framework with a topology that can be de-
scribed as a primitive cubic lattice (RCSR symbol pcu) [38, 39]. Two of
the 3D frameworks interpenetrate in TMU-16-NH2, reducing the pore
size resulted in a 1D channel in the direction of the rectangular diagonal
of the paddle-wheel clusters with a cross section of approximately
3.1 × 3.2 Å in cross section (including van der Waals radii) (Fig. 1a)
[38]. Furthermore to investigate the influence of amine group on the
catalytic activity, the pores in the MOF became free of reactive groups
(-NH2) without changing the SBU or the underlying framework to-
pology. The non-functionalized isoreticular framework, [Zn2(BDC)2(4-
bpdh)]·3DMF (TMU-16) was used as another heterogeneous catalyst
(Fig. 1b). TMU-16 and TMU-16-NH2 are isostructural and crystallize in
the monoclinic space group C2/c [38]. The phase purity of the bulk
materials were independently confirmed by powder X-ray diffraction
(PXRD). The powder X-ray diffraction data show that the two com-
pounds are isotypic to each other (Fig. 2). The comparison of the cal-
culated free volume of the compounds by PLATON shows that it varies
in decrements from 3648.4 Å3 per unit cell (42.7% of the cell volume)
in TMU-16 to 2286.1 Å3 (27.6%) in TMU-16-NH2 [40].
TGA data indicate that TMU-16-NH2 and TMU-16 release their guest
molecules over the temperature ranges 25–230 and 25–280 °C to form
the guest-free phases, [Zn2(NH2-BDC)2(4-bpdh)] and [Zn2(BDC)2(4-
bpdh)], respectively (Fig. S1 in the SI). Weight losses of about 23%
were measured for both MOFs, which are attributed to the loss of 3DMF
(calc.: ~24%). The networks TMU-16-NH2 and TMU-16 are thermally
stable up to 320 and 360 °C, respectively, as evidenced by the fact that
no additional weight loss was observed at those temperatures, after
which the frameworks eventually decompose.
To characterize the possible catalytic behavior of TMU-16-NH2,
three component reaction of 1,3-dimethylbarbituric acid, benzaldehyde
and malononitrile, in the presence of TMU-16-NH2 in different solvents
was performed. It can be deduced from these results that higher yields
were achieved in polar protic solvents, whereas the reaction occurred
with difficulty in solvents with lower polarity (Table 1). Methanol and
ethanol are more polar than acetonitrile. As a result, the reaction effi-
ciency is higher in these solvents. However, the reactions under solvent-
free condition were slow. It should be pointed out that in the absence of
catalyst, the reaction was slow and even after prolonged reaction time,
considerable amounts of starting materials remained unreacted. Cata-
lytic activity of TMU-16-NH2 is as a result of -NH2 and azine groups in
its structure. The results of applying TMU-16 in three component re-
action of 1,3-dimethylbarbituric acid, benzaldehyde and malononitrile
approved this and indicate that the catalytic activity decreased in the
absence of -NH2 group (Table 2). TMU-16-NH2 unlike IRMOF-3, is
Entry
Catalyst
Yield (%)
1
2
3
TMU-16
TMU-16-NH2
–
40
98
0
Table 3
The reaction in the presence of TMU-16 and TMU-16-NH2.
Entry
Ar
Yield (%)
M.p. (°C)
Found
Reported
1
2
3
4
5
6
7
C6H5
98
84
86
100
90
216–218
221–223
231–233
214–216
198–200
202–204
204–206
219–220
225–226
235
217–219
200
4-MeO-C6H4
4-Br-C6H4
4-NO2-C6H4
4-Cl-C6H4
2-NO2-C6H4
3-NO2-C6H4
100
100
206
204–206
stable in water (Fig. 2a) and the reaction in the presence of TMU-16-
NH2 that was carried out in water, proceeded to 96% yield after 1 h. To
examine the general application of the catalyst (TMU-16-NH2), we ex-
tended the scope of the reaction to the synthesis of various Pyrano[2,3-
d]pyrimidines under the above-mentioned optimized conditions
(Table 3). These reactions proceeded smoothly and no undesirable side
reactions were observed. Both electron donating and withdrawing
groups on the phenyl ring were well tolerated affording the expected
products in good yields. Substrates with electron withdrawing sub-
stituents are more reactive in the reaction, because they are more re-
active toward nucleophilic attack. As a result, yield of the reaction in
the presence of them is higher. In addition, TMU-16-NH2 could be re-
used at least 5 runs without any loss in its activity (Fig. 3). So that
powder PXRD (Fig. 2) the FT-IR data (Fig. 4) data showed no changes in
its structure. Thus the integrity of the framework is confirmed.
In summary, two MOFs, Zn(NH2-BDC)(4-bpdh)]·2DMF (TMU-16-
Table 1
The one-pot three component reaction of benzaldehyde, malononitrile and 1,3-
dimethylbarbituric acid in different solvents.
Entry
Solvent
Yield (%)
1
2
3
4
5
6
7
EtOH
MeOH
H2O
n-Hexane
CH3CN
Toluene
–
96
85
98
4
42
16
10
Fig. 3. Recyclability of TMU-16-NH2 in the reaction.
82

S. Beheshti et al.
InorganicChemistryCommunications94(2018)80–84
of a brønsted acid framework and Lewis acid centers as a highly efficient hetero-
geneous catalyst for fixed-bed reactions, J. Am. Chem. Soc. 137 (2015) 4243–4248.
[11] F.X. Llabres i Xamena, J. Gascon, Towards Future MOF Catalytic Applications, in
Metal-organic Frameworks as Heterogeneous Catalysts, RCS Publishing, 2013, pp.
406–424.
[12] K. Singh, J. Singh, H. Singh, A synthetic entry into fused pyran derivatives through
carbon transfer reactions of 1,3-oxazinanes and oxazolidines with carbon nucleo-
philes, Tetrahedron 52 (1996) 14273–14280.
[13] L. Bonsignore, G. Loy, D. Secci, A. Calignano, Synthesis and pharmacological ac-
tivity of 2-oxo-(2H) 1-benzopyran-3-carboxamide derivatives, Eur. J. Med. Chem.
28 (1993) 517–520.
[14] G.R. Green, J.M. Evans, A.K. Vong, Comprehensive Heterocyclic Chemistry II,
Pergamon Press, Oxford, UK, 1995, pp. 469–500.
[15] C. Oliver Kappe, W.M.F. Fabian, M.A. Semones, Conformational analysis of 4-aryl-
dihydropyrimidine calcium channel modulators. A comparison of ab initio, semi-
empirical and X-ray crystallographic studies, Tetrahedron 53 (1997) 2803–2816.
[16] T.U. Mayer, T.M. Kapoor, S.J. Haggarty, R.W. King, S.L. Schreiber, T.J. Mitchison,
Small molecule inhibitor of mitotic spindle bipolarity identified in a phenotype-
based screen, Science 286 (1999) 971–974.
[17] G.J. Grover, S. Dzwonczyk, D.M. McMullen, D.E. Normandin, C.S. Parham,
P.G. Sleph, S. Moreland, Pharmacologic profile of the dihydropyrimidine calcium
channel blockers SQ 32,547 and SQ 32,926 [correction of SQ 32,946], J.
Cardiovasc. Pharmacol. 26 (1995) 289–294.
[18] C.O. Kappe, Biologically active dihydropyrimidones of the Biginelli-type — a lit-
erature survey, Eur. J. Med. Chem. 35 (2000) 1043–1052.
Fig. 4. FT-IR spectra of (a) as-synthesized TMU-16-NH2, (b) recovered TMU-16-
NH2 after five runs and (c) as-synthesized TMU-16.
[19] A.R. Bhat, R.S. Dongre, R.S. Selokar, Potent in vitro antibacterialand antifungal
activities of pyrano[2,3-d]pyrimidine derivatives with quantitative yield, Int. J.
Pharm. Bio Sci. 5 (2014) 422–430.
[20] J.A. Valderrama, P. Colonelli, D. Vásquez, M.F. González, J.A. Rodríguez,
C. Theoduloz, Studies on quinones. Part 44: novel angucyclinone N-heterocyclic
analogues endowed with antitumoral activity, Bioorg. Med. Chem. 16 (2008)
10172–10181.
[21] D. Heber, C. Heers, U. Ravens, Positive inotropic activity of 5-amino-6-cyano-1,3-
dimethyl-1,2,3,4-tetrahydropyrido[2,3-d]pyrim idine-2,4-dione in cardiac muscle
from guinea-pig and man. Part 6: compounds with positive inotropic activity,
Pharmazie 48 (1993) 537–541.
[22] S. Furuya, T. Ohtaki, Pyridopyrimidine derivatives, their production and use Eur.
Pat. Appl, EP (1994) 608,565.
[23] M.C. Bagley, D.D. Hughes, M.C. Lubinu, E.A. Merritt, P.H. Taylor,
N.C.O. Tomkinson, Microwave-assisted synthesis of pyrimidine libraries, QSAR
Comb. Sci. 23 (2004) 859–867.
NH2) and [Zn(BDC)(4-bpdh)]·2DMF (TMU-16), were used as hetero-
geneous catalysts. These two MOFs can be used as solid catalysts for
selective synthesis of Pyrano[2,3-d]pyrimidines. The reaction in the
presence of TMU-16-NH2 is faster because of basic –NH2 group in its
structure. No contribution from leached active species present in the
liquid phase was detected. The catalyst can be easily separated from the
reaction mixture by simple decantation, and can be reused several times
without a significant degradation in its activity, thus offering a route to
green chemistry transformations.
[24] J.M. Khurana, B. Nand, P. Saluja, 1,8-Diazabicyclo[5.4.0]undec-7-ene: a highly
efficient catalyst for one-pot synthesis of substituted tetrahydro-4H-chromenes,
tetrahydro[b]pyrans, pyrano[d]pyrimidines, and 4H-pyrans in aqueous medium, J.
Heterocyclic Chem. 51 (2014) 618–624.
Acknowledgements
Support of this investigation by Iran National Science Foundation
under grant number 93035544 is gratefully acknowledged. The authors
also would like to acknowledge the financial support of Tarbiat
Modares University and Iran University of Science and Technology for
supporting this investigation.
[25] M. Seifi, H. Sheibani, High surface area MgO as a highly effective heterogeneous
base catalyst for three-component synthesis of tetrahydrobenzopyran and 3,4-di-
hydropyrano[c]chromene derivatives in aqueous media, Catal. Lett. 126 (2008)
275–279.
[26] J.M. Khurana, K. Vij, Nickel nanoparticles as semiheterogeneous catalyst for one-
pot, three-component synthesis of 2-amino-4H-pyrans and pyran annulated het-
erocyclic moieties, Synth. Commun. 43 (2013) 2294–2304.
[27] A. Khazaei, A. Ranjbaran, F. Abbasi, M. Khazaei, A.R. Moosavi-Zare, Synthesis,
characterization and application of ZnFe2O4 nanoparticles as a heterogeneous di-
topic catalyst for the synthesis of pyrano[2,3-d] pyrimidines, RSC Adv. 5 (2015)
13643–13647.
[28] M.N. Elinson, F.V. Ryzhkov, V.M. Merkulova, A.I. Ilovaisky, G.I. Nikishin, Solvent-
free multicomponent assembling of aldehydes, N,N′-dialkyl barbiturates and mal-
ononitrile: fast and efficient approach to pyrano[2,3-d]pyrimidines, Heterocycl.
Commun. 20 (2014) 281–284.
[29] S.N. Maddila, S. Maddila, W.E. van Zyl, S.B. Jonnalagadda, Mn doped ZrO2 as a
green, efficient and reusable heterogeneous catalyst for the multicomponent
synthesis of pyrano[2,3-d]-pyrimidine derivatives, RSC Adv. 5 (2015)
37360–37366.
Appendix A. Supplementary material
Supplementary data to this article can be found online at https://
doi.org/10.1016/j.inoche.2018.06.002.
References
[1] J. Gascon, A. Corma, F. Kapteijn, F.X. Llabrés i Xamena, Metal-organic framework
catalysis: quo vadis? ACS Catal. 4 (2014) 361–378.
[30] I. Devi, B.S.D. Kumar, P.J. Bhuyan, A novel three-component one-pot synthesis of
pyrano[2,3-d]pyrimidines and pyrido[2,3-d]pyrimidines using microwave heating
in the solid state, Tetrahedron Lett. 44 (2003) 8307–8310.
[2] K. Sumida, D.L. Rogow, J.A. Mason, T.M. McDonald, E.D. Bloch, Z.R. Herm, T.-
H. Bae, J.R. Long, Carbon dioxide capture in metal–organic frameworks, Chem.
Rev. 112 (2012) 724–781.
[31] M.N. Elinson, A.I. Ilovaisky, V.M. Merkulova, T.A. Zaimovskaya, G.I. Nikishin,
Electrocatalytic multicomponent assembling of aldehydes, N-alkyl barbiturates and
malononitrile: an efficient approach to pyrano[2,3-d]pyrimidines, Mendeleev
Commun. 21 (2011) 122–124.
[32] S. Gholipour, A. Davoodnia, M. Nakhaei-Moghaddam, 12-Tungstophosphoric acid
(H3PW12O40): an efficient and reusable catalyst for one-pot synthesis of pyrano[2,3-
d]pyrimidines, Der Pharma Chemica 7 (2015) 368–372.
[33] V. Safarifard, S. Beheshti, A. Morsali, An interpenetrating amine-functionalized
metal–organic framework as an efficient and reusable catalyst for the selective
synthesis of tetrahydro-chromenes, CrystEngComm 17 (2015) 1680–1685.
[34] M.-H. Zeng, Z. Yin, Y.-X. Tan, W.-X. Zhang, Y.-P. He, M. Kurmoo, Nanoporous co-
balt(II) MOF exhibiting four magnetic ground states and changes in gas sorption
upon post-synthetic modification, J. Am. Chem. Soc. 136 (2014) 4680–4688.
[35] Z. Yin, Y.-L. Zhou, M.-H. Zeng, M. Kurmoo, The concept of mixed organic ligands in
metal–organic frameworks: design, tuning and functions, Dalton Trans. 44 (2015)
5258–5275.
[3] J.-R. Li, J. Sculley, H.-C. Zhou, Metal–organic frameworks for separations, Chem.
Rev. 112 (2012) 869–932.
[4] Z. Xiang, C. Fang, S. Leng, D. Cao, An amino group functionalized metal-organic
framework as a luminescent probe for highly selective sensing of Fe3+ ions, J.
Mater. Chem. A 2 (2014) 7662–7665.
[5] P. Horcajada, R. Gref, T. Baati, P.K. Allan, G. Maurin, P. Couvreur, G. Férey,
R.E. Morris, C. Serre, Metal–organic frameworks in biomedicine, Chem. Rev. 112
(2012) 1232–1268.
[6] L.E. Kreno, K. Leong, O.K. Farha, M. Allendorf, R.P. Van Duyne, J.T. Hupp,
Metal–organic framework materials as chemical sensors, Chem. Rev. 112 (2012)
1105–1125.
[7] D. Farrusseng, S. Aguado, C. Pinel, Metal–organic frameworks: opportunities for
catalysis, Angew. Chem. Int. Ed. 48 (2009) 7502–7513.
[8] A. Corma, H. García, F.X. Llabrés i Xamena, Engineering metal-organic frameworks
for heterogeneous catalysis, Chem. Rev. 110 (2010) 4606–4655.
[9] J. Lee, O.K. Farha, J. Roberts, K.A. Scheidt, S.T. Nguyen, J.T. Hupp, Metal-organic
framework materials as catalysts, Chem. Soc. Rev. 38 (2009) 1450–1459.
[10] B. Li, K. Leng, Y. Zhang, J.J. Dynes, J. Wang, Y. Hu, D. Ma, Z. Shi, L. Zhu, D. Zhang,
Y. Sun, M. Chrzanowski, S. Ma, Metal–organic framework based upon the synergy
[36] X.-L. Luo, Z. Yin, M.-H. Zeng, M. Kurmoo, The construction, structures, and func-
tions of pillared layer metal–organic frameworks, Inorg. Chem. Front. 3 (2016)
1208–1226.
83

S. Beheshti et al.
InorganicChemistryCommunications94(2018)80–84
[37] Z. Yin, S. Wan, J. Yang, M. Kurmoo, M.-H. Zeng, Recent advances in post-synthetic
modification of metal–organic frameworks: new types and tandem reactions, Coord.
Chem. Rev. (2017), http://dx.doi.org/10.1016/j.ccr.2017.11.015.
framework by an ultrasound-assisted synthesis method; precursor for the fabrica-
tion of zinc oxide octahedral nanostructures, Ultrason. Sonochem. 40 (2018)
921–928.
[38] V. Safarifard, A. Morsali, Influence of an amine group on the highly efficient re-
versible adsorption of iodine in two novel isoreticular interpenetrated pillared-layer
microporous metal–organic frameworks, CrystEngComm 16 (2014) 8660–8663.
[39] V. Safarifard, A. Morsali, Facile preparation of nanocubes zinc-based metal-organic
[40] P. van der Sluis, A.L. Spek, BYPASS: an effective method for the refinement of
crystal structures containing disordered solvent regions, Acta Cryst A46 (1990)
194–201.
84
