Kinetic and structural understanding of bulk and supported vanadium-based catalysts for furfural oxidation to maleic anhydride

Article abstract of DOI:10.1039/d1cy01060c

The kinetics of gas-phase furfural partial oxidation to maleic anhydride (MA) was studied over bulk vanadium-phosphorus-based catalysts obtained by aqueous (VPAq) and organic (VPOr) methods and compared to a supported V2O5/Al2O3 catalyst. The solids were characterized by N2 adsorption-desorption, XRD and UV-vis DRS. Results showed a higher specific surface area on VPOr compared with VPAq materials, with a well-defined (VO)2P2O7 crystalline structure. UV-vis analysis showed mainly V(v) on VPAq and an intermediate state between V(iv) and V(v) on VPOr. A detailed kinetic study demonstrated that furfural can be oxidized to MA or COx through parallel paths. At high oxygen partial pressures MA oxidation is inhibited on VPO catalysts but favored on V2O5/Al2O3. A Langmuir-Hinshelwood kinetic model with negligible site occupancy fits the experimental data with a 16% mean error. It also shows a higher apparent activation energy for furfural partial oxidation than for complete oxidation, highlighting the favored selectivity to maleic anhydride at higher temperatures on VPO catalysts.

Full text of DOI:10.1039/d1cy01060c

View Article Online
View Journal
Catalysis
Science &
Technology
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: O. Gomez-
Capiro, L. Bravo, P. Lagos, P. Santander, G. Pecchi and A. Karelovic, Catal. Sci. Technol., 2021, DOI:
10.1039/D1CY01060C.
Volume
Number
21 January 2017
Pages 313-534
7
2
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Catalysis
Science &
Technology
rsc.li/catalysis
Accepted Manuscripts are published online shortly after acceptance,
before technical editing, formatting and proof reading. Using this free
service, authors can make their results available to the community, in
citable form, before we publish the edited article. We will replace this
Accepted Manuscript with the edited and formatted Advance Article as
soon as it is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes to the
text and/or graphics, which may alter content. The journal’s standard
Terms & Conditions and the Ethical guidelines still apply. In no event
shall the Royal Society of Chemistry be held responsible for any errors
or omissions in this Accepted Manuscript or any consequences arising
from the use of any information it contains.
ISSN 2044-4761
PAPER
Chaoqiu Chen, Yong Qin et al.
Highly dispersed Pt nanoparticles supported on carbon
nanotubes produced by atomic layer deposition for hydrogen
generation from hydrolysis of ammonia borane
rsc.li/catalysis

Page 1 of 13
Catalysis Science & Technology
Please do not adjust margins
Catalysis Science & Technology
ARTICLE
View Article Online
DOI: 10.1039/D1CY01060C
Kinetic and structural understanding of bulk and supported
vanadium-based catalysts for furfural oxidation to maleic
anhydride†
Received 00th January 20xx,
Accepted 00th January 20xx
Oscar Gómez-Cápiroa,b, Luis Bravoa, Patricio Lagosa, Paola Santandera,b, Gina Pecchib,c, Alejandro
Karelovica,b,d
DOI: 10.1039/x0xx00000x
The kinetics of gas-phase furfural partial oxidation to maleic anhydride (MA) was studied over bulk vanadium-phosphorous-
based catalysts obtained by aqueous (VPAq) and organic (VPOr) methods and compared to a supported V2O5/Al2O3 catalyst.
The solids were characterized by N2 adsorption-desorption, XRD and UV-vis DRS. Results showed a higher specific surface
area on VPOr compared with VPAq materials, with a well-defined (VO)2P2O7 crystalline structure. UV-vis analysis showed
mainly V(V) on VPAq and an intermediate state between V(IV)-V(V) on VPOr. A detailed kinetic study demonstrated that
furfural can be oxidized to MA or COx through parallel paths. At high oxygen partial pressures MA oxidation is inhibited on
VPO catalysts but favored on V2O5/Al2O3. A Langmuir-Hinshelwood kinetic model with negligible sites occupancy fits the
experimental data with a 16% mean error. It also shows a higher apparent activation energy for furfural partial oxidation
than for complete oxidation highlighting the favored selectivity to maleic anhydride at higher temperatures on VPO catalysts.
through the so-called redox Mars-van Krevelen (MvK) mechanism 29
.
In this mechanism, the structure of the catalyst and the nature of the
Introduction.
30,31
support have a strong influence on the catalytic activity
.
Maleic Anhydride (MA) is used as raw material for the production of
resins, agrochemicals, and coatings 1,2. It is currently produced from
the partial oxidation of petrochemicals, mainly n-butane 3–5. The n-
butane partial oxidation has been extensively studied in terms of
reaction conditions
promotors and selectivity to maleic anhydride 11,12, and kinetics 13–16
According to their location in the solid, the O atoms have different
probabilities of reacting 32. However, the oxidation states of V are not
equally active, being V(IV) the most selective to the formation of MA
30. The oxidation state of the V phase is strongly affected by the
nature of the precursor, preparation method and thermal treatment
after the synthesis of the catalysts. Consequently, calcination
temperature and media (air, O2, N2, etc.) are parameters to be taken
into account during the synthesis 33,34. Additionally, it has been
reported that the nature of the solvent, aqueous or organic, has a
6,7
8–10
,
catalysts structure dependence
,
.
However, the possibility of obtaining MA by similar reactions from
17
furfural has been little investigated. The use of furfural obtained
18–20
from biomass
contributes to reducing the carbon footprint of
the products that use MA as raw material, hence it is a real possibility
to join biorefineries with current technologies in the chemical
industry. The furfural partial oxidation in the aqueous phase has
been studied always in batch process 21–25. However, continuous
processes are more efficient and have a better chance of becoming
commercially established 26. In this sense, furfural partial oxidation
in gas phase presents a clear advantage, which is not free of
obstacles. One of the main limitations of this alternative is the
formation of polymerization products under the normally used
strong influence on the crystalline structure obtained after the
8,35
activation of the catalyst
that define the activity and selectivity
towards MA 29,36,37. It has been also reported that, even though P do
not catalyse the MA formation 23, it improves the thermal resistance
of the solids 38 and limits the total oxidation of the surface V atoms,
maintaining the selectivity to MA 39. Several authors reported
(VO)2P2O7 phase as the most active to the selective partial furfural
oxidation towards MA 35,36,40, being detected by X-ray diffraction
(XRD), UV-vis diffuse reflectance spectroscopy, Raman spectroscopy,
reaction conditions (240°C-360°C) 27
.
among others 28,41
.
Catalysts based on vanadium are the most used for partial oxidation
of organic molecules, reported as supported and bulk catalysis 24,27,28
It has been reported that furfural partial oxidation reaction proceeds
Kinetic models of partial catalytic oxidation reactions over metal
transition oxides catalysts has been developed mostly for n-butane
as raw material 4,5,42,43. There is a consensus that the oxygen involved
in the reaction is provided by the support 10,15,27. In the case of
oxidation of n-butane to MA over partially reduced vanadyl
pyrophosphate catalysts, it has been reported that the catalyst
reoxidation step displays a reaction order of 0.55 with respect to the
oxygen pressure, in a range of 2.1 and 21 %vol. O2 and 345°C to
400°C, implying dissociative O2 adsorption under the experimental
conditions 44. On the other hand, Murthy and Rajamani studied
vanadium pentoxide catalysts for furfural partial oxidation to MA.
.
a. Carbon and Catalysis Laboratory (CarboCat), Department of Chemical
Engineering, University of Concepción, Concepción, Chile.
b. Millennium Nuclei on Catalytic Process towards Sustainable Chemistry (CSC),
Chile.
c. Physical Chemistry Department, Faculty of Chemical Sciences, University of
Concepción, Chile.
d. Unidad de Desarrollo Tecnológico (UDT), Universidad de Concepción, Chile.
* Corresponding author akarelov@udec.cl (A. Karelovic)
†Electronic Supplementary Information (ESI) available. See
DOI: 10.1039/x0xx00000x
This journal is © The Royal Society of Chemistry 2021
Catal. Sci. Technol., 2021, 00, 1-3 |1
Please do not adjust margins

Please do not adjust margins
Catalysis Science & Technology
Page 2 of 13
ARTICLE
Catalysis Science & Technology
They proposed a two-stage redox mechanism with a first reaction the method described previously 50. The obtained solids were dried
View Article Online
DOI: 10.1039/D1CY01060C
and calcined as described before. Both series, VPOr and VPAq
catalysts were ground to procure a particle size between 150 and 380
μm.
order to furfural and oxygen partial pressure, in the range 200-280°C
45. The same authors suggested the re-oxidation of the support as the
rate-determining step under the experimental conditions of the
study 46. Regarding supported VOX catalysts, Alonso-Fagundez et al.
report a Langmuir-Hinshelwood model with first-order reaction for
For a better comparison of the catalytic performance of the VPAq
and VPOr catalysts, a supported V2O5/γ-Al2O3 catalyst was also
both furfural and O2 based on experimental results 29
.
studied, as it is has been shown to be active for this reaction 27,29,31
.
We used a 21 wt.% V2O5/γ-Al2O3 (ca. 12 wt.% V) catalyst synthesized
in our last work 31. Briefly, the synthesis procedure was as follows: γ-
Al2O3 (Saint-Gobain Norpro SA 6173) was impregnated with NH4VO3
in presence of oxalic acid (oxalic acid/NH4VO3 molar ratio of 2) in
distilled water at 80°C under continuous stirring at 700 rpm. The
metavanadate was gradually added until a dark blue dissolution was
obtained and, once the oxalate-vanadium complex was formed, the
dissolution under agitation was cooled down to room temperature.
Finally, the dissolution was mixed with the support and dried under
vacuum in a rotary evaporator at 58°C for 2 h. The solid as obtained
was dried overnight at 105°C and calcined in static air at 500°C for 3
h using a heating rate of 10 °C/min.
In this work, we report the effect of the nature of the preparation
method (aqueous or organic) and the P/V molar ratio in the structure
of V-P-O catalysts to be used in the gas phase partial oxidation of
furfural to maleic anhydride. We performed a kinetic study varying
the residence time, temperature and PO2/Pfur feed ratio. A model
developed using a simplified Langmuir-Hinshelwood formalism
assuming O2 molecular dissociation and second O atom addition as
the rate determining steps for both total and selective oxidation,
fitted the experimental data with a mean error of 16.3%. We also
present the kinetic parameters obtained for V2O5/Al2O3 for
comparison, and show the higher activity of the latter catalyst, for
both selective and unselective paths, highlighting the suitability of
VPO catalysts at higher oxidizing conditions. Additionally, the
negligible coverage predicted by the model shows that the reactions
present apparent first-order kinetics.
Catalysts characterization
Adsorption-desorption of N2 at 77K was used to analyze the
morphological structure of the solids.
A Tristar II 3020
(Micromeritics) device was used. After degassing under vacuum at
200°C for 4 h, the samples were analyzed to get the adsorption and
desorption isotherms, following the suggestions of De Lange et al. for
sample preparation and analysis 51. The obtained data were
processed using the BET 52 model to estimate the specific surface and
Experimental.
Catalysts preparation.
53
the BJH method or the hydraulic radii using the Gurvitsch rule to
Catalysts were prepared using two methods, one based on aqueous
(VPAq) and the other on organic (VPOr) medium. It is well known that
both methods allow obtaining solids with marked structural and
morphological differences, whose influence, although studied in the
oxidation of n-butane, has not been studied in depth in the selective
oxidation of furfural. For the VPAq method 47, three catalysts with a
nominal P/V molar ratio of 0.43, 0.85, 1.0 were prepared. The most
validated selective phase for n-butane selective oxidation to MA is
the (VO)2P2O7 8,37,48, which has a P/V molar ratio of 1.0, however, as
this work deals with furfural instead of n-butane, we studied
different P/V molar ratios to determine its impact on selectivity to
MA. The procedure required 25 mL of distilled water heated at 60°C,
H3PO4 (99% purity, Merck) added according to the nominal P/V molar
ratio and 2.89 g of NH4VO3(s) (99% purity, Merck), as V source, mixed
slowly, while the solution was kept at 400 rpm for 2h. This method
was previous described by several authors 40,47. The dissolution was
concentrated by rota-evaporation for 6h and the precursor dried at
105°C for 8h. The calcination was performed in a tubular reactor
inside a cylindrical furnace at 500°C for 4h, with a heating rate of
2°C/min under a constant flow (40 mL/min) of N2 (99.999% purity,
Air Liquide).
obtain the pore volume 54,55. Elemental surface distribution of V and
P
was observed trough Scanning Electron Microscopy-Energy
Dispersive Spectroscopy technique using an EOL JSM-6610LV 6610LV
(BES detector) device at an acceleration voltage of 20 kV. Samples
were coated with a thin layer of gold for 30 s at 0.06 mbar using a
DENTON VACUUM apparatus. The crystalline structure was analyzed
by X-ray diffraction using a Bruker Endeavor D4 diffractometer with
CuKα radiation (λ=0.154059 nm) using 0.02°/step and 1 s/step
between 3° and 90°. Particle size and d-spacing were calculated
according to the Scherrer equation (Eq. 1) and Bragg correlation (Eq.
2), respectively:
퐾휆
퐿 = 훽푐표푠 (휃)
(1)
푛휆 = 2푑푠푖푛(휃)
(2)
Where L is the particle size (nm), K is a constant equal to 0.94 for all
solids, λ is the wavelength (nm), β is the full width at half-maximum
intensity (FWHM) (°), θ is the plane angle (°), n is the order of
reflection and d is the interplanar spacing (nm).
A Thermo Scientific Evolution 260 Bio spectrometer equipped with a
Spectralon-coated integrating sphere ISA 220 was used to perform
UV-vis diffuse reflectance spectroscopy (DRS). The spectra were
recorded in the range of 190 and 1100 nm using a Spectralon disc as
standard.
For the VPOr organic phase method 49, the same nominal P/V molar
ratios were used in isobutanol (14.1 mL) as the dissolution medium.
V2O5 (1.18 g) obtained by the calcination of NH4VO3(s) (99% purity,
Merck) was added with the appropriate amount of H3PO4 (99%
purity, Merck). The dissolution was kept in a reflux heating at 110°C
for 6h until a sky-blue color solid was obtained. The reaction products
were filtered and washed with isobutanol and acetone according to
Catalytic tests.
2 | Catal. Sci. Technol., 2021, 00, 1-3
This journal is © The Royal Society of Chemistry 2021
Please do not adjust margins

Page 3 of 13
Catalysis Science & Technology
Please do not adjust margins
Catalysis Science & Technology
ARTICLE
Catalysts were tested at three temperatures (280°C, 300°C and
320°C) in a tubular reactor heated by a furnace controlled by an
Omega CN7200 device and the gas flow was controlled by mass flow
controllers (Kofloc D8500). We used a 3/8” diameter stainless steel
reactor in which the catalysts was loaded sandwiched by quartz
wool. The catalyst (40 mg) was mixed with quartz sand (400 mg) in
order to prevent the formation of hotspots due to the exothermic
nature of oxidation reactions. Before each experiment, the catalysts
were activated using synthetic air at 350°C for 1h heating at
10°C/min. After that, the furfural/O2/N2 flow was introduced to the
Kinetic modeling of furfural partial oxidation.
View Article Online
DOI: 10.1039/D1CY01060C
The experimental data were used to fit a kinetic model to a simplified
reaction scheme, with partial oxidation of furfural towards MA (R. 1),
complete oxidation in a parallel reaction (R. 2) and subsequently the
total oxidation of MA (R. 3).
푘푝
퐶5퐻4푂2 +2푂2 퐶4퐻2푂3 + 퐻2푂 + 퐶푂2
(R. 1)
(R. 2)
푘푐
퐶5퐻4푂2 +5푂2 2퐻2푂 + 5퐶푂2
푘푐 푀퐴
퐶4퐻2푂3 +3푂2
system and the temperature descended to 320°C to start the
퐻2푂 + 5퐶푂2
(R. 3)
27
reaction at the highest temperature as suggest previous reports
.
Afterward, to check a deactivation process, the temperature was
decreased to 300°C, then to 280°C, and finally increased to 320°C.
Each temperature was maintained for 4 h. Furfural (Merck-Millipore)
was fed using a saturator kept at 30°C in a thermostated bath, with
the constant bubbling of 5 mL/min of N2 to reach a partial pressure
of 0.0804 kPa. The parameters, in the first round of experiments,
were: PO2/Pfur ratio=20 (Synthetic Air, Air Liquide), 2 mL/min of Ar
(99.999% purity, Air Liquide) as an internal reference, and N2
(99.999% purity, Air Liquide) to complete a total flow of 22 mL/min.
As a detector, a mass spectrometer device was used (Thermostar
Omnistar GSD 320). The furfural conversion was determined
according to equation 3 (Eq. 3). The equations 4 and 5 (Eq. 4 and Eq.
5) were used to calculate the yield (for MA and CO2) and the space-
time yield (STY) (for MA).
As will be shown in section 3.5, the total oxidation of MA (R.3) was
negligible for V-P-O catalysts, therefore the model was simplified to
two main reactions (R.1 and R.2). To these simplified models, a
Langmuir-Hinshelwood based model was studied. A 1-D pseudo-
homogeneous model was assumed for the fixed bed reactor (Eq. 6),
that was operated at integral conditions.
푑푃푖
=
푅푇푟푖
(6)
푑푊
푣
Where Pi is the partial pressure for compound i (kPa), W is the
catalyst bed mass (g), R is the universal gas constant (J mol-1 K-1), T is
the temperature (K), v is the volumetric flow rate of feed (ml min-1)
and r is the net reaction rate for the compound i (mol min-1 gcat-1).
The absence of mass transfer limitations was checked using the
recommended criteria (Section S1 of Supplementary Information).
An optimization method based on genetic algorithms, using the
optimization toolbox of Matlab®, was used to determine the model
parameters, by minimizing the error between the experimental and
calculated data. The objective function and method of calculation are
detailed in Section S3.
푃0푓푢푟 ― 푃푓푢푟
푥푓푢푟
=
100
(3)
푃0푓푢푟
푛푖
푎푖 푛0푓푢푟
푌푖 =
100
(4)
(5)
푆푇푌 = 푚푚
푀퐴
푐푎푡
Where xfur is the furfural conversion, P0fur is the initial partial pressure
of furfural, Pfur is the furfural partial pressure at the exhaust, Yi is the
yield of the product i, ṅi represent the molar flow of the product i in
the exhaust, ai represent the stoichiometric coefficient of product i
Results and Discussion.
Morphological and elemental characteristics.
(stoichiometric coefficient of furfural is one for all reactions), ṅ0
The VPAq and VPOr catalysts with different P/V molar ratios were
characterized using N2 adsorption-desorption isotherms at 77K
(Figure S1 in Supplementary Information). The isotherms were
classified as type II according to the IUPAC classification 56, typically
of solid with low porosity or macro-porosity. Figure 1 shows the
specific surface area as a function of the P/V molar ratio for the
synthesized catalysts, and Table S3 summarizes the specific surface
and the mean pore size values. It can be seen for VPOr and VPAq
fur
represent the initial molar flow of furfural, ṁMA is the MA mass flow
in the exhaust and mcat is the mass of the catalyst bed inside the
reactor.
Once the performance of the catalysts was established, the VPOr1.0
and the V2O5/γ-Al2O3 catalysts were used in further analysis to
perform a detailed kinetic study, changing the PO2/Pfur ratio,
residence time (W/F ratio) and reaction temperature. Therefore, the
PO2/Pfur ratios of 10, 20 and 40 were studied, and the W/F ratio was
changed keeping constant the amount of catalyst, using total flows
40
catalysts the same trend reported by Horowitz i.e., a decrease in
the surface area while increase the P/V molar ratio. Concerning the
of 10, 30, and 40 mL/min, in addition to the 22 mL/min previously effect of the preparation method, VPOr catalysts presented higher
mentioned. The reagents and reaction products were analyzed in-
line with a GC (SRI 8610C) with a capillary column (30m x 0.53mm
I.D. 1.0U MXT-WAX, Restek 70655-273) and three packed columns
(6' x 1/8" Molecular sieve 5A, 18" x 1/8" Hayesep D and 6' x 1/8"
Hayesep D). The system was equipped with a thermal conductivity
detector (TCD), a flame ionization detector (FID) and a FID detector
equipped with a methanizer.
surface area than VPAq, in all of the studied range of P/V molar ratio.
Although the specific surface area values are very low and may be
within the error range of the measuring device, the differences
between the two groups of catalysts are clear. Since all
measurements were performed on the same device under similar
environmental conditions, the differences between VPAq and VPOr
can be assumed as significant. The pore volume in the VPAq group
This journal is © The Royal Society of Chemistry 2021
Catal. Sci. Technol., 2021, 00, 1-3 | 3
Please do not adjust margins

Please do not adjust margins
Catalysis Science & Technology
Page 4 of 13
ARTICLE
Catalysis Science & Technology
Crystalline structure.
View Article Online
DOI: 10.1039/D1CY01060C
Figure 2 shows the X-ray diffraction patterns associated with the
crystalline structure of the synthesized catalysts. The observed
features correspond to phases previously described 35,57–59, and it is
observed that for higher P/V molar ratios VPOr catalysts display
notorious diffraction peaks, indicative of more crystalline structures.
On the contrary, VPAq catalysts are mainly amorphous. The differe-
Figure 1. The specific surface area as a function of the P/V molar ratio
for VPAq and VPOr (P/V=0.43, 0.85, 1.00). Data for V-P-O catalysts
reported by Horowitz 40 is included. The lines are added to show the
trend.
maintains the same tendency to decrease as the P/V ratio increases.
However, this morphological parameter in the VPOr group shows an
opposite behavior. On the other hand, the supported V2O5/Al2O3
catalyst presents high specific surface area (158 m2/g), whereas
showing a decrease of 30% of the initial γ-Al2O3 specific surface area
(227 m2/g) upon vanadium impregnation. The V2O5/Al2O3 and γ-Al2O3
isotherms and their pore size distribution are shown in Figure S1.
The elements distribution on the bulk catalysts surface were studied
using SEM-EDS mapping. Figure S2 show the screenshots
corresponding to each element founded in the catalysts. It is
observed an homogeneous distribution in all catalysts, which is
important to form V-P phases declared as active for organic
molecules oxidation 30. In addition, Table 1 show the elemental
composition determined by this technique. The V diminish as well
the P increase observed into each catalysts group correspond with
the changes expected according P/V molar ratio, although it may not
represent the elemental composition of every solid.
Table 1. Elemental composition of VPAq and VPOr catalysts obtained
by SEM-EDS analysis.
Elements (wt. %)
Catalyst
VPAq0.43
VPAq0.85
VPAq1.0
VPOr0.43
VPOr0.85
VPOr1.0
V
P
O
43.28
42.39
41.6
17.95
21.2
38.75
36.4
21.92
18.13
20.28
21.75
36.48
35.08
37.17
38.49
46.79
42.55
39.76
Figure 2. XRD patterns for (a) VPAq and (b) VPOr catalysts (P/V=0.43,
0.0.85, 1.00), and (c) V2O5/Al2O3 supported catalyst.
4 | Catal. Sci. Technol., 2021, 00, 1-3
This journal is © The Royal Society of Chemistry 2021
Please do not adjust margins

Page 5 of 13
Catalysis Science & Technology
Please do not adjust margins
Catalysis Science & Technology
ARTICLE
nce observed between both groups of catalysts coincide with
previous results reported by Batis et al. 57, who prepared V-P-O
catalysts by similar synthesis methods as used in this work. In the
latter group of catalysts, VPAq0.43 catalyst show significant diffraction
peaks (Fig. 2a) which correspond to VOPO4 compounds, mainly γ-
UV-vis DRS and band gap energy determination.
View Article Online
DOI: 10.1039/D1CY01060C
UV-vis DRS experiments were carried out for a better understanding
of the oxidation state of vanadium in the VPOr and VPAq catalysts
(Fig. S3). The maximum of the main peak is presented in Table 3.
Martin et al. reported a charge transfer transition band for V(IV) at
220 nm and the corresponding V(V) at 280 nm and 340-350 nm
VOPO4. In the case of VPAq0.85, the plane (040) is maintained, and a
70
.
57
new peak, attributed to γ-VOPO4 (plane (230)) was identified
.
The spectra indicate that the main peaks of the VPOr catalysts (243-
256 nm) are closer to 220 nm than the VPAq signals (260 to 280 nm).
Regarding VPOr catalysts (Fig. 2b), the main difference with respect
to the aqueous route of preparation is the appearance of (VO)2P2O7
signals coexisting with γ-VOPO4 in the case of VPOr0.43. The (VO)2P2O7
phase has been reported as the active catalytic phase for n-butane
partial oxidation specifically the plane (200) 8,37,48, which is not
detected in the VPAq catalysts. However, the evidence regarding the
activity of this phase is much more scarce 59. These authors achieved
high MA selectivities and yields, which is the focus of most studies in
the field to the detriment of elucidating the kinetics governing the
reaction.
This result is in line with XRD, which showed that (VO)2P2O7, with
V(IV) is the predominant crystalline phase in the VPOr catalysts. The
shift towards higher wavelength for VPOr indicates an amorphous
phase not identified by XRD with V(V) in its structure since the
influence of γ-VOPO4 (with V(V)) is negligible as P/V molar ratio
increases, as show in the XRD pattern for these catalysts (Fig. 2b).
Table 3. The wavelength of the main peak of DRS as a function of
the P/V molar ratio for the VPAq and VPO catalysts.
The crystallite size, consistent with the planes (200), (032) and (024),
corresponding to (VO)2P2O7, were calculated by Scherrer equation
and are shown in Table 2 for VPOr catalysts, together with the
changes in the d-spacing related with the P/V molar ratio. The P-
induced defects cause changes in the interplanar distance since the
d-spacing increases progressively with the P/V molar ratio on plane
(024) while it is still constant for plane (032). It has been reported d-
spacing dimensions of 0.387 nm, 0.314 nm, and 0.298 nm for the
planes (200), (024), and (032), respectively 37. The results show a
minimum in the planes (200) and (024) (0.371nm and 0.301 nm) for
P/V molar
ratio
VPAq Peak (nm)
VPOr Peak (nm)
0.43
0.85
1.00
280
275
260
243
256
252
The amorphous phase with V(V) is also evidenced for the VPAq
where the wavelength values shifted towards 280 nm. Wavelength
where the DRS maximum occurs (280 nm) for VPAq0.43 matches
exactly with literature reports for pure V(V) phases 70. This was to be
expected since this catalyst presents exclusively crystalline phases of
vanadium phosphates (β-VOPO4, δ-VOPO4 and γ-VOPO4). VPAq
catalysts with P/V≥0.85 display a larger amount of amorphous phase
with a large amount of V(V) species, but with presence of V(IV) as
well, since the wavelength values are lower than 280 nm. The phase
responsible for the decrease in the wavelength for the maximum in
the DRS of VPAq catalysts with P/V≥0.85 could be a disorganized no
crystalline structure of (VO)2P2O7, impossible to detect in XRD
VPOr0.85. This means that increasing P concentration affects
differently the (VO)2P2O7 crystallite formation, favoring the growth in
the direction of one plane over the others. Regarding the V2O5/Al2O3
pattern, only the peaks attributed to the crystalline V2O5 phase 60 and
the support 61 were detected (Fig. 2c).
These kind of patterns (Fig. 2a and 2b), with inhomogeneous line
broadening of the diffraction lines of a crystalline phase, should not
be analyzed with the Williamson-Hall methods because would
provide wrong results 62. Others authors use Scherrer equation to
estimate the crystallite size of V-P-O catalysts with similar XRD
patterns 63–69
.
analysis 57
.
Determination of the catalytic activity of VPAq and VPOr.
Table 2. Crystallite particle size calculated by Scherrer equation, and
d-spacing from Bragg correlation for different (VO)2P2O7 planes for
the VPOr catalysts.
The catalytic performance of VPAq and VPOr catalysts for the
oxidation of furfural, was studied in the range of 280°C and 320°C.

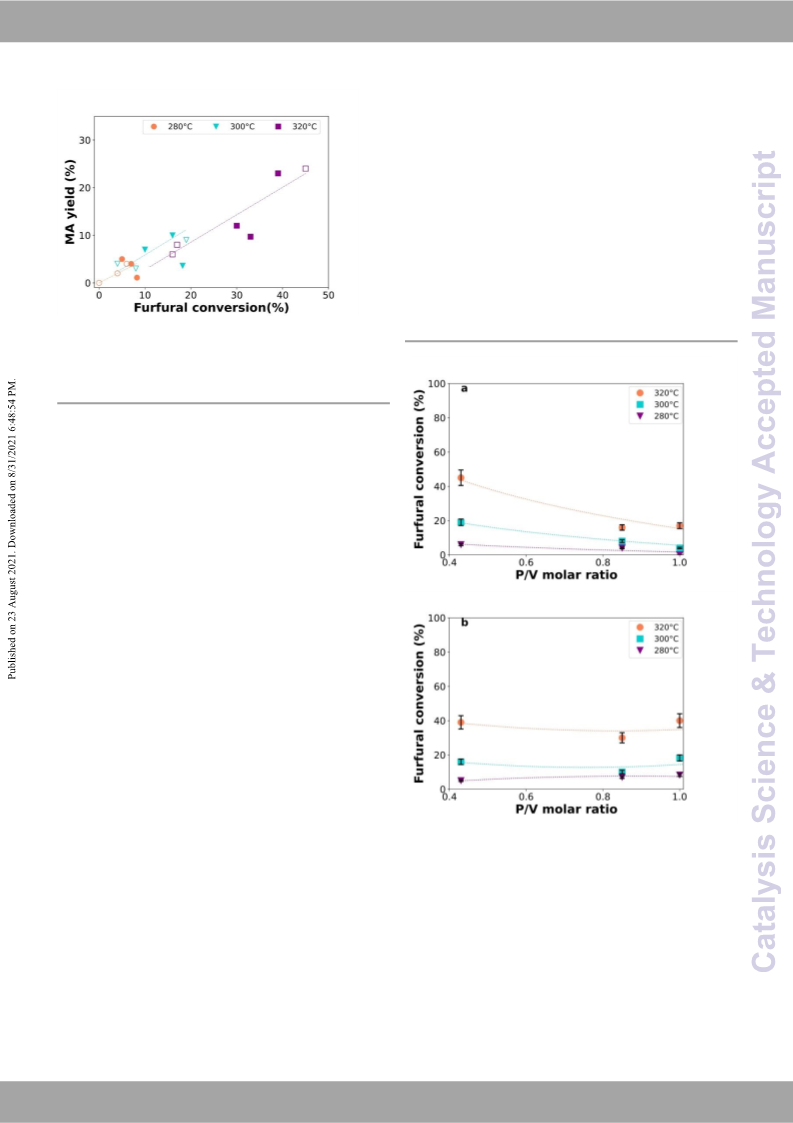

Figure 3 shows the MA yield as a function of the furfural conversion
over the VPAq and VPOr catalysts. As expected, the increase in the
reaction temperature produces an augmentation in the furfural
conversion. Thus, as more furfural is converted, MA yield
proportionally increases, with similar behavior regardless of the P/V
molar ratio or the catalyst preparation method. The continuous
increase in the MA yield with furfural conversion means that, even at
the highest conversion rates (30-40%), MA does not suffer significant
further oxidation reactions over the bulk catalysts. On the other
hand, Figure 4 shows that for VPAq catalysts a decrease in the furfu-
Particle size (nm) | d-spacing (nm)
P/V molar
ratio
Plane (200)
22.0 | 0.372
14.7 | 0.371
14.7 | 0.375
Plane (024)
17.9 | 0.302
8.9 | 0.301
8.9 | 0.307
Plane (032)
14.9 | 0.291
14.9 | 0.290
22.4 | 0.290
0.43
0.85
