Preparation and characterization of a series of thiourea derivatives as phase change materials for thermal energy storage

Article abstract of DOI:10.3906/kim-1008-3

A series of solid-liquid phase change materials, thiourea derivatives, were prepared via condensation of thiourea with the respective carboxyl chlorides (lauroyl chloride, myristoyl chloride, and palmitoyl chloride) and were then characterized by using FT-IR, ¹H-NMR, differential scanning calorimetry (DSC), and thermogravimetric (TG) analysis. The thiourea derivatives (1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl thiourea) were structurally symmetric and had long alkyl groups to crystallize. Thermal analysis by DSC and spectroscopic investigation by FT-IR spectroscopy were performed on the samples before and after thermal cycling tests to determine thermal reliability. The maximum latent heats of melting and freezing of the thiourea derivatives were found to be 114.6 and -110.0 J/g for 1,3-didodecanoyl thiourea, 119.5 and -122.4 J/g for 1,3-ditetradecanoyl thiourea, and 148.8 and -142.7 J/g for 1,3-dihexadecanoyl thiourea after accelerated thermal cycling. A TG instrument was used to determine the starting point of degradation in the thiourea derivatives; it was found that the thiourea derivatives degraded at sufficiently higher temperatures than the expected utility temperatures.

Full text of DOI:10.3906/kim-1008-3

Turk J Chem
35 (2011) , 769 – 777.
¨
˙
c
ꢀ TUBITAK
doi:10.3906/kim-1008-3
Preparation and characterization of a series of thiourea
derivatives as phase change materials for thermal energy
storage
Cemil ALKAN∗, Yusuf TEK, Derya KAHRAMAN
Gaziosmanpa¸sa University, Department of Chemistry, 60240, Tokat-TURKEY
e-mail: cemil.alkan@gop.edu.tr
Received: 02.08.2010
A series of solid-liquid phase change materials, thiourea derivatives, were prepared via condensation of
thiourea with the respective carboxyl chlorides (lauroyl chloride, myristoyl chloride, and palmitoyl chlo-
ride) and were then characterized by using FT-IR, 1 H-NMR, differential scanning calorimetry (DSC), and
thermogravimetric (TG) analysis. The thiourea derivatives (1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl
thiourea, and 1,3-dihexadecanoyl thiourea) were structurally symmetric and had long alkyl groups to crys-
tallize. Thermal analysis by DSC and spectroscopic investigation by FT-IR spectroscopy were performed
on the samples before and after thermal cycling tests to determine thermal reliability. The maximum latent
heats of melting and freezing of the thiourea derivatives were found to be 114.6 and –110.0 J/g for 1,3-
didodecanoyl thiourea, 119.5 and –122.4 J/g for 1,3-ditetradecanoyl thiourea, and 148.8 and –142.7 J/g for
1,3-dihexadecanoyl thiourea after accelerated thermal cycling. A TG instrument was used to determine the
starting point of degradation in the thiourea derivatives; it was found that the thiourea derivatives degraded
at sufficiently higher temperatures than the expected utility temperatures.
Key Words: Thiourea, phase change materials, thermal properties
Introduction
Thiourea, having a considerably wide range of applications, is a functional organic compound similar to urea,
except that the oxygen atom is replaced by a sulfur atom. The properties of urea and thiourea differ significantly
because of the difference in electronegativity between sulfur and oxygen. Thus, thiourea is a versatile reagent
∗Corresponding author
769

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
in organic synthesis. It is produced and consumed by the thousands of tons throughout the world every
year.1 The main application of thiourea is in textile processing.2 Moreover, thiourea reduces peroxides to the
corresponding diols.3 The reaction produces an unstable epidioxide as an intermediate, which can only be
identified at –100 ◦ C. Epidioxide is similar to epoxide except for 2 oxygen atoms. This intermediate is reduced
to diol by thiourea. Thiourea is also used in the reductive work-up of ozonolysis to give carbonyl compounds.4
Another effective reagent for this reaction is dimethyl sulfide, but it is highly volatile and has an obnoxious
odor, whereas thiourea is odorless and conveniently nonvolatile due to its polarity. In addition, thiourea is
commonly employed as a source of sulfide, e.g. for converting alkyl halides to thiols. Such reactions go on
through the intermediacy of isothiuronium salts.5 The reaction capitalizes on the high nucleophilicity of the
sulfur center and the hydrolytic instability of the isothiuronium salt. Thioureas are also used as building blocks
for pyrimidine derivatives. Thus, thioureas condense with β-dicarbonyl compounds.6 The amino group on
the thiourea initially condenses with a carbonyl, followed by cyclization and tautomerization. Desulfurization
delivers the pyrimidine. Similarly, aminothiazoles can be synthesized by the reaction of alpha-halo ketones
and thiourea.7 Recently, thiourea was also used for increasing technologies for plasma membrane proteomics8
and for direct enantioselective aldol reactions catalyzed by a proline-thiourea host-guest complex. 9,10 The
biological activities of complexes with thiourea derivatives have been successfully screened for various biological
actions, and some N -substituted-Nꢀ -carbonyl thioureas have been used in commercial fungicides.11,12 N ,N -
dialkyl-Nꢀ -benzoylthioureas have been found to be useful ligands for the potential determination of traces of
transition metals by means of normal phase chromatography.13 More significantly, these reagents have been
shown to selectively extract several of the platinum group metals in the form of remarkably stable neutral metal
chelates.14 N ,N -dialkyl-Nꢀ-benzoylthiourea derivatives with such properties and their metal complexes were
synthesized and their thermal behaviors were examined.15−18
Thermal energy storage materials can store thermal energy in the form of sensible heat and latent heat.
The use of latent heat storage by phase change materials (PCMs) has received considerable interest over the
past decades.19 Various materials (paraffins, fatty acids, polyethers, salt hydrates, etc.) and their mixtures
have been studied for latent heat storage applications.20 PCMs have many applications in solar energy storage,
waste heat recovery, smart air-conditioned buildings, temperature-adaptable greenhouses, electric appliances
with thermostatic regulators, energy-storing kitchen utensils, insulating clothing, and so on. The advantages of
PCMs in heat storage systems are their high latent heat of fusion per unit of mass, energy storage and release at
a nearly uniform temperature, small volume change for heat storage systems, and reasonable heat losses from the
system during the charging and discharging of heat.21,22 Fatty acids are PCMs with considerable heat storage
density and cheap prices.23 However, their thermal stability is poor and they sublimate during heating. They
also have a bad odor. To overcome these drawbacks and to obtain PCMs with desirable performances, a number
of fatty acid derivatives with high phase change heat storage capacities have been synthesized previously.24−28 In
our previous works, we produced esters, amides, and ureas to investigate their thermal energy storage properties,
and our studies in different materials are ongoing. The aim of the present study was to produce solid-liquid
PCMs based on thiourea derivatives. Amides are good ligands for metals and the thiourea derivatives produced
here could be further improved for energy storage properties by phase changing. The structural characterization
of the thiourea derivatives produced by reacting thiourea with fatty acid acyl chlorides was performed using FT-
IR and 1 H-NMR spectroscopy devices. In order to investigate the thermal properties, a differential scanning
770

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
calorimetry (DSC) instrument was used. The thermal endurance of the materials was determined using a
thermogravimetric (TG) analysis instrument.
Experimental
Materials
Thiourea, sulfurous oxychloride (SOCl2), and carbon tetrachloride were all obtained from Merck and used
without further purification. Lauric, myristic, and palmitic acids were also obtained from Merck and were
purified to remove trace water.
Synthesis of 1,3-dialkyloyl thioureas
Lauric, myristic, and palmitic acids were converted to their acyl chlorides in the presence of sulfurous oxychloride.
Each of the fatty acid chlorides was then reacted with thiourea by the dropwise addition of the corresponding
acyl chloride to a stoichiometric amount of thiourea (molar ratio of thiourea to acyl chloride, 1:2), mixing
thoroughly. The procedure was the same as in the synthesis of 1,3-dialkyloyl ureas.29 Its reaction path is given
in Figure 1.
Figure 1. Synthetic scheme for thiourea derivatives (X: 10, 12, and 14).
FT-IR spectroscopy investigation of the compounds was performed on KBr disks at a sample-to-KBr
ratio of 1:20 using a JASCO 430 FT-IR spectrophotometer (JASCO, Japan), while 1 H-NMR spectra in CDCl3
were recorded with an NMR device (AVANCE III, 400 MHz, Bruker, USA) with trimethylsilane as an internal
reference standard.
Thermal analysis of 1,3-dialkyloyl thioureas
Thermal properties of thiourea derivatives, such as the melting and crystallization points and latent heats, were
measured using a DSC instrument (DSC 131, Setaram, France). The analyses were carried out at a heating
rate of 5 ◦ C/min under a constant stream of argon at a flow rate of 60 mL/min. Reproducibility was tested by
conducting 3 measurements.
The thermal reliability of 1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl
thiourea was tested by heating a series of samples above the melting point 3000 times and cooling in a thermal
cycling instrument (BIOER-TC-25/H, Bioer Technology, China) using the experimental procedure from our
771

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
previous work.30 The changes in chemical structures and thermal properties of the thiourea derivatives after
the thermal cycling test were investigated by FT-IR and DSC spectroscopy measurements.
The thermal endurance of the 1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl
thiourea compounds was investigated with a TG analysis instrument (TGA7, PerkinElmer, USA), which was
calibrated with calcium oxalate. From each of the thiourea derivatives, 10-mg samples were used for the mea-
surements. The experiments were performed at a temperature range of 30-800 ◦ C with a heating rate of
10 ◦ C/min under a static air atmosphere.
Results and discussion
FT-IR spectroscopy analysis is one of most widely used techniques to prove synthesis and possible interactions
in organic compounds. FT-IR investigation is applied to thiourea derivatives for the determination of molecular
structure and to prove structural stability at the end of accelerated thermal cycling. Figure 2 shows the FT-IR
spectrum of lauric acid as a sample of used fatty acids (a), the FT-IR spectra of 1,3-didodecanoyl thiourea before
thermal cycling (b), and of 1,3-didodecanoyl thiourea after thermal cycling (c). In Figure 2, there are hydroxyl
absorption peaks between 3410 and 3550 cm−1 , which disappear in the synthesized products. Carboxylic
acid in fatty acids also forms a broad carbonyl band due to hydrogen bonding interactions between the ester
oxygen and acid hydrogen. The carbonyl peak shifts slightly and forms a single peak in the thiourea samples.
Carbonyl peaks observed at around 1698 cm−1 in the fatty acids’ spectra were observed at 1703, 1698, and
(a)
(b)
(c)
4000
3000
2000
1000
Wave Number (cm-1 )
Figure 2. FT-IR spectra of lauric acid (a), 1,3-didodecanoyl thiourea before thermal cycling (b), and 1,3-didodecanoyl
thiourea after thermal cycling (c), respectively.
772

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
1695 cm−1 for 1,3-didodecanoyl thiourea (a), 1,3-ditetradecanoyl thiourea (b), and 1,3-dihexadecanoyl thiourea
(c), respectively.
In amide structures, there are 2 resonances, so the NH stretching peak is observed to be very soft. The
carbonyl peak at around 1700 cm−1 in the synthesized compounds overlapped with the NH peak observed at
around 1610 cm−1 . The amide formation was also evidenced with an amide bending vibration at around 1500
cm−1
.
Symmetric and asymmetric stretching peaks of -CH2 - and CH3 between 2800 and 3000 cm−1 are
characteristic for both the fatty acids used and the thiourea compounds. These peaks deepened when the
number of C atoms increased.
The thiourea compounds were treated with heat before FT-IR measurements; in other words, they were
melted and solidified at least one time. Comparing the standard spectra of thiourea derivatives to the spectra of

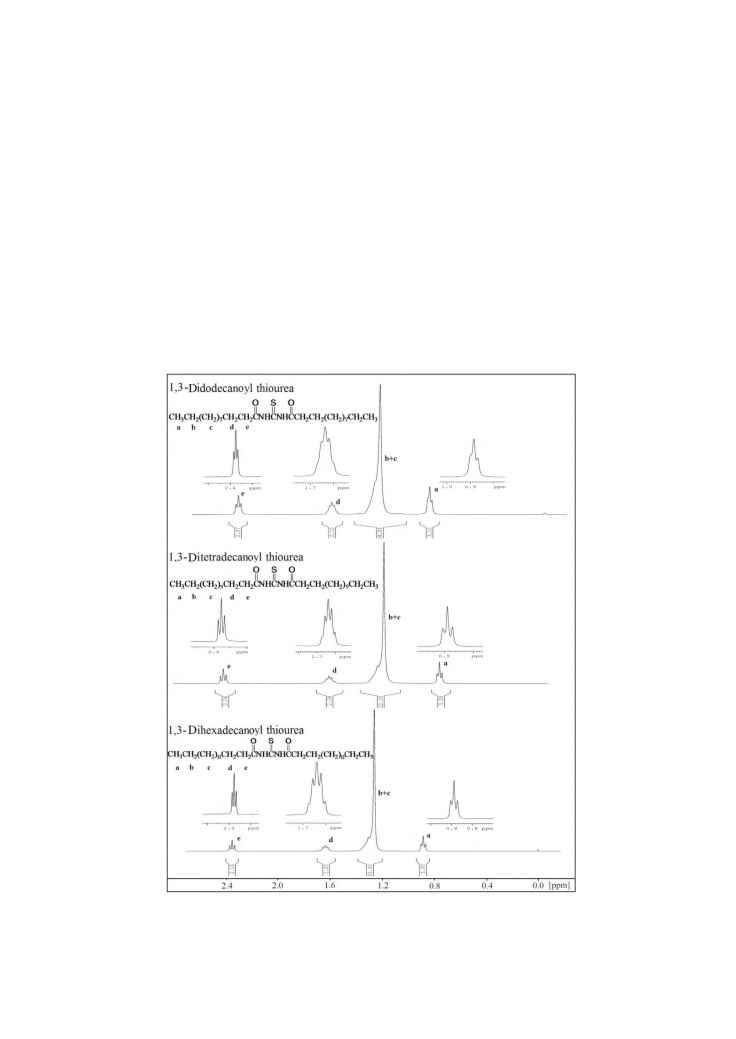

Figure 3. 1 H-NMR spectra of the thiourea derivatives.
773

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
thiourea derivatives after thermal cycling, it was found that there was no considerable alteration in the spectra
except for the CO2 absorption peak at 2300 cm−1 . CO2 could easily be absorbed by organic compounds from
the air.
1 H-NMR study
The 1 H-NMR spectra of the thiourea derivatives are shown in Figure 3, and the characteristic groups and the
peaks belonging to those groups are noted with small letters. It is seen that the CH2 peak intensities increased
in the order of 1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl thiourea. The
peaks all corresponded to chemical groups showing the high purity of the compounds. Upon considering the
integral values, it can be seen that the most intense peaks, at around 1.2 ppm, were due to CH2 groups with
integral values of 2 more hydrogen atoms than calculated, which can be explained by overlapping NH hydrogens
in that region. On the other hand, the OH hydrogen appearing after 10 ppm in the NMR spectra of fatty acids
disappeared in the synthesized compounds.
Thermal properties
As seen from the phase change enthalpy and melting temperature values and curves of the thiourea derivatives in
the Table and Figure 4, the phase change temperature of the thiourea derivatives increased with the increasing
C number in the paraffinic sides. The melting enthalpy values of the PCMs before thermal cycling were
measured as 116.3, 122.5, and 153.6 J/g for 1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-
dihexadecanoyl thiourea at the temperatures of 40.2, 44.7, and 51.7 ◦ C, respectively. The crystallization
enthalpies were –112.4, –126.7, and –150.6 J/g for 1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and
1,3-dihexadecanoyl thiourea at the temperatures of 42.5, 47.4, and 52.0 ◦ C, respectively. After thermal cycling,
the melting enthalpy values of the PCMs were measured as 114.6, 119.5, and 148.8 J/g for 1,3-didodecanoyl
thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl thiourea at the temperatures of 42.5, 49.3, and
56.7 ◦ C, respectively, and the crystallization enthalpies were measured as –110.0, –122.4, and –142.7 J/g for
1,3-didodecanoyl thiourea, 1,3-ditetradecanoyl thiourea, and 1,3-dihexadecanoyl thiourea at the temperatures
of 43.9, 49.2, and 54.1 ◦ C, respectively. Among the thiourea derivatives, 1,3-dihexadecanoyl thiourea showed
the maximum change in the temperatures and enthalpies of melting and crystallization, at 2.6 ◦ C and 6.1
J/g and within the percentages of 4.6% and 4.1% after thermal cycling, respectively. Single endothermic and
exothermic peaks showing the purity of the compounds were observed for each of the thiourea derivatives during
the heating and cooling periods, respectively. In addition, the resulting thiourea derivatives had a proper phase
change temperature over the range of 40.2-56.7 ◦ C.
The thermal energy storage performance of the thiourea derivatives is caused by the fact that the different
integrities of the crystals need different amounts of energy to transform from the solid to the liquid state.25,26
The integrity of the crystalline thiourea derivatives increased in succession with the increasing number of C
atoms due to the effect of the C–C chain length on crystallization. As a result, most of the prepared thiourea
derivatives, with proper melting temperatures and excellent heat storage densities, can meet the practical
demand of PCMs to store or release energy.
774

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
Table. The thermal properties of the fatty acids and thiourea derivatives before and after thermal cycling.
PCMs
Thermal energy storage properties
Tm (◦C) ΔHm (J/g) Tf (◦C) ΔHf (J/g)
Uncycled dodecanoic acid30
Uncycled ditetradecanoic acid30
Uncycled dihexadecanoic acid30
42.1
52.4
60.5
40.2
42.5
44.7
49.3
51.7
56.7
190.1
210.7
221.4
116.3
114.6
122.5
119.5
153.6
148.8
42.2
52.5
59.9
42.5
43.9
47.4
49.2
52.0
54.1
–194.2
–212.7
–226.6
–112.4
–110.0
–126.7
–122.4
–150.6
–142.7
1,3-didodecanoyl thiourea
1,3-didodecanoyl thiourea after 3000 cycles
1,3-ditetradecanoyl thiourea
1,3-ditetradecanoyl thiourea after 3000 cycles
1,3-dihexadecanoyl thiourea
1,3-dihexadecanoyl thiourea after 3000 cycles
1.4
-20
-10
0
10
20
30
40
50
60
70
78
19.46
30
40
50
60
70
80
90
100.5
Temperature (°C)
Figure 4. The phase change enthalpy and melting temperature curves of thiourea derivatives.
Figure 5 shows TG analysis curves of the thiourea derivatives belonging to homologous compounds
correspondingly. They were consistent in inherent properties and started to degrade above 170 ◦ C by 2-step
decomposition reactions. As is seen from the derivative TG analysis curves in Figure 5, the maximum rates of
degradation were at different temperatures and the second degradation step was indefinite. The onset points
for the starting point of the first degradation steps for 1,3-dodecanoylthiourea, 1,3-tetradecanoylthiourea, and
1,3-hexadecanoylthiourea were at 198, 220, and 228 ◦ C, respectively.
775

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.

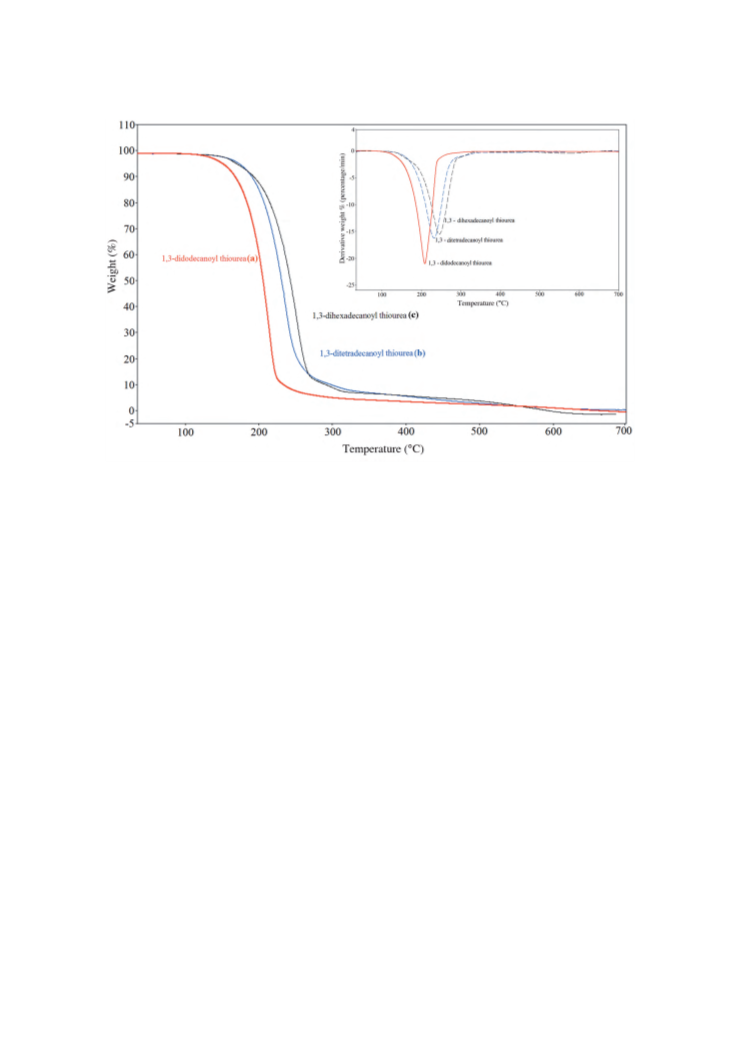

Figure 5. TGA curves of 1,3-dodecanoylthiourea (a), 1,3-tetradecanoylthiourea (b), and 1,3-hexadecanoylthiourea (c).
Conclusion
A series of thiourea derivatives were prepared by condensation of fatty acid acyl chlorides with thiourea, and
their chemical structures were confirmed by FT-IR and 1 H-NMR investigations. With the increasing C atoms
in the carboxylic counterpart, the phase change temperature and enthalpy of the thiourea derivatives increased.
Accelerated thermal cycling of the thiourea derivatives revealed the structural consistency and thermal
durability of the prepared products. In addition, the thermal stability of the compounds was tested by a TG
analysis device; it was found that the thiourea derivatives degraded in 2 distinguishable steps at considerably
higher temperatures than ambient temperature.
The thiourea derivatives, with proper melting temperatures and considerable heat storage densities, have
extensive potential in solar space heating and air conditioning systems, more so than most of the literature
materials. The resultant compounds furthermore have no acid hydrogens to cause corrosion or ligand properties
to be improved for thermal conductivity, i.e. the response time during utility. In this respect, further studies
are ongoing.
Acknowledgement
The authors are pleased to acknowledge the financial support provided by the Gaziosmanpa¸sa University
Scientific Research Committee (Project No: 2008/31).
776

Preparation and characterization of a series of thiourea derivatives..., C. ALKAN, et al.
References
1. Encyclopædia Britannica Online. Encyclopædia Britannica, 2011. Accessed 7 April 2011 at
http://www.britannica.com/EBchecked/topic/592308/thiourea.
2. Mertschenk, B.; Beck, F.; Bauer, W. Ullmann’s Encyclopedia of Industrial Chemistry, Wiley-VCH, Weinheim,
2002.
3. Kaneko, C.; Sugimoro, A.; Tanaka, S. Synthesis 1974, 12, 876-877.
4. Gupta, D.; Soman, G.; Dev, S. Tetrahedron 1982, 38, 3013-3018.
5. Speziale, A. J. Org. Synth. 1963, 4, 401.
6. Foster, H. M.; Snyder, H. R. Org. Synth. 1963, 4, 638.
7. Dodson, R. M.; King, L. C. J. Am. Chem. Soc. 1945, 67, 2242-2243.
8. Cordwell, S. C.; Thingholm, T. E. Proteomics 2010, 10, 611-627.
¨
9. Reis, O.; Eymur, S.; Reis, B.; Demir, A. S. Chem. Commun. 2009, 9, 1088-1090.
10. Eymur, S.; Demir A. S. Tetrahedron Asymmetr. 2010, 21, 405-409.
11. Blanz, E. J.; French, F. A. Cancer Res. 1966, 9, 585-589.
12. French, F. A.; Blantz, E. J.; Amaral, J. R. D.; French, D. A. J. Med. Chem. 1970, 13, 1117-1124.
13. K¨onig, K. H.; Schuster, M.; Schneeweiss, G.; Steinbrech, B. Z. Anal. Chem. 1984, 319, 66-69.
14. K¨onig, K. H.; Schuster, M.; Steinbrech, B.; Schneeweiss, R.; Schlodder, R. Z. Anal. Chem. 1985, 321, 457-460.
¨
¨
15. Ozpozan, N.; Ozpozan, T.; Arslan, H.; Karipcin, F.; Ku¨lcu¨, N. Thermochim. Acta 1999, 336, 97-103.
¨
¨
¨
16. Ozpozan, N.; Arslan, H.; Ozpozan, T.; Ozde¸s, N.; Ku¨lcu¨, N. Thermochim. Acta 2000, 343, 127-133.
¨
¨
17. Ozpozan, N.; Arslan, H.; Ozpozan, T.; Merdivan, M.; Ku¨lcu¨, N. J. Therm. Anal. Calorim. 2000, 61, 955-965.
18. Merdivan, M.; Aygu¨n, R. S.; Ku¨lcu¨, N. J. J. Therm. Anal. Calorim. 1997, 48, 1423-1429.
19. Demirba¸s, M. F. Energy Sources Part B 2006, 1, 85-95.
20. Kenisarin, M.; Mahkamov, K. Renew. Sust. Energ. Rev, 2007, 11, 1913-1965.
21. Farid, M. M.; Khudhair, A. M.; Razack, S. A. K.; Al-Hallaj, S. Energ. Convers. Manage. 2004, 45, 1597-1615.
22. Zalba, B.; Marin, J.; Cabeza, L. F.; Mehling, H. Appl. Therm. Eng. 2003, 23, 251-283.
23. Kaygusuz, K.; Sarı, A. Energy Sources Part A 2006, 28, 105-116.
24. Suppes, G. J.; Goff, M. J.; Lopes, S. Chem. Eng. Sci. 2003, 58, 1751-1763.
25. Li, W.; Ding, E. Mater. Lett. 2007, 61, 1526-1528.
26. Li, W.; Ding, E. Mater. Lett. 2007, 61, 4325-4328.
27. Alkan, C.; Kaya, K.; Sarı, A. Mater. Lett. 2008, 62, 1122-1125.
28. Canik, G.; Alkan, C. Sol. Energy 2010, 84, 666-672.
29. Tek, Y. MS Thesis. Gaziosmanpa¸sa University, Department of Chemistry, Tokat, 2009.
30. Alkan, C.; Sarı A. Sol. Energy 2008, 82, 118-124.
777

Copyright of Turkish Journal of Chemistry is the property of Scientific and Technical Research Council of
Turkey and its content may not be copied or emailed to multiple sites or posted to a listserv without the
copyright holder's express written permission. However, users may print, download, or email articles for
individual use.
