NEW PROCESS FOR SILICA COATING.

Article abstract of DOI:10.1149/1.2096198

Silica (SiO//2) film was deposited on the surface of soda lime silicate glass by immersing it in hydrofluosilicic acid (H//2SiF//6) solution supersaturated with silica gel at low temperature. The composition and the structure of these films were evaluated using ESCA, IRRS, fluoric acid etching test, and sodium leaching test, and they were compared with those of various silica films prepared by other methods. The results showed that these films made at low temperature had a dense structure and a great alkali barrier effect. By heat-treatment, the structure of this film became denser, getting close to that of fused silica. It was also found that the degree of supersaturation and the solution temperature had a great influence on the deposition rate.

Full text of DOI:10.1149/1.2096198

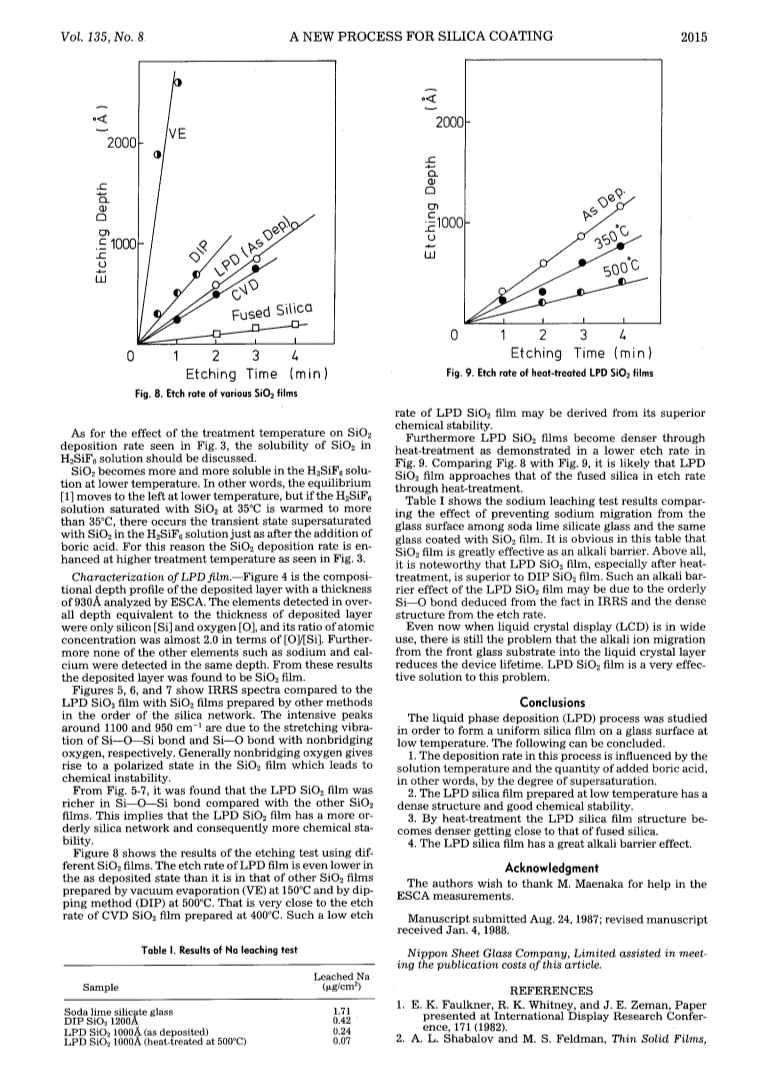

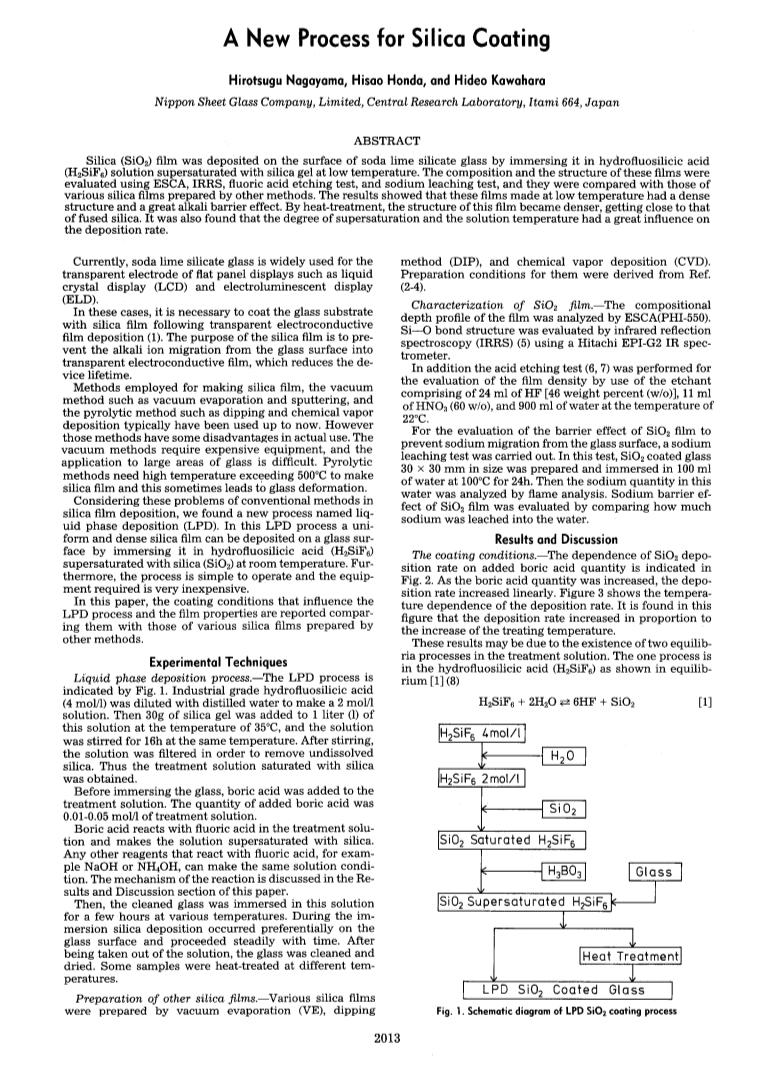

A New Process for Silica Coating
Hirotsugu Nagayama, Hisao Honda and Hideo Kawahara
J. Electrochem. Soc. 1988, Volume 135, Issue 8, Pages 2013-2016.
doi: 10.1149/1.2096198
Receive free email alerts when new articles cite this article - sign up
in the box at the top right corner of the article or click here
Email alerting
service
To subscribe to Journal of The Electrochemical Society go to:
http://jes.ecsdl.org/subscriptions
© 1988 ECS - The Electrochemical Society
