Heterocycl. Commun. 2016; aop
Xuwen Chen and Yunyun Liu*
Lactic acid-catalyzed fusion of ninhydrin and
enamines for the solvent-free synthesis of
hexahydroindeno[1,2-b]indole-9,10-diones
DOI 10.1515/hc-2016-0048
herein a solvent-free protocol for the facile synthesis of
products 3 by employing nontoxic and bio-available lactic
acid (LA) as catalyst.
Received April 7, 2016; accepted April 30, 2016
Abstract: The lactic acid-catalyzed reactions of ninhydrin
and secondary enaminones were conducted by solvent-
free grinding at room temperature to yield polycyclic
4b,9b-dihydroxy-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]
indole-9,10-diones.
Results and discussion
Keywords: enaminone; grinding; ninhydrin; polycyclic To start the exploration, the reaction of nihydrin (1) and
product; solvent-free.
secondary enaminone 2a was selected. An attempted
reaction of 1 and 2a in the absence of any catalyst did
not produce the desired product 3a. On the other hand,
compound 3a was produced in a 41% yield in the pres-
ence of a catalytic amount of acetic acid and the yield was
increased to 46% in the presence of a catalytic amount of
lactic acid. Under optimized condition the amount of lactic
acid was 50 mol% and this treatment furnished compound
3a in an 87% yield. After the optimization of the reaction
conditions, this solvent-free catalytic approach was then
employed for the efficient synthesis of a variety of other
ring-fused products 3b–j (Scheme 1) (See also Supplemen-
tal Material).
Introduction
The synthesis of polycyclic organic molecules with fused
heterocycles is of significant importance because of their
structural resemblance with natural products [1, 2]. 4b,9b-
Dihydroxy-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-
9,10-diones (3 in Scheme 1) are a class of heterocyclic
molecules with fused indeno[1,2-b]indole polycyclic struc-
ture which are known to possess various biological activi-
ties [3–7]. Therefore, synthesis of such fused heterocyclic
scaffolds has received significant attention in recent years.
Currently, the synthesis of compounds 3 is predominantly
accessed by the reaction of ninhydrin with amine deriva- Conclusions
tives of 1,3-dicarbonyl compounds [8] alkyl propiolates [9]
dialkyl acetylenedicarboxylates [10] or 1,1-bis(methylthio)- A solvent-free method for the synthesis of hexahydro-
2-nitroethene compounds [11]. Since a common feature of indeno[1,2-b]indole derivatives 3 via the reactions of
all these methods is the in situ generation of an enami- nihydrin and secondary enaminones was developed. The
none (or enamino ester) intermediate product, the direct environmentally benign feature of the method makes
application of enaminones as the reaction partners of it useful in the sustainable synthesis of these important
ninhydrin has also been developed [12]. Upon on our long- polycyclic scaffolds.
standing interest in developing environmentally benign
synthesis and enaminone chemistry [13–15] we report
Experimental
*Corresponding author: Yunyun Liu, College of Chemistry and
Secondary enaminones 2 were synthesized following the literature
Chemical Engineering, Jiangxi Normal University, Nanchang 330022, procedure [1] and other chemicals were obtained from commercial
1
P.R. China, e-mail: chemliuyunyun@jxnu.edu.cn
Xuwen Chen: College of Chemistry and Chemical Engineering,
Jiangxi Normal University, Nanchang 330022, P.R. China
sources and used directly without purification. H NMR (400 MHz)
and 13C NMR (100 MHz) spectra were recorded in DMSO-d6. Melting
points are not corrected.
Unauthenticated
Download Date | 5/31/16 11:26 AM

ꢀꢀꢀꢁ
2ꢀ ꢀX. Chen and Y. Liu: Solvent-free synthesis of hexahydroindeno[1,2-b]indole-9,10-diones
O
O
O
O
O
OH
Lactic acid
OH
OH
R2
R2
Grind,10 min, rt
R2
R2
HN
R1
HO
N
R1
1
2
3a–j
R1
R2
Product
Ph
PhCH2
H
Me
Me
Me
H
H
H
H
H
H
H
3a
3b
3c
3d
3e
3f
3g
3h
3i
Ph
4-MeC6H4
3-ClC6H4
PhCH2
i-Pr
HO(CH2)2
H
3j
Scheme 1ꢀSynthesis of indeno[1,2-b]indole derivatives 3a–j.
J ꢁ=ꢁ 8.0 Hz), 7.21–7.17 (m, 3 H), 6.68 (d, 1 H, J ꢁ=ꢁ 7.2 Hz), 5.96 (s, 1 H),
2.38 (s, 4 H), 2.14–1.95 (m, 3 H), 1.78 (d, 2 H, J ꢁ=ꢁ 4.8 Hz); 13C NMR: δ
197.6, 189.7, 164.8, 147.3, 137.4, 134.79, 134.71, 133.2, 130.1, 129.4, 129.2,
124.9, 123.2, 106.4, 96.3, 83.5, 37.1, 23.6, 21.7, 20.7. ESI-HR-MS. Calcd for
General procedure for the synthesis of indeno[1,2-b]
indoles 3a–j
A mixture of ninhydrin 1 (0.3 mmol), enaminone 2 (0.3 mmol) and
lactic acid (0.15 mmol) was thoroughly grounded using a pestle
and mortar at room temperature for 10 min. Then the mixture was
washed with saturated NaHCO3 solution and water, filtered, and the
crude product was crystallized from ethanol.
+
C22H19NNaO4 [M+Na] : m/z 384.1206. Found: m/z 384.1210.
5-(3-Chlorophenyl)-4b,9b-dihydroxy-4b,5,6,7,8,9b-hexahydro-
indeno[1,2-b]indole-9,10-dione (3f)ꢀWhite solid; yield 80%; mp
223–226°C; 1H NMR: δ 7.74 (d, 1 H, J ꢁ=ꢁ 7.2 Hz), 7.62–7.49 (m, 5 H), 7.34 (s, 1
H), 7.24 (d, 1 H, J ꢁ=ꢁ 6.8 Hz), 6.67 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 6.06 (s, 1 H), 2.46 (s,
1 H), 2.16–2.00 (m, 3 H), 1.82–1.77 (m, 2 H); 13C NMR: δ 197.9, 190.5, 164.8,
147.5, 138.1, 135.5, 135.2, 133.6, 130.9, 130.8, 129.5,128.6, 128.4, 125.2, 123.8,
107.7, 97.0, 83.9, 37.6, 24.0, 22.2. ESI-HRMS. Calcd for C21H16ClNNaO4
4b,9b-Dihydroxy-7,7-dimethyl-5-phenyl-4b,5,6,7,8,9b-hexa-
hydroindeno[1,2-b]indole-9,10-dione (3a)ꢀWhite solid; yield
87%; mp 210–212°C (lit. [11] mp 211–212°C); 1H NMR: δ 7.73 (d, 1 H, J ꢁ=ꢁ
6.8 Hz), 7.58–7.45 (m, 5 H), 7.30 (d, 2 H, J ꢁ=ꢁ 6.8 Hz), 7.26 (s, 1 H), 6.63
(d, 1 H, J ꢁ=ꢁ 6.4 Hz), 6.00 (brs, 1 H), 2.40 (d, 1 H, J ꢁ=ꢁ 17.2 Hz), 2.15 (d, 1
H, J ꢁ=ꢁ 15.6 Hz), 1.92 (d, 1 H, J ꢁ=ꢁ 15.6 Hz), 1.81 (d, 1 H, J ꢁ=ꢁ 17.2 Hz), 0.96
(s, 3 H), 0.89 (s, 3 H).
+
[M+Na] : m/z 404.0660. Found: m/z 404.0667.

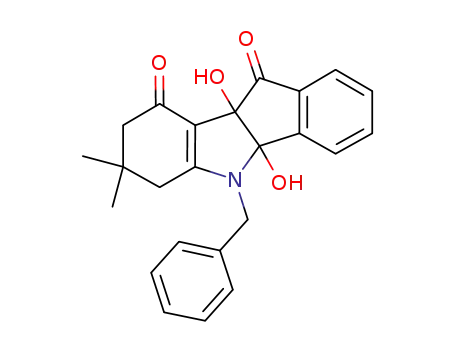

5-Benzyl-4b,9b-dihydroxy-4b,5,6,7,8,9b-hexahydroindeno[1,2-
b]indole-9,10-dione (3g)ꢀWhite solid; yield 86%; mp 207–208°C
1
(lit. [11] mp 209–210°C]; H NMR: δ 7.82 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.73–7.68
5-Benzyl-4b,9b-dihydroxy-7,7-dimethyl-4b,5,6,7,8,9b-hexa-
hydroindeno[1,2-b]indole-9,10-dione (3b)ꢀWhite solid; yield
82%; mp 186–188°C (lit. [11] mp 188–189°C); 1H NMR: δ 7.78 (d, 1 H, J ꢁ=ꢁ
7.6 Hz), 7.73–7.66 (m, 2 H), 7.56 (t, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.32–7.22 (m, 5 H), 7.01
(brs, 1 H), 5.96 (brs, 1 H), 5.13 (d, 1 H, J ꢁ=ꢁ 16.8 Hz), 4.83 (d, 1 H, J ꢁ=ꢁ 16.8
Hz), 2.08–1.92 (m, 4 H), 0.84 (s, 3 H), 0.70 (s, 3 H).
(m, 2 H), 7.57 (t, 1 H, J ꢁ=ꢁ 7.2 Hz), 7.33–7.24 (m, 5 H), 6.93 (s, 1 H), 5.79 (s,
1 H), 5.13 (d, 1 H, J ꢁ=ꢁ 16.8 Hz), 4.82 (d, 1 H, J ꢁ=ꢁ 16.8 Hz), 2.22–2.14 (m, 1
H), 2.03–1.96 (m, 3 H), 1.72–1.55 (m, 2 H).
4b,9b-Dihydroxy-5-isopropyl-4b,5,6,7,8,9b-hexahydroindeno
[1,2-b]indole-9,10-dione (3h)ꢀWhite solid; yield 76%; mp 206–
1
208°C (lit. [11] 205°C); H NMR: δ 7.95 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.80 (t, 1 H,
4b,9b-Dihydroxy-7,7-dimethyl-4b,5,6,7,8,9b-hexahydro-
indeno[1,2-b]indole-9,10-dione (3c)ꢀWhite solid; yield 77%; mp
226–228°C (lit. [11] mp 229–230°C); 1H NMR: δ 9.04 (s, 1 H), 7.79 (d, 2 H,
J ꢁ=ꢁ 3.6 Hz), 7.65 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.55–7.52 (m, 1 H), 6.47 (s, 1 H), 5.49
(s, 1 H), 2.21 (d, 1 H, J ꢁ=ꢁ 17.2 Hz), 2.09 (d, 1 H, J ꢁ=ꢁ 17.2 Hz), 1.97–1.87 (m,
2 H), 1.01 (s, 3 H), 0.80 (s, 3 H).
J ꢁ=ꢁ 7.2 Hz), 7.70 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.58 (t, 1 H, J ꢁ=ꢁ 7.6 Hz), 6.75 (s, 1 H),
5.69 (s, 1 H), 4.63–4.56 (m, 1 H), 2.71–2.67 (m, 1 H), 2.51–2.45 (m, 1 H),
2.04 (s, 2 H), 1.83–1.74 (m, 2 H), 1.45 (d, 3 H, J ꢁ=ꢁ 6.4 Hz), 1.24 (d, 3 H,
J ꢁ=ꢁ 6.4 Hz).
4b,9b-Dihydroxy-5-(2-hydroxyethyl)-4b,5,6,7,8,9b-hexahydro-
indeno[1,2-b]indole-9,10-dione (3i)ꢀWhite solid; yield 77%; mp
208–209°C (lit. [11] mp 209–210°C); 1H NMR: δ 7.93 (d, 1 H, J ꢁ=ꢁ 7.2 Hz),
7.79 (t, 1 H, J ꢁ=ꢁ 7.2 Hz), 7.70 (d, 1 H, J ꢁ=ꢁ 7.6 Hz), 7.58 (t, 1 H, J ꢁ=ꢁ 7.2 Hz),
6.68 (s, 1 H), 5.64 (s, 1 H), 4.93 (s, 1 H), 3.81–3.78 (m, 1 H), 3.62 (s, 3 H),
2.61–2.35 (m, 2 H), 2.04 (s, 2 H), 1.84–1.67 (m, 2 H).
4b,9b-Dihydroxy-5-phenyl-4b,5,6,7,8,9b-hexahydroindeno[1,2-
b]indole-9,10-dione (3d)ꢀPale yellow solid; yield 85%; mp 209–
211°C (lit. [11] mp 212°C); 1H NMR: δ 7.73 (d, 1 H, J ꢁ=ꢁ 6.8 Hz), 7.56–7.48
(m, 5 H), 7.33–7.28 (m, 3 H), 6.62 (d, 1 H, J ꢁ=ꢁ 7.2 Hz), 6.02 (s, 1 H), 2.47–
2.39 (m, 1 H), 2.16–1.96 (m, 3 H), 1.81–1.77 (m, 2 H).
4b,9b-Dihydroxy-5-(p-tolyl)-4b,5,6,7,8,9b-hexahydroindeno[1,2- 4b,9b-Dihydroxy-4b,5,6,7,8,9b-hexahydroindeno[1,2-b]indole-
b]indole-9,10-dione (3e)ꢀWhite solid; yield 84%; mp; 228–231°C; 9,10-dione (3j)ꢀWhite solid; yield 84%; mp 235–236°C (lit. [11] mp
1H NMR: δ 7.72 (d, 1 H, J ꢁ=ꢁ 7.2 Hz), 7.58–7.51 (m, 2 H), 7.29 (d, 2 H, 237–238°C); 1H NMR: δ 9.16 (s, 1 H ), 7.81 (s, 1 H), 7.67 (d, 1 H, J ꢁ=ꢁ 7.6 Hz),
Unauthenticated
Download Date | 5/31/16 11:26 AM

ꢁꢀꢀꢀ
ꢂ3
X. Chen and Y. Liu: Solvent-free synthesis of hexahydroindeno[1,2-b]indole-9,10-dionesꢂ
7.56 (m, 1 H), 6.53 (s, 1 H), 5.56 (s, 1 H), 2.40 (m, 1 H), 2.24–2.19 (m, 1 H),
2.02 (m, 2 H), 1.82–1.68 (m, 2 H).
[7] Gozzi, G. J.; Bouaziz, Z.; Winter, E.; Daflon-Yunes, N.;
Aichele, D.; Nacereddine, A.; Marminon, C.; Valdameri, G.;
Zeinyeh, W.; Bollacke, A.; et al. Converting potent indeno[1,2-b]
indole inhibitors of protein kinase CK2 into selective inhibitors
of the breast cancer resistance protein ABCG2. J. Med. Chem.
2015, 58, 265–277, and references cited therein.
Acknowledgments: This work was financially supported
by the Natural and Science Foundation of Jiangxi Province
(20142BAB213007).
[8] Rostami-Charati, F. Efficient synthesis of functionalized
hydroindoles via catalyst-free multicomponent reactions of
ninhydrin in water. Chin. Chem. Lett. 2014, 25, 169–171.
[9] Azizian, J.; Hatamjafari, F.; Karimi, A. R.; Shaabanzadeh, M.
Multi-component reaction of amines, alkyl propiolates, and
ninhydrin: an efficient protocol for the synthesis of tetrahydro-
dihydroxy-oxoindeno[1,2-b]pyrrole derivatives. Synthesis
2006, 37, 765–767.
[10] Yavari, I.; Seyfi, S.; Nematpour, M.; Hossaini, Z. Synthesis of
functionalized tetrahydro-4-oxoindeno[1,2-b]pyrroles from
ninhydrin, acetylenedicarboxylates, and primary amines. Helv.
Chim. Acta 2010, 93, 1413–1417.
[11] Hemmerling, H.-J.; Reiss, G. Partially saturated indeno[1,2-
b]indole derivatives via deoxygenation of heterocyclic
α-hydroxy-N, O-hemiaminals. Synthesis 2009, 40, 985–999.
[12] Muthusaravanan, S.; Sasikumar, C.; Bala, B. D.; Perumal, S. An
eco-friendly three-component regio- and stereoselective syn-
thesis of highly functionalized dihydroindeno[1,2-b]pyrroles
under grinding. Green Chem. 2014, 16, 1297–1304.
[13] Wan, J.-P.; Lin, Y.; Hu, K.; Liu, Y. Metal-free synthesis of
1,3,5-trisubstituted benzenes by the cyclotrimerization
of enaminones or alkynes in water. RSC Adv. 2014, 4,
20499–20505.
References
[1] Ulaczyk-Lesanko, A.; Hall, D. G. Wanted: new multicomponent
reactions for generating libraries of polycyclic natural products.
Curr. Opin. Chem. Biol. 2005, 9, 266–276.
[2] Heald, R. A.; Modi, C.; Cookson, J. C.; Hutchinsion, I.; Laughton,
C. A.; Gowan, S. M.; Kelland, L. R.; Stevens, M. F. G. Antitumor
polycyclic acridines. 8. Synthesis and telomerase-inhibitory
activity of methylated pentacyclic acridinium salts. J. Med.
Chem. 2002, 45, 590–597.
[3] Butera, J. A.; Antane, S. A.; Hirth, B.; Lennox, J. R.; Sheldon,
J. H.; Norton, N. W.; Warga, D.; Argentieri, T. M. Synthesis
and potassium channel opening activity of substituted
10H-benzo[4,5]furo[3,2-b]indole- and 5,10-dihydroindeno[1,2-
b] indole-1-carboxylic acids. Bioorg. Med. Chem. Lett. 2001, 11,
2093–2097.
[4] Lobo, G.; Monasterios, M.; Rodrigues, J.; Camboa, N.;
Capparelli, M. V.; Martínez-Cuevas, J.; Lein, M.; Jung, K.;
Abramjuk, C.; Charris, J. Synthesis, crystal structure and effect
of indeno[1,2-b]indole derivatives on prostate cancer invitro.
Potential effect against MMP-9. Eur. J. Med. Chem. 2015, 96,
281–295.
[5] Brown, D. W.; Graupner, P. R.; Sainsbury, M.; Shertzer, H. G. New
antioxidants incorporating indole and indoline chromophores.
Tetrahedron 1991, 47, 4383–4408.
[14] Liu, Y.; Wang, H.; Wang, C.; Wan, J.-P.; Wen, C. Bio-based green
solvent mediated disulfide synthesis via thiol couplings free of
catalyst and additive. RSC Adv. 2013, 3, 21369–21372.
[15] Huang, M.; Zhong, S.; Xu, M.; Liu, Y. Synthesis of α-hydroxyl
amides via direct amidation of lactic acid at solvent and
catalyst-free conditions. J. Chem. Res. 2015, 39, 274–276.
[6] Hundsdörfer, C.; Hemmerling, H.-J.; Götz, C.; Totzke, F.;
Bednarski, P.; Le Borgne, M.; Jose, J. Indeno[1,2-b]indole deriva-
tives as a novel class of potent human protein kinase CK2 inhibi-
tors. Bioorg. Med. Chem. 2012, 20, 2282–2289.
Supplemental Material: The online version of this article
(DOI: 10.1515/hc-2016-0048) offers supplementary material,
available to authorized users.
Unauthenticated
Download Date | 5/31/16 11:26 AM
