In situ barrier formation using rapid thermal annealing of a tungsten nitride/polycrystalline silicon structure

Article abstract of DOI:10.1063/1.126401

This letter describes the use of rapid thermal annealing (RTA) to form a barrier layer applicable to the gate electrode in dynamic random access memory devices with a stacked structure [tungsten nitride (WN_x)/polycrystalline Si (poly-Si)]. After RTA, the reactively sputtered amorphous WN_x film on the poly-Si was transformed to a low-resistive α-phase W and nitrogen-segregated layer. Most of the nitrogen in the WN_x film was dissipated and a relatively small amount of the nitrogen was segregated at the interface of the α-phase W and poly-Si. The segregated layer was estimated to be 2 nm thick and revealed a silicon nitride (Si-N) bonding status. More importantly, we found that this thin segregated layer successfully protected the formation of tungsten silicide, even after RTA at 1000°C for 2 min in a hydrogen environment.

Full text of DOI:10.1063/1.126401

In situ barrier formation using rapid thermal annealing of a tungsten
nitride/polycrystalline silicon structure
Byung Hak Lee, Kee Sun Lee, Dong Kyun Sohn, Jeong Soo Byun, Chang Hee Han, Ji-Soo Park, Sang Beom
Han, and Jin Woon Park
Citation: Applied Physics Letters 76, 2538 (2000); doi: 10.1063/1.126401
View online: http://dx.doi.org/10.1063/1.126401
View Table of Contents: http://scitation.aip.org/content/aip/journal/apl/76/18?ver=pdfcov
Published by the AIP Publishing
Articles you may be interested in
Dopant activation and ultralow resistance ohmic contacts to Si-ion-implanted GaN using pressurized rapid
thermal annealing
Appl. Phys. Lett. 85, 5254 (2004); 10.1063/1.1828237
Effect of NH 3 thermal treatment on an atomic layer deposited on tungsten films and formation of W–B–N
J. Vac. Sci. Technol. B 21, 1466 (2003); 10.1116/1.1585064
Study of boron effects on the reaction of Co and Si 1−x Ge x at various temperatures
J. Vac. Sci. Technol. A 18, 1448 (2000); 10.1116/1.582368
An optimal quasisuperlattice design to further improve thermal stability of tantalum nitride diffusion barriers
Appl. Phys. Lett. 76, 2895 (2000); 10.1063/1.126509
Nitridation of fine grain chemical vapor deposited tungsten film as diffusion barrier for aluminum metallization
J. Appl. Phys. 81, 3670 (1997); 10.1063/1.365488
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
142.104.240.194 On: Tue, 16 Dec 2014 16:29:59

APPLIED PHYSICS LETTERS
VOLUME 76, NUMBER 18
1 MAY 2000
In situ barrier formation using rapid thermal annealing of a tungsten
nitrideÕpolycrystalline silicon structure
a)
b)
c)
d)
Byung Hak Lee, Kee Sun Lee, Dong Kyun Sohn, Jeong Soo Byun,
Chang Hee Han, Ji-Soo Park, Sang Beom Han, and Jin Woon Park
R&D Division, Hundai MicroElectronics Company Ltd., 1 Hyangjeong-dong, Cheongju-si 361-480, Korea
͑
Received 16 February 1999; accepted for publication 10 March 2000͒
This letter describes the use of rapid thermal annealing ͑RTA͒ to form a barrier layer applicable to
the gate electrode in dynamic random access memory devices with a stacked structure ͓tungsten
nitride (WN )/polycrystalline Si ͑poly-Si͔͒. After RTA, the reactively sputtered amorphous WN
x
x
film on the poly-Si was transformed to a low-resistive ␣-phase W and nitrogen-segregated layer.
Most of the nitrogen in the WN film was dissipated and a relatively small amount of the nitrogen
x
was segregated at the interface of the ␣-phase W and poly-Si. The segregated layer was estimated
to be 2 nm thick and revealed a silicon nitride ͑Si–N͒ bonding status. More importantly, we found
that this thin segregated layer successfully protected the formation of tungsten silicide, even after
RTA at 1000 °C for 2 min in a hydrogen environment. © 2000 American Institute of Physics.
͓
S0003-6951͑00͒03418-5͔
As ultra-large-scale integrated circuit devices are scaled
down to a deep submicron regime, the gate resistance/
capacitance time delay limits the speed of metal–oxide–
semiconductor devices. To reduce this delay, a gate structure
with a low-resistive material has been widely investigated.1
A stacked gate structure, tungsten ͑W͒/barrier/polycrystalline
Si ͑poly-Si͒, is considered to be a promising candidate to
Therefore, a highly reliable diffusion barrier layer is essential
between W and poly-Si.
In this study, we propose a method of forming a barrier
layer for the W/poly-Si gate structure with a WN film on
x
–3
poly-Si by rapid thermal annealing ͑RTA͒. To make the
sample structure, the WN film ͑100 nm͒ was reactively
x
sputtered on a doped poly-Si film that had been cleaned by
HF. Then, RTA was performed at temperatures ranging from
600 to 1000 °C under nitrogen atmosphere for 1 min. Ruth-
erford backscattering spectroscopy was employed to quantify
the composition of the WNx film, and secondary ion mass
spectroscopy ͑SIMS͒ was used for compositional analysis.
Electrical resistivity was evaluated using a four-point-probe
method was phase identification was carried out using ⌰–2⌰
x-ray diffraction with a scan rate of 0.2°/min. Also, the mi-
crostructure and chemical status at the interface of W and
poly-Si were analyzed by transmission electron microscopy
replace the tungsten silicide (WSi ) or a self-aligned silicide
x
͑
salicide͒ gate, due to its low electrical resistance and high
4
,5
resistance against agglomeration during annealing. For ex-
ample, the sheet resistance of the gate structure of
W͑100 nm͒/WN (5 nm)/poly-Si͑100 nm͒ was estimated to
x
be 1.5 ⍀/sq, which is lower by one order of magnitude com-
pared with that of the conventional gate structure of
WSi (100 nm)/poly-Si͑100 nm͒. Moreover, this low sheet
x
resistance was able to reserve even at a narrow gate line-
6
width of 0.12 ␮m.
͑TEM͒ and x-ray photoelectron spectroscopy ͑XPS͒.
Because direct contact of W to poly-Si results in the
Figure 1 shows the variation of the resistivity and the
formation of WSi during annealing at temperatures above
x
6
00 °C, a barrier layer such as titanium nitride ͑TiN͒ and
7
–9
tungsten nitride (WN ) jams in between them.
The W
x
film in the W/WN /poly-Si structure revealed a lower sheet
x
6
resistivity than that in the W/TiN/poly-Si structure. In addi-
tion, better oxide integrity at the edge of the W/WN /poly-Si
x
gate was shown compared with the W/TiN/poly-Si structure
after selective Si oxidation that was conducted for etch dam-
1
0
age recovery. However, WN is known to be unstable and
x
easily transform to W and nitrogen at temperatures above
8
00 °C, resulting in the formation of WSi at the interface of
x
W/WN and poly-Si during the next high-temperature pro-
x
1
1
cess, such as selective Si oxidation and dopant activation.
a͒
Electronic mail: wgate@hmec.co.kr
b͒
Present address: Department of Materials Science Engineering, Kongju
National University, 182 Shinkwan-Dong, Kongju City 314-701, Korea.
Present address: Basic Research Laboratory, Electronics and Telecommu-
nications Research Institute, Yusong P.O. Box 106, Taejon City 305-600,
Korea.
c͒
FIG. 1. Resistivity and x-ray diffraction spectra of WNx as a function of
nitrogen content in as-deposited film.
d͒
Present address: Applied Materials Inc., Santa Clara, CA 95054.
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
003-6951/2000/76(18)/2538/3/$17.00 2538 © 2000 American Institute of Physics
42.104.240.194 On: Tue, 16 Dec 2014 16:29:59
0
1

Appl. Phys. Lett., Vol. 76, No. 18, 1 May 2000
Lee et al.
2539
FIG. 2. X-ray diffraction spectra of W N /poly-Si ͑inset͒ and resistivity as
6
7
33
a function of RTA temperature in nitrogen for 1 min.

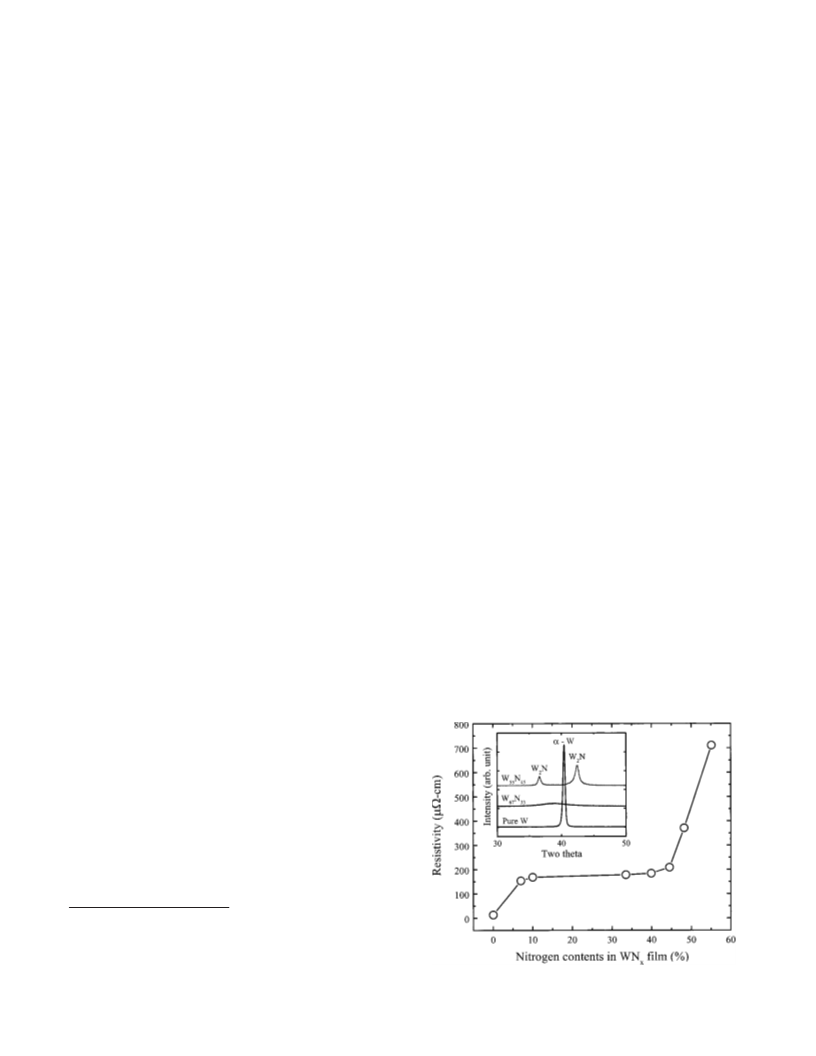

phase of the WN film as a function of the nitrogen content
x
in the as-deposited films. The resistivity of the WN films
x
increased gradually with increasing nitrogen content up to
about 10%, and then leveled off with further increments of
nitrogen content by 45%. With further increments of nitro-
FIG. 4. TEM micrograph of W67N33 on poly-Si after RTA at 1000 °C for 1
min: ͑a͒ uniform interface of a W/poly-Si structure and ͑b͒ amorphous layer
between W and poly-Si.
gen content, above 45%, the resistivity of the WN films was
drastically increased. In the case of 10%–45% of nitrogen
x
the as-deposited film was 175 ␮⍀ cm and decreased with
higher RTA temperatures. After RTA at 1000 °C for 1 min,
the resistivity was lowered to 15 ␮⍀ cm, which is compa-
rable to the value of the sputtered W, 13 ␮⍀ cm. As can be
seen in the inset of Fig. 2, the amorphous structure of the
content, the as-deposited WN was an amorphous structure,
x
as shown in the inset of Fig. 1. To the contrary, the WNx
films containing 50% of nitrogen were polycrystalline. Af-
folter reported that the amorphous WN film containing 33%
x
as-deposited W N films transformed to W N and ␣-phase
of nitrogen was easily crystallized into W N during vacuum
67 33
2
2
annealing at 600 °C for 30 min.11 Also, this WN film depos-
W after RTA at 600 °C. As the RTA temperature was in-
x
creased to 900 and 1000 °C, W N peaks disappeared and a
ited on SiO was transformed to a low-resistive ␣-phase W
2
2
new peak of ␣-phase W appeared. Also, higher RTA tem-
peratures yielded a higher peak intensity of ␣-phase W.
by annealing at 800 °C for 30 min, while the polycrystalline
WN film containing 50% of nitrogen was not completely
x
Therefore, we may insist that a lower resistance of W N
transformed to the ␣-phase W, even after annealing at
67 33
on poly-Si by RTA is mainly caused by the transformation of
8
00 °C. Therefore, WN films composed of W N were
x 67 33
amorphous WN films to ␣-phase W.
used in this work.
x
It is well known that W reacts easily with Si at tempera-

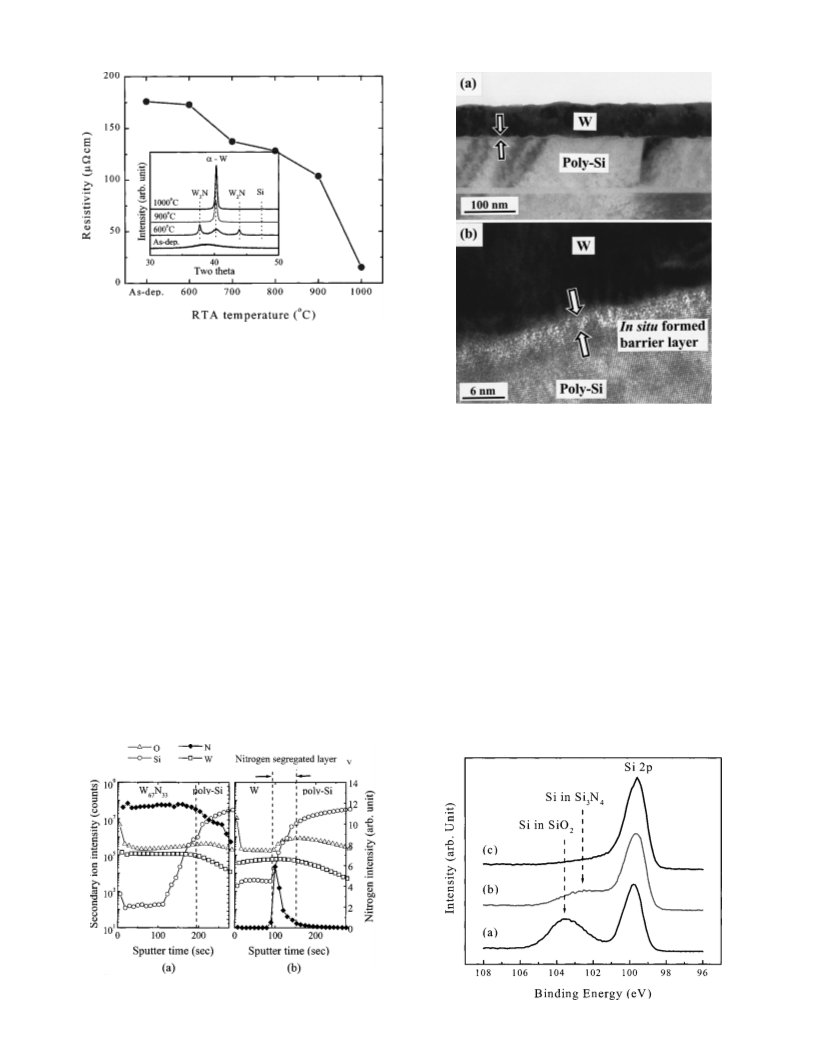

Figure 2 shows the resistivity of the W N film on
6
7
33
7
,8
tures above 600 °C, resulting in the formation of WSix .
poly-Si as a function of RTA temperatures. The resistivity of
However, it is interesting to note that we were not able to
FIG. 3. SIMS depth profiles of W N on a poly-Si substrate: ͑a͒ as-
6
7
33
deposited and ͑b͒ after RTA at 1000 °C. The intensities of nitrogen were
normalized by an intensity of ͑a͒ tungsten and ͑b͒ silicon indicated on the
FIG. 5. XPS spectra of W N on poly-Si after annealing at 1000 °C: ͑a͒
6
7
33
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
right-hand axis.
as-received, ͑b͒ after sputtering for 5 s, and ͑c͒ after sputtering for 10 s.
42.104.240.194 On: Tue, 16 Dec 2014 16:29:59
1

2540
Appl. Phys. Lett., Vol. 76, No. 18, 1 May 2000
Lee et al.
Si, the W layer was removed using a boiling H O solution,
2
2
before XPS analysis. Before sputtering the surface of the
sample, a strong peak of Si in the SiO peak was detected,
2
probably due to the oxide formed during the H O treatment.
2
2
However, a peak indicating the silicon nitride ͑Si–N͒ bond-
ing status was clearly seen after sputtering the sample for 5 s,
and a peak of pure silicon appeared with further sputtering.
This result implies that the segregated nitrogen has a Si–N
bonding status.
The thermal stability of the W N /poly-Si structure
6
7
33
treated by RTA at 1000 °C under nitrogen atmosphere was
evaluated at the annealing temperatures of 850, 1000, and
1
050 °C in a hydrogen environment for 2 min. It was found
that the RTA-treated W N /poly-Si structure was stable up
6
7
33
to 1000 °C for 2 min annealing, as shown in Fig. 6, due to
the nitrogen-segregated layer acting as a barrier between W
and poly-Si.
FIG. 6. X-ray diffraction spectra of the rapidly thermal annealed
W N /poly-Si structure after hydrogen annealing at temperatures of ͑a͒
67
33
8
50, ͑b͒ 1000, and ͑c͒ 1050 °C for 2 min.
In summary, the structure of W N /poly-Si converted
6
7
33
into ␣-phase W/nitrogen-segregated layer/poly-Si layers by
RTA at 1000 °C for 1 min. The ␣-phase W layer was used as
a low-resistive electrode, and the nitrogen-segregated layer at
the interface of W/poly-Si acted as an in situ formed diffu-
sion barrier, which successfully suppressed the silicidation
between W and poly-Si. The nitrogen-segregated layer was
an amorphous structure and revealed a Si–N bonding status.
observe any peaks on WSi with the samples tested, even
after high-temperature annealing at 1000 °C ͑Fig. 2͒. To in-
x
vestigate the causes of the lack of formation of WSi , the
x
behavior of nitrogen was investigated using SIMS analysis.
Ϫ3
Equilibrium solubility of nitrogen in W is about 10 at. %
at 1000 °C. This indicates that excessive nitrogen in the
W N films may be diffused out and also redistributed after
6
7
33
RTA at 1000 °C.
Figure 3 shows the SIMS depth profiles of tungsten,
oxygen, silicon, and nitrogen before and after RTA at
1
W.-K. Yeh, Y.-C. Shiau, and M.-C. Chen, J. Electrochem. Soc. 144, 214
͑
1997͒.
2
3
4
J. B. Lasky, J. S. Nakos, O. J. Cain, and P. J. Geiss, IEEE Trans. Electron
Devices ED-38, 262 ͑1991͒.
J. S. Byun, B. H. Lee, J.-S. Park, D. K. Sohn, S. J. Choi, and J. J. Kim, J.
Electrochem. Soc. 145, 3228 ͑1998͒.
H. Wakabayashi, T. Andoh, K. Sato, K. Yoshida, H. Miyamoto, T.
Mogami, and T. Kunio, Tech. Dig. Int. Electron Devices Meet., 447
͑1996͒.
M. T. Takagi, K. Miyashita, H. Koyama, K. Nakajima, K. Miyano, Y.
Akasaka, Y. Hiura, S. Inaba, A. Azuma, H. Koike, H. Yoshimura, K.
Suguro, and H. Ishiuchi, Tech. Dig. Int. Electron Devices Meet., 455
͑1996͒.
Y. Akasaka, S. Suehiro, K. Nakajima, T. Nakasugi, K. Miyano, K. Kasai,
H. Oyamatsu, M. Kinugawa, M. Takayanagi, M. Takagi, K, Agawa, F.
Matsuoka, M. Kakumu, and K. Suguro, Proceedings of the 12th Interna-
tional VLSI Multilevel Interconnection Conference ͑VMIC’95͒, Santa
Clara, CA ͑1995͒, p. 168.
W. A. Metz, N. J. Szluk, G. Miller, and H. O. Hayworth, IEEE Electron
Device Lett. EDL-6, 372 ͑1985͒.
C. W. Lee, Y. T. Kim, and J. Y. Lee, Appl. Phys. Lett. 64, 619 ͑1994͒.
S.-L. Zhang, R. Palmans, J. Keinonen, C. S. Petersson, and K. Maex,
Appl. Phys. Lett. 67, 2998 ͑1995͒.
1000 °C for 1 min. The intensities of nitrogen were normal-
ized by the intensity of tungsten and silicon on the right axis.
In the case of the as-deposited film, the concentration of
nitrogen was uniformly distributed in depth, but after RTA at
1000 °C, most of the nitrogen atoms were dissipated and par-
5
6
tially segregated at the W/poly-Si interface, as in Fig. 3͑b͒.
To evaluate the characteristics at the interface of the WNx
and poly-Si, TEM analysis was conducted with the sample
annealed at 1000 °C. As shown in Fig. 4͑a͒, the interface of
W and poly-Si was extremely uniform and there was no
layer of WSi . The nitrogen-segregated layer is clearly seen
x
in the high-resolution TEM photograph in Fig. 4͑b͒. The
thickness of the segregated layer was about 2 nm and the
structure was amorphous. From the analysis results of SIMS
and TEM, it may be concluded that the segregated layer acts
as a barrier protecting any interaction between W and poly-
Si, even at such a high RTA temperature of 1000 °C.
In order to identify the chemical bonding status of the
segregated layer, XPS analysis was performed ͑Fig. 5͒. To
avoid the ‘‘interface effect’’ at the interface of W and poly-
7
8
9
10
Y. Hiura, A. Azuma, K. Nakajima, Y. Akasaka, K. Miyano, H. Nitta, A.
Honjo, K. Tsuchida, Y. Toyoshima, K. Suguro, and Y. Kohyama, Tech.
Dig. Int. Electron Devices Meet., 389 ͑1998͒.
K. Affolter, H. Kattelus, and M.-A. Nicolet, Mater. Res. Soc. Symp. Proc.
47, 167 ͑1985͒.
11
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP:
42.104.240.194 On: Tue, 16 Dec 2014 16:29:59
1
